Manufacturer
Samsung
Model Number
UN85JU7100FXZA
Description
Led Tv,un85ju7100f,85,united States,uwj
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

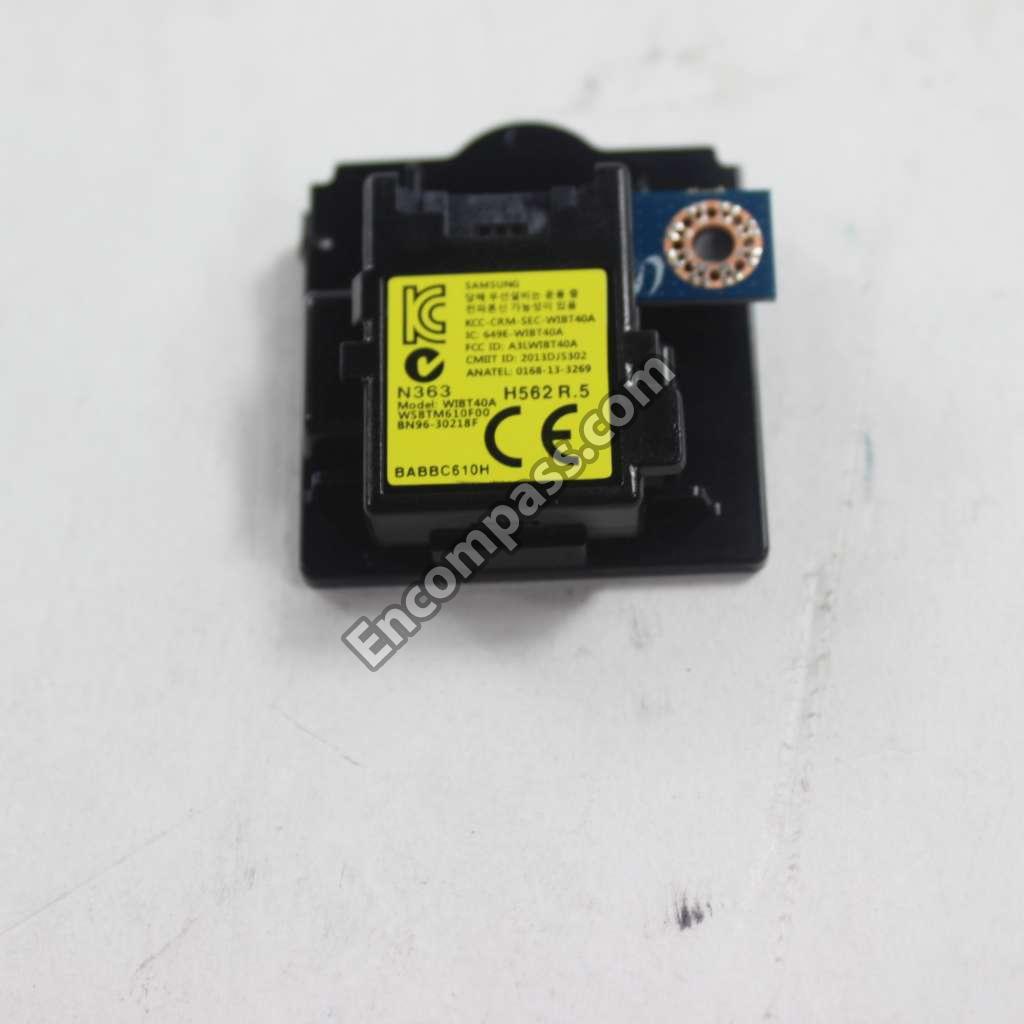

ASSEMBLY BOARD P-BT MODULE |
| BN96-32206B | ASSEMBLY BOARD P-IR FUNCTION |
| BN96-29508C | ASSEMBLY BOARD P-JOG FUNCTION |
|
|
ASSEMBLY BOARD P-ONE CONNECT M |
|
|
ASSEMBLY BOARD P-ONE CONNECT M |
| BN96-33301A | ASSEMBLY CHASSIS TOP P |
| BN96-33176A | ASSEMBLY COVER P-MIDDLE |
| BN96-37397A | ASSEMBLY COVER P-REAR |
| BN96-33179A | ASSEMBLY GUIDE P-STAND |
| BN96-36875B | ASSEMBLY INLET P |
|
|

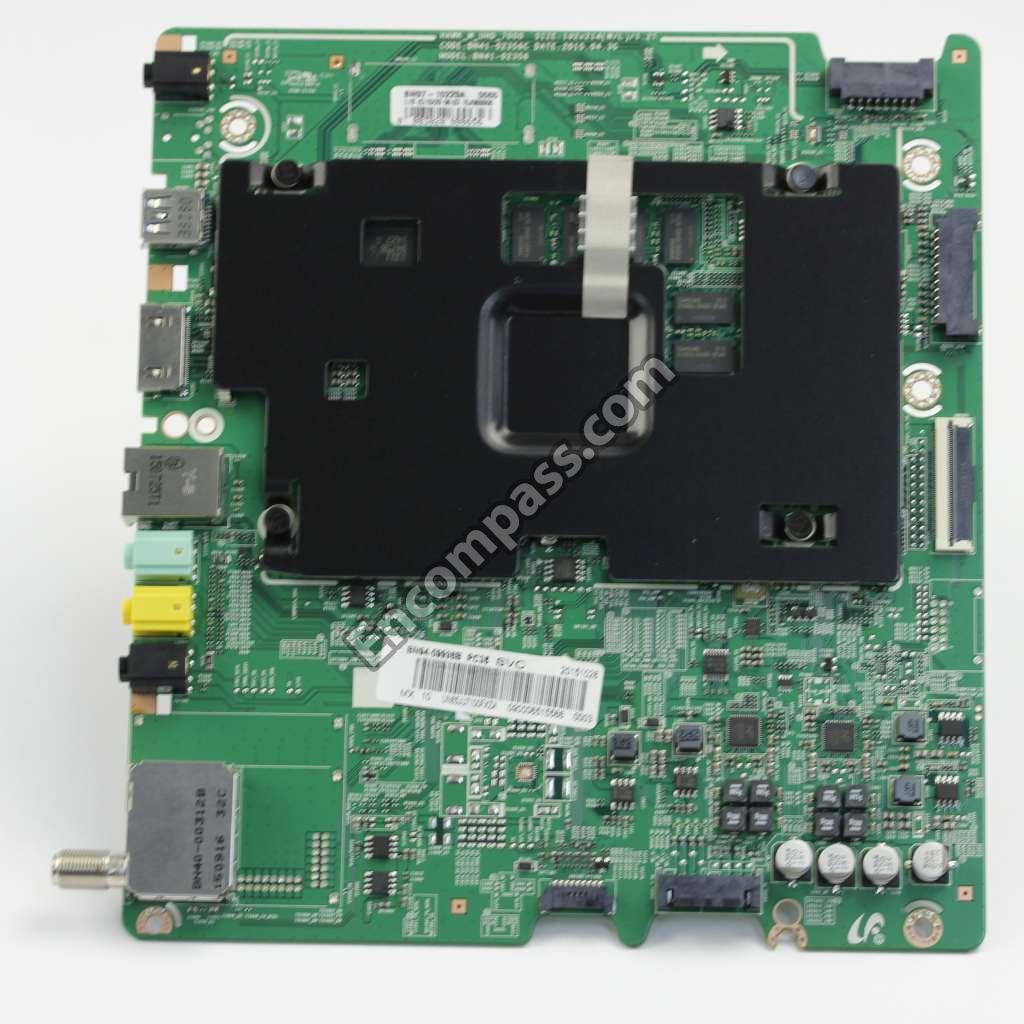

ASSEMBLY PCB MAIN |
|
|
ASSEMBLY PCB MAIN SUBCON |
| BN96-33363C | ASSEMBLY SPEAKER P-FRONT |
| BN96-38030A | ASSEMBLY STAND P-BOTTOM |
| BN96-38031A | ASSEMBLY STAND P-SET |
|
|

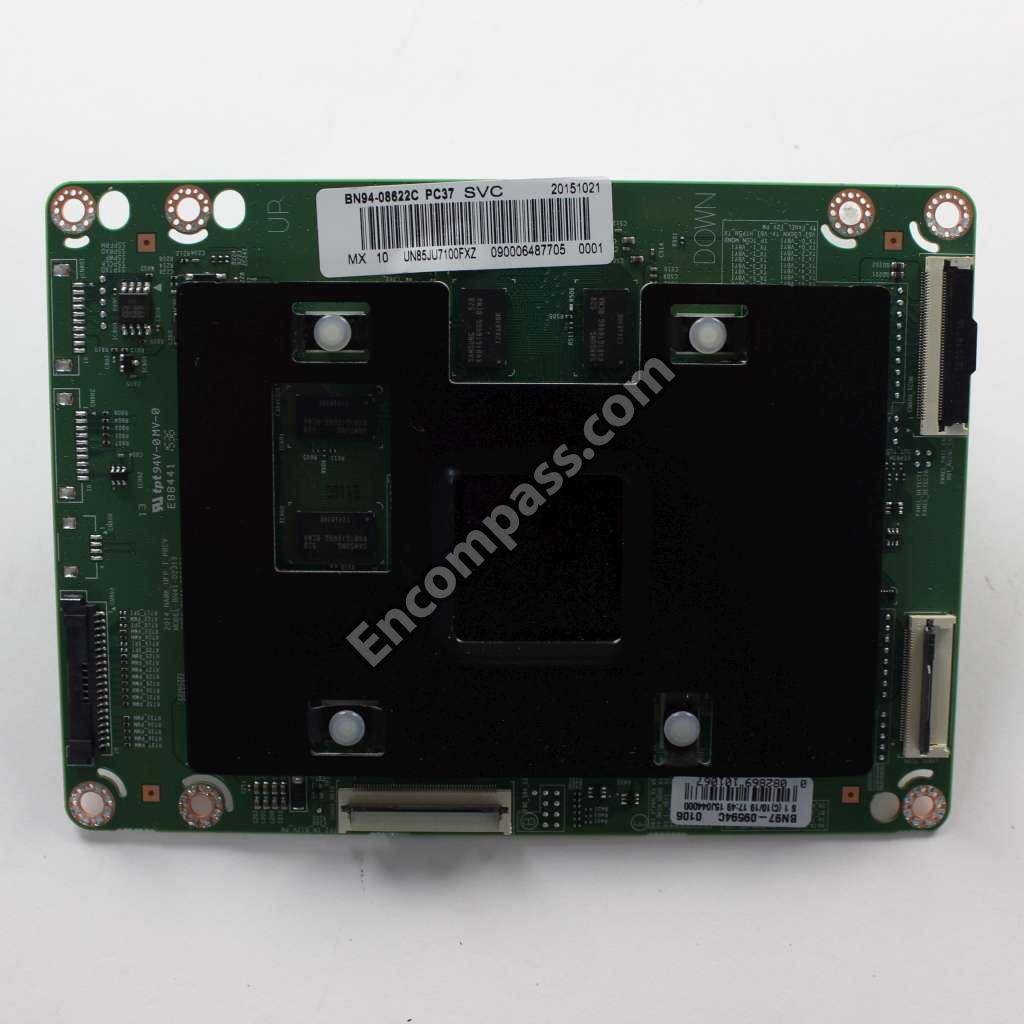

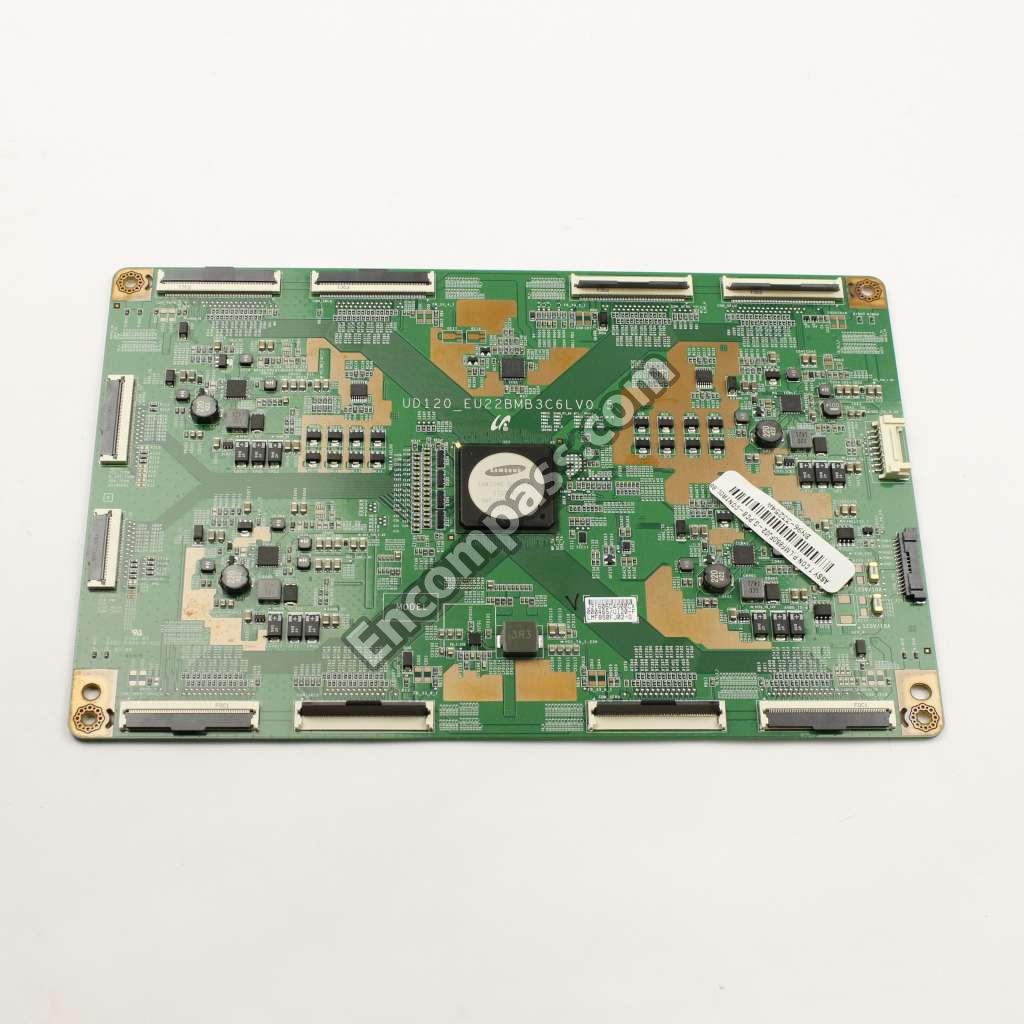

ASSEMBLY T CON P |
| 4301-000101 | BATTERY-ALKALINE |
|
|
BEAD-SMD |
| 3301-001364 | BEAD-SMD |
| 2402-001268 | C-AL,SMD |
| 2203-007544 | C-CER,CHIP |
| 2203-007535 | C-CER,CHIP |
| 2203-007513 | C-CER,CHIP |
| 2203-007306 | C-CER,CHIP |
| 2203-006992 | C-CER,CHIP |
| 2203-006698 | C-CER,CHIP |
| 2203-006460 | C-CER,CHIP |
| 2203-006348 | C-CER,CHIP |
| 2203-006158 | C-CER,CHIP |
| 2203-006126 | C-CER,CHIP |
| 2203-006048 | C-CER,CHIP |
| 2203-005968 | C-CER,CHIP |
| 2203-005344 | C-CER,CHIP |
| 2203-005249 | C-CER,CHIP |
| 2203-005083 | C-CER,CHIP |
| 2203-002711 | C-CER,CHIP |
| 2203-002285 | C-CER,CHIP |
| 2203-000975 | C-CER,CHIP |
| 2203-000627 | C-CER,CHIP |
| 2409-001338 | C-POLYMER ,CHIP |
|
|
CBF SIGNAL |
|
|
CBF SIGNAL |
|
|
CBF SIGNAL-OCM |
| 3903-000863 | CBF-POWER CORD |
| 3708-003183 | CONNECTOR-FPC/FFC/PIC |
|
|
CONNECTOR-SOCKET |
| BN63-04755B | COVER-SHEET |
| 2801-005324 | CRYSTAL-SMD |
| 2801-004477 | CRYSTAL-SMD |
|
|
DC VSS-PD BOARD |
| 0404-001404 | DIODE-SCHOTTKY |
| 0401-001056 | DIODE-SWITCHING |
| 0406-001691 | DIODE-TVS |
| 0406-001635 | DIODE-TVS |
| 0406-001628 | DIODE-TVS |
| 0406-001556 | DIODE-TVS |
| 0403-001164 | DIODE-ZENER |
| BN73-00211A | ELEMENT-SILICON/RUBBER-GAPPAD |
| 0505-003507 | FET-SILICON |
| 0505-003397 | FET-SILICON |
| 0505-002893 | FET-SILICON |
| 0505-002598 | FET-SILICON |
| 0505-001844 | FET-SILICON |
|
|

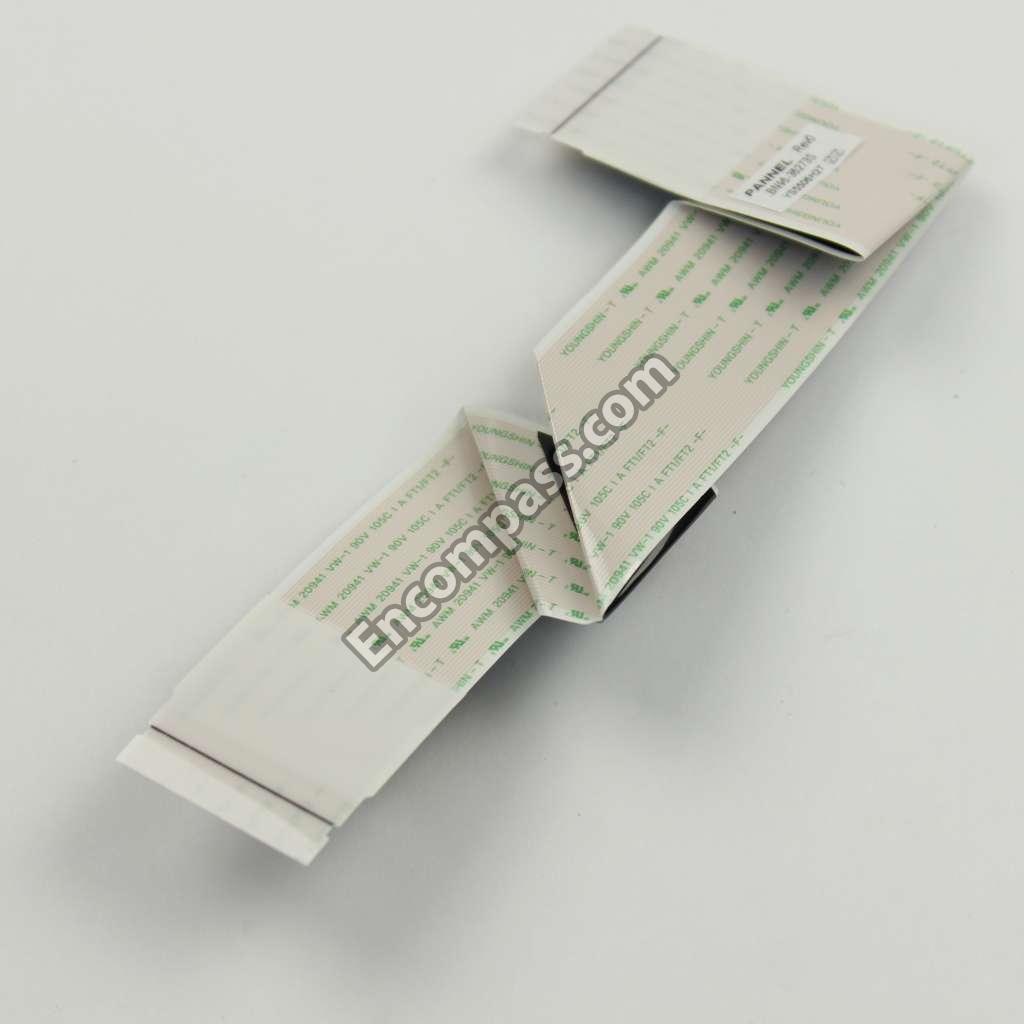

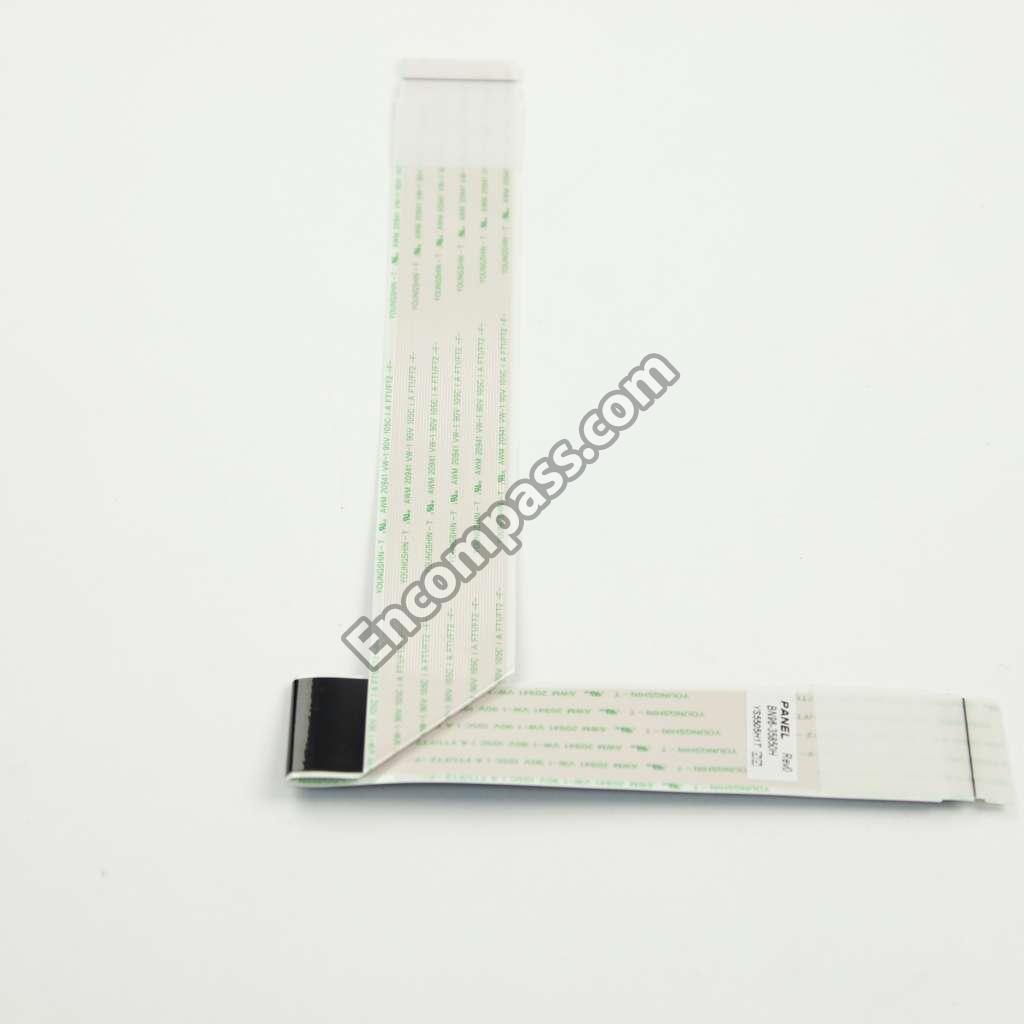

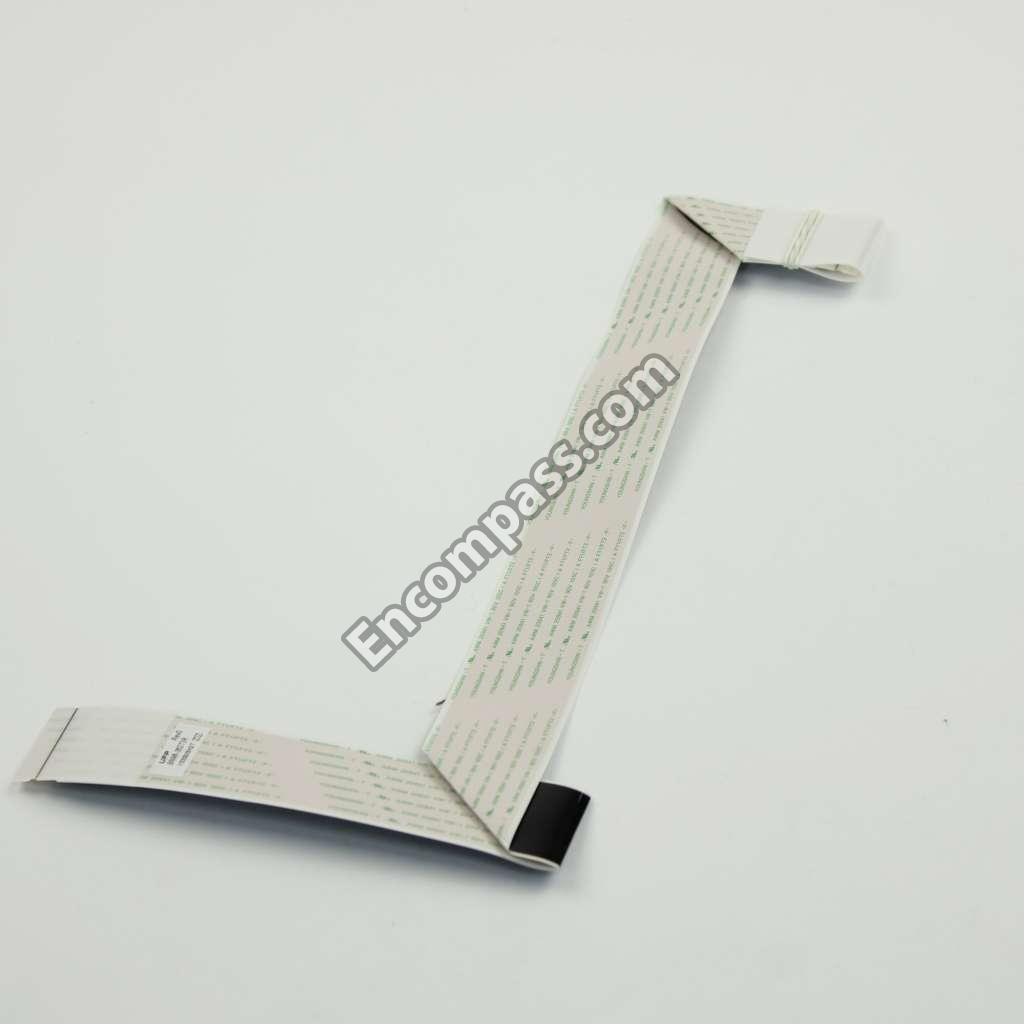

FFC CABLE |
|
|
FFC CABLE |
|
|
FFC CABLE |
| BN73-00052C | FOOT RUBBER |
|
|
FUSE-SURFACE MOUNT |
| BN63-04009A | GASKET |
| BN63-00520A | GASKET |
| AA63-01044A | GASKET |
| BN63-07188A | GASKET-EMI |
| AA63-01387A | GASKET-EMI, SPONGE |
| 3711-008690 | HEADER-BOARD TO CABLE |
| 3711-008659 | HEADER-BOARD TO CABLE |
| 3711-008454 | HEADER-BOARD TO CABLE |
| 3711-008422 | HEADER-BOARD TO CABLE |
| BP62-00047A | HEAT SINK-ES |
| AA61-20285C | HOLDER-BOX |
| 1201-003891 | IC-AUDIO AMP |
| 0801-002780 | IC-CMOS LOGIC |
| 1203-008454 | IC-DC/DC CONVERTER |
| 1203-008391 | IC-DC/DC CONVERTER |
| 1203-008183 | IC-DC/DC CONVERTER |
| 1203-008118 | IC-DC/DC CONVERTER |
| 1203-008082 | IC-DC/DC CONVERTER |
| 1203-007694 | IC-DC/DC CONVERTER |
| 1203-007018 | IC-DC/DC CONVERTER |
| 1203-008393 | IC-DDR TERMINATION REG. |
| 1105-002534 | IC-DDR3 SDRAM |
| 1105-002528 | IC-DDR3 SDRAM |
| 1204-003660 | IC-DECODER |
| 1006-001576 | IC-DRIVER/RECEIVER |
| 1103-001564 | IC-EEPROM |
| 1107-002357 | IC-EMMC |
| 1107-002265 | IC-NOR FLASH |
| 1107-002226 | IC-NOR FLASH |
| 1201-000166 | IC-OP AMP |
| 1203-008023 | IC-POSI.ADJUST REG. |
| 1203-007707 | IC-POSI.ADJUST REG. |
| 1203-006330 | IC-POWER SUPERVISOR |
|
|
IC-SENSOR |
| 1205-004983 | IC-SWITCH |
| 1205-004610 | IC-SWITCH |
| 1204-003609 | IC-VIDEO PROCESS |
| 1203-008392 | IC-VOL. DETECTOR |
| 1203-004364 | IC-VOL. DETECTOR |
| 1203-004363 | IC-VOL. DETECTOR |
| 2703-005194 | INDUCTOR-SMD |
| 2703-005193 | INDUCTOR-SMD |
| 2703-005192 | INDUCTOR-SMD |
| 2703-004847 | INDUCTOR-SMD |
| 2703-004724 | INDUCTOR-SMD |
| 2703-004589 | INDUCTOR-SMD |
| 2703-003937 | INDUCTOR-SMD |
| 2703-003713 | INDUCTOR-SMD |
| 3722-003199 | JACK-MODULAR |
| 3722-003666 | JACK-PHONE |
| 3722-003665 | JACK-PHONE |
| 3722-003657 | JACK-PHONE |
| 3722-003837 | JACK-USB |
| BN68-00513A | LABEL-E, PASS |
| BN39-01940A | LEAD CONNECTOR |
| BN39-01939B | LEAD CONNECTOR |
| BN39-01917E | LEAD CONNECTOR-DIMMING |
|
|

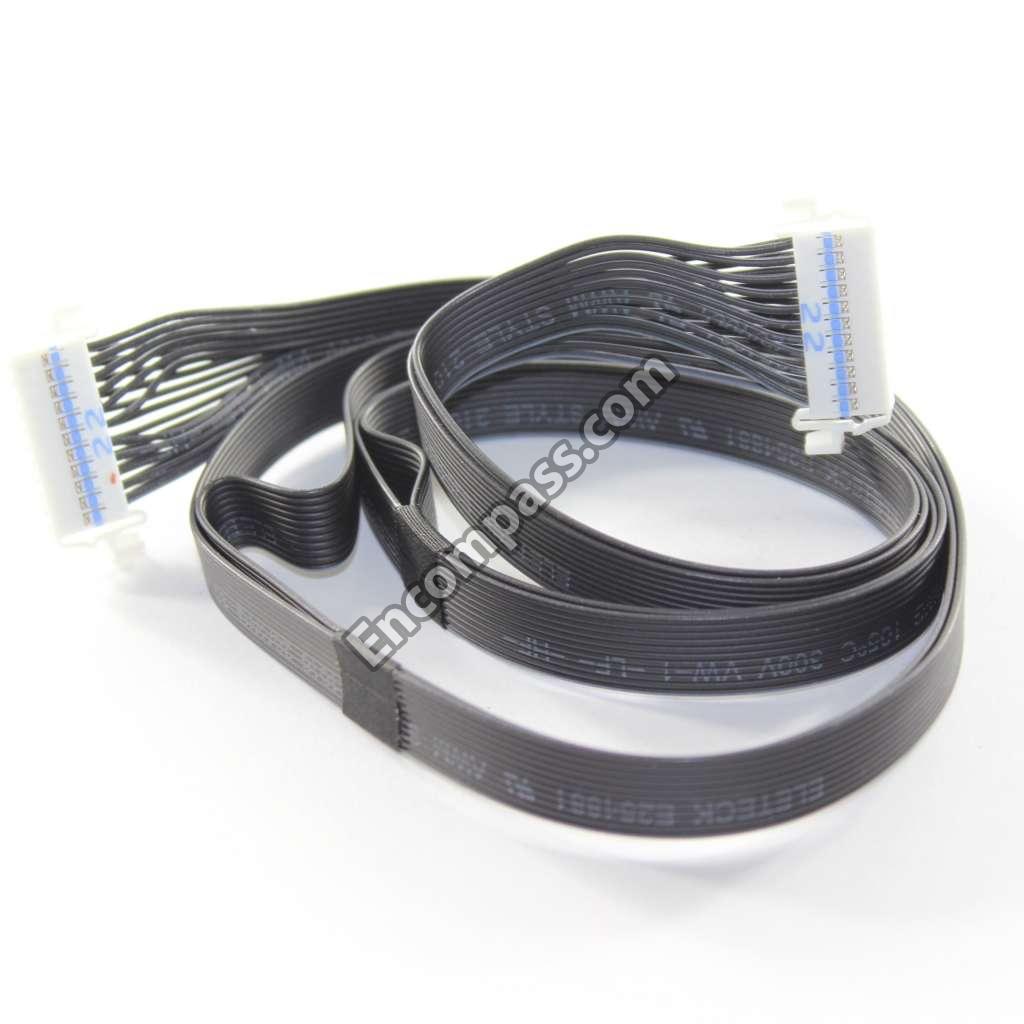

LEAD CONNECTOR-POWER |
| BN39-02130A | LEAD CONNECTOR-SUB ASSEMBLY |
| BN39-02129A | LEAD CONNECTOR-SUB ASSEMBLY |
| BN39-02070H | LEAD CONNECTOR-SUB ASSEMBLY |
|
|

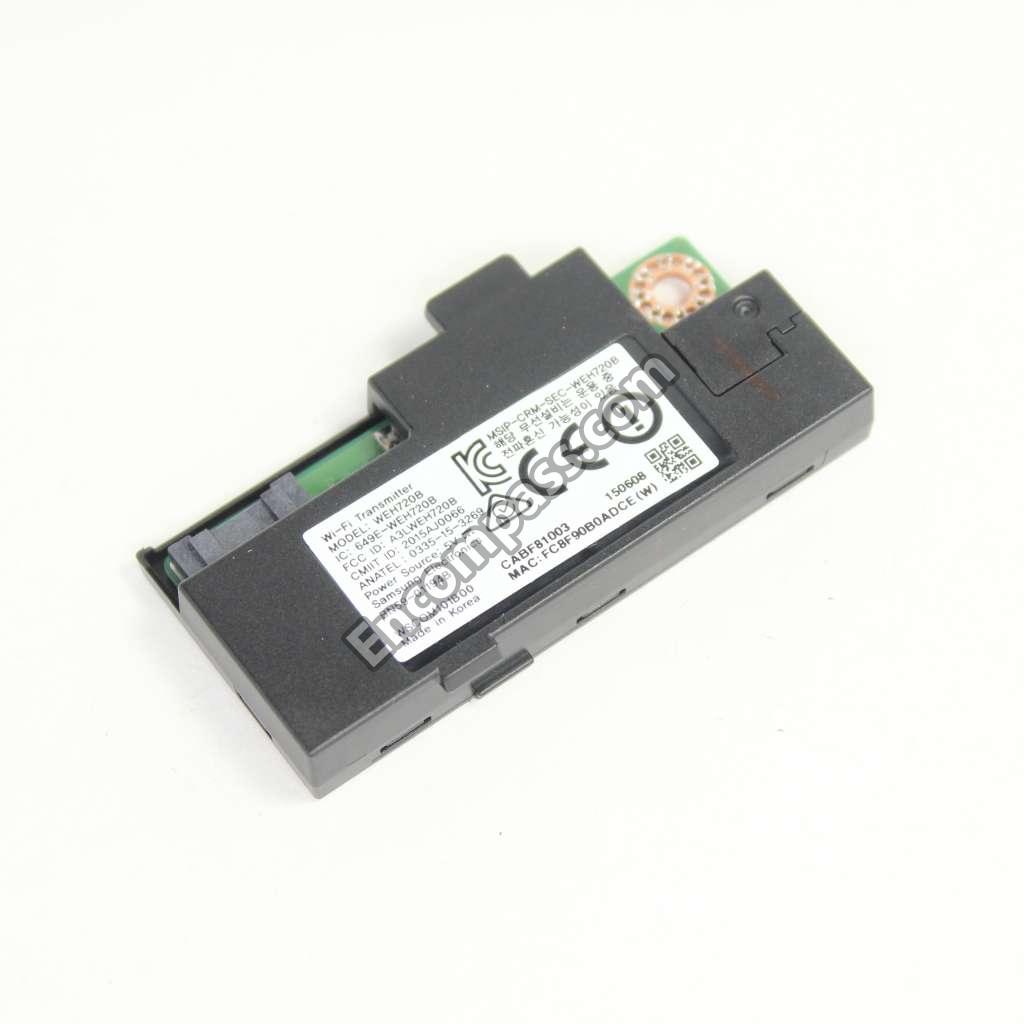

NETWORK-WIFI MODULE |
| BN62-00481A | PAD GAP |
|
|
PRODUCT LCD-SDC |
| 2007-010387 | R-CHIP |
| 2007-009777 | R-CHIP |
| 2007-008332 | R-CHIP |
| 2007-008298 | R-CHIP |
| 2007-008015 | R-CHIP |
| 2007-007942 | R-CHIP |
| 2007-007842 | R-CHIP |
| 2007-007767 | R-CHIP |
| 2007-001168 | R-CHIP |
| 2007-001139 | R-CHIP |
| 2007-001125 | R-CHIP |
| 2007-000999 | R-CHIP |
| 2007-000772 | R-CHIP |
| 2007-000695 | R-CHIP |
| 2007-000683 | R-CHIP |
| 2007-000614 | R-CHIP |
| 2007-000583 | R-CHIP |
| 2007-000239 | R-CHIP |
| 2007-000109 | R-CHIP |
| 2011-001587 | R-NETWORK |
| 2011-001449 | R-NETWORK |
|
|
REMOTE CONTROL |
|
|
SCREW-MACHINE |
|
|
SCREW-MACHINE |
| 6001-003005 | SCREW-MACHINE |
|
|
SCREW-MACHINE |
| 6001-002789 | SCREW-MACHINE |
|
|
SCREW-MACHINE |
|
|
SCREW-MACHINE |
| 6003-001806 | SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
| 6003-000264 | SCREW-TAPTYPE |
| AA63-60131S | SPACER-FELT |
| AA60-00091G | SPACER-FELT |
| BN60-00162W | SPACER-FOAM |
| 0504-000126 | TR-DIGITAL |
| 0501-000465 | TR-SMALL SIGNAL |
| 0501-000445 | TR-SMALL SIGNAL |
|
|
TUNER |
|
|
VARISTOR |
