Manufacturer
Samsung
Model Number
WA52DG5530AWA4
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 0201-002818 | ADHESIVE-HR;GB-288L,IVORY,16,0 |
| DC98-02985A | ASSEMBLY ACCESSORY;ATV-PJT,ALL MODEL |
| DC97-21552B | ASSEMBLY BALANCER;A2 PJT,WA7000R,LIQUID BALA |
| DC97-21503B | ASSEMBLY BASE;A2-PJT,HIGH BASE,PUMP,36HS |
| DC97-22349D | ASSEMBLY BASKET SPIN-MODULE;WA5500D,5.2CU.FT |
| DC97-19312D | ASSEMBLY BODY DETERGENT;WA8700K,SCREWLESS |
|
|
ASSEMBLY BUTTON TACT;WA7000A,HONESTY BLUE LI |
| DC97-18313A | ASSEMBLY CAP V.W;UBS2 US,WB09H7300GP |
| DC97-21515V | ASSEMBLY CASE DETERGENT;WA7000 |
|
|
ASSEMBLY CLUTCH-MODULE;FDDM,30F,MAX 800,5.1K |
|
|
ASSEMBLY COVER BACK;HUDSON WASHER,WA456DRHDW |
| DC97-22219L | ASSEMBLY COVER BASE;A2-PJT,HIGH BASE,36HS,12 |
| DC97-21522D | ASSEMBLY COVER PANEL;A2-PJT,SEHA,NEAT WHITE, |
|
|
ASSEMBLY CUSHION PUMP;F900A,F900A,OD27.0 |
| DC97-16350Y | ASSEMBLY DAMPER;A2,WA52A5500AW/US,11KGF,0.42 |
| DC93-00309C | ASSEMBLY DD BLDC MOTOR-MODULE;HUDSON,SDM700, |
| DC90-30941E | ASSEMBLY FRAME PARTS;WA5500D,HIGH BASE,NEAT |
| DC97-22353C | ASSEMBLY FRAME PLATE-UP;WA5500D,GI-SGCC+PU F |
| DC94-07489A | ASSEMBLY HEAT SINK 1;BRIDGE DI |
| DC97-19221C | ASSEMBLY HINGE;WA8700K,NEAT WH |
|
|

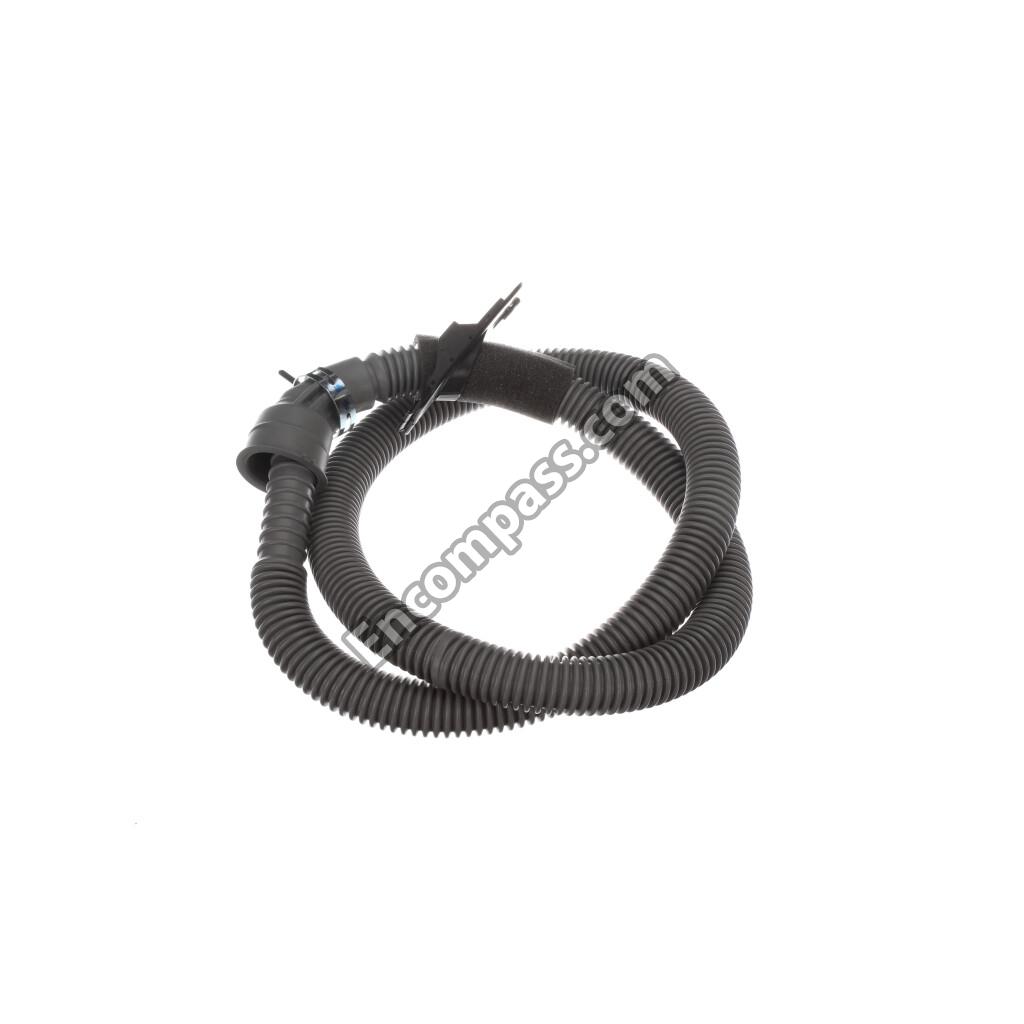

ASSEMBLY HOSE DRAIN;A2-PJT,WA50R5400,L1790,I |
| DC97-21510P | ASSEMBLY LID T.C-MODULE;A2 GLOBAL,NEAT WHITE |
| DC97-24604A | ASSEMBLY LID;A2 GLOBAL,ENG,FRENCH,SPN,POR,NE |
| DC92-02337B | ASSEMBLY MICOM;A1A2 PANEL R5F100LG |
|
|
ASSEMBLY MODULE;HW,JOG MODULE,A PJT,CYCLE 12 |
|
|
ASSEMBLY NOZZLE;WA7000R,WA54R7600A*,PM GRAY, |
| DC97-24130J | ASSEMBLY PANEL CONTROL;WA5500D,5.2CU.FT,ENG, |
| DC97-24129Z | ASSEMBLY PANEL;WA5500D,5.2CU.FT,ENG,NEAT WHI |
| DC92-03846A | ASSEMBLY PBA MODULE;SW,OWM_INV,WA5500D,WIFI( |
| DC94-15705E | ASSEMBLY PCB EEPROM;0089,WA5500D,120V,US,5.2 |
|
|
ASSEMBLY PULSATOR-MODULE;A2-PJT,WA50R5200AW |
|
|
ASSEMBLY PUMP DRAIN;A2 PJT,AL COIL,120V,60HZ |
| DC97-17430A | ASSEMBLY SCREW;F900A |
|
|

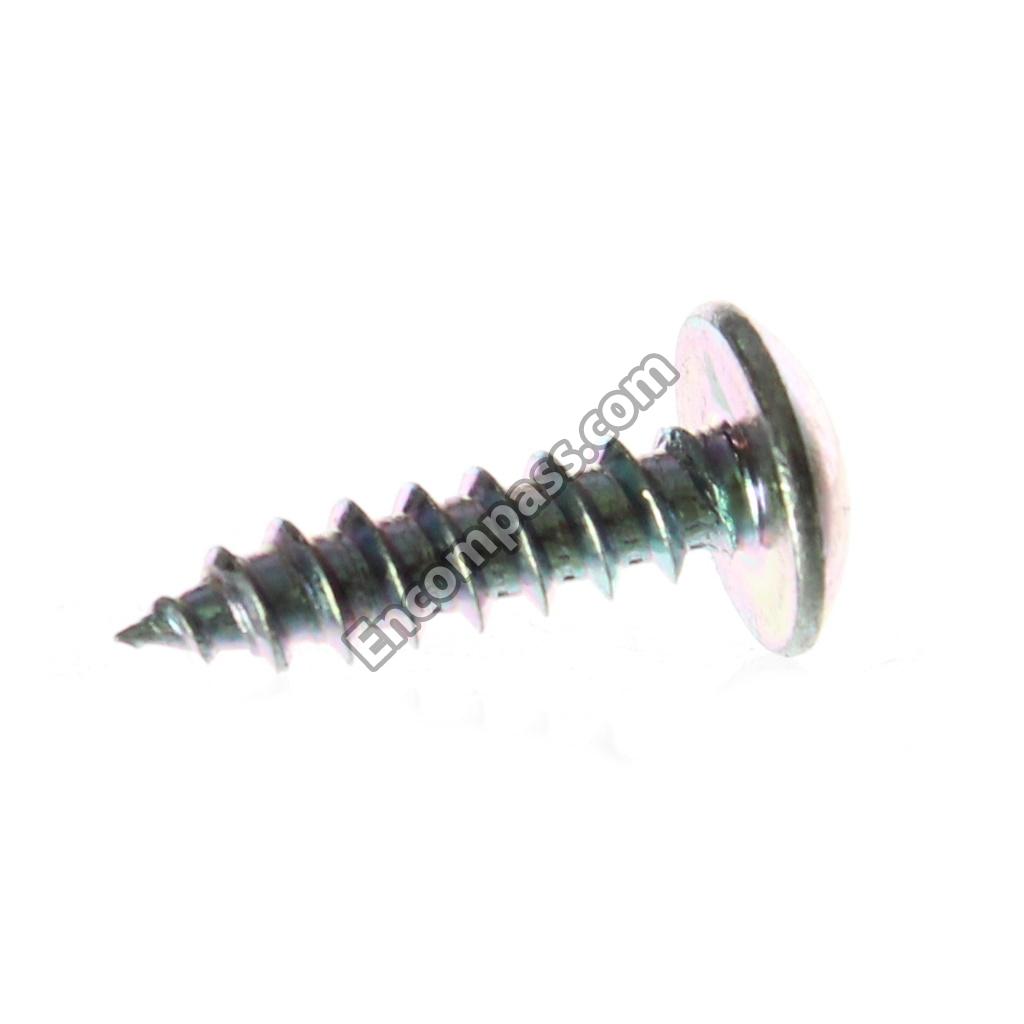

ASSEMBLY SCREW;WF203,M4/L16 |
| DC97-24145S | ASSEMBLY SEMI COVER TOP;WA5500D,5.2CU.FT,ENG |
|
|

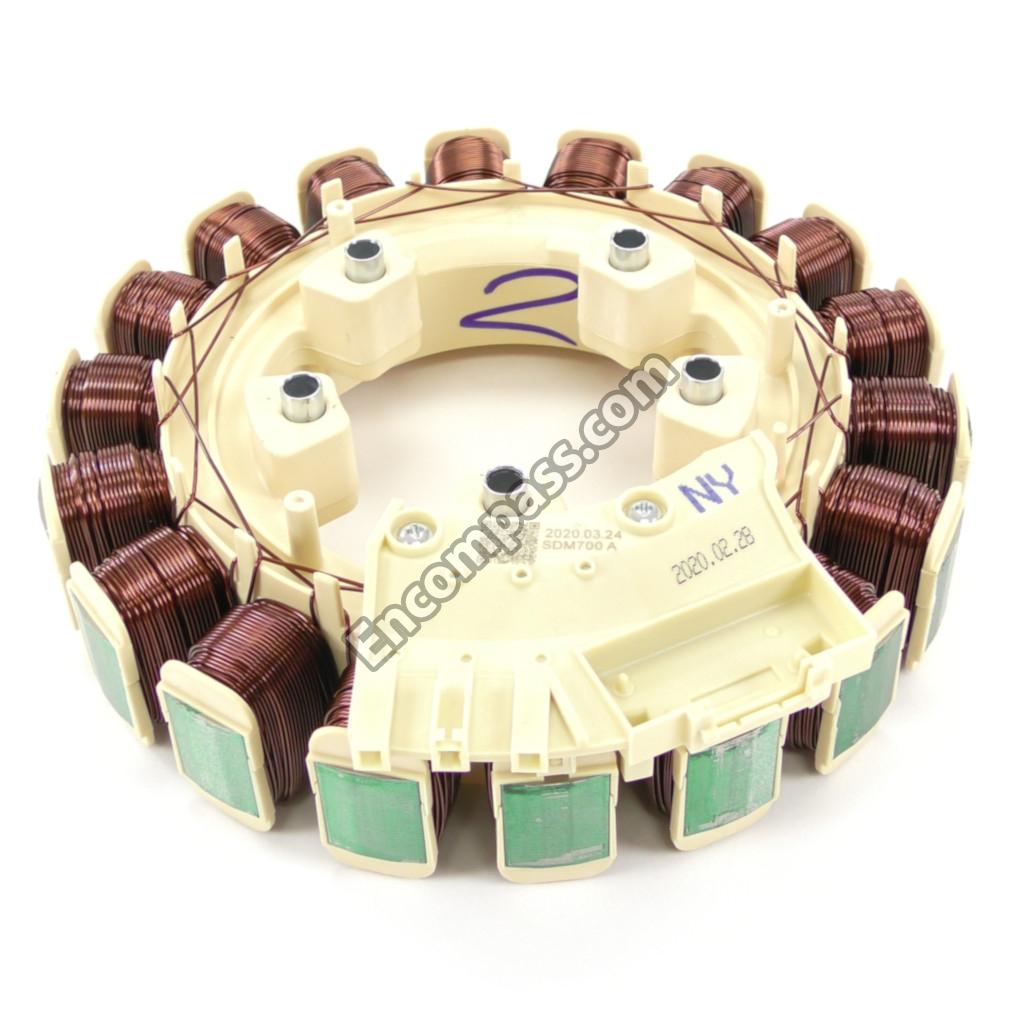

ASSEMBLY STATOR;SDM700 A,25,191.2 |
|
|
ASSEMBLY SWITCH-TACT;A2-PJT, D-ON,12V,TACT |
| DC97-21559B | ASSEMBLY TUB SUB;WA7000R,PP,NATURAL,F-DDM,NO |
| DC93-01102A | ASSEMBLY WIRE HARNESS-MAIN;AUTO,WA25DG5505AV |
| DC93-00398C | ASSEMBLY WIRE HARNESS-PBA;DRYER-M,10P, 200MM |
| DC93-00809A | ASSEMBLY WIRE HARNESS-PUMP;AUT |
| 6902-000286 | BAG PE;LDPE,T0.03,W200,L300,TRP,RECYCLE+ |
| 6902-000266 | BAG PE;LDPE,T0.03,W800,L900,TRP,RECYCLE+ |
| DC61-04711A | BALANCER-LOW;WA50P7250A*,WA50P |
| DC61-04710A | BALANCER-UP;WA50P7250A*,WA50P7 |
| DC61-04702A | BASE;WA7650,PP,-,BLACK,-,HB,SSPP-640,BK0 |
| DC61-05379C | BASKET WRAPPER;WA5300D,STS430LX,T0.5,-,- |
| 3301-002113 | BEAD-SMD;470 OHM/100MHZ 470 OH |
| DC61-04066C | BODY DETERGENT;WA8700J / WA7700J,PP+TD30 |
| DC61-04930A | BODY DRAWER;WA54P7650AW,ABS,NE |
|
|
BOLT PULSATOR;AUTOMATIC 8-10KG,STS430,T2 |
|
|
BOLT-ETC;M6,L45,ZPC(WHT),HH,SOCKET,SCM43 |
|
|
BOLT-HEX;M6.0,L40.1,ZPC(WHT),SWRCH10A |
| 6009-001780 | BOLT-HEX;M7.15,L29.5,ZPC(WHT),HWH,+,SWRC |
|
|
BRACKET PUMP;PP+TD30%,PP+TD30%,NATURAL |
| DC61-03946B | BUSH HOSE;WA50R5400,TPE,DARK H |
| DC66-20042A | BUSH-PULSATOR |
| DC64-04057C | BUTTON PUSH;WA7000A,PP+TD30%,H |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2402-001368 | C-AL,SMD;47UF,20%,25V,TP,6.3X4.9MM |
| 2401-004519 | C-AL;2200UF,20%,25V,TP,12.5X25 |
| 2401-006198 | C-AL;470UF,20%,250V,WT,BK,25.4 |
| 2401-004008 | C-AL;470UF,20%,35V,TP,10X20MM, |
| 2203-010142 | C-CER,CHIP |
| 2203-006457 | C-CER,CHIP |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007456 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1005,T0.5, |
| 2203-007486 | C-CER,CHIP;1UF,10%,50V,X5R,TP,1608,T0.8, |
| 2203-010495 | C-CER,CHIP;2.2UF,10%,25V,X7R,T |
| 2203-010033 | C-CER,CHIP;220NF,10%,25V,X5R,T |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-010496 | C-CER,CHIP;4.7UF,10%,25V,X7R,T |
| 2201-002429 | C-CERAMIC,DISC;10NF,+80-20%,20 |
| 2201-002688 | C-CERAMIC,DISC;2.2NF,20%,400VA |
| 2201-002709 | C-CERAMIC,DISC;33PF,5%,1000V,S |
| 2301-002011 | C-FILM,LEAD-PPF;2.2NF,5%,630V, |
| 2301-001899 | C-FILM,LEAD;100NF,5%,630V,TP,18X12X8MM,7 |
| DC01-00520A | C/STEEL;GI-SGCC,NEAT WHITE,0.7 |
| DC61-00553B | CABLE CLAMP;DAWS-3NE,PA66,NTR |
| DC65-20010A | CABLE CLAMP;PA66,NTR,DA-9N-1 |
| 6501-000121 | CABLE TIE;DA-368,PA66,NTR,T1.5,W7.6,L0.3 |
| DC67-01156C | CAP DETERGENT;WA7000A,PP+TD30% |
| DC67-01157C | CAP RINSE;WA7000A,PP+TD30%,T1. |
| DC67-01038B | CAP SCREW;WA54P7650AW,SI,WHITE,WT0001 |
| DC67-00784A | CAP V.W;PP,T2,BJ750,BLACK |
| DC61-10533A | CAP-TRIP |
|
|
CASE PUMP;HUDSON WASHER,PP,NATURAL,FH44N |
| DC61-04892A | CASE SWITCH DOOR;WA54P7650AW,PP+TD30%,T2 |
| DC02-10043A | CHEMICALS-COMM SALT |
| DC02-10024A | CHEMICALS-GREASE;ALVANIA#2,ALVANIA#2 |
| DC02-10013A | CHEMICALS-S.GREASE |
| DC02-10042A | CHEMICALS-WATER |
| DC65-00038A | CLAMPER HOSE-FIX;HUDSON WASHER,PP,NATURA |
| DC65-00014C | CLAMPER HOSE-JOINT;F900A,HSWR,WHITE,-,-, |
| DC61-00219P | CLAMPER HOSE;-,SK5,ID33,T1.2,Z |
| DC65-00051A | CLAMPER HOSE;A2-PJT,SK5,-,-,-,-,ID7.7,T0 |
| DC65-00027D | CLAMPER HOSE;ATV,SK5,NATURAL,Z |
| DC65-00047A | CLAMPER HOSE;BIG AUTO,PP,NATURAL,-,-,BJ7 |
| DC61-01136A | CLAMPER HOSE;F1235J,SK5,-,-,-,-,ID14.8,T |
| 3711-004826 | CONNECTOR-HEADER |
| 3711-000744 | CONNECTOR-HEADER |
| 3712-001047 | CONNECTOR-TERMINAL;BK,MALE,BRASS,14.5MM, |
|
|
COVER BACK;HUDSON,GI-SGCC,T0.35 |
| DC63-02093C | COVER CONNECTOR;ALL,PP,-,HB,BLACK,-,P-00 |
| DC63-01432C | COVER FILTER;WA456DRHDWD,ABS,T2.5,5VA,NA |
| DC63-01579C | COVER GUIDE WIRE;A2 PJT,PP,T2,-,BLACK,-, |
| DC63-02444A | COVER PBA-SUB;A2 PJT,ABS,T2.5, |
| DC63-02340A | COVER PBA-SUB;A2 PJT,ABS,T2.5, |
| DC63-02343F | COVER TOP;A2 PJT,ABS,T3,-,NEAT WHITE,-,G |
| DC63-02789A | COVER TUB;WA5000A,PP+TD30%,T2.5,HB,KTL G |
| 2801-004912 | CRYSTAL-SMD;8MHZ,50PPM,SX-1,22 |
| DC69-02552A | CUSHION BALANCER;A2 PJT,EPS,W5 |
| DC69-01931B | CUSHION CORNER-FRONT;WA8700K,E |
| DC69-01932C | CUSHION CORNER-REAR;WA8700K,EP |
| DC63-01577A | CUSHION LID;F700K,SI,-,D9.1,-,NEAT WHITE |
|
|
CUSHION PUMP-LEFT;F900A,EPDM,T |
| DC63-01395A | CUSHION-PUMP(C);F900A,EPDM,D27 |
| 0402-001224 | DIODE-BRIDGE;TS15P05G,D15XB60,D15SB60,60 |
| 0402-001472 | DIODE-RECTIFIER |
| 0402-001741 | DIODE-RECTIFIER;S1M,1000V,1A,S |
|
|
DIODE-RECTIFIER;US1M,1000V,1A,SMA,TP |
| 0404-001991 | DIODE-SCHOTTKY;MBR20200CD,200V |
| 0404-001250 | DIODE-SCHOTTKY;RB520G-30,30V,100MA,SOD-7 |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-000132 | DIODE-SWITCHING;BAV99,75V,50MA,SOT-23,TP |
| 0407-000113 | DIODE-SWITCHING;BAW56,70V,200MA,SOT-23,T |
| 0406-001239 | DIODE-TVS;RCLAMP0502BA,6V,SOT-523,125W,T |
| 0406-001865 | DIODE-TVS;SMBJ17CA,18.9V,20.9V |
| 0403-000461 | DIODE-ZENER;PTZ18A,18V,16.8/19.1V,1000MW |
| DC64-03819B | DOOR LID COVER;WA7000R,PP+TD30 |
| DC64-03821B | DOOR LID T.C;WA7000R,ABS,T3,HG |
|
|
FASTENER-SPRING;HUDSON,MSWR,T2.8,-,-,- |
| 0505-000110 | FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0. |
| 0505-001943 | FET-SILICON;FDN342P,P,20V,2A,0 |
|
|
FILTER LINE;-,-,-,15MH/22.5MH,15MH,53*82 |
| DC60-00067C | FLANGE SHAFT;F900A,ALDC12,-,OD381,-,-,- |
| 0204-004665 | FLUX;KSP-70M-S,MIXTURE,NO,FLUX |
| DC61-04967A | FRAME CORNER-FRONT LEFT;WA50R5 |
| DC61-04968A | FRAME CORNER-FRONT RIGHT;WA50R |
| DC61-03294A | FRAME CORNER-REAR LEFT;HUDSON, |
| DC61-03295A | FRAME CORNER-REAR RIGHT;HUDSON |
| DC61-04703A | FRAME;WA7650,GI-SGCC,NEAT WHIT |
| 3601-001437 | FUSE-AXIAL LEAD;250V,8A,TIME-LAG,BK,5.2X |
| 3601-001674 | FUSE-RADIAL LEAD;250V,2.5A,TIM |
| DC66-00846A | GEAR INTERNAL;WA-9000HA,POM,12,NATURAL,1 |
| 0205-001245 | GREASE-SILICON |
| DC61-05873A | GUIDE COVER PCB;WA5300D,ABS,-,5VA,VE-085 |
| DC61-05396C | GUIDE DETERGENT;WA7000A,PP+TD3 |
| DC61-04875A | GUIDE ENCODER;A2 PJT,ABS,T2.5, |
| DC61-03948C | GUIDE HOSE;ALL ATV,PP,T3,RM60C |
| DC61-03947C | GUIDE HOSE;ATV,PP,T3,RM60C,BLA |
| DC61-03853A | GUIDE RAIL-L;WA56H9000AP/A2;WA |
| DC61-03854A | GUIDE RAIL-R;WAH9000AW/A2;WAH9 |
| DC61-04099A | GUIDE WATER;WA7700K,PP+TD30%,T |
| DC61-00224C | HANGER CLAMPER;27 GLOBAL,PP,T |
| 3711-005706 | HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,5P, |
| 3711-009410 | HEADER-BOARD TO CABLE;BOX,28P, |
| 3711-007174 | HEADER-BOARD TO CABLE;BOX,3P,1 |
| 3711-009224 | HEADER-BOARD TO CABLE;BOX,5P,1 |
| DC62-00276A | HEAT SINK;AL,11,35,WHITE,30,AC |
| DC61-04873B | HINGE DOOR;WA7000R,POM,T2,K300 |
| DC61-04876B | HINGE-LEFT;WA7000R,POM,T3.2,NE |
| DC61-04872B | HINGE-RIGHT;WA7000R,POM,T3.2,N |
| DC61-04353A | HOLDER HOSE;WA8700M,PP,T1.5,NA |
| DC67-01057A | HOSE DRAIN-IN;A2 PJT,EPDM,ID44 |
| DC67-00808B | HOSE DRAIN;WA50R5400,PP,ID25,T |
| DC67-00051Q | HOSE DRAWER;Q1636GW/XEU,EPDM,ID9,OD14.5, |
| 0801-000168 | IC-CMOS LOGIC |
| 1203-009429 | IC-DC/DC CONVERTER;SYU812C1,SO |
| 1103-001183 | IC-EEPROM;24C04,SOP,8P,TP,5X4MM,4KBIT,X8 |
| 0903-002254 | IC-MICROCONTROLLER;A33G527RLN, |
| 0903-002197 | IC-MICROCONTROLLER;HART-I910Z, |
| 0903-001966 | IC-MICROCONTROLLER;LQFP,64P,12 |
| 1003-002900 | IC-MOTOR DRIVER;DRV8848PWPR,16 |
| 1201-004191 | IC-OP AMP;9064,TSSOP,TP,14P,5X |
| 1201-000166 | IC-OP AMP;LM358,SOP,8P,ST,9.6X6.45X33.8M |
| 1203-006759 | IC-POSI.ADJUST REG.;TL432ASA,SOT-23,3P,3 |
| 1203-002722 | IC-POSI.FIXED REG.;KA78R15,TO-220,4P,10X |
| 1203-009877 | IC-PWM CONTROLLER;INN3676C,24P |
| 1205-005895 | IC-TOUCH;CY8C4124LQI,QFN,40P,6 |
| 1203-006245 | IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1. |
| 1202-001090 | IC-VOLTAGE COMP.;KIA75S393F,5P,TSV,TP,2. |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
|
|
KNOB ENCODER;WA54P7650A*,ABS,-,-,NATURAL |
| DC68-03512A | LABEL BAR CODE;ART,W70,L20 |
| 6812-000145 | LABEL INTEGRATION QR;PET,LAMIN |
| DC68-02977B | LABEL RATING;AMERICA,PET,W25,L |
| DC68-02173A | LABEL-PACKING |
| DC68-02298A | LABEL-POWER CORD |
| 0601-002679 | LED;SMD(TOP VIEW),Y-GRN,WATER |
|
|
LEG ADJUST;SEW-RA169N,PP,-,BLACK,-,BJ350 |
|
|
LEG RUBBER;WA3200T,IIR,BLACK,36 3 |
| DC66-00978A | LINK DRAIN;30F,PP,-,NATURAL,-,P744J |
|
|

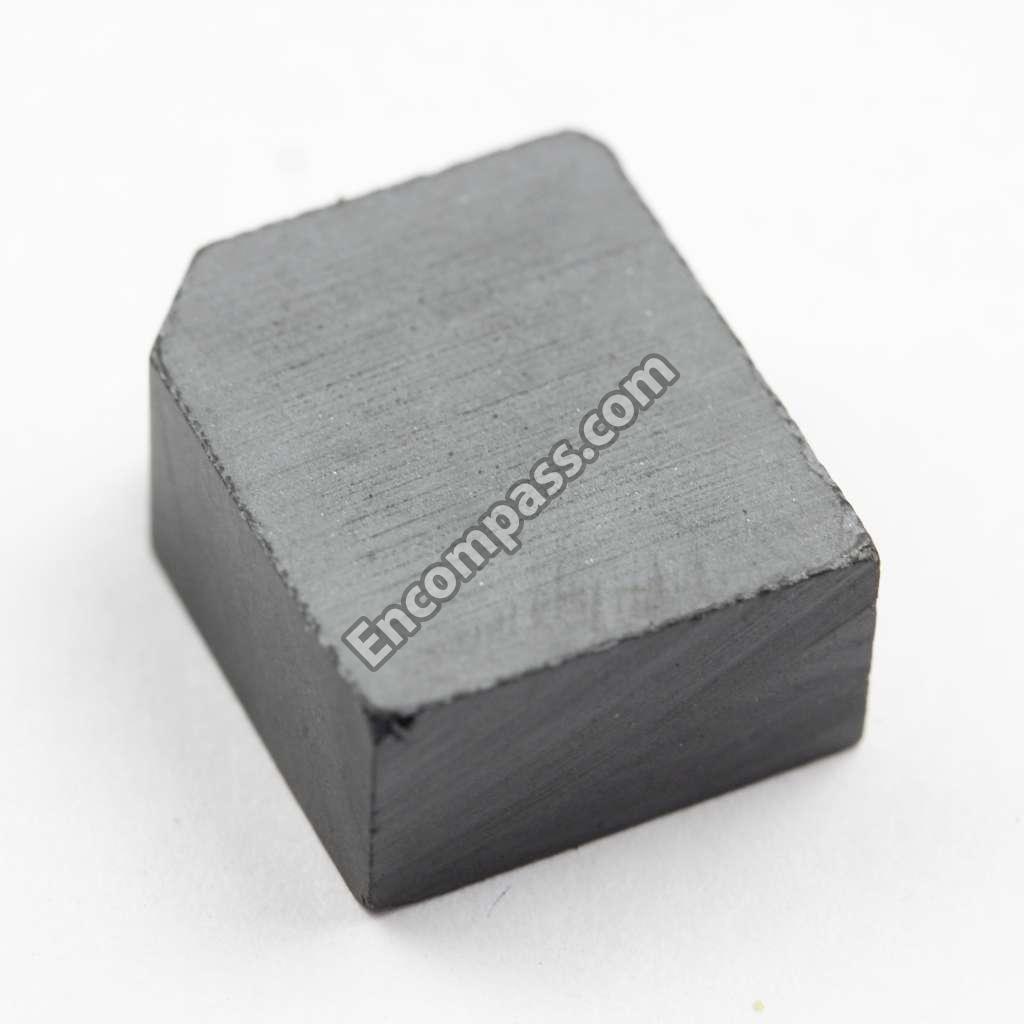

MAGNET R.S;ORCA WASHER,FERRITE,-,-,-,-,1 |
|
|
MOTOR AC PUMP;W/M US,PX3516-01/B35-3A/M3 |
|
|
MOTOR BLDC-ASSEMBLY ROTOR;SDM700,1000,360W,D |
|
|
MOTOR DRAIN;SWD-118,AC120V,60HZ,89.5X81. |
| DC62-00648A | NOZZLE-LOW;WA50R5400AV,ABS,PM |
| DC62-00451C | NOZZLE-MIDDLE;WA8700J,ABS,PM G |
| DC62-00801C | NOZZLE-UP;WA7000A,PP+TD30%,-,HONESTY BLU |
|
|
NUT-HEXAGON;SM20C,ZPC(WHT),1C,M10X1.5,NY |
|
|
NUT-HEXAGON;ZNDC,CHROMATE,OD44,M26 |
| 0205-001027 | OIL-SILICON;G746 |
| DC69-01721A | PACKING CASE SHRINKAGE;OWM,LDP |
| DC69-02178A | PACKING SUPPORT;LDPE,W20 |
| DC62-40097B | PACKING;-,NBR,SW-T65 |
| DC64-03376N | PANEL DRAWER;WA50R5400AW,ABS,R |
| 0604-001405 | PHOTO-COUPLER;TR,200-400%,200M |
| DC60-80169A | PIN LINK;MSWR,L45 |
| 0103-002582 | POLYURETHANE;CPU-70A / UEP 700FA,V0,PUR |
| 0103-002581 | POLYURETHANE;CPU-70B / UEP 700FB,V0,PUR |
|
|
POWER CORD-AT;SJT 3X18AWG 105C,BLK,US3S, |
| DC13-00253A | POWER MODULE;600V,15A,DIP,IKCM |
|
|

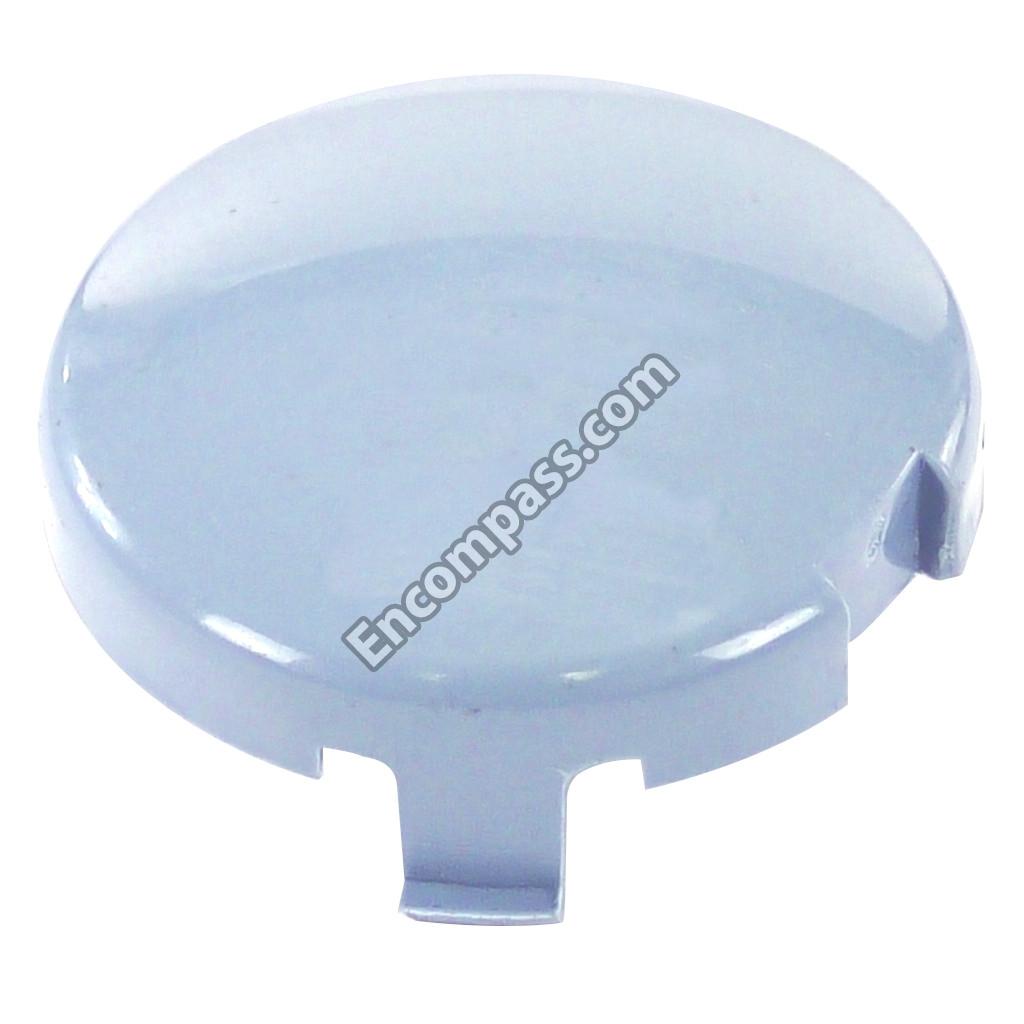

PULSATOR CAP;HUDSON WASHER,ABS,HONESTY B |
| DC66-01013A | PULSATOR;WA50R5200AW,PP+TD20%, |
| 2007-007630 | R-CHIP |
| 2007-007306 | R-CHIP |
| 2007-001672 | R-CHIP |
| 2007-001011 | R-CHIP |
| 2007-010245 | R-CHIP;0.01OHM,1%,2W,TP,6432 |
| 2007-008121 | R-CHIP;0.33OHM,5%,1/4W,TP,3216,T0.6 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-000033 | R-CHIP;0OHM,5%,1/4W,TP,3216 |
| 2007-000279 | R-CHIP;100KOHM,1%,1/4W,TP,3216,T0.6 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000476 | R-CHIP;1MOHM,1%,1/4W,TP,3216 |
| 2007-008791 | R-CHIP;2.2OHM,1%,1/16W,TP,1005,T0.3 |
| 2007-007587 | R-CHIP;3.6KOHM,1%,1/16W,TP,1005 |
| 2007-000868 | R-CHIP;4.7KOHM,1%,1/8W,TP,2012 |
| 2007-001297 | R-CHIP;47OHM,1%,1/4W,TP,3216,T6 |
| 2007-008269 | R-CHIP;51KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-010641 | R-CHIP;620OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-008231 | R-CHIP;680OHM,1%,1/16W,TP,1005 |
| 2007-007321 | R-CHIP;68OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-009791 | R-CHIP;95.3KOHM,1%,1/16W,TP,10 |
|
|
RELAY-POWER;12V,0.9W,25000MA,1FORMA,20MS |
| 2802-001211 | RESONATOR-CERAMIC;8MHZ,0.5%,0.2%,TP,3.2X |
| DC60-70002B | RIVET-PIN |
| 6001-000115 | SCREW-MACHINE;SWRCH18A,ZPC(WHT),L10,M3,B |
|
|

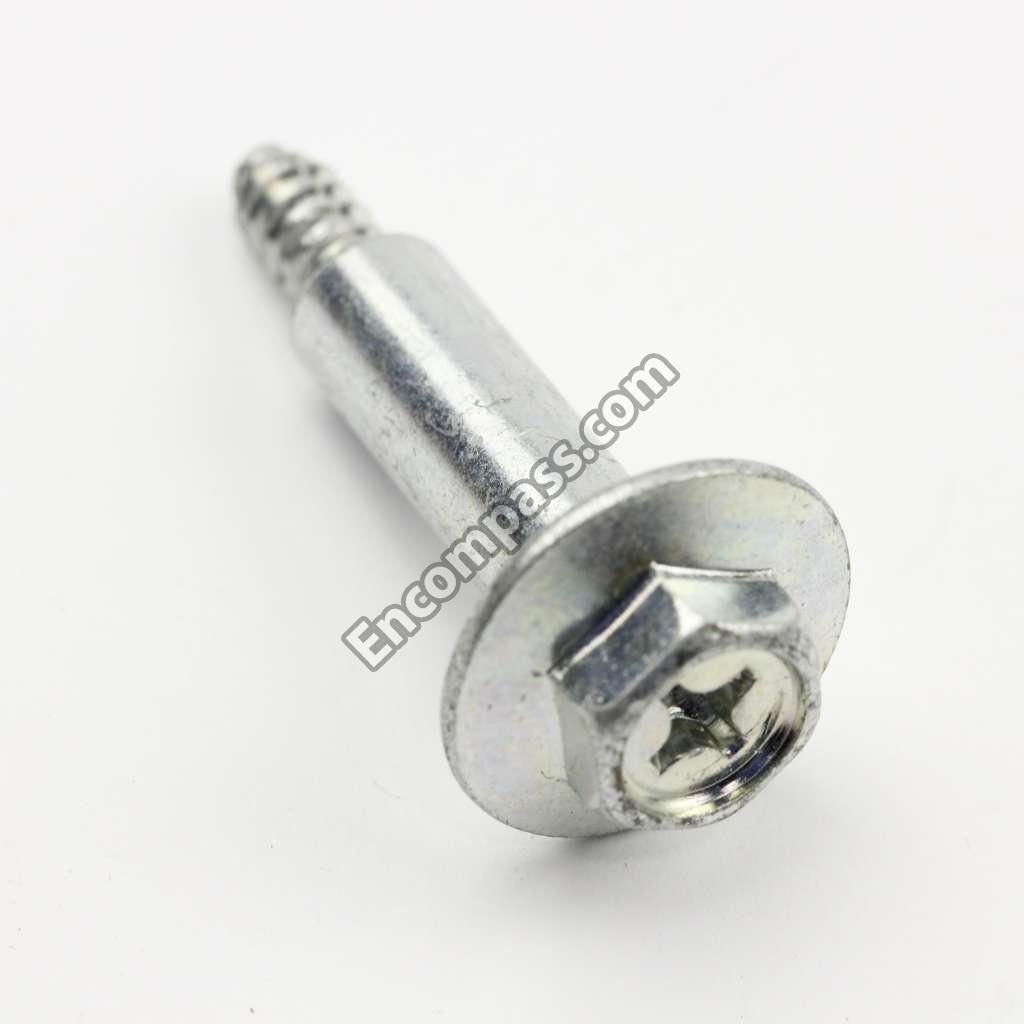

SCREW-TAPPING;STS430,PASS,L16,M5.5,TH,+, |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L14,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L20,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L20,M5,T |
| 6002-000548 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L25,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M3,PH |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M4,TH |
|
|
SCREW-TAPTYPE;SWRCH18A,ZPC(WHT),L10,M4,T |
|
|

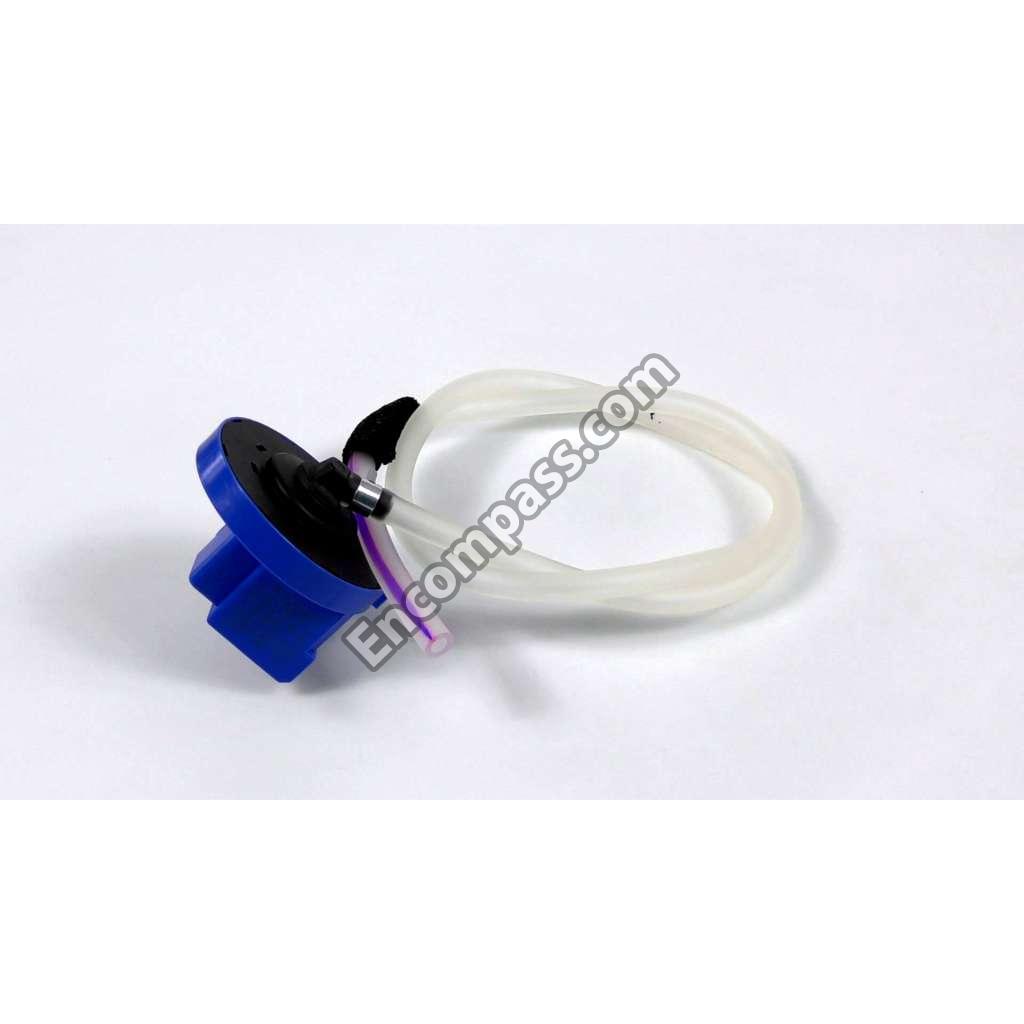

SENSOR PRESSURE;AIR,5V,L770,600MMH2O |
|
|

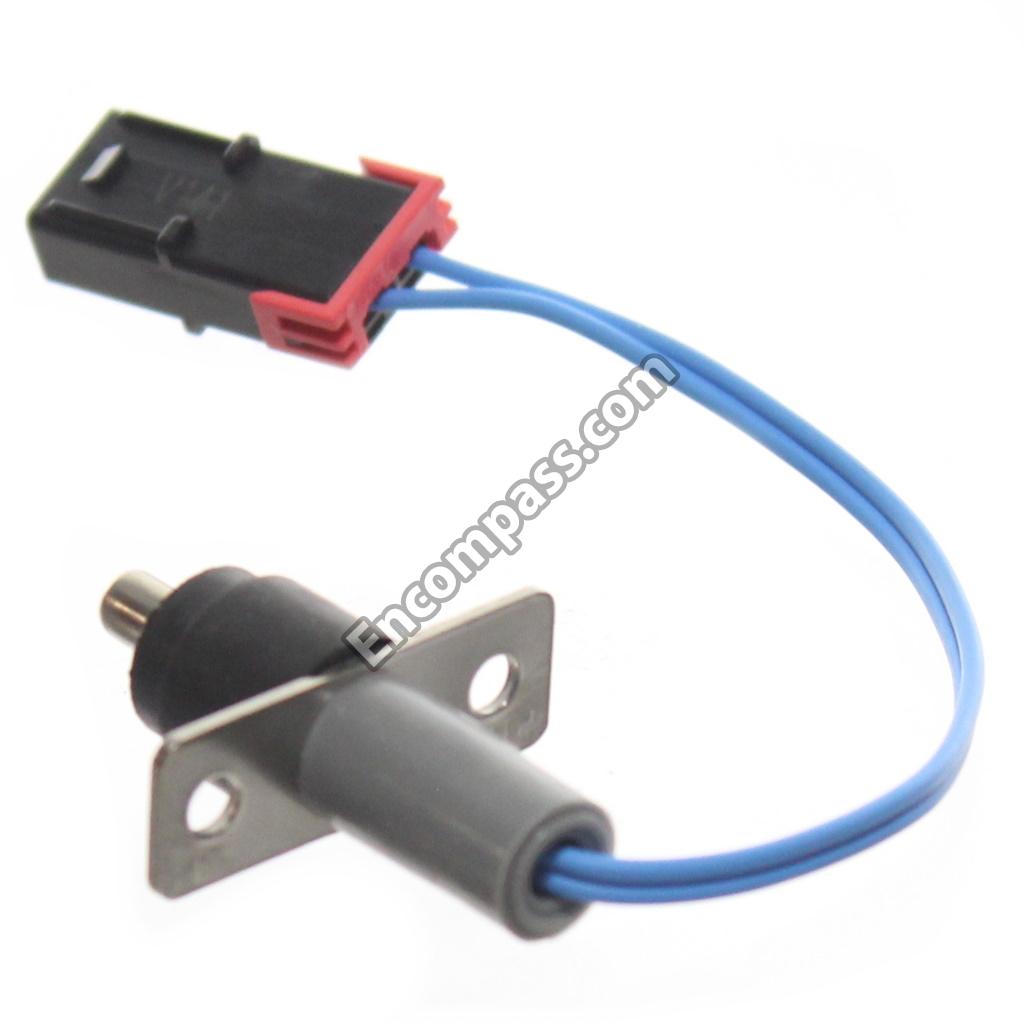

SENSOR TEMP;L125,17.6KOHM,5%,50C,5PHI,WM |
| DC66-00847B | SHAFT;ATV MODEL,CFRP,L207.5,OD3.0,BLACK |
| DC63-02449A | SHEET INSULATION;WA7000R,EVA,T |
| DC63-02119A | SHEET PE;AUTO,PP,NATURAL,OPP,T |
| DC98-05180A | SMG PART |
| DC98-05060A | SMG PART |
| DC98-04025B | SMG PART |
| DC98-04024D | SMG PART |
| DC97-22835K | SMG PART |
| DC97-22827T | SMG PART |
| DC97-22521D | SMG PART |
| DC97-22515Z | SMG PART |
| DC97-21438B | SMG PART |
| DC92-03589A | SMG PART |
| DC92-02374C | SMG PART |
| DC92-02339J | SMG PART |
| DC90-31368B | SMG PART |
| DC90-31366A | SMG PART |
| DC69-02828G | SMG PART |
| DC69-02821B | SMG PART |
| DC69-02792B | SMG PART |
| DC69-02551C | SMG PART |
| DC69-02456C | SMG PART |
| DC69-02282D | SMG PART |
| DC68-04475A | SMG PART |
| DC68-04466P | SMG PART |
| DC68-04037S | SMG PART |
| DC68-03172F | SMG PART |
| DC68-03049A | SMG PART |
| DC64-04312B | SMG PART |
| DC64-03823F | SMG PART |
| DC63-03076A | SMG PART |
| DC63-02347D | SMG PART |
| DC63-00004S | SMG PART |
| DC61-04728B | SMG PART |
| DC61-04727B | SMG PART |
| DC61-04726B | SMG PART |
| DC26-00059A | SMG PART |
| 4709-003223 | SMG PART |
| 2203-007809 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007392 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-000995 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000233 | SMG PART |
| 2007-008117 | SMG PART |
| 2007-007861 | SMG PART |
| 2007-007791 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007671 | SMG PART |
| 2007-007590 | SMG PART |
| 2007-007589 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007586 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007317 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007307 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007107 | SMG PART |
| 1209-002819 | SMG PART |
| 1205-006415 | SMG PART |
| 0203-007413 | SMG PART |
| 0203-007386 | SMG PART |
| 0203-007320 | SMG PART |
| 0202-001933 | SOLDER-CREAM;LFM-48W TM-HP,D20 |
| 0202-001463 | SOLDER-WIRE |
| DC63-10002F | SPONGE-HARNESS |
| DC61-04129F | SPRING HINGE;WB7000R,SWPB,OD2. |
| DC61-04129E | SPRING HINGE;WB7000R,SWPB,OD2. |
| 3502-001087 | SSR;DC12V,2A,9.6-25MV,-30TO+80 |
| DC61-04962A | SUPPORT SADDLE;WA7450R,PP,T3,HB,P-002HB, |
|
|

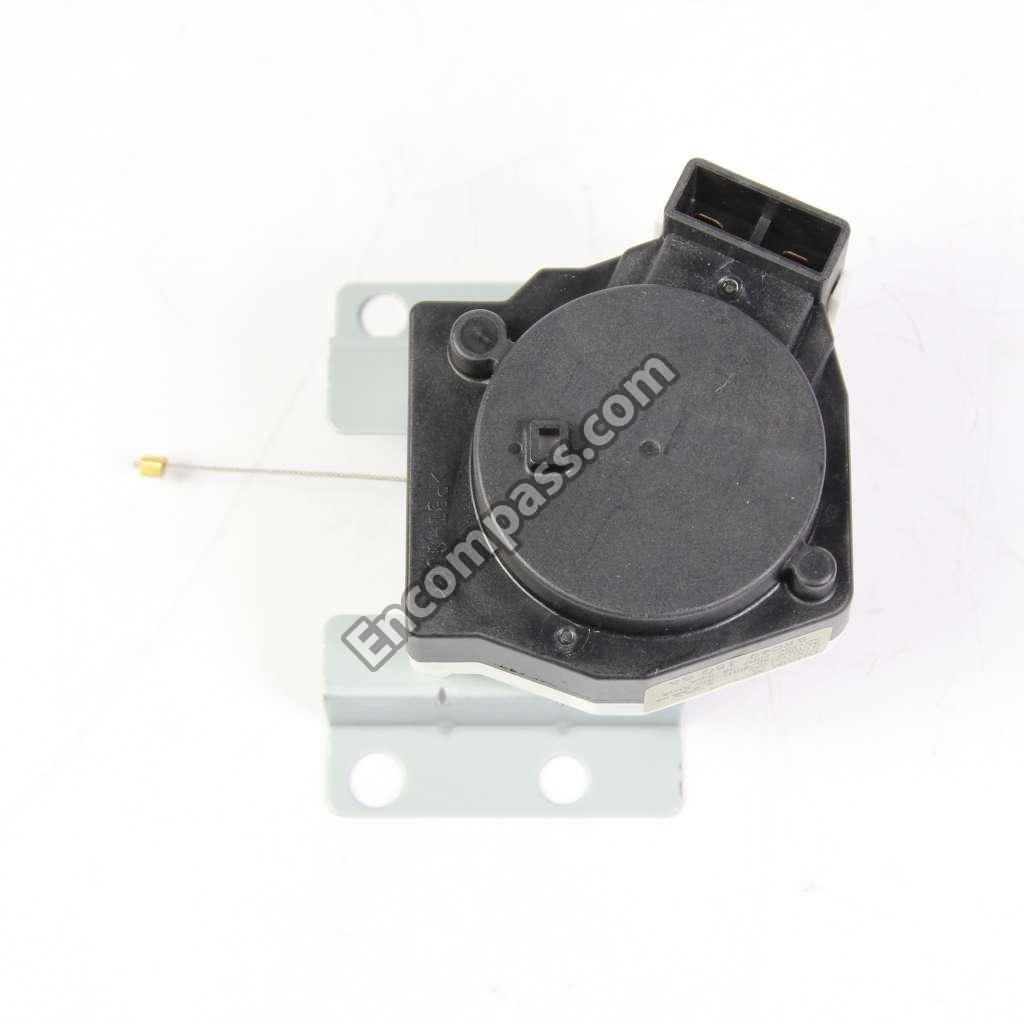

SWITCH DOOR LOCK;DC12V,0.3A,MOTOR, DOOR |
| DC69-90008A | TAPE OPP;OPP,T0.054,W50 |
| 0203-001607 | TAPE-OPP MASKING |
| 0203-006625 | TAPE-OPP MASKING;OPP,T0.065,W7 |
| 0203-006796 | TAPE-POLY;PP,T0.11,W40,WHITE,TPP(TENSILI |
| 0203-007184 | TAPE-SINGLE FACE;PO,T0.07,W50, |
| 1404-001872 | THERMISTOR-PTC |
| CALL_1-800-SAMSUNG | THERMISTOR-PTC;27OHM(TYP),265VAC,1.5A,RA |
| 0506-000175 | TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100 |
| 0504-001080 | TR-DIGITAL;KRC246S,NPN,200MW,2.2K/10KOHM |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
| 0501-000467 | TR-SMALL SIGNAL;MMBT3906,TP,PNP,30~300,2 |
| DC61-04738A | TUB OUTER;WA54R7XXX / WA50R5XX |
|
|

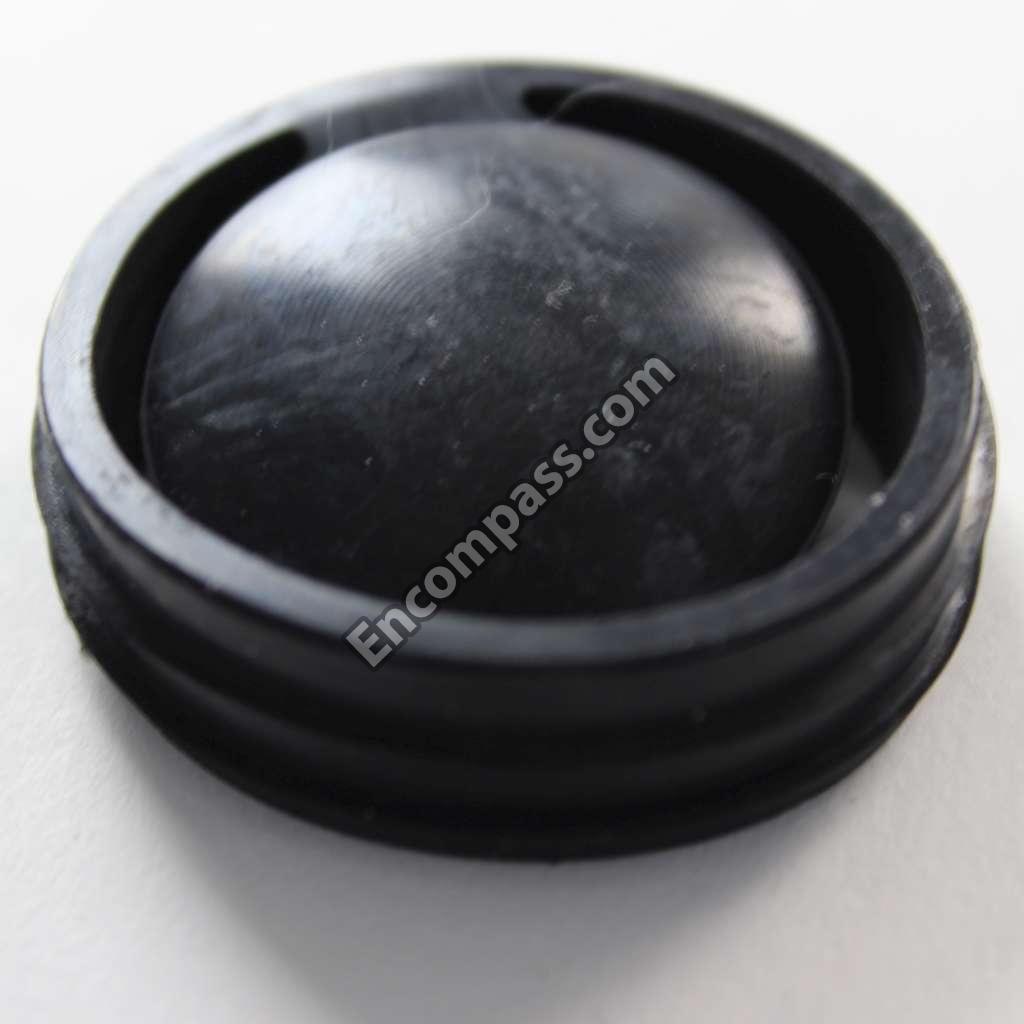

VALVE CHECK;HUDSON,NBR,BLACK |
|
|

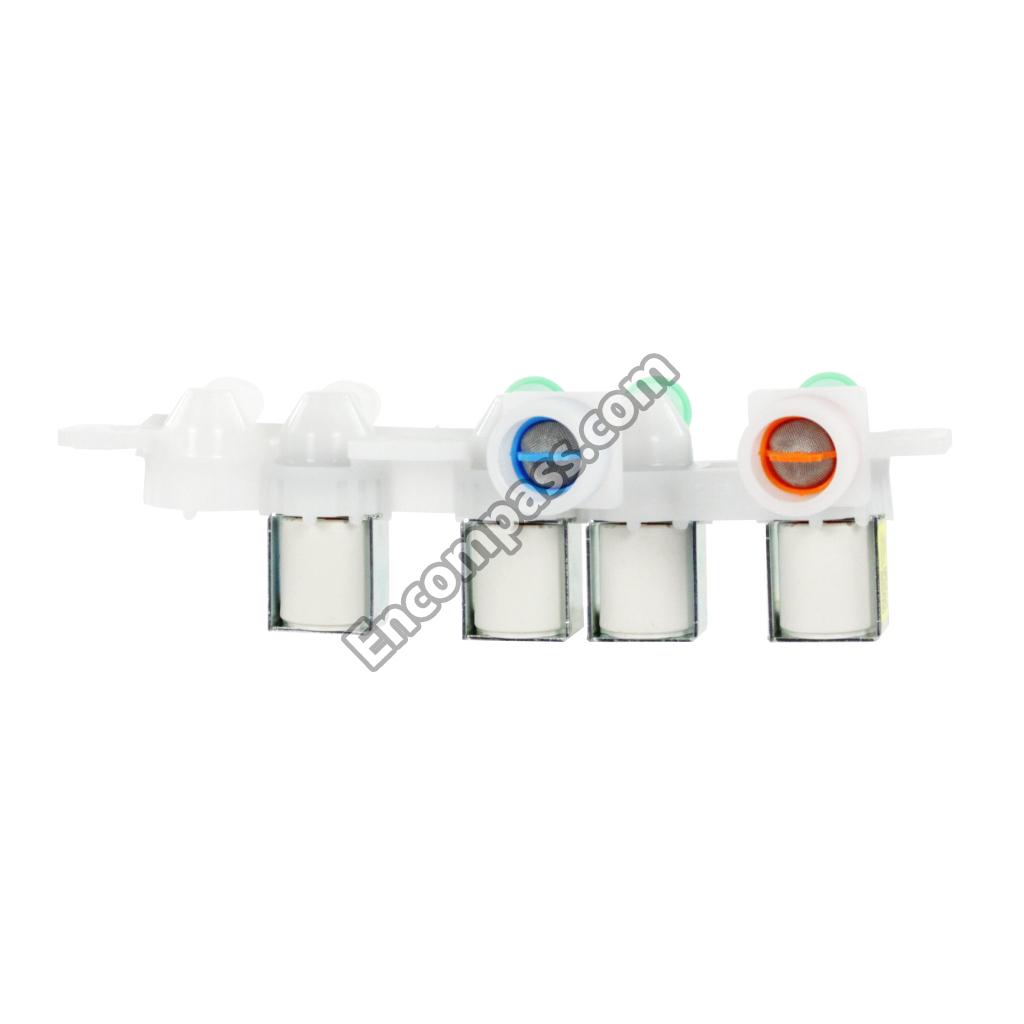

VALVE WATER;DC12V,NTR, 2IN 4OUT,INCH,#25 |
| 6031-001531 | WASHER-PLAIN;CR-SPCC,ZPC,T1.2,OD14,ID7,P |
|
|
WASHER-PLAIN;PO-SPHC,ZPC(WHT),T3,OD30,ID |
|
|
WASHER-WAVE;STS304,ZPC,T0.8,OD44,ID28.2, |
| DC66-10003A | WIRE VINYL;SEW-100 JL,PVC,- |
