Manufacturer
Samsung
Model Number
WD90F53AVYUS
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ABSORBER SPONGE |
| DC63-10002D | ABSORBER SPONGE |
| DC63-10003J | ABSORBER SPONGE |
| DC63-10003H | ABSORBER SPONGE;-,PU FOAM,T14,BLACK,- |
| DC63-00004M | ABSORBER SPONGE;A2,PU FOAM,T15,W140*L80, |
| DC72-00015K | ABSORBER SPONGE;F2MC W,PE FOAM |
| DC72-00011W | ABSORBER SPONGE;HEBA-COMBO,EPDM,T3,BLA |
| DC63-10056S | ABSORBER SPONGE;SEW-4HR125A,FELT,T1,D0, |
|
|
ACTUATOR THERMO |
| 0201-003678 | ADHESIVE-HM;HL3700WS,WHITE,9,000MPA.S,18 |
|
|
ASSEMBLY BOLT |
|
|
ASSEMBLY BOLT |
| DC97-24154A | ASSEMBLY BRACKET FRAME;T-PJT,WD8000DK,- |
| DC97-23141C | ASSEMBLY CAP V.W;WF8000CK,WF25CB8695BK |
|
|
ASSEMBLY CLAMP DIAPHRAGM |
| DC97-23028B | ASSEMBLY COVER DOOR |
| DC93-00236G | ASSEMBLY DD BLDC MOTOR |
| DC97-24225A | ASSEMBLY DRUM WRAPPER;WD8000DK,- |
| DC97-24281A | ASSEMBLY FILTER;WW8000DK,DRAIN HOLE TYPE |
| DC98-04012D | ASSEMBLY FIXER TUB |
| DC97-23217A | ASSEMBLY FLANGE SHAFT;WF8/6000R |
| DC97-24218A | ASSEMBLY FRAME;WD8000DK,T1.0,PCM,DARK GRAY |
|
|
ASSEMBLY HOSE AIR |
| DC97-23196A | ASSEMBLY HOSE CONNECTOR;WF9600B |
| DC97-12534Q | ASSEMBLY HOSE DRAIN |
|
|
ASSEMBLY HOSE DRAIN |
| DC97-14545X | ASSEMBLY HOSE PRESSURE;600MMH20,NO PBA,NO HO |
| DC97-24207A | ASSEMBLY HOSE;WD8000D |
| DC96-01710A | ASSEMBLY LAMP LED |
| DC97-23484A | ASSEMBLY LEG;25KG FLAT,WF8900BK,H65.0,P1.5 |
| DC97-18470C | ASSEMBLY NOZZLE CONNECTOR |
| DA92-01368B | ASSEMBLY PBA MODULE-VOICE;DIGITAL MIC,RF9000 |
| DC97-24180A | ASSEMBLY PUMP DRAIN;WD8000D,CIRCULATION,DC24 |
| DC97-20193B | ASSEMBLY ROTOR;COM2000A |
| DC97-24185A | ASSEMBLY S.DRAWER;WD8000D |
| DC97-24186A | ASSEMBLY S.DRAWER;WD8000D |
| DC97-24613A | ASSEMBLY S.HOUSING DRAWER;V-CO |
| DC97-24206A | ASSEMBLY S.HOUSING DRAWER;WD8000D |
|
|
ASSEMBLY SCREW |
|
|

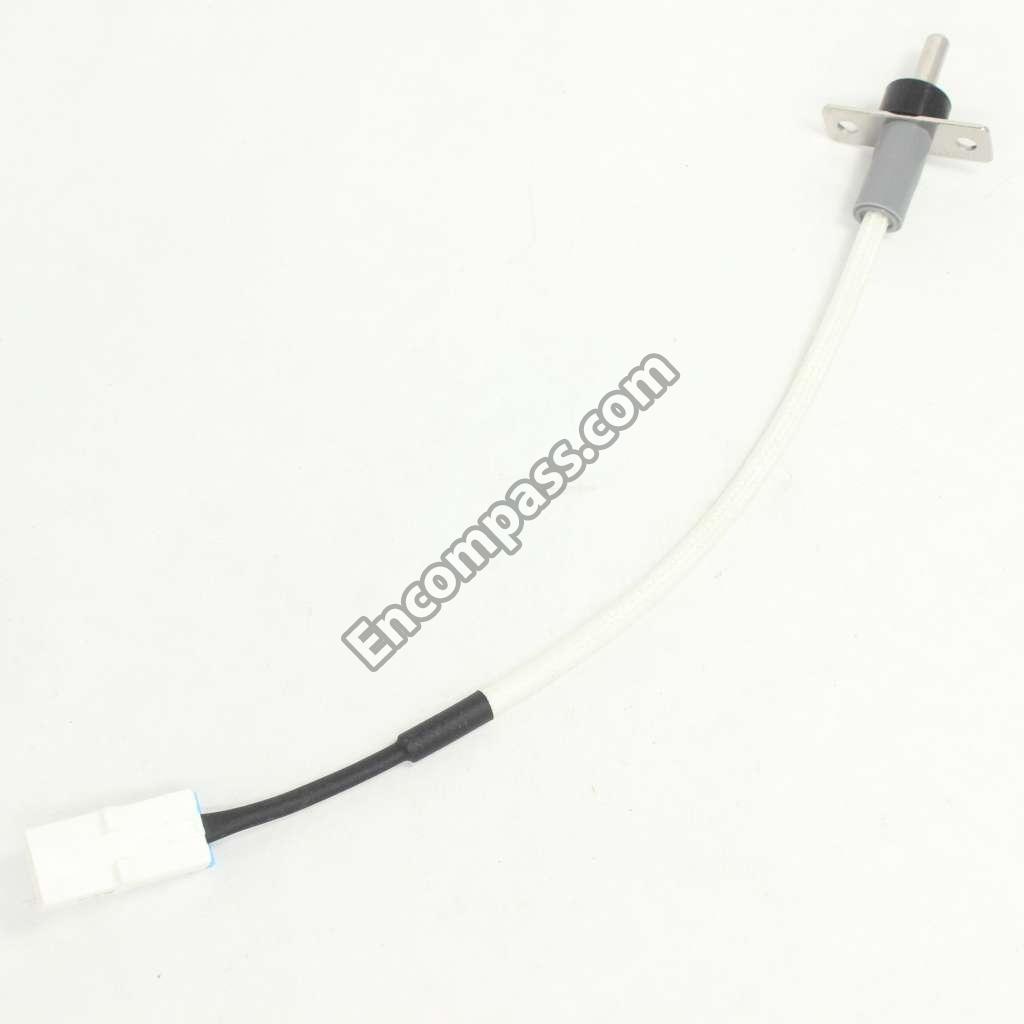

ASSEMBLY THERMISTOR |
|
|
ASSEMBLY WIRE DIAPHRAGM |
|
|
ASSEMBLY WIRE HARNESS-BUBBLE KIT |
| DC93-01061A | ASSEMBLY WIRE HARNESS-PUMP;DRUM-L,AUTO DISPE |
| DC93-01063A | ASSEMBLY WIRE HARNESS-SUB;DRUM-L,WIFI,7-INCH LCD |
| DC97-23029J | ASSY DOOR;WF8700B,WF53BB8700AVUS,VOLUME |
| DC97-17071A | ASSY LEG BOLT;K4-BONANZA,OD33. |
| DC97-21463A | ASSY SHAFT;WF8/6000R,183 |
| DC97-21487D | ASSY STATOR;CDD20A,S60,34,273 |
| 6902-000286 | BAG PE |
| 3301-002113 | BEAD-SMD;470 OHM/100MHZ 470 OHM/100MHZ,2 |
| 6601-003009 | BEARING BALL;6306-2RZ,SBF4118,L19,OD72,I |
| 6601-003008 | BEARING BALL;6307-2RZ,SBF4118,L21,OD80,I |
| DC61-05922A | BODY DRAWER;WD8000D,PP+TD30%,T2,DARK GRA |
|
|
BOLT |
| DC97-02412R | BOLT |
|
|
BOLT HEX |
|
|
BOLT SPANER |
| 6011-008797 | BOLT-ETC |
|
|
BOLT-HEX |
| 6011-007676 | BOLT-HEX;M10,L124.5,Z9C2,SCM43 |
| DC75-00029B | BOWL DETERGENT;WD8000D,SI,T-PJT, LOW TRA |
| DC61-04499A | BRACKET HEATER;A1,STS304,T0.5,- |
| DC61-05892A | BRACKET HINGE;WD8000D,GI-SGCC,T1.4, |
| DC61-05911A | BRACKET HINGE;WD8000D,GI-SGCC,T1.6, |
| DC61-00201B | BRACKET NUT;WF8900B,PO-SPHC,T3 |
| DC61-04878A | BRACKET TUB;WF45P6000,GI-SGCC,T0.35,WF60 |
| DC61-01552A | BRACKET-LEG |
| DC61-00834A | BUSH BEARING;TS85-PJT,SM15C,SMF-4030 |
| DC61-01278B | BUSH HOSE-UP;WF6000R,TPV,INOX GRAY,9038B |
| DC61-01290C | BUSH HOSE;WF8000R, WF6000R,TPV,INOX GRAY |
| DC61-00841A | BUSH SHAFT;TS85-PJT,STS304 |
| 2401-003069 | C-AL |
| 2401-006201 | C-AL |
| 2402-001268 | C-AL, SMD |
| 2402-001368 | C-AL, SMD |
| 2402-001517 | C-AL,SMD;47UF,20%,50V,TP,6.3X6.3X7.7MM, |
| 2401-004519 | C-AL;2200UF,20%,25V,TP,12.5X25MM,5MM,-40 |
| 2203-002285 | C-CER, CHIP |
| 2203-005135 | C-CER, CHIP |
| 2203-007456 | C-CER, CHIP |
| 2203-007486 | C-CER, CHIP |
| 2203-007513 | C-CER, CHIP |
| 2203-007544 | C-CER, CHIP |
| 2203-008315 | C-CER, CHIP |
| 2203-010142 | C-CER,CHIP |
| 2203-010032 | C-CER,CHIP , 47NF,10%,50V,X7R,TP,1005,T0.5 |
| 2203-010495 | C-CER,CHIP;2.2UF,10%,25V,X7R,TP,2012,T1. |
| 2203-010033 | C-CER,CHIP;220NF,10%,25V,X5R,TP,1005,T0. |
| 2201-002689 | C-CERAMIC,DISC;10NF,+80-20%,250VAC,Y5V,T |
| 2201-002709 | C-CERAMIC,DISC;33PF,5%,1000V,SL,TP,6.3X5 |
| 2301-001899 | C-FILM, LEAD |
| 2301-002011 | C-FILM,LEAD-PPF;2.2NF,5%,630V,TP,13X11X6 |
| DC01-00583A | C/STEEL;GI-SGCC,0.35MM,220MM,LC |
| DC01-00522B | C/STEEL;GI-SGCC,0.3MM,622MM,L000,EMBO, R |
| 6502-000168 | CABLE CLAMP |
| DC61-00553B | CABLE CLAMP |
| 6501-000121 | CABLE TIE |
| DC67-01151A | CAP COVER TOP |
| DC67-00414B | CAP COVER TOP;WD9/8/7500NK,ABS,HB,HG-076 |
| DC67-01035A | CAP DOOR;WF6000P,POM,T3,9A,VERSAILLES GR |
|
|
CAP DRAIN |
| DC67-01060B | CAP DRAWER |
| DC67-01177B | CAP VALVE , WF8900B,POM,T0.2,K300,NATURA |
|
|
CAP-FIXER |
| DC61-05925A | CASE PUMP;WD8000D,PP+TD20%,T2,NATURAL, |
| DC61-05907A | CASE RINSE;WD8000D,PP+TD30%,T2,DARK GRAY |
|
|
CHECK VALVE |
| DC02-10025A | CHEMICALS-GREASE |
| DC02-10013A | CHEMICALS-S.GREASE |
| DC02-10035A | CHEMICALS-S.GREASE |
|
|
CLAMP-CABLE |
| DC61-00158A | CLAMPER HOSE |
| DC61-00219D | CLAMPER HOSE |
| DC61-00219F | CLAMPER HOSE |
|
|
CLAMPER HOSE |
| DC61-01679B | CLAMPER HOSE |
|
|
CLAMPER HOSE |
| DC65-00008C | CLAMPER HOSE |
|
|
CLAMPER HOSE |
|
|
CLAMPER HOSE |
| DC61-00133A | CLAMPER HOSE-FIX |
| DC65-00014E | CLAMPER HOSE-JOINT |
|
|
CLIP RING |
|
|
CLIP RING |
|
|
CLIP RING |
|
|
CLIP RING |
| 3711-000744 | CONNECTOR-HEADER |
| 3711-005699 | CONNECTOR-HEADER |
| DC63-02336B | COVER BACK;WF6000P,GI-SGCC,T0.3,EMBO |
| DC63-03151A | COVER CONNECTOR;WD8000D,PP+TD30%,T2.5, |
| DC63-02915A | COVER CONNECTOR;WF9600BK,PP,-,NATURAL, |
| DC63-03130A | COVER DETERGENT;WD8000D,PP,T2,HYGIENE |
| DC63-02767B | COVER DOOR , WF8000R FLAT,ABS,T3,EBONY B |
| DC63-01432B | COVER FILTER |
| DC63-03150A | COVER FILTER-BACK;WD8000D,PP+TD30%,T2,HB |
| DC63-01351A | COVER HEATER |
| DC63-02914A | COVER HINGE;WF9600BK,PP,-,NATURAL,FH |
|
|
CUSHION LID |
| DC63-00888A | CUSHION PUMP;WF448AAG,EPDM,40,BLACK |
| DC66-01139A | DAMPER SHOCK-AXIS;WD8000DK,POM,4 |
|
|

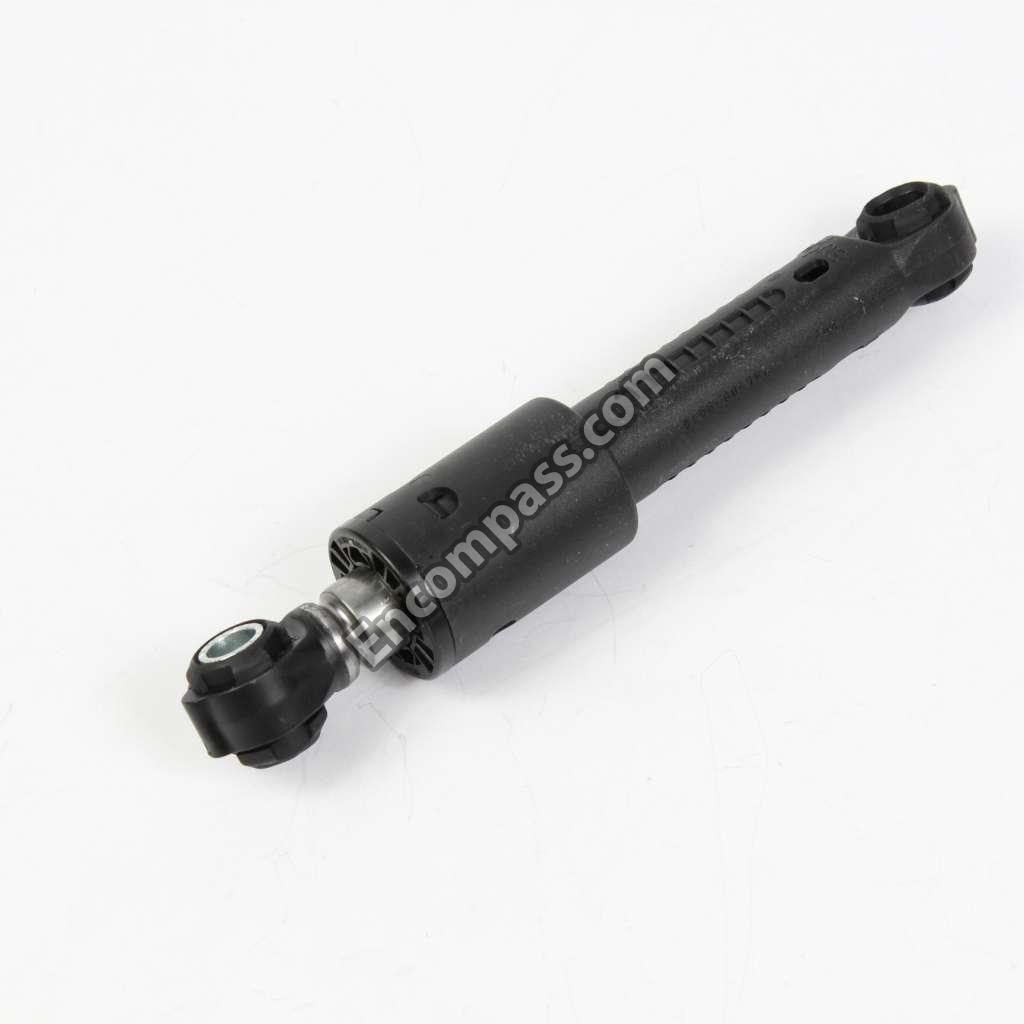

DAMPER-SHOCK |
| DC64-04316A | DECORATION LID-LEFT;WD8000D,ABS,T2,DARK |
| DC64-04320A | DECORATION LID-LOW LEFT;WD8000D,ABS,T2,D |
| DC64-04319A | DECORATION LID-LOW RIGHT;WD8000D,ABS,T2, |
| DC64-04317A | DECORATION LID-RIGHT;WD8000D,ABS,T2,DARK |
| DC64-04318A | DECORATION LID-UP;WD8000D,ABS,T2,DARK GR |
| 0402-000324 | DIODE-BRIDGE |
| 0402-002163 | DIODE-BRIDGE;D15XB60,600V,15A,SIP-4,ST,2 |
| 0402-001472 | DIODE-RECTIFIER |
|
|
DIODE-RECTIFIER |
| 0402-001741 | DIODE-RECTIFIER;S1M,1000V,1A,SMA,TP |
| 0404-001250 | DIODE-SCHOTTKY |
| 0404-001489 | DIODE-SCHOTTKY |
| 0401-000132 | DIODE-SWITCHING |
| 0401-001099 | DIODE-SWITCHING |
| 0406-001239 | DIODE-TVS |
| 0406-001865 | DIODE-TVS;SMBJ17CA,18.9V,20.9V,5MAV,100A |
| 0406-001906 | DIODE-TVS;SMF200A,224V,SOD-123FL,200W,TP |
| 0403-000461 | DIODE-ZENER |
| DC64-04136A | DOOR GLASS , WF8000R,GLASS,T5, |
| DC64-04020A | DOOR SAFETY;WF8800A,GLASS,T3.2,T |
| DC66-00984A | DRUM LIFTER;WF6000R,PP,OD580,T4,DARK HOL |
| DC67-01262A | FAN;PA66+GF30%,T2,V-0,KN332G30V0,BLACK,- |
| 0505-000110 | FET-SILICON |
| 0505-001943 | FET-SILICON;FDN342P,P,20V,2A,0.08OHM,0.5 |
| DC29-00025A | FILTER EMI |
| DC73-00035A | FIXER RUBBER;WF0804Y8E/XEF,EPDM,BLACK, |
| DC61-01937C | FIXER TUB;WF8804,PP+GLF15%,NATURAL,GFPP- |
| DC61-05425A | FIXER WASHER , WF45R6300AV,PO-SPHC,T2.0, H |
| DC60-00137A | FLANGE SHAFT;WF6500P,ALDC12,OD578.8, |
| 0204-004665 | FLUX;KSP-70M-S,MIXTURE,NO,FLUX,13% |
| DC61-05895A | FRAME FRONT-UP LEFT;WD8000D,PP+TD30%,DAR |
| DC61-05896A | FRAME FRONT-UP RIGHT;WD8000D,PP+TD30%,DA |
| DC61-05933A | FRAME PLATE-UP;WD8000DK,GI-SGCC,-,T2,- |
| 3601-001576 | FUSE-AXIAL LEAD |
| 3601-001600 | FUSE-RADIAL LEAD |
| 3601-001765 | FUSE-RADIAL LEAD , 250V,3.15A,TIME-LAG,THE |
| DC66-00688A | GEAR-INTERNAL(P) |
| DC66-00689A | GEAR-INTERNAL(R) |
| 0205-000001 | GREASE-LITHUM |
| 0205-000178 | GREASE-SILICON |
| 0205-001410 | GREASE-SILICON;GA210,GREASE FOR PLASTIC, |
| DC61-05902A | GUIDE COVER FILTER;WD8000D,ABS,T3,HG-0 |
|
|
GUIDE COVER TOP |
| DC61-05903A | GUIDE COVER-REAR;WD8000D,PP+TD30%,T2,F |
| DC61-01901A | GUIDE FRAME FRONT |
| DC61-05935A | GUIDE FRAME FRONT;WD8000DK,PP+TD30%,T2,H |
|
|
GUIDE HINGE |
| DC61-03244A | GUIDE HOSE |
| DC61-05919A | GUIDE HOSE;WD8000D,PP+TD20%,T2,HB,FH2200 |
| DC61-05875A | GUIDE PANEL;T-PJT,DISPLAY,ABS,-,HG-076 |
|
|
GUIDE SPRING |
| DC64-04331A | HANDLE RINSE;WD8000D,ABS,T2,HG-0760GP,HB |
| 3711-000833 | HEADER-BOARD TO CABLE |
| 3711-005678 | HEADER-BOARD TO CABLE |
| 3711-005703 | HEADER-BOARD TO CABLE |
| 3711-005706 | HEADER-BOARD TO CABLE |
| 3711-007174 | HEADER-BOARD TO CABLE;BOX,3P,1R,6.5MM,ST |
| 3711-009224 | HEADER-BOARD TO CABLE;BOX,5P,1R,2.0MM,ST |
| DC61-05371A | HINGE DOOR , WF8000R,ALDC,T2.5,NATURAL, |
| DC61-05920A | HINGE DOOR;WD8000D,PA66+GF30%,T2,BLACK,K |
|
|
HOLDER HOSE |
| DC61-04622A | HOLDER HOSE |
| DC61-05917A | HOLDER MOTOR;WD8000DK,PA66+GF30%,T2.5,BL |
| DC61-00995A | HOLDER WIRE |
| DC61-01736B | HOLDER WIRE |
| DC61-60074A | HOLDER WIRE |
| DC67-01266A | HOSE AIR TUB;WD8000D,EPDM,ID24.5,T2,HS50 |
| DC67-00468A | HOSE AIR;WF520,EPDM,ID18.5,OD25,T2.0,BLA |
| DC67-01263A | HOSE CONNECTOR;WD8000D,EPDM,ID24.7,T2,HS |
| DC67-01265A | HOSE CONNECTOR;WD8000D,SI,ID19.8,T2,HS50 |
| DC67-01186A | HOSE CONNECTOR;WF9600BK,PP,-,NATURAL |
| DC67-00244S | HOSE DRAIN;WD8000D,EPDM,ID6,T2.5,HS65,BL |
|
|
HOSE DRAWER |
| DC67-01264A | HOSE DRAWER TUB;WD8000D,EPDM,ID48,T2,HS5 |
|
|
HOSE FILTER TUB |
|
|
HOSE HANGER |
| DC67-00492A | HOSE JOINT AIR;WF520,PP+TD30%,T1.5,NATUR |
| DC67-00796A | HOSE WATER |
| DC61-05914A | HOUSING DRAWER-LOW;WD8000D,PP+TD30%,T2,D |
| DC61-05913A | HOUSING DRAWER-MIDDLE;WD8000D,PP+TD30%,T |
| DC61-05912A | HOUSING DRAWER-UP;WD8000D,PP+TD30%,T2,DA |
| 1202-001090 | IC VOLTAGE COMP. |
| 1205-004505 | IC-BUS SWITCH;TSSOP,14P,7V,180MW,-40TO+8 |
| 0801-000168 | IC-CMOS LOGIC |
| 1203-009429 | IC-DC/DC CONVERTER;SYU812C1,SOT23-6,6P,3 |
| 1103-001564 | IC-EEPROM |
| 0903-002197 | IC-MICROCONTROLLER;HART-I910Z,LQFP,64P,1 |
| 1201-000166 | IC-OP AMP |
| 1203-006759 | IC-POSI.ADJUST REG. |
| 1203-002835 | IC-POSI.FIXED REG. |
| 1203-006245 | IC-VOL. DETECTOR |
| 2703-004724 | INDUCTOR-SMD |
| DA27-00051A | INDUCTOR-SMD;1MH,20%,12.2X12.2MM,T8,1.59 |
| DB68-05458A | LABEL BAR CODE;AM9000H,PAPER,W17.5,L18 |
| DC68-03512A | LABEL BAR CODE;ART,W70,L20 |
| DC68-03257A | LABEL INSTRUCTION |
| DC68-02742B | LABEL INSTRUCTION;DV220AEW,ART,W140,L60, |
| 6812-000145 | LABEL INTEGRATION QR;PET,LAMINATE COATED |
| DC68-02977B | LABEL RATING;AMERICA,PET,W25,L106 |
| DC68-02225L | LABEL WARNING;WF45M5500A*,US,ART,W230,L3 |
| DC68-02322A | LABEL-CAUTION |
| DC68-02173A | LABEL-PACKING |
| DC68-02321A | LABEL-WARNING |
|
|
LATCH |
| DC66-01134A | LATCH |
| 0601-002679 | LED;SMD(TOP VIEW),Y-GRN,WATER CLEAR,1.2X |
| DC61-01959D | LEG BOLT;BUTYL,SWRCH10A,L62.1, |
| DC61-01149D | LEG RUBBER;NEW-K4,IIR,WHITE,TAPTITE |
|
|
LEVER DOOR |
| DC66-01102A | LEVER HINGE;WF9600BK,POM,K300,NATURAL, |
| DC66-01089B | LEVER RINSE , WF8900B,POM,T0.2,K300,NATURA |
| DC66-90008C | MAGNET R.S |
| DC68-04394A | MANUAL USERS , VENT DRYER,SEA/SECA,ENG/SPN |
|
|
MOTOR BLDC PUMP |
| DC31-00200A | MOTOR BLDC PUMP;BD7-1A,0-4000RPM,24V,1.6 |
|
|
NOZZLE BALL |
|
|
NOZZLE CONNECTOR-LOW |
|
|
NOZZLE CONNECTOR-UP |
| DC62-00728A | NOZZLE DIAPHRAGM |
| 6021-001580 | NUT-HEXAGON FLANGE |
| 0205-000127 | OIL-SILICON |
| DC69-00640A | PACKING-FILTER |
|
|
PACKING-THERMISTOR |
| DC69-01312A | PACKING-THERMISTOR |
| 0604-001405 | PHOTO-COUPLER;TR,200-400%,200MW,SOP,TP |
| 0204-004868 | POLYURETHANE;CPU 90A,TRANSPARENCY,53:100 |
| 0204-004866 | POLYURETHANE;CPU 90B,TRANSPARENCY,53:100 |
| DC13-00253A | POWER MODULE;600V,15A,DIP,IKCM15F60GA,24 |
| 2007-000069 | R-CHIP |
| 2007-000279 | R-CHIP |
| 2007-000312 | R-CHIP |
| 2007-000400 | R-CHIP |
| 2007-000476 | R-CHIP |
| 2007-000568 | R-CHIP |
| 2007-000571 | R-CHIP |
| 2007-000592 | R-CHIP |
| 2007-000700 | R-CHIP |
| 2007-000868 | R-CHIP |
| 2007-001015 | R-CHIP |
| 2007-001162 | R-CHIP |
| 2007-001297 | R-CHIP |
| 2007-007306 | R-CHIP |
| 2007-007321 | R-CHIP |
| 2007-007587 | R-CHIP |
| 2007-007630 | R-CHIP |
| 2007-007942 | R-CHIP |
| 2007-008121 | R-CHIP |
| 2007-008269 | R-CHIP |
| 2007-008294 | R-CHIP |
| 2007-008487 | R-CHIP |
| 2007-008779 | R-CHIP |
| 2007-009322 | R-CHIP |
| 2007-010641 | R-CHIP |
| 2007-007385 | R-CHIP;1.2MOHM,1%,1/4W,TP,3216,T0.6 |
| 2007-009791 | R-CHIP;95.3KOHM,1%,1/16W,TP,1005 |
| 2003-000652 | R-METAL OXIDE(S) |
| 2009-001235 | R-METAL PLATE;0.062OHM,1%,5W,CB,BK,14X5X |
|
|
RELAY-POWER |
| 0103-003218 | RESIN ABS |
| 0103-003108 | RESIN ABS;HG-0760GP/EBONY BLACK,EBONY BL |
| 0103-011604 | RESIN ABS;HG-0760GP/G34160,DARK GRAY,GY0 |
| 0103-008912 | RESIN EPS;S-450/NTR,NATURAL,NC0001,N |
| 0103-003518 | RESIN PP , PTN960/7641,VERSAILLES GRAY,GY0 |
| 0103-003456 | RESIN PP;FC2210/G241,DARK HOLDER GRAY,GY |
| 0103-003460 | RESIN PP;FC2305/G241,DARK HOLDER GRAY,GY |
| 0103-003461 | RESIN PP;FC2305/NTR,NATURAL,NC0001,HB,TD |
| 0103-012231 | RESIN PP;HFFR-1510NT/DGS,DARK HOLDER GRA |
| 0103-004022 | RESIN PP;PP2315SDR/NTR,NATURAL,NC0001,HB |
| 6044-001853 | RING-O |
| 6041-001035 | RIVET-RH |
| 6002-001435 | SCREW TAPPING |
|
|
SCREW-HEX |
| 6001-000516 | SCREW-MACHINE |
|
|
SCREW-MACHINE |
| 6009-001343 | SCREW-SPECIAL |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-000481 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-000548 | SCREW-TAPPING |
| 6002-000588 | SCREW-TAPPING |
| 6002-000623 | SCREW-TAPPING |
| 6002-000635 | SCREW-TAPPING |
| 6002-001006 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-001384 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
| DC60-20057A | SCREW-TAPPING |
| 6003-000226 | SCREW-TAPTYPE |
|
|
SEAL CONNECTOR |
| DB62-11639C | SEAL CUTT |
|
|
SEAL OIL |
|
|
SEAL PACKING |
| DC62-00917A | SEAL PACKING;WD8000D,TPE,T1.5,1855H,DA |
| DC62-00918A | SEAL PACKING;WD8000D,TPE,T1.5,1855H,DA |
| DC62-00856A | SEAL RING , WW7100A/WD7100B,SI,BLACK, |
| DC62-00471A | SEAL TUB;TOP LOADING,EPDM,BLACK, L1994, |
| DC32-00018B | SENSOR PHOTO |
|
|
SENSOR PRESSURE;AIR,5V,L0,400MMH2O |
| DC32-00029A | SENSOR-ACCELERATION;3.3V,UL1569,370MM,SM |
| DC32-00032A | SENSOR-ACCELERATION;3.3V,UL1569,370MM,SM |
| DC66-00983A | SHAFT;WF6500P,SM45C,L183.4,NATURAL,- |
| DC63-01891A | SHEET PAPER |
| DC61-05531B | SMG PART |
| 0101-002927 | SMG PART |
| 0203-007317 | SMG PART |
| 0203-007462 | SMG PART |
| 0205-001430 | SMG PART |
| 0406-001084 | SMG PART |
| 0505-003873 | SMG PART |
| 1003-003379 | SMG PART |
| 1203-009463 | SMG PART |
| 1203-009715 | SMG PART |
| 1205-006415 | SMG PART |
| 1205-006497 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007307 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007317 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007334 | SMG PART |
| 2007-007586 | SMG PART |
| 2007-007589 | SMG PART |
| 2007-007627 | SMG PART |
| 2007-007671 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007861 | SMG PART |
| 2007-008137 | SMG PART |
| 2007-008263 | SMG PART |
| 2007-008275 | SMG PART |
| 2007-008401 | SMG PART |
| 2203-000233 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000995 | SMG PART |
| 2203-001072 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-007392 | SMG PART |
| 2203-007781 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007809 | SMG PART |
| 2203-010299 | SMG PART |
| 2203-010497 | SMG PART |
| 2401-004387 | SMG PART |
| 2802-001300 | SMG PART |
| 3501-001763 | SMG PART |
| 3711-009409 | SMG PART |
| 3711-009645 | SMG PART |
| 3711-009830 | SMG PART |
| 3711-009840 | SMG PART |
| 4709-003301 | SMG PART |
| 6021-002053 | SMG PART |
| DA62-05588B | SMG PART |
| DA68-02583A | SMG PART |
| DC01-00672A | SMG PART |
| DC01-00753A | SMG PART |
| DC01-00755A | SMG PART |
| DC01-00756A | SMG PART |
| DC26-00058A | SMG PART |
| DC41-00210D | SMG PART |
| DC60-00145A | SMG PART |
| DC60-70003A | SMG PART |
| DC61-00498B | SMG PART |
| DC61-05370F | SMG PART |
| DC61-05729A | SMG PART |
| DC61-05730A | SMG PART |
| DC61-05731C | SMG PART |
| DC61-05732C | SMG PART |
| DC61-05819A | SMG PART |
| DC61-05820A | SMG PART |
| DC61-05878A | SMG PART |
| DC61-05879A | SMG PART |
| DC61-05888A | SMG PART |
| DC61-05889A | SMG PART |
| DC61-05890A | SMG PART |
| DC61-05891A | SMG PART |
| DC61-05893A | SMG PART |
| DC61-05894A | SMG PART |
| DC61-05898A | SMG PART |
| DC61-05899A | SMG PART |
| DC61-05908A | SMG PART |
| DC61-05910A | SMG PART |
| DC61-05918A | SMG PART |
| DC61-05921A | SMG PART |
| DC61-05923A | SMG PART |
| DC61-05926A | SMG PART |
| DC61-05931A | SMG PART |
| DC61-05937A | SMG PART |
| DC61-05938A | SMG PART |
| DC61-05939A | SMG PART |
| DC61-05940A | SMG PART |
| DC61-05944A | SMG PART |
| DC61-05946A | SMG PART |
| DC61-05950A | SMG PART |
| DC61-06008A | SMG PART |
| DC62-00450A | SMG PART |
| DC62-00526C | SMG PART |
| DC62-00726A | SMG PART |
| DC62-00781B | SMG PART |
| DC62-00826A | SMG PART |
| DC62-00827A | SMG PART |
| DC62-00897A | SMG PART |
| DC62-00909A | SMG PART |
| DC62-00910A | SMG PART |
| DC62-00939A | SMG PART |
| DC63-00621G | SMG PART |
| DC63-02430A | SMG PART |
| DC63-02430H | SMG PART |
| DC63-02857A | SMG PART |
| DC63-02858A | SMG PART |
| DC63-02928A | SMG PART |
| DC63-03120A | SMG PART |
| DC63-03122A | SMG PART |
| DC63-03124A | SMG PART |
| DC63-03125A | SMG PART |
| DC63-03131A | SMG PART |
| DC63-03143A | SMG PART |
| DC63-03165A | SMG PART |
| DC63-03166A | SMG PART |
| DC63-03174A | SMG PART |
| DC63-03185A | SMG PART |
| DC64-04139A | SMG PART |
| DC64-04330A | SMG PART |
| DC65-00056A | SMG PART |
| DC65-60118L | SMG PART |
| DC66-00822A | SMG PART |
| DC66-00886C | SMG PART |
| DC66-01088A | SMG PART |
| DC66-01090A | SMG PART |
| DC66-01091A | SMG PART |
| DC66-01092A | SMG PART |
| DC66-01093A | SMG PART |
| DC66-01094A | SMG PART |
| DC66-01097A | SMG PART |
| DC66-01133A | SMG PART |
| DC66-01135A | SMG PART |
| DC67-00230Q | SMG PART |
| DC67-00330U | SMG PART |
| DC67-01245A | SMG PART |
| DC67-01270A | SMG PART |
| DC68-03216K | SMG PART |
| DC68-04355C | SMG PART |
| DC68-04514A | SMG PART |
| DC69-01721F | SMG PART |
| DC69-02963A | SMG PART |
| DC69-02964A | SMG PART |
| DC69-02965A | SMG PART |
| DC69-02966A | SMG PART |
| DC69-02971A | SMG PART |
| DC72-00013N | SMG PART |
| DC93-00951A | SMG PART |
| DC94-09845A | SMG PART |
| DC97-22710F | SMG PART |
| DC97-24195A | SMG PART |
| 0202-001338 | SOLDER-BAR |
| 0202-001976 | SOLDER-CREAM;LST-309M-K21 (PWM-118),D20~ |
| 0202-001463 | SOLDER-WIRE |
| 0204-005794 | SOLVENT;S-1000,(CH3)2CHOH,100%,0.79 |
| 3001-002875 | SPEAKER;8OHM,82DB,350HZ,60.5X40X10.5MM,2 |
| DC63-10056P | SPONGE-CUSHION |
| DC72-00056A | SPONGE-CUSHION |
|
|
SPRING ETC-HANGER |
| DC61-04880A | SPRING ETC;WF6000P,STS304,1.5MM,OD13,L17 |
| 3502-001087 | SSR;DC12V,2A,9.6-25MV,-30TO+80C,0.028A,A |
| 0101-002937 | STEEL PLATE;GI,SGCC,1.4MM,340MM,Z14,NC |
| DC01-00451A | STEEL;STS430,L680,0.6MM,680MM,SEHA, DRUM |
|
|
SUPPORT HINGE |
| DC34-00001G | SWITCH REED |
| 0203-005953 | TAPE DOUBLE FACE;REF_ALL,ACRYL,T0.8,WHIT |
| DC02-00070A | TAPE OPP;OPP,T0.06,W50,L1000M,CLEAR |
| 0203-006632 | TAPE-FILAMENT;OPP,T0.15,W18,N/A,CLEAR,SS |
| 0203-005199 | TAPE-FILAMENT;PP,T0.06,W48,L55M,WHITE |
| 0203-006796 | TAPE-POLY |
| 0203-006797 | TAPE-POLY;PP,T0.11,W25,N/A,WHITE,TPP(TEN |
| 0203-007184 | TAPE-SINGLE FACE;PO,T0.07,W50,L100M,CLEA |
|
|
THERMISTOR |
|
|
THERMISTOR |
| 1404-001413 | THERMISTOR-NTC |
| 1404-001872 | THERMISTOR-PTC |
| 1404-001498 | THERMISTOR-PTC;40OHM,290VAC,7A,CASE,17.7 |
|
|
THERMOSTAT |
|
|
THERMOSTAT |
| 0506-000175 | TR-ARRAY |
| 0501-000465 | TR-SMALL SIGNAL |
| 0501-000467 | TR-SMALL SIGNAL |
| DC33-01006B | VALVE WATER;DC12V,#250,1,1,SAFETY VA |
| DC33-01011D | VALVE WATER;DC12V,INCH,#250,1,1,11L/MIN, |
| 4709-003253 | W-LAN MODULE;WCP730M,MT7668,IEEE802.11,2 |
| 6031-001662 | WASHER-SPRING;SK5,NTR,T1,OD45,ID35.2,SPR |
| DC67-01188A | WEIGHT BALANCER-MODULE;WF8900B,CONCRETE, |
| DC67-01259A | WEIGHT BALANCER-UP;WD8000DK,CONCRETE,- |
| DC66-10003A | WIRE VINYL |
| 0103-004840 | |
| 0103-007194 | |
| 0103-011973 | |
| 0103-012758 | |
| 0103-012803 | |
| 0201-001972 | |
| 0903-002312 | |
| DA46-01001A | |
| DB32-00241D | |
| DC01-00752C | |
| DC01-00758C | |
| DC01-00759C | |
| DC01-00774A | |
| DC01-00775A | |
| DC01-00776A | |
| DC01-00777A | |
| DC01-00782A | |
| DC01-00784A | |
| DC01-00785A | |
| DC01-00786A | |
| DC01-00787A | |
| DC01-00789A | |
| DC01-00790A | |
| DC01-00791A | |
| DC01-00792A | |
| DC01-00795A | |
| DC01-00797A | |
| DC01-00798A | |
| DC01-00801A | |
| DC01-00802A | |
| DC01-00803A | |
| DC01-00804A | |
| DC01-00809A | |
| DC01-00818A | |
| DC01-00825A | |
| DC01-00827A | |
| DC31-00194E | |
| DC33-01010G | |
| DC34-00029E | |
| DC41-00311C | |
| DC47-00039C | |
| DC47-00043A | |
| DC61-04708N | |
| DC61-05807A | |
| DC61-05885E | |
| DC61-05900C | |
| DC61-05924B | |
| DC61-05934B | |
| DC61-05948A | |
| DC61-05949A | |
| DC61-06046A | |
| DC61-06082A | |
| DC61-06083A | |
| DC61-06084A | |
| DC61-06085A | |
| DC61-06086A | |
| DC61-06087A | |
| DC61-06088A | |
| DC61-06089A | |
| DC61-06090A | |
| DC61-06091A | |
| DC61-06092A | |
| DC61-06093A | |
| DC61-06095A | |
| DC61-06097A | |
| DC61-06098A | |
| DC61-06099A | |
| DC61-06100A | |
| DC61-06101A | |
| DC61-06102A | |
| DC61-06103A | |
| DC61-06105A | |
| DC61-06107A | |
| DC61-06137A | |
| DC61-06147A | |
| DC61-06174A | |
| DC62-00920A | |
| DC62-00921A | |
| DC62-00954A | |
| DC62-00955A | |
| DC62-00956A | |
| DC62-00957A | |
| DC62-00958A | |
| DC62-00959A | |
| DC62-00960A | |
| DC62-00960B | |
| DC62-00960C | |
| DC62-00960D | |
| DC62-00976A | |
| DC62-10089U | |
| DC63-02211C | |
| DC63-02992K | |
| DC63-03126C | |
| DC63-03127C | |
| DC63-03175B | |
| DC63-03175C | |
| DC63-03238A | |
| DC63-03239A | |
| DC63-03240A | |
| DC63-03241A | |
| DC63-03242A | |
| DC63-03243A | |
| DC63-03244A | |
| DC63-03245A | |
| DC63-03246A | |
| DC63-03247A | |
| DC63-03248A | |
| DC63-03249A | |
| DC63-03250A | |
| DC63-03252A | |
| DC63-03271A | |
| DC63-03272A | |
| DC63-03278A | |
| DC63-03279A | |
| DC63-03288A | |
| DC63-03300A | |
| DC64-04314C | |
| DC64-04321C | |
| DC64-04322C | |
| DC65-00058A | |
| DC67-00829M | |
| DC67-01298A | |
| DC67-01299A | |
| DC67-01300A | |
| DC67-01301A | |
| DC67-01303A | |
| DC67-01304A | |
| DC67-01305A | |
| DC67-01306A | |
| DC67-01312A | |
| DC68-04549A | |
| DC68-04568A | |
| DC68-04569A | |
| DC68-04570A | |
| DC68-04592A | |
| DC68-04593A | |
| DC69-01039R | |
| DC69-01039S | |
| DC69-01039T | |
| DC69-01039U | |
| DC69-02828N | |
| DC69-03045A | |
| DC90-31755A | |
| DC90-31765A | |
| DC90-31774A | |
| DC90-31775A | |
| DC90-31776A | |
| DC90-31777A | |
| DC90-31778A | |
| DC90-31779C | |
| DC90-31780C | |
| DC90-31781A | |
| DC90-31782A | |
| DC90-31784A | |
| DC91-00017B | |
| DC91-00022A | |
| DC91-00029A | |
| DC92-01378Z | |
| DC92-02515V | |
| DC92-02515W | |
| DC92-03695G | |
| DC92-03808B | |
| DC92-03822A | |
| DC92-03823A | |
| DC92-03836A | |
| DC92-03851A | |
| DC92-03852A | |
| DC92-03859A | |
| DC92-03860A | |
| DC92-03866A | |
| DC92-03867A | |
| DC92-03871A | |
| DC93-01062B | |
| DC93-01063B | |
| DC93-01104A | |
| DC93-01107A | |
| DC93-01108A | |
| DC93-01109A | |
| DC93-01110A | |
| DC93-01111A | |
| DC93-01112A | |
| DC93-01113A | |
| DC93-01121A | |
| DC94-15567A | |
| DC94-15569A | |
| DC94-15929A | |
| DC94-15930A | |
| DC94-15980A | |
| DC96-01417S | |
| DC97-18470D | |
| DC97-23125C | |
| DC97-23126C | |
| DC97-23140E | |
| DC97-24133D | |
| DC97-24134T | |
| DC97-24155D | |
| DC97-24156C | |
| DC97-24157B | |
| DC97-24178B | |
| DC97-24179C | |
| DC97-24182C | |
| DC97-24187G | |
| DC97-24196C | |
| DC97-24197E | |
| DC97-24198E | |
| DC97-24199E | |
| DC97-24201B | |
| DC97-24202Q | |
| DC97-24209B | |
| DC97-24219D | |
| DC97-24222C | |
| DC97-24224B | |
| DC97-24230C | |
| DC97-24237C | |
| DC97-24238B | |
| DC97-24239B | |
| DC97-24425A | |
| DC97-24435A | |
| DC97-24446A | |
| DC97-24447A | |
| DC97-24448A | |
| DC97-24449A | |
| DC97-24452A | |
| DC97-24456A | |
| DC97-24459A | |
| DC97-24465A | |
| DC97-24467C | |
| DC97-24470A | |
| DC97-24486A | |
| DC98-05199M | |
| DC98-05283A | |
| DC98-05292A | |
| DC98-05298A |
