Model Image
Manufacturer

Samsung

Model Number

WF51CG8000AWA5

Description

Wm : Washingmachine

Interactive Exploded View

Parts List

Part Number Description

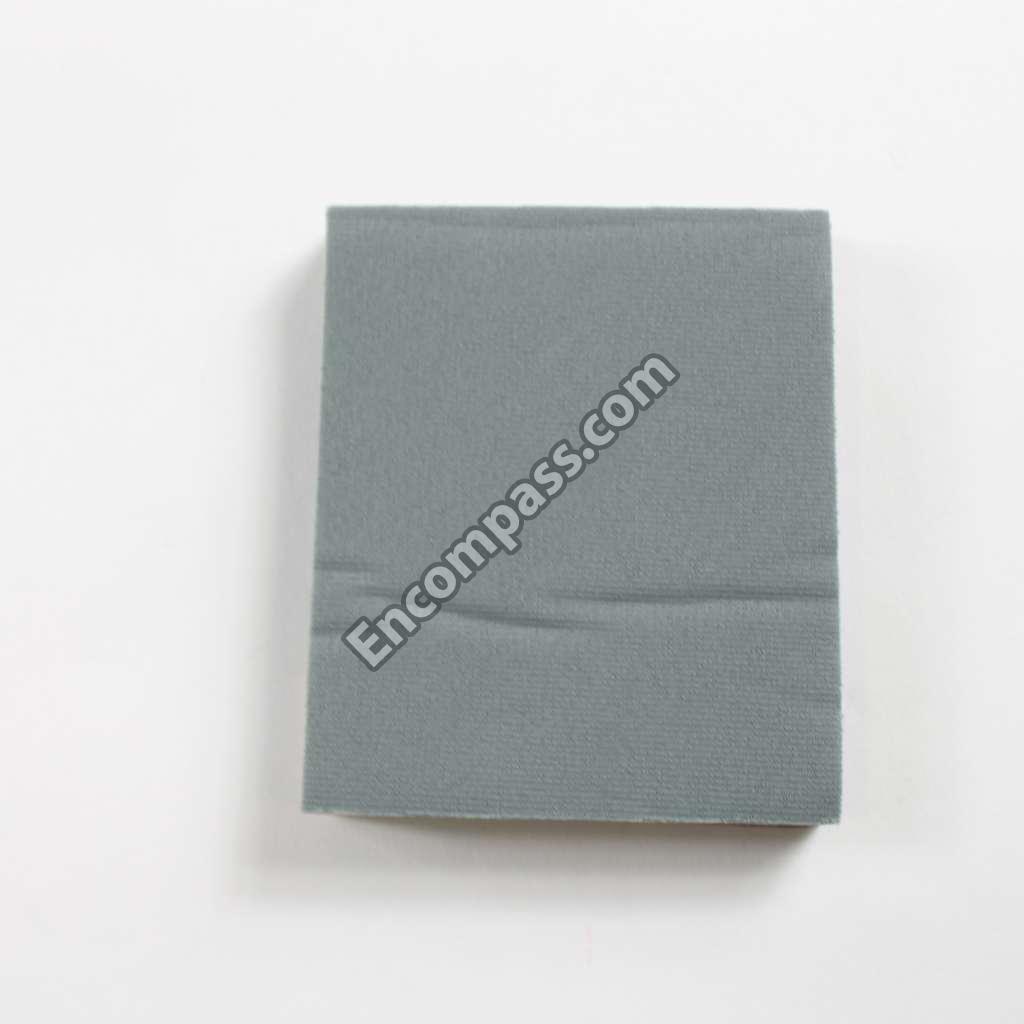

DC63-00004C DC63-00004C ABSORBER SPONGE;SEW-X100,PU FOAM,T15,D0,
DC63-02211A ABSORBER SPONGE;WF45M5500AW,PE FOAM,T0.8
DC98-04307A ASSEMBLY ACCESSORY;WF6000R/WF8000R,WF45R6300

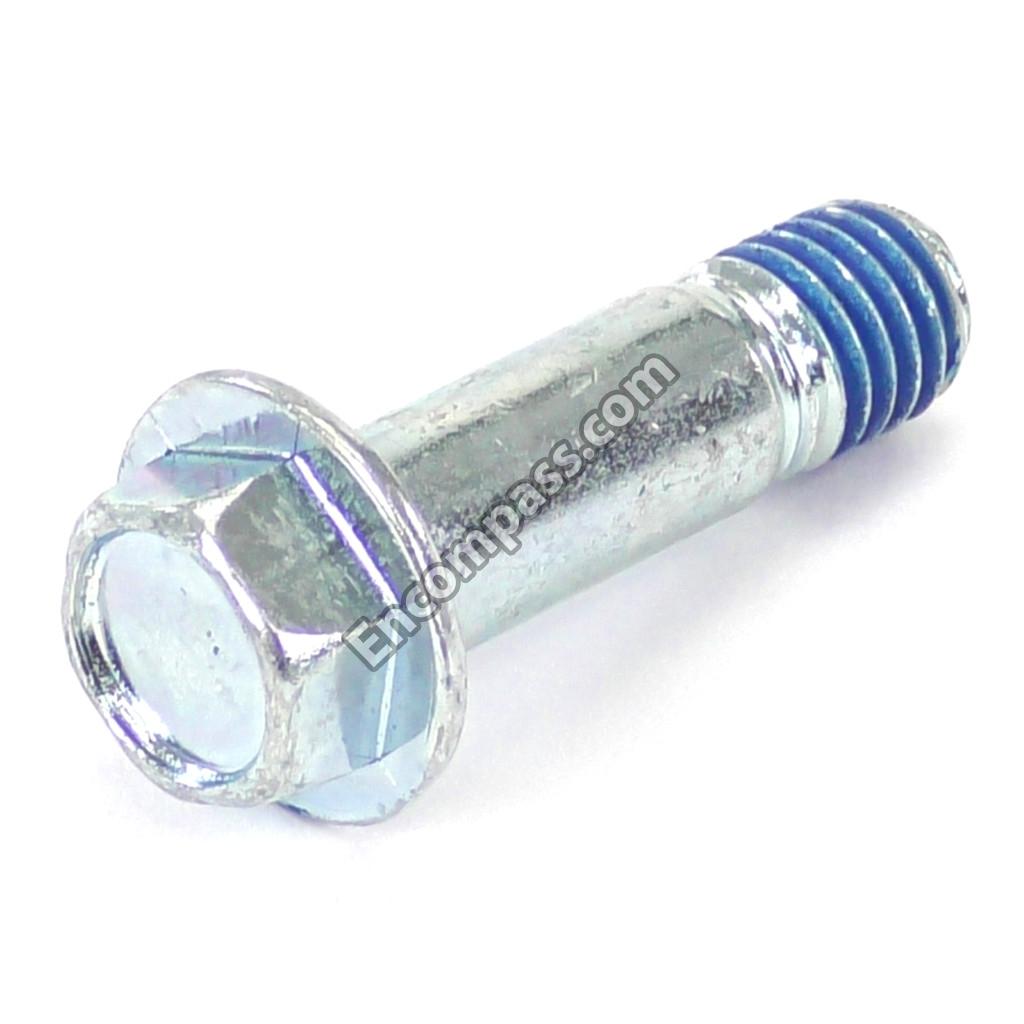

DC97-02412A DC97-02412A ASSEMBLY BOLT;MOTOR/ M8*L62,,,,,,
DC97-14263A DC97-14263A ASSEMBLY BOLT;MOTOR/BOLT(M8)+WASHER(OD27.5),
DC97-06080F DC97-06080F ASSEMBLY BOLT;WD9500J,30,M12,WASHER 38

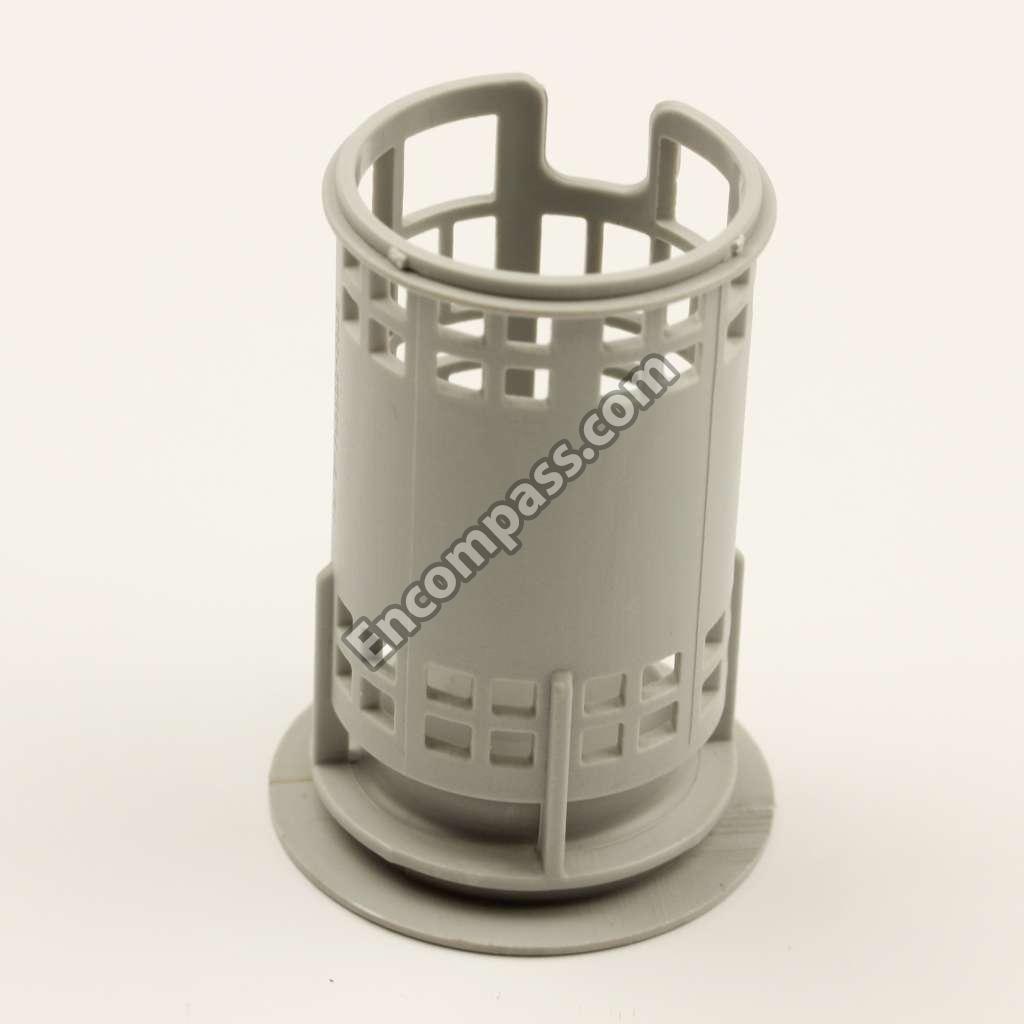

DC97-21477C DC97-21477C ASSEMBLY CASE FILTER;WF8/6000R,INNER GRAY,PP
DC97-04981F DC97-04981F ASSEMBLY CLAMP DIAPHRAGM;PURPLE,WF448AAW,-,-
DC97-21926A ASSEMBLY COVER BACK;WF6000R,SEHC
DC97-21478F ASSEMBLY COVER FILTER;WF8/6500TK,WHITE,GLOBA
DC97-22704B ASSEMBLY COVER TOP-MODULE;WF8000TK,NEAT WHIT
DC97-22016W ASSEMBLY COVER TOP;WF8000C,WF51CG8000AWA5,NE
DC99-00815A DC99-00815A ASSEMBLY CUSHION PUMP;MARS-PJT,WF206LNW,-,-,
DC93-00236G ASSEMBLY DD BLDC MOTOR;WF8000R,COM2000A,F,DC
DC97-21434A DC97-21434A ASSEMBLY DETERGENT;A1 PJT,WF6000R
DC97-22434J ASSEMBLY DOOR-MODULE;WF8000C,5.1CUFT,DOOR SA
DC97-23636H ASSEMBLY DRAWER-MODULE;WF8000C,WF51CG8000AWA
DC97-23869A ASSEMBLY DRUM WRAPPER;WF8000CK,24KG,-
DC97-23868A ASSEMBLY DRUM-MODULE;WF8000CK,24KG,-

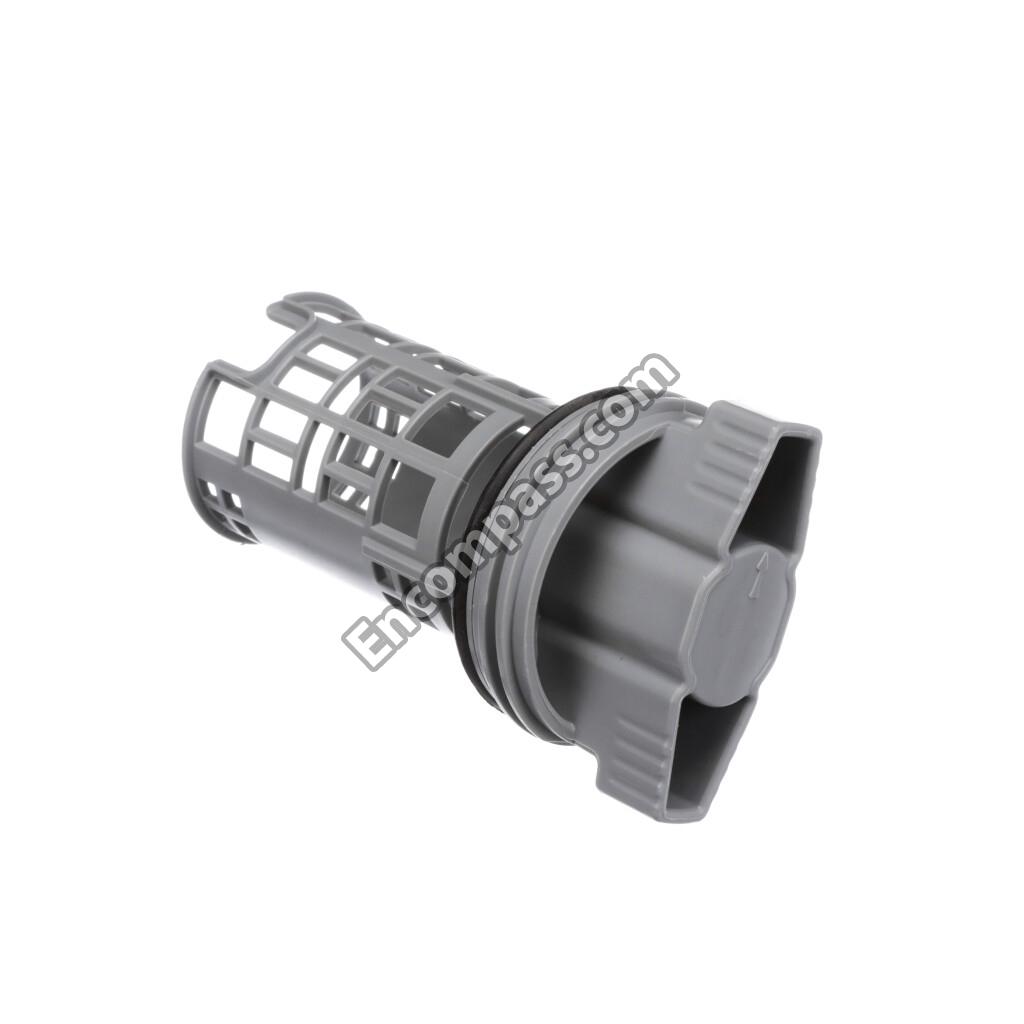

DC97-16991C DC97-16991C ASSEMBLY FILTER;DRUM 27-INCH,BIG HANDLE FILT
DC98-04012A DC98-04012A ASSEMBLY FIXER TUB;WF8/6000R,LINK CONNECTOR
DC97-23217A ASSEMBLY FLANGE SHAFT;WF8/6000R
DC97-22492L ASSEMBLY FRAME FRONT-MODULE;WF6000TK,NEAT WH
DC97-23714S ASSEMBLY FRAME FRONT;WF8000C,WF51CG8000AWA5,
DC97-23181T ASSEMBLY FRAME-MODULE;WF8000C,WF51CG8000AWA5
DC97-21925A ASSEMBLY GUIDE WIRE;WF6000R,SEHC
DC97-16106D ASSEMBLY HOSE AIR;DRUM 27-INCH ,SEHC VE
DC97-21462A ASSEMBLY HOSE AIR;WF8/6000R,A1
DC97-16105B DC97-16105B ASSEMBLY HOSE DRAIN;WF6200,WF6500,WF7500
DC97-12534S ASSEMBLY HOSE DRAIN;WF8000C,WF51CG8000AVA5
DC97-21484B ASSEMBLY HOSE DRAWER

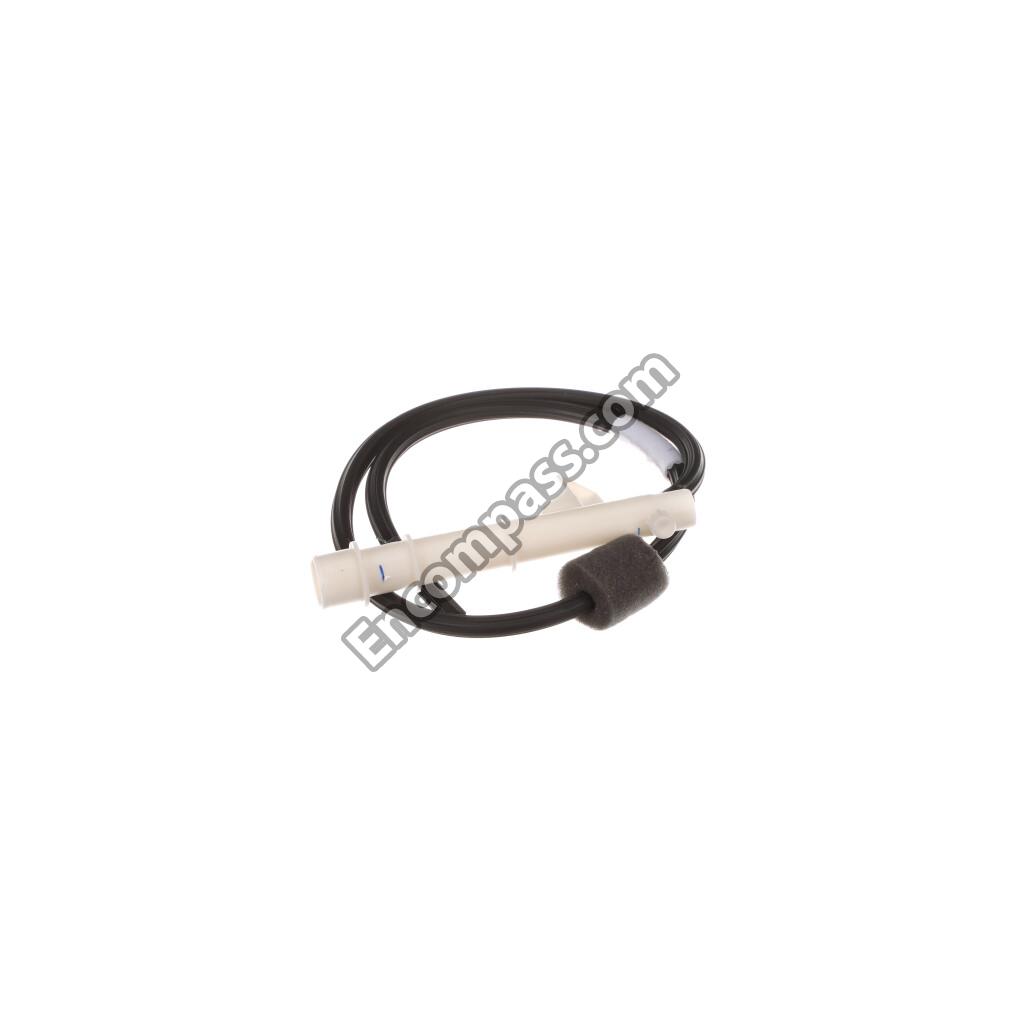

DC97-21474A DC97-21474A ASSEMBLY HOSE PRESSURE;400MMH20,NO PBA,WF8/6
DC97-21472X ASSEMBLY HOUSING DRAWER-MODULE;WF8000C,WF51C
DC97-00920V DC97-00920V ASSEMBLY LEG

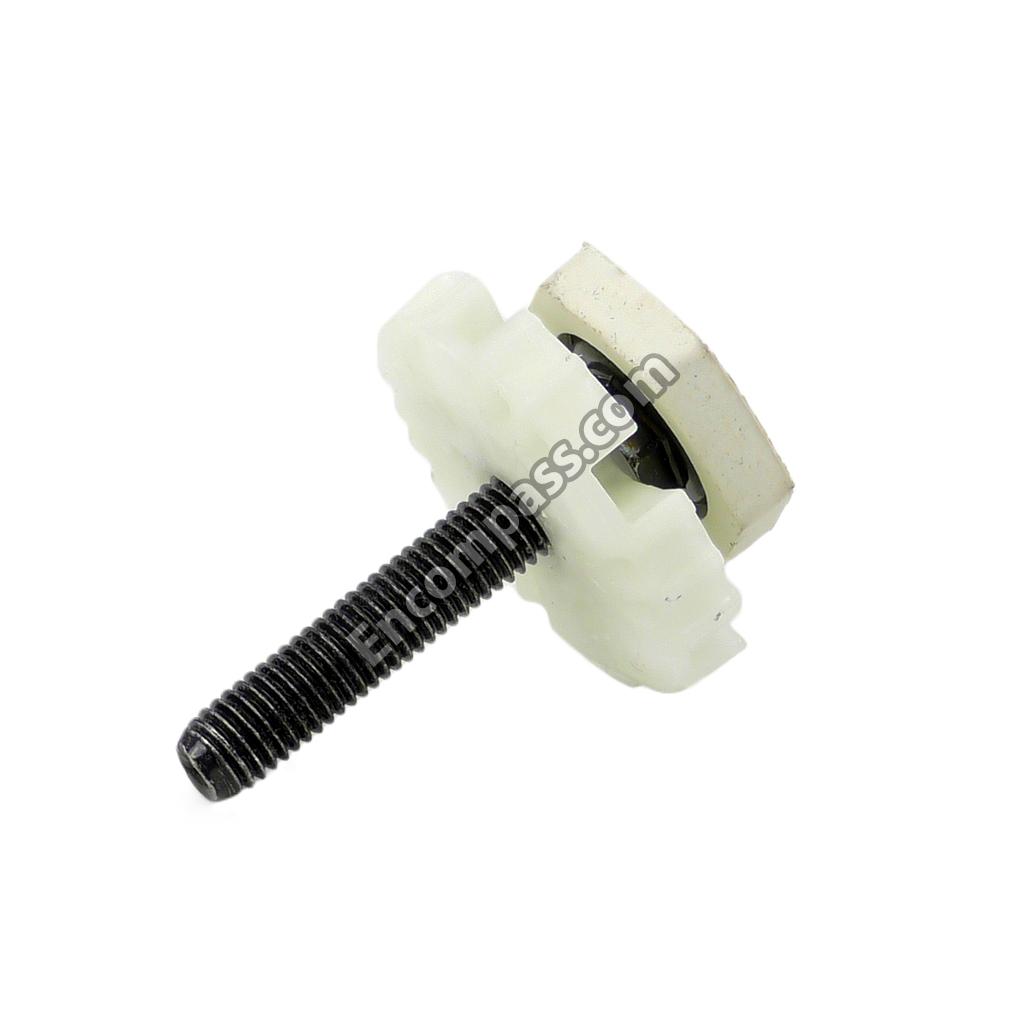

DC97-17071A ASSEMBLY LEG BOLT;K4-BONANZA,OD33.2

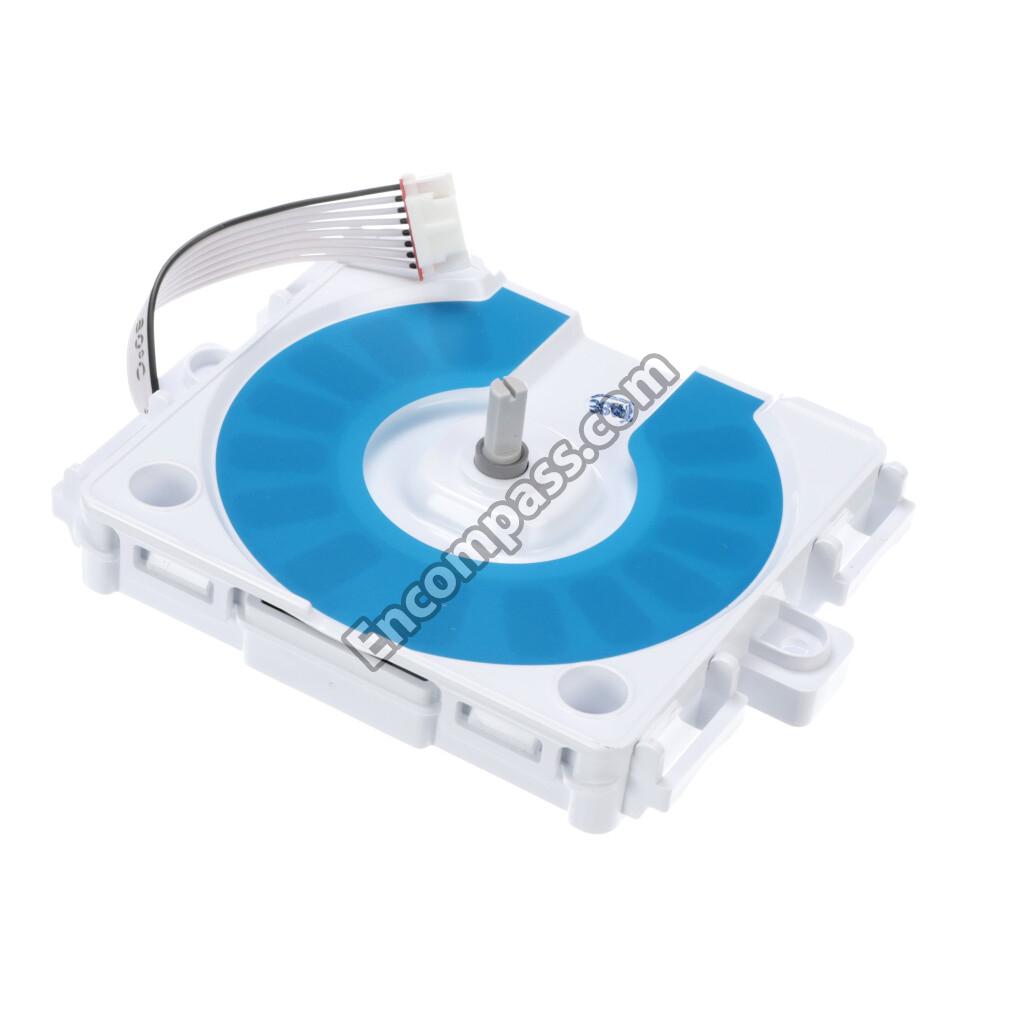

DC92-02391A DC92-02391A ASSEMBLY MODULE;JOG MODULE,A PJT,CYCLE 12,ST
DC97-22586L ASSEMBLY PANEL CONTROL-MODULE;WF8000C,WF51CG
DC97-22826C ASSEMBLY PANEL CONTROL;WF8000C,WF51CG8000AWA
DC97-22708W ASSEMBLY PANEL DRAWER;WF8000C,WF51CG8000AWA5
DC92-03079A ASSEMBLY PBA MODULE-DISPLAY;TOUCH MODULE,A P
DC94-13844A ASSEMBLY PCB EEPROM;0080,WF8000C_51CF,DC92-0

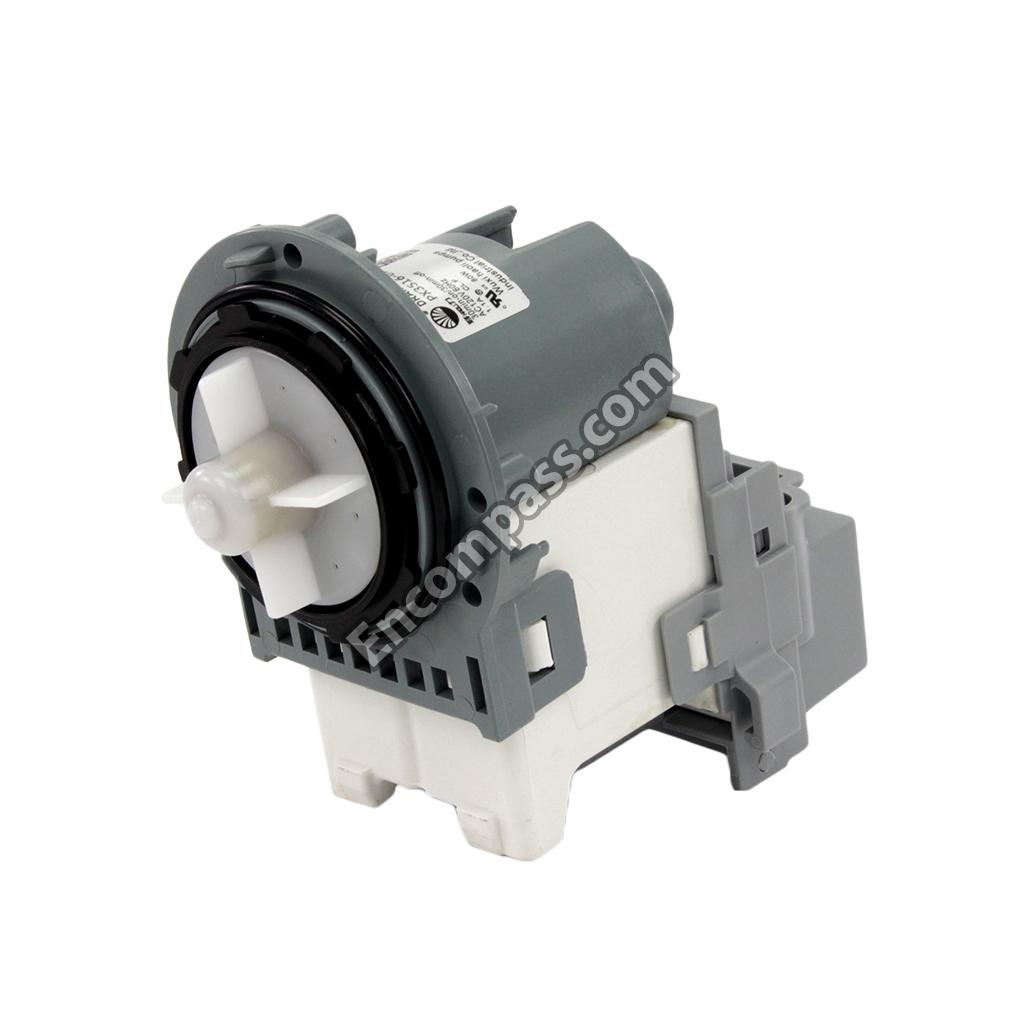

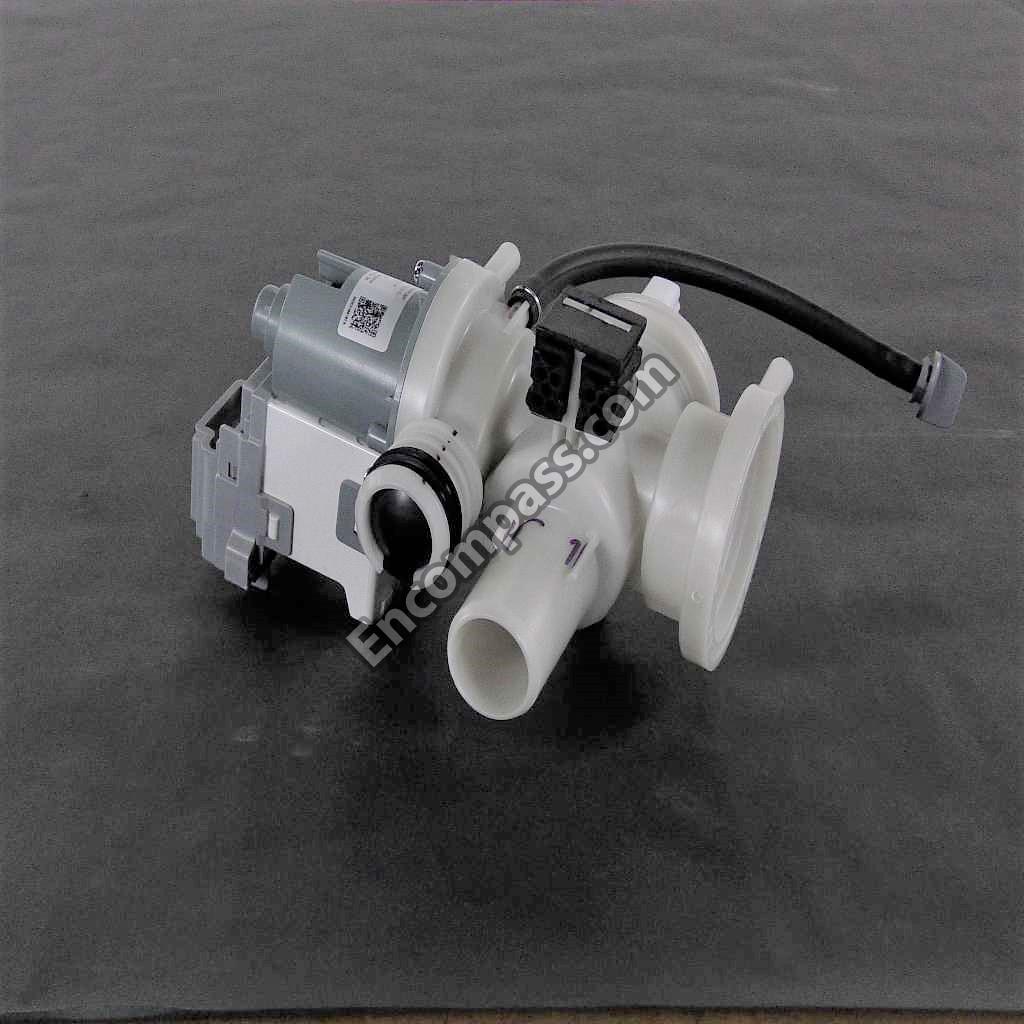

DC97-20621A DC97-20621A ASSEMBLY PUMP DRAIN;WF5500M,WF45M5500AP,NO B
DC97-20621C ASSEMBLY PUMP DRAIN;WF8000C,NO BUBBLE,SMALL
DC97-20193B ASSEMBLY ROTOR;COM2000A,60.1

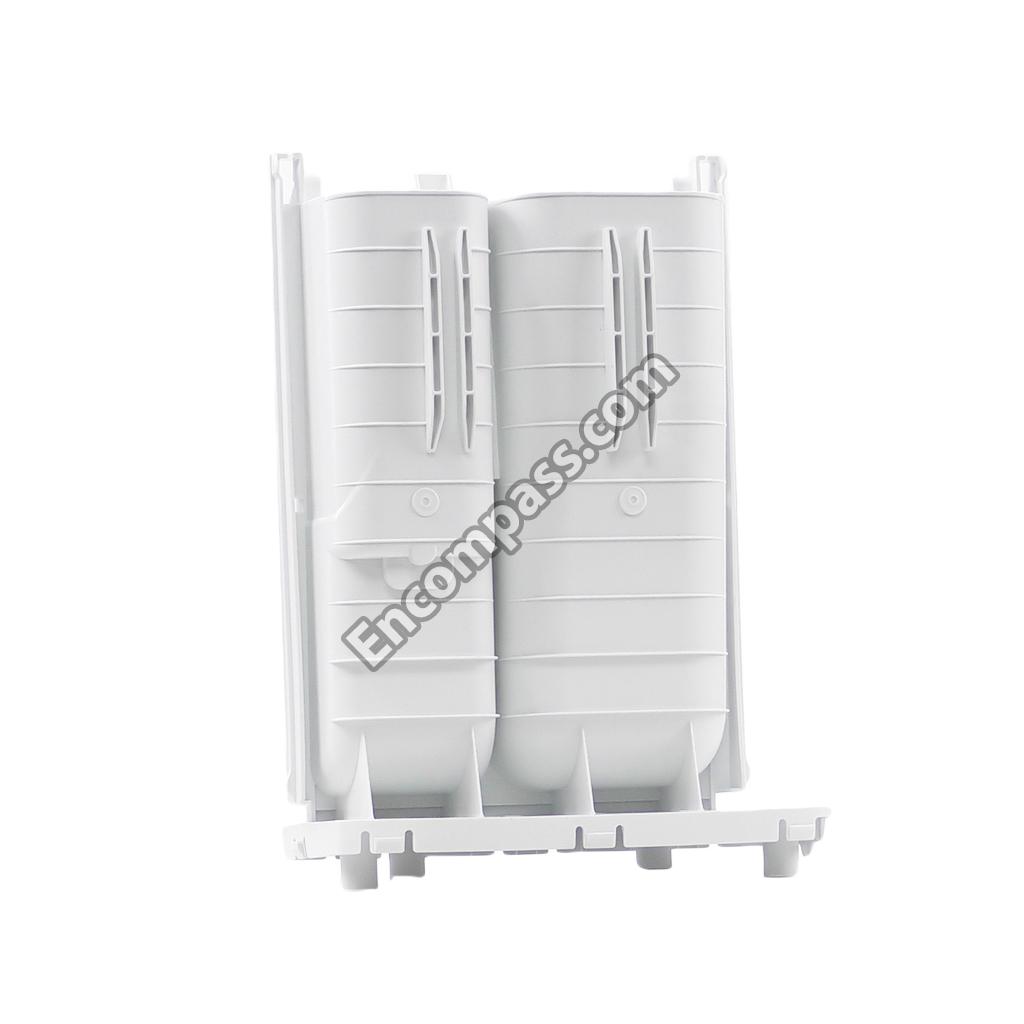

DC97-21479A ASSEMBLY S.HOUSING DRAWER;WF8/6000R
DC97-21942D ASSEMBLY S.PANEL CONTROL;WF6000T,NEAT WHITE,
DC97-23873B ASSEMBLY S.TUB BACK;WF8000C,WF51CG8000AVA5
DC97-23875B ASSEMBLY SEMI TUB BACK;WF8000C,WF51CG8000AVA
DC97-21945C ASSEMBLY SEMI TUB FRONT;WF6000T,NO HEATER
DC97-21487D ASSEMBLY STATOR;CDD20A,S60,34,273
DC97-21943N ASSEMBLY WINDOW PANEL;WF8000C,WF51CG8000AWA5
DC97-04973E ASSEMBLY WIRE DIAPHRAGM;WF8000R
DC93-00819R ASSEMBLY WIRE HARNESS-MAIN;DRUM-L,WF51CG8000
6902-003436 BAG PE;HDPE,T0.015,W200,L350,TRP,RECYCLE
6902-000286 BAG PE;LDPE,T0.03,W200,L300,TRP,RECYCLE+
6601-003009 BEARING BALL;6306-2RZ,SBF4118,L19,OD72,I
6601-003008 BEARING BALL;6307-2RZ,SBF4118,L21,OD80,I
DC61-04862A DC61-04862A BODY DRAWER;WF6000R,PP+TD30%,-,NEAT WHIT
DC60-40137A DC60-40137A BOLT HEX;MARS-PJT,STS430,-,L30,-,-,-,HEX

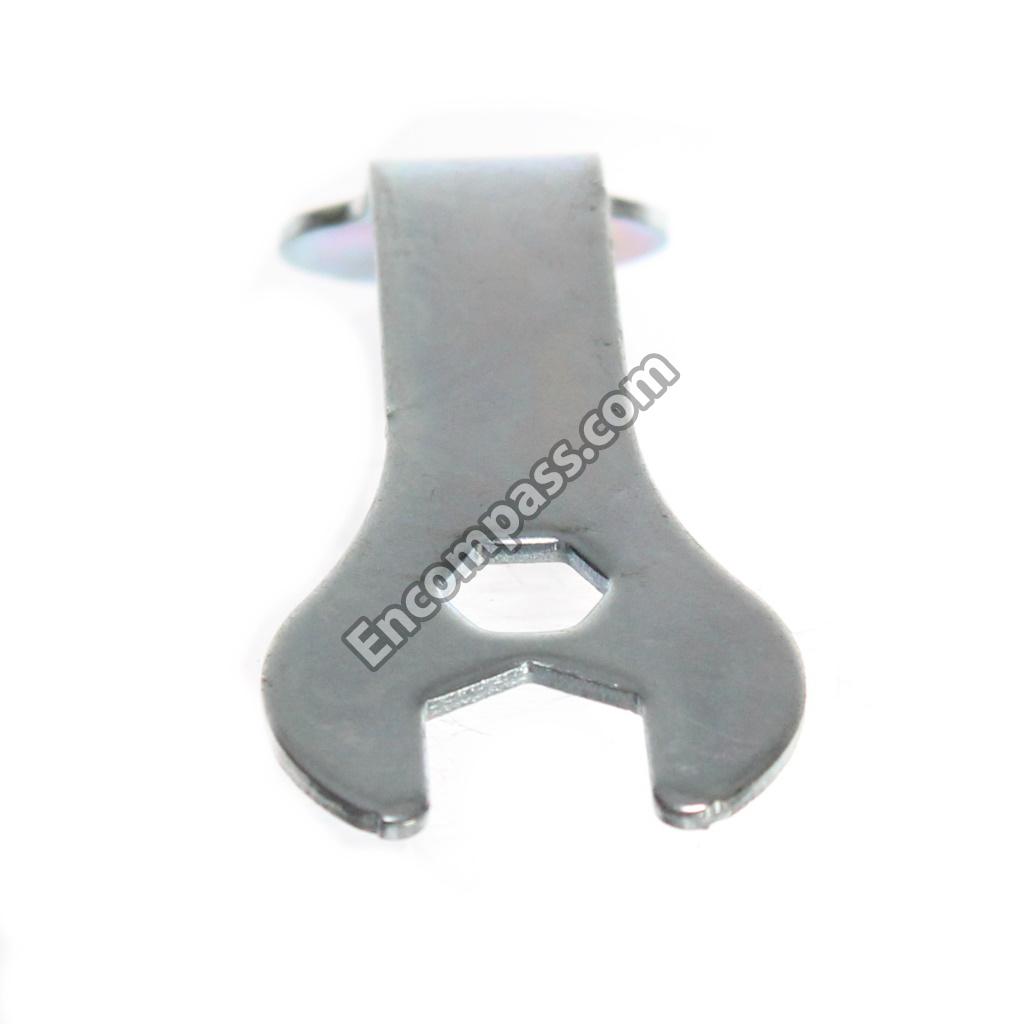

DC60-00104A DC60-00104A BOLT SPANER;-,CR-SPCC,T2.5,L166,-,-,-,-
6011-004782 6011-004782 BOLT-ETC;M6,L60,ZN-NI(SIL),HWH,+,SCM435

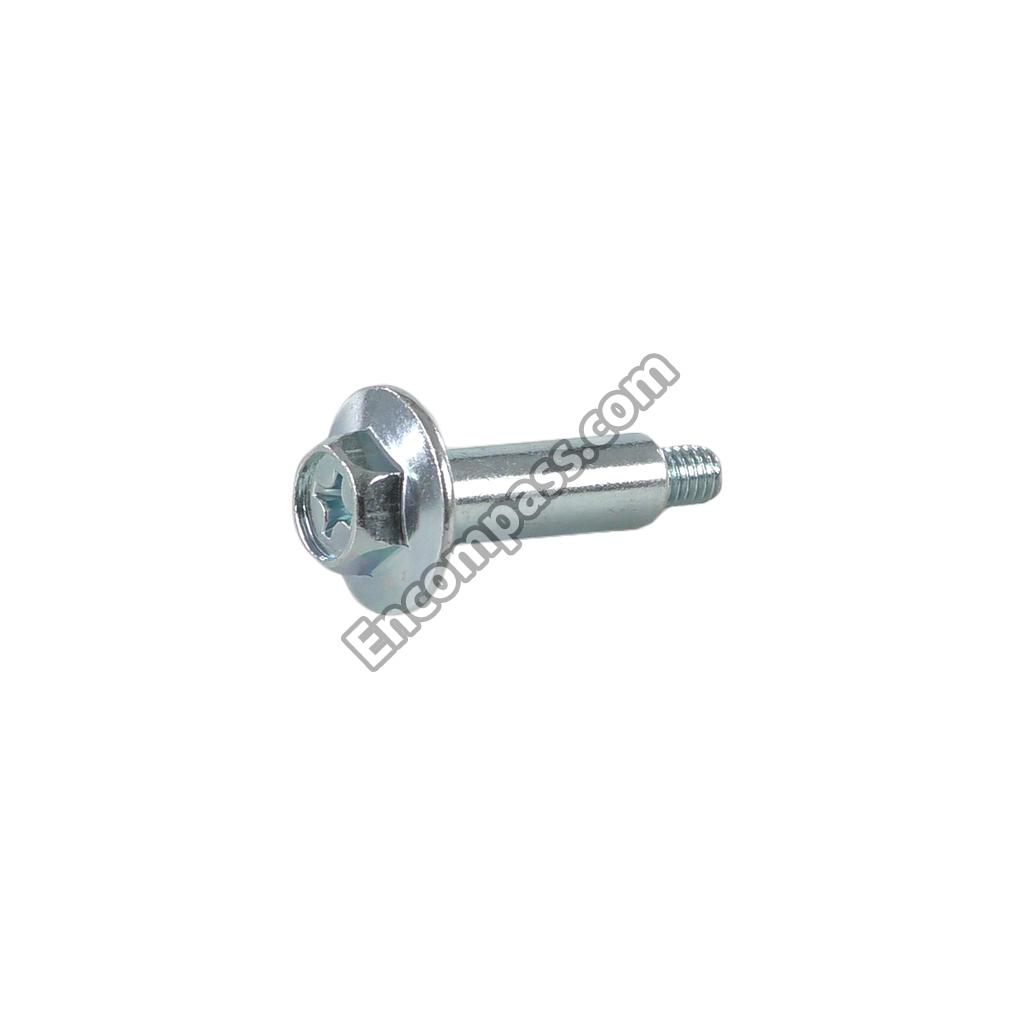

6011-007676 BOLT-HEX;M10,L124.5,ZPC(SILVER),HWH,+,SC
6011-001644 6011-001644 BOLT-HEX;M10,L35,ZPC(WHT),HH,+,SM10C,DAM
6011-001565 6011-001565 BOLT-HEX;M6,L35.1,ZPC(WHT),HWH,+,SWRCH25
6009-001367 6009-001367 BOLT-HEX;M6.5,L32,ZPC(WHT),HWH,+,SWRCH18
DC61-02615A DC61-02615A BRACKET HINGE;WF520ANP,GI-SGCC,T1.4,-,-,

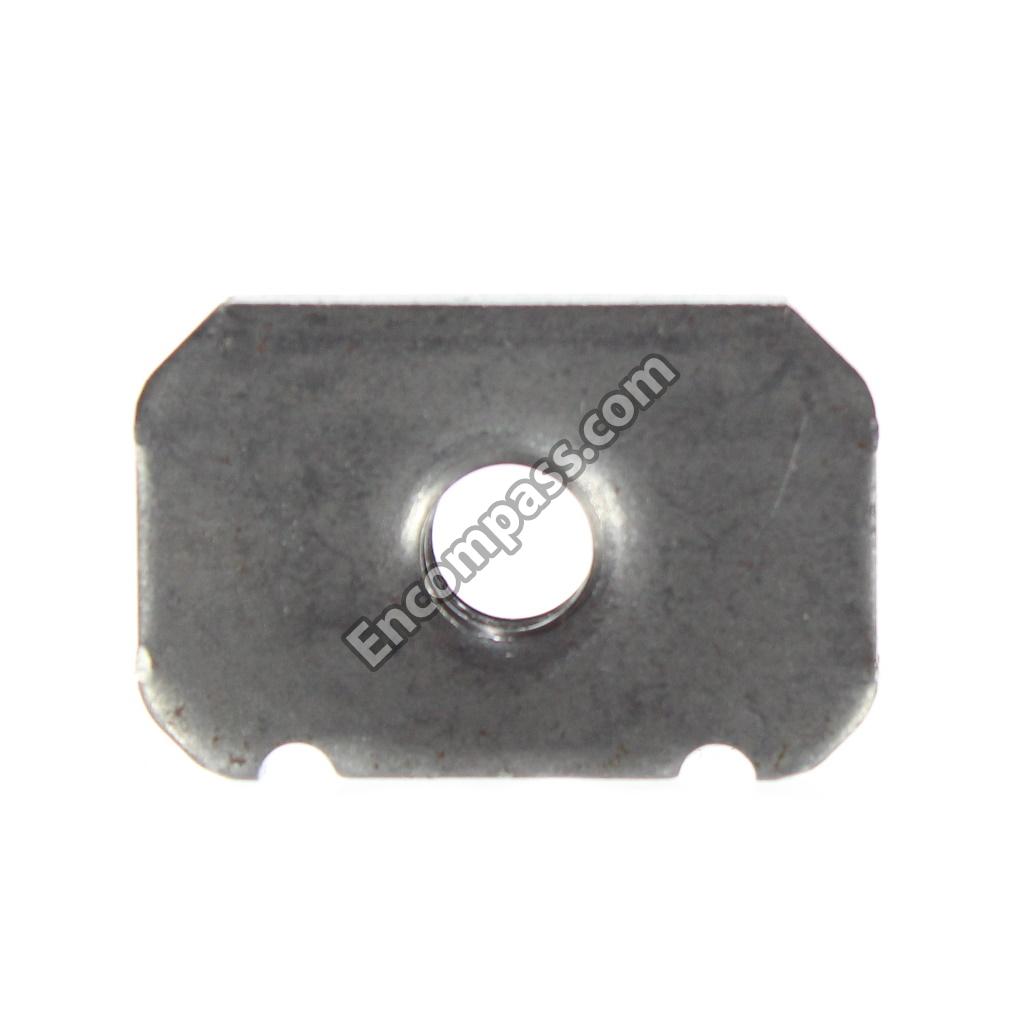

DC61-00201A DC61-00201A BRACKET NUT;P1291,PO-SPHC,T3,NO-PAINT/MO
DC61-02388A BRACKET PUMP;WR-PA179UR,GI-SGCC,T1.2,MOU
DC61-05726A BRACKET SPRING-LEFT;WF8000CK,GI-SGCC,T1.
DC61-05727A BRACKET SPRING-RIGHT;WF8000CK,GI-SGCC,T1
DC61-04878A BRACKET TUB;WF45P6000,GI-SGCC,T0.35,-,-,
2402-001368 C-AL, SMD
2402-001268 C-AL, SMD
2401-003139 C-AL;1000UF,20%,25V,TP,10X20MM,5MM,-55TO
2401-003503 C-AL;100UF,20%,25V,TP,6.3X11MM,5MM,-40TO
2401-000493 C-AL;10UF,20%,50V,HR,TP,5X11MM,5MM
2401-001374 C-AL;470UF,20%,16V,WT,TP,10X12.5MM,5MM
2401-001698 C-AL;470UF,20%,35V,TP,10X20MM,5MM,-55TO+
2401-003395 C-AL;47UF,20%,50V,TP,6.3X11MM,5MM,-40TO+
2203-010142 C-CER,CHIP
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0.
2203-007544 C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0.
2203-002285 C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T
2203-007306 C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2
2203-007456 C-CER,CHIP;1UF,10%,25V,X5R,TP,1005,T0.5,
2203-007486 C-CER,CHIP;1UF,10%,50V,X5R,TP,1608,-55TO
2203-000627 C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5,
2203-008315 C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2
2203-001414 C-CER,CHIP;330NF,10%,50V,X7R,TP,2012,-55
2201-000983 C-CERAMIC,DISC;1NF,10%,2000V,Y5P,TP,9X5M
2201-000332 C-CERAMIC,DISC;2.2NF,20%,250VAC,Y5U,TP,9
2202-002252 C-CERAMIC,MLC-RADIAL;1NF,10%,1
2301-001899 C-FILM, LEAD
2301-000131 C-FILM,LEAD-PEF;100NF,5%,630V,TP,18X12X8
6502-000127 CABLE CLAMP;DAWH-18NB,PA66,NTR
DC61-00553B CABLE CLAMP;DAWS-3NE,PA66,NTR
DC65-10001A CABLE TIE;CT-140,NYLON66,NTR,T1.1,W3.5,L
6501-000121 CABLE TIE;DA-368,NYLON66,NTR,T1.5,W7.6,L

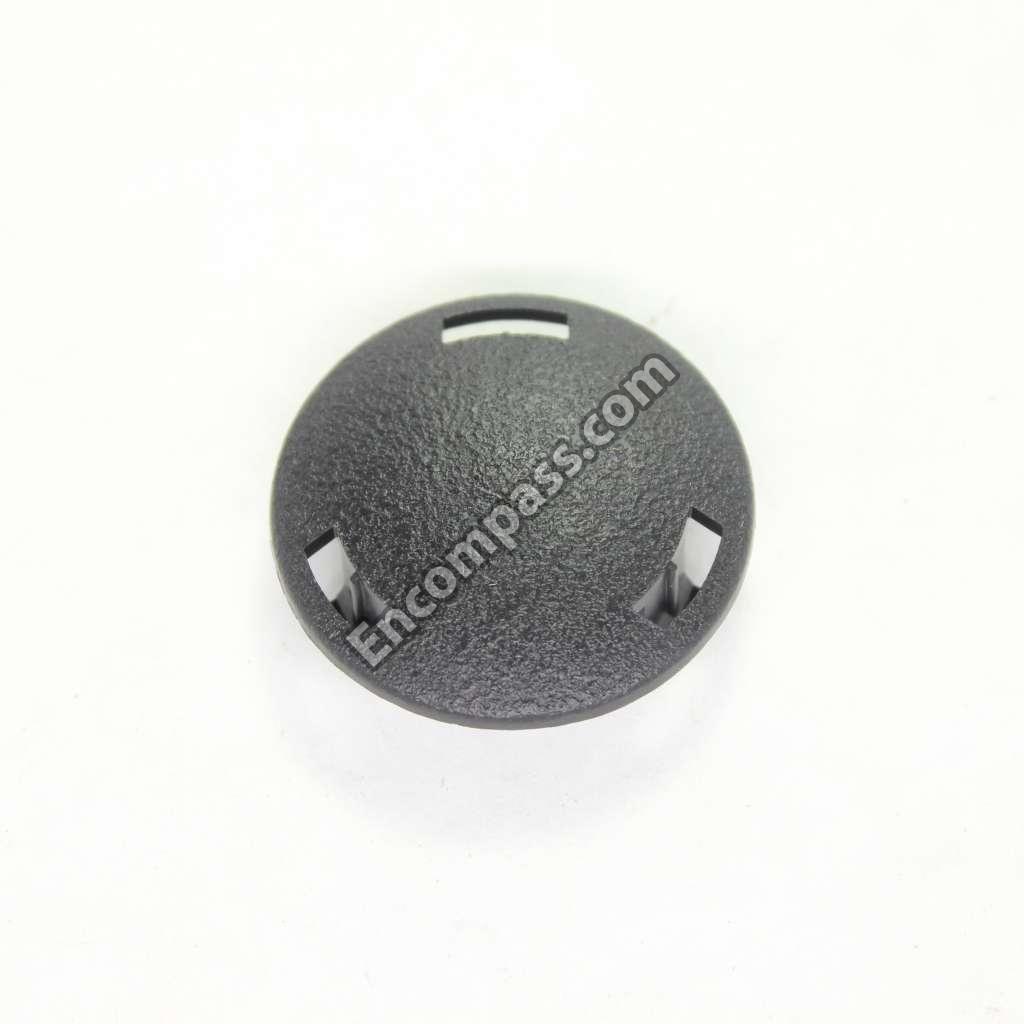

DC67-00333A CAP COVER TOP;DV448AEP,ABS,T3,-,HG-0760G

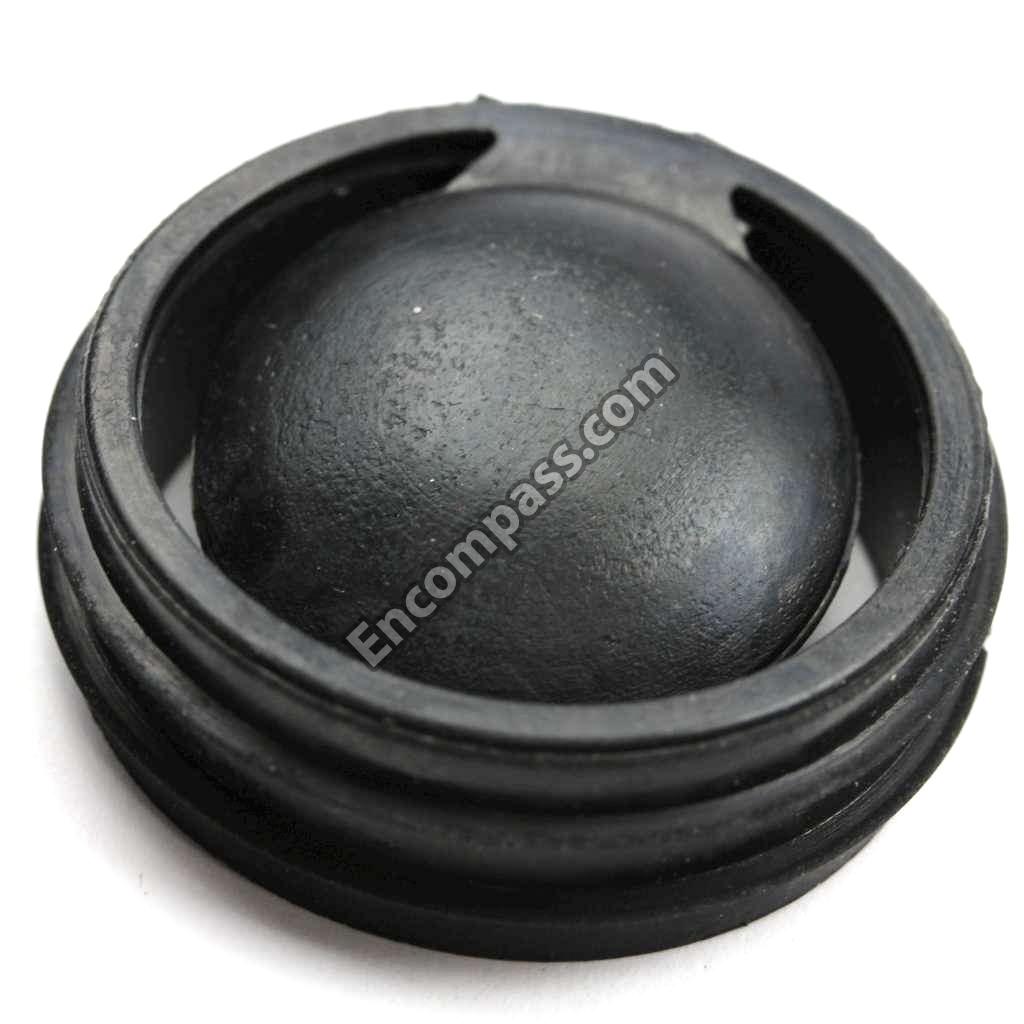

DC61-10673A DC61-10673A CAP DRAIN;WF220ANW,PP,-,-,-,-,-,CNTK-P10
DC67-01060A CAP DRAWER;WF6000R,PP+TD30%,T2,MT43,HONE
DC67-00307A DC67-00307A CAP-FIXER;WF438AAC/XAA,PP,T1.5,-,P-002HB

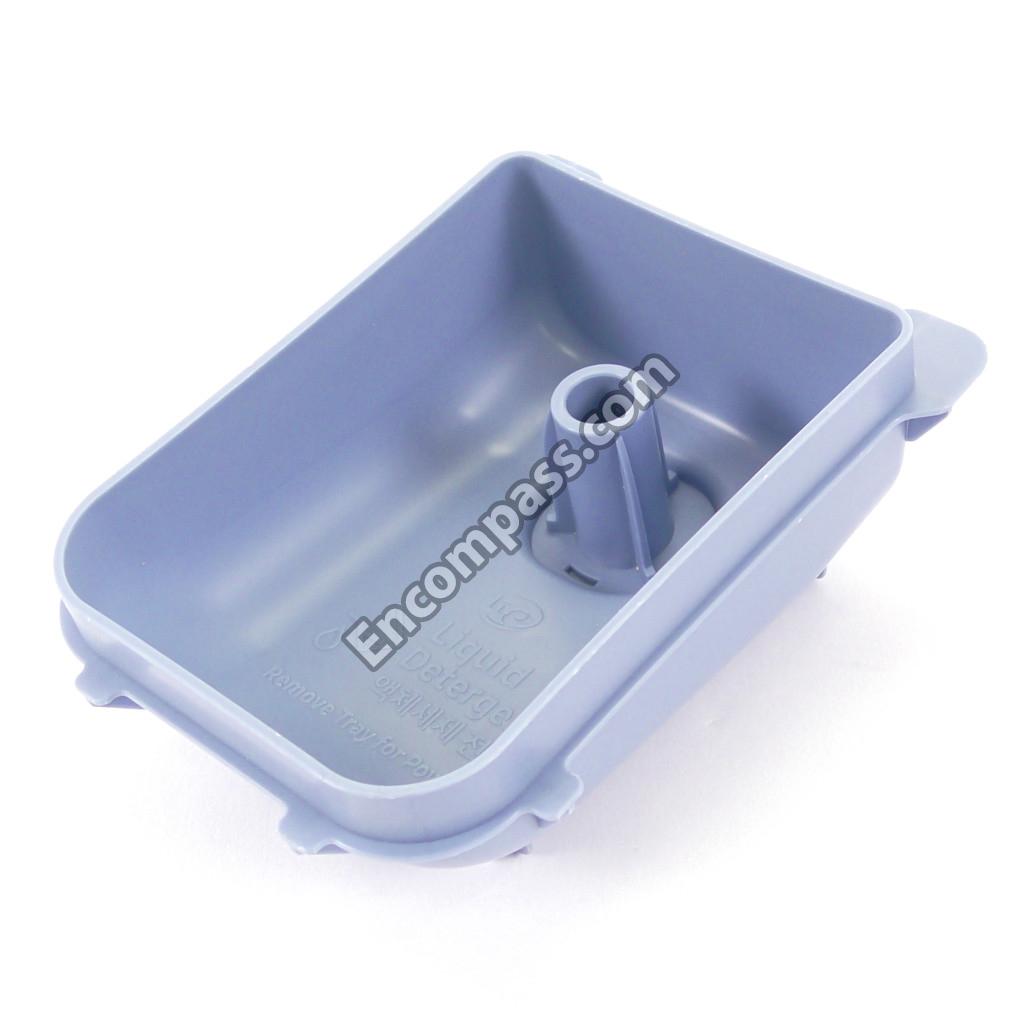

DC61-04859A CASE BLEACH;WF6000R,PP+TD30%,T1.5,HONEST

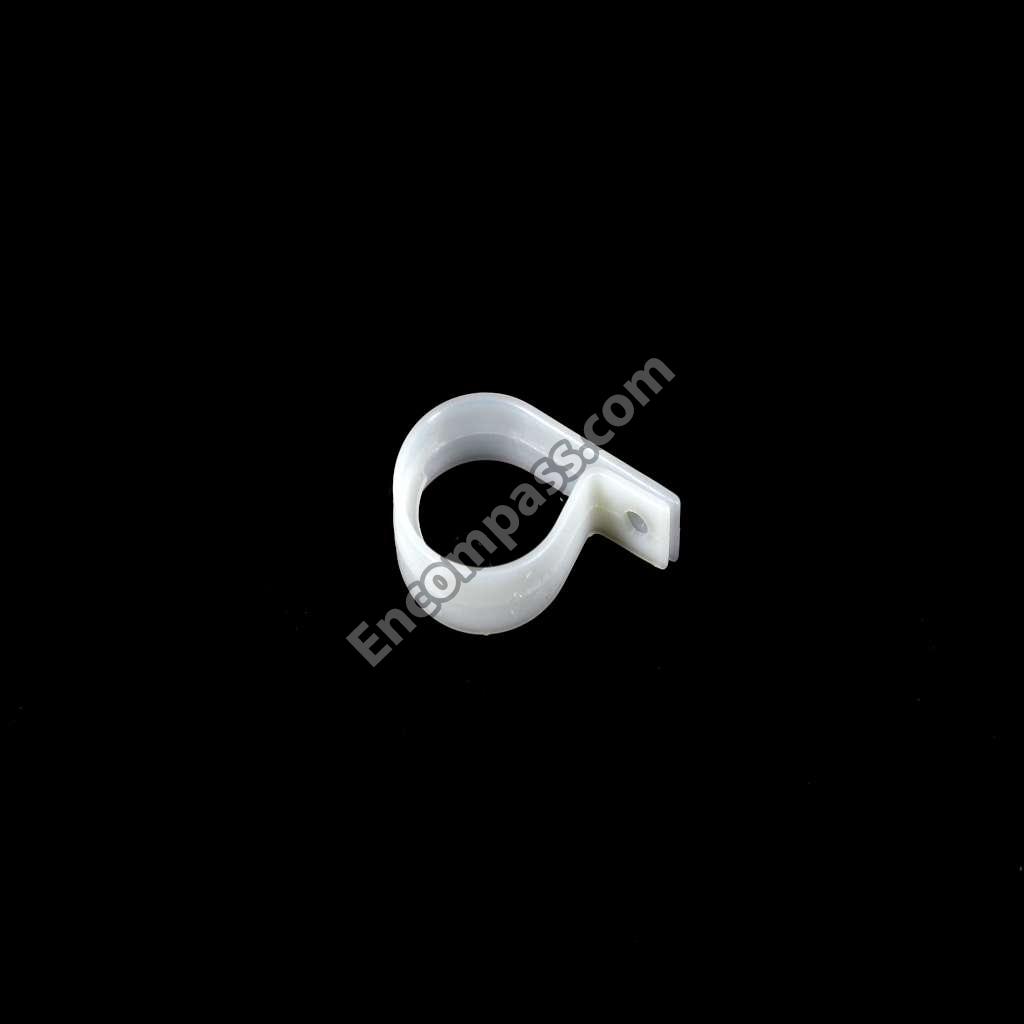

DC61-00118A DC61-00118A CLAMP-CABLE;P1291,PA66,NATURAL,-,-,101F,
DC61-00133A CLAMPER HOSE-FIX;P1291,PP,NATURAL,-,-,BJ
DC65-00014E CLAMPER HOSE-JOINT;WF6000H,HSWR,-,-,-,-,

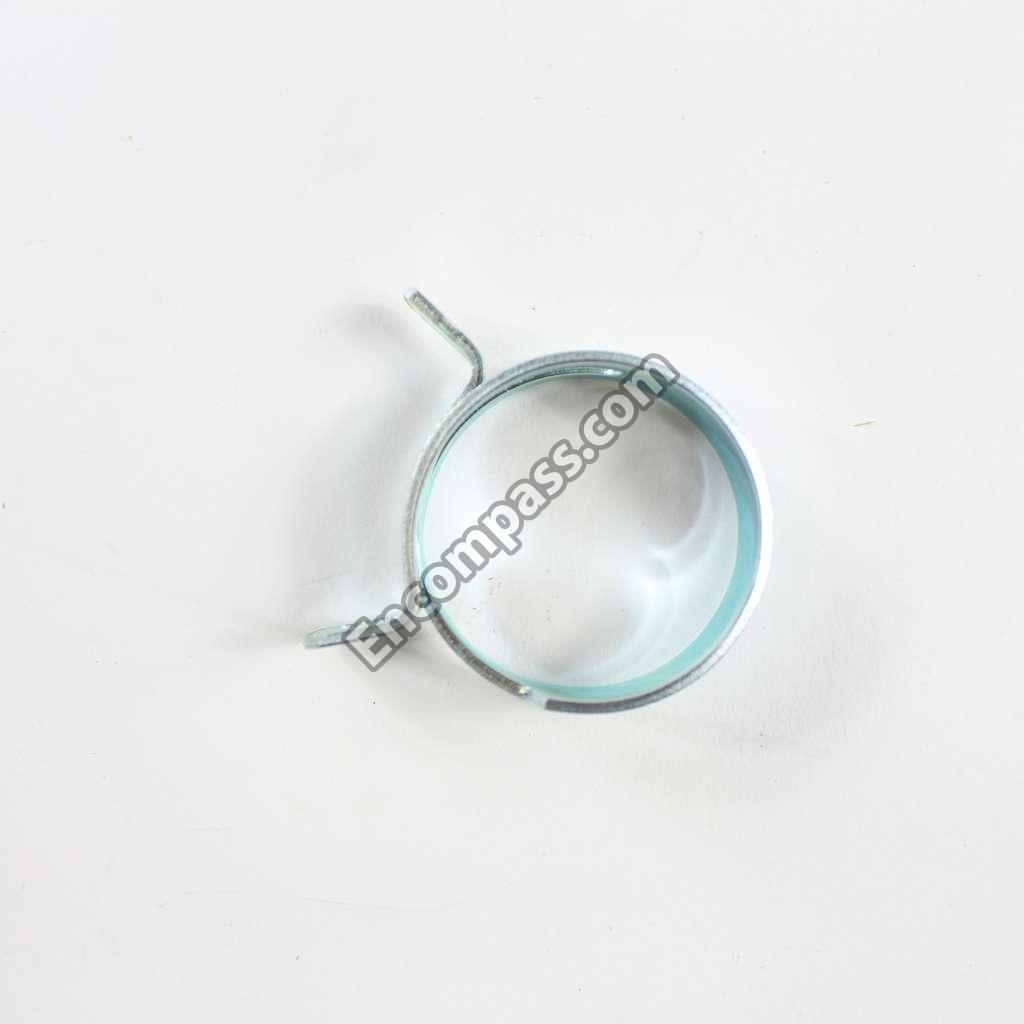

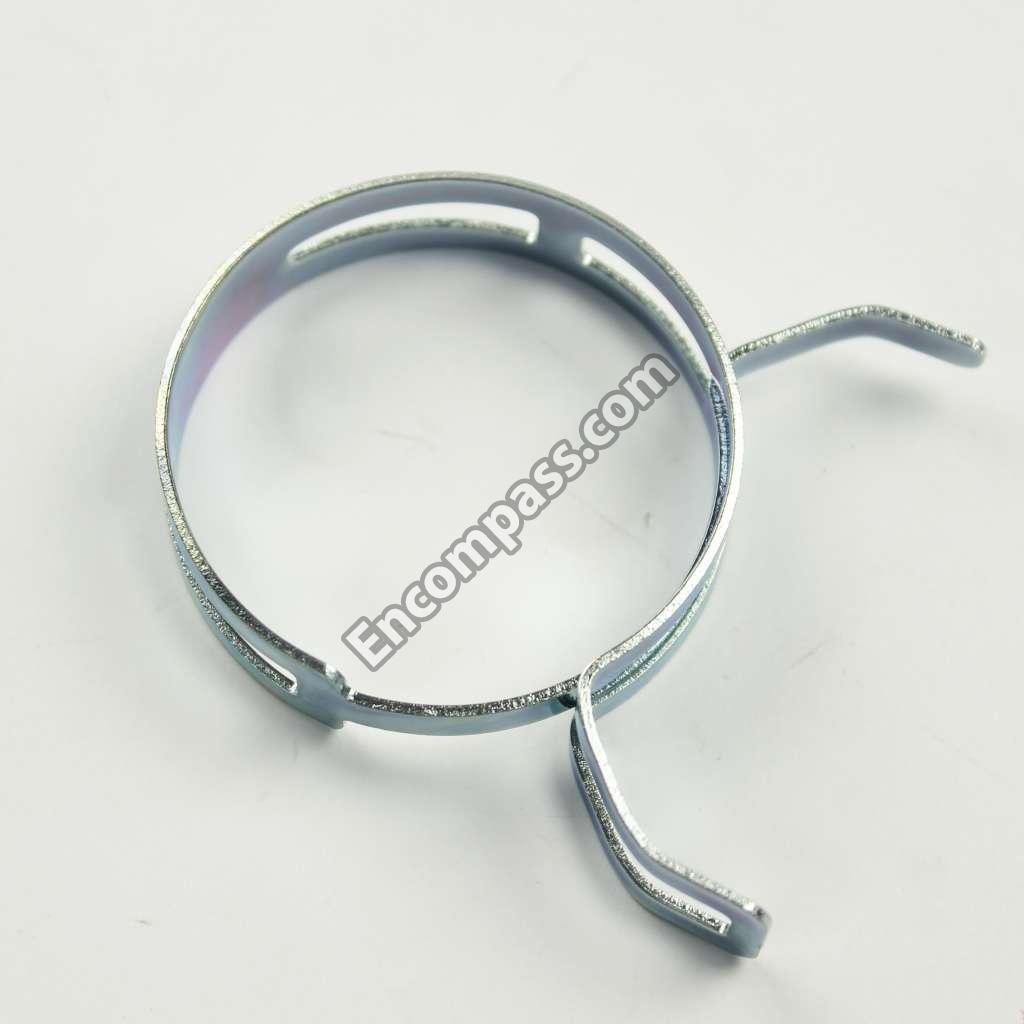

DC65-00008C CLAMPER HOSE;DRUM W/M,SK5,-,-,-,T0.7
DD65-00001F DD65-00001F CLAMPER HOSE;HSWR,-,-,-,T1.2
DC61-01679A DC61-01679A CLAMPER HOSE;SEW-HFR177AR,SK5,NATURAL,-,
DC65-00008B DC65-00008B CLAMPER HOSE;SSEC-GE,SK5,-,-,-,-,ID14.2,
DC61-00219D CLAMPER HOSE;SW-50A1S,SK5,-,-,-,-,ID33,T
DC61-00158A CLAMPER HOSE;SW65ASP,SK5,T0.8,-,-
DC65-00029A DC65-00029A CLAMPER HOSE;WF210ANW/XAA,SK5,NATURAL,-,
DC65-60125B DC65-60125B CLIP RING;-,HSWR,-,-,-,-,-
DC63-02336A COVER BACK;WF6000P,GI-SGCC,T0.35,-,-,-,-
DC63-02181A COVER CONNECTOR;WW5500K (SEHC),PP,-,HB,N
DC63-02495A DC63-02495A COVER DOOR SWITCH;WF8000R,TPE,T1,-,DARK
DC63-02352A COVER FILTER;WF6000R,ABS,HB,NEAT WHITE,R
DC63-00959A DC63-00959A COVER FRONT;WF448AAP,PP,T1.5,-,INOX GRAY
DC63-02341A COVER PBA-SUB;WF6000P,ABS,T2,HB,NEAT WHI
DC63-02335A COVER PBA;WF6000P,ABS,T2.5,V-0,NATURAL,-
DC63-01577D DC63-01577D CUSHION LID;WA8700K,SI,-,D9.1,-,DARK HOL
DC63-00766A DC63-00766A CUSHION PUMP;WF206LNW,EPDM,-,-,-,-,MARS-

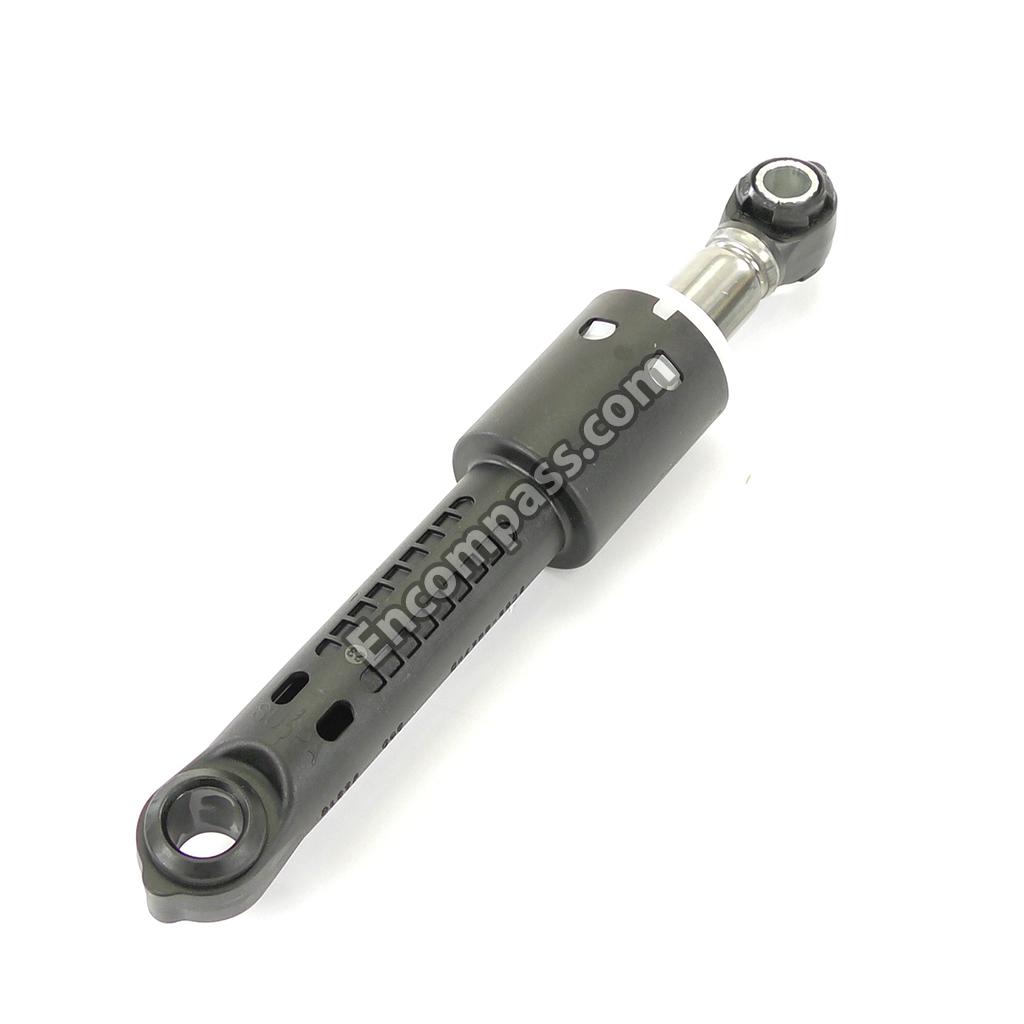

DC66-00470D DC66-00470D DAMPER SHOCK-MODULE;24-INCH DRUM,PP/RUBBER/S
DC64-03814B DECORATION PANEL;WF6000R,ABS,T2.5,SILKY
0402-001224 DIODE-BRIDGE;TS15P05G,D15XB60,D15SB60,60
0402-001472 DIODE-RECTIFIER
0402-001192 DIODE-RECTIFIER;ES2D,200V,2A,SMB,TP
0402-001795 0402-001795 DIODE-RECTIFIER;US1M,1000V,1A,SMA,TP
0404-001250 DIODE-SCHOTTKY
0401-001099 DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3
0401-000132 DIODE-SWITCHING;BAV99,75V,50MA,SOT-23,TP
0407-000113 DIODE-SWITCHING;BAW56,70V,200MA,SOT-23,T
0406-001239 DIODE-TVS;RCLAMP0502BA,6V,SOT-523,125W,T

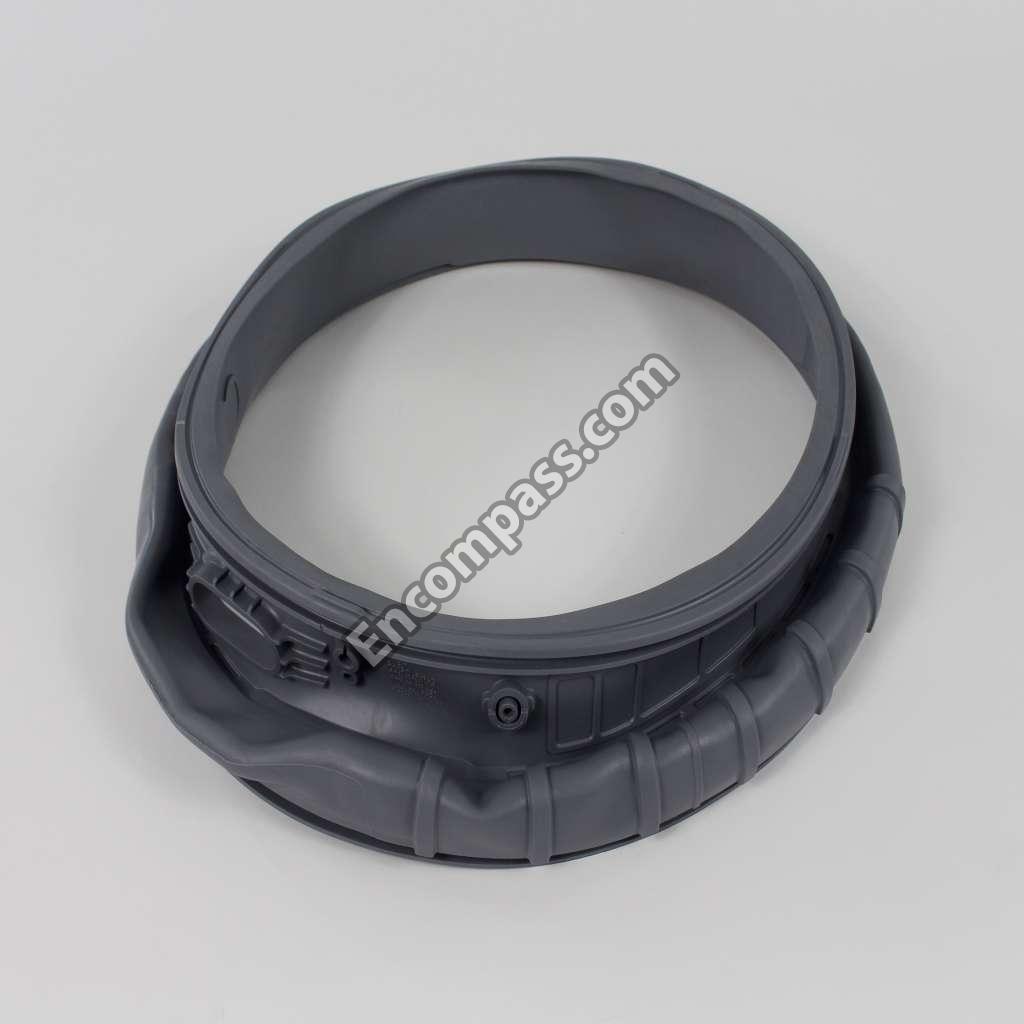

DC64-03788A DC64-03788A DOOR DIAPHRAGM;WF6000R,TPE,T2,-,ER7735DA
DC66-00984A DRUM LIFTER;WF6000R,PP+TD20%,OD580,T4,-,
0505-000110 FET-SILICON
0505-001943 FET-SILICON;FDN342P,P,20V,2A,0

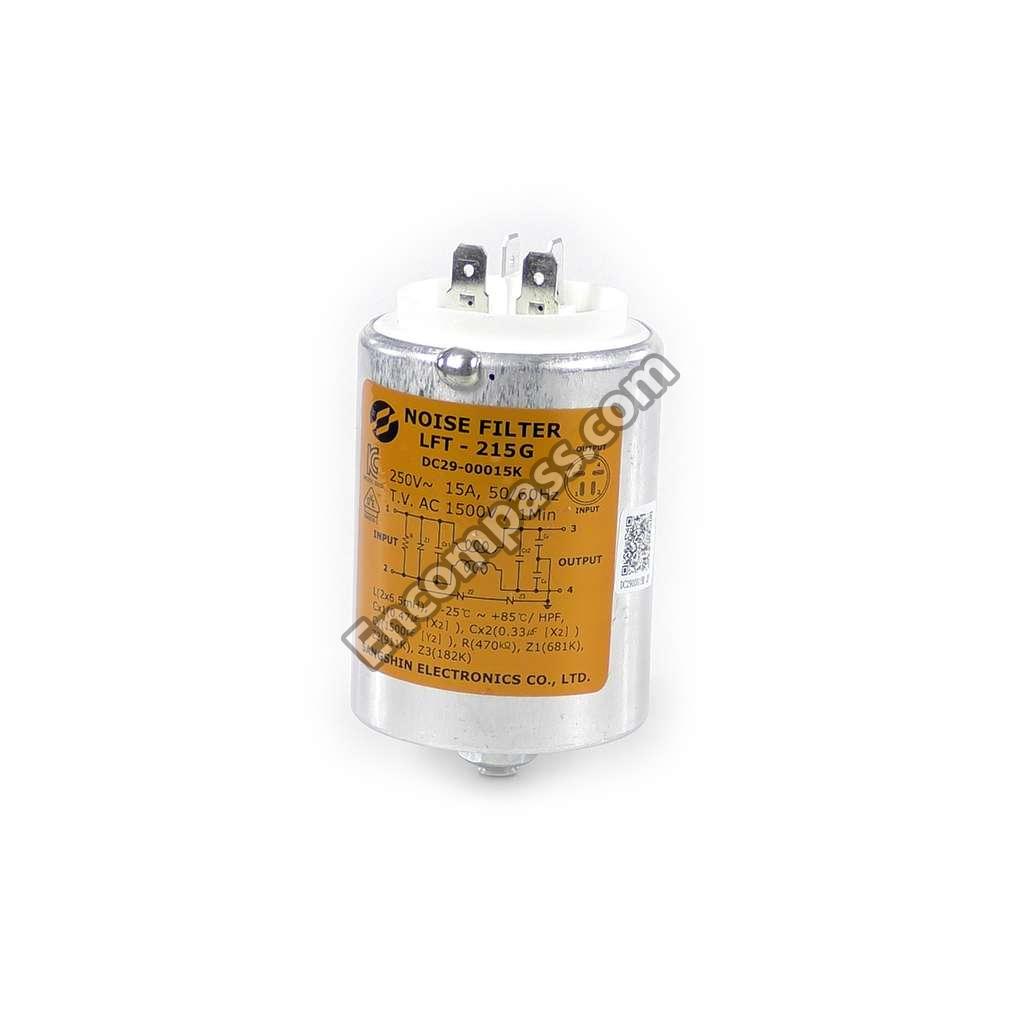

DC29-00015K DC29-00015K FILTER EMI;6.5MH,53X95.5X53MM,15A,V(14D6
DC63-00909A DC63-00909A FILTER PUMP;PP+TD20%,T2,DARK HOLDER GRAY
DC61-04793C FRAME FRONT;WF6000R VE,EGI-SECD,NEAT WHI
DC61-04766A FRAME PLATE-UP;WF6500P,GI-SGCC,T1,A1-PJT
DC61-04972L FRAME;WF8000B,GI-SGCC,-,NEAT WHITE,T0.8,
3601-001600 FUSE-RADIAL LEAD
DC61-03400A DC61-03400A GUIDE COVER TOP;HUDSON,POM,-,-,500P,BLAC
DC61-04863A DC61-04863A GUIDE DETERGENT;WF6000R,PP+TD30%,T1.8,-,
DC61-04884D GUIDE FILTER;WF6/8000R,PP,T2.5,-,CNTK-P1
DC61-00891A DC61-00891A GUIDE HINGE;HAUZEN(DOM),POM,-,-,K300,NAT
DC61-02432A DC61-02432A GUIDE SPRING;WF419AAW,POM,T2,-,F20-03,NA
DC61-05328A GUIDE WATER , WF6000R,PP+TD30%,T2,HB,FC230
DC61-04877A GUIDE WATER;WF6000P,PP+TD20%,T2,-,FC2210
DC61-04867B GUIDE WIRE;A-PJT,GI-SGCC,T0.8,SEHC
3711-005221 HEADER-BOARD TO CABLE;BOX,10P,2R,4.2MM,S
DC62-00243C HEAT SINK;HUDSON,AL,T2.5,W11,L15,WHITE,H

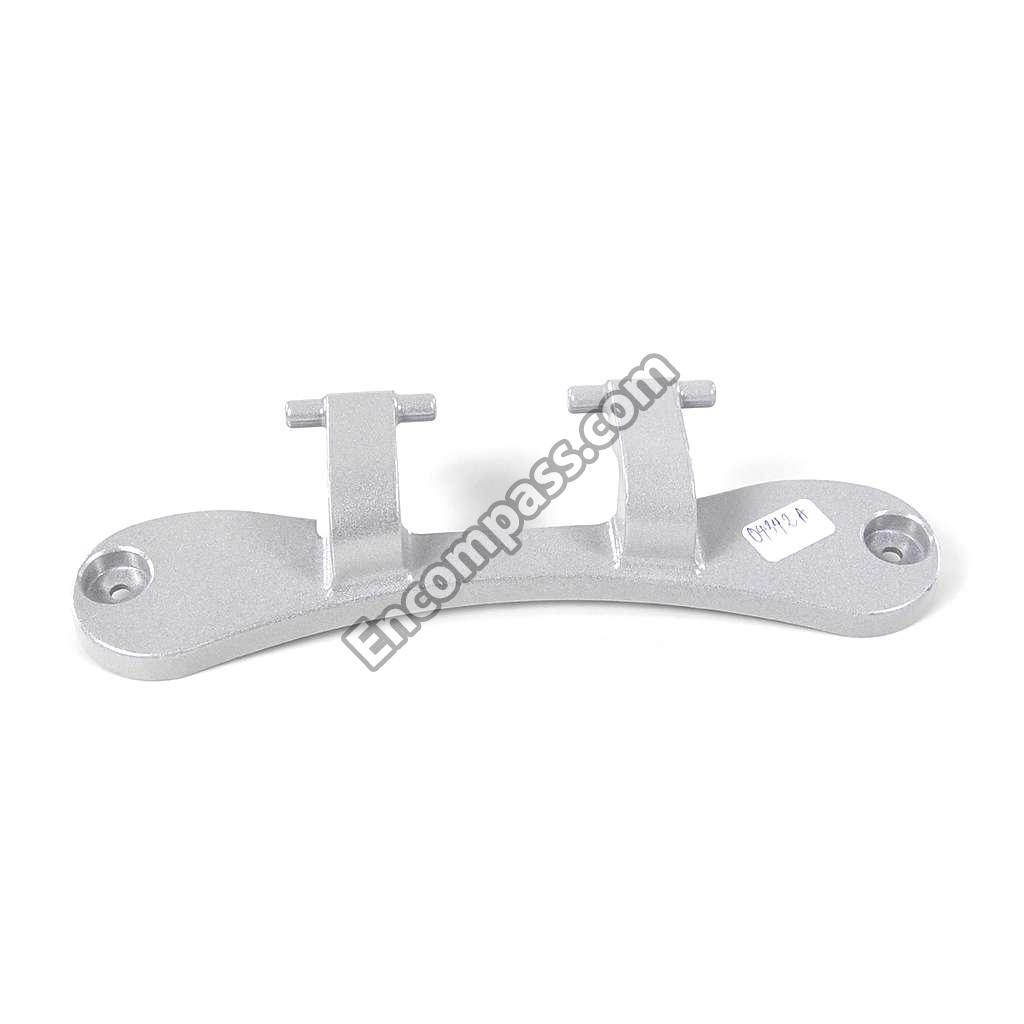

DC61-04342A DC61-04342A HINGE DOOR;WV7500M,ALDC,T2.5,-,-,-,-,ALD
DC61-02706A DC61-02706A HOLDER HOSE;WF210ANW,PA66,T2,NATURAL,-,-
DC61-60074A HOLDER WIRE;PA66,NATURAL,101F,RECTANGLE
DC61-01736B HOLDER WIRE;WF337AAW,PA6,T2.3,NATURAL,-,
DC67-01054A HOSE AIR;WF6000R,EPDM,-,-,-,-,-,-,-,BLAC
DC67-00244K DC67-00244K HOSE DRAIN;HEBA,EPDM
DC67-01053A HOSE DRAWER TUB;WF6000R,EPDM,ID43.5,T2,B
DC67-00051F DC67-00051F HOSE DRAWER;WF8502NHW,EPDM,AEGIS
DC67-00465A DC67-00465A HOSE FILTER TUB;WF520,EPDM,ID73,T2,HS50,

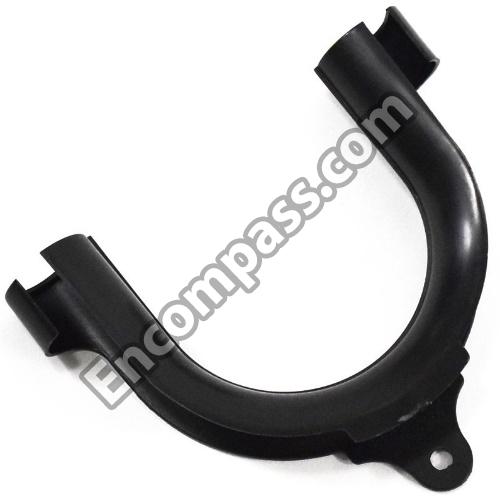

DC62-10278A DC62-10278A HOSE HANGER;PUMP MODEL,PP,ID27,T1.5,HS95
1202-001090 IC VOLTAGE COMP.
1103-001564 IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP
1203-006759 IC-POSI.ADJUST REG.;TL432ASA,SOT-23,3P,3
1203-002835 IC-POSI.FIXED REG.;7805,3P,D2PAK(TO-252)
1203-002722 IC-POSI.FIXED REG.;KA78R15,TO-220,4P,10X
1203-006245 IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1.

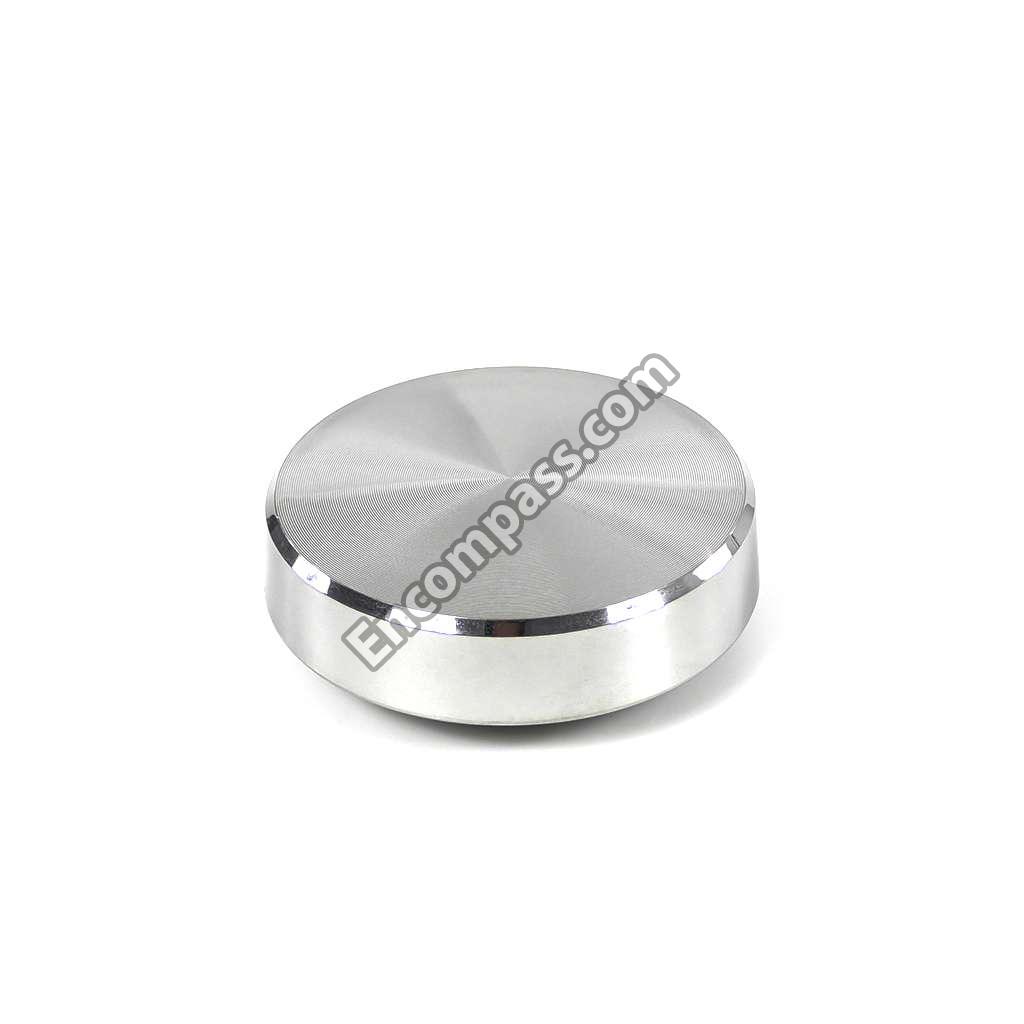

DC64-03824A DC64-03824A KNOB ENCODER;WA54P7650A*,ABS,-,-,NATURAL
DA66-01072A DA66-01072A LATCH;LATOUR,POM,NATURAL,DC LATCH
DC61-01652A DC61-01652A LEG RING;K4-PJT,FRPP,NATURAL,L10,GF20%
DC66-00375A DC66-00375A LEVER DOOR;10KG DRUM, U-PJT,ZNDC,T2.5,NI
DC68-03257A MANUAL INSTRUCTION;WF6000R,SEA,ENG/SPE/F
DC31-00187A DC31-00187A MOTOR AC PUMP;W/M US,PX3516-01/B35-3A/M3
0205-001027 OIL-SILICON;G746
DC69-00824A DC69-00824A PACKING-THERMISTOR;GW-PJT,EPDM,-,-,W17,H
DC64-03813C PANEL CONTROL;WF6000R,ABS,-,-,HG-0760CC,
DC96-00757A DC96-00757A POWER CORD-AT;SJT 3X16AWG 105C,GRY,US3S,
2007-007336 R-CHIP
2007-007321 R-CHIP
2007-000467 R-CHIP
2007-010245 R-CHIP;0.01OHM,1%,2W,TP,6432
2007-000279 R-CHIP;100KOHM,1%,1/4W,TP,3216,T0.6
2007-008167 R-CHIP;120KOHM,1%,1/16W,TP,1005,T0.35
2007-000451 R-CHIP;180OHM,5%,1/4W,TP,3216
2007-007942 R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35
2007-000476 R-CHIP;1MOHM,1%,1/4W,TP,3216
2007-007587 R-CHIP;3.6KOHM,1%,1/16W,TP,1005
2007-000824 R-CHIP;390OHM,5%,1/4W,TP,3216
2007-000868 R-CHIP;4.7KOHM,1%,1/8W,TP,2012
2007-010641 R-CHIP;620OHM,1%,1/16W,TP,1005
2007-008593 R-CHIP;750OHM,1%,1/16W,TP,1005,T0.35,PB
3501-001154 3501-001154 RELAY-MINIATURE;12V,200MW,3000MA,1FORMA,
3501-001268 3501-001268 RELAY-POWER;12V,0.9W,25000MA,1FORMA,20MS
2802-001211 RESONATOR-CERAMIC;8MHZ,0.5%,0.2%,TP,3.2X
6041-001035 RIVET-RH;K1661-0512,AL,NTR,L10,OD4.1

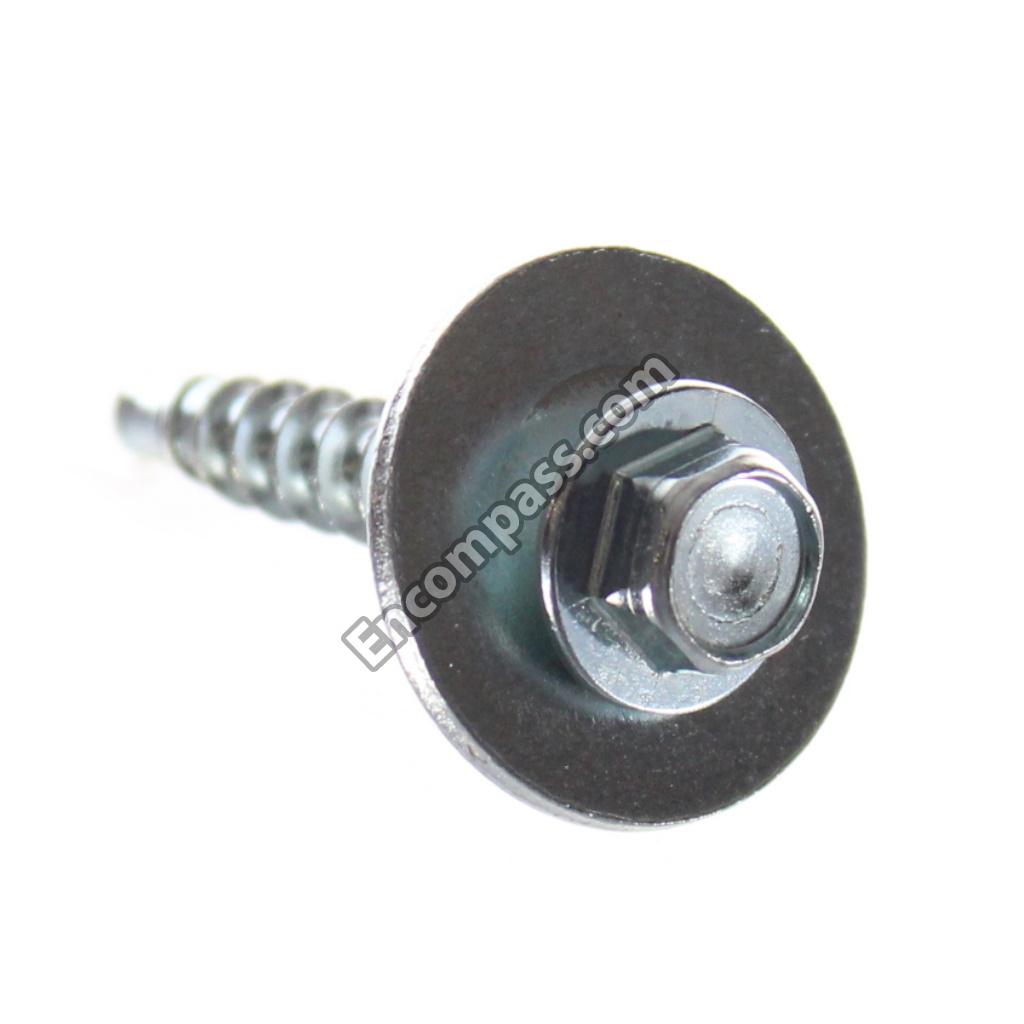

6009-001522 6009-001522 SCREW-HEX;HWH,+,M5,L16,PASS,STS430,FP,SE
6001-001668 6001-001668 SCREW-MACHINE;STS430,PASS,L16,M5,TH,+,FP
6001-000115 SCREW-MACHINE;SWRCH18A,ZPC(WHT),L10,M3,B
6009-001343 SCREW-SPECIAL;PH,TORX,M4,L12,ZPC(WHT),SW

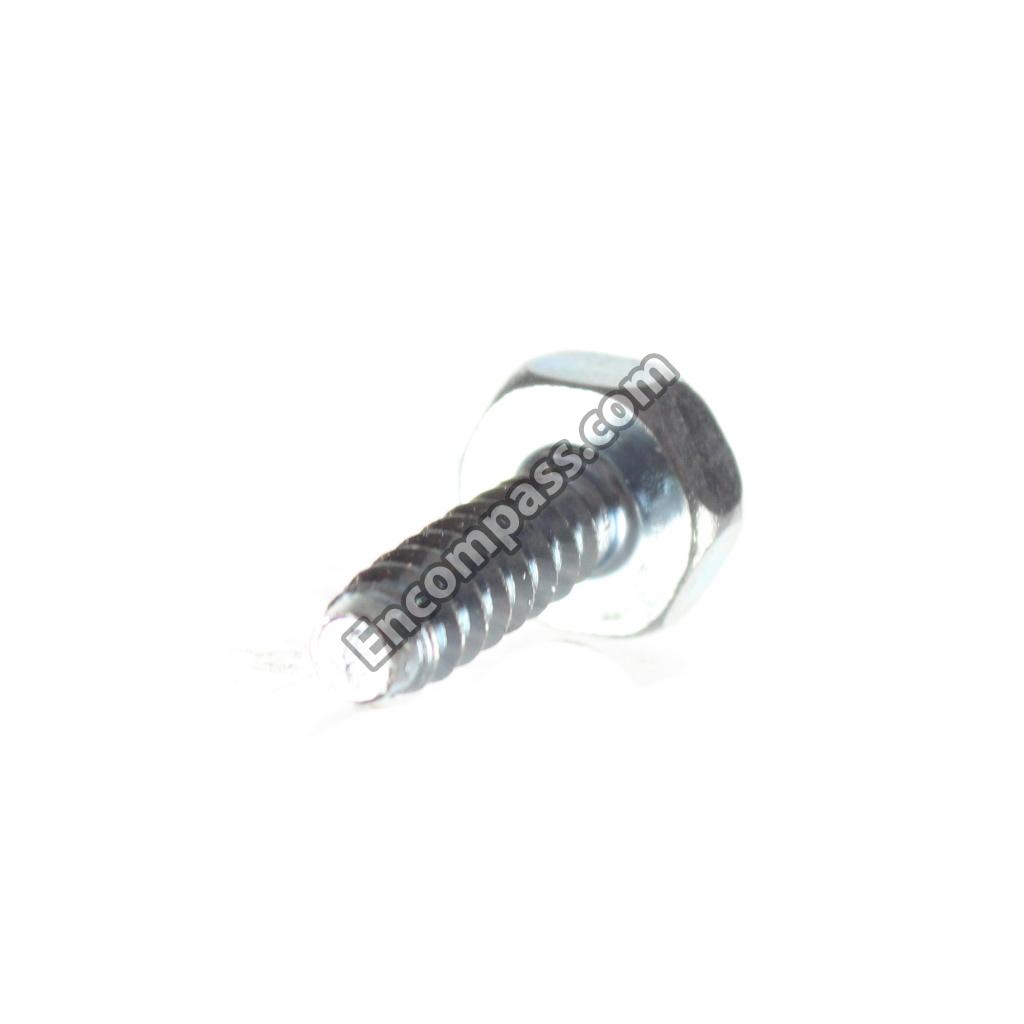

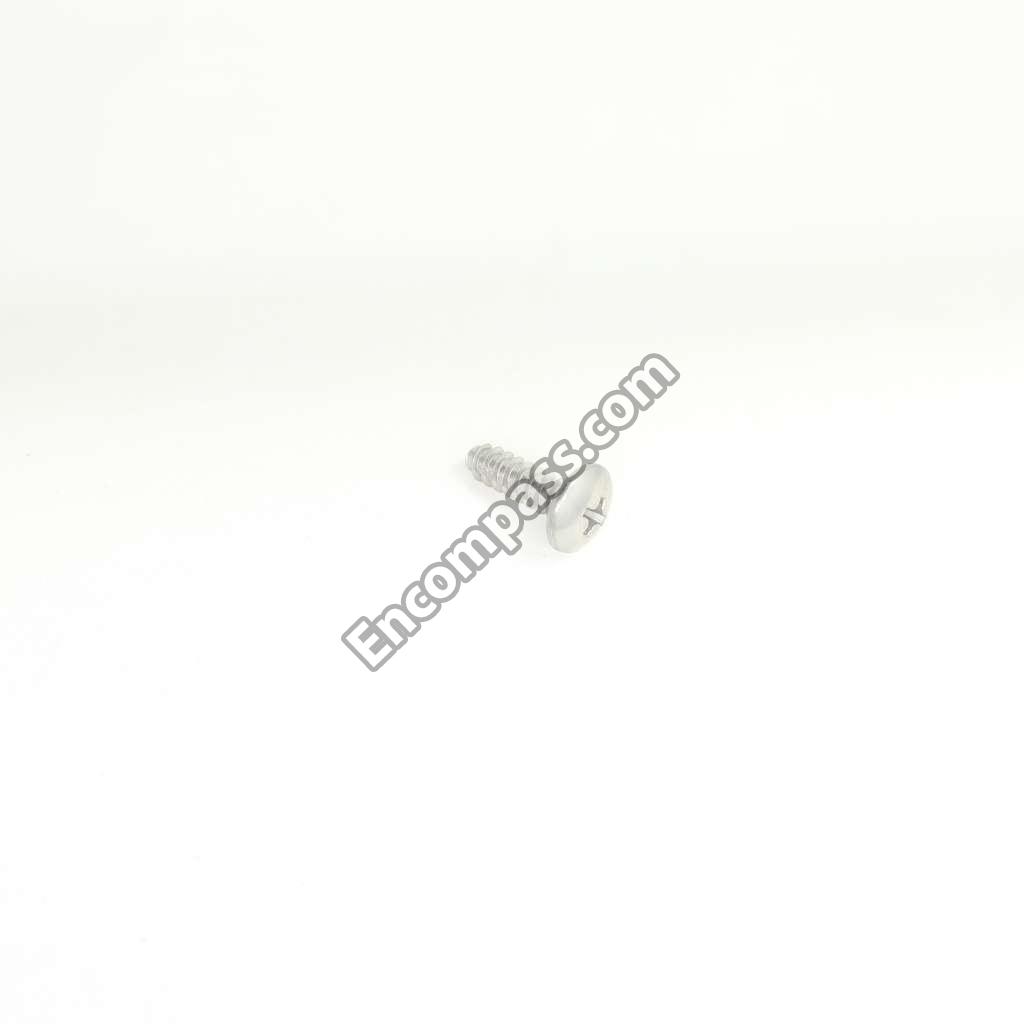

6002-001279 6002-001279 SCREW-TAPPING;STS430,PASS,L12,M4,PWH,+,1
6002-000444 6002-000444 SCREW-TAPPING;STS430,PASS,L14,M4,TH,+,2
6002-001186 6002-001186 SCREW-TAPPING;STS430,PASS,L16,M5.5,TH,+,
6002-000445 6002-000445 SCREW-TAPPING;STS430,PASS,L18,M4,TH,+,NO
DE60-10082I DE60-10082I SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T
6002-000520 6002-000520 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T
6002-000213 6002-000213 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T
6002-001431 6002-001431 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M5,H
6002-001436 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L18,M4,P
6002-000630 6002-000630 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M3,PH
6003-001768 6003-001768 SCREW-TAPTYPE;SWRCH18A,ZPC(WHT),L10,M4,T
6003-000226 SCREW-TAPTYPE;SWRCH18A,ZPC(WHT),L8,M4,TH

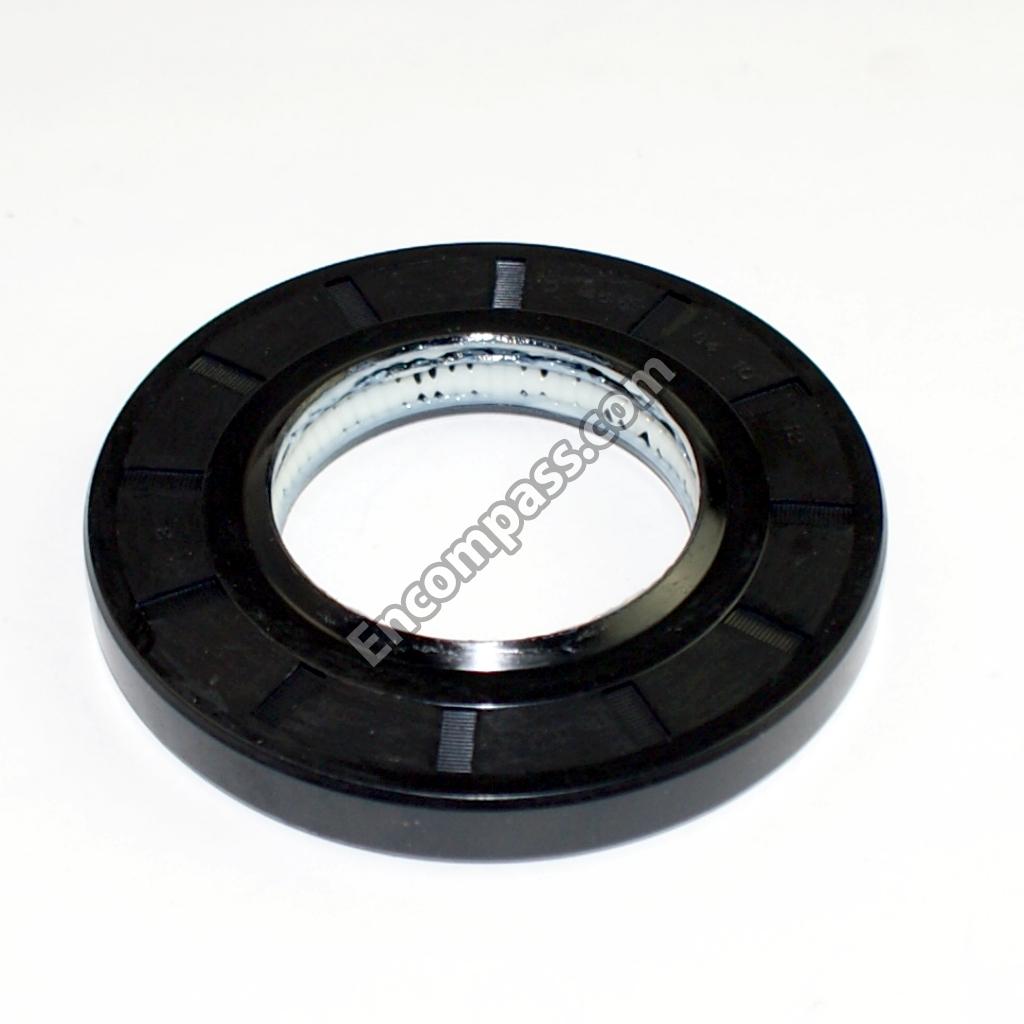

DC62-00156A DC62-00156A SEAL OIL;TS85-PJT,NBR,-,-,-,BLACK,-,-
DC73-00022A DC73-00022A SEAL PACKING;SEW-HVR149ATA,EPDM,-,-,-,BL
DC96-01703Q DC96-01703Q SENSOR PRESSURE;AIR,5V,L0,400MMH2O

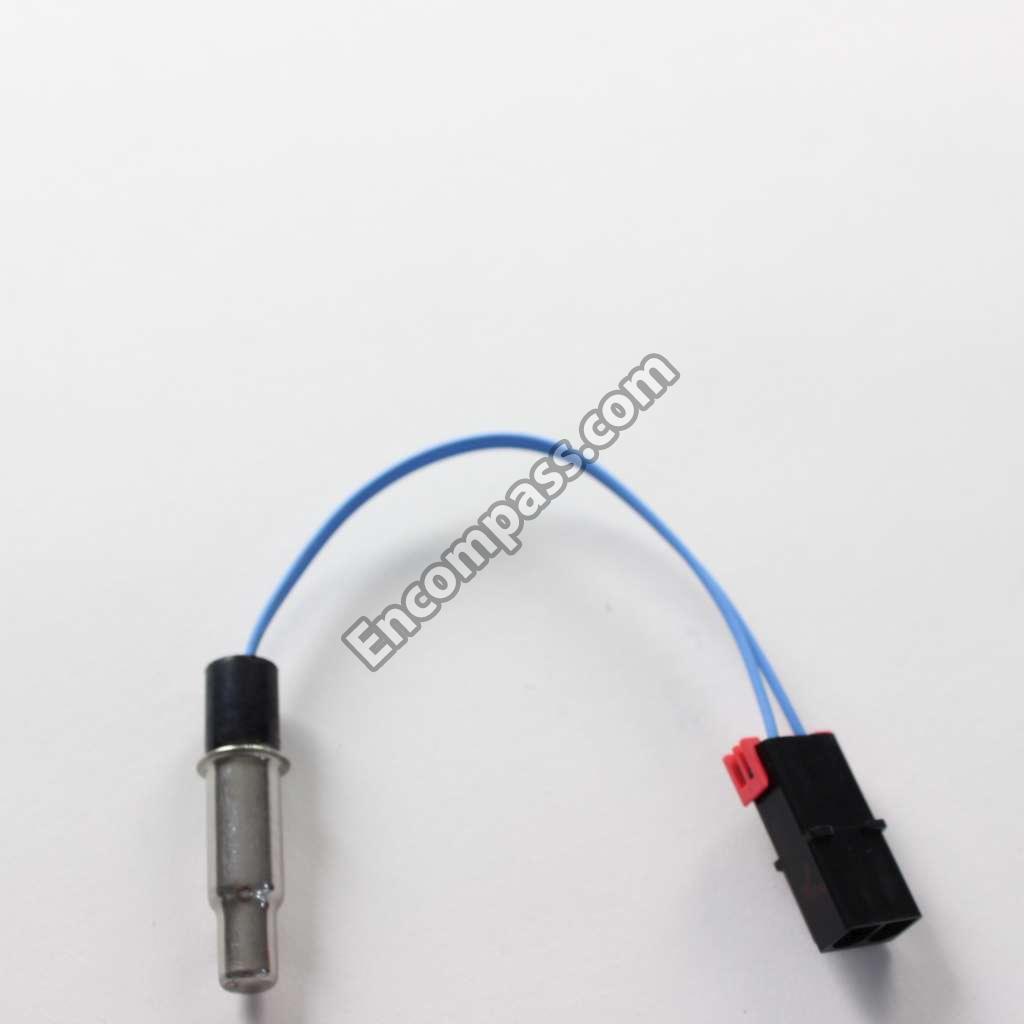

DC32-00010C DC32-00010C SENSOR TEMP;L120,3.243KOHM,2%,60C,9.8PHI
DC63-01891A SHEET PAPER;WD16J7800KS,PAPER,T1,-,BLACK
DC41-00285D SMG PART
2203-000489 SMG PART
2007-007316 SMG PART
2007-007137 SMG PART
DC98-05154A SMG PART
DC98-04654G SMG PART
DC98-04127C SMG PART
DC97-23871B SMG PART
DC97-23255D SMG PART
DC97-22460B SMG PART
DC97-22459A SMG PART
DC97-21947D SMG PART
DC97-21463A SMG PART
DC97-21267A SMG PART
DC97-14294C SMG PART
DC94-14407A SMG PART
DC94-14406A SMG PART
DC94-09043A SMG PART
DC94-09042A SMG PART
DC94-07490A SMG PART
DC92-03503A SMG PART
DC92-03482F SMG PART
DC92-02862K SMG PART
DC92-02379V SMG PART
DC92-02373A SMG PART
DC92-02339K SMG PART
DC92-02337A SMG PART
DC90-30862B SMG PART
DC90-30860A SMG PART
DC90-30775M SMG PART
DC90-30761D SMG PART
DC90-30744M SMG PART
DC90-30669F SMG PART
DC90-30597D SMG PART
DC90-29295J SMG PART
DC90-27952S SMG PART
DC73-00035A SMG PART
DC72-00015K SMG PART
DC72-00012R SMG PART
DC69-02620A SMG PART
DC69-02619A SMG PART
DC69-02558A SMG PART
DC69-02557D SMG PART
DC69-02556A SMG PART
DC69-02240A SMG PART
DC69-01721B SMG PART
DC68-20091H SMG PART
DC68-04514A SMG PART
DC68-04477A SMG PART
DC68-04475A SMG PART
DC68-04355C SMG PART
DC68-04096Q SMG PART
DC68-04005A SMG PART
DC68-03877A SMG PART
DC68-03216K SMG PART
DC68-02977C SMG PART
DC68-02225L SMG PART
DC68-02173A SMG PART
DC67-01035A SMG PART
DC67-00492A SMG PART
DC67-00468A SMG PART
DC67-00348A SMG PART
DC67-00330U SMG PART
DC67-00230F SMG PART
DC66-01002A SMG PART
DC66-00983A SMG PART
DC66-00886C SMG PART
DC66-00885D SMG PART
DC64-04136A SMG PART
DC64-04108N SMG PART
DC64-03832Z SMG PART
DC64-03812B SMG PART
DC64-03811B SMG PART
DC64-03303F SMG PART
DC64-03115C SMG PART
DC64-02783B SMG PART
DC63-10056P SMG PART
DC63-10003H SMG PART
DC63-02935F SMG PART
DC63-02928B SMG PART
DC63-02675A SMG PART
DC63-02519A SMG PART
DC63-02494A SMG PART
DC63-02458A SMG PART
DC63-02430A SMG PART
DC63-02427W SMG PART
DC63-02354A SMG PART
DC63-02353A SMG PART
DC63-02340A SMG PART
DC63-01493A SMG PART
DC63-00888A SMG PART
DC62-00687A SMG PART
DC62-00526C SMG PART
DC62-00471C SMG PART
DC62-00276C SMG PART
DC61-05273A SMG PART
DC61-04980G SMG PART
DC61-04964B SMG PART
DC61-04880A SMG PART
DC61-04875A SMG PART
DC61-04871A SMG PART
DC61-04866A SMG PART
DC61-04864A SMG PART
DC61-04861A SMG PART
DC61-04860A SMG PART
DC61-04112C SMG PART
DC61-02017H SMG PART
DC61-01960A SMG PART
DC61-01959D SMG PART
DC61-01959C SMG PART
DC61-01958A SMG PART
DC61-01937C SMG PART
DC61-01552A SMG PART
DC61-01290C SMG PART
DC61-01278B SMG PART
DC61-01149D SMG PART
DC61-00841A SMG PART
DC61-00834A SMG PART
DC60-00137A SMG PART
DC41-00285C SMG PART
DC26-00053A SMG PART
DC13-00253A SMG PART
DC02-10025A SMG PART
DC02-10013A SMG PART
DC01-00728A SMG PART
DC01-00554A SMG PART
DC01-00550B SMG PART
DC01-00483A SMG PART
DC01-00362A SMG PART
DC01-00359A SMG PART
DC01-00358A SMG PART
DC01-00353A SMG PART
DC01-00352A SMG PART
6812-000145 SMG PART
6031-003038 SMG PART
4709-002959 SMG PART
3711-009410 SMG PART
3711-009224 SMG PART
3711-007174 SMG PART
3711-000744 SMG PART
3711-000740 SMG PART
3601-001728 SMG PART
3601-001674 SMG PART
3502-001087 SMG PART
3502-001075 SMG PART
3301-002113 SMG PART
2801-004912 SMG PART
2401-005280 SMG PART
2401-004384 SMG PART
2203-010033 SMG PART
2203-006457 SMG PART
2007-009149 SMG PART
2007-007630 SMG PART
2007-007385 SMG PART
2007-001011 SMG PART
2007-000571 SMG PART
2007-000568 SMG PART
1205-005895 SMG PART
1203-009020 SMG PART
1201-004379 SMG PART
0903-002254 SMG PART
0903-002202 SMG PART
0903-002197 SMG PART
0801-000168 SMG PART
0604-001405 SMG PART
0601-002679 SMG PART
0406-001865 SMG PART
0402-001741 SMG PART
0205-001430 SMG PART
0204-004868 SMG PART
0204-004866 SMG PART
0204-004665 SMG PART
0203-006491 SMG PART
0202-001933 SMG PART
0202-001463 SMG PART
0103-010963 SMG PART
0103-009569 SMG PART
0103-009089 SMG PART
0103-009052 SMG PART
0103-008911 SMG PART
0103-004056 SMG PART
0103-004022 SMG PART
0103-003461 SMG PART
0103-003456 SMG PART
0103-003311 SMG PART
0103-002994 SMG PART
0103-002641 SMG PART
0103-001846 SMG PART
0102-001571 SMG PART
2007-007136 SMG PART
2007-007142 SMG PART
2007-007306 SMG PART
2007-007308 SMG PART
2007-007309 SMG PART
2007-007312 SMG PART
2007-007317 SMG PART
2007-007318 SMG PART
2007-007528 SMG PART
2007-007586 SMG PART
2007-007588 SMG PART
2007-007698 SMG PART
2007-007766 SMG PART
2007-007791 SMG PART
2007-008263 SMG PART
2007-008672 SMG PART
2203-000233 SMG PART
2203-000438 SMG PART
2203-000995 SMG PART
2203-007392 SMG PART
2203-007795 SMG PART
2203-007809 SMG PART
DC63-03185A SMG PART
DC64-04139A SMG PART
DC61-01257N DC61-01257N SPRING ETC-HANGER MODULE;GRACE-S PJT,SWP
DC61-02635A DC61-02635A SUPPORT HINGE;GI-SGCC,T1.4,L175.0,SBHG1-

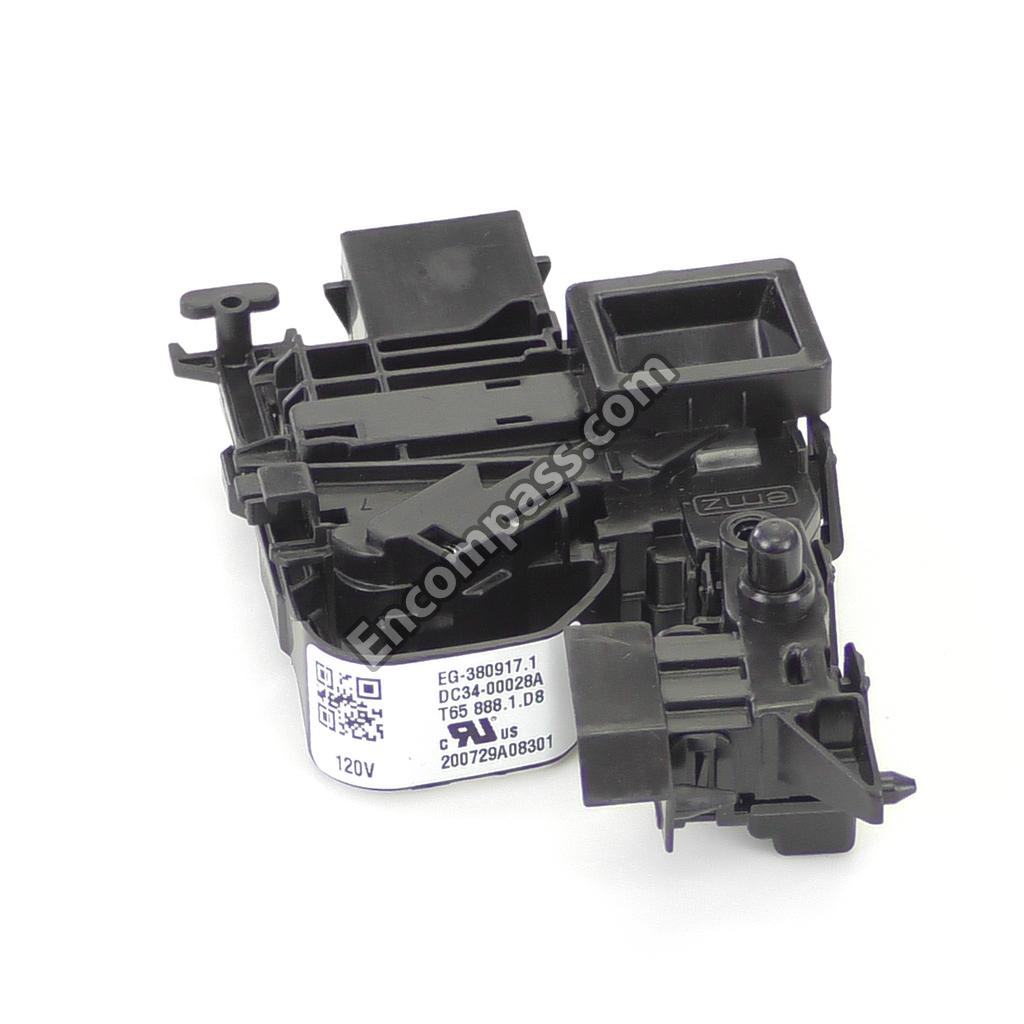

DC34-00028A DC34-00028A SWITCH DOOR LOCK;AC120V,16A,SOLENOID, DO
DE02-00029B TAPE FILAMENT;POLYESTER,T0.15,W40,L110,N
DC69-90008A TAPE OPP;OPP,T0.054,W50
0203-004932 TAPE-POLY;PP,RAPGARD F8R,T0.035,W50,L100
0203-006796 TAPE-POLY;PP,T0.11,W40,N/A,WHITE,TPP(TEN
1404-001872 THERMISTOR-PTC
1404-001581 THERMISTOR-PTC;250OHM(TYP),265VAC,2.7A,R
CALL_1-800-SAMSUNG THERMISTOR-PTC;27OHM(TYP),265VAC,1.5A,RA
0506-000175 TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100
0504-001080 TR-DIGITAL;KRC246S,NPN,200MW,2.2K/10KOHM
0504-001008 TR-DIGITAL;RN2427,PNP,200MW,2.2K/10KOHM,
0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2
0501-000467 TR-SMALL SIGNAL;MMBT3906,TP,PNP,30~300,2
DC61-04708D TUB FRONT;WF6000R,PP+GLF15%,T3,NATURAL,S
DC62-00299A DC62-00299A VALVE CHECK;BIGBANG,NBR,ID28.6/OD33,HS70

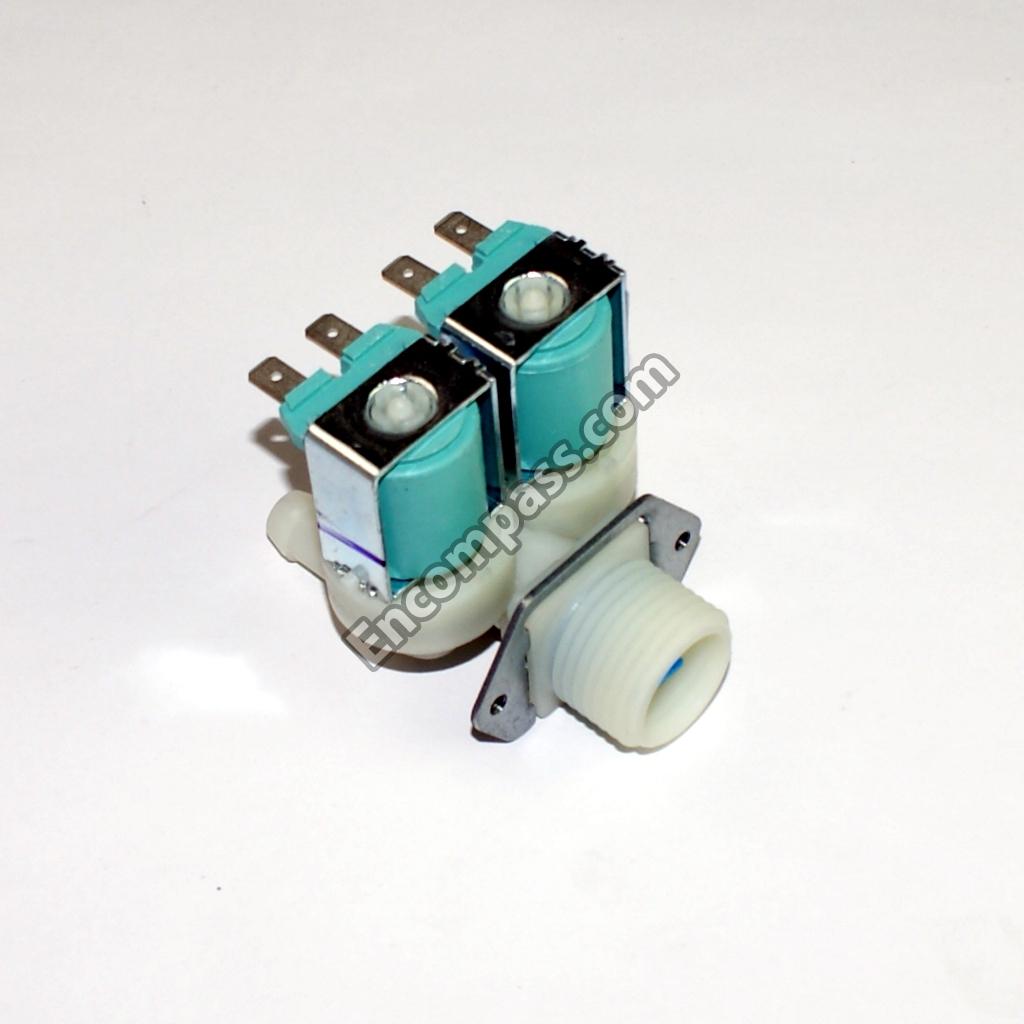

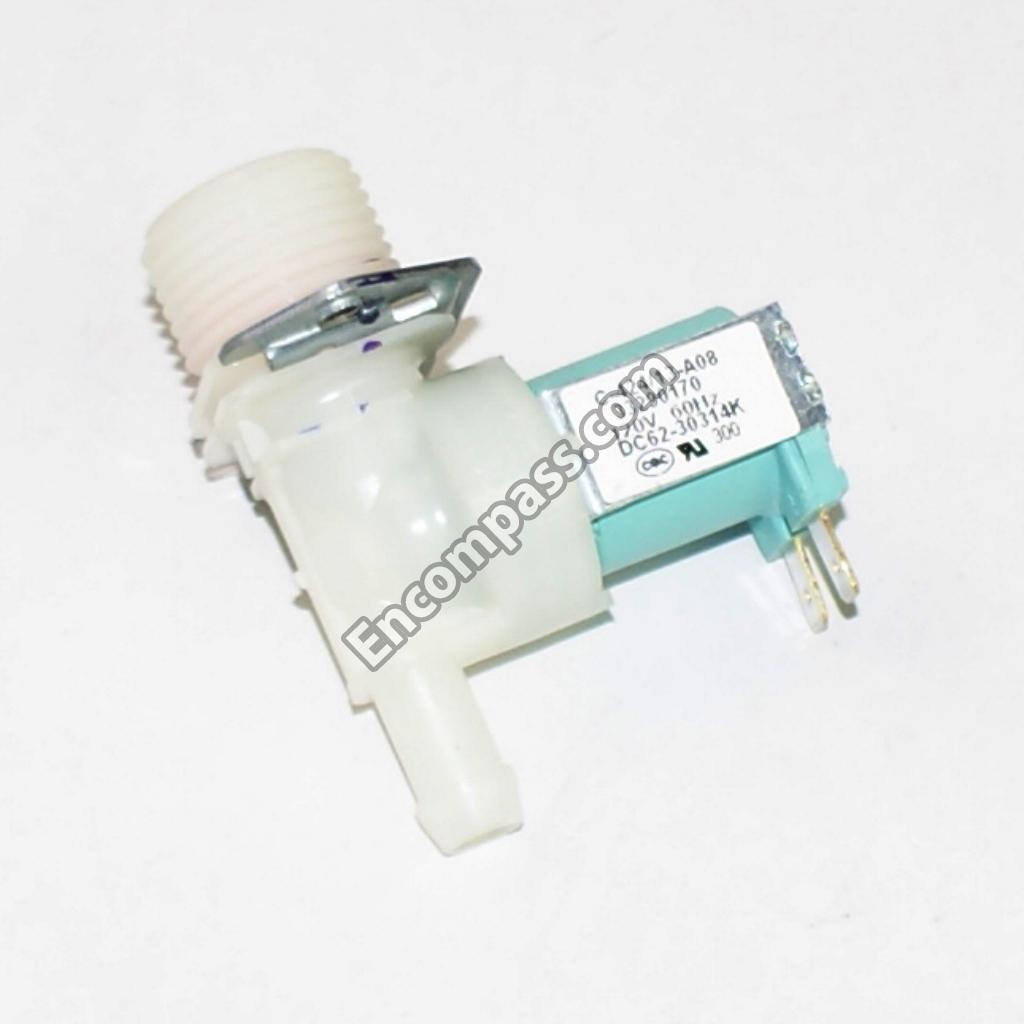

DC62-30314K DC62-30314K VALVE WATER;AC110-127V,,,,BRACKET, 180 ,
DC62-30312J DC62-30312J VALVE WATER;AC110-127V,BRACKET, 180 ,1IN
DC60-60044B WASHER PLAIN;WW65R20GLSW/TL,SWRCH18A,T2,
6031-001531 WASHER-PLAIN;CR-SPCC,ZPC,T1.2,OD14,ID7,P
DC67-00999A DC67-00999A WEIGHT BALANCER-MODULE;WF6000R,CONCRETE,

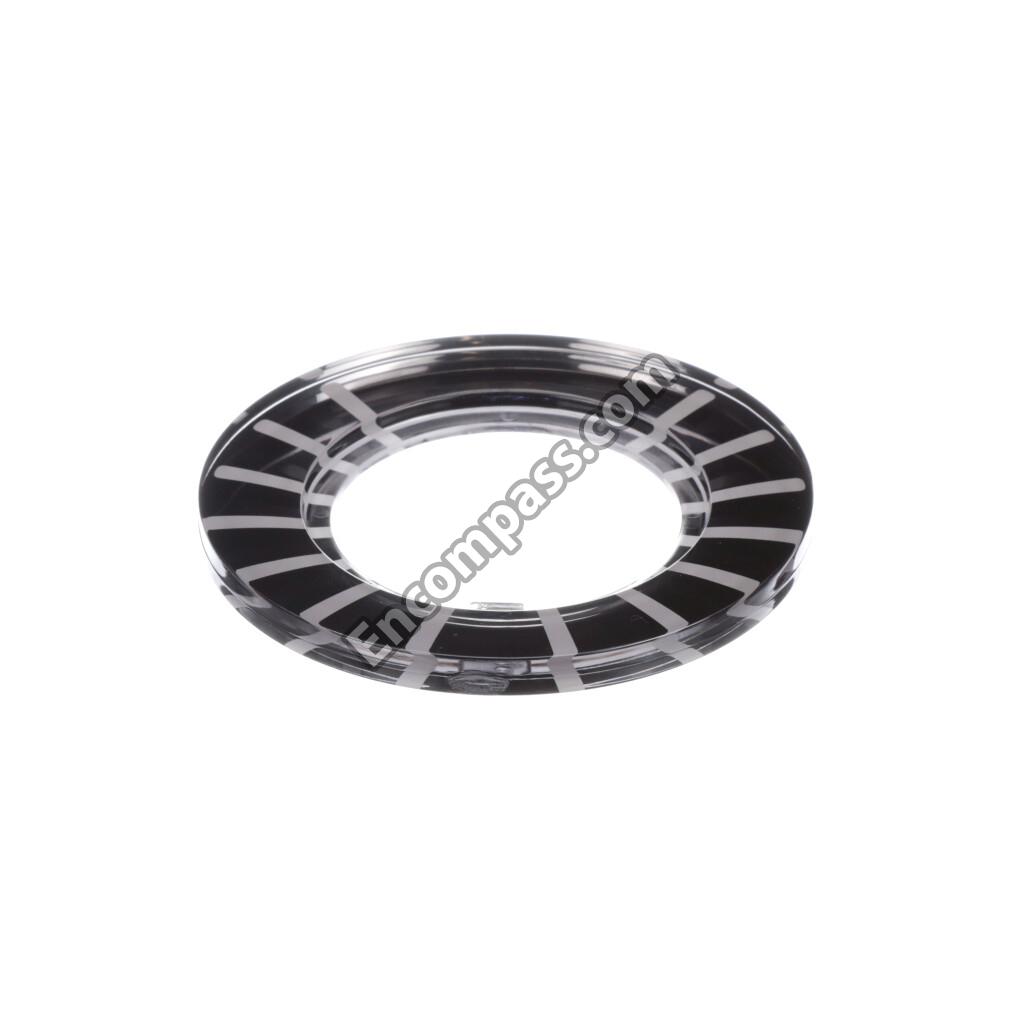

DC64-03663A DC64-03663A WINDOW ENCODER;WW6800M,PMMA,-,-,TF-0959T
DC66-10003A WIRE VINYL;SEW-100 JL,PVC,-
DC97-23184B
Main Menu x
