Manufacturer
Samsung
Model Number
WF53DBH700AFA5
Description
Wm : Washingmachine
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DC63-02992C | ABSORBER SPONGE;-,EPDM,T3,-,BLACK,-,W7,L |
| DC63-10002D | ABSORBER SPONGE;DV8500NK,PU FOAM,T10,BLA |
| DC63-00108B | ABSORBER SPONGE;WF6000R,PU FOAM,T15,L175 |
| DC98-04307A | ASSEMBLY ACCESSORY;WF6000R/WF8000R,WF45R6300 |
|
|
ASSEMBLY BOLT;MOTOR/ M8*L62,,,,,, |
|
|
ASSEMBLY BOLT;MOTOR/BOLT(M8)+WASHER(OD27.5), |
|
|
ASSEMBLY BOLT;WD9500J,30,M12,WASHER 38 |
| DC97-23141C | ASSEMBLY CAP V.W;WF8000CK,WF25CB8695BK |
| DC97-22656C | ASSEMBLY CASE FILTER;FLAT,WF9600BK |
|
|
ASSEMBLY CLAMP DIAPHRAGM;PURPLE,WF448AAW,-,- |
| DC97-21926E | ASSEMBLY COVER BACK;LAUNDRY HUB,5.3CUFT |
| DC97-22655G | ASSEMBLY COVER FILTER;A FLAT,WF8000R,SATIN G |
| DC97-24100A | ASSEMBLY COVER TOP-MODULE;WF8000R,LAUNDRY HU |
|
|
ASSEMBLY CUSHION PUMP;MARS-PJT,WF206LNW,-,-, |
| DC93-00236G | ASSEMBLY DD BLDC MOTOR;WF8000R,COM2000A,F,DC |
| DC97-23882A | ASSEMBLY DETERGENT;WF8000CK(ONE),ASD,RINSE |
| DC97-22559B | ASSEMBLY DIAPHRAGM;WF8900B |
| DC97-22709H | ASSEMBLY DOOR-MODULE;LAUNDRY HUB,GLASS,BLACK |
| DC97-23880K | ASSEMBLY DRAWER-MODULE;LAUNDRY HUB,FLEXIBLE |
| DC97-23864A | ASSEMBLY DRUM WRAPPER;WF8000CK,25KG,- |
| DC97-23863B | ASSEMBLY DRUM-MODULE;LAUNDRY HUB,5.3CUFT |
| DC97-23184A | ASSEMBLY FILTER;WF9600B 25KG,WF25B9600KE,IMP |
|
|
ASSEMBLY FIXER TUB;WF8/6000R,LINK CONNECTOR |
| DC97-23217A | ASSEMBLY FLANGE SHAFT;WF8900B,- |
| DC97-22654X | ASSEMBLY FRAME FRONT-MODULE;LAUNDRY HUB,SATI |
| DC97-23866R | ASSEMBLY FRAME FRONT;LAUNDRY HUB,WF53DBH700A |
| DC97-24056B | ASSEMBLY FRAME PLATE-UP;LAUNDRY HUB |
| DC97-23181V | ASSEMBLY FRAME-MODULE;LAUNDRY HUB,T0.8,BLACK |
|
|

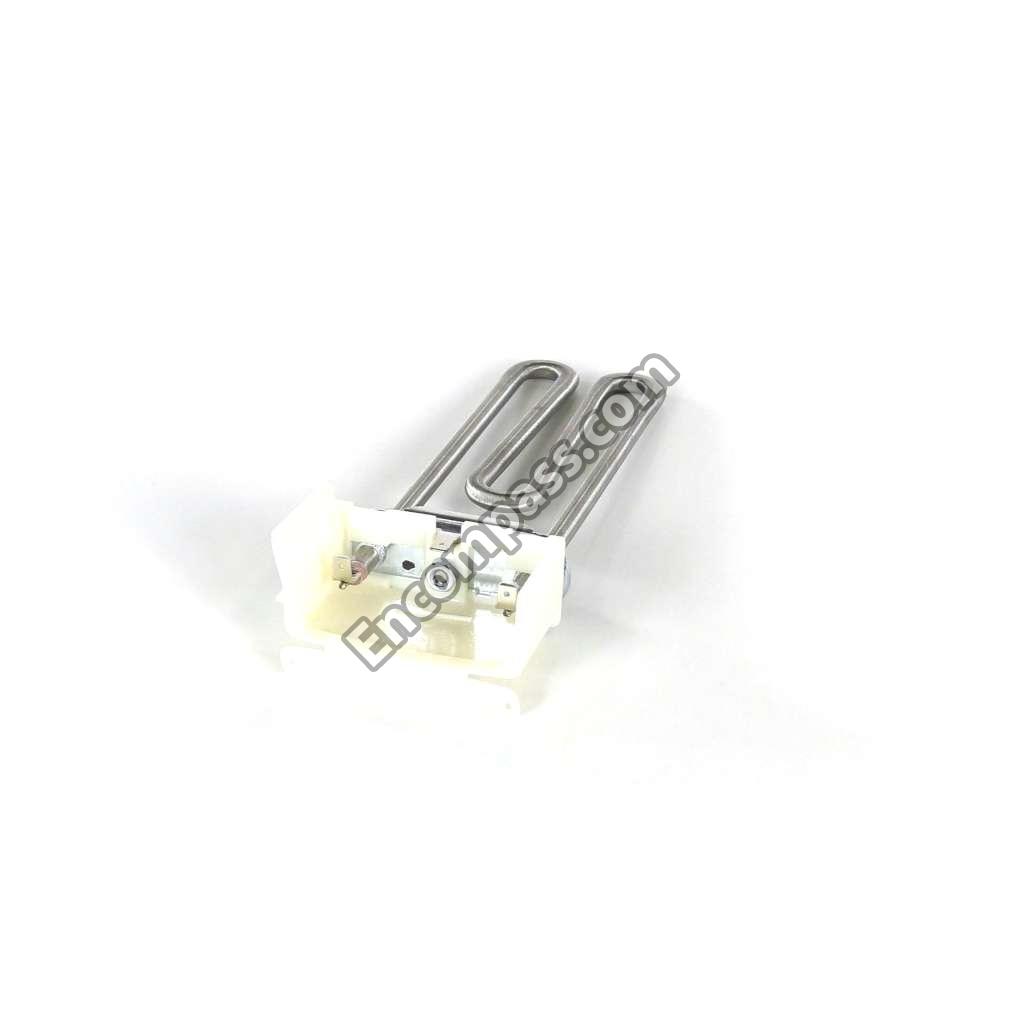

ASSEMBLY HEATER;WF45R6300AV,125/250V |
| DC97-22710D | ASSEMBLY HOLDER GLASS;WF9600BK,FLAT DESIGN,A |
| DC97-16106D | ASSEMBLY HOSE AIR;DRUM 27-INCH ,SEHC VE |
| DC97-21462A | ASSEMBLY HOSE AIR;WF8/6000R,A1 |
|
|
ASSEMBLY HOSE DRAIN;WF6200,WF6500,WF7500 |
| DC97-12534S | ASSEMBLY HOSE DRAIN;WF8000C,WF51CG8000AVA5 |
| DC97-21484B | ASSEMBLY HOSE DRAWER;WF8/6000R |
|
|
ASSEMBLY HOSE PRESSURE;400MMH20,NO PBA,WF8/6 |
| DC97-23199C | ASSEMBLY HOUSING DRAWER-MODULE;LAUNDRY HUB,F |
| DC96-01710A | ASSEMBLY LAMP LED;FR-4,WHITE,AMP 5-179463-1, |
| DC97-17071A | ASSEMBLY LEG BOLT;K4-BONANZA,OD33.2 |
| DC97-23484A | ASSEMBLY LEG;25KG FLAT,WF8900BK,H65.0,P1.5 |
| DC97-23728K | ASSEMBLY PANEL CONTROL-MODULE;LAUNDRY HUB,MU |
| DC97-23729D | ASSEMBLY PANEL DRAWER;AI ONE,WF25CB8795BF,SA |
| DC92-03383A | ASSEMBLY PBA MODULE-DISPLAY;FWM_TOUCH,WH6600 |
| DC92-02580B | ASSEMBLY PBA MODULE;INSULATION,WF8795C,13*55 |
| DC94-14813A | ASSEMBLY PCB EEPROM;0XA1AE,WH9000D, LAUNDRY |
| DC92-03598A | ASSEMBLY PCB KIT;FWM_MAIN,LAUNDRY HUB,328X80 |
| DC94-13492A | ASSEMBLY PCB MANUAL;FWM_MAIN,AI ONE,328X160M |
| DC97-23140C | ASSEMBLY PUMP DRAIN;SU-PJT,WW7100A,DC12V |
| DC97-20621C | ASSEMBLY PUMP DRAIN;WF8000C,NO BUBBLE,SMALL |
| DC97-20193B | ASSEMBLY ROTOR;COM2000A,60.1 |
| DC97-23881B | ASSEMBLY S.DRAWER;LAUNDRY HUB,FLEXIBLE ASD,3 |
| DC97-23879A | ASSEMBLY S.HOUSING DRAWER;WF8000CK(ONE),ASD |
| DC97-23727D | ASSEMBLY S.PANEL CONTROL;AI ONE,WF25CB8795BF |
| DC97-23872B | ASSEMBLY S.TUB BACK;LAUNDRY HUB,5.3CUFT |
| DC97-23874B | ASSEMBLY SEMI TUB BACK;LAUNDRY HUB,5.3CUFT |
| DC97-21945A | ASSEMBLY SEMI TUB FRONT;A1,WF6000R, SEHC |
| DC97-21487D | ASSEMBLY STATOR;CDD20A,S60,34,273 |
| DC97-23756K | ASSEMBLY WINDOW PANEL;LAUNDRY HUB,WF53DBH700 |
| DC97-04973E | ASSEMBLY WIRE DIAPHRAGM;WF8000R |
| DC93-01052A | ASSEMBLY WIRE HARNESS-MAIN;DRUM-L,WF53DB9700 |
| 6902-000286 | BAG PE;LDPE,T0.03,W200,L300,TRP,RECYCLE+ |
| 6601-003009 | BEARING BALL;6306-2RZ,SBF4118,L19,OD72,I |
| 6601-003008 | BEARING BALL;6307-2RZ,SBF4118,L21,OD80,I |
| DC61-05777A | BODY DRAWER;WF8000CK,PP+TD30%,-,NEAT WHI |
|
|
BOLT HEX;MARS-PJT,STS430,-,L30,-,-,-,HEX |
|
|
BOLT SPANER;-,CR-SPCC,T2.5,L166,-,-,-,- |
|
|
BOLT-ETC;M6,L60,ZN-NI(SIL),HWH,+,SCM435 |
| 6011-007676 | BOLT-HEX;M10,L124.5,ZPC(SILVER),HWH,+,SC |
|
|
BOLT-HEX;M10,L35,ZPC(WHT),HH,+,SM10C,DAM |
|
|
BOLT-HEX;M6,L35.1,ZPC(WHT),HWH,+,SWRCH25 |
|
|
BOLT-HEX;M6.5,L32,ZPC(WHT),HWH,+,SWRCH18 |
|
|
BRACKET HINGE;WF520ANP,GI-SGCC,T1.4,-,-, |
|
|
BRACKET NUT;P1291,PO-SPHC,T3,NO-PAINT/MO |
| DC61-02388A | BRACKET PUMP;WR-PA179UR,GI-SGCC,T1.2,MOU |
| DC61-04878A | BRACKET TUB;WF45P6000,GI-SGCC,T0.35,-,-, |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2402-001368 | C-AL,SMD;47UF,20%,25V,TP,6.3X4.9MM |
| 2401-003139 | C-AL;1000UF,20%,25V,TP,10X20MM,5MM,-55TO |
| 2401-001374 | C-AL;470UF,20%,16V,WT,TP,10X12.5MM,5MM |
| 2401-001698 | C-AL;470UF,20%,35V,TP,10X20MM,5MM,-55TO+ |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-000206 | C-CER,CHIP;100NF,10%,50V,X7R,TP,2012,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007456 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1005,T0.5, |
| 2203-007486 | C-CER,CHIP;1UF,10%,50V,X5R,TP,1608,-55TO |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-006377 | C-CER,CHIP;4.7UF,10%,25V,X5R,TP,2012,-55 |
| 2201-000332 | C-CERAMIC,DISC;2.2NF,20%,250VAC,Y5U,TP,9 |
| 2301-001899 | C-FILM,LEAD;100NF,5%,630V,TP,18X12X8MM,7 |
| 6502-000168 | CABLE CLAMP;DA-6N,PA66,NAT,T1.0,ID10.0 |
| 6502-000127 | CABLE CLAMP;DAWH-18NB,PA66,NTR |
| DC61-00553B | CABLE CLAMP;DAWS-3NE,PA66,NTR |
| 6501-000121 | CABLE TIE;DA-368,NYLON66,NTR,T1.5,W7.6,L |
|
|
CAP DRAIN;WF220ANW,PP,-,-,-,-,-,CNTK-P10 |
| DC67-01244A | CAP DRAWER;WF8000CK,PP+TD30%,T2,-,PTN960 |
|
|
CAP-FIXER;WF438AAC/XAA,PP,T1.5,-,P-002HB |
| DC67-01107B | CAP;WF8800A,PP+TD30%,T2,-,PTN960A,COOL W |
|
|
CLAMP-CABLE;P1291,PA66,NATURAL,-,-,101F, |
| DC61-00133A | CLAMPER HOSE-FIX;P1291,PP,NATURAL,-,-,BJ |
| DC65-00014E | CLAMPER HOSE-JOINT;WF6000H,HSWR,-,-,-,-, |
| DC65-00008C | CLAMPER HOSE;DRUM W/M,SK5,-,-,-,T0.7 |
|
|
CLAMPER HOSE;HSWR,-,-,-,T1.2 |
|
|
CLAMPER HOSE;SEW-HFR177AR,SK5,NATURAL,-, |
|
|
CLAMPER HOSE;SSEC-GE,SK5,-,-,-,-,ID14.2, |
| DC61-00219D | CLAMPER HOSE;SW-50A1S,SK5,-,-,-,-,ID33,T |
| DC61-00158A | CLAMPER HOSE;SW65ASP,SK5,T0.8,-,- |
|
|
CLAMPER HOSE;WF210ANW/XAA,SK5,NATURAL,-, |
|
|
CLIP RING;-,HSWR,-,-,-,-,- |
| DC63-02868A | COVER BACK;WF8900B,GI-SGCC,T0.35,-,-,-,- |
| DC63-02181A | COVER CONNECTOR;WW5500K (SEHC),PP,-,HB,N |
| DC63-03111A | COVER DETERGENT;WH9000D,LDPE,T2,-,HYGIEN |
| DC63-02160B | COVER DOOR SWITCH;PP+TD30%,T2,-,NATURAL, |
| DC63-02759A | COVER DOOR SWITCH;WF8000R,TPE,T1,-,DARK |
| DC63-02756B | COVER FILTER-BACK;WF9500A,ABS,T2.5,HB,CH |
| DC63-02761E | COVER FILTER-UP;WF8000R,EGI-SECD,T0.8,SA |
| DC63-00820D | COVER HEATER;ABS,NATURAL,VE-0858 |
| DC63-02987D | COVER PANEL;AI ONE,ABS,-,HB,SATIN GREEN, |
| DC63-02335A | COVER PBA;WF6000P,ABS,T2.5,V-0,NATURAL,- |
|
|
CUSHION LID;WA8700K,SI,-,D9.1,-,DARK HOL |
|
|
CUSHION PUMP;WF206LNW,EPDM,-,-,-,-,MARS- |
|
|
DAMPER SHOCK-MODULE;24-INCH DRUM,PP/RUBBER/S |
| DC64-04274D | DECORATION PANEL;AI ONE,ABS,T2.5,SATIN G |
| DC64-04273D | DECORATION PANEL;AI ONE,ABS,T2.5,SATIN G |
| 0402-001224 | DIODE-BRIDGE;TS15P05G,D15XB60,D15SB60,60 |
| 0402-001192 | DIODE-RECTIFIER;ES2D,200V,2A,SMB,TP |
|
|
DIODE-RECTIFIER;US1M,1000V,1A,SMA,TP |
| 0404-001250 | DIODE-SCHOTTKY;RB520G-30,30V,100MA,SOD-7 |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-000132 | DIODE-SWITCHING;BAV99,75V,50MA,SOT-23,TP |
| 0407-000113 | DIODE-SWITCHING;BAW56,70V,200MA,SOT-23,T |
| 0406-001239 | DIODE-TVS;RCLAMP0502BA,6V,SOT-523,125W,T |
|
|

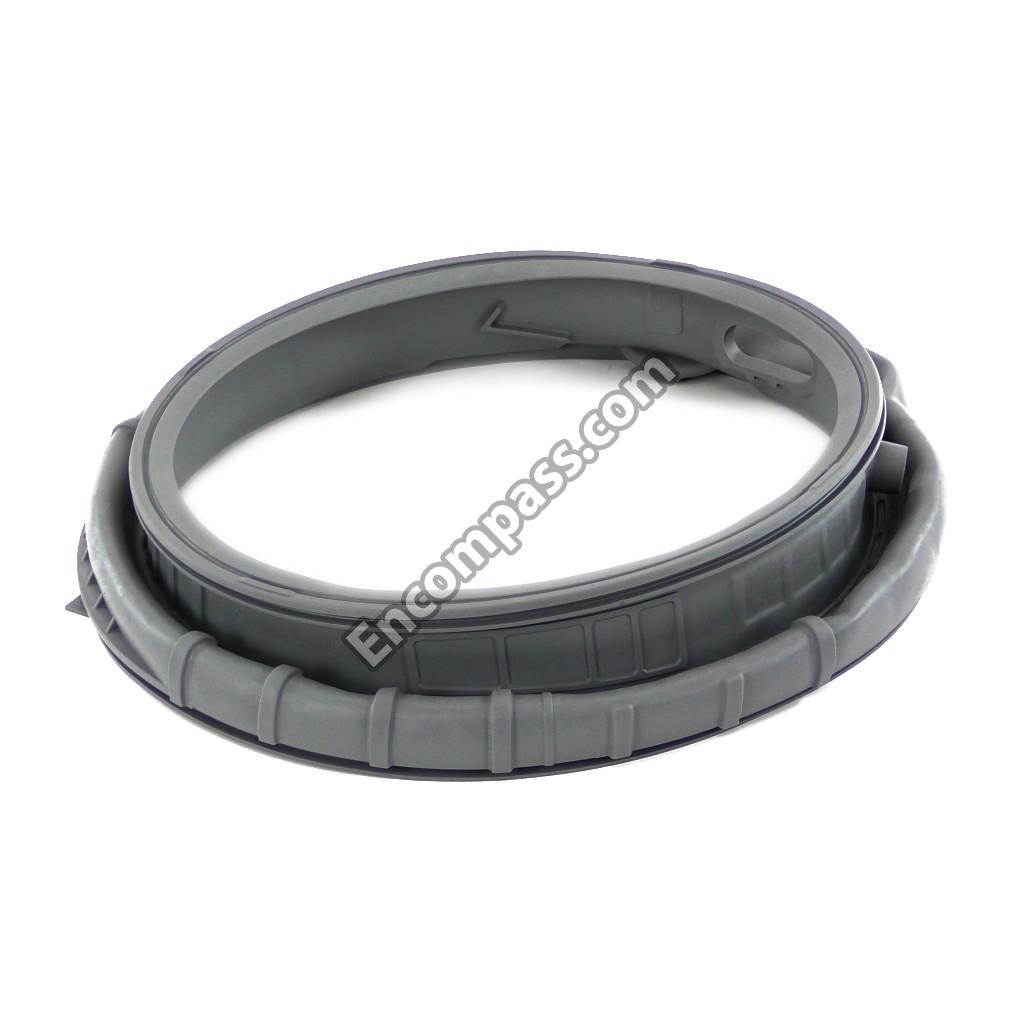

DOOR DIAPHRAGM;WF8000R,TPE,T2,-,ER7735DA |
| DC66-00984A | DRUM LIFTER;WF6000R,PP+TD20%,OD580,T4,-, |
| 0505-000110 | FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0. |
|
|
FILTER EMI;6.5MH,53X95.5X53MM,15A,V(14D6 |
|
|
FILTER PUMP;PP+TD20%,T2,DARK HOLDER GRAY |
| DC60-00137A | FLANGE SHAFT;WF6500P,ALDC12,OD |
| DC61-05844A | FRAME PLATE-UP;WF6000,GI-SGCC,-,-,T1.4,- |
| 3601-001600 | FUSE-RADIAL LEAD;250V,1.6A,TIME-LAG,THER |
| DC61-05720A | GUIDE COVER PCB;AI ONE,ABS,T2.5,HB,780,I |
|
|
GUIDE COVER TOP;HUDSON,POM,-,-,500P,BLAC |
| DC61-05503A | GUIDE FILTER;FLAT,PP+TD30%,T2.5,HB,SSPP- |
|
|
GUIDE HINGE;HAUZEN(DOM),POM,-,-,K300,NAT |
|
|
GUIDE SPRING;WF419AAW,POM,T2,-,F20-03,NA |
| DC61-04572B | GUIDE WATER;WF8800A,PP+TD30%,T2.3,-,PTN9 |
| 3711-005221 | HEADER-BOARD TO CABLE;BOX,10P,2R,4.2MM,S |
| DC62-00243C | HEAT SINK;HUDSON,AL,T2.5,W11,L15,WHITE,H |
|
|

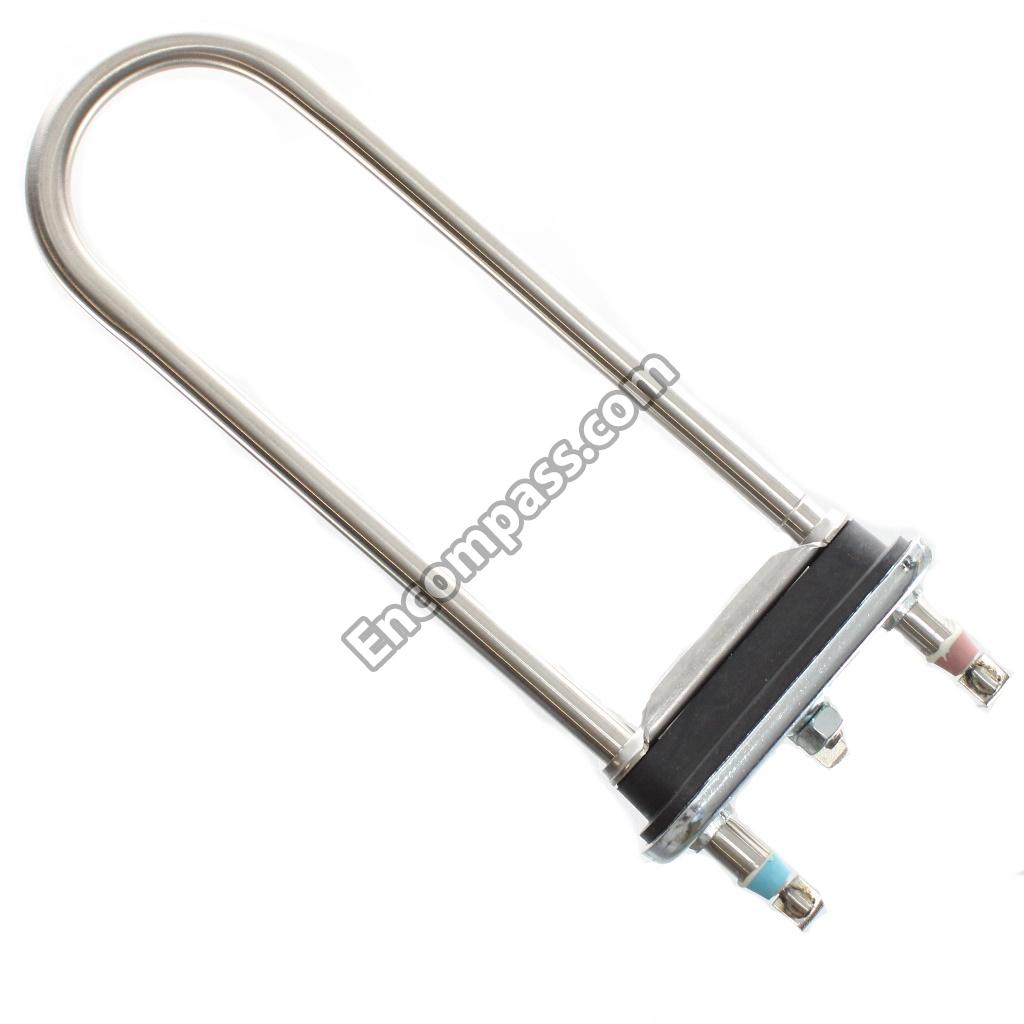

HEATER WASH;AC120V,900W,INCOLOY800,328MM |
|
|
HOLDER HOSE;WF210ANW,PA66,T2,NATURAL,-,- |
| DC61-60074A | HOLDER WIRE;PA66,NATURAL,101F,RECTANGLE |
| DC61-01736B | HOLDER WIRE;WF337AAW,PA6,T2.3,NATURAL,-, |
| DC67-01054A | HOSE AIR;WF6000R,EPDM,-,-,-,-,-,-,-,BLAC |
|
|
HOSE DRAIN;HEBA,EPDM |
| DC67-01053A | HOSE DRAWER TUB;WF6000R,EPDM,ID43.5,T2,B |
|
|
HOSE DRAWER;WF8502NHW,EPDM,AEGIS |
|
|
HOSE FILTER TUB;WF520,EPDM,ID73,T2,HS50, |
|
|
HOSE HANGER;PUMP MODEL,PP,ID27,T1.5,HS95 |
| DC61-05856A | HOUSING DRAWER-LOW;WH9000D,PP+TD30%,T2,N |
| DC61-05775A | HOUSING DRAWER-MIDDLE;WF8000CK,PP+TD30%, |
| DC61-05773A | HOUSING DRAWER-UP;WF8000CK,PP+TD30%,T2,N |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP |
| 1201-000166 | IC-OP AMP;LM358,SOP,8P,ST,9.6X6.45X33.8M |
| 1203-006759 | IC-POSI.ADJUST REG.;TL432ASA,SOT-23,3P,3 |
| 1203-002835 | IC-POSI.FIXED REG.;7805,3P,D2PAK(TO-252) |
| 1203-002722 | IC-POSI.FIXED REG.;KA78R15,TO-220,4P,10X |
| 1203-006245 | IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1. |
| 1202-001090 | IC-VOLTAGE COMP.;KIA75S393F,5P,TSV,TP,2. |
| DC64-03921Q | KNOB ENCODER;AI 3.0,ABS,-,HB,SATIN GREEN |
| DC66-01077A | LATCH;FLAT(SEHC),POM,NATURAL,DC LATCH,NC |
|
|
LEVER DOOR;10KG DRUM, U-PJT,ZNDC,T2.5,NI |
|
|
MOTOR AC PUMP;W/M US,PX3516-01/B35-3A/M3 |
| 0205-001027 | OIL-SILICON;G746 |
| 0205-000127 | OIL-SILICON;L5350 |
|
|
PACKING-THERMISTOR;GW-PJT,EPDM,-,-,W17,H |
| DC64-04271D | PANEL CONTROL;AI ONE,ABS,-,-,HG-0760GP,S |
| DC64-04272D | PANEL DRAWER;AI ONE,ABS,-,HB,HG-0760GP,S |
|
|
POWER CORD-AT;SJT 3X16AWG 105C,GRY,US3S, |
| 2007-010245 | R-CHIP;0.01OHM,1%,2W,TP,6432 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-000279 | R-CHIP;100KOHM,1%,1/4W,TP,3216,T0.6 |
| 2007-008167 | R-CHIP;120KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000451 | R-CHIP;180OHM,5%,1/4W,TP,3216 |
| 2007-000467 | R-CHIP;1KOHM,1%,1/4W,TP,3216 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000476 | R-CHIP;1MOHM,1%,1/4W,TP,3216 |
| 2007-000069 | R-CHIP;1OHM,1%,1/4W,TP,3216,T0.55 |
| 2007-007587 | R-CHIP;3.6KOHM,1%,1/16W,TP,1005 |
| 2007-000824 | R-CHIP;390OHM,5%,1/4W,TP,3216 |
| 2007-000868 | R-CHIP;4.7KOHM,1%,1/8W,TP,2012 |
| 2007-010641 | R-CHIP;620OHM,1%,1/16W,TP,1005 |
| 2007-007321 | R-CHIP;68OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-008593 | R-CHIP;750OHM,1%,1/16W,TP,1005,T0.35,PB |
|
|
RELAY-MINIATURE;12V,200MW,3000MA,1FORMA, |
|
|
RELAY-POWER;12V,0.9W,25000MA,1FORMA,20MS |
| 2802-001211 | RESONATOR-CERAMIC;8MHZ,0.5%,0.2%,TP,3.2X |
| 6041-001035 | RIVET-RH;K1661-0512,AL,NTR,L10,OD4.1 |
| 6002-001435 | SCREW TAPPING |
|
|
SCREW-HEX;HWH,+,M5,L16,PASS,STS430,FP,SE |
|
|
SCREW-MACHINE;STS430,PASS,L16,M5,TH,+,FP |
| 6001-000115 | SCREW-MACHINE;SWRCH18A,ZPC(WHT),L10,M3,B |
| 6009-001343 | SCREW-SPECIAL;PH,TORX,M4,L12,ZPC(WHT),SW |
|
|
SCREW-TAPPING;STS430,PASS,L12,M4,PWH,+,1 |
| 6002-001006 | SCREW-TAPPING;STS430,PASS,L12,M4,TH,+,2S |
|
|
SCREW-TAPPING;STS430,PASS,L14,M4,TH,+,2 |
|
|
SCREW-TAPPING;STS430,PASS,L16,M5.5,TH,+, |
|
|
SCREW-TAPPING;STS430,PASS,L18,M4,TH,+,NO |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M5,H |
| 6002-001436 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L18,M4,P |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M3,PH |
|
|
SCREW-TAPTYPE;SWRCH18A,ZPC(WHT),L10,M4,T |
| 6003-000226 | SCREW-TAPTYPE;SWRCH18A,ZPC(WHT),L8,M4,TH |
|
|
SEAL OIL;TS85-PJT,NBR,-,-,-,BLACK,-,- |
|
|
SEAL PACKING;SEW-HVR149ATA,EPDM,-,-,-,BL |
| DC62-00559A | SEAL RUBBER;WW10M86DQOO/EU,SI,-,-,-,-,-, |
| DC62-00829A | SEAL RUBBER;WW7100A,SI,-,-,-,VERSAILLES |
| DC62-00831A | SEAL;WW7100A,SI,-,-,-,BLACK,-,HS50 |
| DC32-00018B | SENSOR PHOTO;RCM,5V |
|
|
SENSOR PRESSURE;AIR,5V,L0,400MMH2O |
|
|
SENSOR TEMP;L120,3.243KOHM,2%,60C,9.8PHI |
| DC63-01891A | SHEET PAPER;WD16J7800KS,PAPER,T1,-,BLACK |
| 0204-008185 | SILICAGEL;CALCIUM CHLORIDE,CACL2,94%,20G |
| DC97-23140E | SMG PART |
| DC97-23126C | SMG PART |
| DC97-23125C | SMG PART |
| DC62-00921A | SMG PART |
| DC62-00920A | SMG PART |
| DC61-05949A | SMG PART |
| DC61-05948A | SMG PART |
| DC98-05158A | SMG PART |
| DC98-05156A | SMG PART |
| DC97-24112A | SMG PART |
| DC97-23876C | SMG PART |
| DC97-23870B | SMG PART |
| DC97-23255D | SMG PART |
| DC97-23126A | SMG PART |
| DC97-23125B | SMG PART |
| DC97-22711B | SMG PART |
| DC97-22459A | SMG PART |
| DC97-21463A | SMG PART |
| DC94-13493A | SMG PART |
| DC94-13491A | SMG PART |
| DC94-09043A | SMG PART |
| DC94-09042A | SMG PART |
| DC94-07490A | SMG PART |
| DC93-00951A | SMG PART |
| DC92-03571A | SMG PART |
| DC92-03392A | SMG PART |
| DC92-03376A | SMG PART |
| DC92-03329A | SMG PART |
| DC92-02379W | SMG PART |
| DC92-02339K | SMG PART |
| DC90-30861B | SMG PART |
| DC90-30859B | SMG PART |
| DC90-30857W | SMG PART |
| DC90-30855K | SMG PART |
| DC90-30853D | SMG PART |
| DC90-30852N | SMG PART |
| DC90-30775P | SMG PART |
| DC90-30774D | SMG PART |
| DC90-30669G | SMG PART |
| DC90-30597L | SMG PART |
| DC73-00035A | SMG PART |
| DC72-00034T | SMG PART |
| DC72-00013N | SMG PART |
| DC69-02972A | SMG PART |
| DC69-02960A | SMG PART |
| DC69-02942A | SMG PART |
| DC69-02941A | SMG PART |
| DC69-02894A | SMG PART |
| DC69-02777A | SMG PART |
| DC69-01721B | SMG PART |
| DC68-20091H | SMG PART |
| DC68-04488A | SMG PART |
| DC68-04477A | SMG PART |
| DC68-04475A | SMG PART |
| DC68-04096R | SMG PART |
| DC68-04005A | SMG PART |
| DC68-03877A | SMG PART |
| DC68-03216K | SMG PART |
| DC68-02225L | SMG PART |
| DC68-02173A | SMG PART |
| DC67-01177B | SMG PART |
| DC67-01035A | SMG PART |
| DC67-00492A | SMG PART |
| DC67-00468A | SMG PART |
| DC67-00330U | SMG PART |
| DC67-00230F | SMG PART |
| DC66-01097A | SMG PART |
| DC66-01094A | SMG PART |
| DC66-01093A | SMG PART |
| DC66-01092A | SMG PART |
| DC66-01091A | SMG PART |
| DC66-01090A | SMG PART |
| DC66-01089B | SMG PART |
| DC66-01088A | SMG PART |
| DC66-01071A | SMG PART |
| DC66-00983A | SMG PART |
| DC66-00886C | SMG PART |
| DC66-00885D | SMG PART |
| DC66-00822A | SMG PART |
| DC64-04315A | SMG PART |
| DC64-04268C | SMG PART |
| DC64-04224K | SMG PART |
| DC64-04222D | SMG PART |
| DC64-04139A | SMG PART |
| DC64-04136A | SMG PART |
| DC64-04055A | SMG PART |
| DC64-04020A | SMG PART |
| DC64-03908N | SMG PART |
| DC63-10056P | SMG PART |
| DC63-10003H | SMG PART |
| DC63-03110A | SMG PART |
| DC63-03107A | SMG PART |
| DC63-03014B | SMG PART |
| DC63-02992D | SMG PART |
| DC63-02992B | SMG PART |
| DC63-02951C | SMG PART |
| DC63-02951B | SMG PART |
| DC63-02928B | SMG PART |
| DC63-02858A | SMG PART |
| DC63-02857A | SMG PART |
| DC63-02767B | SMG PART |
| DC63-02757A | SMG PART |
| DC63-02494A | SMG PART |
| DC63-02430F | SMG PART |
| DC63-01493A | SMG PART |
| DC63-00888A | SMG PART |
| DC62-00900A | SMG PART |
| DC62-00897A | SMG PART |
| DC62-00856A | SMG PART |
| DC62-00830A | SMG PART |
| DC62-00827A | SMG PART |
| DC62-00826A | SMG PART |
| DC62-00687A | SMG PART |
| DC62-00471C | SMG PART |
| DC62-00276C | SMG PART |
| DC61-05855A | SMG PART |
| DC61-05820A | SMG PART |
| DC61-05819A | SMG PART |
| DC61-05776A | SMG PART |
| DC61-05727C | SMG PART |
| DC61-05726C | SMG PART |
| DC61-05531B | SMG PART |
| DC61-05500C | SMG PART |
| DC61-05479A | SMG PART |
| DC61-05474A | SMG PART |
| DC61-05473A | SMG PART |
| DC61-05371A | SMG PART |
| DC61-05370B | SMG PART |
| DC61-05368U | SMG PART |
| DC61-05363A | SMG PART |
| DC61-05328A | SMG PART |
| DC61-05273A | SMG PART |
| DC61-04972V | SMG PART |
| DC61-04964B | SMG PART |
| DC61-04866A | SMG PART |
| DC61-04499A | SMG PART |
| DC61-04112C | SMG PART |
| DC61-02017H | SMG PART |
| DC61-01959D | SMG PART |
| DC61-01937C | SMG PART |
| DC61-01552A | SMG PART |
| DC61-01290C | SMG PART |
| DC61-01278B | SMG PART |
| DC61-01149D | SMG PART |
| DC61-00841A | SMG PART |
| DC61-00834A | SMG PART |
| DC61-00498A | SMG PART |
| DC60-00145A | SMG PART |
| DC60-00120A | SMG PART |
| DC41-00285D | SMG PART |
| DC26-00053A | SMG PART |
| DC13-00253A | SMG PART |
| DC07-00149A | SMG PART |
| DC02-10025A | SMG PART |
| DC02-10013A | SMG PART |
| DC01-00672A | SMG PART |
| DC01-00621T | SMG PART |
| DC01-00550A | SMG PART |
| DC01-00363A | SMG PART |
| DC01-00362A | SMG PART |
| DC01-00359A | SMG PART |
| DC01-00358A | SMG PART |
| DC01-00353A | SMG PART |
| DC01-00352A | SMG PART |
| 6812-000145 | SMG PART |
| 6031-003038 | SMG PART |
| 6021-002053 | SMG PART |
| 6009-001740 | SMG PART |
| 4709-003223 | SMG PART |
| 3711-009410 | SMG PART |
| 3711-009224 | SMG PART |
| 3711-007174 | SMG PART |
| 3711-005699 | SMG PART |
| 3711-000744 | SMG PART |
| 3711-000740 | SMG PART |
| 3601-001728 | SMG PART |
| 3601-001674 | SMG PART |
| 3502-001087 | SMG PART |
| 3502-001075 | SMG PART |
| 3406-001130 | SMG PART |
| 3301-002113 | SMG PART |
| 2801-004912 | SMG PART |
| 2401-005280 | SMG PART |
| 2401-004384 | SMG PART |
| 2203-010142 | SMG PART |
| 2203-010033 | SMG PART |
| 2203-006457 | SMG PART |
| 2202-002252 | SMG PART |
| 2007-009149 | SMG PART |
| 2007-007630 | SMG PART |
| 2007-007385 | SMG PART |
| 2007-007336 | SMG PART |
| 2007-001015 | SMG PART |
| 2007-001011 | SMG PART |
| 2007-000571 | SMG PART |
| 2007-000568 | SMG PART |
| 1404-001872 | SMG PART |
| 1209-002491 | SMG PART |
| 1203-009020 | SMG PART |
| 1201-004379 | SMG PART |
| 1003-002900 | SMG PART |
| 1003-002128 | SMG PART |
| 0903-002266 | SMG PART |
| 0903-002254 | SMG PART |
| 0903-002197 | SMG PART |
| 0801-000168 | SMG PART |
| 0604-001405 | SMG PART |
| 0601-002679 | SMG PART |
| 0505-001943 | SMG PART |
| 0406-001865 | SMG PART |
| 0402-001741 | SMG PART |
| 0402-001472 | SMG PART |
| 0205-001430 | SMG PART |
| 0205-001410 | SMG PART |
| 0204-009043 | SMG PART |
| 0204-004868 | SMG PART |
| 0204-004866 | SMG PART |
| 0204-004665 | SMG PART |
| 0203-006491 | SMG PART |
| 0203-002928 | SMG PART |
| 0202-001933 | SMG PART |
| 0202-001463 | SMG PART |
| 0201-003583 | SMG PART |
| 0201-003582 | SMG PART |
| 0103-011852 | SMG PART |
| 0103-010963 | SMG PART |
| 0103-009052 | SMG PART |
| 0103-008911 | SMG PART |
| 0103-004022 | SMG PART |
| 0103-003461 | SMG PART |
| 0103-003456 | SMG PART |
| 0103-003311 | SMG PART |
| 0103-002994 | SMG PART |
| 0103-002641 | SMG PART |
| 0103-001846 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007317 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007586 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007791 | SMG PART |
| 2007-008263 | SMG PART |
| 2007-008672 | SMG PART |
| 2203-000233 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000995 | SMG PART |
| 2203-002487 | SMG PART |
| 2203-007392 | SMG PART |
| 2203-007781 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007809 | SMG PART |
| DC61-06008A | SMG PART |
| DC63-03185A | SMG PART |
|
|
SPRING ETC-HANGER MODULE;GRACE-S PJT,SWP |
|
|
SUPPORT HINGE;GI-SGCC,T1.4,L175.0,SBHG1- |
|
|
SWITCH DOOR LOCK;AC120V,16A,SOLENOID, DO |
| DC64-00828H | SWITCH DOOR;AC125/250V,0.75-1.5A,1BUTTON |
| DE02-00029B | TAPE FILAMENT;POLYESTER,T0.15,W40,L110,N |
| DC69-90008A | TAPE OPP;OPP,T0.054,W50 |
| 0203-006796 | TAPE-POLY;PP,T0.11,W40,N/A,WHITE,TPP(TEN |
| 1404-001581 | THERMISTOR-PTC;250OHM(TYP),265VAC,2.7A,R |
| CALL_1-800-SAMSUNG | THERMISTOR-PTC;27OHM(TYP),265VAC,1.5A,RA |
| 0506-000175 | TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100 |
| 0504-001080 | TR-DIGITAL;KRC246S,NPN,200MW,2.2K/10KOHM |
| 0504-001008 | TR-DIGITAL;RN2427,PNP,200MW,2.2K/10KOHM, |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
| 0501-000467 | TR-SMALL SIGNAL;MMBT3906,TP,PNP,30~300,2 |
| DC61-04708B | TUB FRONT;WF6000R,PP+GLF15%,T3,NATURAL,- |
|
|
VALVE CHECK;BIGBANG,NBR,ID28.6/OD33,HS70 |
|
|
VALVE WATER;AC110-127V,,,,BRACKET, 180 , |
|
|
VALVE WATER;AC110-127V,BRACKET, 180 ,1IN |
| DC60-60044B | WASHER PLAIN;WW65R20GLSW/TL,SWRCH18A,T2, |
| 6031-001531 | WASHER-PLAIN;CR-SPCC,ZPC,T1.2,OD14,ID7,P |
|
|
WEIGHT BALANCER-MODULE;WF6000R,CONCRETE, |
| DC66-10003A | WIRE VINYL;SEW-100 JL,PVC,- |
| DC97-23184B |
