Manufacturer
Samsung
Model Number
XE310XBAK02US
Description
Chromebook 4 11.6-inch Xe310xba
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

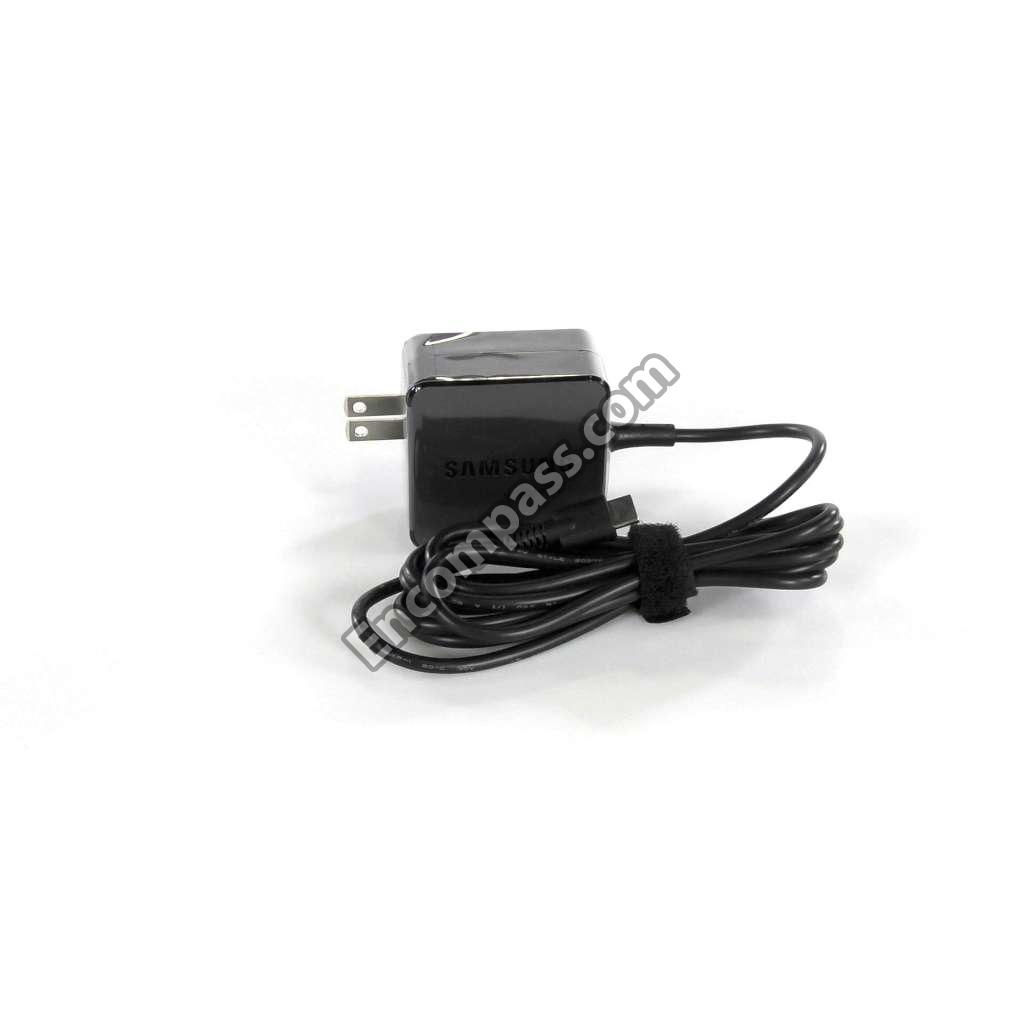

ADAPTOR |
| BA42-00662B | ANTENNA-AUX;81.ELA15.G14,JOAN- |
| BA42-00662A | ANTENNA-MAIN;81.ELA15.G13,JOAN |
| BA96-07389A | ASSEMBLY BATTERY;JOAN-15,SEC,LI-IO |
| BA92-19897A | ASSEMBLY BD AUDIO-TOP;JOAN-11,AUDI |
| BA92-19896A | ASSEMBLY BD USB-TOP;JOAN-11,USB BD |
| BA98-02177A | ASSEMBLY BRACKET-PORT_SUB;JOAN-11, |
| BA96-07256A | ASSEMBLY CAMERA |
|
|
ASSEMBLY CASE FRONT-TOP;JOAN-11,SE |
| BA98-01975A | ASSEMBLY CASE LOWER;JOAN-11,SEC,PC |
|
|
ASSEMBLY CASE REAR;JOAN-11,SEC,PC+ |
|
|
ASSEMBLY CASE UPPER;JOAN-11,SEC,PC |
| BA98-01972A | ASSEMBLY HINGE-L;JOAN-11,SEC,SK7, |
| BA98-01973A | ASSEMBLY HINGE-R;JOAN-11,SEC,SK7,F |
| BA92-20313A | ASSEMBLY MOTHER BD-TOP;JOAN-11,INC |
| BA98-01964A | ASSEMBLY RUBBER-FOOT;JOAN-15,SEC,S |
| BA96-07326C | ASSEMBLY SPEAKER-SPEAKER L;JOAN-11 |
| BA96-07326D | ASSEMBLY SPEAKER-SPEAKER R;JOAN-11 |
| BA98-01979A | ASSEMBLY TOUCHPAD-SVC;JOAN-11,SEC, |
| BA69-01759A | BAG ACCESSORY-SYSTEM;HOPPER,NI |
| BA61-03983A | BRACKET-BATTERY;JOAN-15,STS,NA |
| BA61-03992A | BRACKET-PORT_MAIN;JOAN-11,STS4 |
|
|
CAP-KEYBOARD |
|
|
CBF HARNESS-LCD CABLE;JOAN-11, |
|
|
FFC-AUDIO;JOAN-11,FFC,25X9MM,1 |
| BA41-02750A | FFC-TOUCHPAD;JOAN-11,FFC,25X77 |
| BA41-02752A | FFC-USB;JOAN-11,FFC,80X17.5MM, |
| 3722-003865 | JACK-PHONE |
|
|
LCD PANEL;KD116N05-30NV-G007,1 |
| BA64-01071A | LOGO-GOOGLE |
| BA67-01336A | RUBBER-UPPER;JOAN11,SI |
| 6001-003312 | SCREW-MACHINE |
| 6001-001925 | SCREW-MACHINE |
| 6001-001650 | SCREW-MACHINE |
| 6001-001560 | SCREW-MACHINE |
| 3722-004122 | USB JACK |
| 3722-004062 | USB JACK |
