Sony

Model Number

APS02

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
2-431-868-01 2-431-868-01 BUSHING
1-125-627-11 1-125-627-11 CAP ELECT. 390MF
2-403-874-01 2-403-874-01 CASE USM-APS02-A
2-403-875-01 2-403-875-01 CASE USM-APS02-B
7-150-182-63 7-150-182-63 CORE FERRITE
2-430-239-01 2-430-239-01 COVER CAPACITOR
1-541-779-11 1-541-779-11 FAN
1-115-166-11 1-115-166-11 FILM 0.22MF 250V

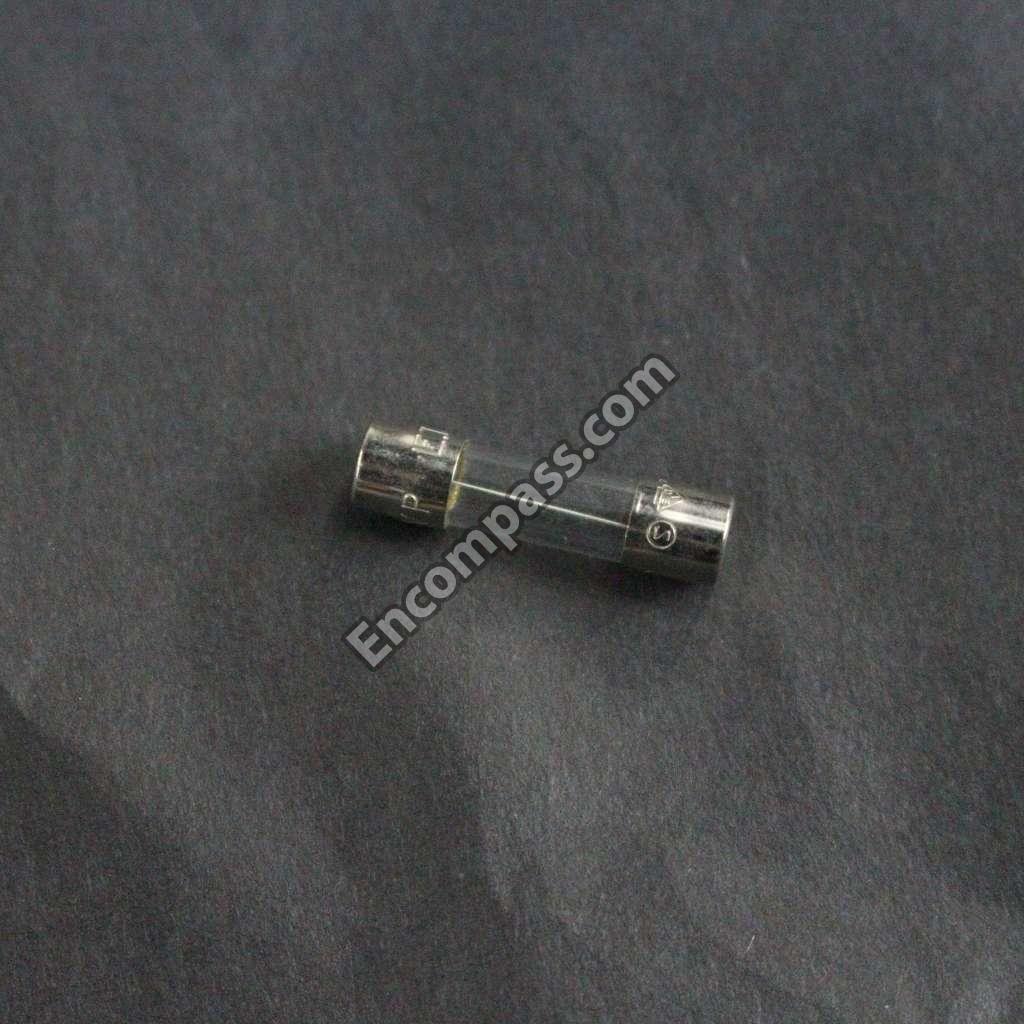

1-532-465-33 1-532-465-33 FUSE 3.15A 250V
2-431-367-01 2-431-367-01 HARNESS HA-APS02-A
2-431-368-01 2-431-368-01 HARNESS HA-APS02-B
2-431-369-01 2-431-369-01 HARNESS HA-APS02-C
2-431-361-01 2-431-361-01 HARNESS HA-APS02-D
2-431-360-01 2-431-360-01 HARNESS HA-APS02-E
X-2400-081-1 X-2400-081-1 HEAT SINK ASSY
X-2400-082-1 X-2400-082-1 HEAT SINK HS-APS02-B ASSY
A-4925-446-A A-4925-446-A HIC SH-B1
1-412-086-21 1-412-086-21 INDUCTOR GROUND
1-540-051-12 1-540-051-12 INLET AC
1-540-132-11 1-540-132-11 OUTLET AC
2-434-631-01 2-434-631-01 PLATE GROUND APS-02
1-217-784-11 1-217-784-11 RESISTOR CEMENT(FUSE)10
1-215-902-11 1-215-902-11 RESISTOR METAL OXIDE 47K
2-431-880-01 2-431-880-01 RUBBER VENTILATION
2-431-893-01 2-431-893-01 SHEET INSULATION IS-APS-0
1-572-410-11 1-572-410-11 SWITCH THERMAL GUARD
1-570-544-11 1-570-544-11 SWITCH, PUSH(AC POWER)(1
1-450-007-11 1-450-007-11 TRANSFORMER CONVERTER
1-450-758-11 1-450-758-11 TRANSFORMER CONVERTER (10
8-729-926-79 8-729-926-79 TRANSISTOR IRFBC40
