Model Image
Manufacturer

Sony

Model Number

BM500USA

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

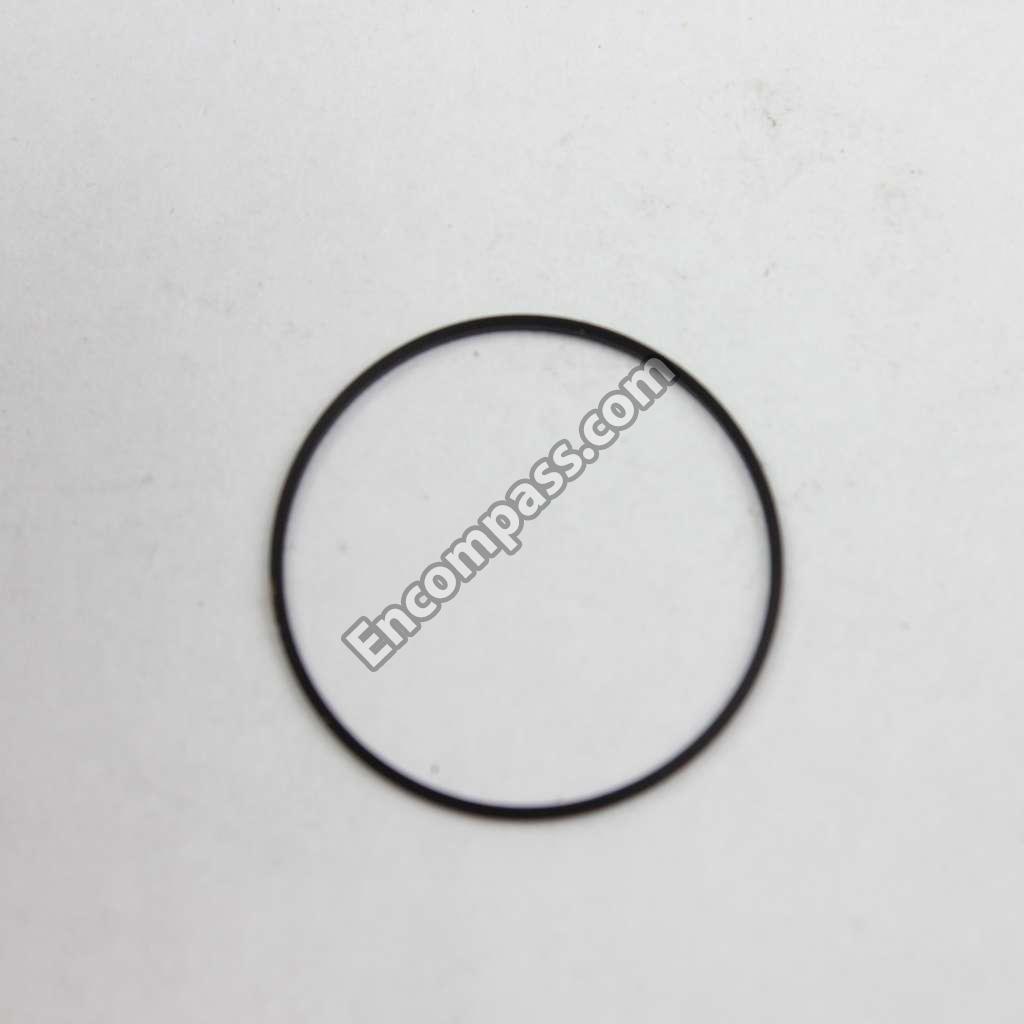

3-561-645-00 3-561-645-00 BELT,COUNTER
3-561-604-00 3-561-604-00 COLLAR(B),HD DECK
3-561-666-00 3-561-666-00 COVER SWITCH
3-561-637-00 3-561-637-00 GUIDE,TAPE
A-3164-144-A A-3164-144-A LEVER ASSY,REW
3-561-607-00 3-561-607-00 LEVER,ESF
3-561-701-00 3-561-701-00 PANEL,REEL
X-3561-519-0 X-3561-519-0 PLATE ASSY,LOCK
3-561-665-00 3-561-665-00 PLATE,ORNAMENTAL,SW
3-561-620-00 3-561-620-00 SHAFT (A)
3-561-673-00 3-561-673-00 SHAFT(B)METR FITTING
3-561-617-00 3-561-617-00 SHAFT,REEL DECK
3-561-601-00 3-561-601-00 SPACER(A)HD DECK
3-561-603-00 3-561-603-00 SPACER(C) HD DECK
3-561-621-00 3-561-621-00 SPACER,FR
3-561-600-00 3-561-600-00 SPACER,HEAD
3-561-624-00 3-561-624-00 SPRING
3-561-628-00 3-561-628-00 SPRING,TENSION
3-561-626-00 3-561-626-00 SPRING,TENSION
