Manufacturer

Sony

Model Number

BVF10

Description

Sony Elect Viewfinder W/microp

Interactive Exploded View

Parts List

Part Number	Description
3-679-693-01	BASE,SLIDE
7-683-412-05	BOLT,HEXAGON SOCKET 2.6X6 (ST)
1-162-970-91	CAPACITOR CERAMIC 0.01MF/25V B
1-163-249-11	CAPACITOR CERAMIC 82PF/50V
1-163-243-11	CAPACITOR CHIP CERAMIC 47PF/50
1-135-091-00	CAPACITOR CHIP TANTALUM ELECT
1-128-401-11	CAPACITOR ELECT 100MF/16V CHIP
1-136-480-11	CAPACITOR FILM 0.0015MF/100V
1-104-547-11	CAPACITOR FILM 0.0047MF/16V
1-104-919-11	CAPACITOR TANTALUM 10MF/25V
1-104-917-11	CAPACITOR TANTALUM 15MF/16V
1-104-912-11	CAPACITOR TANTALUM 3.3MF/16V
1-135-165-11	CAPACITOR TANTALUM 33MF/16V
1-164-227-11	CAPACITOR,CERAMIC 0.022MF/25V
1-131-992-11	CAPACITOR,CERAMIC 0.1MF/25V F
1-162-927-11	CAPACITOR,CERAMIC 100PF/50V CH
1-107-425-11	CAPACITOR,CERAMIC 470PF 1KV(S-
1-162-969-11	CAPACITOR,CERAMIC 6800PF/25V B
1-163-037-11	CAPACITOR,CHIP CERAMIC 0.022MF
1-163-809-11	CAPACITOR,CHIP CERAMIC 0.047MF
1-163-038-91	CAPACITOR,CHIP CERAMIC 0.1MF
1-163-017-00	CAPACITOR,CHIP CERAMIC 4700PF
1-128-394-21	CAPACITOR,ELECT 220MF/10V
1-107-689-21	CAPACITOR,TANTALUM 1MF/35V
1-104-911-11	CAPACITOR,TANTALUM 33MF/10V
1-107-686-11	CAPACITOR,TANTALUM 4.7MF/16V
1-104-823-11	CAPACITOR,TANTALUM 47MF/16V
1-128-405-11	CAPACITOR.ELECT 22MF/50V(CHIP)
A-8277-112-B	CASE ASSEMBLY, TOP
A-8269-384-A	CASE ASSY, TOP
A-1123-253-B	CASE ASSY, TOP
X-3678-435-4	CHASSIS,BOTTOM ASSEMBLY
X-3678-435-3	CHASSIS,BOTTOM ASSEMBLY
X-3678-435-2	CHASSIS,BOTTOM ASSEMBLY
1-535-877-22	CHIP,CHECKER (TEST POINT)
9-882-891-01	COIL, HORIZONTAL LINEARITY
1-459-899-11	COIL,HORIZONTAL LINEARTY
1-216-295-00	CONDUCTOR, CHIP (2012)
1-823-972-13	CORD, CONNECTION (VF)
1-823-972-12	CORD, CONNECTION (VF)
3-679-694-01	COVER,SLIDE
3-692-132-01	COVER,TALLY
3-679-695-01	COVER,TALLY
1-251-633-11	CRT ASSEMBLY, 1.5
3-692-138-01	CUSHION MIC,RUBBER (IIR)
3-723-073-01	CUSHION,MIRROR
3-692-145-01	CUSSHION,DRROP PROTECCTION
1-411-383-11	DELAY LINE
8-719-820-41	DIODE 1SS302
8-719-026-16	DIODE CL-150D-CD
8-719-900-95	DIODE V09C
8-719-901-19	DIODE V11N
8-719-029-68	DIODE ZENER RD6.2UJN-T1
7-623-505-01	EARTH LUG 2
BVF10	ELECTRIC VIEWFINDER
3-725-259-02	EMBLEM (NO.4), SONY

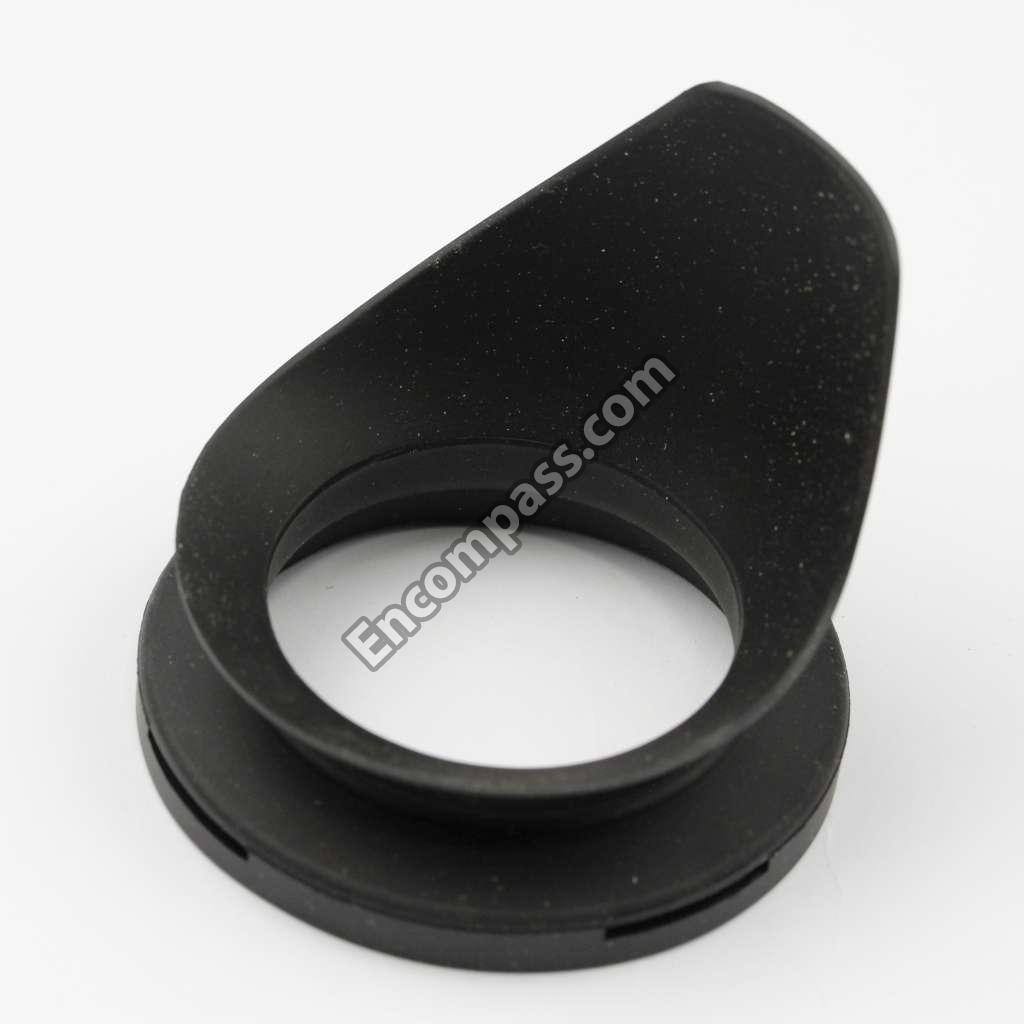

3-776-341-02	EYE CUP
A-8319-943-B	EYE CUP
8-729-042-51	FET 2SK612
8-729-422-12	FET 2SK664
3-692-136-03	FIXED RING
3-692-147-01	GUARD BAR
1-777-028-21	HARNESS (VF CABLE 3)
3-742-052-03	HOLDER, EYE CUP
3-742-075-01	HOLDER, FILTER
3-742-060-01	HOLDER, RING
3-692-146-01	HOLDER,MIRROR(2)
1-569-529-11	HOUSING, CONNECTOR 14P
1-580-585-11	HOUSING, CONNECTOR 18P
1-569-619-11	HOUSING, CONNECTOR 4P
1-764-196-11	HOUSING, CONNECTOR 8P
3-710-008-02	HOUSING, STOPPER
8-759-300-28	IC HA11423MP
8-759-209-57	IC TC4S69F
8-759-209-54	IC TC4SO1F
1-410-380-31	INDUCTOR,CHIP 8.2UH (3225)
2-277-457-00	KNOB,STOPPER
X-3604-579-2	KNOB,VF
3-692-137-01	LABEL,VF (PC)
3-692-148-02	LEAF SPRING
8-719-987-43	LED CL-150PG-CD
8-719-026-40	LED CL-150UR-CD-T
8-719-989-53	LED CL-200HR-C-TSL
X-3722-436-3	LENS ASSEMBLY
3-692-135-01	LID,COVER
3-725-276-01	LOUPE, VF (LENS)
9-968-141-01	MAINTENANCE MANUAL
3-692-134-01	MIC CLAMP
3-692-139-01	MIRROR(2)
3-190-295-11	MM E2 BVF10/BVF10CE
1-761-127-11	MOUNTED C. BOARD LP-84
1-761-128-11	MOUNTED C. BOARD LP-85
1-761-125-11	MOUNTED C. BOARD VF-60
1-761-126-11	MOUNTED C. BOARD VR-199
3-742-038-01	NUT (2), PLATE (SST)
3-693-327-02	NUT(M6),VOLUME
3-693-327-01	NUT(M6),VOLUME
7-624-200-01	NUT, PUSH 1.5
3-810-704-03	O/GUIDE
3-810-704-02	O/GUIDE
3-810-704-01	O/GUIDE
J-6029-140-B	PATTERN BOX
1-580-538-11	PIN, CONNECTOR (PC BOARD) 18P
1-764-080-21	PIN, CONNECTOR (PC BOARD) 8P
1-506-470-11	PIN, CONNECTOR 5P
1-566-759-11	PIN,CONNECTOR 4P
3-703-358-08	PIN,PARALLEL (2X20)(STEEL)
3-692-155-02	PLATE,DISPLAY
3-692-151-01	PLATE,GROUND
3-695-875-01	PROTECTOR,CABLE
3-723-069-02	PROTECTOR,MC
1-241-741-11	RESISTOR ADJ 50K (CERMET)
1-241-832-21	RESISTOR ADJ 5K (CERMET)
1-218-648-11	RESISTOR CHIP 15 1/16W(1608)
1-216-687-11	RESISTOR CHIP 33K 1/10W (2012)
1-216-619-11	RESISTOR CHIP 47 1/10W(2012)
1-218-730-11	RESISTOR METAL FILM CHIP 39K
1-225-784-21	RESISTOR, ADJ, CERMET 50
1-241-838-11	RESISTOR, ADJ, CERMET 500K
9-882-889-01	RESISTOR, CHIP
1-238-296-11	RESISTOR, VAR,CARBON 10K
1-238-293-11	RESISTOR, VAR,CARBON 10K
1-238-290-11	RESISTOR, VAR,CARBON 1K
1-241-829-21	RESISTOR,ADJ 1K (CERMET)
1-241-828-21	RESISTOR,ADJ 500 (CERMET)
1-245-808-11	RESISTOR,CHIP 1.0K 1/16W(1608)
1-216-655-11	RESISTOR,CHIP 1.5K 1/10W(2012)
1-218-698-11	RESISTOR,CHIP 1.8K 1/16W(1608)
1-211-969-11	RESISTOR,CHIP 10 1/10W (1608)
1-216-627-11	RESISTOR,CHIP 100 1/10W (2012)
1-245-764-11	RESISTOR,CHIP 100 1/16W (1608)
1-216-699-11	RESISTOR,CHIP 100K 1/10W(2012)
1-245-896-11	RESISTOR,CHIP 100K 1/16W(1608)
1-218-716-11	RESISTOR,CHIP 10K 1/16W(1608)
1-216-629-11	RESISTOR,CHIP 120 1/10W (2012)
1-219-216-11	RESISTOR,CHIP 12K 1/10W(2012)
1-218-899-11	RESISTOR,CHIP 150K 1/10W(1608)
1-216-609-11	RESISTOR,CHIP 18 1/10W (2012)
1-216-633-11	RESISTOR,CHIP 180 1/10W (2012)
1-208-782-11	RESISTOR,CHIP 1K 1/10W(2012)
1-216-659-11	RESISTOR,CHIP 2.2K 1/10W(2012)
1-245-816-11	RESISTOR,CHIP 2.2K 1/16W(1608)
1-216-611-11	RESISTOR,CHIP 22 1/10W (2012)
1-219-711-11	RESISTOR,CHIP 220 1/10W (2012)
1-245-880-11	RESISTOR,CHIP 22K 1/16W(1608)
1-243-455-11	RESISTOR,CHIP 27K 1/10W(2012)
1-218-366-11	RESISTOR,CHIP 3.3K 1/10W(2012)
1-218-859-11	RESISTOR,CHIP 3.3K 1/16W(1608)
1-216-133-00	RESISTOR,CHIP 3.3M 1/10W(2012)
1-216-615-11	RESISTOR,CHIP 33 1/10W(2012)
1-211-995-11	RESISTOR,CHIP 330 1/10W (2012)
1-218-680-11	RESISTOR,CHIP 330 1/16W(1608)
1-218-752-11	RESISTOR,CHIP 330K 1/16W(1608)
1-216-666-11	RESISTOR,CHIP 4.3K 1/10W(2012)
1-216-793-11	RESISTOR,CHIP 4.7 1/10W 1608
1-211-998-11	RESISTOR,CHIP 4.7K 1/10W(2012)
1-245-844-11	RESISTOR,CHIP 4.7K 1/16W(1608)
1-245-800-11	RESISTOR,CHIP 470 1/16W (1608)
1-246-062-11	RESISTOR,CHIP 470K 1/10W(2012)
1-245-888-11	RESISTOR,CHIP 47K 1/16W(1608)
1-216-309-00	RESISTOR,CHIP 5.6 1/10W(2012)
1-218-710-11	RESISTOR,CHIP 5.6K 1/16W(1608)
1-218-841-11	RESISTOR,CHIP 560 1/10W (1608)
1-216-645-11	RESISTOR,CHIP 560 1/10W(2012)
1-216-671-11	RESISTOR,CHIP 6.8K 1/10W(2012)
1-246-066-11	RESISTOR,CHIP 680K 1/10W(2012)
1-245-892-11	RESISTOR,CHIP 68K 1/16W(1608)
1-218-773-11	RESISTOR,CHIP 750K 1/10W(2012)
1-216-673-11	RESISTOR,CHIP 8.2K 1/10W(2012)
1-245-850-11	RESISTOR,CHIP 8.2K 1/16W(1608)
1-248-096-11	RESISTOR,METAL CHIP 220 1/16W
J-6026-100-A	RESOLUTION CHART 3/4
3-176-414-01	RETAINER, RING
3-742-053-02	RING
3-726-904-01	RING (MT), O (CR)
3-692-133-01	RING,VF (POM)
3-722-485-01	ROLLER,SLIDE
3-708-875-01	SCREEN, WINDOW
3-657-657-00	SCREW (M5)
7-627-454-38	SCREW +K2.6X5(EP-FE/ZNBK/CM2)
3-719-381-02	SCREW +P M2X4 (ZNBK)(LOCK )
7-685-134-19	SCREW +PTP2.6X8(EP-FE/ZNBK/CM2
7-685-104-19	SCREW +PTP2X6(EP-FE/ZNBK/CM2)
3-776-622-02	SCREW(M2),TAPPING
7-627-452-38	SCREW,PRECISION +K 2X5
7-627-553-78	SCREW,PRECISION +P 2X10
7-627-554-18	SCREW,PRECISION +P 2X3.5 TYPE1
3-335-207-02	SHAFT,MOTOR
3-335-207-01	SHAFT,MOTOR
3-693-978-01	SHEET,LUBRICATION (PE)
3-694-285-02	SHEET,LUBRICATION(SPRING)
8-759-939-68	SONY PART
8-759-510-71	SONY PART
8-729-024-57	SONY PART
8-719-801-78	SONY PART
A-8319-943-A	SONY PART
X-3604-579-1	SONY PART
3-692-131-02	SONY PART
3-673-119-01	SONY PART
3-190-295-03	SONY PART
3-190-295-02	SONY PART
1-542-296-22	SONY PART
3-176-022-04	SPACER (B), MASK
3-179-882-01	SPACER, MICROPHONE
3-692-144-01	SPACER,LP
3-573-150-02	SPRING,COMPRESSION
2-277-466-01	SPRING,COMPRESSION (STEEL)
1-762-489-11	SWITCH, TOGGLE
1-762-488-11	SWITCH, TOGGLE
1-762-020-11	SWITCH, TOGGLE
1-565-977-11	TERMINAL, SOLDERLESS
1-760-815-11	TERMINAL,SOLDERLESS
1-580-599-11	TERMINAL,SOLDERLESS
9-885-083-36	TRANSFORMER, FLYBACK
9-885-083-38	TRANSFORMER, FLYBACK (FBT)
8-729-117-16	TRANSISTOR 2SA1611M6
8-729-141-48	TRANSISTOR 2SB624-BV345
8-729-105-37	TRANSISTOR 2SC3360
8-729-117-32	TRANSISTOR 2SC4177
8-729-422-44	TRANSISTOR 2SK663
8-729-028-91	TRANSISTOR DTA144EUA-T106
8-729-403-29	TRANSISTOR XN6435
8-729-402-19	TRANSISTOR XN6501
8-729-403-32	TRANSISTOR XN6534
3-742-054-01	TUBE
A-1123-170-A	TUBE ASSY, VF
A-1127-099-A	TUBE SUB ASSEMBLY, VF
A-7612-389-C	TUBE SUB ASSEMBLY, VF
3-725-220-02	TUBE(A),CRT
1-806-497-00	VARISTOR ERZ-V05D220
J-6422-300-A	VF CHECKER
J-6395-050-A	VF EXTENSION HARNESS
3-692-166-06	VF TUBE(3)
3-692-166-05	VF TUBU(3)
3-165-904-01	WASHER, SCREW STOPPER (PLA)
1-775-771-11	WIRE (FLAT TYPE) (14 CORE)
