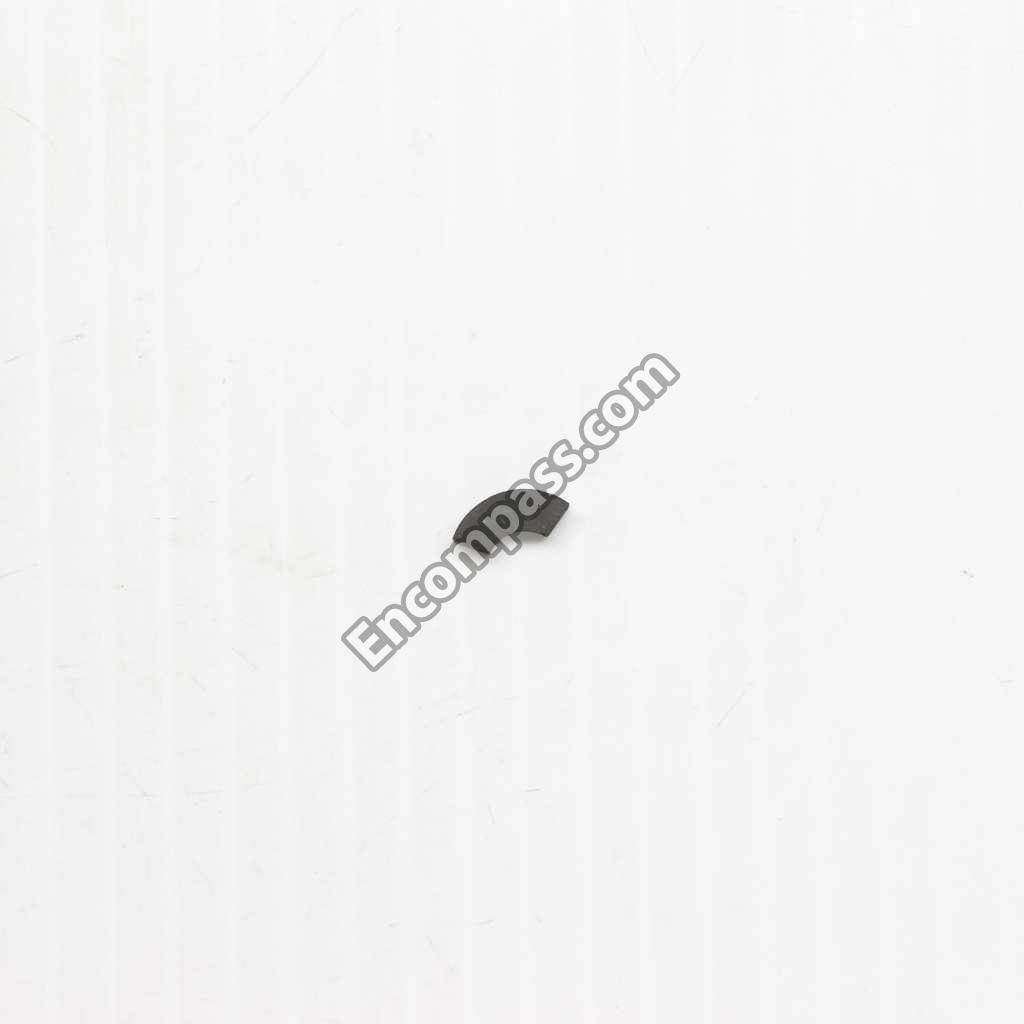

Model Image
Manufacturer

Sony

Model Number

BVW50

Description

Portable Video Cassette Rec/pc

Interactive Exploded View

Parts List

Part Number Description
8-825-623-22 8-825-623-22 *HEAD(EPS244-2103B)
X-3165-725-3 X-3165-725-3 ARM (A) ASSY,S DRAWER
X-3165-726-1 X-3165-726-1 ARM (B) ASSY,S DRAWER
X-3166-847-2 X-3166-847-2 ARM (B) ASSY,TENSION REGU
X-3165-728-2 X-3165-728-2 ARM (B) ASSY,TENSION REGU
X-3165-740-1 X-3165-740-1 ARM (L) ASSY,FF
X-3165-745-2 X-3165-745-2 ARM (R) ASSY
3-169-464-03 3-169-464-03 ARM (R), PUSH-OUT
X-3165-731-2 X-3165-731-2 ARM ASSY, BRAKE
X-3167-893-1 X-3167-893-1 ARM ASSY, C LOCK
X-3165-734-2 X-3165-734-2 ARM ASSY, DRAWER
X-3165-746-3 X-3165-746-3 ARM ASSY, RACK DRIVING
X-3165-760-1 X-3165-760-1 ARM ASSY,REEL
X-3165-727-1 X-3165-727-1 ARM ASSY,TENSION REGULATO
3-169-458-01 3-169-458-01 ARM,JOINT
X-3165-729-1 X-3165-729-1 BASE ASSY,TENSION REGULAT
3-169-304-02 3-169-304-02 BASE,END SENSOR
3-169-469-01 3-169-469-01 BEARING
9-910-999-UU 9-910-999-UU BEARING(NO FLANGE),BALL
3-179-358-01 3-179-358-01 BELT (2), CABLE HOLDER
3-172-003-01 3-172-003-01 BELT,DRIVING (
3-169-543-01 3-169-543-01 BRACKET (A), BT
3-169-437-03 3-169-437-03 BRACKET (B), BT
3-719-124-03 3-719-124-03 BRACKET(1), AT HEAD
3-169-344-02 3-169-344-02 BRACKET, AT
3-169-382-02 3-169-382-02 BRACKET, HEADPHONE
3-169-331-01 3-169-331-01 BRACKET,CABINET (REAR)
X-3166-135-1 X-3166-135-1 BUTTON ASSY (AUDIO DUB)
X-3166-137-2 X-3166-137-2 BUTTON ASSY (EJECT)
X-3166-133-1 X-3166-133-1 BUTTON ASSY (F FWD)
X-3166-136-1 X-3166-136-1 BUTTON ASSY (PAUSE)
X-3166-131-1 X-3166-131-1 BUTTON ASSY (REC)
X-3166-132-1 X-3166-132-1 BUTTON ASSY (REW)
X-3166-134-1 X-3166-134-1 BUTTON ASSY (SEARCH)
X-3166-129-1 X-3166-129-1 BUTTON ASSY (STOP)
3-169-391-01 3-169-391-01 BUTTON,P-V
3-169-390-01 3-169-390-01 BUTTON,RESET
A-6703-698-F A-6703-698-F CABINET (REAR) ASSY
3-169-572-04 3-169-572-04 CABINET,REAR
X-3165-739-1 X-3165-739-1 CAM (L) ASSY
X-3165-738-1 X-3165-738-1 CAM (R) ASSY
3-169-472-01 3-169-472-01 CAM,PUSH-OUT
1-104-919-11 1-104-919-11 CAPACITOR TANTALUM 10MF/2
1-164-146-11 1-164-146-11 CAPACITOR,CERAMIC 3300PF/
1-164-369-11 1-164-369-11 CAPACITOR,CERAMIC 330PF
1-162-708-11 1-162-708-11 CAPACITOR,CERAMIC 82PF 50
1-127-519-11 1-127-519-11 CAPACITOR,ELECT 100MF/20V
3-169-416-01 3-169-416-01 CASE (B),PSW
A-6738-459-A A-6738-459-A CASE ASSY, CONTACT
3-169-554-04 3-169-554-04 CASE, BATTERY
A-6751-457-E A-6751-457-E CASSETTE COMPART. ASSY.
X-3165-766-1 X-3165-766-1 CHASSIS ASSY,FRONT
3-169-567-01 3-169-567-01 CHASSIS,REAR
1-410-727-61 1-410-727-61 CHIP INDUCTOR
1-408-794-00 1-408-794-00 CHIP INDUCTOR
1-408-791-00 1-408-791-00 CHIP INDUCTOR
1-408-788-21 1-408-788-21 CHIP INDUCTOR
1-408-787-00 1-408-787-00 CHIP INDUCTOR
1-408-769-41 1-408-769-41 CHIP INDUCTOR 2.2UH
1-410-723-61 1-410-723-61 CHIP INDUCTOR 33UH
1-410-941-21 1-410-941-21 CHIP INDUCTOR 560UH
1-424-316-11 1-424-316-11 COIL, CHOKE
1-460-154-11 1-460-154-11 COIL,VARIABLE
1-412-811-11 1-412-811-11 COIL,VARIABLE
1-564-831-11 1-564-831-11 CONNECTOR CONTACT
1-580-857-11 1-580-857-11 CONNECTOR,BOARD TO BOARD
3-169-425-02 3-169-425-02 CONTACT
X-3165-754-1 X-3165-754-1 COVER ASSY, TC
3-676-244-11 3-676-244-11 COVER,SW
3-169-524-01 3-169-524-01 CUSHION (LOWER),ER
3-169-517-01 3-169-517-01 CUSHION(UPPER),ER
3-169-389-01 3-169-389-01 CUSHION,KEY
1-415-826-11 1-415-826-11 DELAY LINE
1-415-825-11 1-415-825-11 DELAY LINE
1-415-823-11 1-415-823-11 DELAY LINE
8-719-157-36 8-719-157-36 DIODE RD6.8M-B (Z
8-719-070-26 8-719-070-26 DIODE SLR-342YC3F
1-809-345-11 1-809-345-11 DISPLAY PANEL, LIQUID CRY
J-6322-420-B J-6322-420-B DRIVER (TOOL), TG ADJ
A-6762-451-A A-6762-451-A DRUM ASSY UPPER(DBR-21R)
A-6750-287-B A-6750-287-B EJECT ASSY, MANUAL
E-WSV5-0_0-2 E-WSV5-0_0-2 EPROM BVW-50 SERVO VER#2.
EW50_01 EW50_01 EPROM BVW50 VER. 2.6 SYS
1-236-013-11 1-236-013-11 FILTER,LOW PASS
1-236-012-11 1-236-012-11 FILTER,LOW PASS
1-239-069-11 1-239-069-11 FILTER,LOWPASS
1-239-067-11 1-239-067-11 FILTER,LOWPASS
1-239-063-11 1-239-063-11 FILTER,LOWPASS
1-239-062-11 1-239-062-11 FILTER,LOWPASS
3-169-299-02 3-169-299-02 FLANGE, LOWER
3-717-712-01 3-717-712-01 FLANGE,UPPER,G ROLLER(3)
3-169-481-02 3-169-481-02 GEAR (1),C
3-169-479-03 3-169-479-03 GEAR (3), C
3-169-477-02 3-169-477-02 GEAR (5), C
X-3165-763-1 X-3165-763-1 GEAR ASSY,OSCILLATION
A-6750-286-A A-6750-286-A GEAR BLOCK ASSY
3-169-480-04 3-169-480-04 GEAR(2),C
3-169-478-01 3-169-478-01 GEAR(4),C
3-169-465-01 3-169-465-01 GEAR,C PINION
3-169-500-01 3-169-500-01 GEAR,IDLE
3-169-312-01 3-169-312-01 GEAR,MANUAL DRIVING
3-169-313-01 3-169-313-01 GEAR,MIDWAY
3-169-372-01 3-169-372-01 GEAR,REEL MOTOR DRIVING
3-169-504-01 3-169-504-01 GEAR,RELAY
3-169-404-02 3-169-404-02 GEAR,THREADING MOTOR DRIV
3-169-510-02 3-169-510-02 GUARD, PINCH
3-169-336-01 3-169-336-01 GUARD,DME
3-169-385-01 3-169-385-01 GUARD,VR
A-6746-068-B A-6746-068-B GUIDE ASSY, ENTRANCE
A-6703-699-A A-6703-699-A HANDLE ASSY
8-825-771-11 8-825-771-11 HEAD (PS244-2103C)
A-6736-102-A A-6736-102-A HEAD ASSY, FE
3-169-351-05 3-169-351-05 HOLDER (A), ROLLER
3-169-347-05 3-169-347-05 HOLDER (B), ROLLER
3-169-507-02 3-169-507-02 HOLDER (B), TOP SENSOR
X-3165-769-1 X-3165-769-1 HOLDER (L) ASSY,PC BOARD
3-680-830-01 3-680-830-01 HOLDER,DME
1-569-205-11 1-569-205-11 HOUSING, CONNECTOR 12P
1-569-195-21 1-569-195-21 HOUSING, CONNECTOR 2P
1-569-197-41 1-569-197-41 HOUSING, CONNECTOR 4P
1-562-737-11 1-562-737-11 HOUSING, CONNECTOR 4P
1-569-202-21 1-569-202-21 HOUSING, CONNECTOR 9P
1-569-202-11 1-569-202-11 HOUSING, CONNECTOR 9P
1-580-587-11 1-580-587-11 HOUSING,CONNECTOR 22P
1-562-735-11 1-562-735-11 HOUSING,CONNECTOR 2P
1-562-736-11 1-562-736-11 HOUSING,CONNECTOR 3P
8-752-343-05 8-752-343-05 IC CXD2202Q
8-752-341-32 8-752-341-32 IC CXD2209Q
8-759-513-77 8-759-513-77 IC CXD8152Q
8-759-513-14 8-759-513-14 IC CXD8243M
8-759-999-19 8-759-999-19 IC MB88323A-PF-K2
8-759-009-06 8-759-009-06 IC MC14052BF
8-759-512-08 8-759-512-08 IC NJM2068MD
8-741-164-50 8-741-164-50 IC SBX1645-01 (HY
8-759-928-09 8-759-928-09 IC TLC27M2CPS
8-759-059-20 8-759-059-20 IC UPD75004GB-755-3B4
8-759-068-02 8-759-068-02 IC UPD75006GB-577-3B4
8-759-160-10 8-759-160-10 IC27C512-BVW50,N,V2.4
1-408-784-11 1-408-784-11 INDUCTOR,CHIP 39UH
X-3166-331-1 X-3166-331-1 KNOB ASSY (2 POSI)
X-3165-863-2 X-3165-863-2 KNOB ASSY (2P)
X-3166-332-1 X-3166-332-1 KNOB ASSY (3 POSI)
X-3165-862-1 X-3165-862-1 KNOB ASSY (3P)
3-170-161-01 3-170-161-01 KNOB, SW
3-169-563-03 3-169-563-03 LABEL (1), CONNECTOR PANE
3-169-525-01 3-169-525-01 LABEL (2), CONNECTOR PANE
1-809-346-11 1-809-346-11 LED ARRAY
X-3165-770-2 X-3165-770-2 LEVER (R) ASSY, PUSH-OUT
X-3165-724-1 X-3165-724-1 LEVER ASSY,PINCH PRESS
3-169-530-06 3-169-530-06 LID, BT
X-3165-735-1 X-3165-735-1 LINK ASSY,SLANT
3-170-003-37 3-170-003-37 M/MANUAL
3-680-828-01 3-680-828-01 MAGNET
3-170-002-10 3-170-002-10 MAINT. BVW50 VOL.1 E1R5
1-520-495-41 1-520-495-41 METER, LEVEL
3-170-003-12 3-170-003-12 MM V2 E2 BVW50
3-170-003-22 3-170-003-22 MM V2 E3R1 BVW50
8-835-440-01 8-835-440-01 MOTOR(DN20-Q7Z1B) DC 10W
8-835-441-01 8-835-441-01 MOTOR(R432276751A)DC 10W
1-698-335-11 1-698-335-11 MOTOR, DC (SVD-1489)
8-835-437-01 8-835-437-01 MOTOR,DC(SCV-0201A)(10W U
A-6771-386-A A-6771-386-A MOUNTED C. BOARD ASSY,POW
A-6754-271-B A-6754-271-B MOUNTED C. BOARD, FU-52
A-6754-268-A A-6754-268-A MOUNTED C. BOARD,CON-18
A-6754-270-A A-6754-270-A MOUNTED C. BOARD,DC-52
A-6754-269-A A-6754-269-A MOUNTED C. BOARD,DUS-339
A-6727-319-A A-6727-319-A MOUNTED C.BOARD,CC-47
A-6713-424-A A-6713-424-A MOUNTED C.BOARD,CP-164J
A-6717-612-A A-6717-612-A MOUNTED C.BOARD,SE-158
3-171-975-11 3-171-975-11 O/MANUAL
3-171-974-01 3-171-974-01 O/MANUAL
J-6036-870-A J-6036-870-A ORDER J6327850A & J632793
A-6732-398-C A-6732-398-C PANEL ASSY, CONNECTOR
A-6732-397-D A-6732-397-D PANEL ASSY, CONNECTOR
3-169-564-03 3-169-564-03 PANEL, CONNECTOR
3-169-564-04 3-169-564-04 PANEL, CONNECTOR
1-580-716-11 1-580-716-11 PIN, CONNECTOR (PC BOARD)
1-565-884-11 1-565-884-11 PIN, CONNECTOR (PC BOARD)
1-566-764-11 1-566-764-11 PIN,CONNECTOR (PC BOARD)
1-568-963-11 1-568-963-11 PIN,CONNECTOR(PC BOARD) 5
3-703-357-55 3-703-357-55 PIN,PARALLEL (S
X-3165-772-4 X-3165-772-4 PLATE (R) ASSY,SIDE,C
X-3165-736-2 X-3165-736-2 PLATE ASSY, ARM, LOCK
X-3166-346-2 X-3166-346-2 PLATE SUB ASSY, BOTTOM
3-169-371-02 3-169-371-02 PLATE, CLUTCH
3-173-283-02 3-173-283-02 PLATE, GROUND, FP
3-169-502-02 3-169-502-02 PLATE, LID OPEN
3-174-762-02 3-174-762-02 PLATE, SHEILD, AU
3-169-535-02 3-169-535-02 PLATE, SHIELD, AT
3-170-801-01 3-170-801-01 PLATE, SHIELD, C
3-169-505-01 3-169-505-01 PLATE,ADJUSTMENT,AT
3-729-007-03 3-729-007-03 PLATE,ORNAMENTAL,TOGGLE S
3-169-305-01 3-169-305-01 PLATE,YOKE
1-638-701-12 1-638-701-12 PRINTED CIRCUIT BOARD, CS
1-639-997-11 1-639-997-11 PRINTED CIRCUIT BOARD, DU
1-640-002-11 1-640-002-11 PRINTED CIRCUIT BOARD, DU
1-641-200-11 1-641-200-11 PRINTED CIRCUIT BOARD, EQ
1-638-696-12 1-638-696-12 PRINTED CIRCUIT BOARD, FE
1-638-702-11 1-638-702-11 PRINTED CIRCUIT BOARD,CS-
1-638-705-12 1-638-705-12 PRINTED CIRCUIT BOARD,DET
1-638-710-11 1-638-710-11 PRINTED CIRCUIT BOARD,TR-
3-169-503-03 3-169-503-03 PULLEY (B), RELAY
3-169-370-03 3-169-370-03 PULLEY, MOTOR
J-6329-350-A J-6329-350-A REEL TABLE HEIGHT ADJ TOO
1-218-690-11 1-218-690-11 RES CHIP 820 1/16
1-241-520-11 1-241-520-11 RESISTOR VAR, CARBON 10K
1-241-521-11 1-241-521-11 RESISTOR VAR, CARBON 5K
1-245-772-11 1-245-772-11 RESISTOR, METAL FILM(SMD)
1-245-778-11 1-245-778-11 RESISTOR, METAL FILM(SMD)
1-245-803-11 1-245-803-11 RESISTOR, METAL FILM(SMD)
1-245-812-11 1-245-812-11 RESISTOR, METAL FILM(SMD)
1-245-815-11 1-245-815-11 RESISTOR, METAL FILM(SMD)
1-245-816-11 1-245-816-11 RESISTOR, METAL FILM(SMD)
1-211-981-11 1-211-981-11 RESISTOR,CHIP 33 1/16W (1
1-218-892-11 1-218-892-11 RESISTOR,CHIP 75K 1/16W (
1-218-691-11 1-218-691-11 RESISTOR,CHIP 910 1/16W
1-218-899-11 1-218-899-11 RESISTOR,METAL (CHIP)150K
1-245-776-11 1-245-776-11 RESISTOR,METAL 360 1/16W
1-218-713-11 1-218-713-11 RESISTOR,METAL 7.5K 1/16
1-218-715-11 1-218-715-11 RESISTOR,METAL 9.1K 1/16
X-3165-755-1 X-3165-755-1 RETAINER ASSY,TOGGLE
3-169-512-03 3-169-512-03 RETAINER, REEL ARM
3-169-346-01 3-169-346-01 ROLLER (A)
3-169-352-02 3-169-352-02 ROLLER (A),C
3-169-348-02 3-169-348-02 ROLLER (B)
3-717-713-01 3-717-713-01 ROLLER(3)G
3-169-471-01 3-169-471-01 ROLLER(B),C
3-172-873-01 3-172-873-01 ROLLER, CASSETTE RETAINER
3-676-138-01 3-676-138-01 ROLLER, TAPE
3-676-183-03 3-676-183-03 ROLLER,G
3-191-451-02 3-191-451-02 RUBBER,LIMITER
1-562-419-11 1-562-419-11 SCKT HOUSING 50 PIN
3-729-013-71 3-729-013-71 SCREW (M1.4X5),WASHER HEA
3-169-407-02 3-169-407-02 SCREW, LID (S
3-169-407-01 3-169-407-01 SCREW,LID
3-169-350-02 3-169-350-02 SHAFT, BT ROLLER
3-169-350-01 3-169-350-01 SHAFT,BT ROLLER
3-169-388-01 3-169-388-01 SHAFT,TC COVER
3-178-096-01 3-178-096-01 SHEET,PROTECTION
3-169-474-01 3-169-474-01 SHUTTER,C UP
X-3165-778-3 X-3165-778-3 SLANT ASSY
X-3165-778-2 X-3165-778-2 SLANT ASSY
1-540-197-11 1-540-197-11 SOCKET, IC
1-454-383-21 1-454-383-21 SOLENOID, PLUNGER
1-454-334-51 1-454-334-51 SOLENOID, PLUNGER
3-176-445-11 3-176-445-11 SPACER,EXIT,GUIDE
3-172-876-03 3-172-876-03 SPRING (A), C STOPPER
3-848-711-01 3-848-711-01 SPRING (COIL
3-169-443-02 3-169-443-02 SPRING (L), S GUIDE
3-169-445-01 3-169-445-01 SPRING (L),DETECTION
3-169-442-02 3-169-442-02 SPRING (R), S GUIDE
3-169-444-01 3-169-444-01 SPRING (R),DETECTION
3-169-302-02 3-169-302-02 SPRING (TR), PLATE
3-678-724-00 3-678-724-00 SPRING TENSION
3-172-874-02 3-172-874-02 SPRING, C IN SHUTTER
3-170-823-01 3-170-823-01 SPRING, LOCK ARM
3-170-823-02 3-170-823-02 SPRING, LOCK ARM (
3-513-074-11 3-513-074-11 SPRING, TENSION (
3-173-411-01 3-173-411-01 SPRING,BRAKE PLATE (
3-169-475-03 3-169-475-03 SPRING,CASSETTE RETAINER
3-169-366-01 3-169-366-01 SPRING,COMPRESSION
3-171-210-01 3-171-210-01 SPRING,COMPRESSION (
3-169-424-01 3-169-424-01 SPRING,COMPRESSION (
3-561-540-01 3-561-540-01 SPRING,COMPRESSION (S
3-530-248-99 3-530-248-99 SPRING,COMPRISSION (S
3-169-403-01 3-169-403-01 SPRING,DRAWER ARM
J-6326-530-A J-6326-530-A STANDARD PLATE(L)
X-3165-976-1 X-3165-976-1 STAY ASSY, C
3-698-732-01 3-698-732-01 SUPPORT (B), AU HEAD
3-169-300-01 3-169-300-01 SUPPORT,DME
A-6739-095-A A-6739-095-A TABLE ASSY,REEL
1-580-599-11 1-580-599-11 TERMINAL,SOLDERLESS
J-6322-420-3 J-6322-420-3 TOOL, .89 BIT
J-6321-280-A J-6321-280-A TORQUE METER
1-450-514-11 1-450-514-11 TRANSFORMER, CONVERTER
8-729-101-47 8-729-101-47 TRANSISTOR 2SD1164-Z-L
1-578-742-11 1-578-742-11 VIBRATOR, CRYSTAL
3-169-470-02 3-169-470-02 WASHER, C MOTOR
3-169-373-01 3-169-373-01 WASHER,SPRING
3-180-037-01 3-180-037-01 WHEEL,WORM
Main Menu x
