Model Image
Manufacturer

Sony

Model Number

C800G

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

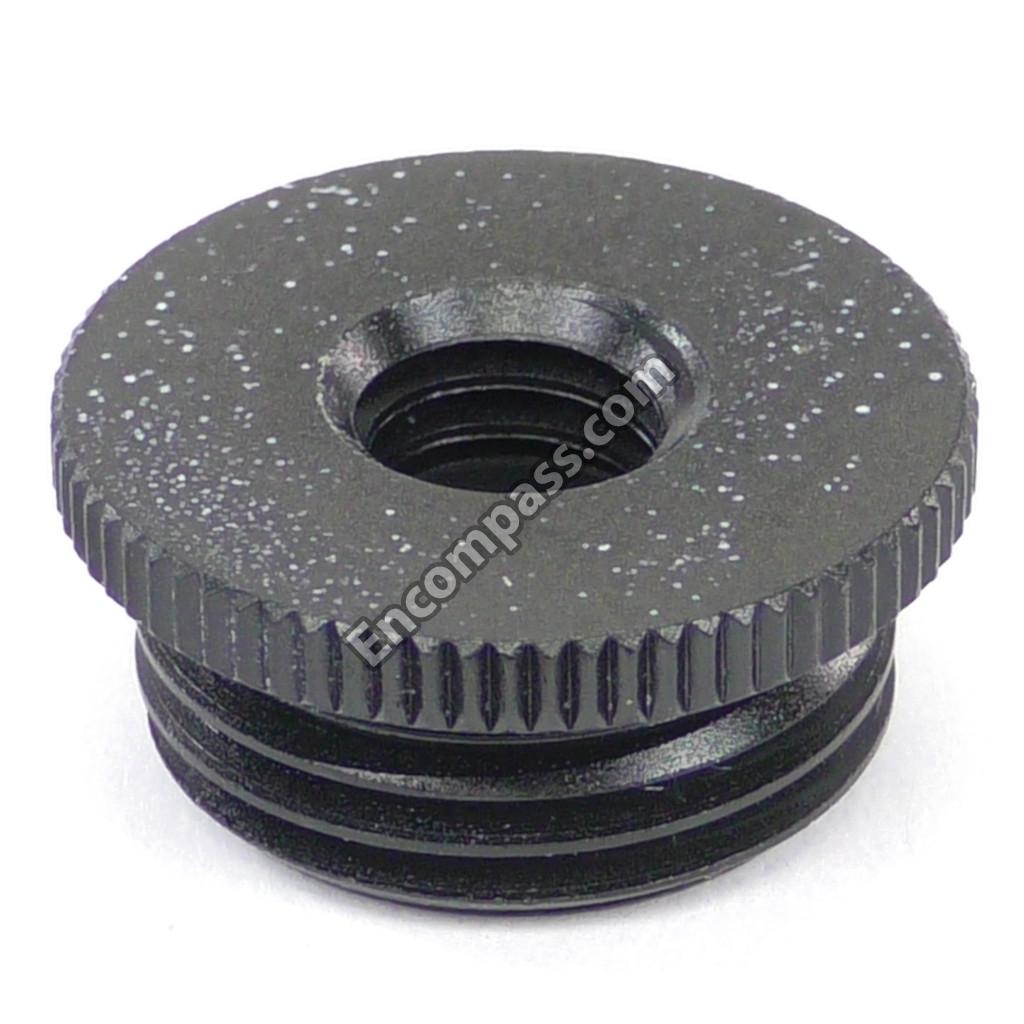

2-525-615-11 2-525-615-11 ADAPTOR,STAND SCREW
2-525-614-11 2-525-614-11 ADAPTOR,STAND SCREW
2-543-036-03 2-543-036-03 ATTACHMENT, COOLING
3-655-653-01 3-655-653-01 BAND (TAITON), BINDING (PLA)
X-2542-065-1 X-2542-065-1 BELT ASSY,CAPSULE

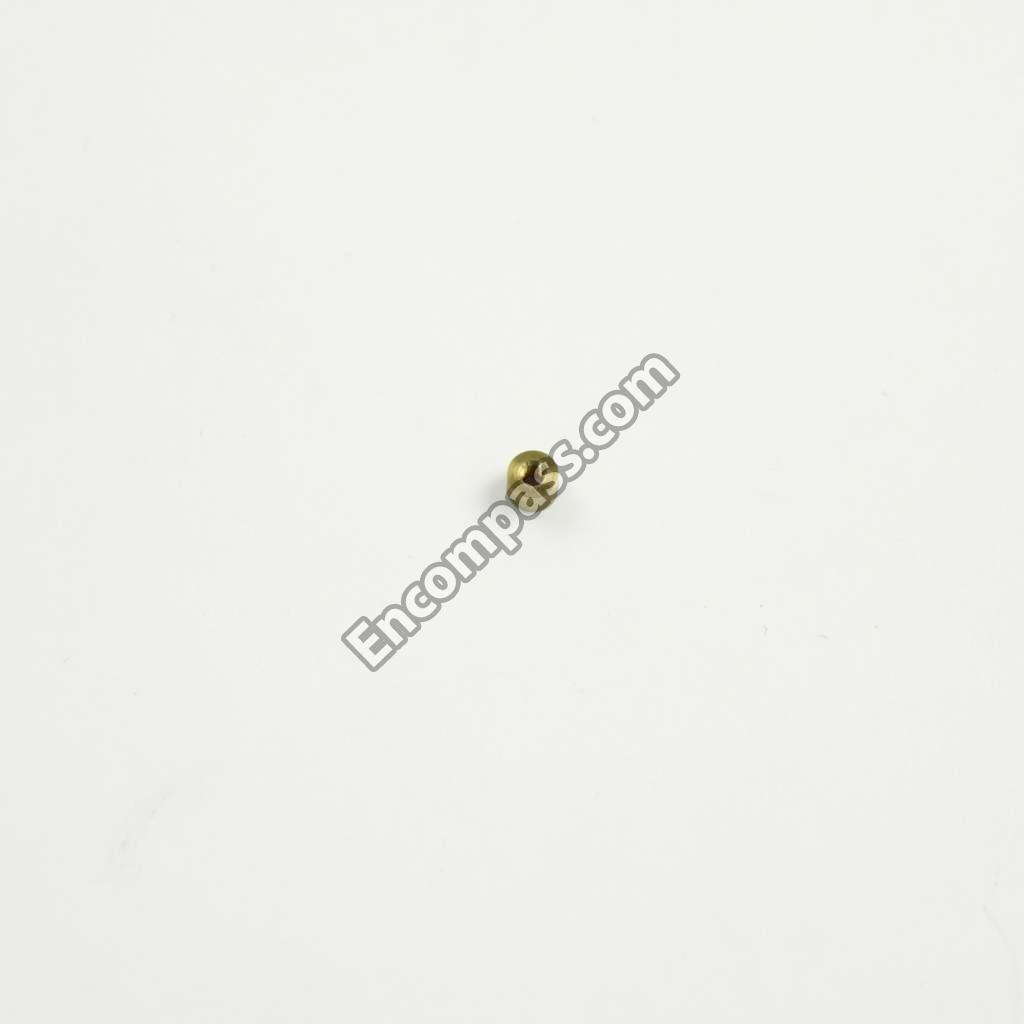

2-543-012-01 2-543-012-01 BRACKET,STOPPER
2-832-007-00 2-832-007-00 BUSHING
2-433-036-11 2-433-036-11 BUSHING
3-708-396-01 3-708-396-01 BUSHING, CORD
1-696-056-21 1-696-056-21 CABLE ASSEMBLY,MICROPHONE
1-696-056-22 1-696-056-22 CABLE ASSY,MICROPHONE
7-613-031-38 7-613-031-38 CABLE,MICROPHONE(7 CORE)
X-2542-060-2 X-2542-060-2 CAGE ASSY

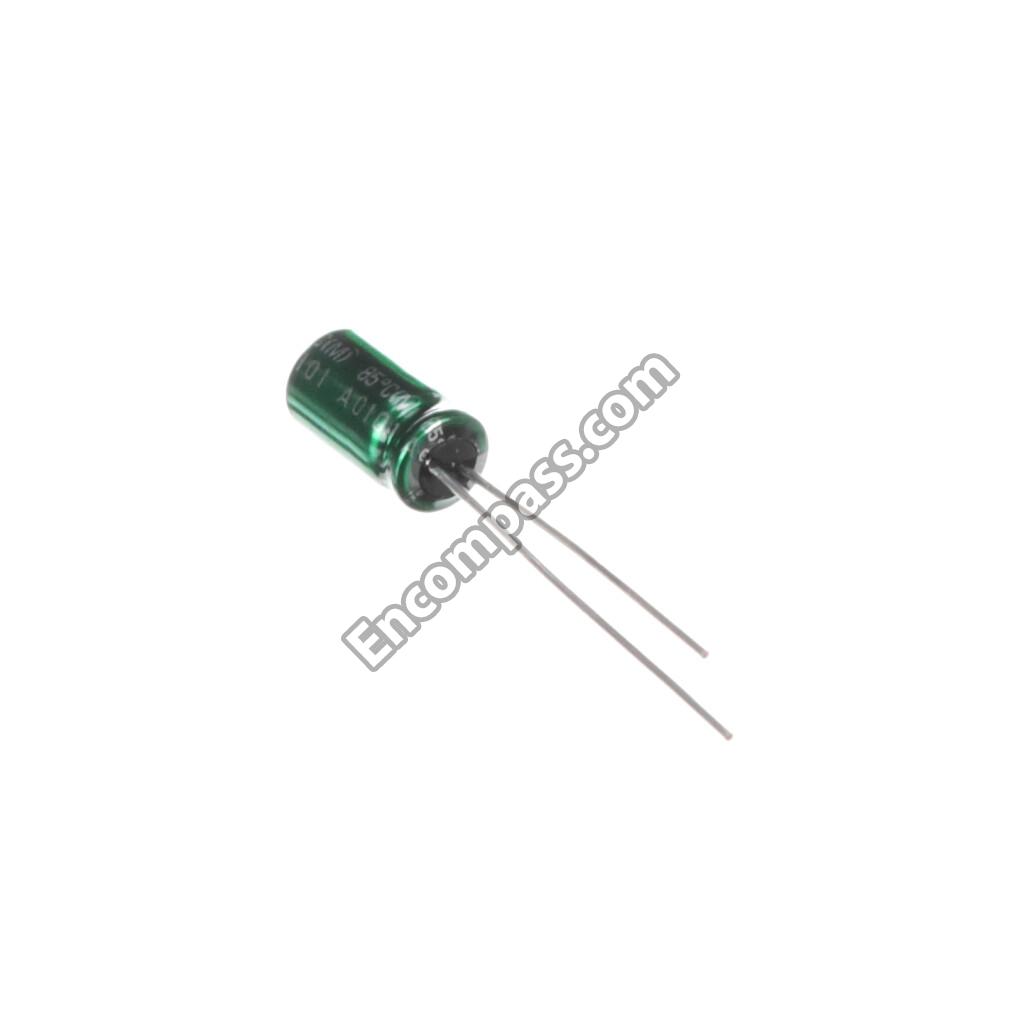

1-124-983-11 1-124-983-11 CAP, ELECT 330MF
1-126-076-21 1-126-076-21 CAP, ELECT 47MF
1-115-456-21 1-115-456-21 CAPACITOR DOUBLE LAYER 0.22F
1-107-670-11 1-107-670-11 CAPACITOR, ELECT 10MF/400V
1-126-076-91 1-126-076-91 CAPACITOR, ELECT 47MF
1-119-513-11 1-119-513-11 CAPACITOR,ELECT 10MF/400V
1-137-479-11 1-137-479-11 CAPACITOR,FILM 1MF/250V

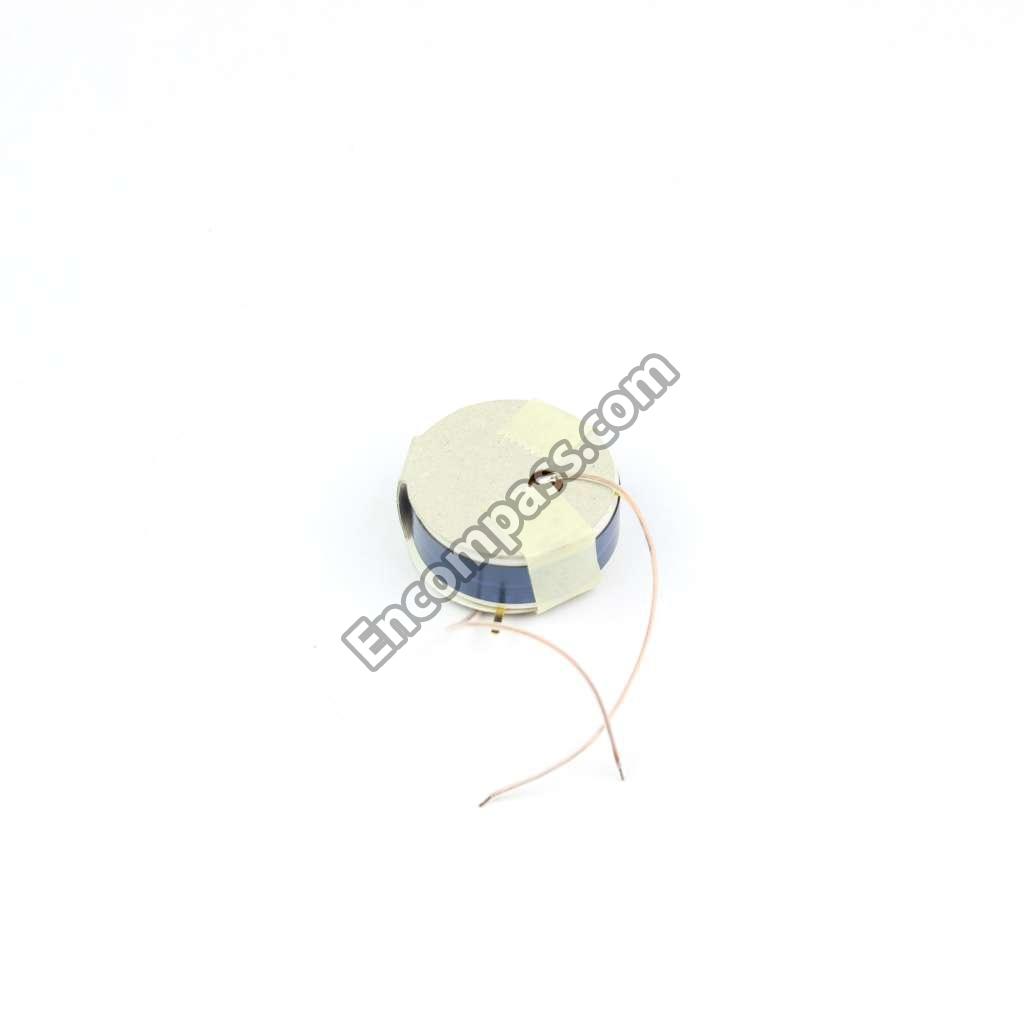

A-8262-982-A A-8262-982-A CAPSUL ASSY
2-543-006-02 2-543-006-02 CAPSULE (BASE)
2-543-157-02 2-543-157-02 CASE, CARRYING
2-543-157-03 2-543-157-03 CASE,CARRYING (PLA-MOLD)
2-542-998-03 2-542-998-03 CHASSIS,SLIDE
2-542-998-02 2-542-998-02 CHASSIS,SLIDE
1-695-131-21 1-695-131-21 CONNECTOR (ROUND TYPE) 7P
1-695-131-11 1-695-131-11 CONNECTOR (ROUND TYPE) 7P
1-695-130-11 1-695-130-11 CONNECTOR(ROUND TYPE)(PLU
1-695-129-11 1-695-129-11 CONNECTOR(ROUND TYPE)(PLUG)7P
2-543-170-02 2-543-170-02 COVER, RING
2-543-170-01 2-543-170-01 COVER, RING
2-543-032-01 2-543-032-01 COVER,TUBE
2-543-019-12 2-543-019-12 CUSHION (B), TUBE
7-623-505-01 7-623-505-01 EARTH LUG 2
A-2224-510-A A-2224-510-A ELEMENT ASSEMBLY (S), PELTIER
1-458-971-11 1-458-971-11 ELEMENT, PELTIER
7-651-000-50 7-651-000-50 GREASE,SILICON (G-746) 200G
3-701-748-00 3-701-748-00 HOLDER, WIRE
2-052-503-11 2-052-503-11 HOOK
2-542-990-01 2-542-990-01 KNOB
3-755-533-14 3-755-533-14 MANUAL, INSTRUCTION
3-755-533-13 3-755-533-13 MANUAL, INSTRUCTION
3-755-533-11 3-755-533-11 MANUAL, INSTRUCTION
3-334-436-01 3-334-436-01 MIC K H
7-613-021-97 7-613-021-97 MICROPHONE CABLE (7 CORE)
A-8276-335-B A-8276-335-B MOUNTED C.BOARD,AMPLIFIER
2-543-030-01 2-543-030-01 NUT, PLATE
2-543-030-02 2-543-030-02 NUT, PLATE (STEEL)
2-543-029-01 2-543-029-01 PACKING(A) SWITCH
1-809-759-12 1-809-759-12 PELTIER ELEMENT
A-222-451-0A A-222-451-0A PELTIER ELEMENT
2-543-034-03 2-543-034-03 PIPE (BASE)
X-2542-062-2 X-2542-062-2 PIPE ASSEMBLY(A),HEAT
X-2542-062-3 X-2542-062-3 PIPE ASSY (A),HEAT
2-543-165-02 2-543-165-02 POLE,ARM
2-543-169-01 2-543-169-01 PROTECTOR
2-543-003-02 2-543-003-02 REFLECTOR(B),CAPSULE
2-543-011-11 2-543-011-11 REFLECTOR, CAPSULE
1-214-919-00 1-214-919-00 RES, METAL FILM 180K
1-220-400-11 1-220-400-11 RES, METAL GLAZE 500M
1-214-864-21 1-214-864-21 RESISTOR, METAL FILM 1.0K
1-214-919-21 1-214-919-21 RESISTOR, METAL FILM 180K
1-214-913-00 1-214-913-00 RESISTOR,METAL FILM 100K 1/2W
1-214-937-00 1-214-937-00 RESISTOR,METAL FILM 1M 1/2W
1-214-905-11 1-214-905-11 RESISTOR,METAL FILM 47K
2-543-007-02 2-543-007-02 RING, LOCK
2-543-171-02 2-543-171-02 RING, SUPPORT
2-543-171-01 2-543-171-01 RING, SUPPORT
A-5007-634-A A-5007-634-A RUBBER,TENSTION
4-699-598-01 4-699-598-01 RUBBER,TENSTION
2-543-156-02 2-543-156-02 SCREEN,WINDOW
2-543-156-01 2-543-156-01 SCREEN,WINDOW
2-543-291-01 2-543-291-01 SCREW (1.7X4)
7-621-772-18 7-621-772-18 SCREW +B M2X4
7-682-544-09 7-682-544-09 SCREW +B3X3(EP-FE/ZNBK/CM2)
7-682-548-04 7-682-548-04 SCREW +B3X8
7-627-452-18 7-627-452-18 SCREW +K 2X3(EP-FE/ZNBK/CM2)
7-621-555-29 7-621-555-29 SCREW +K 2X4(EP-FE/CU,NI,CR)
7-621-555-39 7-621-555-39 SCREW +K 2X5 (COPPER)
7-627-452-67 7-627-452-67 SCREW +K2X7(EP-FE/CU,NI,CR)
7-621-259-52 7-621-259-52 SCREW +P 2.6X8 (EP-CU/NI)BRASS
7-621-256-05 7-621-256-05 SCREW +P 2X16 (EP-FE/ZN/CM2)
7-621-255-32 7-621-255-32 SCREW +P 2X5 (EP-CU/NI) BRASS
7-682-147-15 7-682-147-15 SCREW +P 3X6 (EP-CU/NIBK)
7-621-775-50 7-621-775-50 SCREW +P2.6X10(EP-FE/ZNBK/CM2)
7-627-554-07 7-627-554-07 SCREW +P2X2.2(EP-FE/CU,NI,CR)
NSI NSI SCREW 2.6X12
7-627-452-28 7-627-452-28 SCREW,PRECISION +K 2X4
7-627-452-27 7-627-452-27 SCREW,PRECISION +K 2X4
7-627-556-38 7-627-556-38 SCREW,PRECISION +P2.6X4
2-543-088-01 2-543-088-01 SEAL,G (ESTER)
9-976-749-11 9-976-749-11 SERVICE MANUAL
3-547-862-01 3-547-862-01 SHEET(A),PROTECTING (PLA)
2-543-252-02 2-543-252-02 SHEET, ADHESIVE, REFLECTOR
2-543-246-11 2-543-246-11 SLEEVE
2-543-026-01 2-543-026-01 SLEEVE (BASE)
2-543-031-02 2-543-031-02 SLEEVE, CONNECTOR
2-543-035-01 2-543-035-01 SLEEVE, SUB
9-910-999-31 9-910-999-31 SOCKET ASSEMBLY, VACUUM TUBE
A-8262-967-A A-8262-967-A SOCKET ASSY, VACUUM TUBE
1-540-262-11 1-540-262-11 SOCKET, VACUME TUBE
2-543-036-02 2-543-036-02 SONY PART
2-543-034-02 2-543-034-02 SONY PART
2-052-517-01 2-052-517-01 SONY PART
1-214-864-31 1-214-864-31 SONY PART
2-543-164-01 2-543-164-01 SPACER (A), CRADLE MICROPHONE
2-543-027-01 2-543-027-01 SPACER (A),HEAT INSULATIN
2-543-027-02 2-543-027-02 SPACER (A),HEAT INSULATING
2-543-166-01 2-543-166-01 SPACER (B), CRADLE MICROPHONE
2-543-020-01 2-543-020-01 SPACER (B), HEAT INSULATI
2-543-167-01 2-543-167-01 SPACER (C), CRADLE MICROPHONE
2-543-020-03 2-543-020-03 SPACER(B),HEAT INSULATING(PLA)
2-543-020-02 2-543-020-02 SPACER(B),HEAT INSULATING(PLA)
2-542-989-01 2-542-989-01 SPACER, KNOB
X-2542-066-1 X-2542-066-1 SPRING ASSEMBLY,CATCHER
7-623-208-22 7-623-208-22 SPRING WASHER (3MM)
2-542-997-02 2-542-997-02 STAY,TRANSFORMER
2-542-997-01 2-542-997-01 STAY,TRANSFORMER
2-543-021-02 2-543-021-02 STOPPER
4-543-801-01 4-543-801-01 STOPPER, TENSION RUBBER
2-052-517-00 2-052-517-00 STOPPER,TENSION RUBBER
1-971-692-12 1-971-692-12 SUB HARNESS (CONTACT, PLUG)
1-971-692-11 1-971-692-11 SUB HARNESS (CONTACT, PLUG)
X-2596-517-1 X-2596-517-1 SUSPENSION (A), CAPSULE
A-8261-544-B A-8261-544-B SUSPENSION ASSY, CRADLE
2-543-028-03 2-543-028-03 SUSPENSION(A) CAPSULE
1-571-095-11 1-571-095-11 SWITCH,TOGGLE
2-543-022-01 2-543-022-01 TAPE, SHIELD
1-535-240-00 1-535-240-00 TARMINAL,HERMETIC
A-5022-549-A A-5022-549-A TRANSFORMER, OUTPUT
2-543-033-01 2-543-033-01 TUBE(BASE)
1-008-129-11 1-008-129-11 VACUUM TUBE (6AU6A)
7-623-420-07 7-623-420-07 WASHER LW 2 (TYPE B)
7-688-001-01 7-688-001-01 WASHER W2 SMALL
2-543-023-02 2-543-023-02 WASHER, FIBER (PLA)
2-543-023-01 2-543-023-01 WASHER, FIBER (PLA)
