Model Image
Manufacturer

Sony

Model Number

CAM7

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
2-381-632-03 2-381-632-03 ARM,LOCKER
3-720-911-01 3-720-911-01 BASE,TRIPOD FITTING SCREW
2-132-216-01 2-132-216-01 BRACKET,VF CABLE

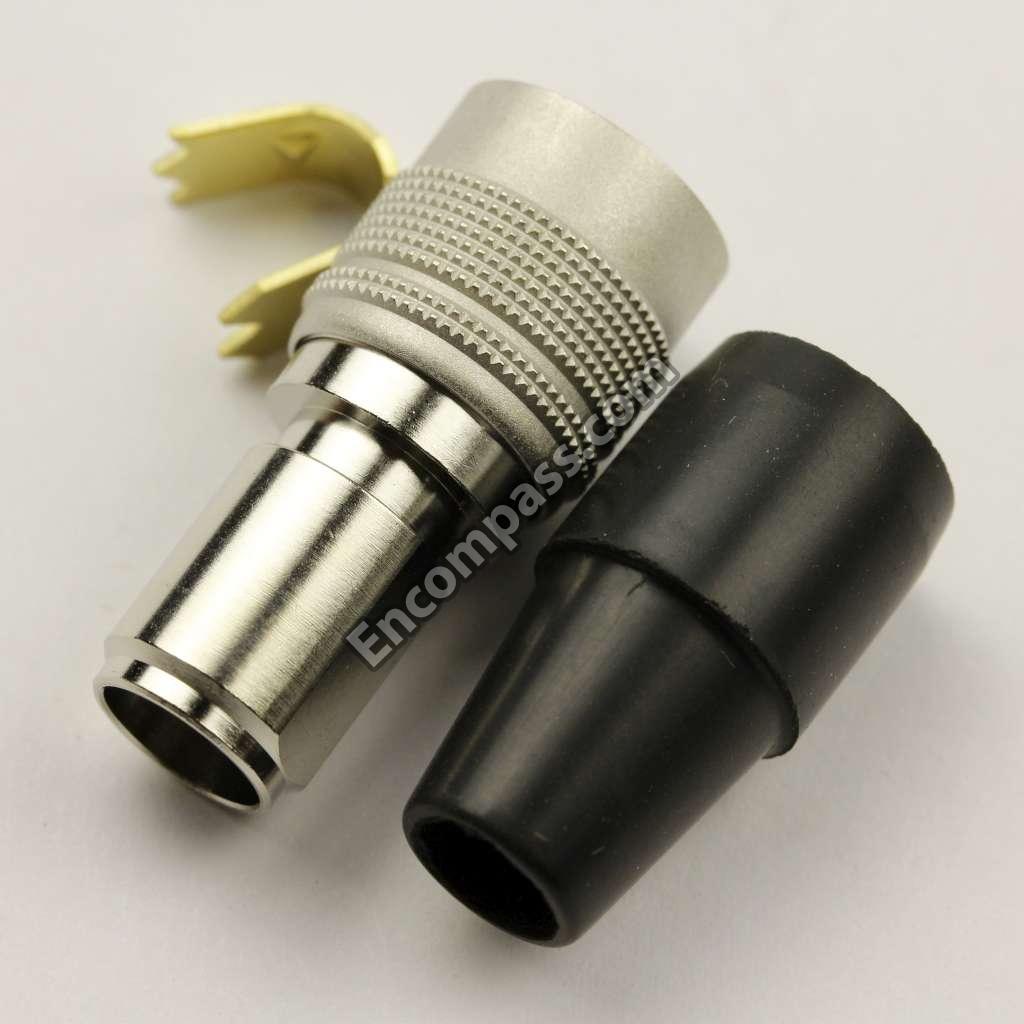

1-506-522-12 1-506-522-12 CONNECTOR,ROUND 10P
2-381-640-03 2-381-640-03 DOG
2-381-641-01 2-381-641-01 DOG COLLAR
2-132-214-01 2-132-214-01 GUIDE, SWITCH
1-562-152-41 1-562-152-41 HOUSING,CONNECTOR 7P
8-759-231-43 8-759-231-43 IC TC5091AP
8-759-205-11 8-759-205-11 IC TC74HC153F
8-759-231-44 8-759-231-44 IC TC74HC191F
8-759-208-63 8-759-208-63 IC TC74HC393F
8-759-231-45 8-759-231-45 IC TC74HC51F
X-2355-502-1 X-2355-502-1 KNOB ASSY,CONTROL
2-381-635-02 2-381-635-02 LEVER,LOCK
2-381-642-02 2-381-642-02 MOUNT
3-720-907-03 3-720-907-03 PIN (S),REAR
A-8277-622-A A-8277-622-A PLUNGER
1-238-289-11 1-238-289-11 RESISTOR,VAR,CARBON 10K
2-132-224-01 2-132-224-01 RUBBER (A)
2-132-237-01 2-132-237-01 RUBBER (B)
2-132-222-01 2-132-222-01 SCREW, ORNAMENTAL
3-161-367-02 3-161-367-02 SCREW,BAR,SLIDE
2-122-083-01 2-122-083-01 SHEET,INSULATING
3-720-910-03 3-720-910-03 SHEET,SLIDE
2-132-221-01 2-132-221-01 SPACER
2-381-638-03 2-381-638-03 SPRING (S
2-381-637-02 2-381-637-02 SPRING (S
2-381-652-01 2-381-652-01 SPRING, TENSION (COIL) (S
3-720-908-01 3-720-908-01 TABLE (S),PIN,REAR
1-807-561-11 1-807-561-11 TC74HC85F,IC
