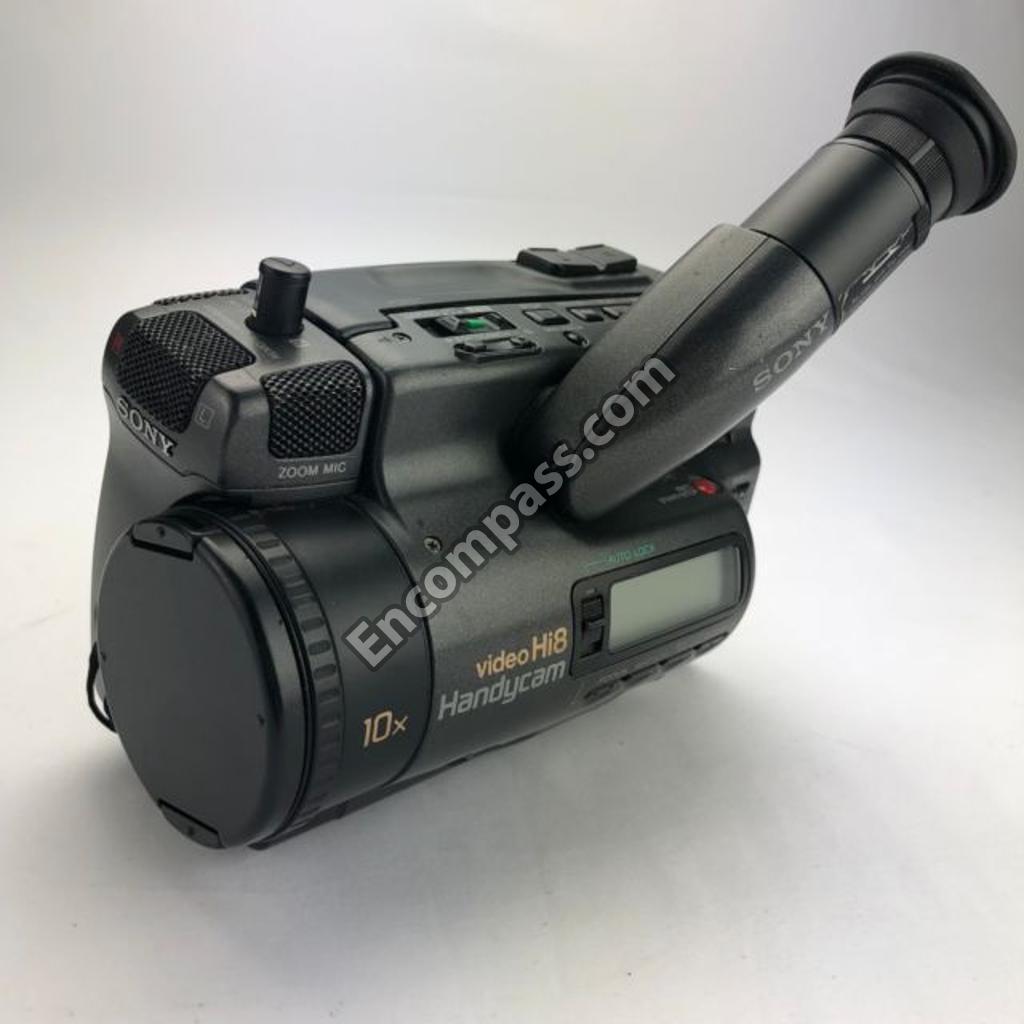

Model Image
Manufacturer

Sony

Model Number

CCDTR101

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
1-218-856-11 1-218-856-11 1ES, CHIP 2.4K (1
1-218-903-11 1-218-903-11 1ES, CHIP 220K (160
9-910-999-EV 9-910-999-EV BATTERY, 1 HOUR
1-828-145-21 1-828-145-21 CABLE, STEREO AV CABLE
1-165-112-11 1-165-112-11 CAPACITOR,CERAMIC 0.33MF/
1-104-752-11 1-104-752-11 CAPACITOR,CHIP TANTALUM E
A102096 A102096 CCD ASSY (AUTO)
1-573-930-11 1-573-930-11 CONNECTOR, FFC/FPC (ZIF)
1-691-513-11 1-691-513-11 CONNECTOR,BOARD TO BOARD
3-948-061-01 3-948-061-01 COVER, Z GEAR
1-547-529-21 1-547-529-21 FILTER BLOCK,OPTICAL
8-759-823-21 8-759-823-21 IC CXA1536Q
8-759-057-58 8-759-057-58 IC CXA1555R
8-752-347-93 8-752-347-93 IC CXD2100AQ
8-752-836-11 8-752-836-11 IC CXP80624-266Q
8-759-061-70 8-759-061-70 IC MB86168PFV
8-759-058-98 8-759-058-98 IC SC370605D
1-569-809-11 1-569-809-11 JACK(SMALL TYPE)
3-947-222-01 3-947-222-01 LABEL,MODEL NUMBER (POLYE
1-541-769-21 1-541-769-21 LOADING MOTOR
8-759-008-67 8-759-008-67 MC14066BF, IC
1-691-591-11 1-691-591-11 PIN,CONNECTOR (1.5MH) (SM
1-691-551-11 1-691-551-11 PIN,CONNECTOR (SMD) (L TY
3-947-195-01 3-947-195-01 PLATE,GROUND,MC
1-576-123-21 1-576-123-21 PS151
1-576-122-21 1-576-122-21 PS921
1-218-851-11 1-218-851-11 RES, CHIP 1.5K (160
1-218-875-11 1-218-875-11 RESISTOR 15K
1-218-885-11 1-218-885-11 RESISTOR 39K
1-218-867-11 1-218-867-11 RESISTOR 6.8K
1-236-405-11 1-236-405-11 RESISTOR BLOCK 270
3-727-902-61 3-727-902-61 SCREW (M1.4X5), SPECIAL
8-729-012-50 8-729-012-50 TRANSISTOR 2SC4400-3/4/5(
8-729-013-04 8-729-013-04 TRANSISTOR 2SC4851 (
A-7049-495-A A-7049-495-A VIDEO HEAD WIRE COLOR GREEN,G
