Model Image
Manufacturer

Sony

Model Number

CCDTR66

Description

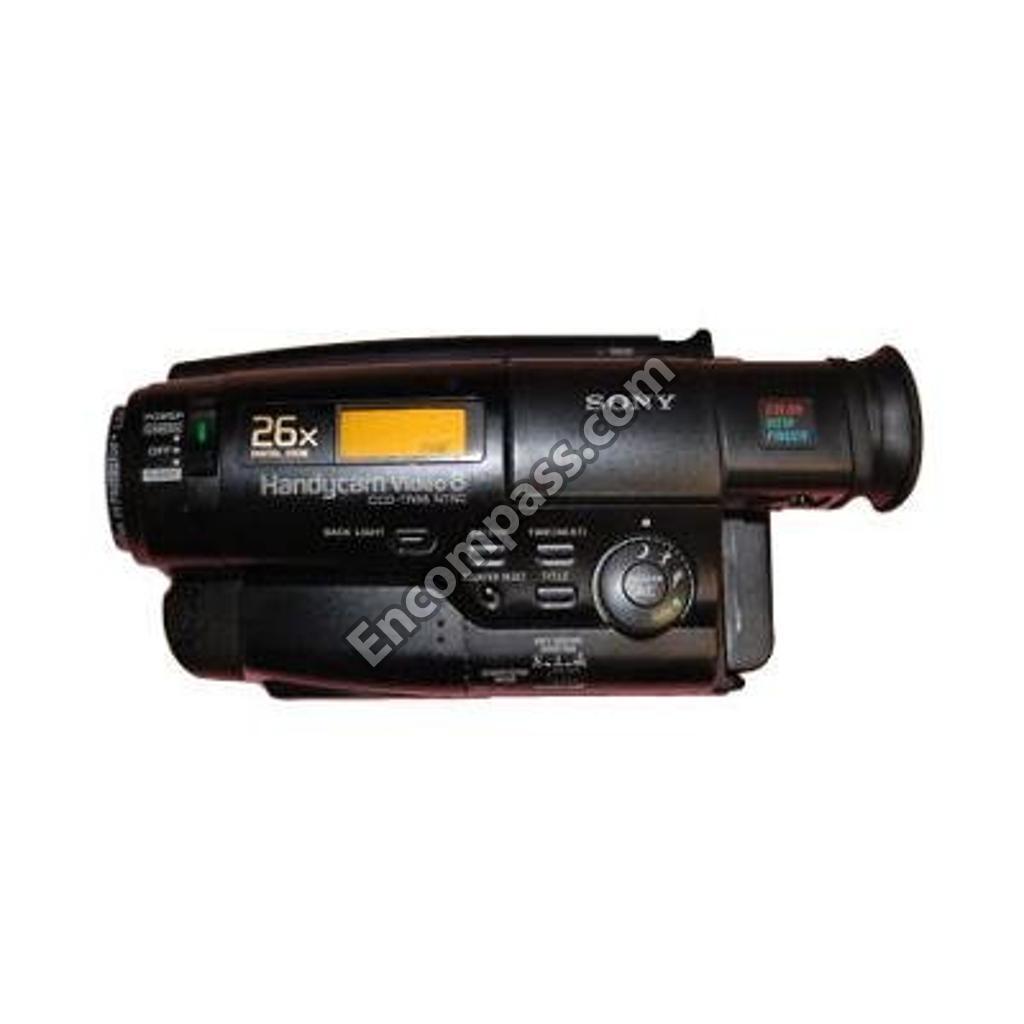

Video Camera Recorder 8mm

Interactive Exploded View

Parts List

Part Number Description
1-775-520-11 1-775-520-11 45P FLEX CABLE TO CF-43 BD
3-965-532-21 3-965-532-21 ARM LS
X-3949-153-3 X-3949-153-3 CASSETTE COMPARTMENT ASSY
1-750-344-11 1-750-344-11 CONNECTOR, FFC/EPC (ZIF)
1-766-349-21 1-766-349-21 CONNECTOR, FFC/FPC (LIF)
3-965-888-01 3-965-888-01 COVER, JACK
1-547-558-11 1-547-558-11 FILTER BLOCK,OPTICAL
3-965-568-01 3-965-568-01 GUIDE LOCK
8-759-446-62 8-759-446-62 IC HG51D267FGTL
1-410-655-31 1-410-655-31 INDUCTOR, CHIP 120UH (3225)
1-762-436-15 1-762-436-15 MODE SW
3-965-870-01 3-965-870-01 PLATE S/S JOINT
3-946-857-01 3-946-857-01 RUBBER (S),SEAL
1-572-688-11 1-572-688-11 S001 S004 STANDBY SW STAR
1-572-467-21 1-572-467-21 S490, S491 SWITCHES ON PW-113
3-307-378-11 3-307-378-11 SPRING,TENSION
3-947-969-21 3-947-969-21 STRAP, SHOULDER $USE SOX$
A-7040-418-B A-7040-418-B TAKEUP GUIDEPOST
X-3945-398-3 X-3945-398-3 TAKEUP REEL
