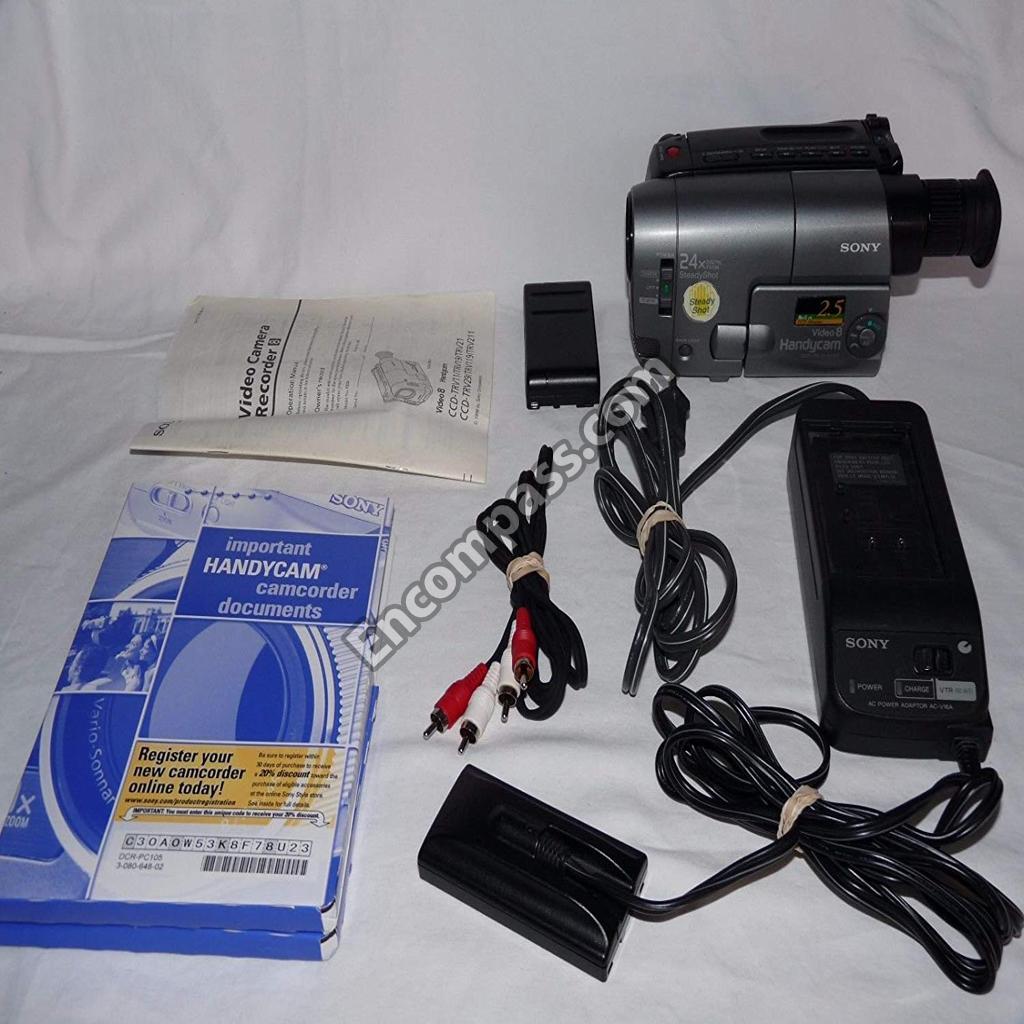

Model Image
Manufacturer

Sony

Model Number

CCDTRV21

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
3-965-862-01 3-965-862-01 BUTTON, EJECT
X-3949-153-3 X-3949-153-3 CASSETTE HOLDER ASSY
1-774-641-21 1-774-641-21 CONNECTOR, FFC/FPC
3-965-888-01 3-965-888-01 COVER, JACK
A-7040-418-B A-7040-418-B GUIDE BLOCK ASSY, TAKEUP SID
3-856-152-52 3-856-152-52 I/M CCD-TRV21 96 E SPANIS
3-856-152-71 3-856-152-71 MANUAL, INSTRUCTION
3-965-870-01 3-965-870-01 PLATE S/S JOINT
1-692-088-41 1-692-088-41 S303 PLAY SWITCH FOR VCR CON
1-762-436-15 1-762-436-15 S901
3-947-969-21 3-947-969-21 STRAP, SHOULDER $USE SOX$
X-3945-397-1 X-3945-397-1 SUPPLY REEL DECK ASSY.
X-3945-398-3 X-3945-398-3 TAKEUP REEL DECK ASSY.
