Model Number

CCP13

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
8-729-141-83 8-729-141-83 2SA473,TRANSISTOR
8-729-217-33 8-729-217-33 2SC1173-Y TRANSISTOR
1-125-083-00 1-125-083-00 50V 1000MF ELECT CAPACITO
1-508-030-20 1-508-030-20 AMPLOCK 9P
1-508-028-20 1-508-028-20 AMPLOCK HSG
3-139-084-00 3-139-084-00 BELT MOTOR BAND
3-148-602-00 3-148-602-00 BRACKET (A)
3-148-603-00 3-148-603-00 BRACKET (B)
3-148-630-00 3-148-630-00 BRACKET LEVEL METER
3-146-906-00 3-146-906-00 BRACKET MICRO SW
3-824-174-00 3-824-174-00 BUSHING RUBBER
3-139-411-05 3-139-411-05 BUTTON RECORD RED
3-139-411-07 3-139-411-07 BUTTON STOP BLACK
3-139-030-00 3-139-030-00 BUTTON, CASSETTE-UP
3-139-411-06 3-139-411-06 BUTTON,CONTROL (WHITE)
3-146-916-00 3-146-916-00 CAP HOLDER
1-141-143-00 1-141-143-00 CAPACITOR TRIMMER
1-216-349-00 1-216-349-00 CARBON 1 H 1/2W
1-247-182-00 1-247-182-00 CARBON 1.5 H1/2W
1-260-316-51 1-260-316-51 CARBON 100H 1/2W
1-216-431-11 1-216-431-11 CARBON 560H 1W
3-148-601-00 3-148-601-00 CASE ASSY
3-148-624-00 3-148-624-00 CHASSIS (B)
X-3148-614-0 X-3148-614-0 CHASSIS ASSY (SLAVE)
X-3148-607-0 X-3148-607-0 CHASSIS ASSY(MASTER)
3-001-707-04 3-001-707-04 CLAMP
3-148-650-00 3-148-650-00 CLIP
1-407-261-00 1-407-261-00 COIL 100UH
3-434-150-00 3-434-150-00 COIL-SPG EJE LEV
3-454-076-00 3-454-076-00 COLLAR
3-453-124-00 3-453-124-00 COLLAR A, HEAD DECK
3-434-120-00 3-434-120-00 COV FRICT PUL SPG
3-148-626-00 3-148-626-00 COVER CHASSIS(B)
2-031-955-02 2-031-955-02 COVER LAMP
3-139-417-00 3-139-417-00 COVER, BUTTON
2-203-938-00 2-203-938-00 CUSHION
1-506-330-00 1-506-330-00 DIAMOND PLUG
1-532-066-00 1-532-066-00 FUSE 400MA

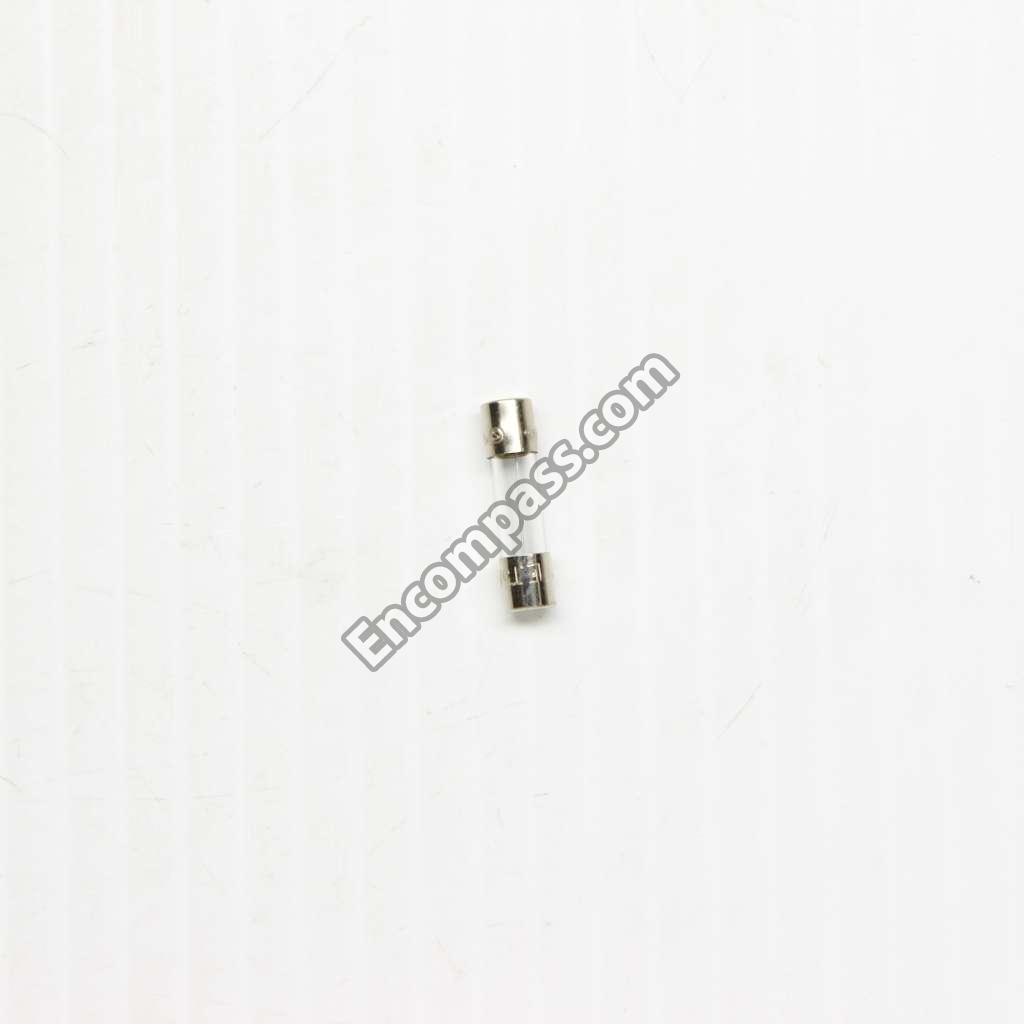

1-532-505-33 1-532-505-33 FUSE,5.0A
3-139-072-00 3-139-072-00 GUIDE, CASSETTE
X-3148-609-0 X-3148-609-0 HEAD DECK ASSY
3-145-821-00 3-145-821-00 HEAT SINK (A)
3-148-634-00 3-148-634-00 HOLDER CASSETTE TAPE
3-146-928-00 3-146-928-00 HOLDER LAMP
3-147-218-00 3-147-218-00 HOLDER LAMP
3-146-917-00 3-146-917-00 HOLDER PHOTO TR
3-145-850-00 3-145-850-00 HOLDER STEEL BALL
3-139-046-00 3-139-046-00 HOLDER, CASSETTE
1-407-283-00 1-407-283-00 INDUCTOR 680UH
3-145-829-21 3-145-829-21 LABEL FUSE 1AT
3-136-241-00 3-136-241-00 LAMP COVER
X-3148-613-0 X-3148-613-0 LEVER ASSY EJECT
X-3148-610-0 X-3148-610-0 LEVER ASSY FORWARD
3-145-818-00 3-145-818-00 LEVER PLAYBACK
A-2019-031-A A-2019-031-A MCB,MASTER
A-2019-032-A A-2019-032-A MCB,SLAVE
A-2014-026-A A-2014-026-A MCB., BIAS IND
A-2014-025-A A-2014-025-A MCB., BIASTRAP
1-162-710-11 1-162-710-11 MICA 10
1-107-597-11 1-107-597-11 MICA 22PF 50V
1-106-363-00 1-106-363-00 MYLAR 0.022UF 50V
3-139-088-00 3-139-088-00 NAIL, LOCK
3-465-186-00 3-465-186-00 NOISE ABSORBER
1-582-793-00 1-582-793-00 P.C.B COPY LAMP
1-582-794-00 1-582-794-00 P.C.B TERMINAL
3-148-631-00 3-148-631-00 PANEL CONNECTOR
3-148-627-00 3-148-627-00 PANEL FRONT
3-148-617-00 3-148-617-00 PLATE THRUST
3-139-039-00 3-139-039-00 PLATE, COUNTER
1-103-906-00 1-103-906-00 POLY 100PF 125V
X-3148-624-0 X-3148-624-0 PULLEY ASSY, REWIND
3-148-632-00 3-148-632-00 RETAINER BUTTON SHFT
3-148-674-01 3-148-674-01 RETAINER SPRING
3-145-817-00 3-145-817-00 RUBBER STOPPER
7-682-561-04 7-682-561-04 SCREW +B4X8
7-621-773-87 7-621-773-87 SCREW 2.6X10
7-621-770-87 7-621-770-87 SCREW MACH B 2.6X5
7-682-565-04 7-682-565-04 SCREW(+)B4X16
7-682-262-04 7-682-262-04 SCREW(+)RK 4 X 10
3-483-103-00 3-483-103-00 SCREW, HEAD ADJUSTIN
3-148-633-00 3-148-633-00 SHAFT BUTTON
1-580-375-12 1-580-375-12 SOCKET 3 PIN
3-453-115-00 3-453-115-00 SPACER (C)
3-002-407-01 3-002-407-01 SPACER 6
3-145-841-00 3-145-841-00 SPACER ERASE HEAD
3-148-669-01 3-148-669-01 SPRING 230G
3-148-668-01 3-148-668-01 SPRING 250G
3-453-140-00 3-453-140-00 SPRING FAST F/REWIND
3-145-819-00 3-145-819-00 SPRING TENSION
7-671-111-11 7-671-111-11 STEEL BALL 1.5MM
1-103-717-00 1-103-717-00 STYROL 470PF 50V
1-516-546-00 1-516-546-00 SWITCH PUSH PAUSE
3-148-620-02 3-148-620-02 TIRE
1-442-310-00 1-442-310-00 TRANS OUTPUT
1-442-348-00 1-442-348-00 TRANS POWER
3-701-437-01 3-701-437-01 WASHER
7-623-922-01 7-623-922-01 WASHER THRUST IDLR
3-139-123-00 3-139-123-00 WASHER, THRUST ADJUS
