Model Image
Manufacturer

Sony

Model Number

CDPCE5

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

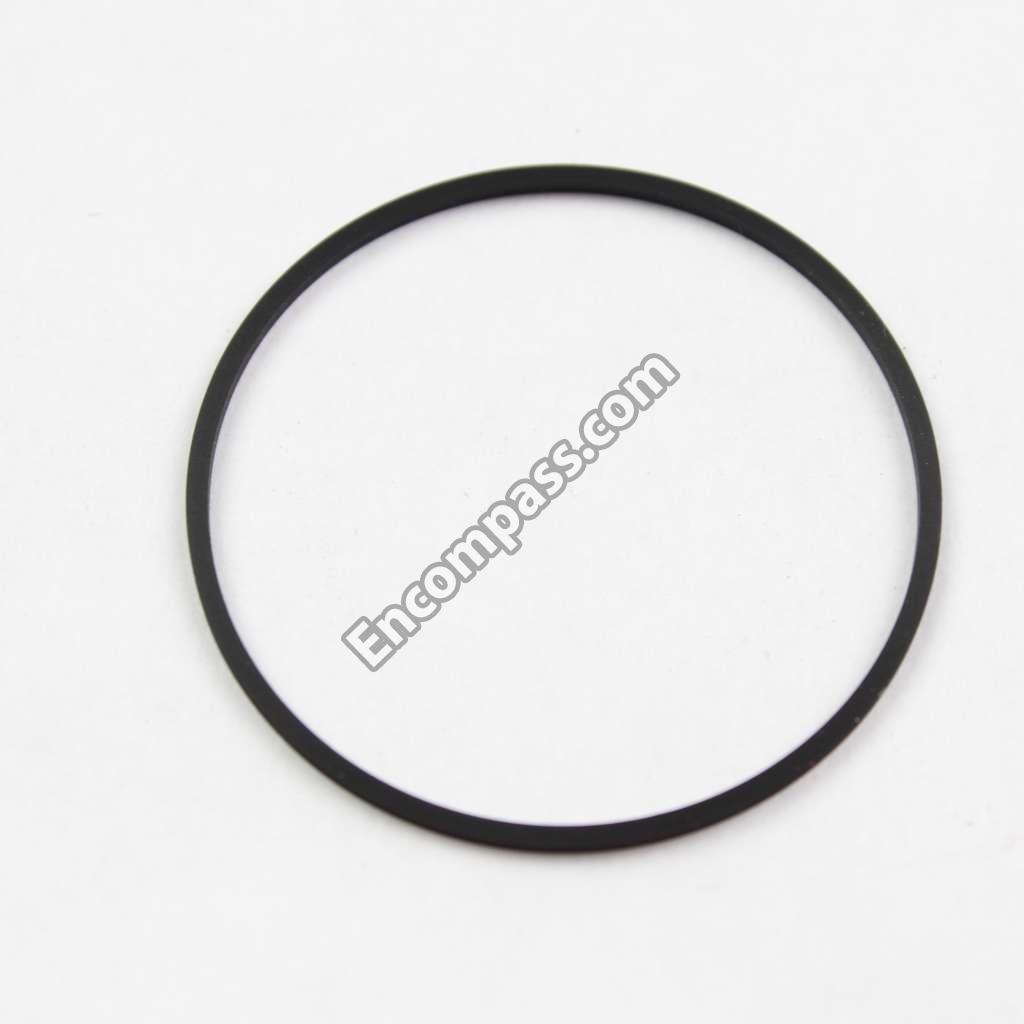

4-225-328-01 4-225-328-01 BELT (ROTARY)
4-224-862-01 4-224-862-01 BUTTON (DISC)
4-224-863-01 4-224-863-01 BUTTON (MODE)
4-224-875-11 4-224-875-11 CASE (409537)
1-232-362-11 1-232-362-11 COMPOSITION CIRCUIT BLOCK
4-983-956-01 4-983-956-01 COVER, BATTERY (RM-DC51)
4-951-619-01 4-951-619-01 CUSHION (A)
1-418-746-11 1-418-746-11 ENCODER (ROTARY)
J-2501-189-A J-2501-189-A EXTENSION CABLE
4-934-375-21 4-934-375-21 GEAR (LOADING B)
4-957-287-21 4-957-287-21 GEAR (REV)
8-752-886-46 8-752-886-46 IC CXP84340-060Q
8-759-829-13 8-759-829-13 IC MSM9202-06GS-BK
8-749-017-45 8-749-017-45 IC RPR-220
1-774-726-11 1-774-726-11 JACK (SMALL TYPE)
4-224-868-01 4-224-868-01 KNOB (AMS)
4-979-091-01 4-979-091-01 KNOB, VOL
1-792-131-11 1-792-131-11 LEAD (WITH CONNECTOR)
1-452-925-11 1-452-925-11 MAGNET ASSY
1-452-925-21 1-452-925-21 MAGNET ASSY
A-4672-879-A A-4672-879-A MOTOR ASSY, LOADING
A-4735-762-A A-4735-762-A MOTOR ASSY, LOADING
A-4735-761-A A-4735-761-A MOTOR ASSY, ROTARY
4-224-879-01 4-224-879-01 PANEL, BACK
4-233-720-01 4-233-720-01 PANEL, BACK
4-978-488-11 4-978-488-11 PANEL, LOADING
4-978-487-02 4-978-487-02 PLATE (FL), INDICATION
1-223-535-11 1-223-535-11 RESISTOR,VAR, CARBON
4-218-252-51 4-218-252-51 SCREW (+PTPWH M2.6), FLOA
1-771-836-11 1-771-836-11 SWITCH, LEVER
8-729-029-57 8-729-029-57 TRANSISTOR DTA144ESA
4-224-603-06 4-224-603-06 TRAY
1-757-649-11 1-757-649-11 WIRE (FLAT TYPE) (15 CORE
1-823-114-11 1-823-114-11 WIRE (FLAT TYPE) (15 CORE
1-782-219-11 1-782-219-11 WIRE (FLAT TYPE) (17 CORE
1-791-930-11 1-791-930-11 WIRE (FLAT TYPE) (6 CORE)
