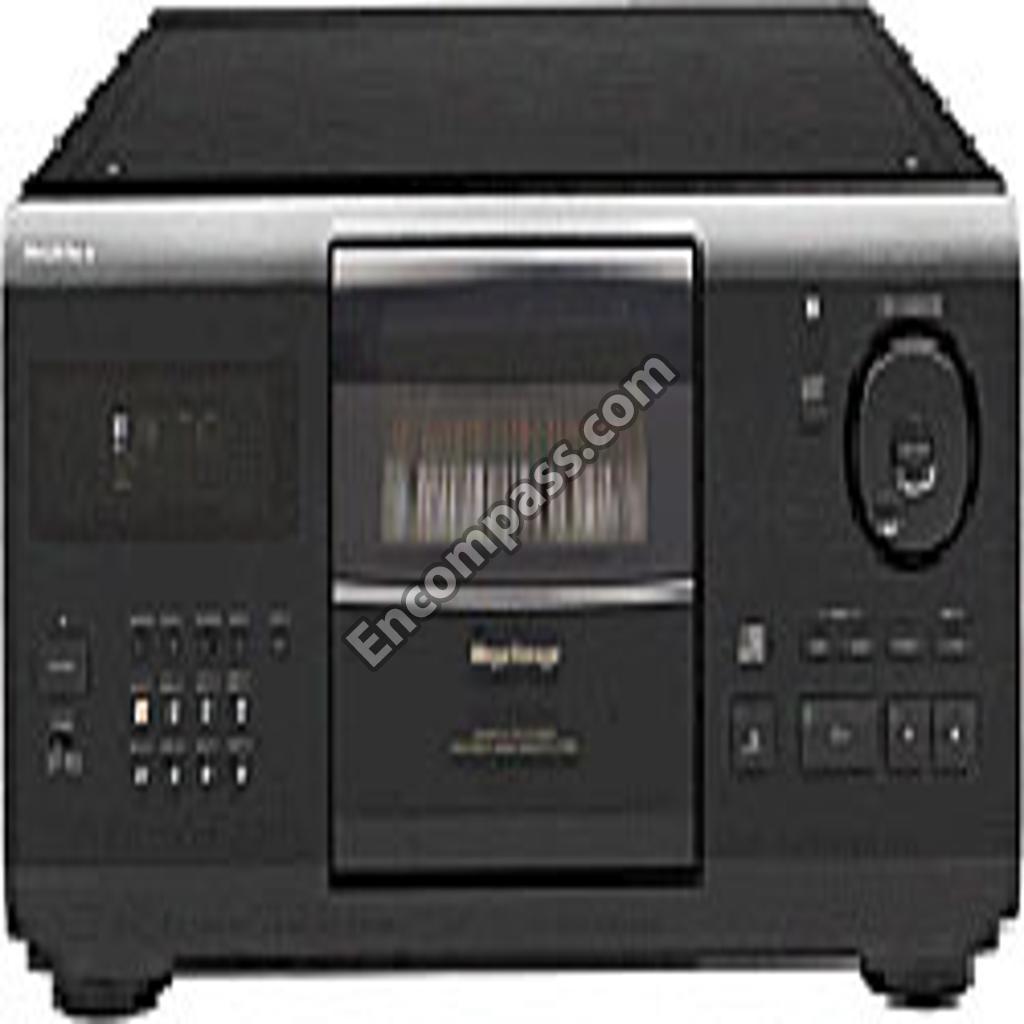

Model Image
Manufacturer

Sony

Model Number

CDPCX200

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
X-4947-230-1 X-4947-230-1 BRACKET (TABLE) ASSY
4-982-788-01 4-982-788-01 BUTTON (ENTER)
1-770-724-11 1-770-724-11 CONNECTOR, BOARD TO BOARD
4-982-807-01 4-982-807-01 COVER (FFC)
4-985-553-21 4-985-553-21 CUSHION (10X15) (C
4-985-553-11 4-985-553-11 CUSHION (10X15) (C
X-4947-607-1 X-4947-607-1 GEAR (PULLEY) ASSY
4-982-891-01 4-982-891-01 GEAR (TABLE)
4-982-855-01 4-982-855-01 HOLDER (DISC B)
4-982-782-01 4-982-782-01 HOLDER (OPEN)
8-752-884-69 8-752-884-69 IC CXP84332-028Q
8-759-399-58 8-759-399-58 IC LC75725E
8-759-373-49 8-759-373-49 IC NJL54H400
8-719-059-65 8-719-059-65 LED HLMF-KL05
X-4947-240-1 X-4947-240-1 LEVER (A) ASSY
4-982-779-01 4-982-779-01 LID (R)
3-856-765-41 3-856-765-41 MANUAL, INSTRUCTION
1-661-468-11 1-661-468-11 PRINTED C. BOARD,D.SENS(L
4-982-802-01 4-982-802-01 RING (A)
7-685-646-79 7-685-646-79 SCREW, SPEAKER
X-4947-238-1 X-4947-238-1 SLIDER (B) ASSY
X-4947-234-1 X-4947-234-1 SLIDER (LOCK) ASSY
4-982-798-01 4-982-798-01 SPRING (B), TORSION
4-984-085-01 4-984-085-01 SPRING (ENTER), COIL
4-982-882-01 4-982-882-01 SPRING (LIMITTER), TORSIO
4-982-880-01 4-982-880-01 SPRING (SLIDER A),TENSION
3-938-588-01 3-938-588-01 SPRING, COMPRESSION
1-762-717-11 1-762-717-11 SWITCH, JOG
X-4947-231-1 X-4947-231-1 TABLE (200) ASSY
1-429-671-11 1-429-671-11 TRANSFORMER, POWER

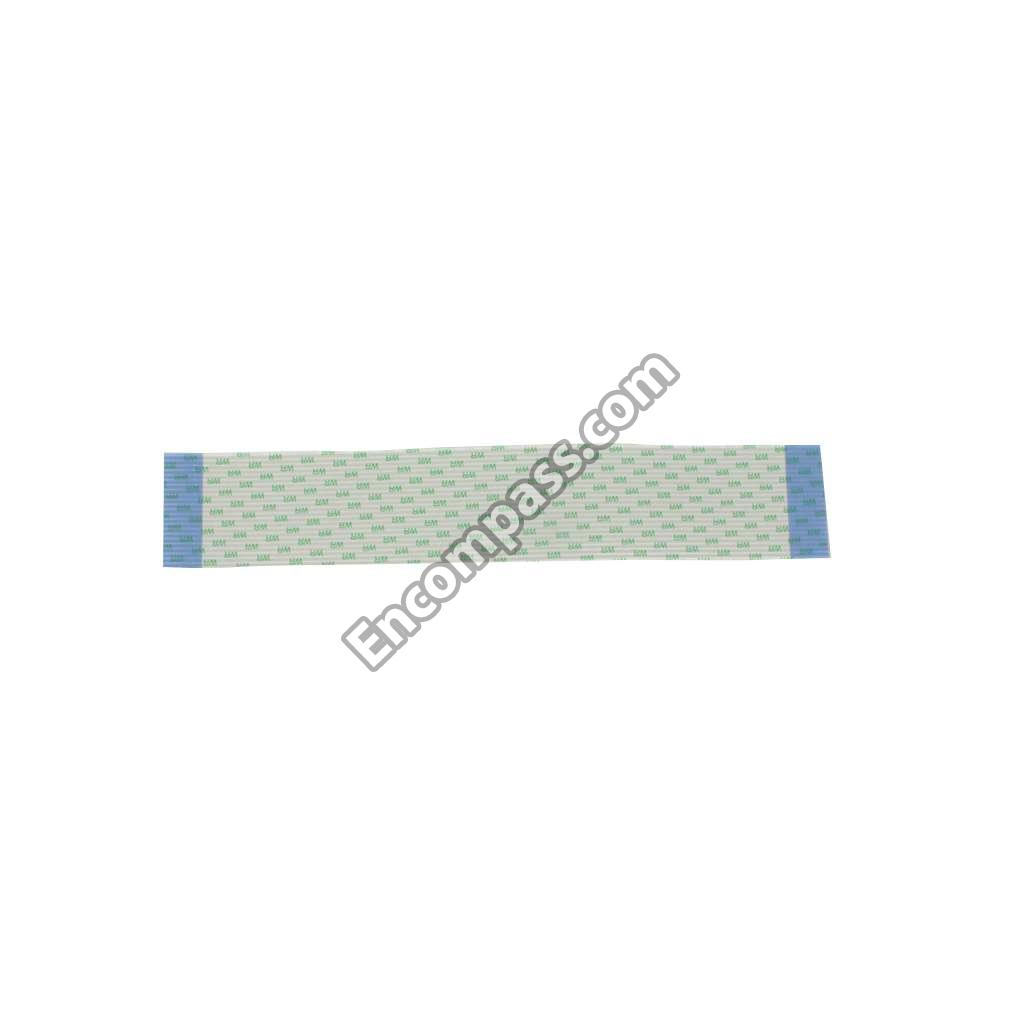

1-833-861-11 1-833-861-11 WIRE (FLAT TYPE) (23 CORE
