Model Image
Manufacturer

Sony

Model Number

CDXGT470UM

Description

Fm/am Compact Disc Player

Interactive Exploded View

Parts List

Part Number Description
4-278-065-01 4-278-065-01 COLLAR

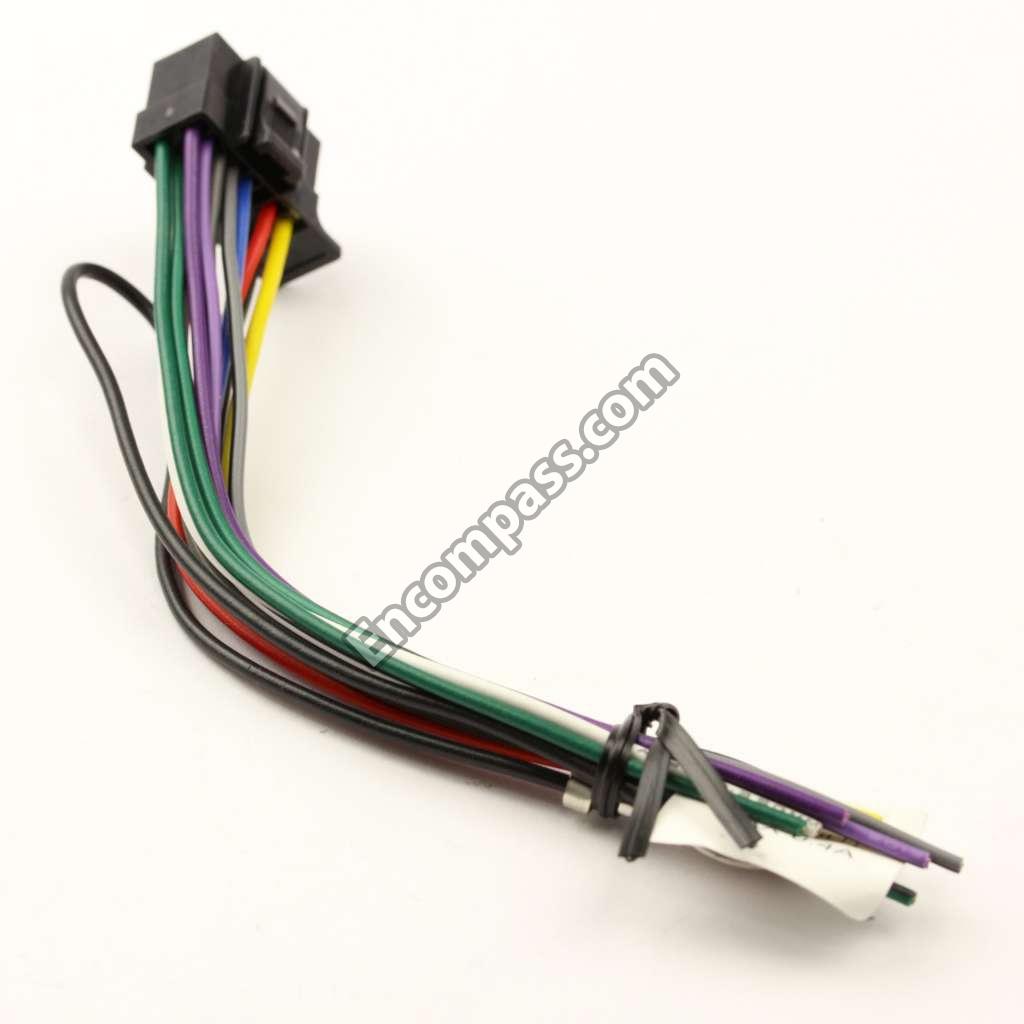

1-846-036-11 1-846-036-11 CONNECTION CABLE AUTOMOBILE
X-2583-962-1 X-2583-962-1 FRAME ASSY FITTING
4-276-003-01 4-276-003-01 KEY (FRAME)

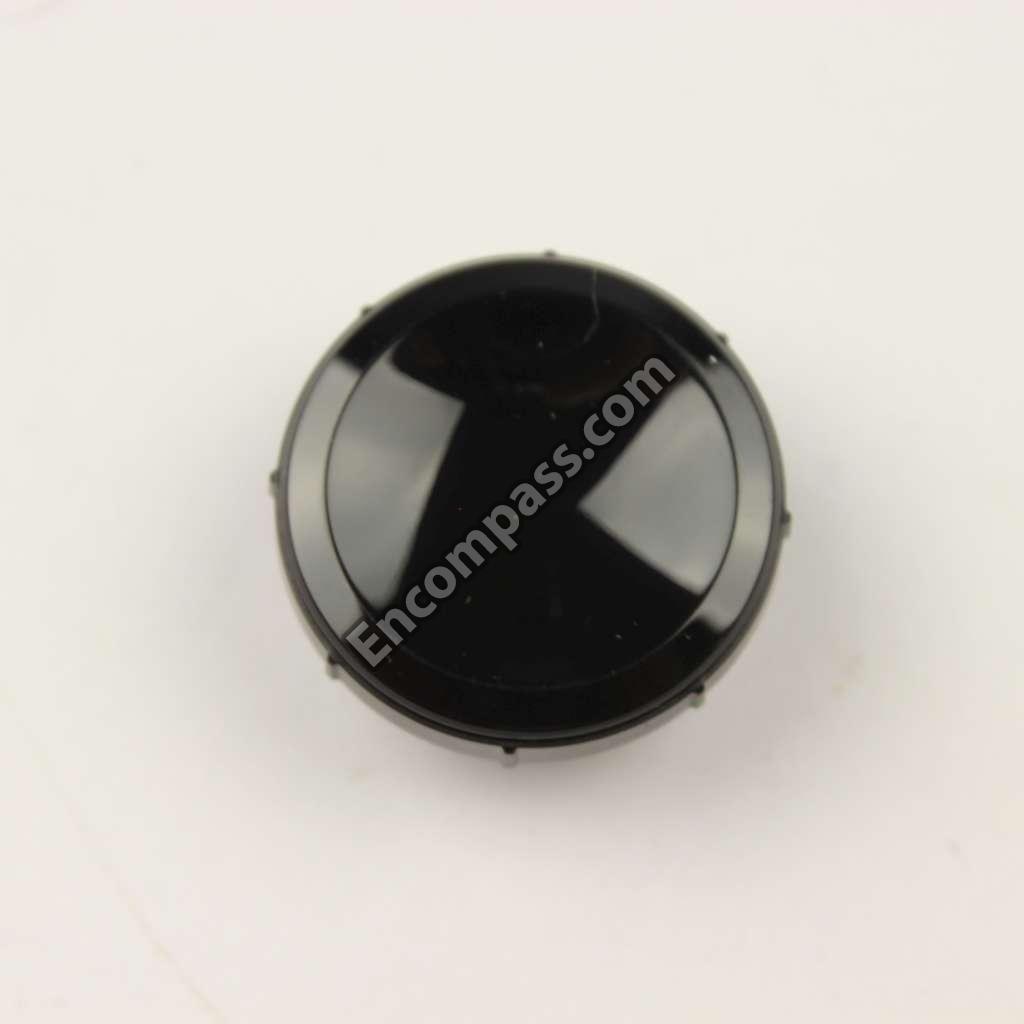

X-2584-667-1 X-2584-667-1 KNOB VOL ASSY
A-1866-801-A A-1866-801-A MECHANICAL BLOCK (11CA) ASSY
X-2584-663-1 X-2584-663-1 PANEL (SV) ASSY, FRONT
4-421-508-01 4-421-508-01 PANEL BACK
1-489-810-22 1-489-810-22 REMOTE COMMANDER (RM-X211)
3-934-325-01 3-934-325-01 SCREW +K(5X8)TAPPING 1PCS
7-685-792-09 7-685-792-09 SCREW +PTT 2.6 X6(S)
A-1866-089-A A-1866-089-A SERVO BOARD COMPLETE
