Model Image
Manufacturer

Sony

Model Number

CDXT60

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
X-3368-446-1 X-3368-446-1 ARM (C DRIVING GEAR) ASSY
X-3368-441-1 X-3368-441-1 ARM (C/T SELECTION) ASSY
X-3368-448-1 X-3368-448-1 ARM (CHUCKING) ASSY
3-914-117-04 3-914-117-04 ARM (D HOLD)
3-919-689-01 3-919-689-01 ARM (DISC UP)
X-3368-443-1 X-3368-443-1 ARM (FLP) ASSY
3-913-971-01 3-913-971-01 ARM (JOINT E)
X-3368-451-1 X-3368-451-1 ARM (M LOCK) ASSY
3-920-790-01 3-920-790-01 ARM (MGZ STOPPER)
3-914-035-01 3-914-035-01 ARM (SAFE CHANGE)
X-3368-452-1 X-3368-452-1 ARM (SELECTION E) ASSY
X-3369-483-1 X-3369-483-1 ARM (SPRING L) ASSY
X-3369-484-1 X-3369-484-1 ARM (SPRING R) ASSY
3-914-060-01 3-914-060-01 ARM (SWC)
3-913-998-01 3-913-998-01 ARM (SWP)
X-3368-447-2 X-3368-447-2 ARM (T DRIVING GEAR) ASSY
3-913-921-01 3-913-921-01 ARM (T RELEASE)
3-914-022-01 3-914-022-01 ARM (TRIGGER E)
X-3368-458-2 X-3368-458-2 ARM ASSY (LOCK FB)
3-920-539-01 3-920-539-01 BALL (SL)
1-500-249-11 1-500-249-11 BEAD, FERRITE (CASE)
3-928-970-01 3-928-970-01 BLOCK (SL)
3-920-312-01 3-920-312-01 BRACKET (CHASSIS 2)
3-914-119-01 3-914-119-01 BRACKET (CM)
3-913-942-01 3-913-942-01 BRACKET (SL FEED SCREW)
X-3369-683-1 X-3369-683-1 BRACKET ASSY
3-919-688-01 3-919-688-01 BUTTON (EJ)
X-3369-482-1 X-3369-482-1 CASE (DOWN) ASSY
X-3369-670-1 X-3369-670-1 CASE (MD) ASSY
X-3369-481-1 X-3369-481-1 CASE (UP) ASSY
3-375-165-91 3-375-165-91 CASE(FRONT), (CABINET)
1-770-349-21 1-770-349-21 CONNECTOR, FPC 12P
1-770-350-21 1-770-350-21 CONNECTOR, FPC 13P
1-770-346-21 1-770-346-21 CONNECTOR, FPC 4P
1-769-248-11 1-769-248-11 CORD (WITH CONNECTOR)
3-919-535-11 3-919-535-11 COVER (DAMPER)
3-919-535-01 3-919-535-01 COVER (DAMPER)
3-920-391-11 3-920-391-11 DAMPER (T6)
3-920-391-01 3-920-391-01 DAMPER (T6)
3-922-204-01 3-922-204-01 DETENT (DH) (SPRING)
3-914-031-01 3-914-031-01 DETENT (EL), LEAF
X-3368-454-1 X-3368-454-1 DETENT (M ROLLER A) ASSY,
3-913-941-01 3-913-941-01 DETENT (MBS), LEAF
3-914-026-01 3-914-026-01 DETENT (MOTOR E), LEAF
3-914-069-01 3-914-069-01 DETENT (SHAFT MS) (SPRING
3-913-951-01 3-913-951-01 DETENT (SL GUIDE), LEAF
3-913-950-01 3-913-950-01 DETENT (SL SCREW), LEAF
3-914-085-01 3-914-085-01 DETENT (SPRING)
X-3372-073-1 X-3372-073-1 DOOR ASSY
3-919-687-01 3-919-687-01 ESCUTCHEON
J-2502-024-2 J-2502-024-2 EXTENS O
J-2502-024-1 J-2502-024-1 EXTENSION CABLE (4P)
3-914-010-01 3-914-010-01 FAN
X-3368-445-1 X-3368-445-1 GEAR (C) ASSY, CAM
3-914-091-01 3-914-091-01 GEAR (CDAP)
3-914-092-01 3-914-092-01 GEAR (CDFP)
3-914-032-01 3-914-032-01 GEAR (CTAP)
3-914-007-01 3-914-007-01 GEAR (CTDP)
3-914-034-01 3-914-034-01 GEAR (CTP), CAM
3-914-033-01 3-914-033-01 GEAR (DRIVING A)
3-914-057-01 3-914-057-01 GEAR (DRIVING B)
3-913-989-01 3-913-989-01 GEAR (EJ), CAM
3-914-000-01 3-914-000-01 GEAR (EJA)
3-914-009-01 3-914-009-01 GEAR (EJB)
3-914-020-01 3-914-020-01 GEAR (EL1)
3-914-013-01 3-914-013-01 GEAR (EL2)
3-914-113-01 3-914-113-01 GEAR (FL DRIVING A)
3-913-988-01 3-913-988-01 GEAR (IDLER E)
X-3368-453-1 X-3368-453-1 GEAR (IDLER F) ASSY
3-913-996-01 3-913-996-01 GEAR (SDE)
3-914-014-01 3-914-014-01 GEAR (SDP)
3-913-997-01 3-913-997-01 GEAR (SELECTION EL)
3-913-937-01 3-913-937-01 GEAR (SLB)
3-914-097-01 3-914-097-01 GEAR (TDAP)
3-914-098-01 3-914-098-01 GEAR (TDFP)

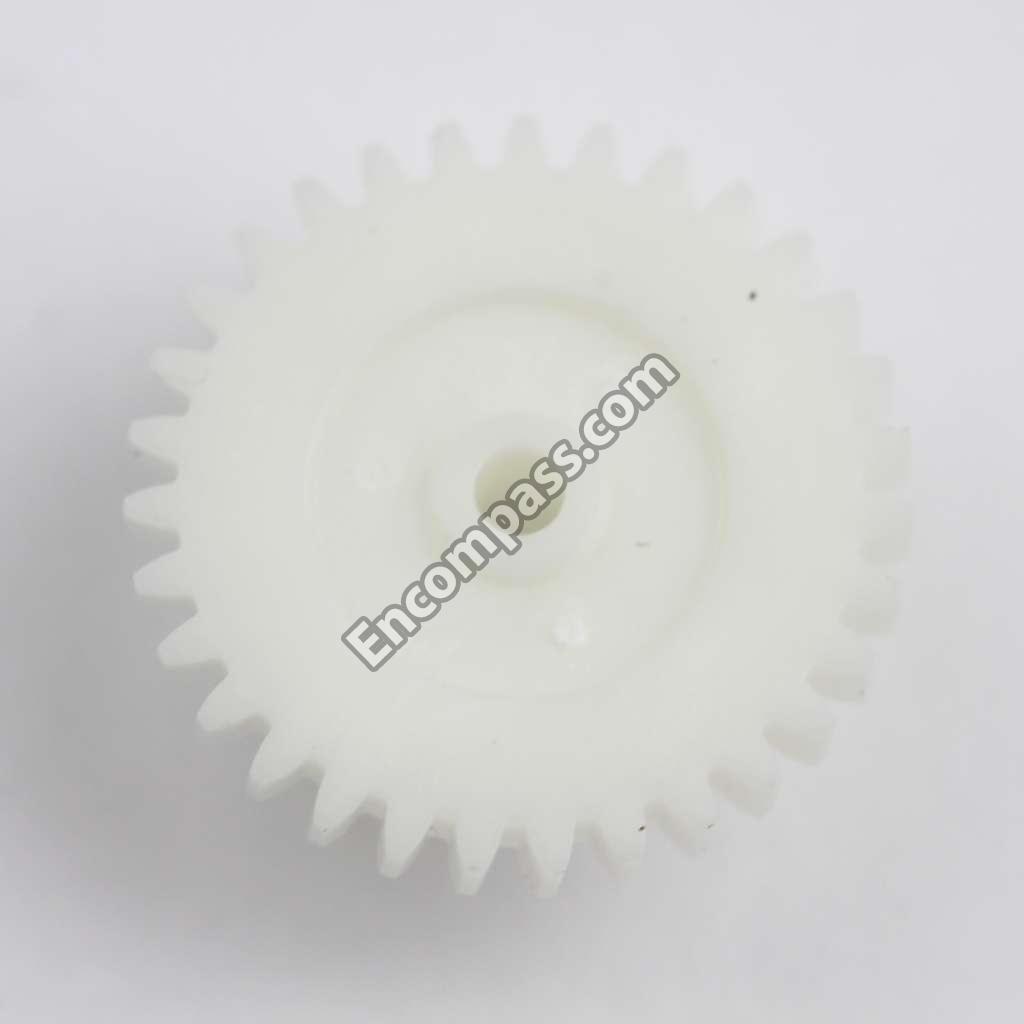

8-752-059-39 8-752-059-39 IC CXA1571N
8-752-845-54 8-752-845-54 IC CXP84124-024Q
6-713-032-01 6-713-032-01 IC KIA7805PI
3-919-534-01 3-919-534-01 LEVER (COIN L)
3-919-546-01 3-919-546-01 LEVER (COIN R)
3-914-078-02 3-914-078-02 LEVER (DISC RETAINER)
3-913-972-01 3-913-972-01 LEVER (EJ)
X-3368-440-1 X-3368-440-1 LEVER (FLP) ASSY
X-3368-456-2 X-3368-456-2 LEVER (RELEASE E) ASSY
3-914-056-01 3-914-056-01 LEVER (SWE)
3-914-112-01 3-914-112-01 LEVER (T PUSH)
A-3291-196-A A-3291-196-A MOTOR ASSY, DRIVING
A-3291-040-A A-3291-040-A MOTOR ASSY, SLED
A-3298-398-A A-3298-398-A MOUNTED C.BOARD (B),MAIN
3-913-923-01 3-913-923-01 NUT (M2) (PLAS
3-913-925-01 3-913-925-01 NUT (M3)
3-913-949-01 3-913-949-01 NUT (SL), FEED
X-3368-437-1 X-3368-437-1 OUTSERT (OPT) ASSY
3-914-115-01 3-914-115-01 PLATE (D HOLD), RELEASE
3-914-109-01 3-914-109-01 PLATE, CHUCK
1-653-991-11 1-653-991-11 PRINTED C.BOARD, SENSOR F
1-654-840-11 1-654-840-11 PRINTED C.BOARD,EHS FLEXI
1-654-842-11 1-654-842-11 PRINTED C.BOARD,JACK
1-655-251-11 1-655-251-11 PRINTED C.BOARD,JACK FLEX
1-655-250-11 1-655-250-11 PRINTED C.BOARD,MAGAZINE
1-654-844-11 1-654-844-11 PRINTED C.BOARD,MAGAZINE
1-654-843-11 1-654-843-11 PRINTED C.BOARD,SENSOR
1-654-845-11 1-654-845-11 PRINTED C.BOARD,SWITCH
3-914-080-01 3-914-080-01 REINFORCEMENT (OPT)
1-241-226-11 1-241-226-11 RESISTOR,ADJ,METAL GRAZE
1-223-817-11 1-223-817-11 RESISTOR,VAR
X-3368-444-1 X-3368-444-1 RETAINER (DISK) ASSY
3-914-058-02 3-914-058-02 RETAINER (FLP)
3-914-072-01 3-914-072-01 RETAINER (MAGAZINE)
3-913-918-01 3-913-918-01 RETAINER (P)
3-913-929-01 3-913-929-01 RETAINER (SL SPRING)
3-914-077-01 3-914-077-01 RING (A), RETAINING
3-913-982-01 3-913-982-01 ROLLER (ARM M LOCK)
3-914-019-01 3-914-019-01 ROLLER (C/T SELECTION)
3-914-029-01 3-914-029-01 ROLLER (MB)
3-914-071-01 3-914-071-01 ROLLER (SHAFT FLKP)
3-920-359-01 3-920-359-01 SCREW (COVER)
3-920-362-01 3-920-362-01 SCREW (ESCUTCHEON)
3-920-360-11 3-920-360-11 SCREW (FRONT PANEL)
3-920-360-01 3-920-360-01 SCREW (FRONT PANEL)
2-477-166-21 2-477-166-21 SCREW (H TYPE), TAPPING
3-922-605-01 3-922-605-01 SCREW (MAGAZINE)
X-3369-628-1 X-3369-628-1 SCREW (SL) ASSY, FEED
X-3364-512-1 X-3364-512-1 SCREW ASSY
3-913-938-01 3-913-938-01 SHAFT (GEAR SLB)
3-914-030-01 3-914-030-01 SHAFT (MB)
3-913-914-01 3-913-914-01 SHAFT (T RELEASE)
3-920-361-01 3-920-361-01 SHEET (PC BOARD) (
3-922-208-01 3-922-208-01 SPACER (DH) (POLYE
3-914-059-01 3-914-059-01 SPRING (ASH), TENSION
3-913-919-01 3-913-919-01 SPRING (C), TENSION
3-914-110-01 3-914-110-01 SPRING (C.PLATE)
3-914-118-01 3-914-118-01 SPRING (D HOLD)
3-922-206-01 3-922-206-01 SPRING (DETENT DH), TENSI
3-922-206-02 3-922-206-02 SPRING (DH), TENSION COIL
3-914-099-02 3-914-099-02 SPRING (DISC), TENSION CO
3-914-076-01 3-914-076-01 SPRING (DISK), COMPRESSIO
3-914-027-01 3-914-027-01 SPRING (EJ), TENSION
3-914-093-01 3-914-093-01 SPRING (F), COMPRESSION
3-914-055-01 3-914-055-01 SPRING (FLOAT), TENSION
3-914-049-01 3-914-049-01 SPRING (FLP)
3-914-028-01 3-914-028-01 SPRING (LEMITER), TENSION
3-922-207-01 3-922-207-01 SPRING (LEVER FL), TENSIO
3-914-070-01 3-914-070-01 SPRING (LIMITER FLP)
3-921-391-01 3-921-391-01 SPRING (LINEAR), TENSION
3-914-083-01 3-914-083-01 SPRING (LOCK FB), TENSION
3-914-082-01 3-914-082-01 SPRING (M STOPPER), TENSI
3-913-924-01 3-913-924-01 SPRING (NUT), TENSION
3-914-116-01 3-914-116-01 SPRING (R), TENSION
3-913-922-01 3-913-922-01 SPRING (T RELEASE), TENSI
3-913-999-01 3-913-999-01 SPRING (TRIGGER E)
3-920-869-01 3-920-869-01 TAPE (MALE)
