Model Image
Manufacturer

Sony

Model Number

CFD454

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
4-928-974-01 4-928-974-01 BELT (MIDWAY)
4-386-710-02 4-386-710-02 CD DOOR CATCH
X-4920-348-1 X-4920-348-1 CHASSIS ASSY, MECHANICAL
4-928-960-02 4-928-960-02 CLAW, SAFETY
1-428-029-11 1-428-029-11 COIL,AIR-CORE
1-557-287-11 1-557-287-11 CORD, POWER
3-831-441-11 3-831-441-11 CUSHION
4-922-858-11 4-922-858-11 DAMPER, (BLU)
4-932-693-03 4-932-693-03 DECK, HEAD
1-577-327-11 1-577-327-11 FILTER, CERAMIC
X-4920-350-1 X-4920-350-1 GEAR (C) ASSY, TAKE-UP RE
4-928-967-01 4-928-967-01 GEAR (C), MIDWAY
4-928-978-01 4-928-978-01 GEAR (C), SUPPLY REEL
3-343-285-01 3-343-285-01 GEAR, FF
1-543-628-11 1-543-628-11 HEAD, MAGNETIC (REC/PB)
1-533-217-41 1-533-217-41 HOLDER, FUSE CLIP
1-566-970-11 1-566-970-11 HOUSING,CONNECTOR(PC BOAR
8-759-148-30 8-759-148-30 IC UPD6372GS
8-752-074-49 8-752-074-49 IC702 CXA1182Q-Z
4-930-241-01 4-930-241-01 INSULATOR
1-563-716-21 1-563-716-21 JACK, PIN 2P
4-928-982-01 4-928-982-01 LEVER (C)
X-4920-347-1 X-4920-347-1 LEVER ASSY, FR
4-928-993-01 4-928-993-01 LEVER, FF
4-928-994-01 4-928-994-01 LEVER, PAUSE
4-928-991-01 4-928-991-01 LEVER, PLAY
4-934-511-01 4-934-511-01 LEVER, REC
4-930-208-01 4-930-208-01 LID, BATTERY CASE
1-410-975-11 1-410-975-11 MICRO INDUCTOR
4-930-253-01 4-930-253-01 MODEL NUMBER LABEL
1-564-706-51 1-564-706-51 PIN, CONNECTOR (SMALL TYP
1-564-707-61 1-564-707-61 PIN, CONNECTOR (SMALL TYP
1-564-708-51 1-564-708-51 PIN, CONNECTOR (SMALL TYP
1-564-704-11 1-564-704-11 PIN, CONNECTOR (SMALL TYP

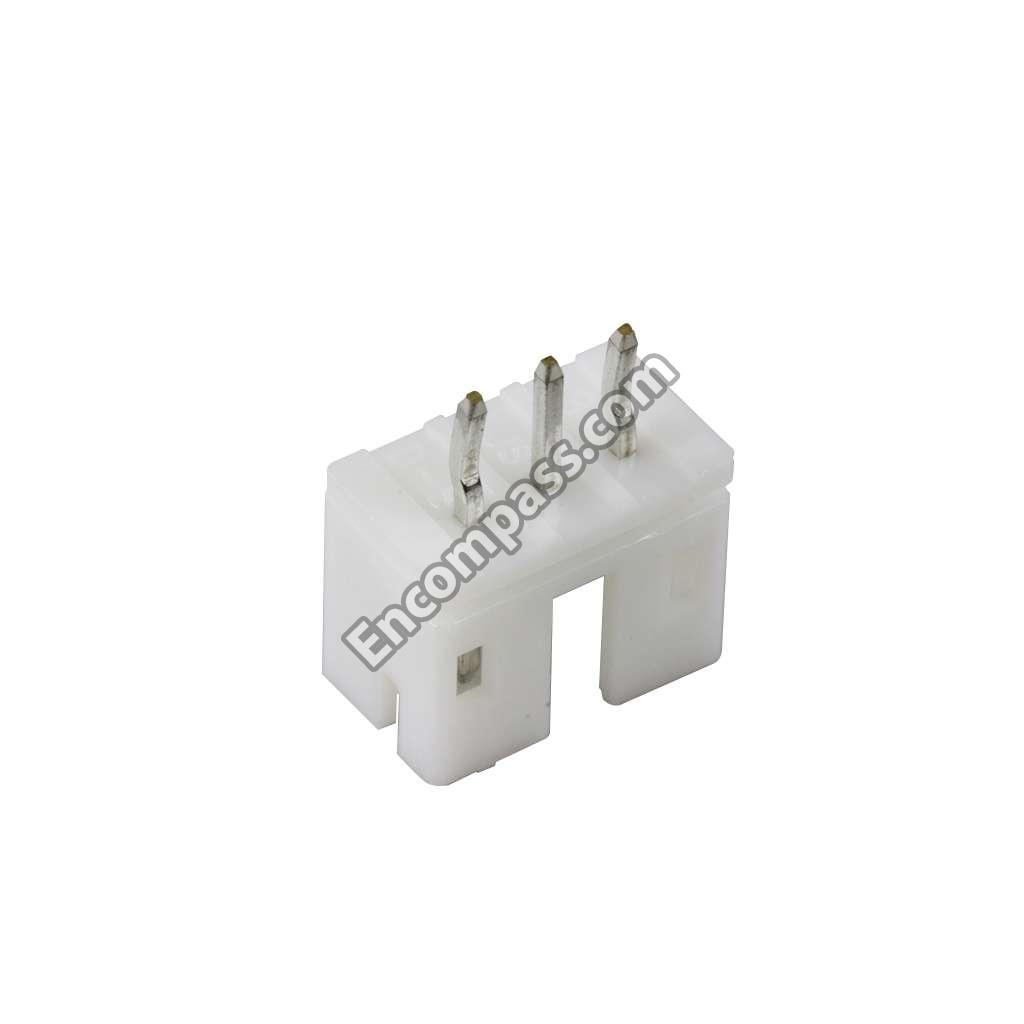

1-564-705-11 1-564-705-11 PIN, CONNECTOR (SMALL TYP
4-928-962-01 4-928-962-01 PINCH ROLLER
4-928-961-01 4-928-961-01 PLATE, PAUSE LOCK
4-930-252-01 4-930-252-01 PLATE,SHIELD
4-928-957-01 4-928-957-01 RETAINER, CASSETTE
4-930-223-01 4-930-223-01 RETAINER,INLET
2-625-186-01 2-625-186-01 RING (C),CENTER
9-911-863-99 9-911-863-99 SPACER
4-928-973-01 4-928-973-01 SPRING
3-343-381-01 3-343-381-01 SPRING, BT
4-928-972-01 4-928-972-01 SPRING, TENSION (COIL) (S
2-625-191-01 2-625-191-01 SPRING,COMPRESSION
4-936-201-01 4-936-201-01 SPRING,COMPRESSION (COIL)
4-931-746-01 4-931-746-01 SPRING,COMPRESSION(COIL)
1-571-760-11 1-571-760-11 SWITCH,KEY BOARD
1-571-330-21 1-571-330-21 SWITCH,LEAF
1-571-890-11 1-571-890-11 SWITCH,LEAF
1-571-936-11 1-571-936-11 SWITCH,LEAF
4-920-986-01 4-920-986-01 TERMINAL, ANTENNA
1-424-150-11 1-424-150-11 TRANSFORMER,LINE FILTER
