Model Image
Manufacturer

Sony

Model Number

CFDE100LIV3

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

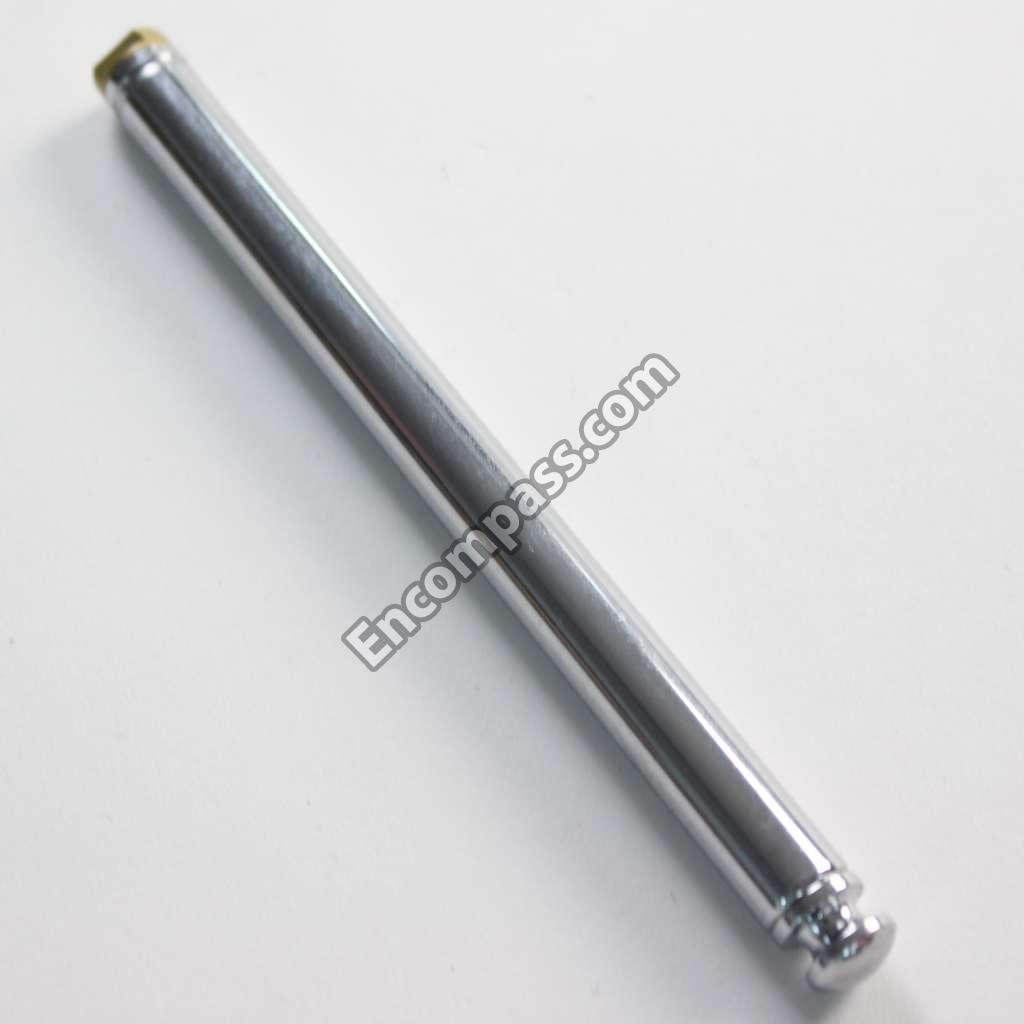

1-754-282-31 1-754-282-31 ANTENNA TELESCOPIC
2-587-584-31 2-587-584-31 BUTTON (MD REC)
X-2108-355-1 X-2108-355-1 CABINET (FRONT) SUB ASSY
2-587-569-51 2-587-569-51 CABINET (REAR)
8-820-138-25 8-820-138-25 DEVICE OPTICAL KSM-900AAA/C2NP
2-587-577-01 2-587-577-01 HANDLE (SILVER/WHITE)
2-587-574-81 2-587-574-81 LID CD
X-2108-356-1 X-2108-356-1 LID SUB ASSY CASSWTTW
2-587-572-02 2-587-572-02 PANEL (L)
2-587-571-02 2-587-571-02 PANEL (LOWER)
2-587-573-02 2-587-573-02 PANEL (R)
X-2108-357-2 X-2108-357-2 PANEL (UPPER) SUB ASSY
1-435-917-22 1-435-917-22 TRANSFORMER POWER (US CND E92
