Model Image
Manufacturer

Sony

Model Number

CFDS350

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
2-547-169-01 2-547-169-01 ANT, TERMINAL
1-754-376-11 1-754-376-11 ANTENNA, TELESCOPIC
2-547-135-61 2-547-135-61 BLUE CASSETTE PAUSE BUTTON
2-547-131-51 2-547-131-51 BLUE CD BUTTON
2-547-160-41 2-547-160-41 BLUE CD FUNCTION BUTTON
2-547-133-31 2-547-133-31 BLUE CD MODE BUTTON
2-547-132-41 2-547-132-41 BLUE CD VOLUME BUTTON
2-547-141-22 2-547-141-22 BUTTON, PLAY (FOR BLUE) (EXCE

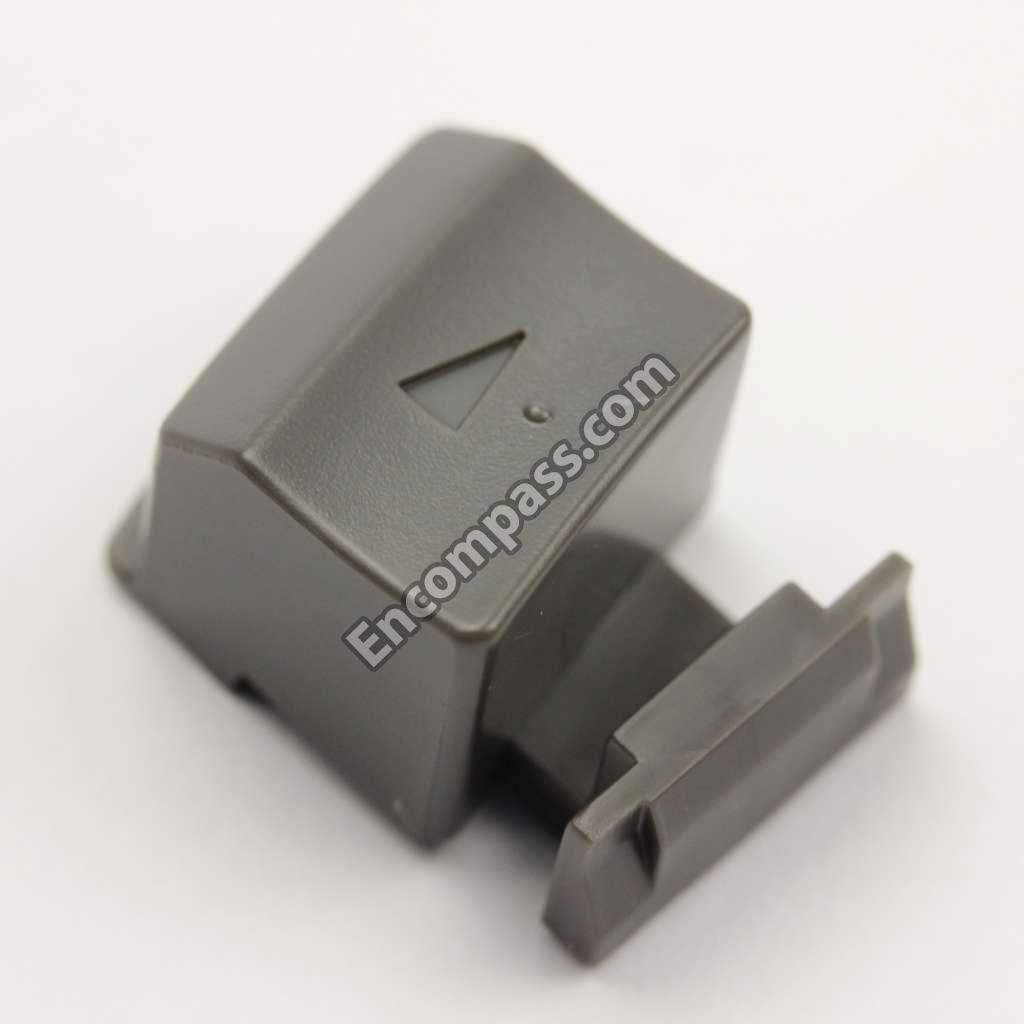

2-547-141-02 2-547-141-02 BUTTON, PLAY (FOR SILVER)
2-547-134-01 2-547-134-01 BUTTON, POWER
X-2050-182-1 X-2050-182-1 CABI (FRONT) SUB ASSY
X-2050-181-2 X-2050-181-2 CABI (FRONT) SUB ASSY
X-2055-061-1 X-2055-061-1 CABINET (FRONT) SUB ASSY
2-547-120-71 2-547-120-71 CABINET, BOTTOM
2-547-120-51 2-547-120-51 CABINET, BOTTOM
2-547-120-41 2-547-120-41 CABINET, BOTTOM
2-547-120-31 2-547-120-31 CABINET, BOTTOM
2-547-120-22 2-547-120-22 CABINET, BOTTOM
2-547-113-15 2-547-113-15 CABINET, TOP
1-831-926-11 1-831-926-11 CABLE, FLEXIBLE FLAT (11
2-547-123-21 2-547-123-21 CASSETTE, HOLDER
2-547-123-01 2-547-123-01 CASSETTE, HOLDER
2-547-144-11 2-547-144-11 COVER, HANDLE
2-547-144-01 2-547-144-01 COVER, HANDLE
2-547-130-01 2-547-130-01 COVER, TOP
2-547-157-11 2-547-157-11 COVER,HANDLE(R)
2-547-157-01 2-547-157-01 COVER,HANDLE(R)
1-805-772-11 1-805-772-11 DISPLAY PANEL, LIQUID CRY
2-547-165-21 2-547-165-21 ESCUTCHEON,LCD
2-547-165-01 2-547-165-01 ESCUTCHEON,LCD
2-547-124-11 2-547-124-11 HANDLE
2-547-124-01 2-547-124-01 HANDLE
2-547-158-01 2-547-158-01 HOLDER,HANDLE(L)
2-547-159-01 2-547-159-01 HOLDER,HANDLE(R)
2-547-164-01 2-547-164-01 HOLDER,LCD
6-805-357-01 6-805-357-01 IC UPD789477GC-A49-8BT
6-805-382-01 6-805-382-01 IC UPD789477GC-A51-8BT-A
A-1098-557-A A-1098-557-A LCD MOUNTED PC BOARD
2-547-122-51 2-547-122-51 LID, CD
A-1211-775-A A-1211-775-A MF-S350//C
A-1098-553-A A-1098-553-A MOUNTED C, BOARD , POWER
A-1098-547-A A-1098-547-A MOUNTED C, BOARD, MAI N
A-1098-546-A A-1098-546-A MOUNTED C, BOARD,HEAD PHO
8-848-483-21 8-848-483-21 OPTICAL PICKUP KSS-213C/C2RP1
2-547-143-01 2-547-143-01 PLATE, LIGHT GUIDE
1-435-917-22 1-435-917-22 POWER TRANSFORMER
1-865-638-11 1-865-638-11 PWB, BATTERY-1
1-865-639-11 1-865-639-11 PWB, BATTERY-2
2-584-370-01 2-584-370-01 SHEET, LCD
2-547-135-01 2-547-135-01 SILVER CASSETTE PAUSE BUTTON
2-547-142-01 2-547-142-01 SILVER CASSETTE RECORD BUTTON
2-547-139-02 2-547-139-02 SILVER CASSETTE REWIND BUTTON

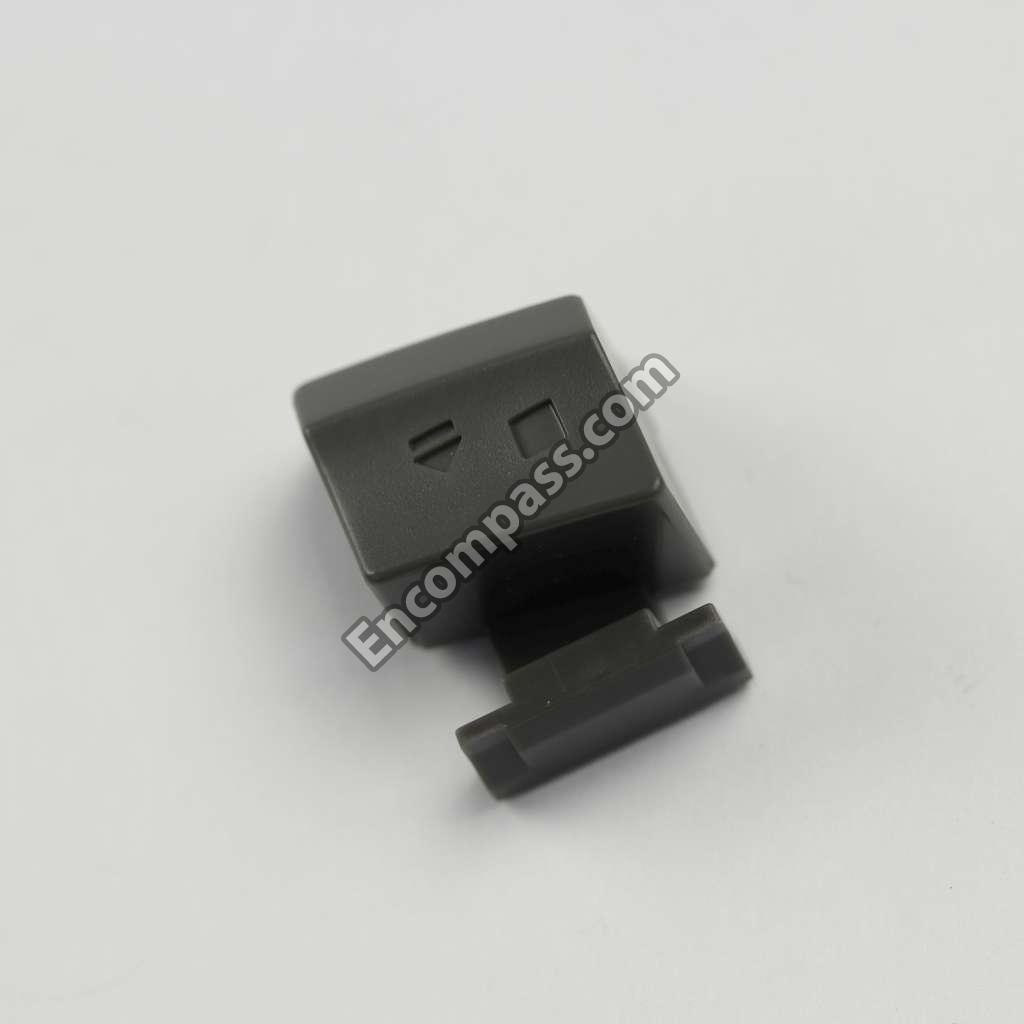

2-547-136-02 2-547-136-02 SILVER CASSETTE S/E BUTTON
2-547-131-01 2-547-131-01 SILVER CD BUTTON
2-547-160-11 2-547-160-11 SILVER CD FUNCTION BUTTON
2-547-133-11 2-547-133-11 SILVER CD MODE BUTTON
2-547-134-11 2-547-134-11 SILVER POWER BUTTON
2-547-170-01 2-547-170-01 SPRING, CASSETTE
2-547-171-01 2-547-171-01 SPRING, CD
2-547-172-01 2-547-172-01 TAPE, LCD WINDOW
1-443-758-11 1-443-758-11 TRANSFORMER, BIAS OSCILLA
A-1098-590-A A-1098-590-A TUNER PC BOARD ASSY
2-547-162-01 2-547-162-01 WINDOW,LCD
