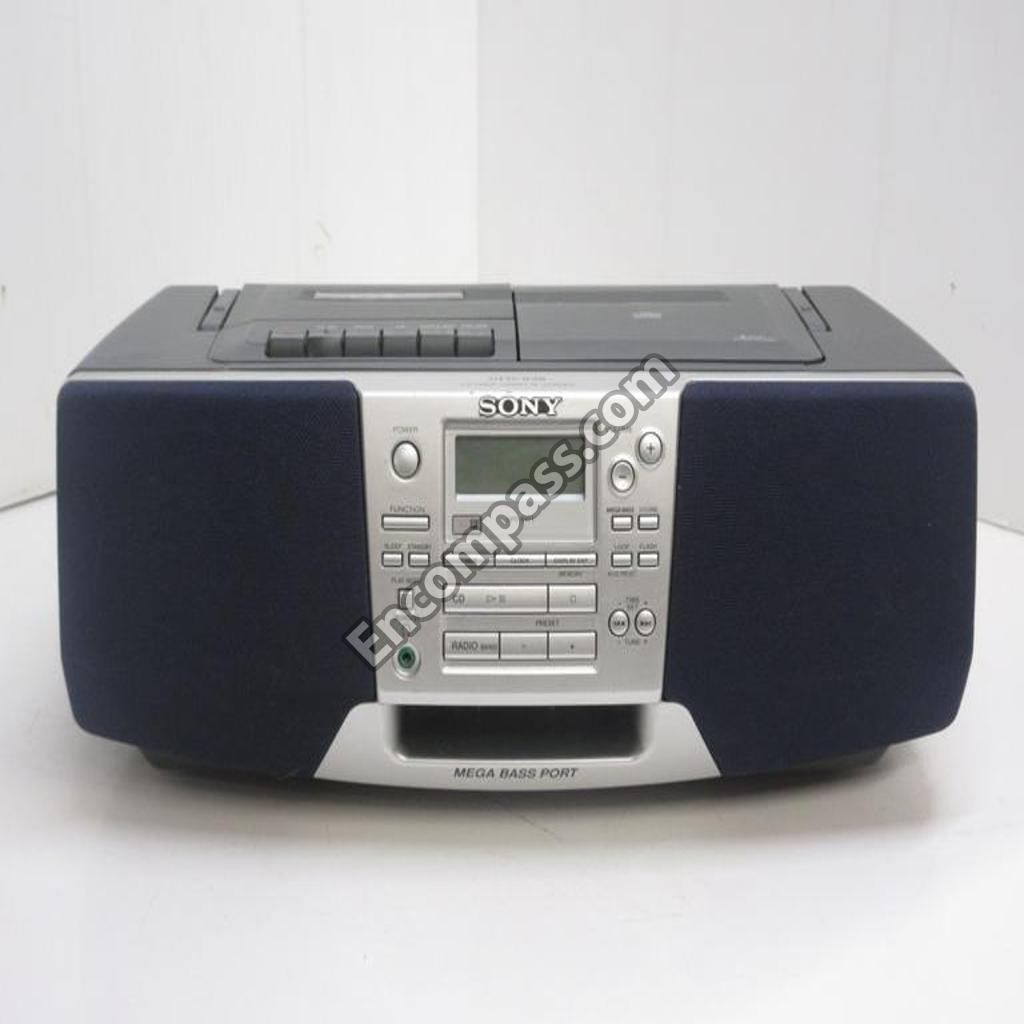

Model Image
Manufacturer

Sony

Model Number

CFDS38

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
3-032-044-01 3-032-044-01 BUTTON (FF)
3-032-046-01 3-032-046-01 BUTTON (PAUSE)
3-032-042-01 3-032-042-01 BUTTON (PLAY)
3-032-041-01 3-032-041-01 BUTTON (REC)
3-032-045-01 3-032-045-01 BUTTON (STOP)
1-127-879-31 1-127-879-31 CAPACITOR, CERAMIC 0.018M
1-127-888-31 1-127-888-31 CAPACITOR, CERAMIC 0.1MF/
1-127-886-31 1-127-886-31 CAPACITOR,CERAMIC 0.068MF
1-781-344-11 1-781-344-11 FILTER, CERAMIC
X-3376-916-1 X-3376-916-1 GRILLE ASSY (L), SPK/BLUE
X-3376-917-1 X-3376-917-1 GRILLE ASSY (L), SPK/RED
X-3376-920-1 X-3376-920-1 GRILLE ASSY (R), SPK/RED
3-032-035-01 3-032-035-01 HOLDER (LCD)
8-759-577-14 8-759-577-14 IC UPD64MC-708-5A4-E2
8-848-483-21 8-848-483-21 LASER PICKUP
3-040-857-01 3-040-857-01 LEVER (P)
3-035-372-01 3-035-372-01 PLATE, HEAT RESISTING
1-692-960-11 1-692-960-11 S501 CD LID LATCH SWITCH
3-034-331-01 3-034-331-01 SPRING (CD)
3-009-214-01 3-009-214-01 SPRING, REC
1-433-741-11 1-433-741-11 TRANSFORMER, IF
1-781-357-11 1-781-357-11 VIBRATOR, CERAMIC
3-032-033-01 3-032-033-01 WINDOW (LCD)
