Model Image
Manufacturer

Sony

Model Number

CFS7000

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
8-729-801-45 8-729-801-45 2SC3064E,TRANSISTOR
3-320-213-01 3-320-213-01 BUTTON, FWD
3-320-215-01 3-320-215-01 BUTTON, REC
3-320-217-01 3-320-217-01 BUTTON, REC MUTE
3-320-211-01 3-320-211-01 BUTTON, REV
3-320-210-01 3-320-210-01 BUTTON, REW
3-320-212-01 3-320-212-01 BUTTON, STOP
3-320-214-01 3-320-214-01 BUTTON,FF
3-320-216-01 3-320-216-01 BUTTON,PAUSE
3-320-278-01 3-320-278-01 CARTON CFS-7000
3-320-251-01 3-320-251-01 CHASSIS,BUTTON
1-459-434-00 1-459-434-00 COIL,VARIABLE 22MH
1-564-586-11 1-564-586-11 CONNECTOR,PIN (U TYPE) 13
3-320-268-01 3-320-268-01 CUSHION
3-320-269-01 3-320-269-01 CUSHION (A)
3-320-270-01 3-320-270-01 CUSHION (B)
3-320-271-01 3-320-271-01 CUSHION (C)
3-319-224-11 3-319-224-11 DAMPER, SMALL
8-719-918-97 8-719-918-97 DIODE SLP-153B-40
3-320-227-11 3-320-227-11 HANDLE (BLACK)
3-320-227-21 3-320-227-21 HANDLE (RED)
3-320-227-01 3-320-227-01 HANDLE (WHITE)
3-320-236-01 3-320-236-01 HEAT SINK
3-320-222-01 3-320-222-01 HOLDER,LED

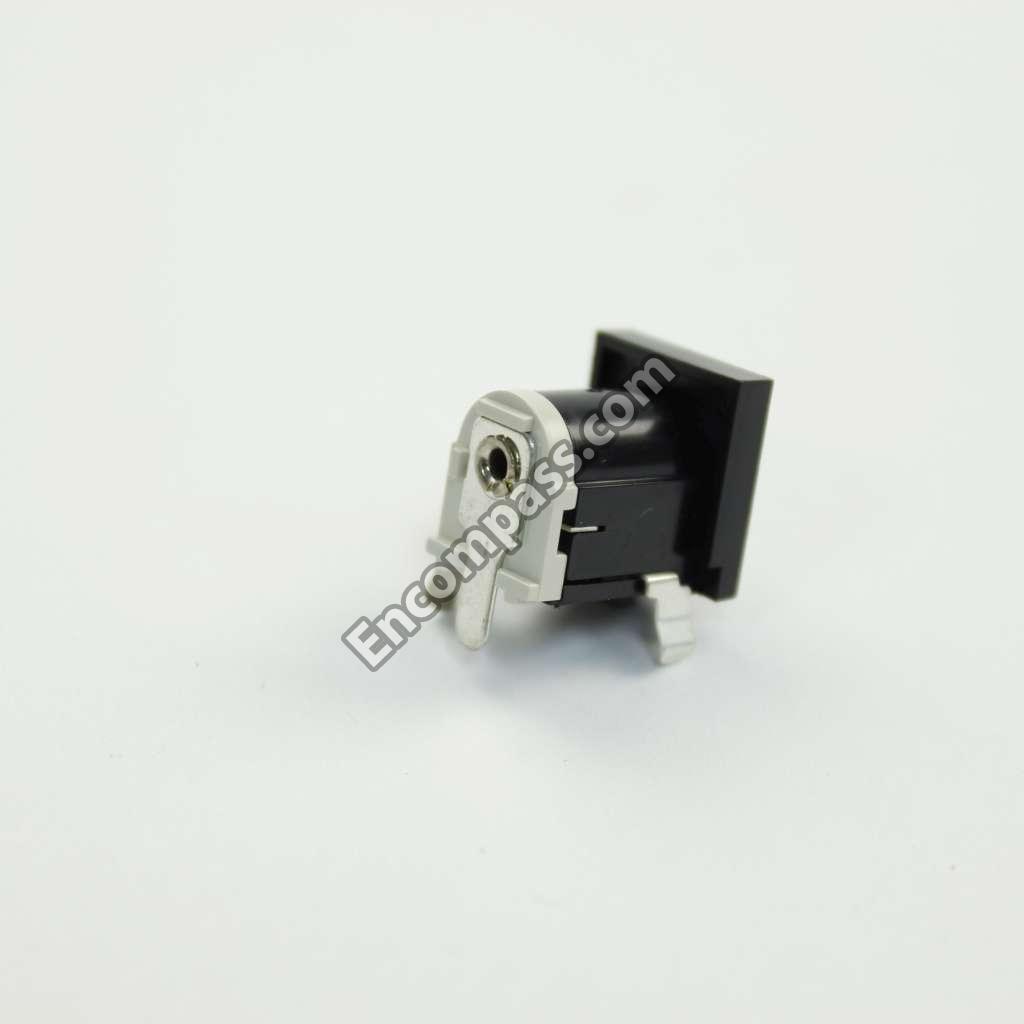

1-507-954-31 1-507-954-31 JACK
3-320-221-11 3-320-221-11 KNOB,CONTROL
3-320-223-01 3-320-223-01 KNOB,TUNING
X-3320-209-1 X-3320-209-1 LID ASSY (RD) CASSETTE
X-3320-207-1 X-3320-207-1 LID ASSY (WHITE) CASSETTE
A-3215-639-A A-3215-639-A MCB,MAIN
1-612-951-11 1-612-951-11 PCB, POWER
1-612-948-11 1-612-948-11 PCB,BUTTON
3-320-263-01 3-320-263-01 PLATE (B),SHIELD
3-320-265-01 3-320-265-01 PLATE (C),SHIELD
3-320-264-01 3-320-264-01 PLATE (D),SHIELD
3-320-228-11 3-320-228-11 PLATE,SIDE,HANDLE (BLK)
3-320-228-21 3-320-228-21 PLATE,SIDE,HANDLE (RED)
3-320-228-01 3-320-228-01 PLATE,SIDE,HANDLE (WHT)
3-320-225-01 3-320-225-01 POINTER
3-320-224-01 3-320-224-01 RACK,POINTER
3-320-247-21 3-320-247-21 REATINER, SPRING
X-3320-202-1 X-3320-202-1 RETAINER(B) ASSY,LID SHAF
3-320-247-01 3-320-247-01 RETAINER, SPRING
7-621-771-06 7-621-771-06 SCREW ? 2X5
1-562-563-11 1-562-563-11 SOCKETR,CONNECTOR 13P
3-320-259-11 3-320-259-11 SPEAKER BOX,REAR(LEFT)BLK
3-320-259-21 3-320-259-21 SPEAKER BOX,REAR(LEFT)RED
3-320-259-01 3-320-259-01 SPEAKER BOX,REAR(LEFT)WHT
3-320-258-01 3-320-258-01 SPEAKER BOX,REAR(RIGHT)
3-320-258-21 3-320-258-21 SPEAKER BOX,REAR(RIGHT)RE
3-320-229-01 3-320-229-01 SPRING
3-320-202-01 3-320-202-01 SPRING (A)
3-320-203-01 3-320-203-01 SPRING (B)
1-554-472-00 1-554-472-00 SWITCH,PUSH
1-554-798-31 1-554-798-31 SWITCH,SLIDE
3-320-230-01 3-320-230-01 TERMINAL BOARD,PLUS
