Model Image
Manufacturer

Sony

Model Number

CMTMX700NI

Description

Micro Hi-fi Component System

Interactive Exploded View

Parts List

Part Number Description
3-873-771-11 3-873-771-11 ADAPTOR (12) (UNIVERSAL DOCK
1-754-737-11 1-754-737-11 ANTENNA 2.4GHZ
4-183-971-01 4-183-971-01 BASE (CD)
X-2548-812-1 X-2548-812-1 BASE (UPPER) ASSY
X-2560-389-1 X-2560-389-1 BASE LOWER ASSY
4-175-916-11 4-175-916-11 BUTTON EJECT
4-175-918-11 4-175-918-11 BUTTON ENTER
4-175-914-11 4-175-914-11 BUTTON POWER
4-175-919-11 4-175-919-11 BUTTON TUNE
4-175-953-11 4-175-953-11 CASE

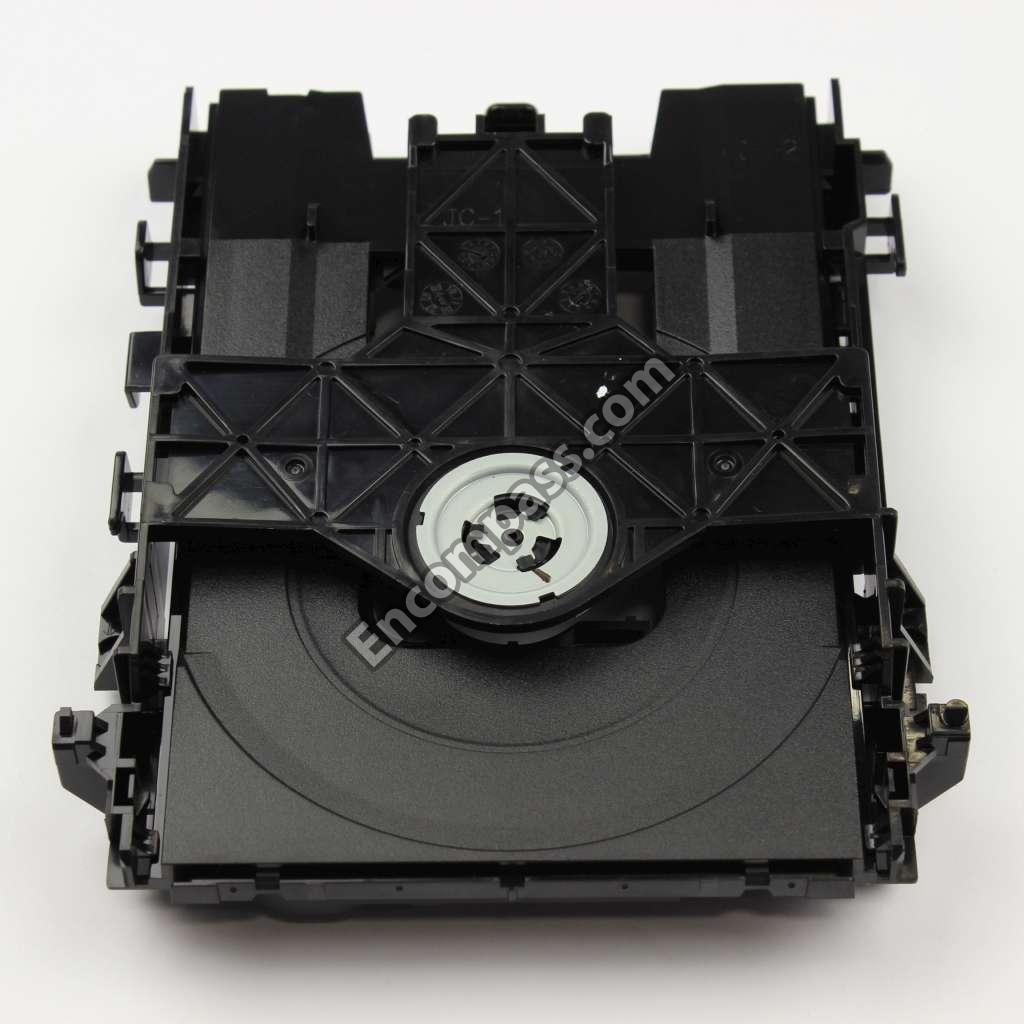

A-1764-002-A A-1764-002-A CDM85 (CD) ASSY (INCLUDING
8-820-321-05 8-820-321-05 DEVICE OPTICAL KHM-313CAA/C2RP
1-793-184-41 1-793-184-41 FM WIRE ANTENNA CONNECTOR (F T
3-198-753-01 3-198-753-01 FOOT FELT

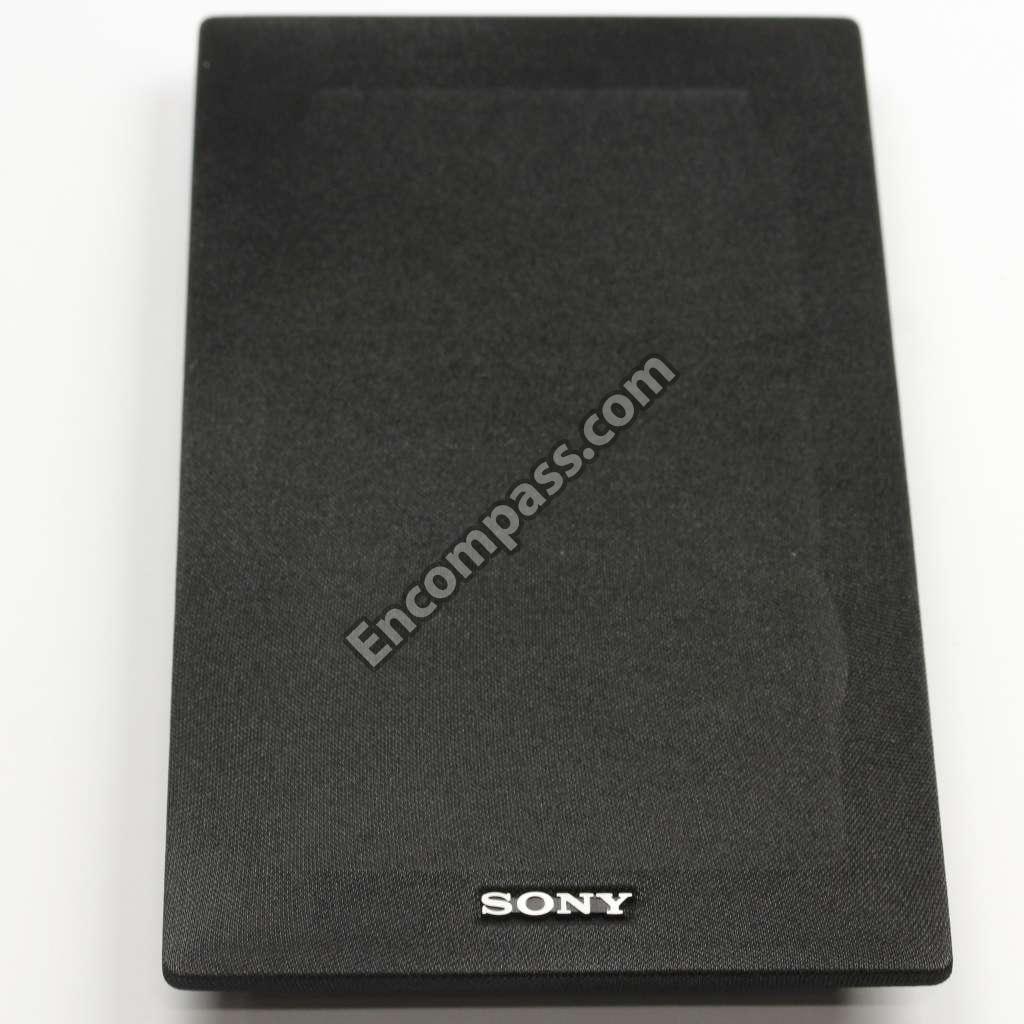

X-2547-490-1 X-2547-490-1 FRAME ASSY GRILLE SSCMX700
A-1789-889-A A-1789-889-A IP BOARD COMPLETE
4-175-912-01 4-175-912-01 KNOB (VOL)
4-175-944-01 4-175-944-01 LEVER LOCK

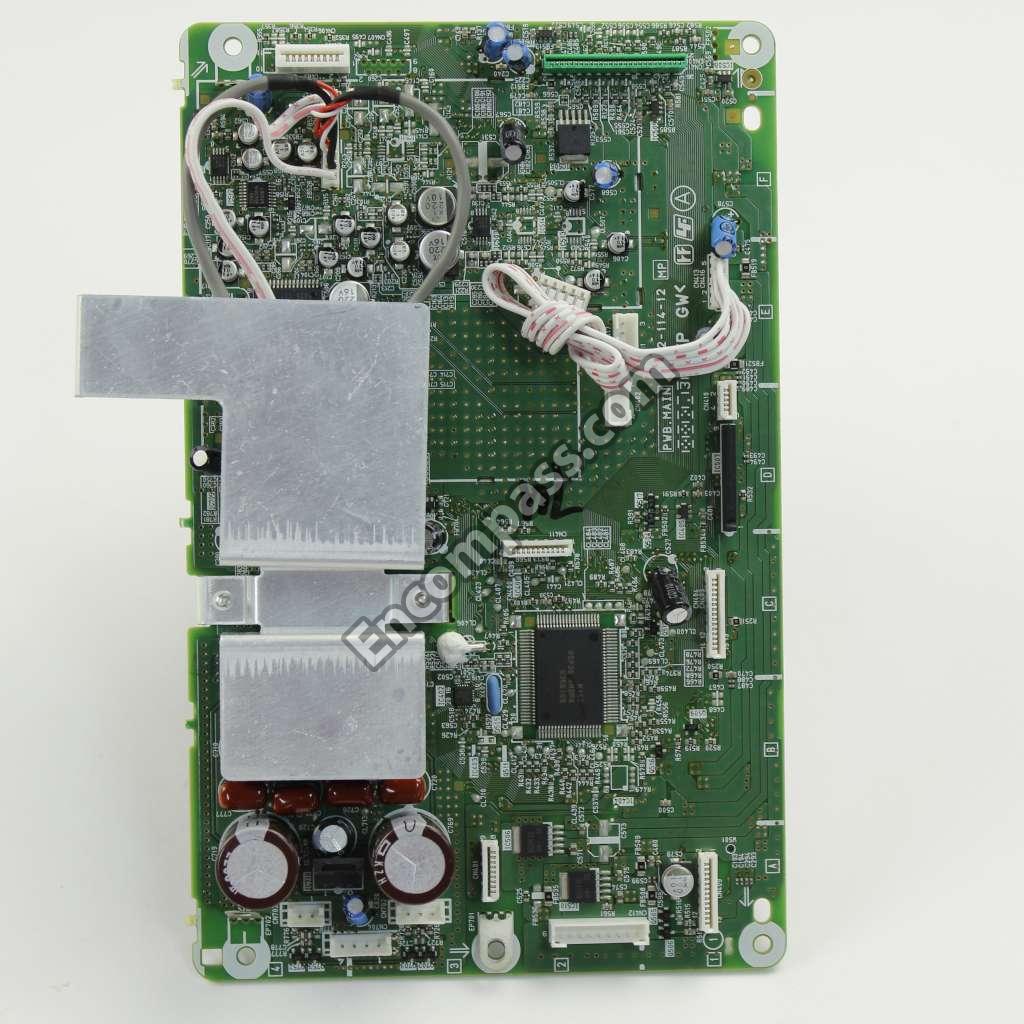

A-1774-092-A A-1774-092-A MAIN BOARD, COMPLETE (MX700NI:
A-1770-814-A A-1770-814-A OVERALL ASSY SSCMX700
4-175-911-11 4-175-911-11 PANEL CD
1-489-132-11 1-489-132-11 RM-AMU096 REMOTE COMMANDERR
