Model Image
Manufacturer

Sony

Model Number

DAVC770

Description

Compact Av System

Interactive Exploded View

Parts List

Part Number Description
1-501-374-72 1-501-374-72 ANTENNA, AM LOOP
1-754-147-11 1-754-147-11 ANTENNA, FM (F-TYPE CONN)
4-241-733-01 4-241-733-01 BASE (SHUTTER)
X-4954-622-1 X-4954-622-1 BASE (SLIDER 2) ASSY
X-4954-627-1 X-4954-627-1 BASE (SLIDER 5) ASSY
4-243-416-01 4-243-416-01 BATTERY COVER

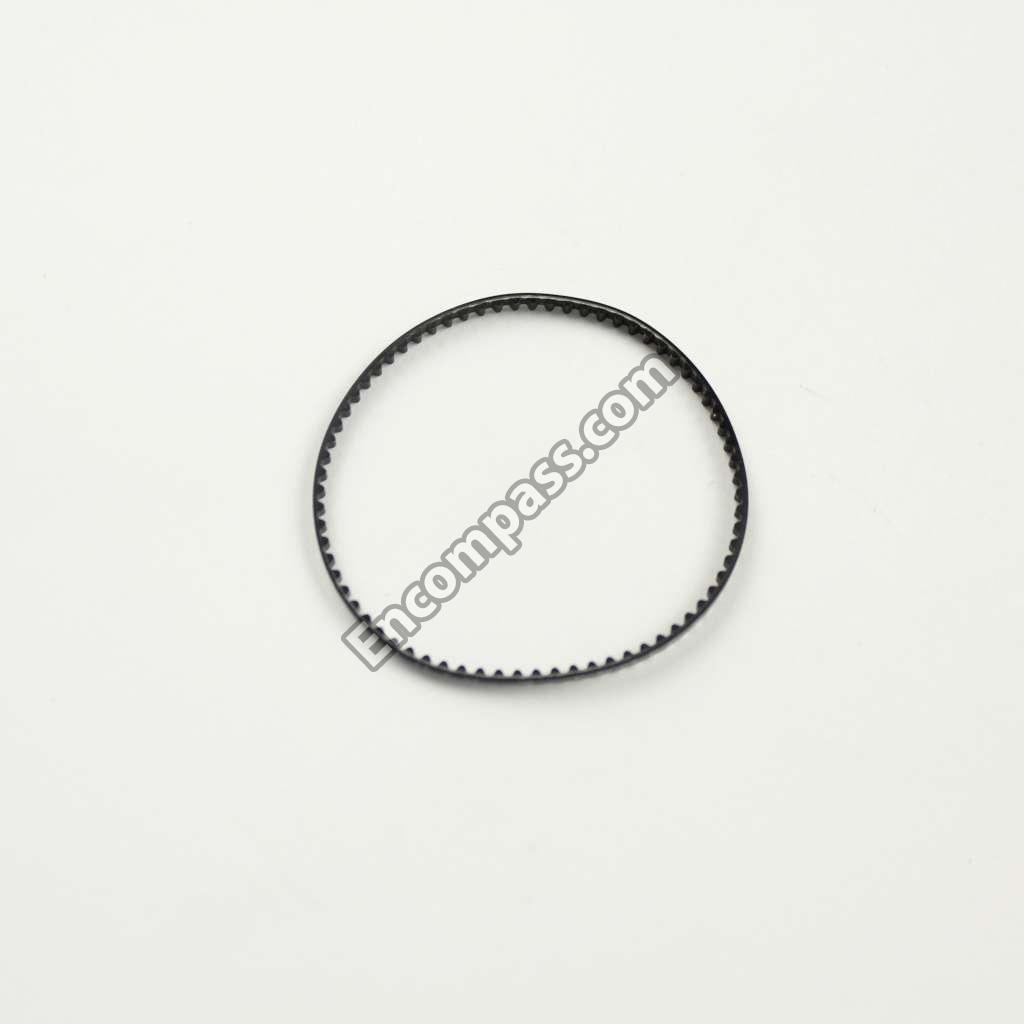

4-239-708-02 4-239-708-02 BELT (FRONT), TIMING
4-239-706-02 4-239-706-02 BELT (REAR), TIMING

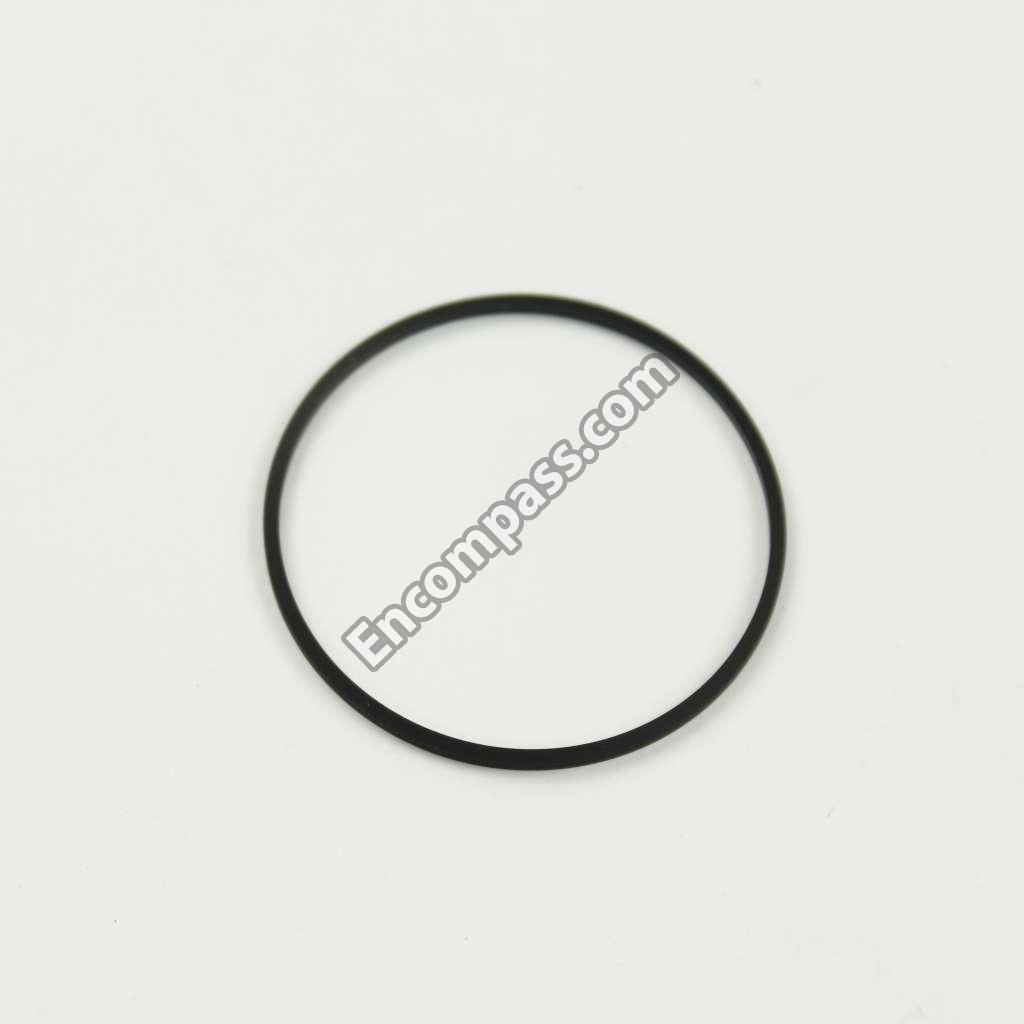

4-247-349-02 4-247-349-02 BELT (ROLLER)
4-211-237-01 4-211-237-01 BELT (STOCKER)
A-4746-947-A A-4746-947-A CABINET ASSY
1-824-481-11 1-824-481-11 CABLE, FLEXIBLE FLAT (14
4-239-692-01 4-239-692-01 CAM (BU U/D)
4-239-695-01 4-239-695-01 CAM (EJECT LOCK)
4-239-693-01 4-239-693-01 CAM (GEAR)
1-124-234-00 1-124-234-00 CAPACITOR ELECT 100MF/25V
1-100-192-11 1-100-192-11 CAPACITOR,ELECT 1000MF 20
1-816-955-11 1-816-955-11 CONNECTOR, FFC/FPC 11P
1-782-981-23 1-782-981-23 CORD CONNECTION(VIDEO)
8-719-500-62 8-719-500-62 DIODE D5SBA60

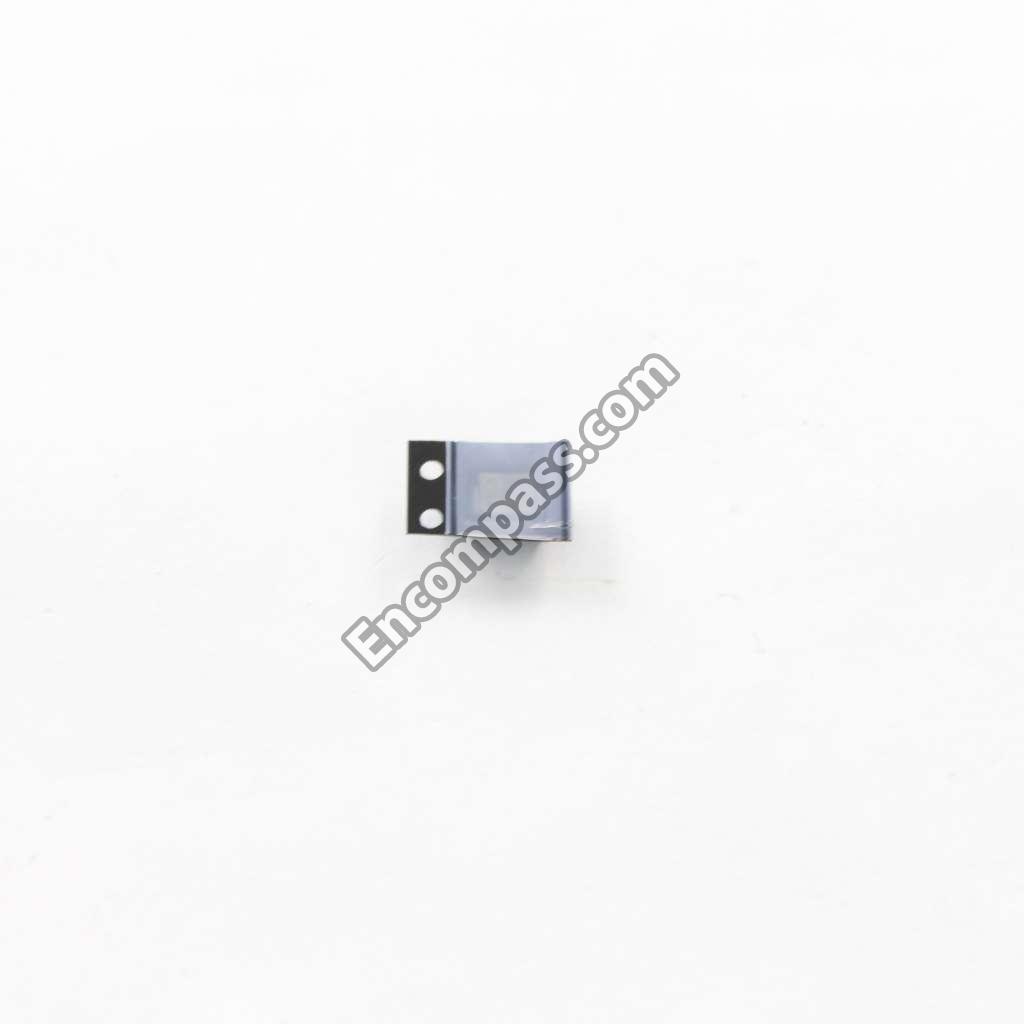

6-500-260-01 6-500-260-01 DIODE P6SMB39AT3

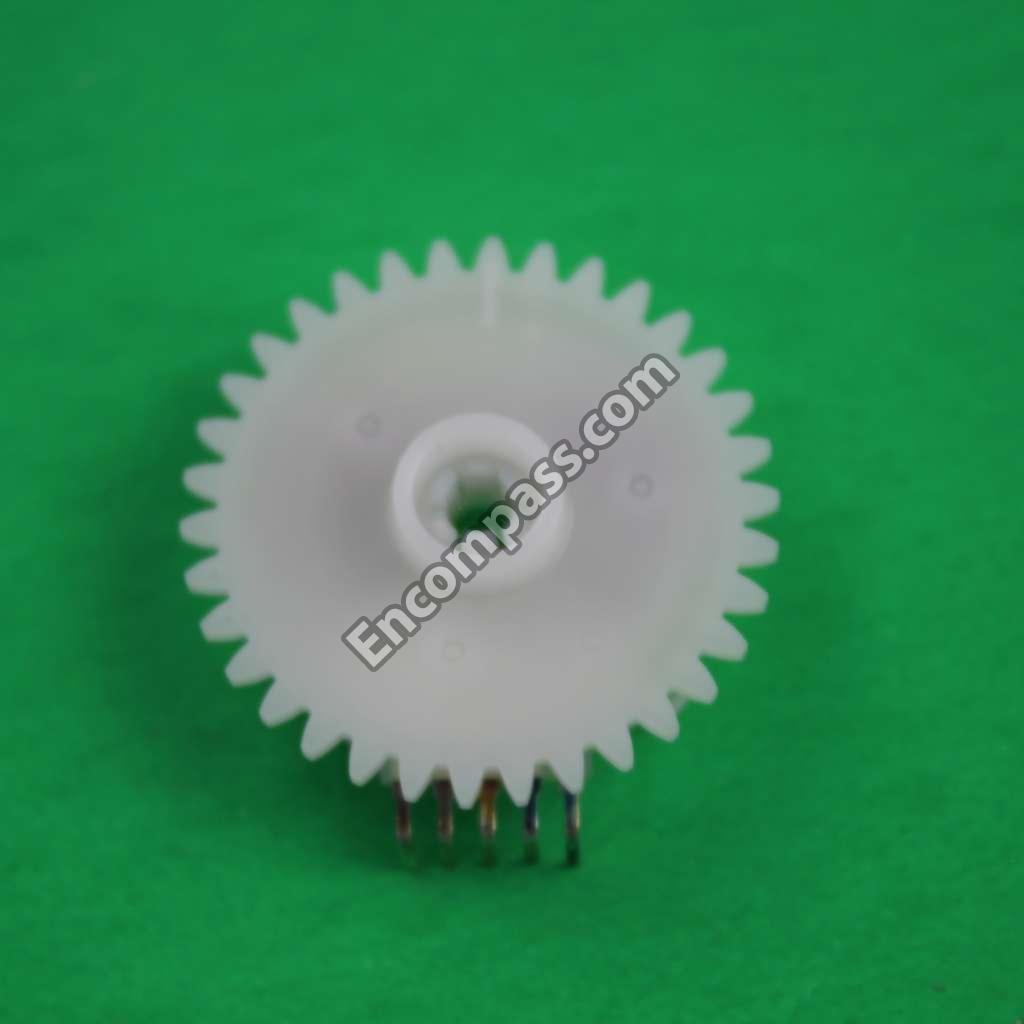

1-477-300-11 1-477-300-11 ENCODER, ROTARY

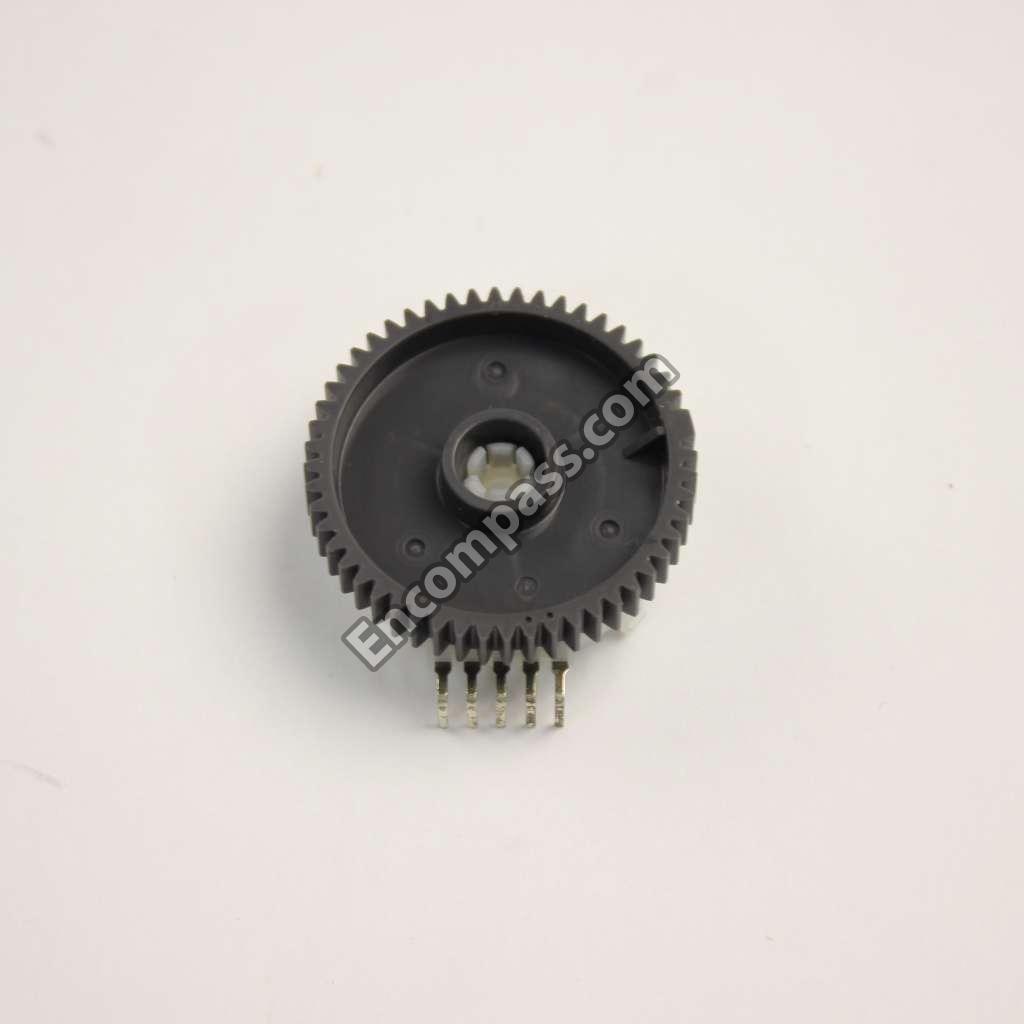

1-477-299-11 1-477-299-11 ENCODER, ROTARY
4-239-666-01 4-239-666-01 GEAR
4-239-697-01 4-239-697-01 GEAR (CENTER)
4-239-696-01 4-239-696-01 GEAR (EJECT LOCK)
4-239-688-01 4-239-688-01 GEAR (MODE 3)
4-240-018-01 4-240-018-01 GEAR (MODE 4)
4-240-019-01 4-240-019-01 GEAR (MODE 5)
4-239-694-01 4-239-694-01 GEAR (MODE CAM)
4-239-671-01 4-239-671-01 GEAR (ROLLER 5 CENTER)
4-239-670-01 4-239-670-01 GEAR (ROLLER 5 COMMUNICAT
4-239-667-01 4-239-667-01 GEAR (ROLLER CENTER)
4-239-669-01 4-239-669-01 GEAR (ROLLER COMMUNICATIO
4-239-686-01 4-239-686-01 GEAR (ROLLER DECELERATION
4-239-687-01 4-239-687-01 GEAR (STOCKER COMMUNICATI
4-239-689-01 4-239-689-01 GEAR (STOCKER DECELERATIO
4-240-020-01 4-240-020-01 GEAR (TIMING)
8-753-217-24 8-753-217-24 IC CXP973064-220R
6-805-368-01 6-805-368-01 IC MBM29DL324BE90TN-S550
6-802-150-01 6-802-150-01 IC MR27V3202F-8PTPZ020
6-802-979-01 6-802-979-01 IC MR27V3202F-KJTPZ060
6-802-830-01 6-802-830-01 IC MR27V3202F-KSTPZ060
6-600-013-01 6-600-013-01 IC TORX179L
6-802-374-01 6-802-374-01 IC UPD70F3033BYGF-M01-3BA
3-053-847-41 3-053-847-41 INSULATOR
4-239-668-01 4-239-668-01 LEVER (CENTER)
4-240-039-01 4-240-039-01 LEVER (DISC STOPPER)
4-239-650-01 4-239-650-01 LEVER (LIFTER)
X-4954-626-1 X-4954-626-1 LEVER (ROLLER) ASSY
X-4954-624-1 X-4954-624-1 LEVER (SLIDER 4) ASSY
4-241-599-01 4-241-599-01 LEVER (SUPPORT)
A-4735-953-A A-4735-953-A MOTOR (STOCKER) ASSY
A-4680-924-A A-4680-924-A MOTOR ASSY
A-4730-641-A A-4730-641-A MOUNTED C. BOARD,AUDIO (B
A-4728-876-A A-4728-876-A MOUNTED C. BOARD,KEY (B)
A-4730-636-A A-4730-636-A MOUNTED C.BOARD,DVD ASSY
A-4730-646-A A-4730-646-A MOUNTED C.BOARD,DVD ASSY
4-241-952-11 4-241-952-11 NOTE WHEN YOU MOVE THE SUBWOOF
4-239-647-01 4-239-647-01 PARASOL (MAIN)
4-239-649-01 4-239-649-01 PARASOL (STOCKER)
A-4713-410-A A-4713-410-A PICKUP UNIT
1-815-954-21 1-815-954-21 PIN, CONNECTOR (PC BOARD)
4-239-640-01 4-239-640-01 PINION (SLIDER)
4-239-699-01 4-239-699-01 PULLEY
4-239-683-01 4-239-683-01 PULLEY (MODE DECELERATION
4-239-698-01 4-239-698-01 PULLEY (STOCKER)
1-685-072-11 1-685-072-11 PWB, IO VIDEO
1-216-805-11 1-216-805-11 RESISTOR CHIP 47 1/10W 1608
1-245-391-51 1-245-391-51 RESISTOR,METAL FILM 0.12
4-239-702-01 4-239-702-01 ROLLER (DISC STOPPER)
4-239-646-01 4-239-646-01 ROLLER (ROLLER)
4-244-032-01 4-244-032-01 ROLLER, RUBBER
4-239-652-01 4-239-652-01 SCREW (ROLLER), STEP
4-241-734-01 4-241-734-01 SHAFT (SHUTTER)
4-241-209-01 4-241-209-01 SHEET, ADHESIVE
4-241-731-01 4-241-731-01 SHUTTER (A), LEVER
4-241-732-01 4-241-732-01 SHUTTER (B), LEVER
6-703-551-01 6-703-551-01 SP3723B
4-239-641-01 4-239-641-01 SPRING (1.2), TENSION
4-239-642-01 4-239-642-01 SPRING (3), TENSION COIL
4-239-643-01 4-239-643-01 SPRING (4), TENSION COIL
4-239-679-01 4-239-679-01 SPRING (5), TENSION COIL
4-240-981-01 4-240-981-01 SPRING (BASE SLIDER 5),TE
4-240-040-01 4-240-040-01 SPRING (DISC STOPPER), TO
4-241-735-01 4-241-735-01 SPRING (SHUTTER), COMPRES
4-240-041-01 4-240-041-01 SPRING (SLIDER 2), TENSIO
4-243-291-01 4-243-291-01 SPRING, TORSION
1-786-377-11 1-786-377-11 SWITCH, POWER
1-694-920-11 1-694-920-11 TERMINAL BOARD
X-4954-740-1 X-4954-740-1 WINDOW SUB ASSY
