Model Image
Manufacturer

Sony

Model Number

DAVDZ170

Description

Sony Bravia Theater System

Interactive Exploded View

Parts List

Part Number Description
4-159-493-01 4-159-493-01 BASE LOADING
4-159-497-01 4-159-497-01 BUTTON USB-DSZ
4-159-516-11 4-159-516-11 CASE (DSZ)
A-1749-923-A A-1749-923-A CDM85 (MB) ASSY
1-833-579-11 1-833-579-11 CORD CONNECTION (VIDEO
8-820-321-05 8-820-321-05 DEVICE OPTICAL KHM-313CAA/C2RP
1-542-830-11 1-542-830-11 ECM-AC2 MEASUREMENT MIC (MONO)
4-159-494-21 4-159-494-21 ESCUTCHEON (DSZ) (DZ170)
1-793-184-41 1-793-184-41 FM WIRE ANTENNA CONNECTOR (F T
2-639-385-02 2-639-385-02 FOOT (1 DE 4)BIG
6-715-433-01 6-715-433-01 IC MX29LV320DBTI 70
A-1746-494-A A-1746-494-A IO BOARD COMPLETE
4-159-500-01 4-159-500-01 KNOB VOL (DSZ)
A-1746-802-A A-1746-802-A MAIN BOARD COMPLETE (FOR
1-780-840-11 1-780-840-11 MULTI TERMINAL BOARD
4-159-492-01 4-159-492-01 PANEL LOADING

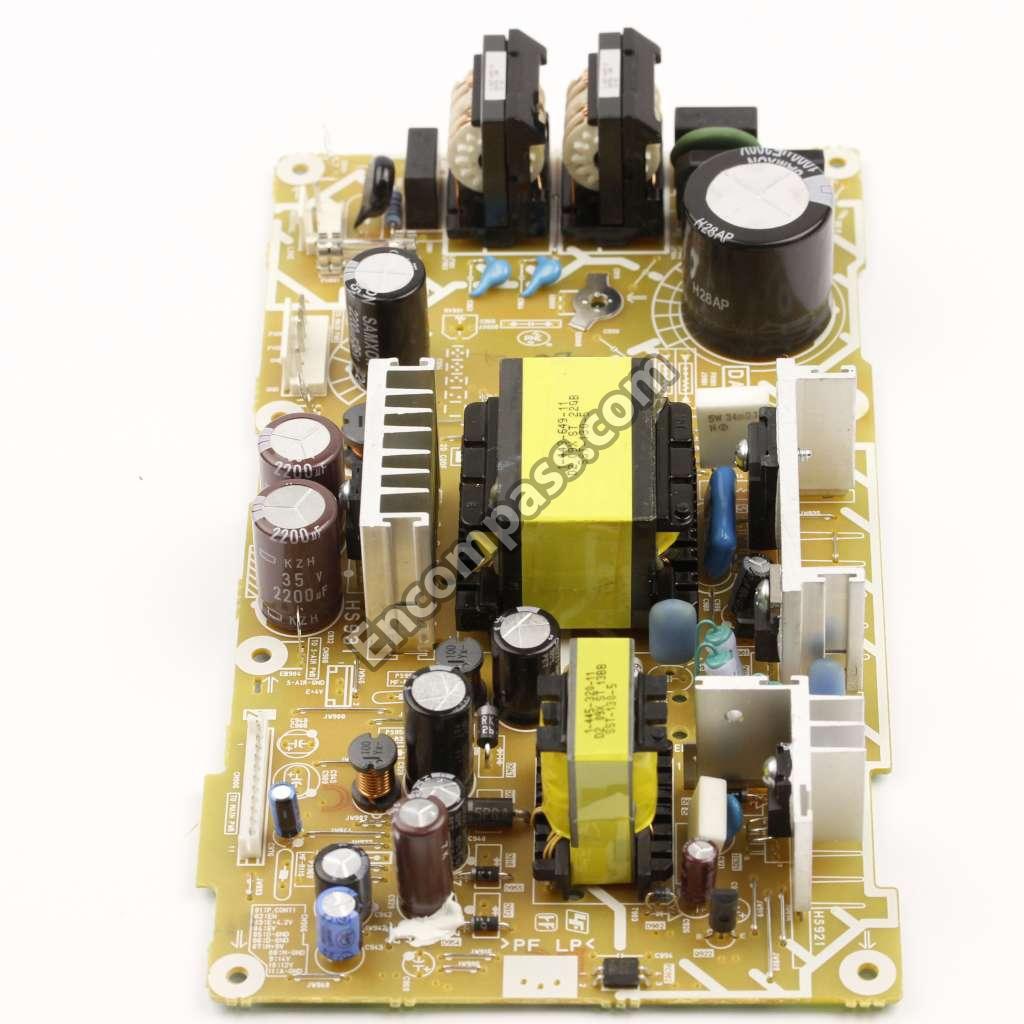

A-1745-463-A A-1745-463-A POWER BOARD COMPLETE
1-846-171-11 1-846-171-11 SPEAKER CORD SET
A-1745-795-A A-1745-795-A SS-CT101//C(A)(U) (USCND)
A-1745-731-A A-1745-731-A SS-TS102//CFL(A)(U) (FRONT
A-1745-736-A A-1745-736-A SS-TS102//CFR(A)(U) (FRONT
A-1745-741-A A-1745-741-A SS-TS102//CSL(A)(U) (SURROUND
A-1745-746-A A-1745-746-A SS-TS102//CSR(A)(U) (SURROUND

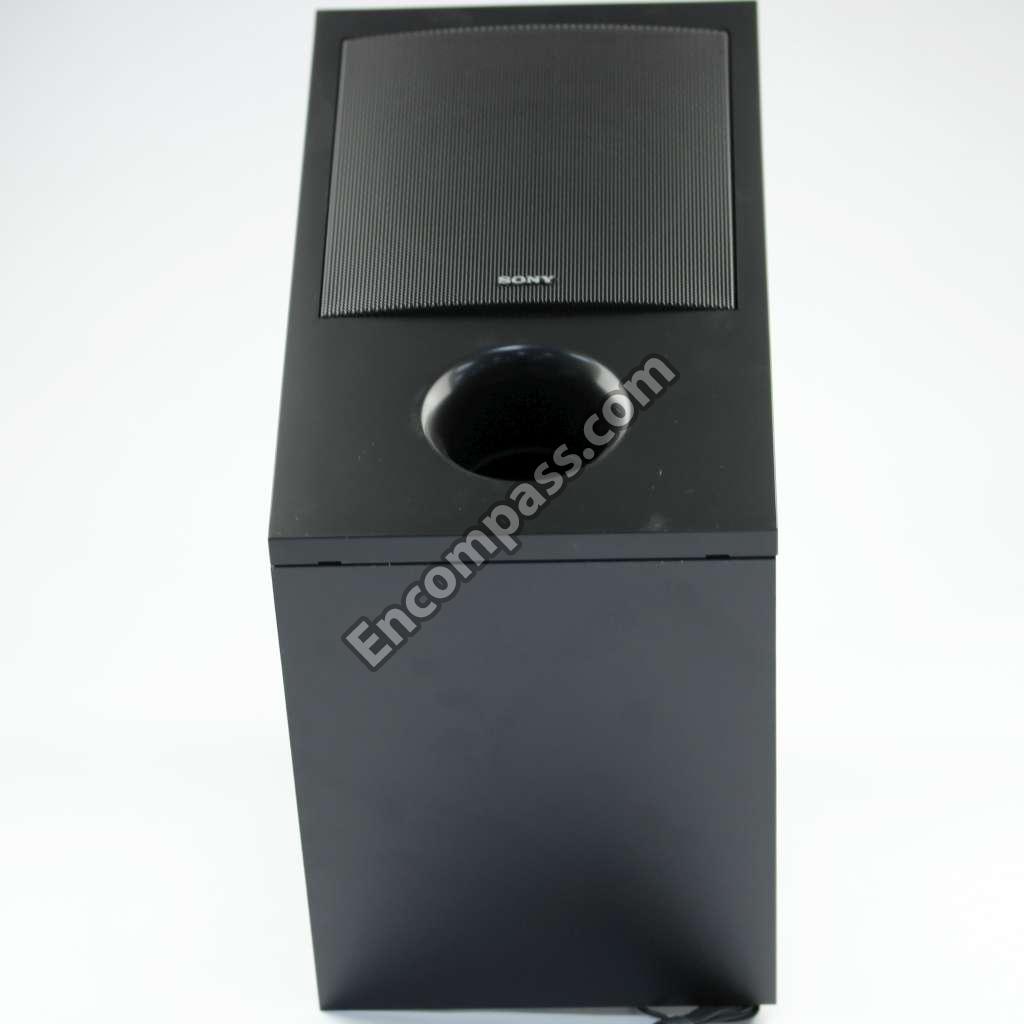

A-1745-803-A A-1745-803-A SS-WS102//C(A)(EA)
4-159-490-01 4-159-490-01 WINDOW (DSZ)
