Manufacturer
Sony
Model Number
DAVHDX576WF
Description
Sony Bravia Theater System
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
+BVTT 3X6 (SUMITITE) (SMALL) |
|
|
ANTENNA LOOP AM |
|
|
BOTTOM COVER (CORD) (SPEAKER |
|
|
BRACKET (PIPE) (MOUNTING PLATE |
|
|
CONNECTOR (F TYPE ADAPTOR) - F |
|
|

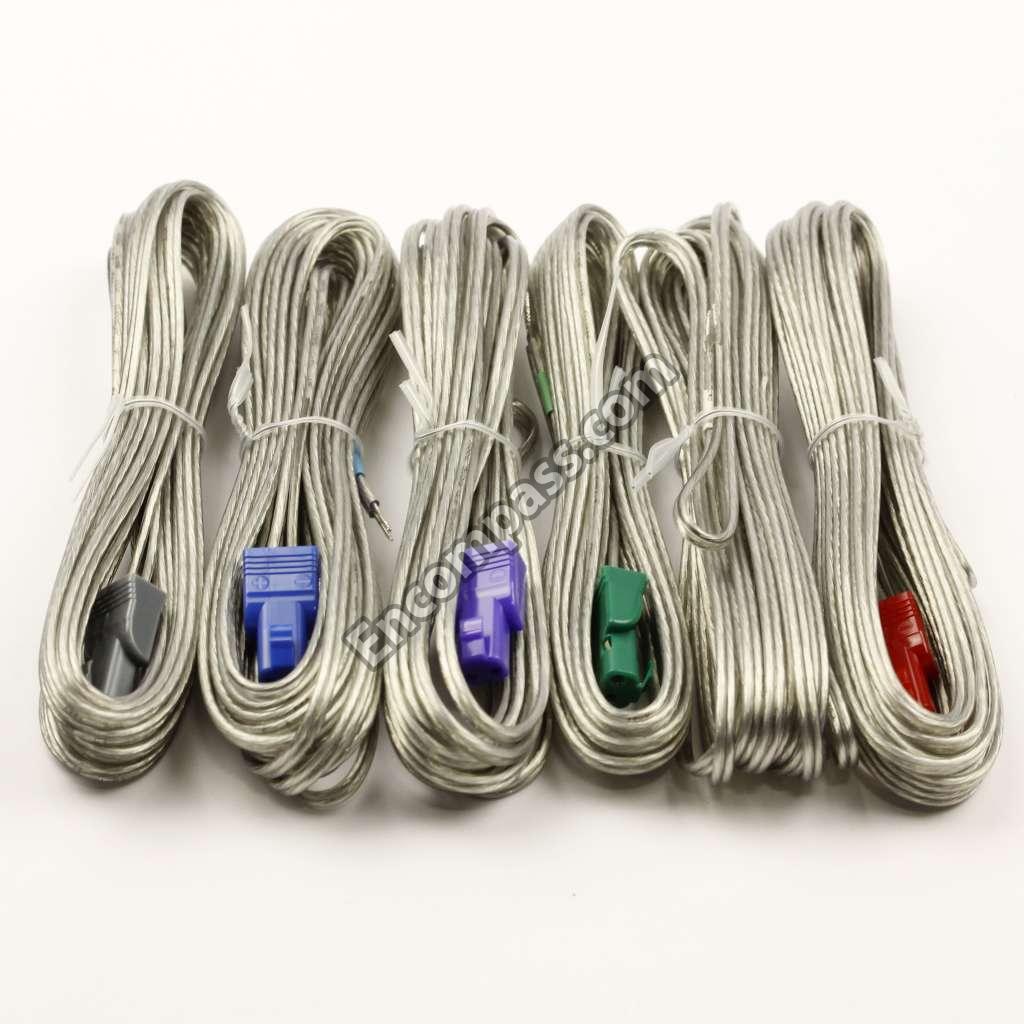

CORD (WITH CONNECTOR) (SPEAKER |
|
|
CORD, CONNECTION - VIDEO CORD |
|
|
COVER (SPEAKER CORD) - FOR TAS |
|
|
FOOT PADS: 1 SET (4 PIECES) |
|
|
FRAME ASSY, GRILLE |
|
|
IC CXD9883M |
|
|
OPTICAL PICK-UP BLOCK (KHM-313 |
|
|
PACK ASSY, ADAPTER (UC2) (IPOD |
|
|
PANEL (REAR) (US) |
|
|
PANEL (TOP) (US) |
|
|
PANEL, FRONT |
|
|
PLATE (DCR), ORNAMENT (EXCEPT |
|
|
REMOTE CONTROL RM-ADU007 |
|
|
SCREW - FOR INSTALL OF SPEAKER |
|
|

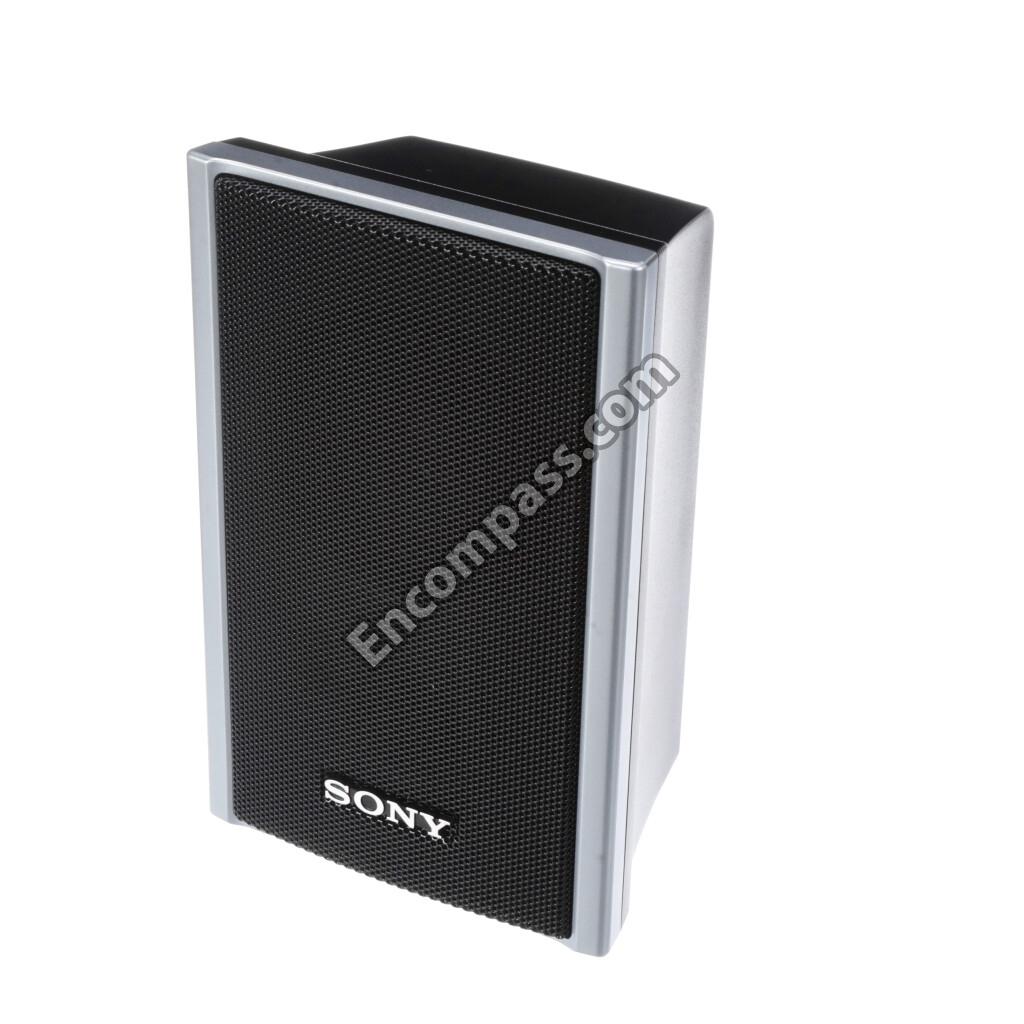

SS-TS80 |
|
|

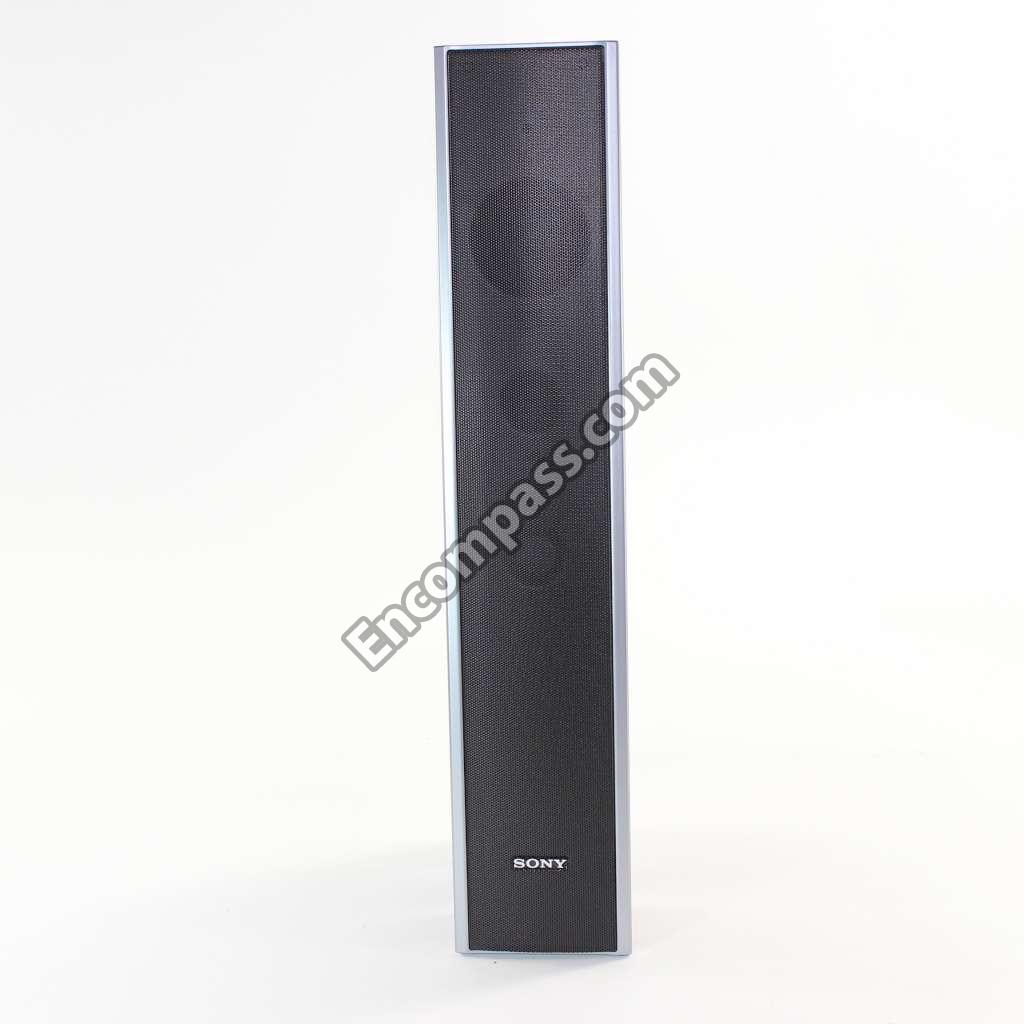

SS-TS82 (US,CND) |
|
|
SSWS82 |
|
|
STAND BASE (S) ASSY. FOR SPEA |
|
|
STAND PIPE (S) - POST FOR SPEA |
|
|
TDM-IP10 DIGITAL PORT ADAPTER |
|
|
WINDOW (DCR-1), INDICATION |
