Model Image
Manufacturer

Sony

Model Number

DCRVX2000

Description

Digital Handycam Camcorder

Interactive Exploded View

Parts List

Part Number Description
3-963-940-05 3-963-940-05 10 TABLE, TRIPOD- PLATE THAT T
1-479-286-62 1-479-286-62 AC ADAPT
8-753-050-51 8-753-050-51 ACX300CK-1
3-060-630-01 3-060-630-01 BASE, PANEL LOCK
3-060-548-01 3-060-548-01 BELT, GRIP
3-053-121-31 3-053-121-31 BOLT (M2), SPRING
3-053-121-21 3-053-121-21 BOLT (M2), SPRING
3-060-592-01 3-060-592-01 BRACKET (R), S BELT
3-060-550-01 3-060-550-01 BRACKET (REAR), GRIP
3-060-691-01 3-060-691-01 BRACKET, MENU BUTTON
3-060-631-01 3-060-631-01 BRACKET, PANEL LOCK
1-528-724-21 1-528-724-21 BT250 RECHARGEABLE LITHIUM COIN BATTERY (UL2020)
3-060-598-01 3-060-598-01 BUTTON, AL
3-060-689-01 3-060-689-01 BUTTON, BRIGHT
3-060-620-01 3-060-620-01 BUTTON, IP
3-060-642-01 3-060-642-01 BUTTON, MENU
X-3950-559-7 X-3950-559-7 CABINET (L) ASSY
X-3950-559-1 X-3950-559-1 CABINET (L) ASSY
X-3950-573-1 X-3950-573-1 CABINET (R) ASSY
X-3950-682-1 X-3950-682-1 CABINET (R) ASSY
3-060-674-01 3-060-674-01 CABINET (UPPER), EVF FRON
3-988-216-01 3-988-216-01 CAM GEAR
X-3950-568-1 X-3950-568-1 CAP ASSY, HOOD
8-835-606-04 8-835-606-04 CAPSTAN MOTOR
X-3948-441-2 X-3948-441-2 CASSETTE COMPARTMENT ASSEMBLY
3-060-595-01 3-060-595-01 CLAW, BT LOCK
1-785-828-11 1-785-828-11 CN300 CONNECTOR, SQUARE TYPE
1-778-078-11 1-778-078-11 CONNECTOR, BOARD TO BOARD
1-778-083-11 1-778-083-11 CONNECTOR, BOARD TO BOARD
1-691-926-11 1-691-926-11 CONNECTOR, BOARD TO BOARD
1-784-421-61 1-784-421-61 CONNECTOR, FFC/FPC CN052
1-828-145-21 1-828-145-21 CORD CONNECTION
3-060-541-01 3-060-541-01 COVER (L), JACK
X-3950-586-1 X-3950-586-1 COVER ASSY, PRISM
3-060-623-01 3-060-623-01 COVER, BUTTON
3-060-773-01 3-060-773-01 COVER, DC JACK
3-060-543-01 3-060-543-01 COVER, EJECT
3-060-707-01 3-060-707-01 COVER, MJ
3-060-640-01 3-060-640-01 COVER, ZEBRA KNOB
X-3950-561-4 X-3950-561-4 CS ASSY
X-3950-578-1 X-3950-578-1 DOOR ASSY, BLIND
3-060-621-01 3-060-621-01 ESCUTCHEON
J-6082-496-A J-6082-496-A EXTETENSION CABLE (50P)
3-063-148-01 3-063-148-01 FOAM (SMALL), DUST PROTEC
X-3950-681-1 X-3950-681-1 FRAME ASSY, CENTER
X-3950-583-1 X-3950-583-1 FRAME ASSY, FK
3-060-682-01 3-060-682-01 FRAME, JK
3-060-688-03 3-060-688-03 FRAME, LCD
X-3948-442-4 X-3948-442-4 GOOSENECK GEAR ASSY.; IDLER A
1-960-654-12 1-960-654-12 HARNESS (CJ-064)
1-960-557-11 1-960-557-11 HARNESS (CP-093)
1-960-558-11 1-960-558-11 HARNESS (CP-094)
1-960-654-11 1-960-654-11 HARNESS, CJ-064
X-3953-905-1 X-3953-905-1 HINGE ASSY
X-3953-894-4 X-3953-894-4 HINGE ASSY VF
X-3950-584-1 X-3950-584-1 HOLDER ASSY, LCD
3-060-679-01 3-060-679-01 HOLDER, KP
3-060-687-01 3-060-687-01 HOLDER, PANEL
3-060-686-01 3-060-686-01 HOLDER, SPEAKER
8-759-598-08 8-759-598-08 IC AK5483-L
8-752-408-78 8-752-408-78 IC CXD2484AR-T4
8-752-403-85 8-752-403-85 IC CXD2484R-T4
8-752-397-67 8-752-397-67 IC CXD3400N
8-752-403-84 8-752-403-84 IC CXD3505R-T4
8-759-667-01 8-759-667-01 IC HD6437044P13XSZ
8-759-692-19 8-759-692-19 IC HD6437044P15XSZ
8-759-677-31 8-759-677-31 IC MB90099PFV-G-103-BND-E
8-759-826-62 8-759-826-62 IC MB91192LGA-G-155-ER
6-802-487-01 6-802-487-01 IC MB91192LGA-G-155-ER
3-060-774-01 3-060-774-01 JOINT, BT-R
3-060-684-01 3-060-684-01 JOINT, LA
3-060-551-01 3-060-551-01 KNOB, EJECT
3-060-622-01 3-060-622-01 KNOB, MF
3-060-619-01 3-060-619-01 KNOB, ND
3-060-638-01 3-060-638-01 KNOB, PANEL LOCK
3-062-612-01 3-062-612-01 LABEL (E), CASSETTE CAUTI
8-753-036-72 8-753-036-72 LCX033AK-1
3-709-596-03 3-709-596-03 LENS ASSY, ZOOM
3-060-594-01 3-060-594-01 LEVER, BT RELEASE
3-060-553-01 3-060-553-01 LEVER, EJECT
3-060-673-03 3-060-673-03 LID, LD OUTER
3-060-552-01 3-060-552-01 LOCK, EJECT
A-4900-079-A A-4900-079-A M901 DRUM ASSEMBLY (DEH-11B/J
1-542-263-21 1-542-263-21 MIC UNIT
A-7078-938-A A-7078-938-A MOUNTED C.BOARD,CD-254
A-7078-950-A A-7078-950-A MOUNTED C.BOARD,CE-108
A-7078-941-A A-7078-941-A MOUNTED C.BOARD,DD-138
A-7078-943-A A-7078-943-A MOUNTED C.BOARD,FT-090
A-7078-944-A A-7078-944-A MOUNTED C.BOARD,HL-011
A-7078-945-A A-7078-945-A MOUNTED C.BOARD,KP-010
A-7078-946-A A-7078-946-A MOUNTED C.BOARD,LA-026
A-7078-947-A A-7078-947-A MOUNTED C.BOARD,MI-038
A-7078-948-A A-7078-948-A MOUNTED C.BOARD,MK-014
A-7074-404-A A-7074-404-A MOUNTED C.BOARD,PD-126 SE
3-061-234-01 3-061-234-01 NUT (M6X0.5)
3-061-509-01 3-061-509-01 PAD (RIGHT), PD
3-061-510-01 3-061-510-01 PAD (UPPER), PD
3-060-641-01 3-060-641-01 PAD, PANEL (POP) UP
1-794-378-21 1-794-378-21 PIN, CONNECTOR 14P
1-794-377-21 1-794-377-21 PIN, CONNECTOR 8P
X-2055-493-2 X-2055-493-2 PINCH ARM ASSEMBLY INCLUDES
X-3950-577-1 X-3950-577-1 PLATE ASSY, SP RETAINER
3-060-683-01 3-060-683-01 PLATE, CF ORNAMENTAL
1-575-131-82 1-575-131-82 POWER CORD
A-7031-101-A A-7031-101-A PRISM ASSY
A-7031-100-A A-7031-100-A PRISM ASSY (SERVICE ASSY)
1-678-054-31 1-678-054-31 PWB, FP-186 FLEXIBLE
1-678-055-22 1-678-055-22 PWB, FP-187 FLEXIBLE
1-678-056-33 1-678-056-33 PWB, FP-188 FLEXIBLE
1-678-057-33 1-678-057-33 PWB, FP-189 FLEXIBLE
1-678-058-12 1-678-058-12 PWB, FP-190 FLEXIBLE
1-678-059-22 1-678-059-22 PWB, FP-191 FLEXIBLE
1-678-060-23 1-678-060-23 PWB, FP-193 FLEXIBLE
1-678-061-33 1-678-061-33 PWB, FP-194 FLEXIBLE
1-678-063-32 1-678-063-32 PWB, FP-196 FLEXIBLE
1-678-063-33 1-678-063-33 PWB, FP-196 FLEXIBLE
1-678-064-23 1-678-064-23 PWB, FP-197 FLEXIBLE
1-476-768-23 1-476-768-23 REMOTE CONTROL, RMT811
1-220-193-11 1-220-193-11 RESISTER, CHIP 7.5K (10
3-060-698-01 3-060-698-01 RETAINER, BL
3-060-680-01 3-060-680-01 RETAINER, DC JACK
3-060-789-01 3-060-789-01 RETAINER, FLEXIBLE
3-060-678-01 3-060-678-01 RETAINER, MK
3-709-594-01 3-709-594-01 RING ASSY, ORNAMENTAL
3-060-681-01 3-060-681-01 RING, NAME
9-913-200-09 9-913-200-09 RUBBER, FOCUS (VX2000)
9-913-200-08 9-913-200-08 RUBBER, ZOOM (VX2000)
3-060-790-11 3-060-790-11 SCREW (M2 STEP)
9-929-821-11 9-929-821-11 SERVICE MANUAL
3-060-635-01 3-060-635-01 SHAFT, PANEL LOCK
3-060-704-01 3-060-704-01 SHEET (N), BL SHIELD
X-3950-585-2 X-3950-585-2 SHEET METAL ASSY, EJECT
3-060-776-01 3-060-776-01 SHEET, AL (PE

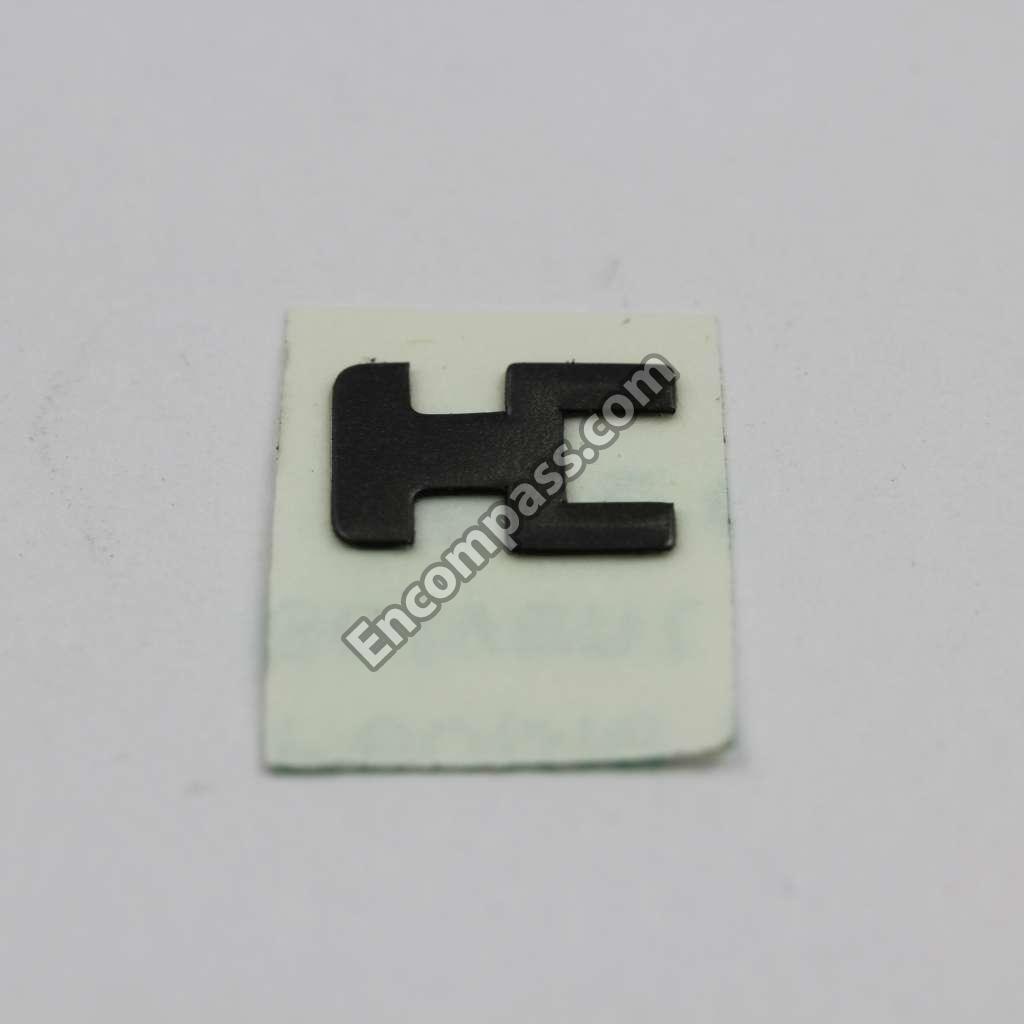

3-060-549-01 3-060-549-01 SHEET, EJECT (PE
3-061-626-01 3-061-626-01 SHEET, MA SHIELD
3-060-639-01 3-060-639-01 SHEET, PROTECTION
3-060-796-01 3-060-796-01 SHEET, R FLEXIBLE FIXED
3-061-516-01 3-061-516-01 SHEET, RF FLEXIBLE
X-3950-562-2 X-3950-562-2 SLIDER ASSY
3-060-771-01 3-060-771-01 SPACER, AL BUTTON
3-061-511-01 3-061-511-01 SPACER, MICROPHONE
3-051-787-02 3-051-787-02 SPRING (CAP), COMPRESSION
3-060-633-01 3-060-633-01 SPRING, COMPRESSION
3-061-679-02 3-061-679-02 SPRING, MD GROUND
3-060-634-01 3-060-634-01 SPRING, PANEL LOCK
3-060-554-01 3-060-554-01 SPRING, TENSION
1-476-183-12 1-476-183-12 SWITCH BLOCK (ED-4980) CONTRO
1-476-075-21 1-476-075-21 SWITCH BLOCK (PS-4980) VTR/CA
1-476-075-11 1-476-075-11 SWITCH BLOCK, CONTROL
1-476-025-22 1-476-025-22 SWITCH BLOCK, CONTROL
1-476-025-12 1-476-025-12 SWITCH BLOCK, CONTROL
1-476-025-11 1-476-025-11 SWITCH BLOCK, CONTROL
3-060-795-01 3-060-795-01 TAPE, HARNESS FIXED
1-418-876-13 1-418-876-13 TRANSFORMER UNIT, INVERTE
1-435-518-11 1-435-518-11 TRANSFORMER, DC CONVERTER
8-729-042-68 8-729-042-68 TRANSISTOR UN911FJ-(K8).S
8-729-928-46 8-729-928-46 TRANSISTOR UN911FJ-(K8).SO
1-517-931-11 1-517-931-11 TUBE, FLUORESCENT,COLD CA
1-781-763-11 1-781-763-11 VIBRATOR, CRYSTAL
