Model Image
Manufacturer

Sony

Model Number

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
1-756-194-61 1-756-194-61 BATTERY, NICKEL HYDROGEN
X-3382-234-2 X-3382-234-2 CABINET (LOWER) ASSY
X-3381-075-1 X-3381-075-1 CABINET (LOWER) ASSY
3-221-472-01 3-221-472-01 CHASSIS
1-815-832-51 1-815-832-51 CONNECTOR, FPC (ZIF) 15P
8-752-410-68 8-752-410-68 IC CXD3029R
6-702-614-01 6-702-614-01 IC IC41LV44002A-50T(T&R)
6-700-994-01 6-700-994-01 IC MT4LC4M4B1TG-6
6-802-578-01 6-802-578-01 IC T5AJ4-4H37
6-800-477-01 6-800-477-01 IC T5AJ5
6-700-704-01 6-700-704-01 IC TB2127FN(EL)
6-700-703-01 6-700-703-01 IC TB2130F
1-400-144-21 1-400-144-21 INDUCTOR, CHIP 22UH (
1-400-145-21 1-400-145-21 INDUCTOR, CHIP 47UH (
3-234-106-01 3-234-106-01 INSULATOR
1-793-156-31 1-793-156-31 JACK, DC
3-233-984-01 3-233-984-01 KNOB (HOLD)
X-3382-247-1 X-3382-247-1 LID ASSY, BATTERY CASE
3-233-820-33 3-233-820-33 MANUAL, INSTRUCTION
3-233-820-23 3-233-820-23 MANUAL, INSTRUCTION
A-3021-528-A A-3021-528-A MOUNTED C.BOARD ASSY, MAI

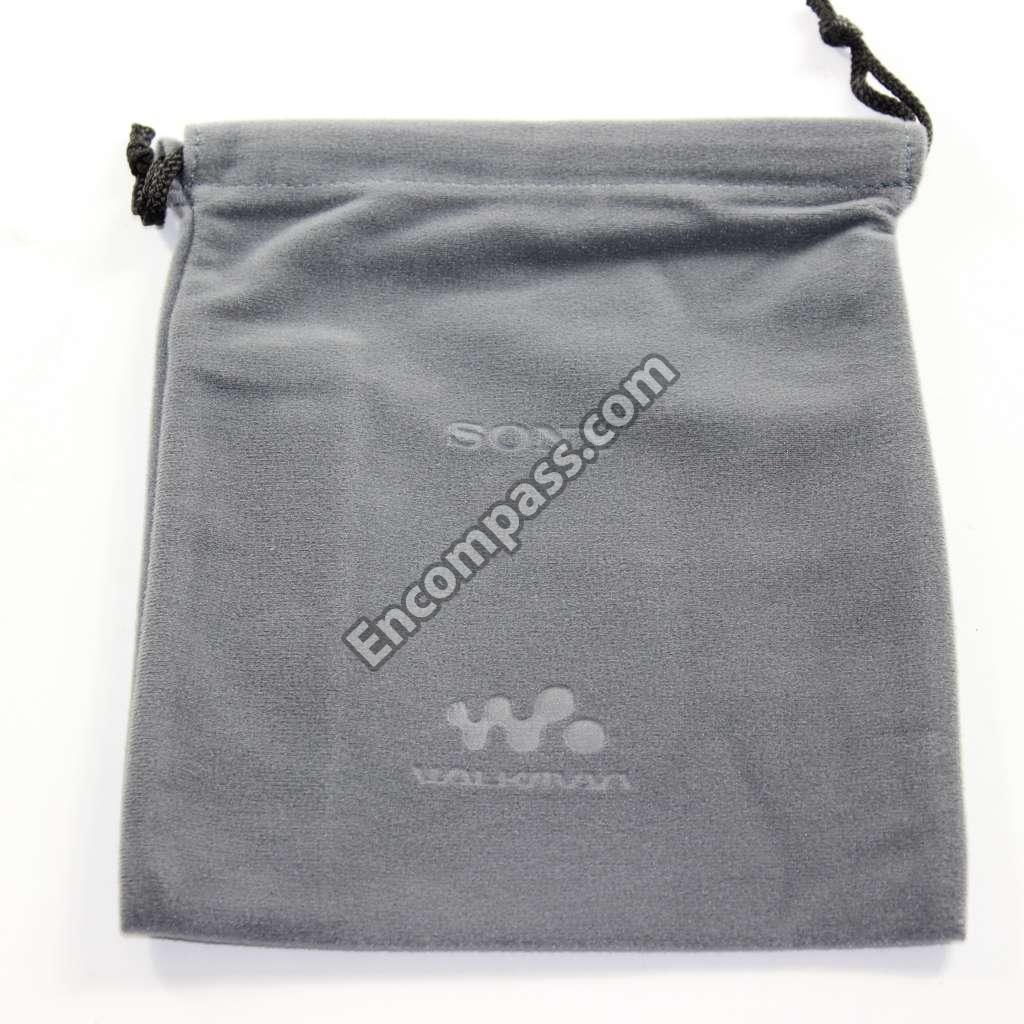

3-235-292-01 3-235-292-01 POUCH, CARRYING
8-954-007-91 8-954-007-91 RECEIVER, EAR MDR-027SP/1
3-234-002-01 3-234-002-01 SCREW (UPPER LID)
3-233-987-01 3-233-987-01 SPRING (GROUND)
3-233-991-01 3-233-991-01 SPRING (UPPER LID)
3-233-998-01 3-233-998-01 SPRING, TENSION
3-233-988-01 3-233-988-01 TERMINAL BOARD (+), CHARG
3-233-989-01 3-233-989-01 TERMINAL BOARD (-), CHARG
