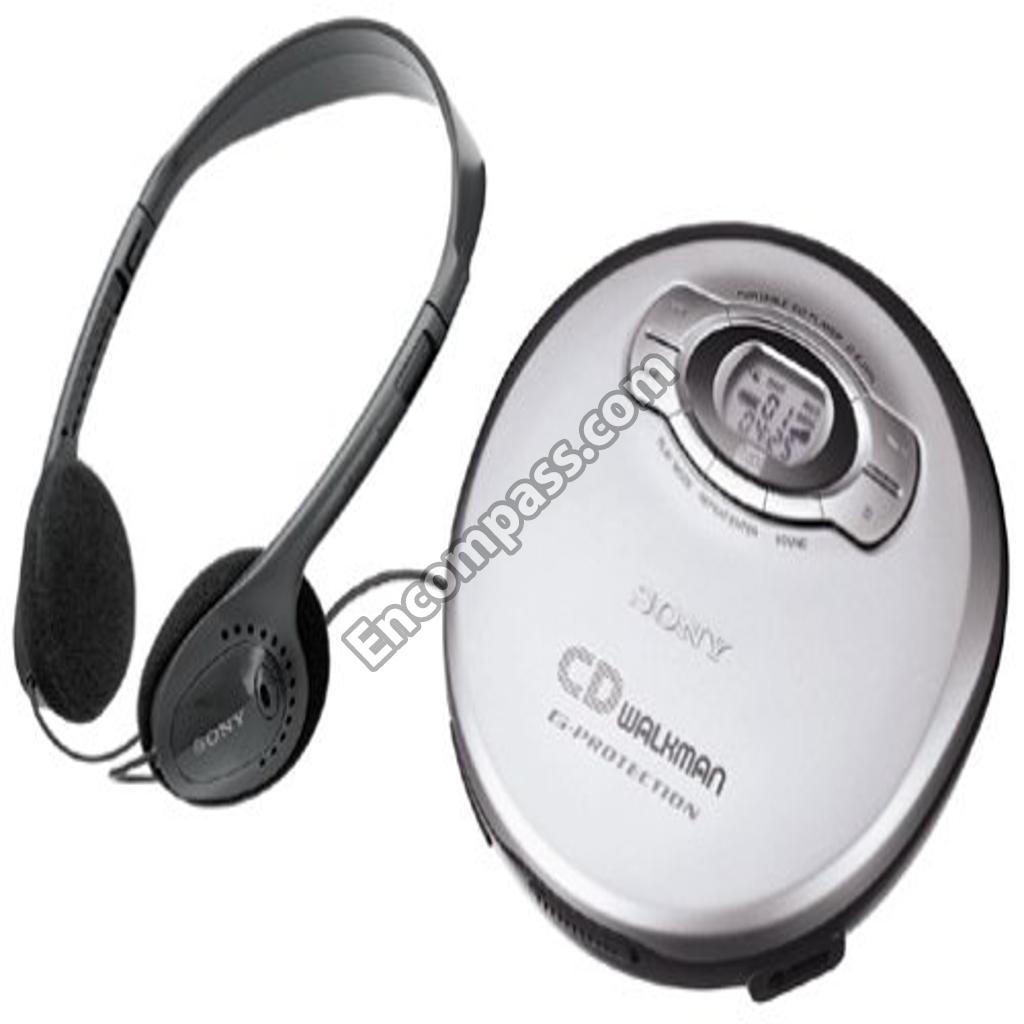

Model Image
Manufacturer

Sony

Model Number

DEJ611

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
4-223-612-01 4-223-612-01 BUTTON (OPERATE)
4-223-607-01 4-223-607-01 BUTTON (VOLUME)
4-223-607-21 4-223-607-21 BUTTON (VOLUME)
4-223-603-21 4-223-603-21 CABINET (FRONT)
X-3378-835-1 X-3378-835-1 CABINET (LOWER) SUB ASSY
X-3378-836-1 X-3378-836-1 CABINET (LOWER) SUB ASSY
4-223-582-21 4-223-582-21 COVER ASSY, LID (B)
4-223-582-11 4-223-582-11 COVER ASSY, LID (L)
4-223-582-01 4-223-582-01 COVER ASSY, LID (S)
8-752-401-56 8-752-401-56 IC CXD3037R
8-759-671-27 8-759-671-27 IC MSM51V4400D-10-TKFSR1
8-759-651-13 8-759-651-13 IC NJU7116F-TE2
4-993-131-41 4-993-131-41 KNOB (HOLD)
4-222-793-31 4-222-793-31 KNOB (OPEN)
4-223-606-21 4-223-606-21 LID, BATTERY
4-225-281-61 4-225-281-61 LID, UPPER
4-225-281-21 4-225-281-21 LID, UPPER (B)
A-3328-760-A A-3328-760-A MOTOR ASSY, TURN TABLE
A-3323-399-A A-3323-399-A MOUNTED C.BOARD ASSY, MAI
1-476-373-21 1-476-373-21 REMOTE
3-895-823-61 3-895-823-61 SCREW (B1.4X2.3), TAPPING
3-047-614-01 3-047-614-01 SHEET (PETP)
8-729-052-27 8-729-052-27 TRANSISTOR 2SA1241-Y(TE16
3-046-945-11 3-046-945-11 WASHER
4-223-610-01 4-223-610-01 WINDOW (LCD)
