Model Image
Manufacturer

Sony

Model Number

DESR7000

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
3-087-675-01 3-087-675-01 6-32UNCX5
1-100-387-21 1-100-387-21 CAP, ELECT 39MF (6.3
1-456-647-11 1-456-647-11 COIL, CHOKE (SMD) 10UH
1-456-358-11 1-456-358-11 COIL, CHOKE 10UH (10.1X
1-816-023-21 1-816-023-21 CONNECTOR, D TERMINAL
1-818-205-11 1-818-205-11 CONNECTOR, USB
1-828-145-21 1-828-145-21 CORD, CONNECTION (AV)
6-500-204-01 6-500-204-01 DIODE CL-190UB2-X-T
6-500-008-01 6-500-008-01 DIODE CL-196TLY-CD-T
6-500-831-01 6-500-831-01 DIODE EDZ-TE61-5.1B
6-500-537-01 6-500-537-01 DIODE EDZFTE61 6.8B
1-234-786-11 1-234-786-11 FILTER, LOW PASS
1-234-787-11 1-234-787-11 FILTER, LOW PASS
6-705-545-01 6-705-545-01 IC EDS1232AASE-75-E
6-705-718-01 6-705-718-01 IC K9F6408U0C-QCB0T
6-704-826-01 6-704-826-01 IC KRM-TR303E-TP
6-705-641-01 6-705-641-01 IC LM2731XMF
8-759-669-48 8-759-669-48 IC LM324PWR-12
6-710-749-01 6-710-749-01 IC LM324PWRG4
6-704-688-01 6-704-688-01 IC LM71CIMFX

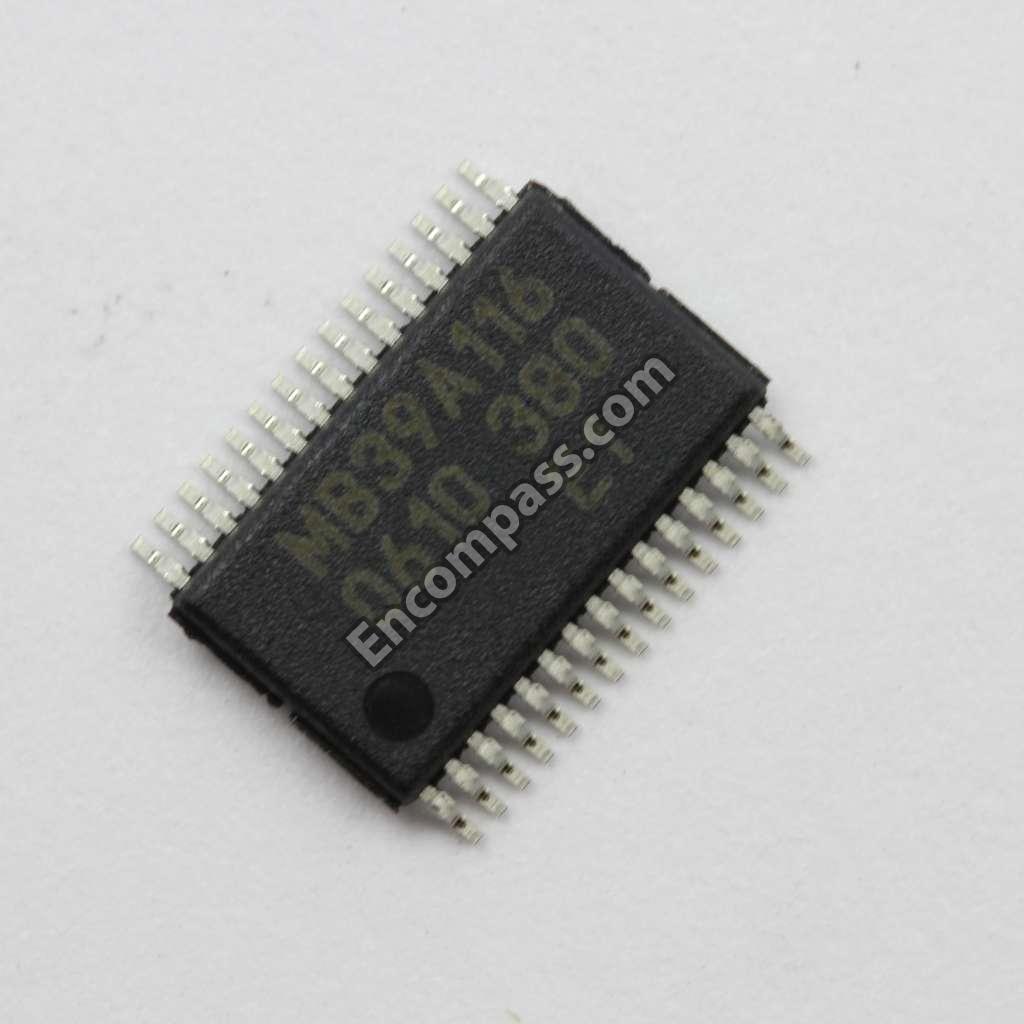

6-705-646-01 6-705-646-01 IC MB39A116
6-704-531-01 6-704-531-01 IC MM1591JFBEG
6-703-308-01 6-703-308-01 IC MM1592FFBEG
6-705-520-01 6-705-520-01 IC RS-790
6-705-642-01 6-705-642-01 IC SI-3025KS
6-703-249-01 6-703-249-01 IC SN105233DBTR
6-803-271-01 6-803-271-01 IC SN74LVC1G04DCKR
6-705-771-01 6-705-771-01 IC SN74LVC1G32DCKR
6-704-350-01 6-704-350-01 IC SN74LVC1G66DCKR
6-703-628-01 6-703-628-01 IC STE100STR
9-910-999-30 9-910-999-30 IC TC90A73UG(EL,DRY)
1-818-204-11 1-818-204-11 JACK, MODULAR (RJ-45)
1-216-805-81 1-216-805-81 RES, CHIP 47 (
1-786-700-11 1-786-700-11 SWITCH, TACTILE
1-100-814-91 1-100-814-91 TANTALUM 100UF/16V
1-437-852-21 1-437-852-21 TRANSFORMER, PULSE
6-550-794-01 6-550-794-01 TRANSISTOR CPT-184S-C-TU-
6-550-393-01 6-550-393-01 TRANSISTOR FDC606P
6-550-596-01 6-550-596-01 TRANSISTOR FDC658P
6-550-349-01 6-550-349-01 TRANSISTOR FDS4935A
6-550-597-01 6-550-597-01 TRANSISTOR SI3457BDV-T1
6-550-558-01 6-550-558-01 TRANSISTOR SI3493DV-T1
6-550-800-01 6-550-800-01 TRANSISTOR SI4830ADY-T1
