Model Image
Manufacturer

Sony

Model Number

DEV50V

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
4-462-643-01 4-462-643-01 BASE (L), BT LID HINGE
4-462-644-01 4-462-644-01 BASE (R), BT LID HINGE
X-2587-185-2 X-2587-185-2 CABINET (BOTTOM) ASSY
A-1945-865-A A-1945-865-A CABINET (L) BLOCK ASSY
A-1945-866-A A-1945-866-A CABINET (R) BLOCK ASSY
4-462-523-01 4-462-523-01 CABINET (REAR)

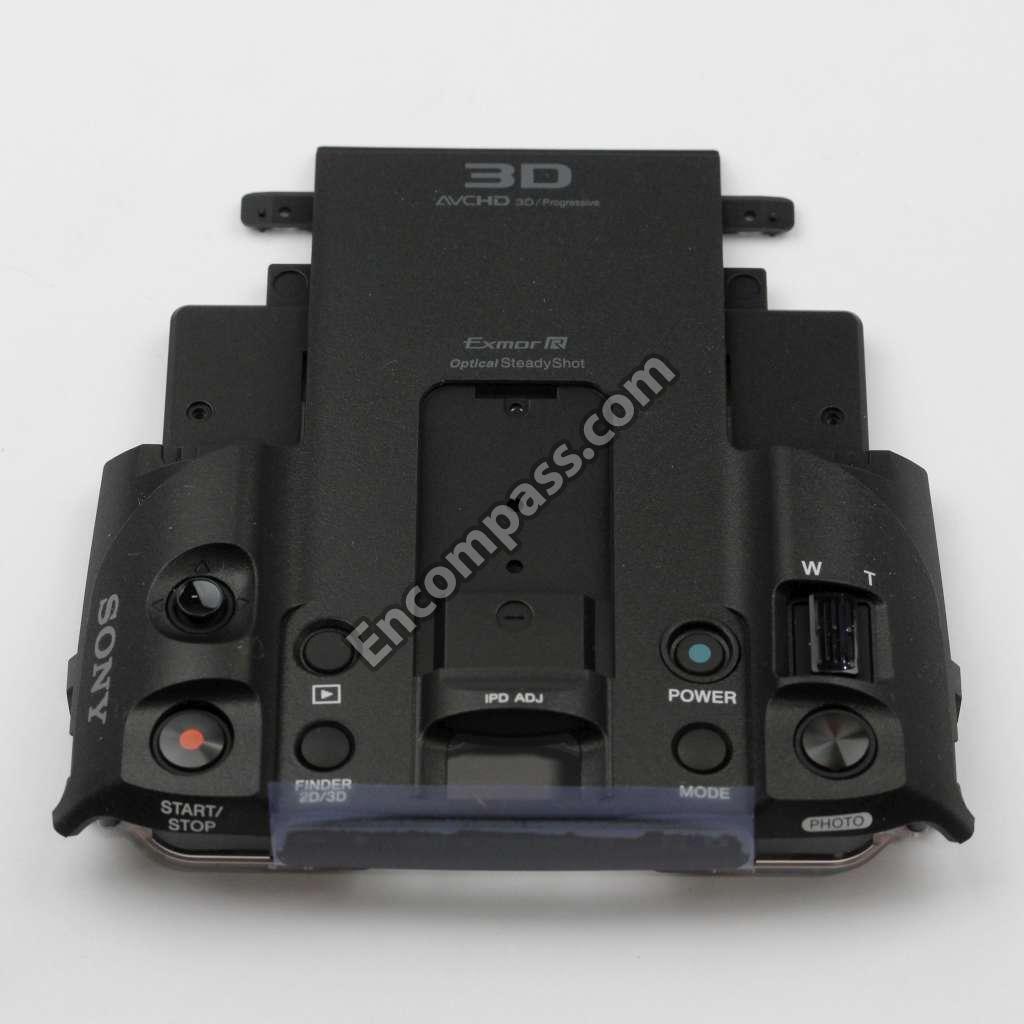

A-1945-867-A A-1945-867-A CABINET (TOP) BLOCK ASSY
1-846-448-11 1-846-448-11 CABLE, FLEXIBLE FLAT (FFC-1040
1-846-449-11 1-846-449-11 CABLE, FLEXIBLE FLAT (FFC-1041
1-846-434-11 1-846-434-11 CABLE, FLEXIBLE FLAT(FFC-1038)
4-462-657-01 4-462-657-01 CAP, EYEPIECE LENS
4-462-656-01 4-462-656-01 CAP, OBJECT LENS

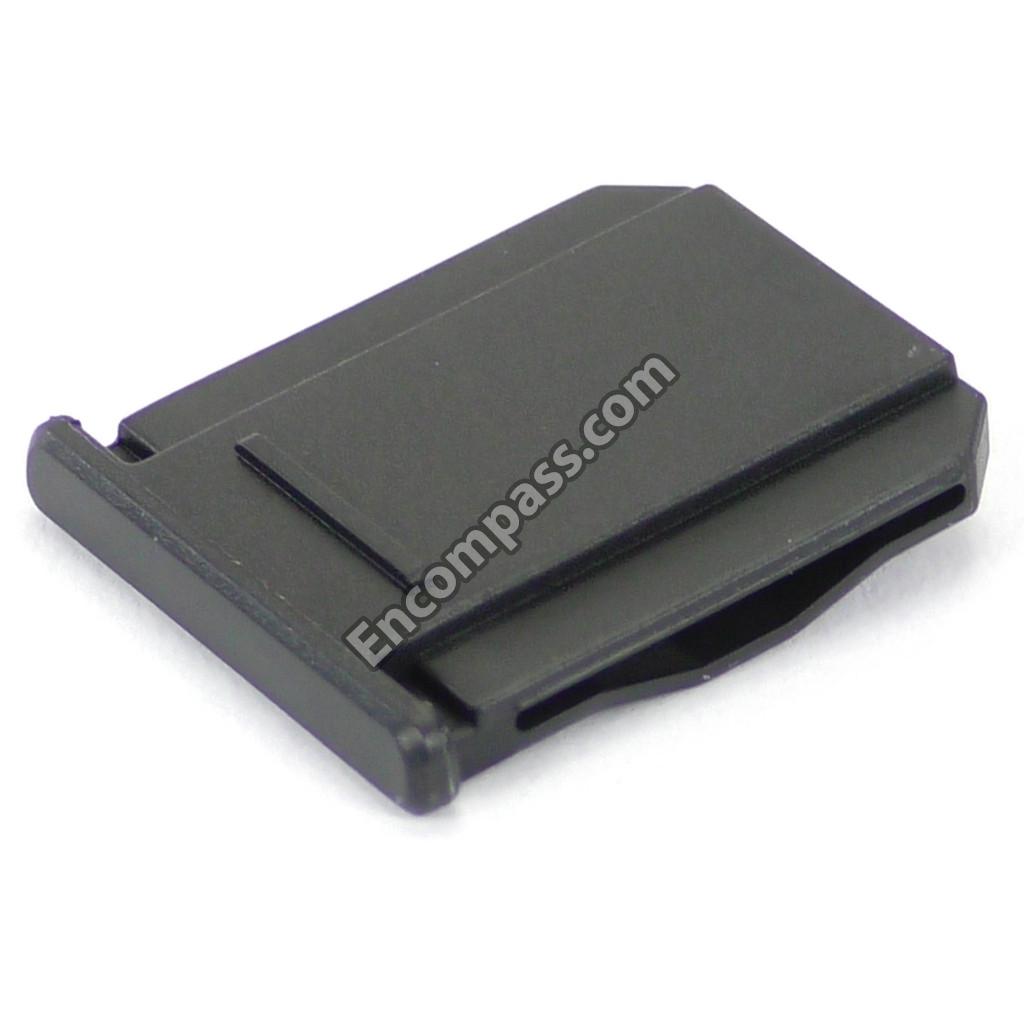

4-462-522-01 4-462-522-01 CAP, SHOE
4-462-655-02 4-462-655-02 CASE, TOGETHER PACKING
NSI NSI CD-ROM(MANUAL, INSTRUCTION)
4-462-509-01 4-462-509-01 CLAMP (MS), FLEXIBLE
4-462-510-01 4-462-510-01 CORE, CABINET (TOP)
4-462-524-01 4-462-524-01 CORE, HEAT SINK
4-462-531-01 4-462-531-01 COVER, CPC
4-467-889-01 4-467-889-01 CUSHION (F), MICROPHONE
4-462-628-01 4-462-628-01 CUSHION, MICROPHONE
X-2587-186-1 X-2587-186-1 EYE CUP (LARGE) ASSY
4-462-572-01 4-462-572-01 EYE CUP (SMALL)
A-1945-816-A A-1945-816-A F OUTER BLOCK ASSY
4-462-532-01 4-462-532-01 FRAME, COLDSHOE
4-462-500-01 4-462-500-01 FRAME, F
4-462-514-01 4-462-514-01 FRAME, GP
4-462-498-01 4-462-498-01 FRAME, LE MAIN
4-462-497-01 4-462-497-01 FRAME, MAIN CHASSIS
4-462-505-01 4-462-505-01 FRAME, TRIPOD WASHER
4-462-501-01 4-462-501-01 FRAME, VC FRONT
4-462-503-01 4-462-503-01 FRAME, VC REAR
A-1938-584-A A-1938-584-A GP405ASSY
4-464-705-01 4-464-705-01 HANDBOOK(PDF)
4-462-499-01 4-462-499-01 HEAT SINK (CM)
4-462-502-01 4-462-502-01 HEAT SINK (VC FRONT)
4-462-504-01 4-462-504-01 HEAT SINK (VC REAR)
4-462-496-01 4-462-496-01 HEAT SINK, BT
4-462-506-01 4-462-506-01 HOLDER, HD TERMINAL
4-462-621-02 4-462-621-02 HOLDER, JOYSTICK
6-720-644-01 6-720-644-01 IC TC74VCX16245 (EL, F)
A-1945-863-A A-1945-863-A INNER BLOCK ASSY, F
A-1949-931-A A-1949-931-A JKL BLOCK ASSY
A-1949-930-A A-1949-930-A JKR BLOCK ASSY
4-462-521-01 4-462-521-01 LABEL PLATE, TOP
4-471-619-01 4-471-619-01 LABEL, JK LID
A-1945-742-A A-1945-742-A LD1009_MOUNTED C.BOARD
A-1945-753-A A-1945-753-A LD1010_MOUNTED C.BOARD

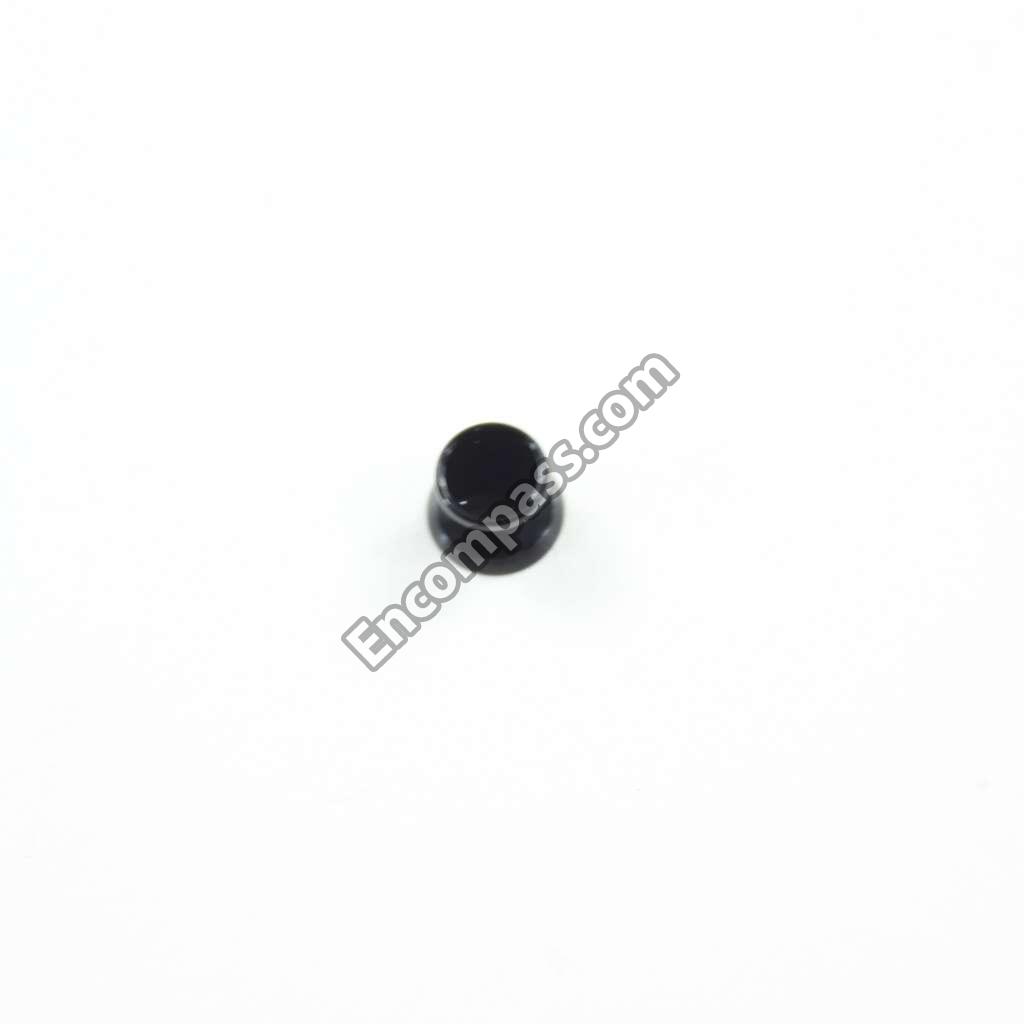

4-462-619-01 4-462-619-01 LEVER, JOYSTICK
4-462-530-01 4-462-530-01 LID (L), JK
4-462-537-01 4-462-537-01 LID (R), JK
A-1948-464-A A-1948-464-A LID BLOCK ASSY, BT
4-464-708-11 4-464-708-11 MANUAL, INSTRUCTION
4-464-708-01 4-464-708-01 MANUAL, INSTRUCTION
1-542-957-11 1-542-957-11 MICROPHONE UNIT
A-1945-991-A A-1945-991-A MOUNTED C.BOARD MS-1012

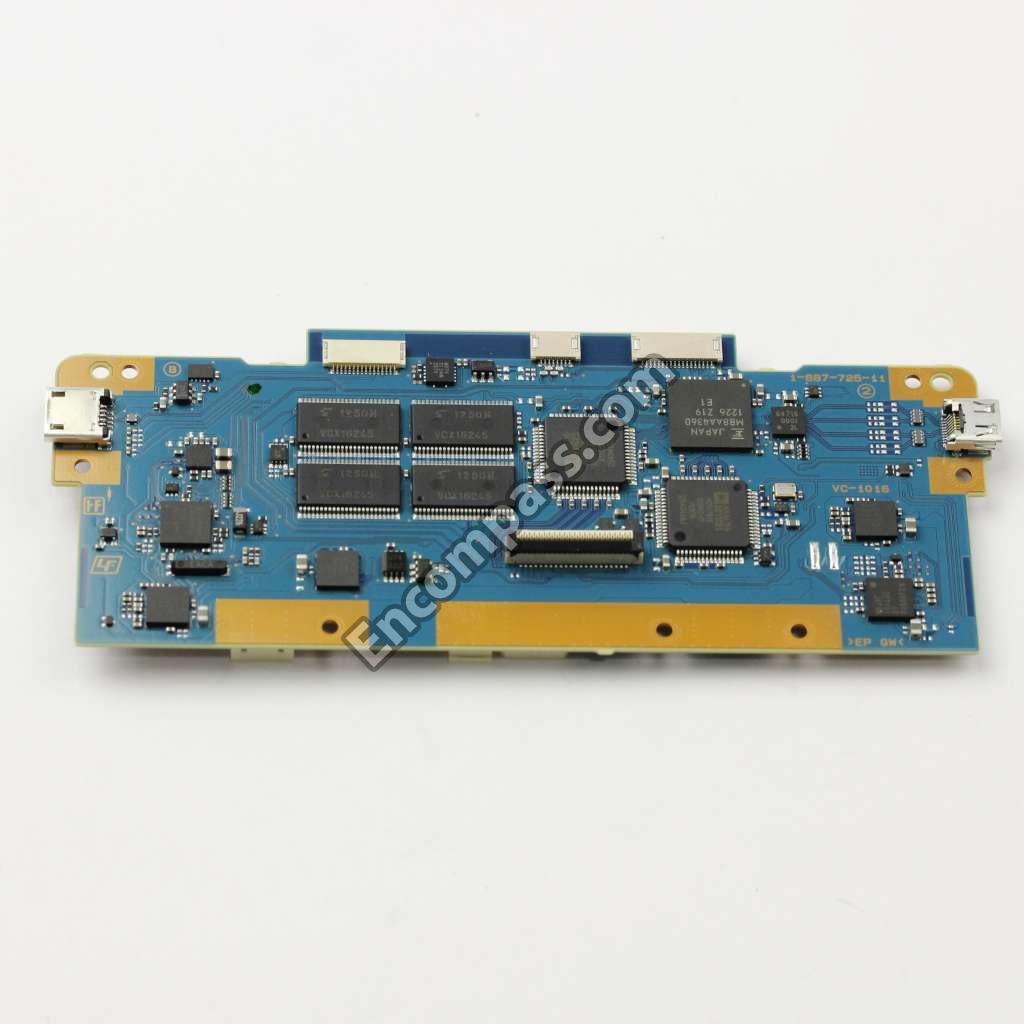

A-1945-990-A A-1945-990-A MOUNTED C.BOARD VC-1016
4-462-538-01 4-462-538-01 PACKING (L), JK
4-462-526-01 4-462-526-01 PACKING (R), JK
4-462-620-01 4-462-620-01 PACKING, JOYSTICK
4-462-527-01 4-462-527-01 PACKING, MAIN
4-462-529-01 4-462-529-01 PACKING, REAR
4-462-528-01 4-462-528-01 PACKING, TOP
4-462-520-01 4-462-520-01 PACKING, TRIPOD
4-462-495-01 4-462-495-01 PANEL, BT
1-887-911-11 1-887-911-11 PWB, FP-2134 FLEXIBLE
1-887-912-11 1-887-912-11 PWB, FP-2135 FLEXIBLE
1-887-914-11 1-887-914-11 PWB, FP-2137 FLEXIBLE
1-887-915-11 1-887-915-11 PWB, FP-2138 FLEXIBLE
1-887-918-11 1-887-918-11 PWB, FP-2141 FLEXIBLE
1-887-982-11 1-887-982-11 PWB, FP-2147 FLEXIBLE
4-462-536-01 4-462-536-01 RING, JKO
4-462-645-01 4-462-645-01 SHAFT, BT LID
4-462-525-01 4-462-525-01 SHAFT, F ELECTROSTATIC
4-409-391-11 4-409-391-11 SHEET (A), RADIATION
4-466-749-01 4-466-749-01 SHEET (JS), MUFFLE
4-466-268-01 4-466-268-01 SHEET, ACOUSTIC ABSORBENT
4-466-266-01 4-466-266-01 SHEET, CM FLEXIBLE PROTECTION
4-466-265-01 4-466-265-01 SHEET, LE FLEXIBLE PROTECTION
4-467-704-11 4-467-704-11 SHEET, RADIATION COUNTERMEASURE
4-467-704-01 4-467-704-01 SHEET, RADIATION COUNTERMEASURE
4-414-749-21 4-414-749-21 SHEET, TRIPOD
4-462-640-01 4-462-640-01 SPRING, BT LID
A-1945-758-A A-1945-758-A US1001_MOUNTED C.BOARD
A-1952-570-A A-1952-570-A VF BLOCK ASSY (SERVICE)
