Model Image
Manufacturer

Sony

Model Number

DSCH300

Description

Cyber-shot H300 20.1-megapixel Digital Camera

Interactive Exploded View

Parts List

Part Number Description

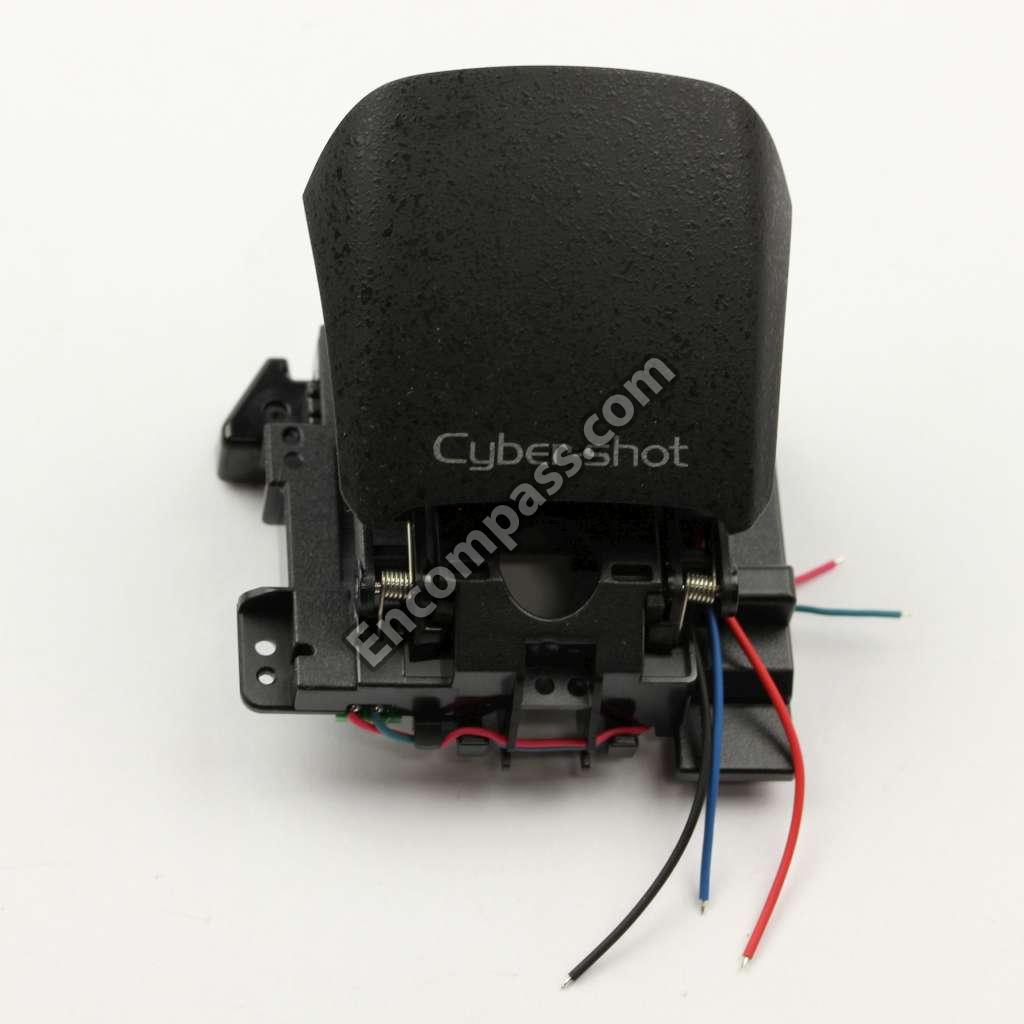

A-1989-708-A A-1989-708-A BASE ASSY, FLASH

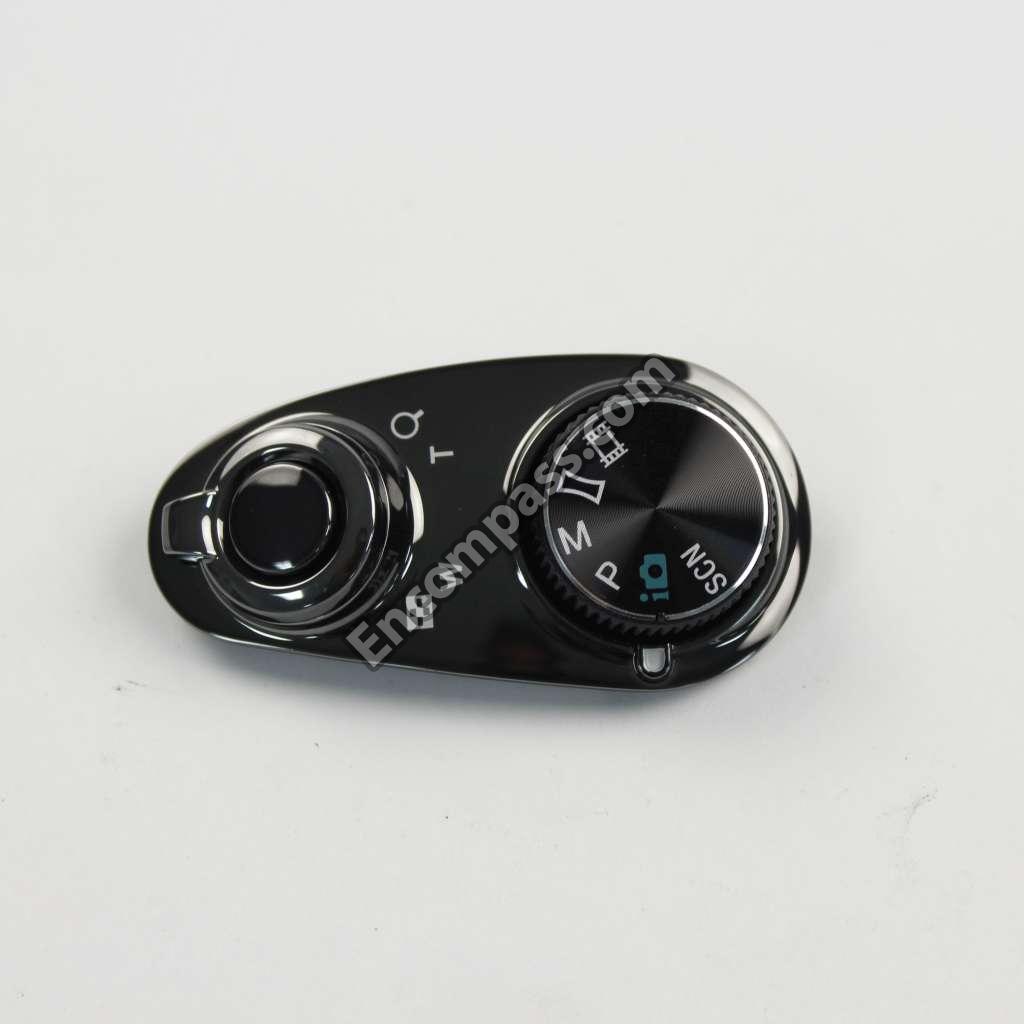

X-2588-863-1 X-2588-863-1 BASE ASSY, RL DIAL
A-1989-701-A A-1989-701-A BLOCK ASSY, RL FPC
A-1989-733-A A-1989-733-A BOARD ASSY, AF ASSIST LIGHT

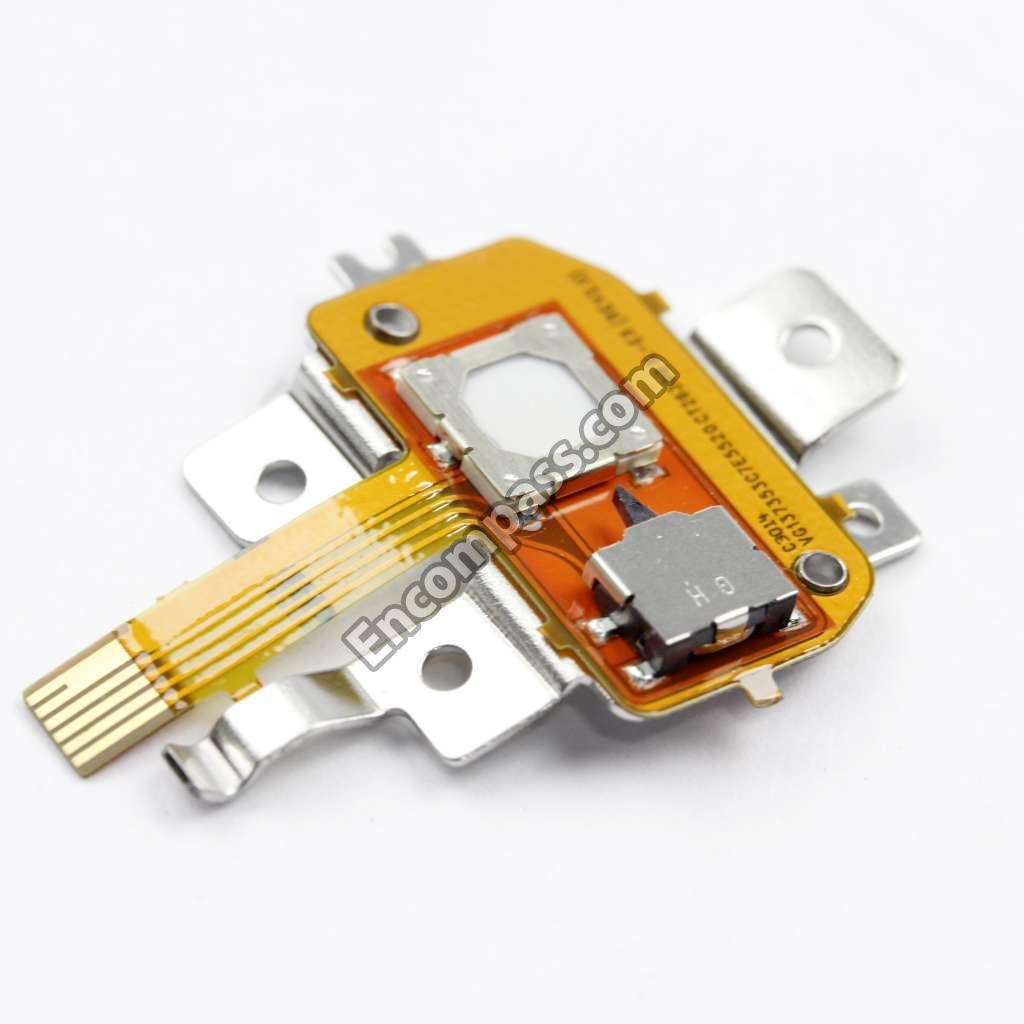

A-1989-702-A A-1989-702-A BOARD ASSY, DETECT SW

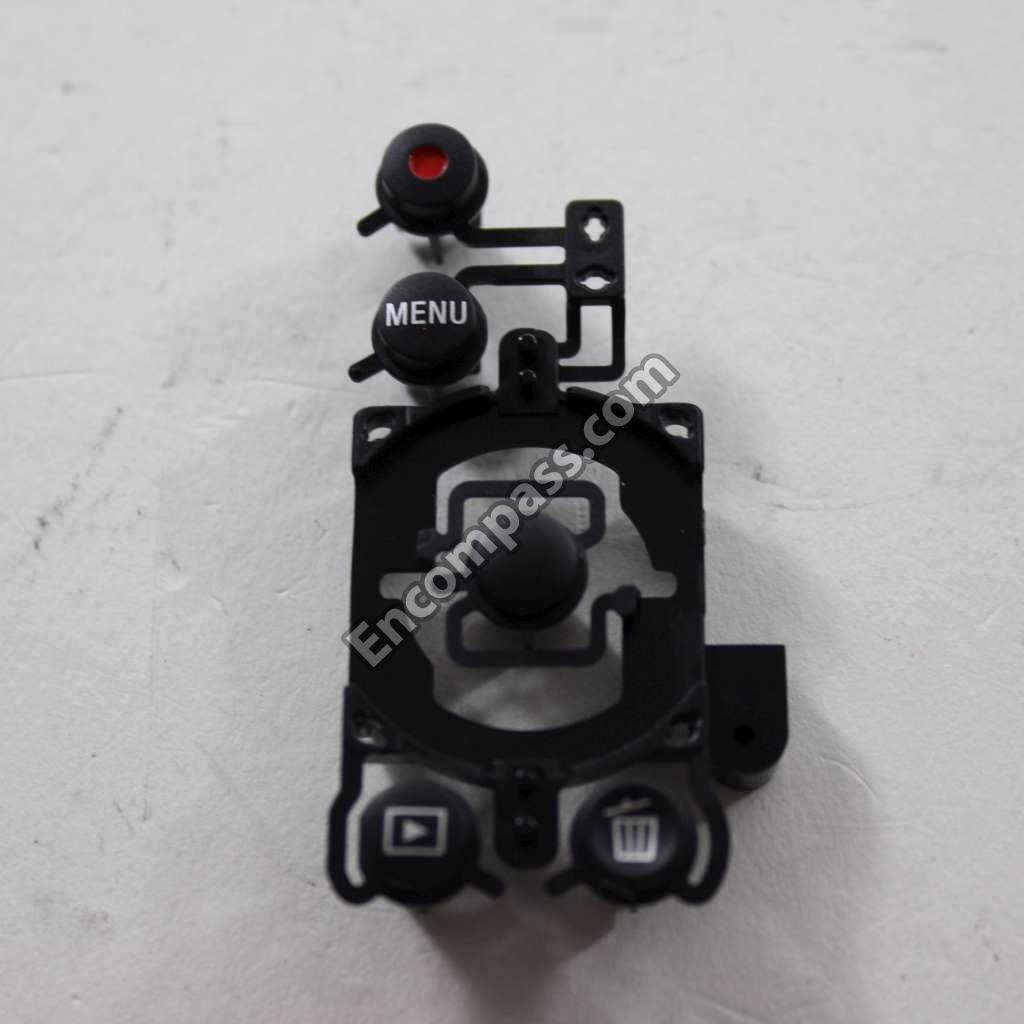

4-488-396-01 4-488-396-01 BUTTON, CONTROL
4-488-395-01 4-488-395-01 BUTTON, FUNCTION

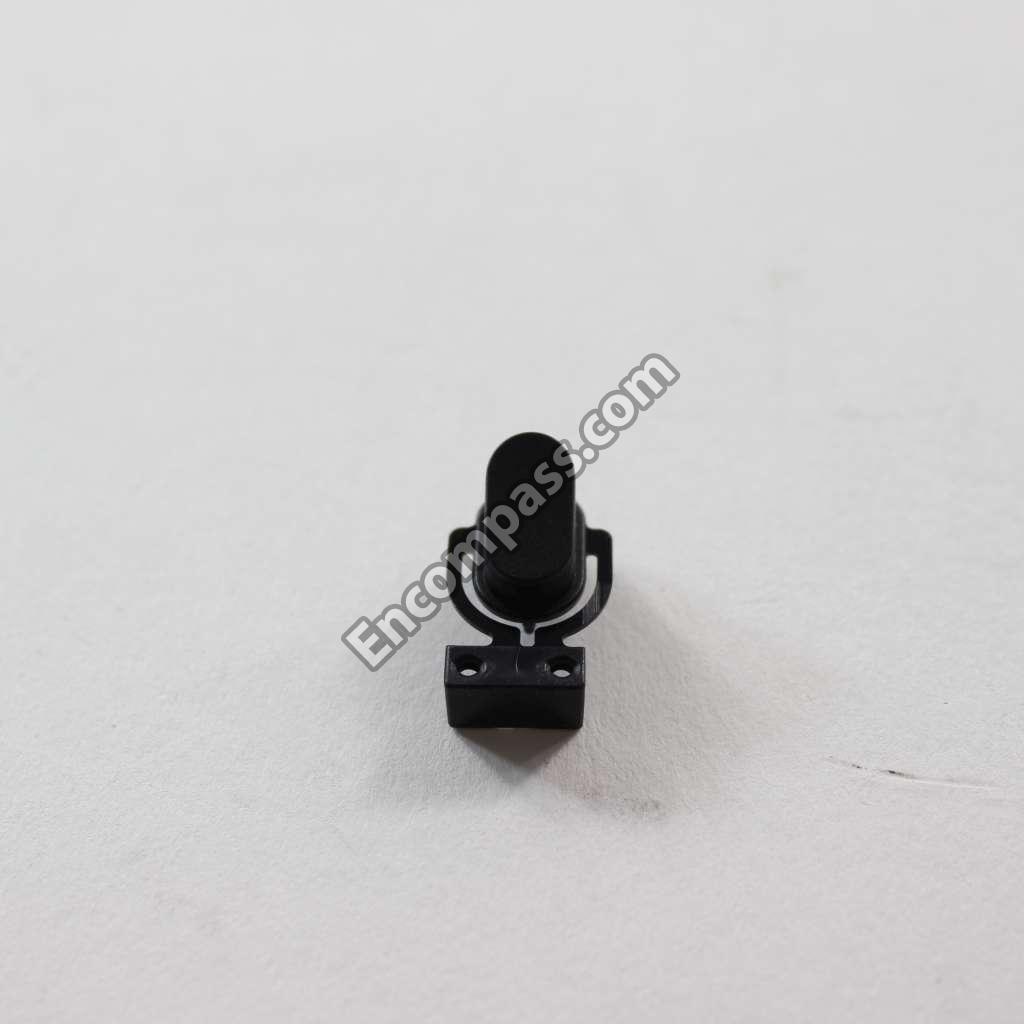

4-488-401-01 4-488-401-01 BUTTON, POWER
A-1927-449-A A-1927-449-A CABINET M, P BLOCK (SERVICE)
4-488-387-01 4-488-387-01 CAP, LENS
A-2045-576-A A-2045-576-A CCD BLOCK ASSEMBLY
A-1989-700-A A-1989-700-A CCD BLOCK ASSY
4-488-394-01 4-488-394-01 CCD RUBBER

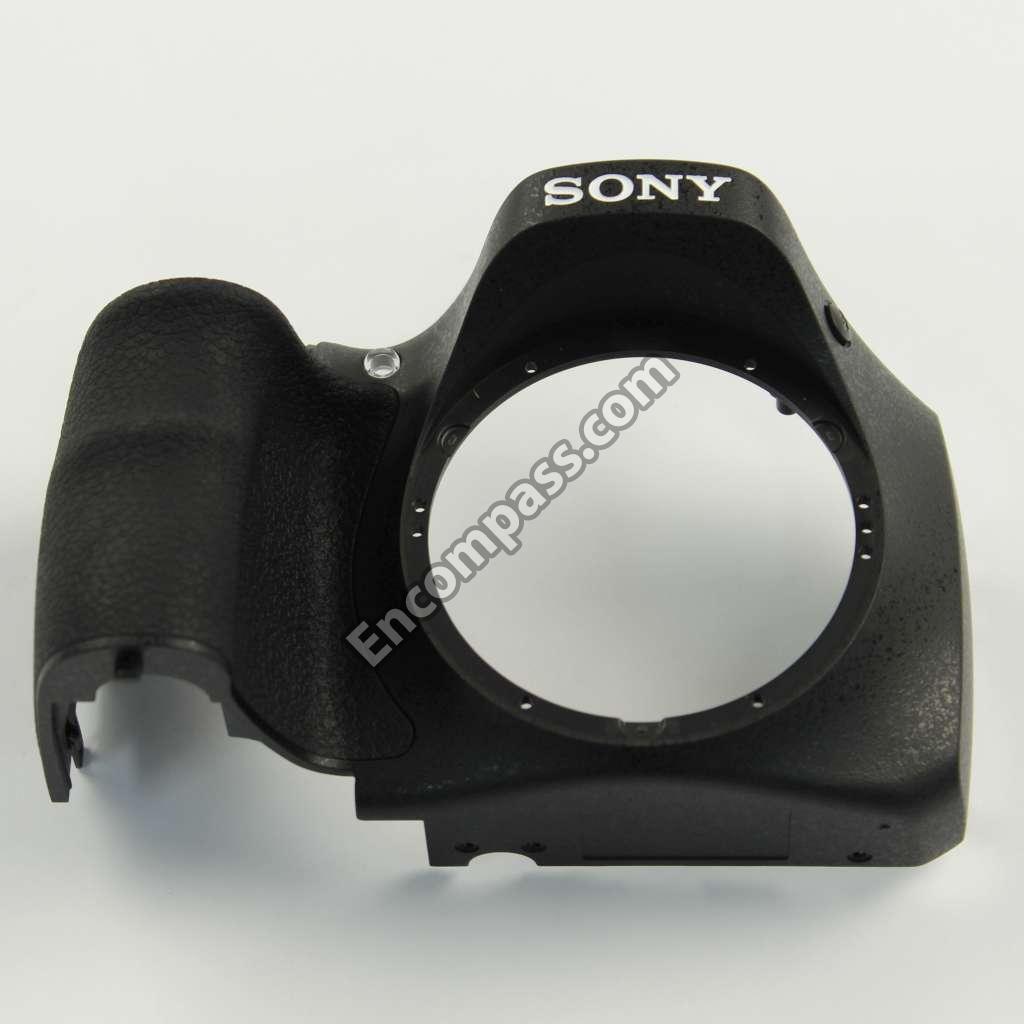

X-2588-848-1 X-2588-848-1 COVER ASSY, FRONT
X-2588-849-1 X-2588-849-1 COVER ASSY, REAR

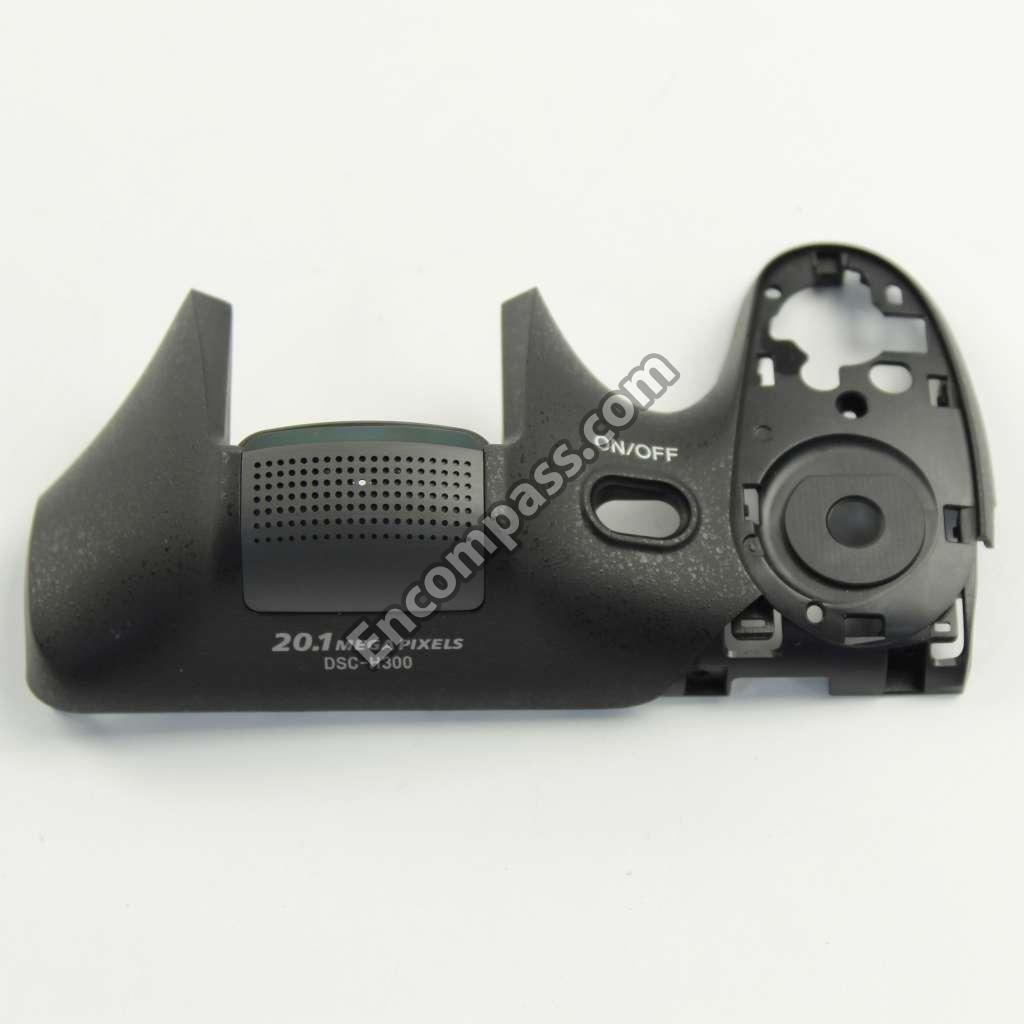

X-2588-847-1 X-2588-847-1 COVER ASSY, TOP
4-488-398-01 4-488-398-01 COVER(G), EYELET
4-488-397-01 4-488-397-01 COVER(O), EYELET
4-488-400-01 4-488-400-01 COVER, DC
4-488-388-01 4-488-388-01 COVER, USB
4-488-391-01 4-488-391-01 EYELET(G), STRAP
4-488-390-01 4-488-390-01 EYELET(O), STRAP
4-488-392-01 4-488-392-01 FPC BOARD, ST CONNECTION
A-1990-209-A A-1990-209-A FRAME ASSY, BATT CHAMBER
X-2588-882-1 X-2588-882-1 FRAME ASSY, MAIN
A-1989-699-A A-1989-699-A LCD MODULE
A-2076-066-A A-2076-066-A LCD MODULE (G)

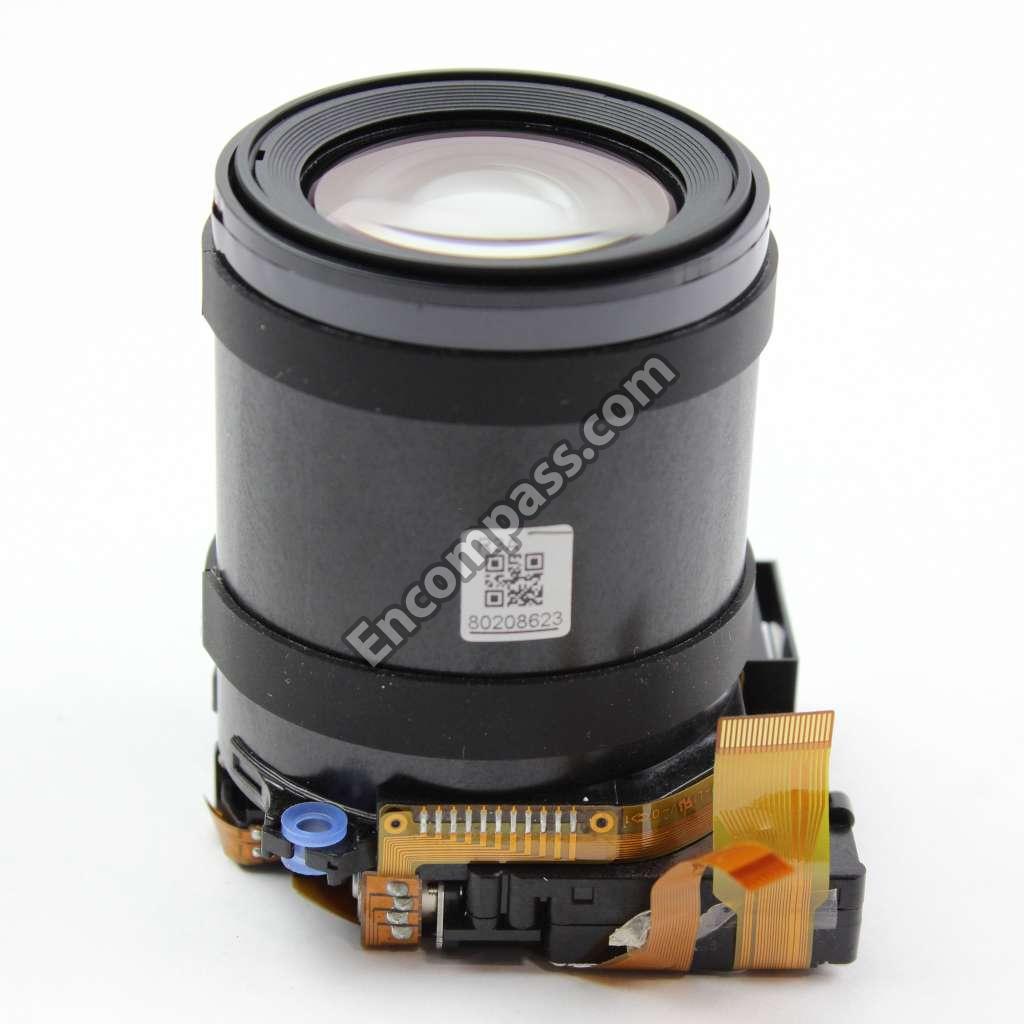

A-1926-389-A A-1926-389-A LENS BLOCK ASSEMBLY

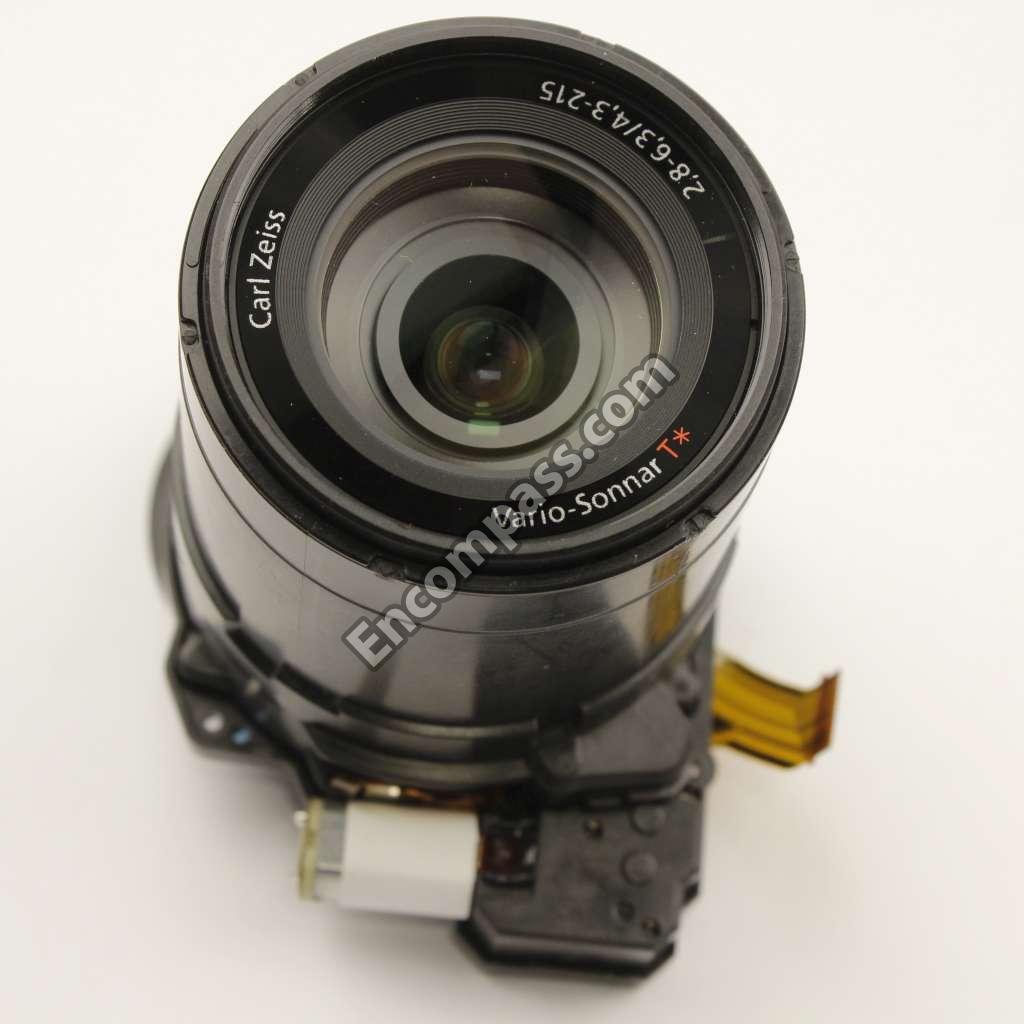

A-1989-706-A A-1989-706-A LENS BLOCK ASSY
4-451-696-01 4-451-696-01 LENS CAP STRAP

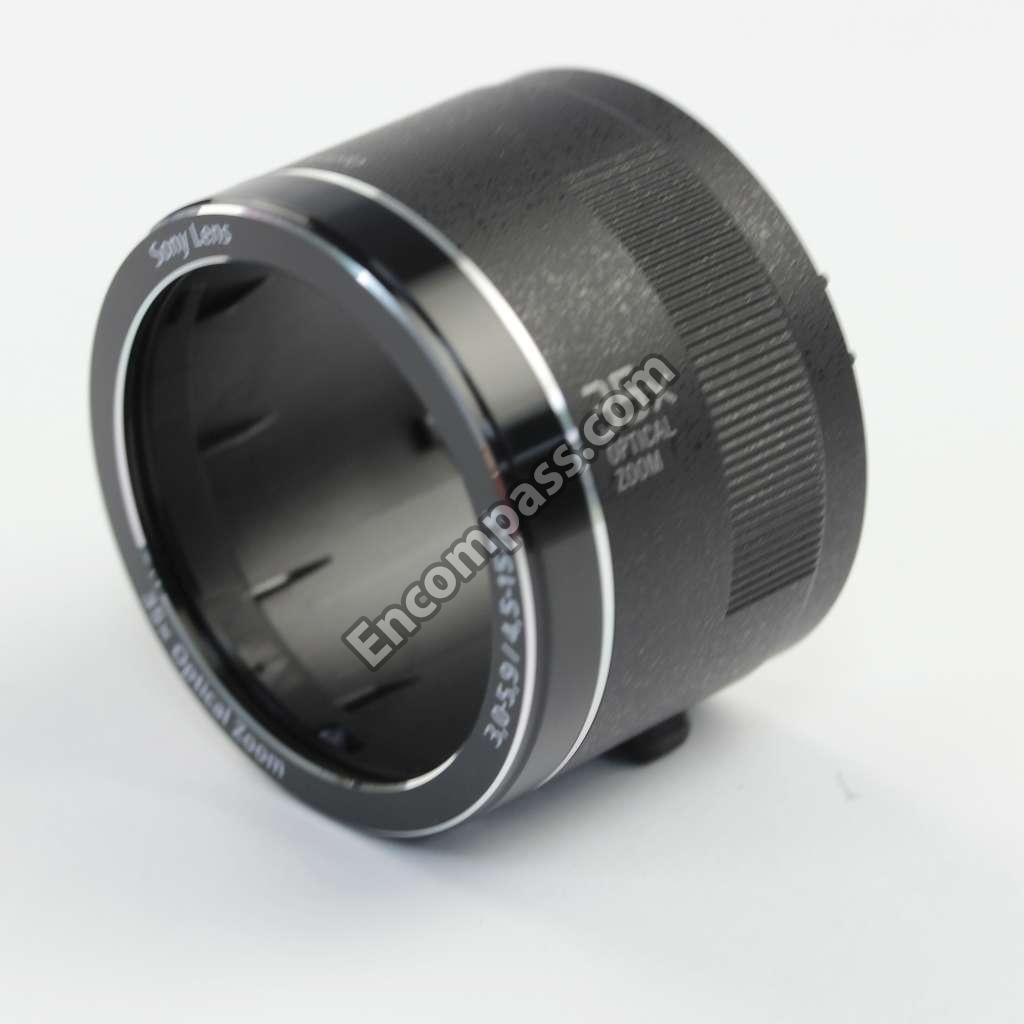

X-2588-845-1 X-2588-845-1 LENS HOLDER

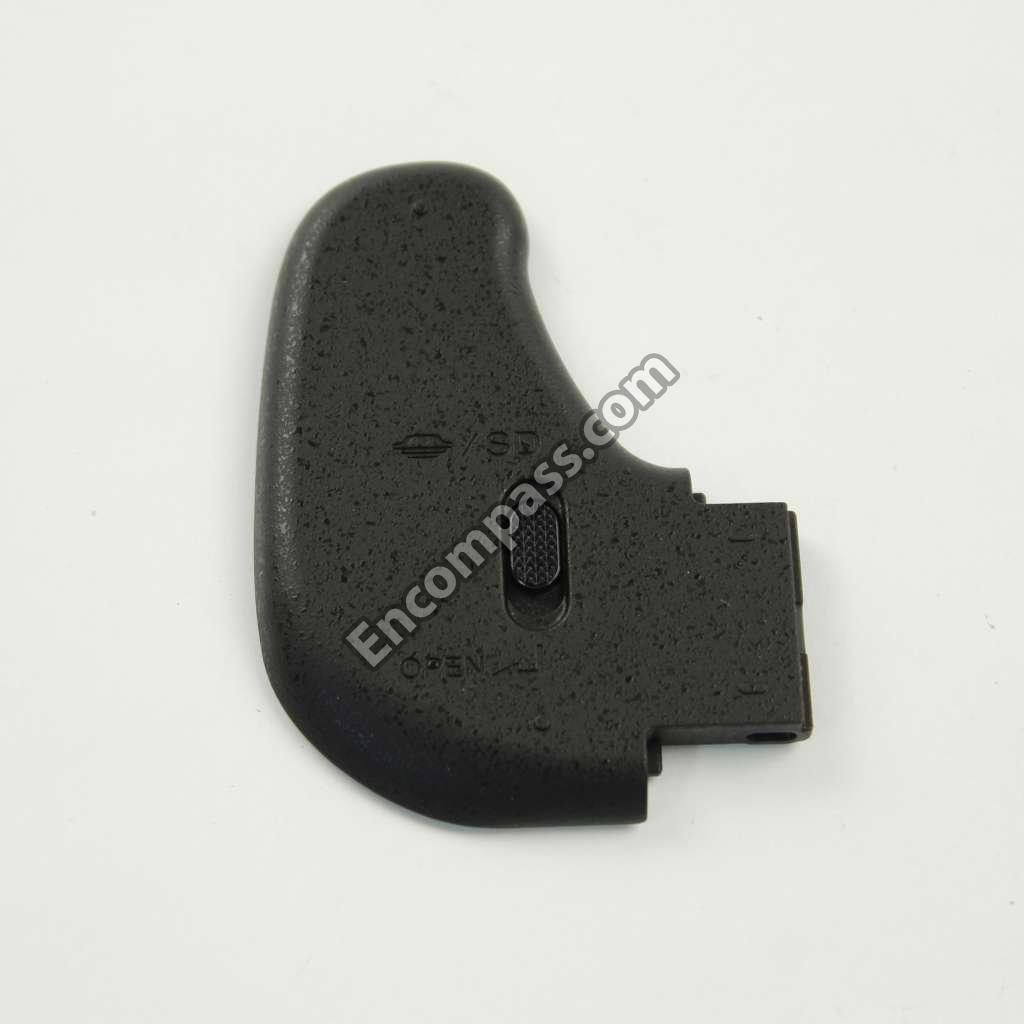

X-2588-844-1 X-2588-844-1 LID ASSY, BATT
8-848-924-01 8-848-924-01 LSV-1810A-BK

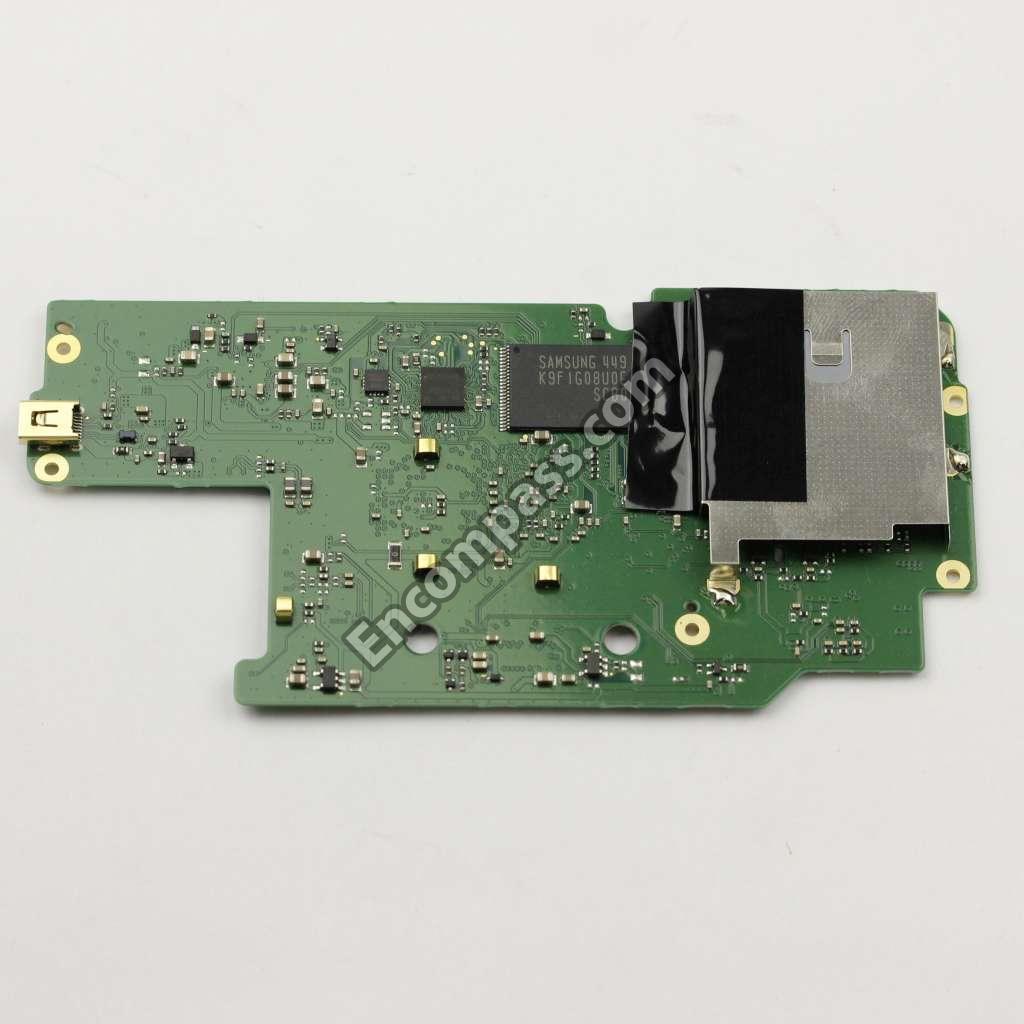

A-2045-571-B A-2045-571-B MAIN BOARD ASSEMBLY

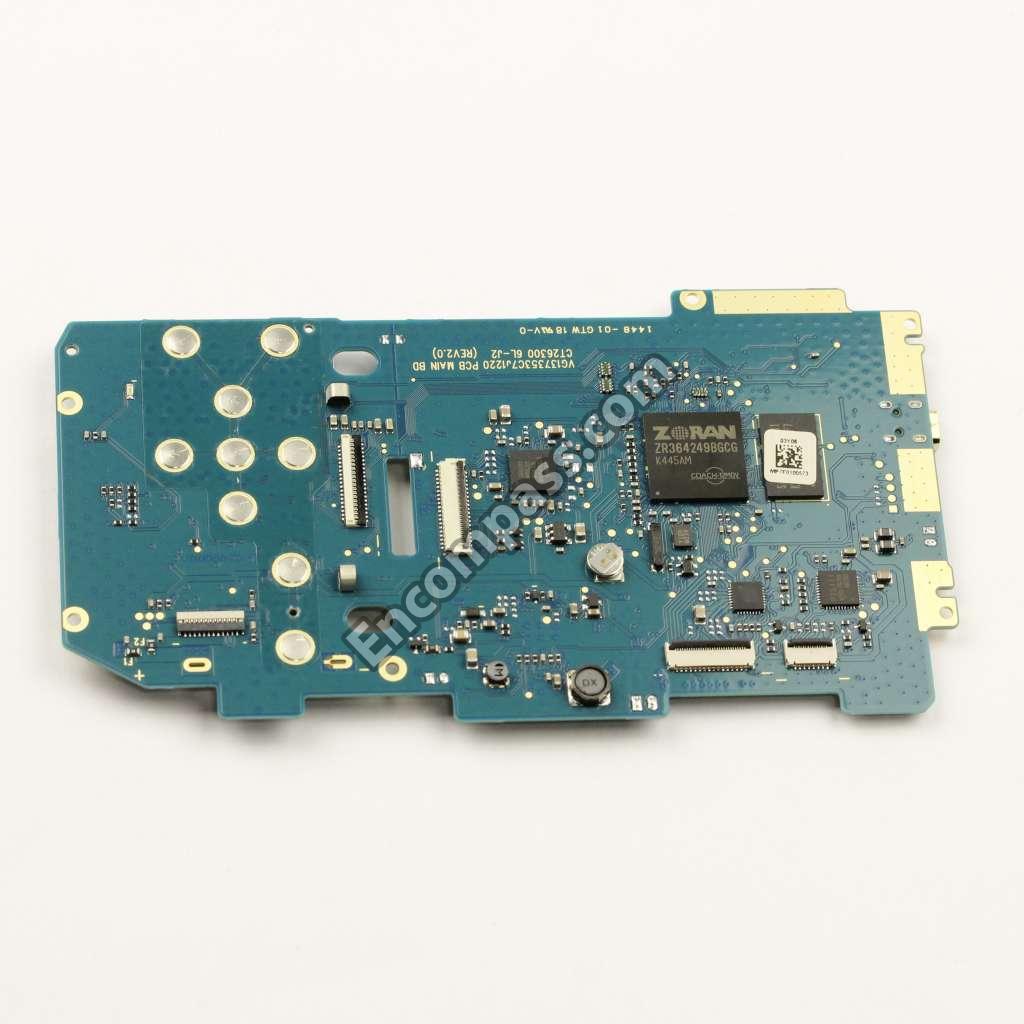

A-1989-698-B A-1989-698-B MAIN BOARD ASSY
4-488-393-01 4-488-393-01 OPTICAL FILTER BLOCK
1-856-440-12 1-856-440-12 OPTICAL UNIT (BE019)
1-856-497-12 1-856-497-12 OPTICAL UNIT (BE020)
4-488-402-01 4-488-402-01 SCREW_TP_1.7_4.0_SVR_AB
4-488-403-01 4-488-403-01 SCREW_TP_1.7_4.5_BLK_AB
4-488-404-01 4-488-404-01 SCREW_TP_1.7_5.5_SVR_AB
4-488-389-01 4-488-389-01 SHAFT, BATT LID
A-1989-735-A A-1989-735-A SPEAKER ASSY
4-488-399-01 4-488-399-01 SPONGE, LENS CUSHION
A-1989-704-A A-1989-704-A ST BOARD ASSY
9-885-185-37 9-885-185-37 USB A TO USB MINI CABLE
