Model Image
Manufacturer

Sony

Model Number

DSCHX300

Description

Hx300 Camera With 50x Optical Zoom

Interactive Exploded View

Parts List

Part Number Description
X-2586-759-1 X-2586-759-1 BTH ASSY (490)
X-2586-760-1 X-2586-760-1 CABINET (C) ASSY (490), P
X25867637 X25867637 CABINET (FRONT) ASSY (490)
X-2586-762-1 X-2586-762-1 CABINET (REAR) ASSY (490)
A-1927-449-A A-1927-449-A CABINET M, P BLOCK (SERVICE)
1-846-614-11 1-846-614-11 CABLE, FLEXIBLE FLAT (FFC-1042
X-2586-766-1 X-2586-766-1 CAP ASSY (490), LENS

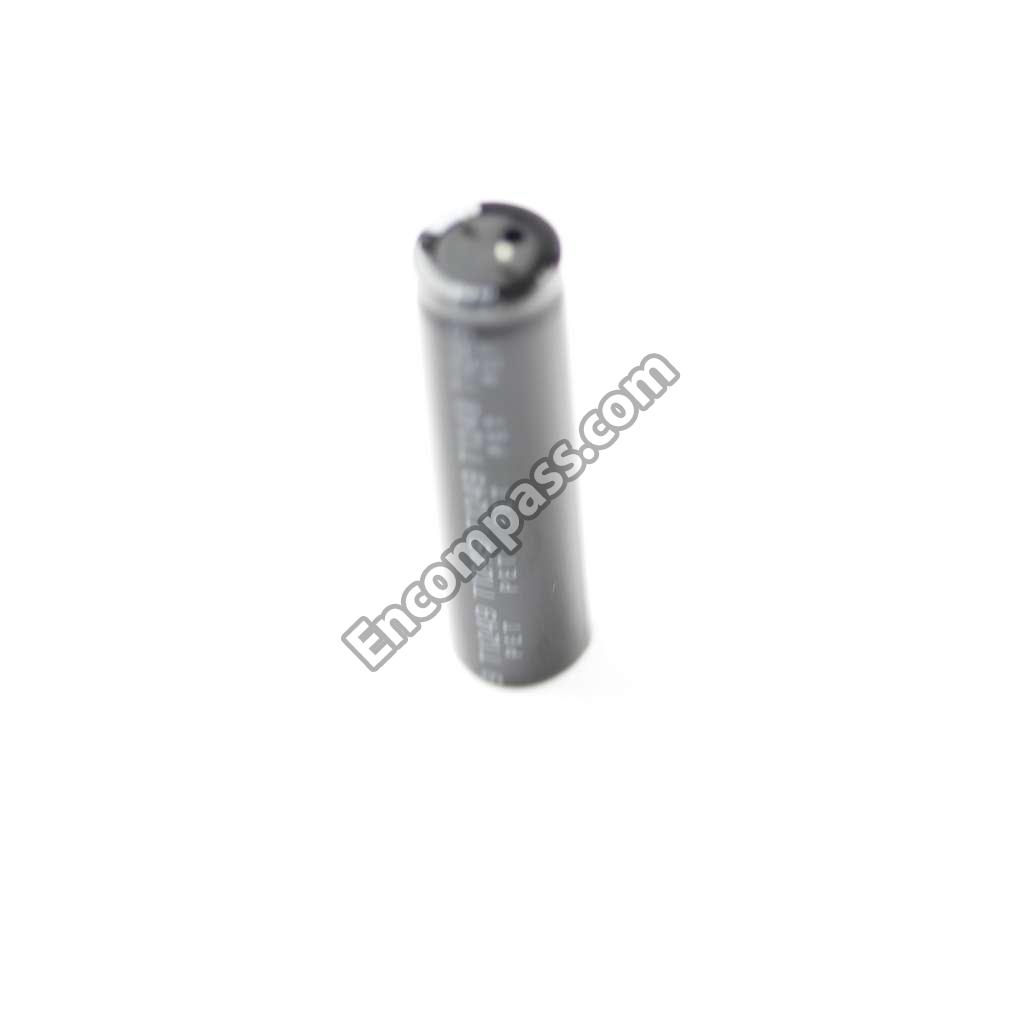

1-118-589-11 1-118-589-11 CAPACITOR, ALUMINIUMELECT134MF
4-458-108-01 4-458-108-01 COVER (490), ST

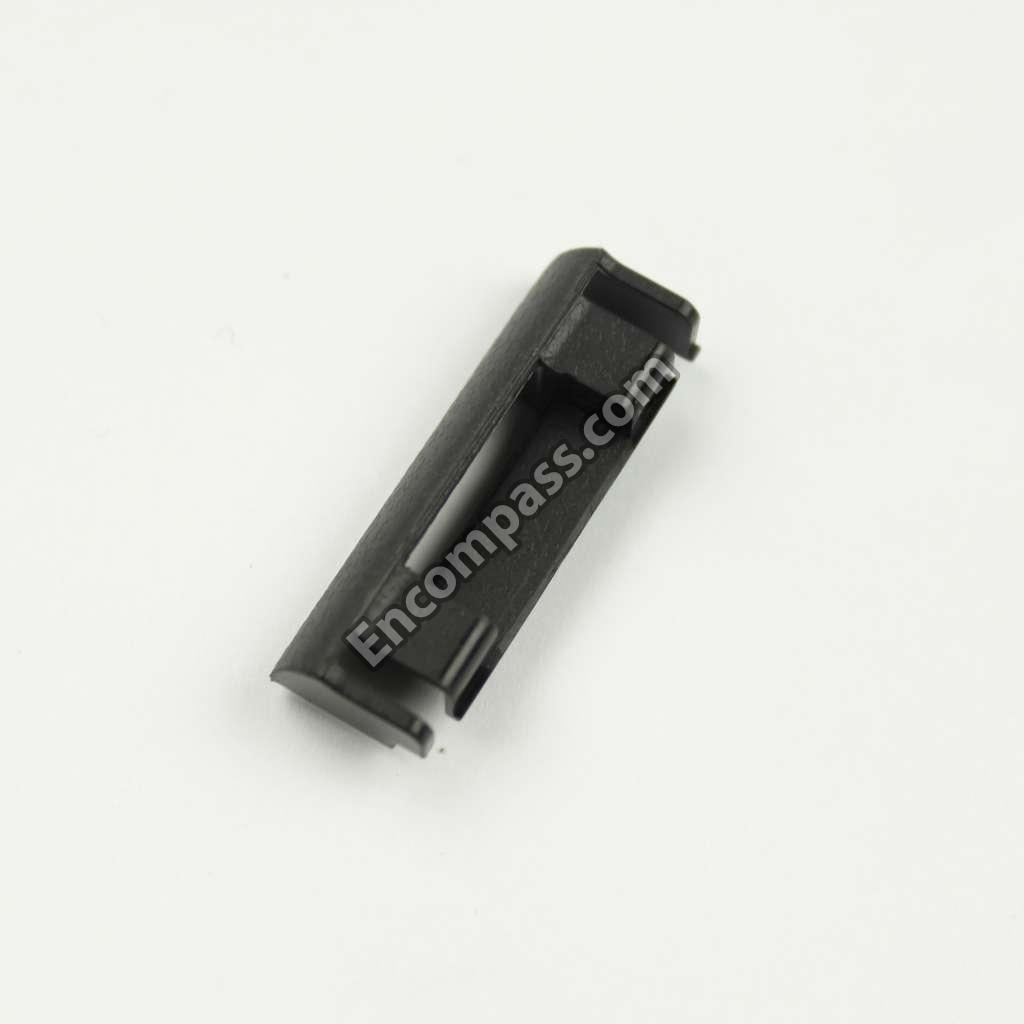

4-458-056-01 4-458-056-01 COVER (R) (490), HINGE
4-458-102-01 4-458-102-01 CUSHION (490), MICROPHONE
4-458-068-01 4-458-068-01 CUSHION (490), SPEAKER
4-464-016-01 4-464-016-01 CUSHION (ST) (490)
1-490-083-11 1-490-083-11 FLASH UNIT
X-2587-062-1 X-2587-062-1 FRAME ASSY, FILTER SCREW
4-463-553-01 4-463-553-01 GASKET (4X4X1)
4-463-555-01 4-463-555-01 GASKET (5X5X0.5)

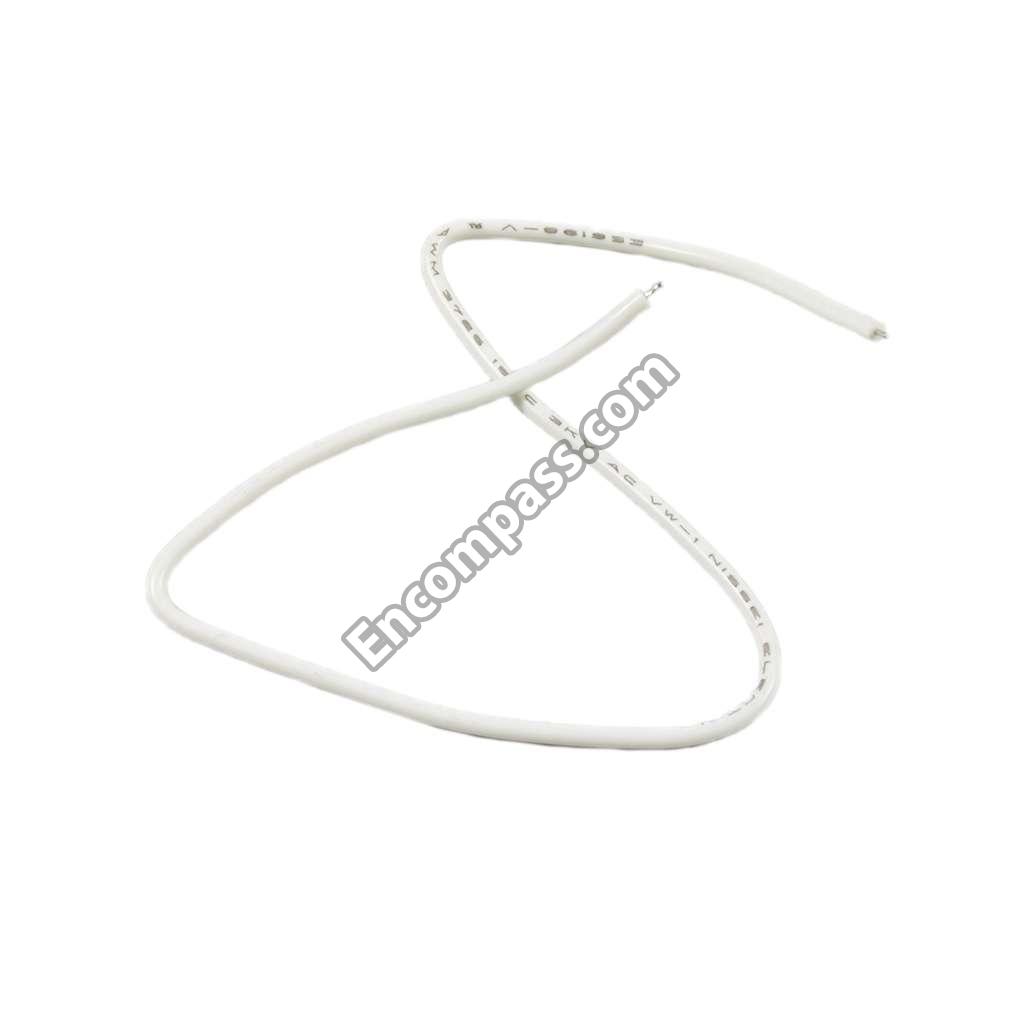

1-969-002-11 1-969-002-11 HARNESS (SK-1001)
1-969-003-11 1-969-003-11 HARNESS (SK-1002)
1-969-004-11 1-969-004-11 HARNESS (SK-1003)
X-2586-761-1 X-2586-761-1 HINGE ASSY (490)

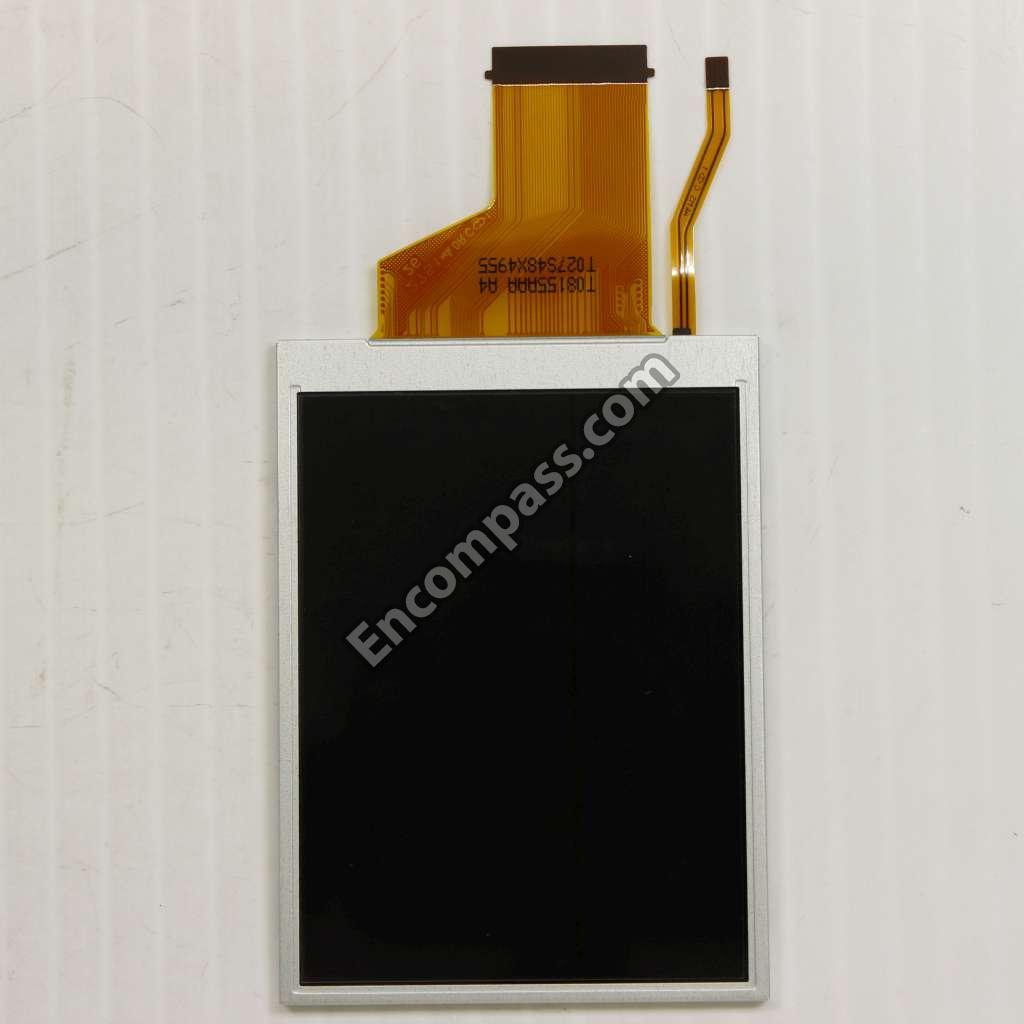

1-811-762-11 1-811-762-11 LCD MODULE
4-457-247-01 4-457-247-01 MANUAL, INSTRUCTION
4-457-247-12 4-457-247-12 MANUAL, INSTRUCTION
NSI NSI MANUAL, INSTRUCTION
4-457-248-91 4-457-248-91 MANUAL, INSTRUCTION
1-542-967-11 1-542-967-11 MICROPHONE UNIT
A-1926-869-A A-1926-869-A MOUNTED C, BOARD, CD-1003
A-1926-871-A A-1926-871-A MOUNTED C, BOARD, FP-2130
A-1926-872-A A-1926-872-A MOUNTED C, BOARD, FP-2131
A-1926-867-A A-1926-867-A MOUNTED C, BOARD, PD-1019
A-1926-866-A A-1926-866-A MOUNTED C, BOARD, PR-1003

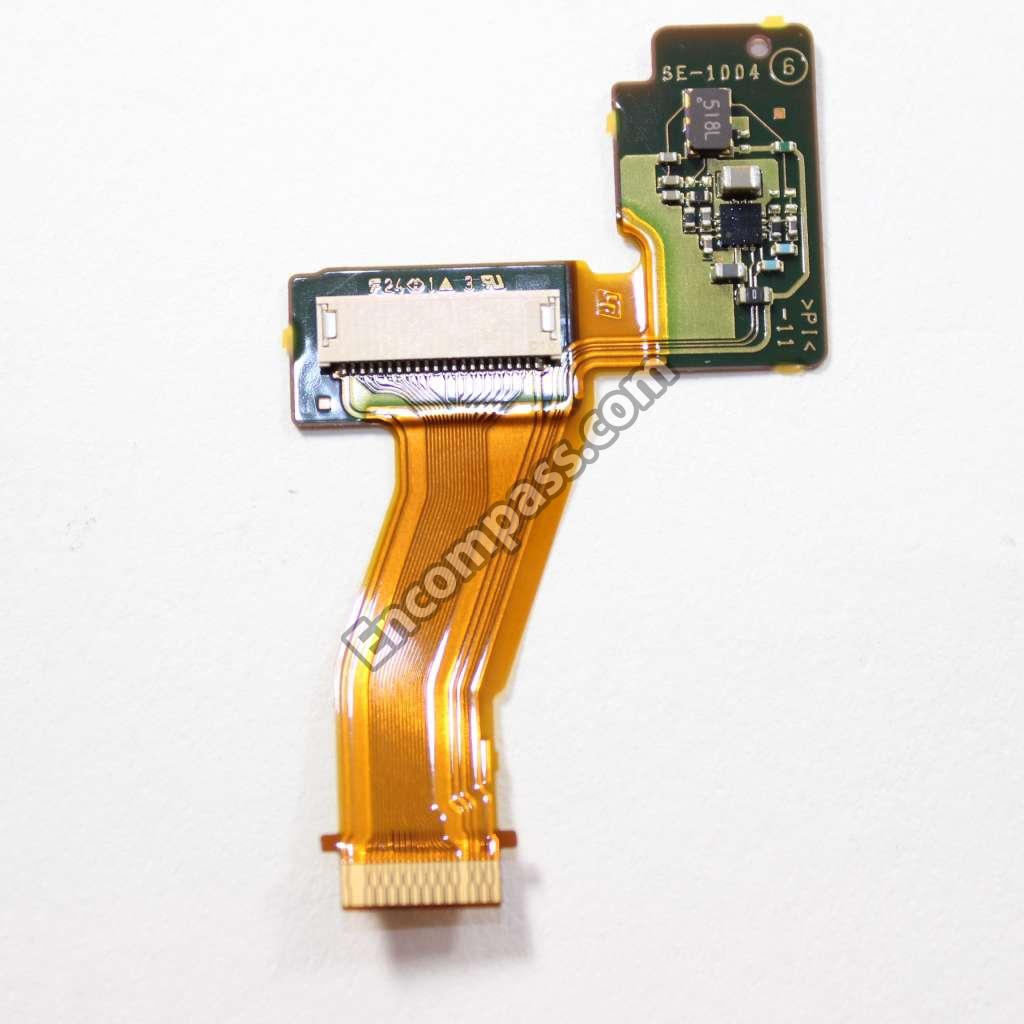

A-1926-870-A A-1926-870-A MOUNTED C, BOARD, SE-1004
A-1926-865-A A-1926-865-A MOUNTED C, BOARD, ST-1013

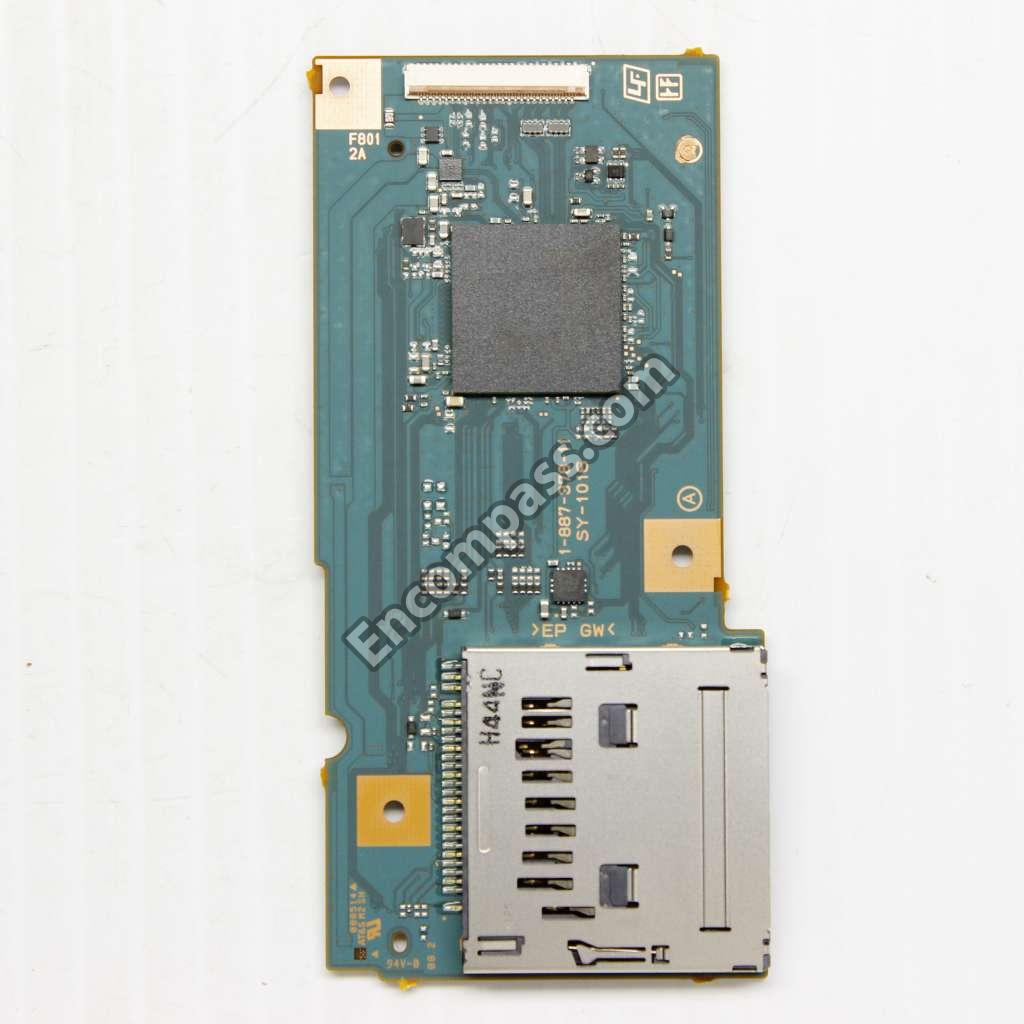

A-1926-890-A A-1926-890-A MOUNTED C, BOARD, SY-1016SERVIC
A-1926-868-A A-1926-868-A MOUNTED C, BOARD, UM-1002
A-2033-123-A A-2033-123-A MOUNTED C.BOARD, SY1034 (S)
1-856-440-12 1-856-440-12 OPTICAL UNIT (BE019)
4-458-055-01 4-458-055-01 PLATE (490), BLINDFOLD
4-458-094-01 4-458-094-01 PLATE (490), MF GROUND
4-458-111-01 4-458-111-01 PLATE (490), MODE
4-458-101-01 4-458-101-01 PLATE (MIC) (490), GROUND
4-458-110-01 4-458-110-01 PLATE (USB) (490), FIXED
4-460-994-01 4-460-994-01 PLATE, ORNAMENTAL
1-887-722-11 1-887-722-11 PWB, BT-2005 FLEXIBLE
1-888-083-11 1-888-083-11 PWB, HB-1002 FLEXIBLE

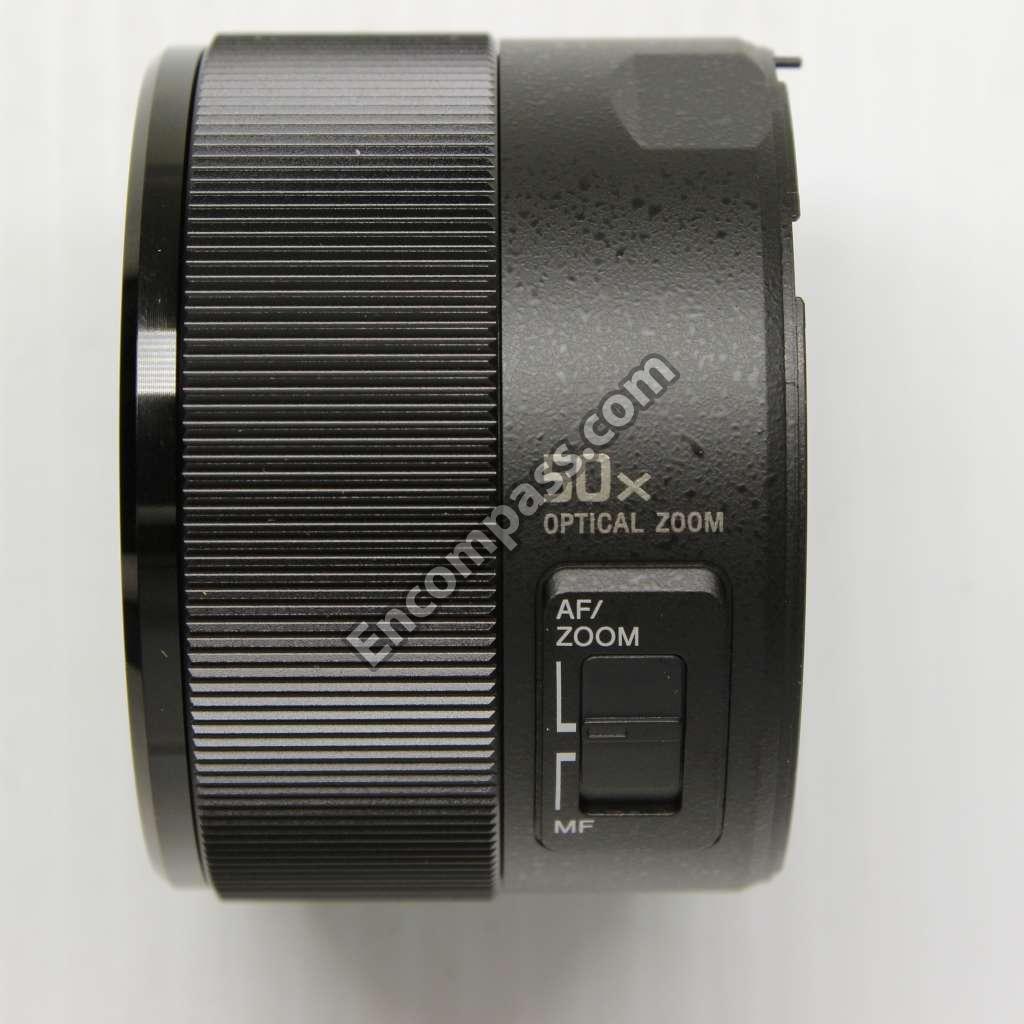

X-2586-764-1 X-2586-764-1 RING ASSY (490), MF
4-458-093-01 4-458-093-01 RING(BASE) (490), LENS
3-939-590-46 3-939-590-46 SCREW (IB LOCK)

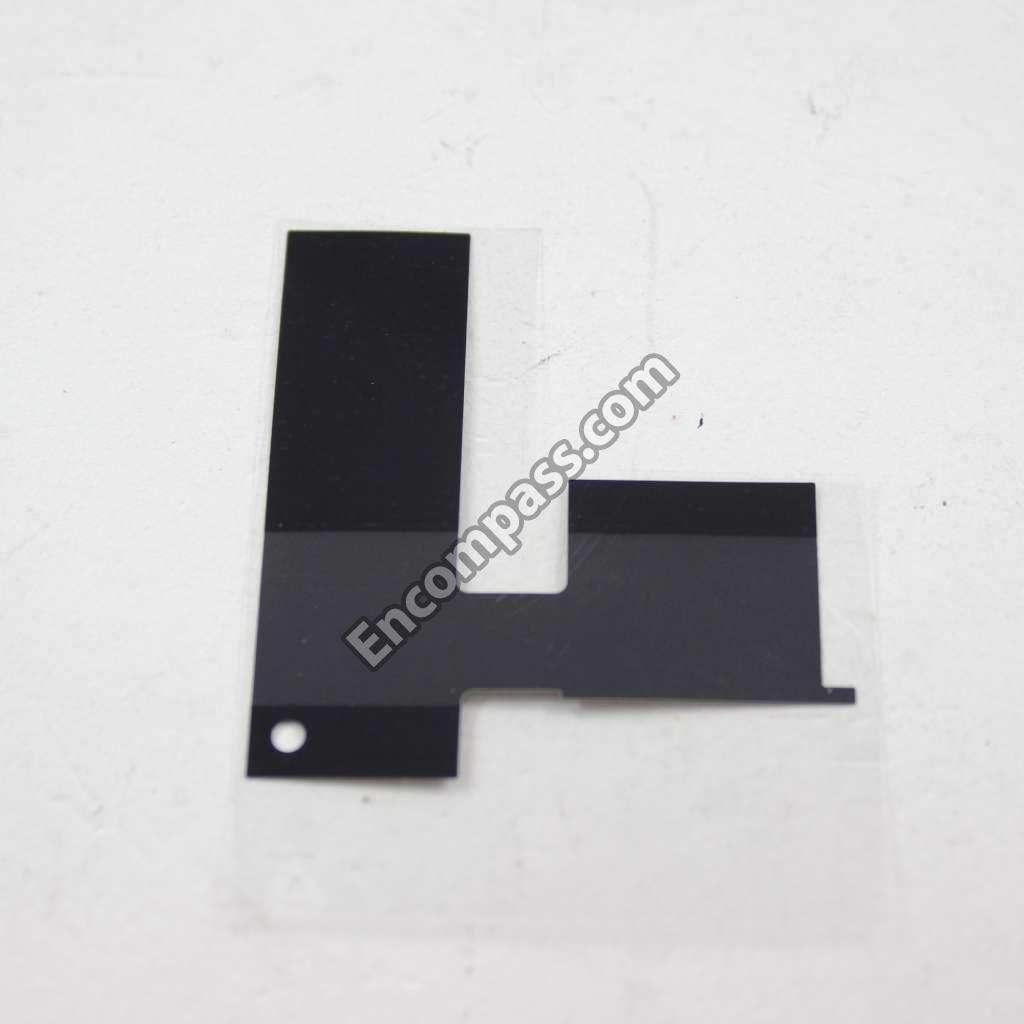

4-458-059-01 4-458-059-01 SHEET (490), PD
4-461-906-01 4-461-906-01 SHEET (ESD)
4-461-558-01 4-461-558-01 SHEET (FLEXIBLE BLIND)
4-461-557-01 4-461-557-01 SHEET (OF)
4-464-523-01 4-464-523-01 SHEET (RADIATION) (PD FPC 1)
4-464-521-01 4-464-521-01 SHEET (RADIATION) (REAR)

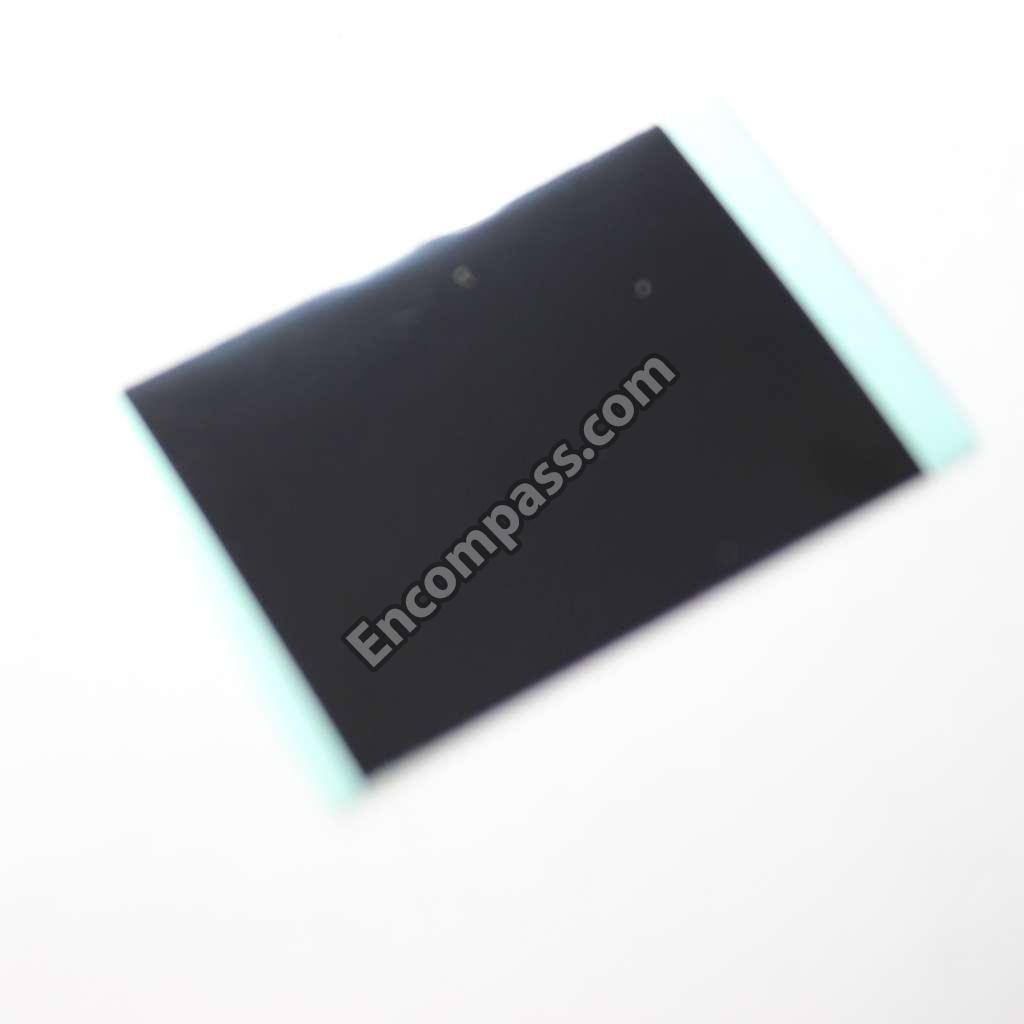

4-464-330-01 4-464-330-01 SHEET (S) (490)

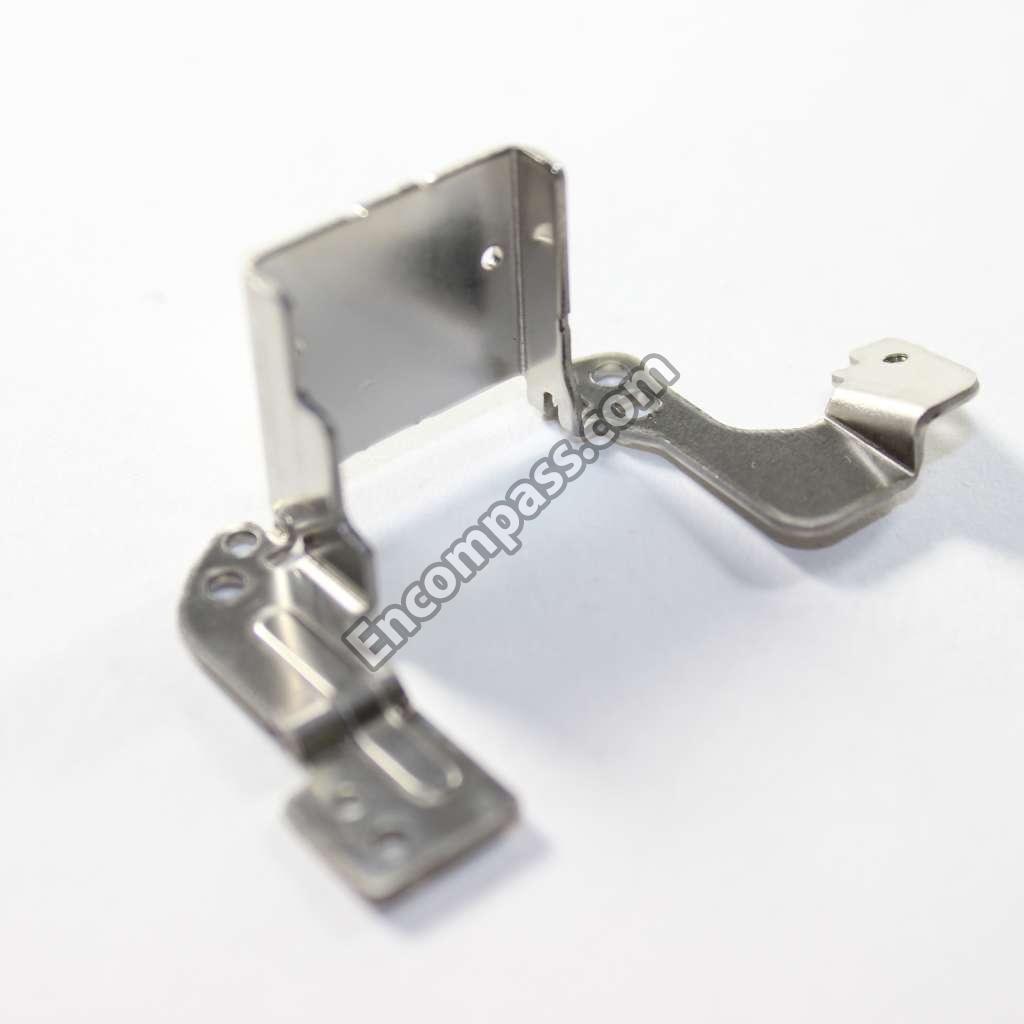

4-458-112-01 4-458-112-01 SHEET METAL (490), SHOE
4-458-109-01 4-458-109-01 SHEET METAL (L) (490), STRAP
4-489-463-01 4-489-463-01 SHEET METAL(490), SW RETAINER

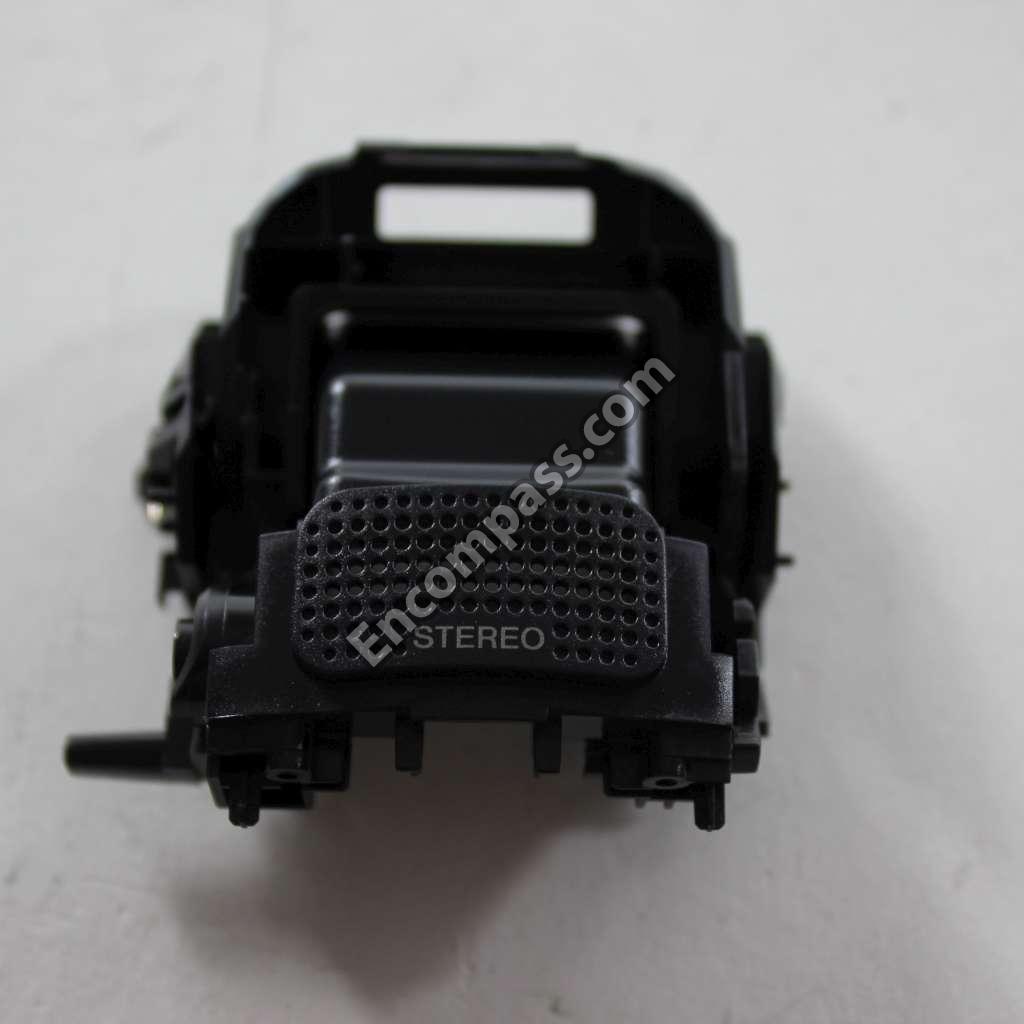

X-2586-765-3 X-2586-765-3 ST ASSY (490)

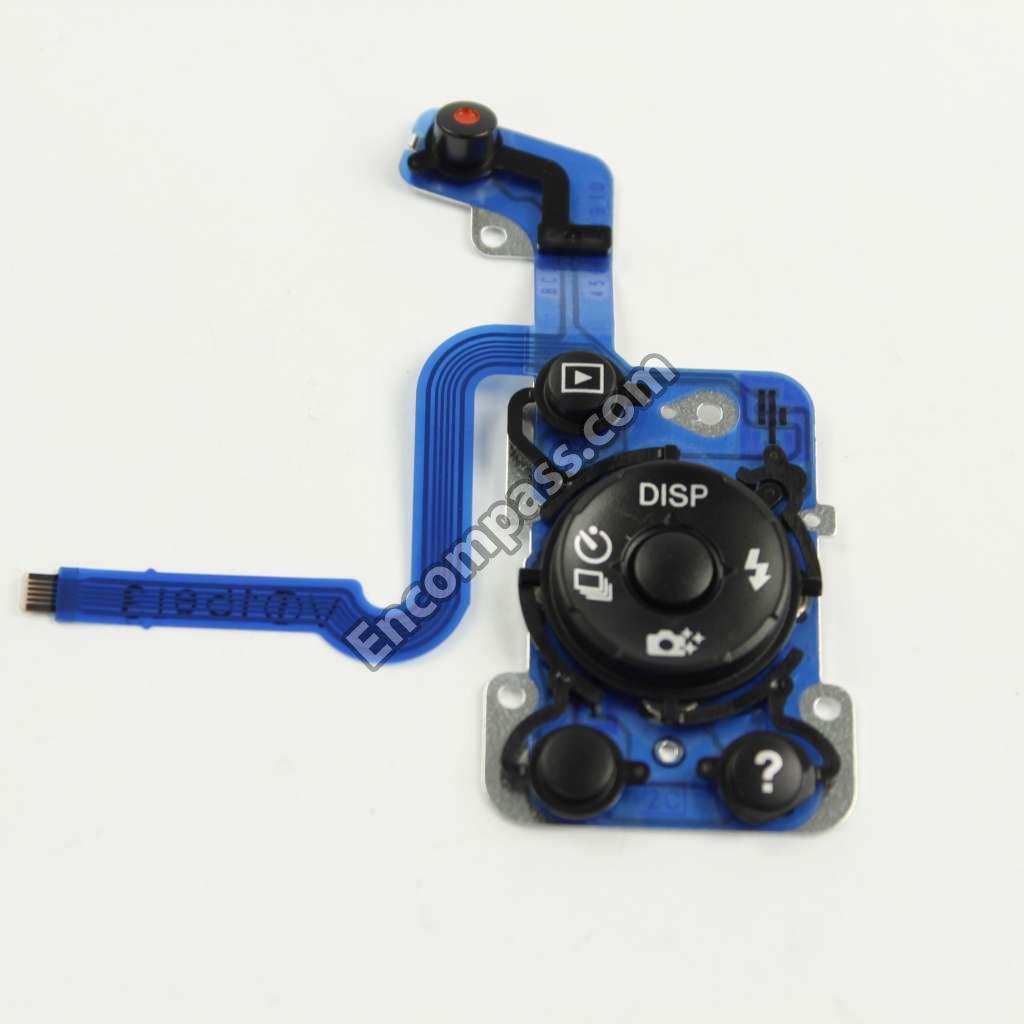

1-492-120-11 1-492-120-11 SWITCH BLOCK, CONTROL(KEY6349)

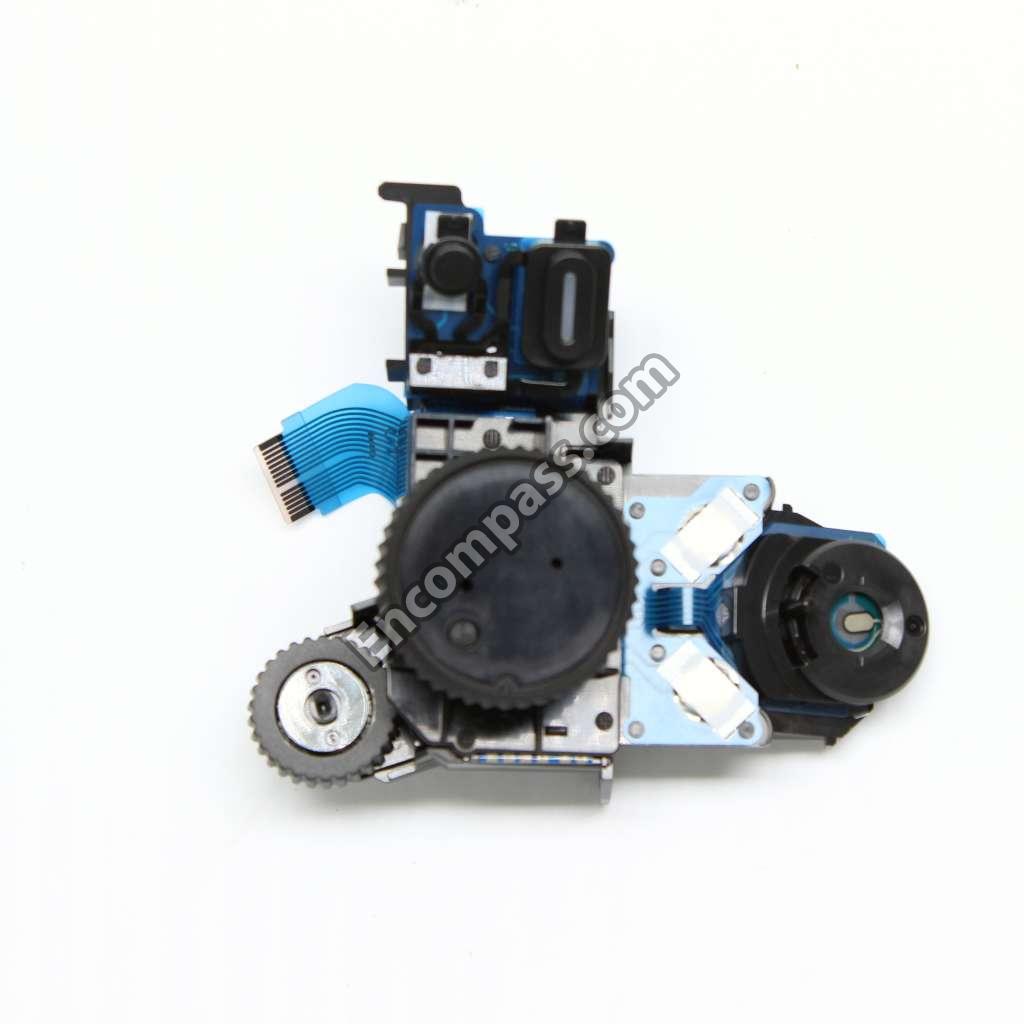

1-492-119-12 1-492-119-12 SWITCH BLOCK, CONTROL(SW63490)
