Model Image
Manufacturer

Sony

Model Number

DSCQX100

Description

Smartphone Attachable Lens-style Camera

Interactive Exploded View

Parts List

Part Number Description
4-472-471-01 4-472-471-01 BTH (790)
X-2587-922-1 X-2587-922-1 CABINET (FRONT) ASSY (790)

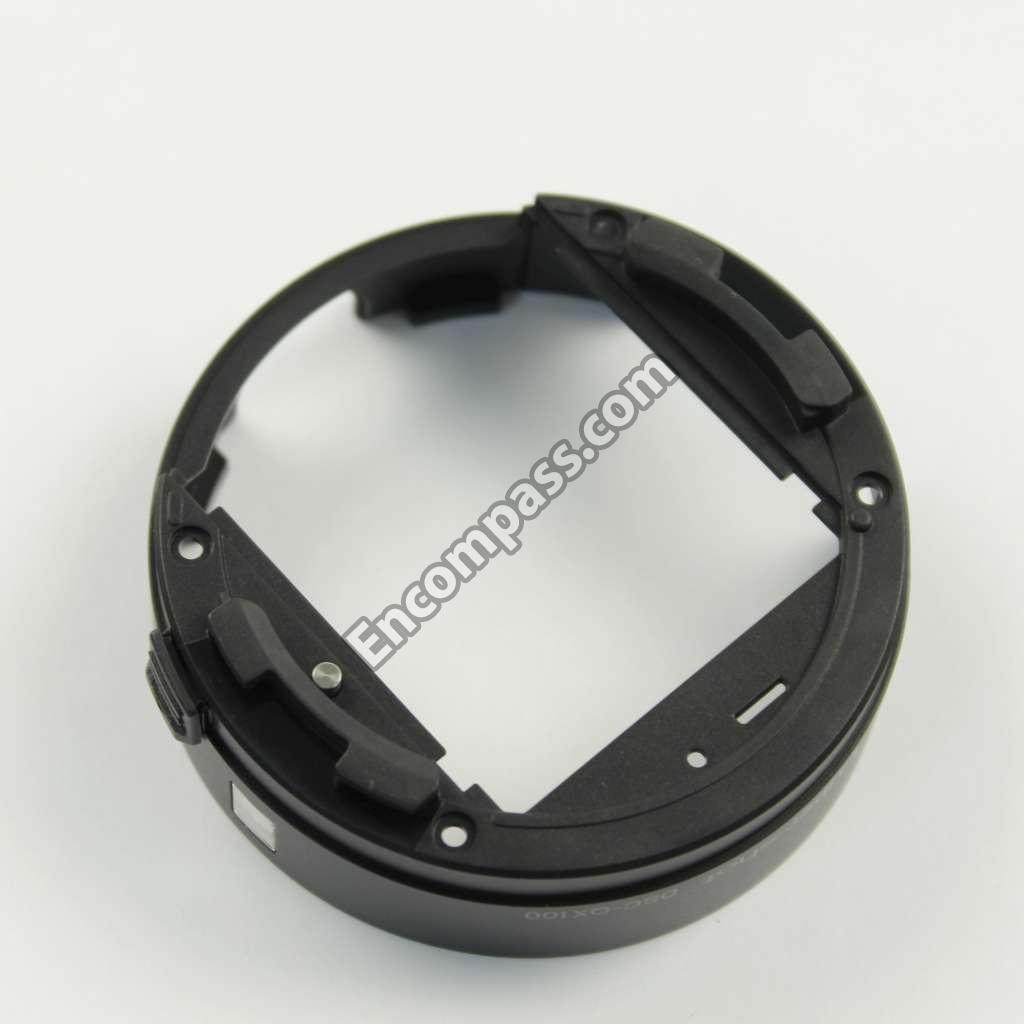

X-2587-923-1 X-2587-923-1 CABINET (REAR) ASSY (790)
4-472-477-01 4-472-477-01 CLAMP, LCD
4-472-481-01 4-472-481-01 CUSHION, LCD
1-811-854-11 1-811-854-11 DISPLAY PANEL, LIQUID CRYSTAL
4-473-761-01 4-473-761-01 FRAME (790), TOP
4-472-474-01 4-472-474-01 FRAME (790), TRIPOD
4-472-479-01 4-472-479-01 FRAME (790), USB
1-492-401-11 1-492-401-11 GEAR ASSY, ZOOM (Z1560B)
X-2588-134-2 X-2588-134-2 HOLDER ASSY

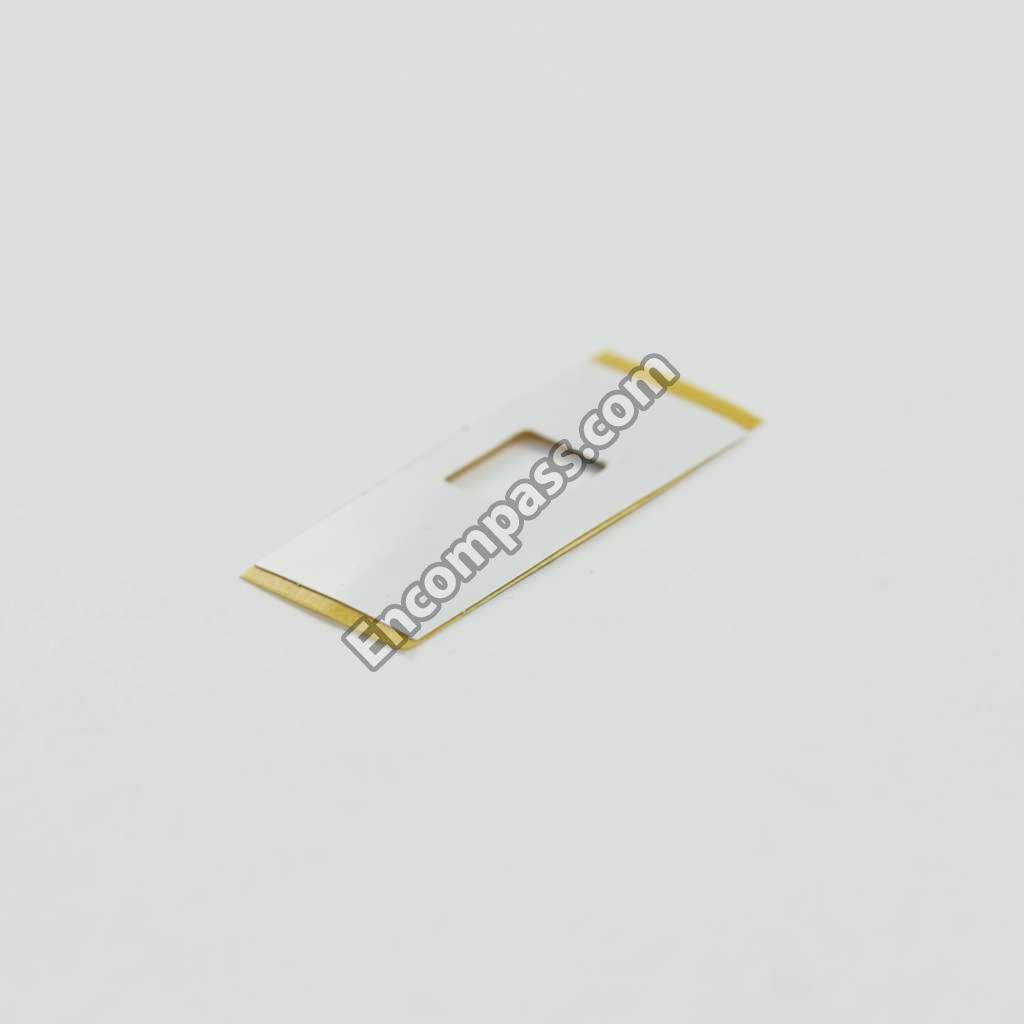

4-484-932-01 4-484-932-01 LENS (FPC (790)), SHEET
X-2588-069-1 X-2588-069-1 LID ASSY (790), BT
A-1973-007-A A-1973-007-A LUBRICATING BLOCK ASSY, GEAR
4-472-484-01 4-472-484-01 MICROPHONE (LOWER), CUSHION
4-472-483-01 4-472-483-01 MICROPHONE, CUSHION
A-1974-642-A A-1974-642-A MOUNTED C.BOARD, SE-184B
A-1971-013-A A-1971-013-A MOUNTED C.BOARD, SY-1023 (S)
A-1976-036-A A-1976-036-A MOUNTED C.BORAD, RL-1019(S)
4-410-473-01 4-410-473-01 NARUTO COVER SEAL

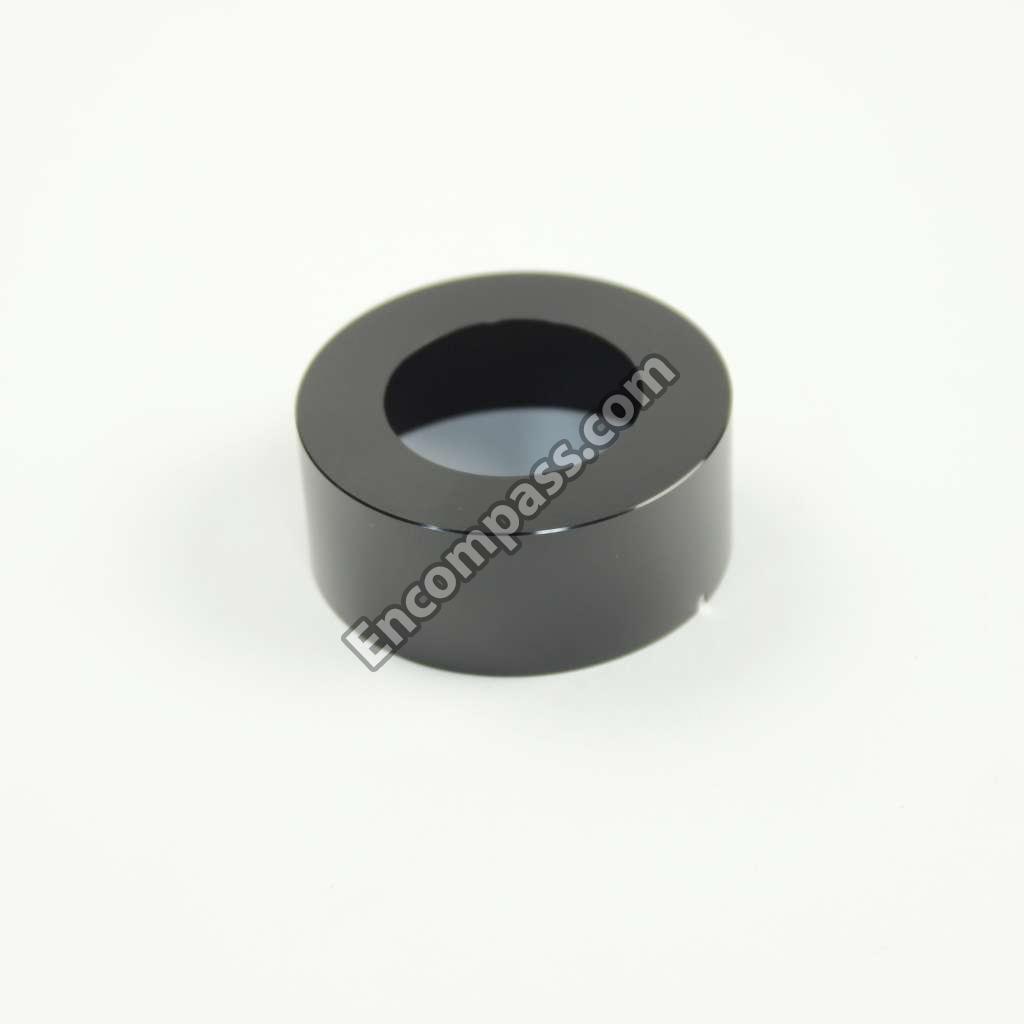

4-410-498-11 4-410-498-11 ORNAMENTAL RING (A)
4-472-476-01 4-472-476-01 PLATE (790), (FRONT) GROUND

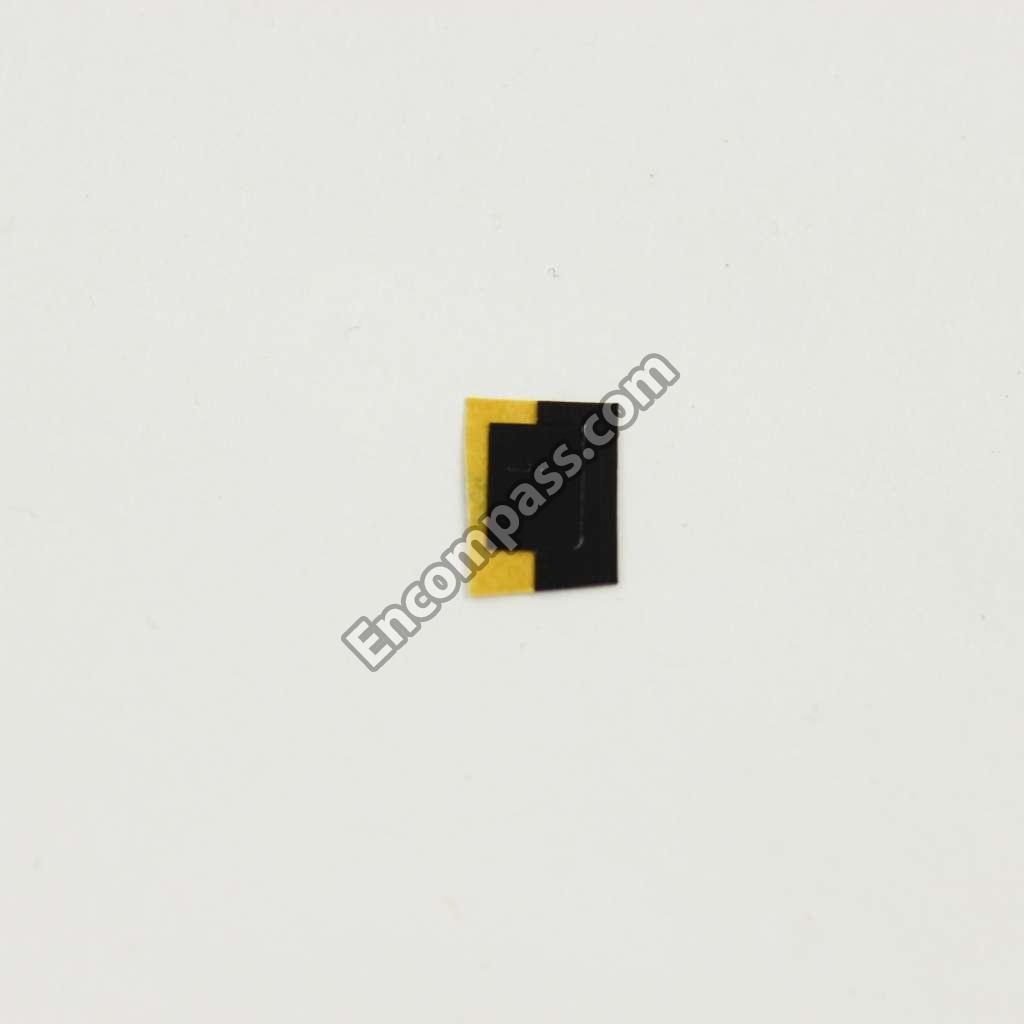

4-474-820-01 4-474-820-01 RESET (790), SHEET
4-472-478-01 4-472-478-01 RETAINER (790), USB
3-703-816-18 3-703-816-18 SCREW (M1.4X3.5), SPECIAL HEAD
X-2588-590-1 X-2588-590-1 SERVICE ASSY (790), USB LID
A-1973-614-A A-1973-614-A SERVICE, LSV-1560B
4-486-603-01 4-486-603-01 SHEET (790), TOP FRAME
4-484-271-01 4-484-271-01 SHEET (BT (790))

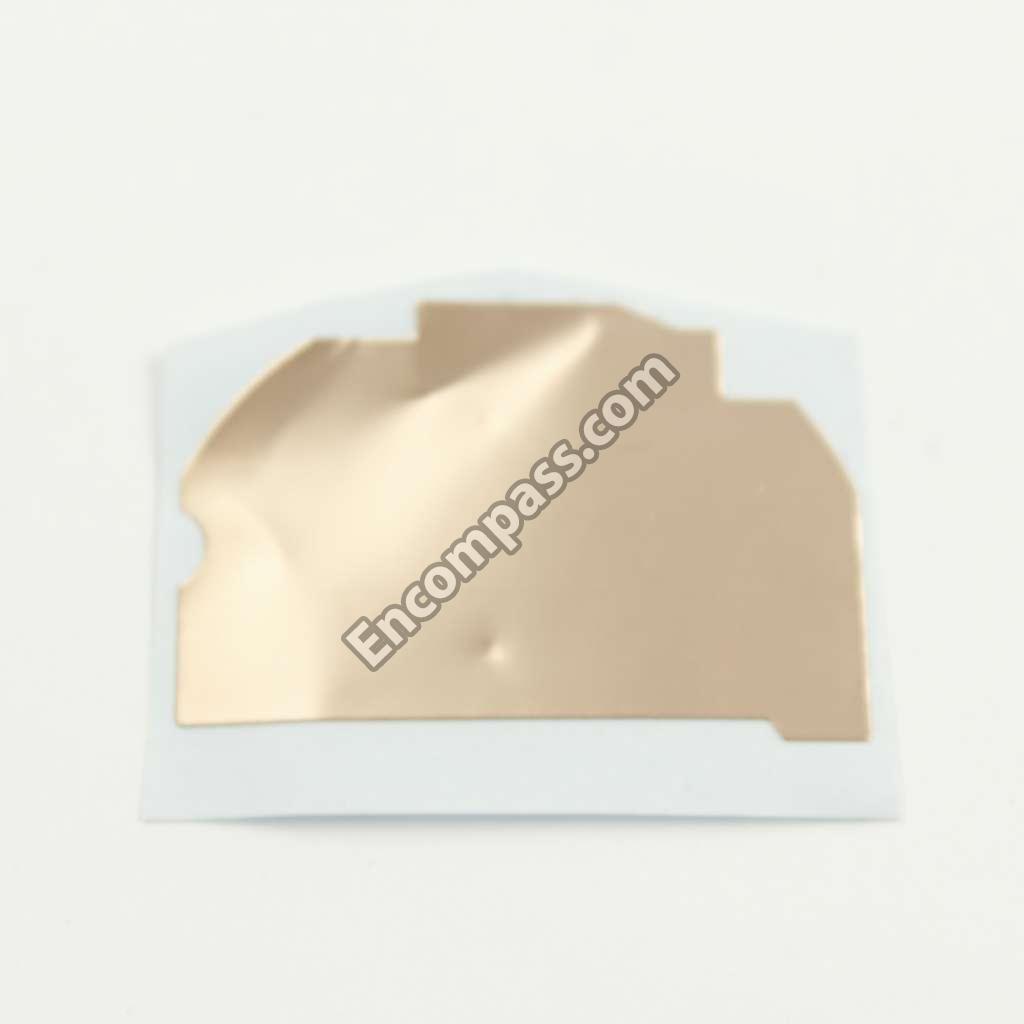

4-472-482-01 4-472-482-01 SHEET (CM (790))
4-484-270-01 4-484-270-01 SHEET (CM FPC) (790)
4-485-165-01 4-485-165-01 TAPE (AS (0609))
