Model Image
Manufacturer

Sony

Model Number

DSCRX100M4

Description

Rx100 Iv Cyber-shot Digital Still Camera

Interactive Exploded View

Parts List

Part Number Description
1-493-085-13 1-493-085-13 AC ADAPTOR
4-572-632-01 4-572-632-01 BASE, ST FLEXIBLE
NPBX1_M8 NPBX1_M8 BATTERY PACK (NP-BX1)
4-528-653-01 4-528-653-01 BOTTOM, CABINET

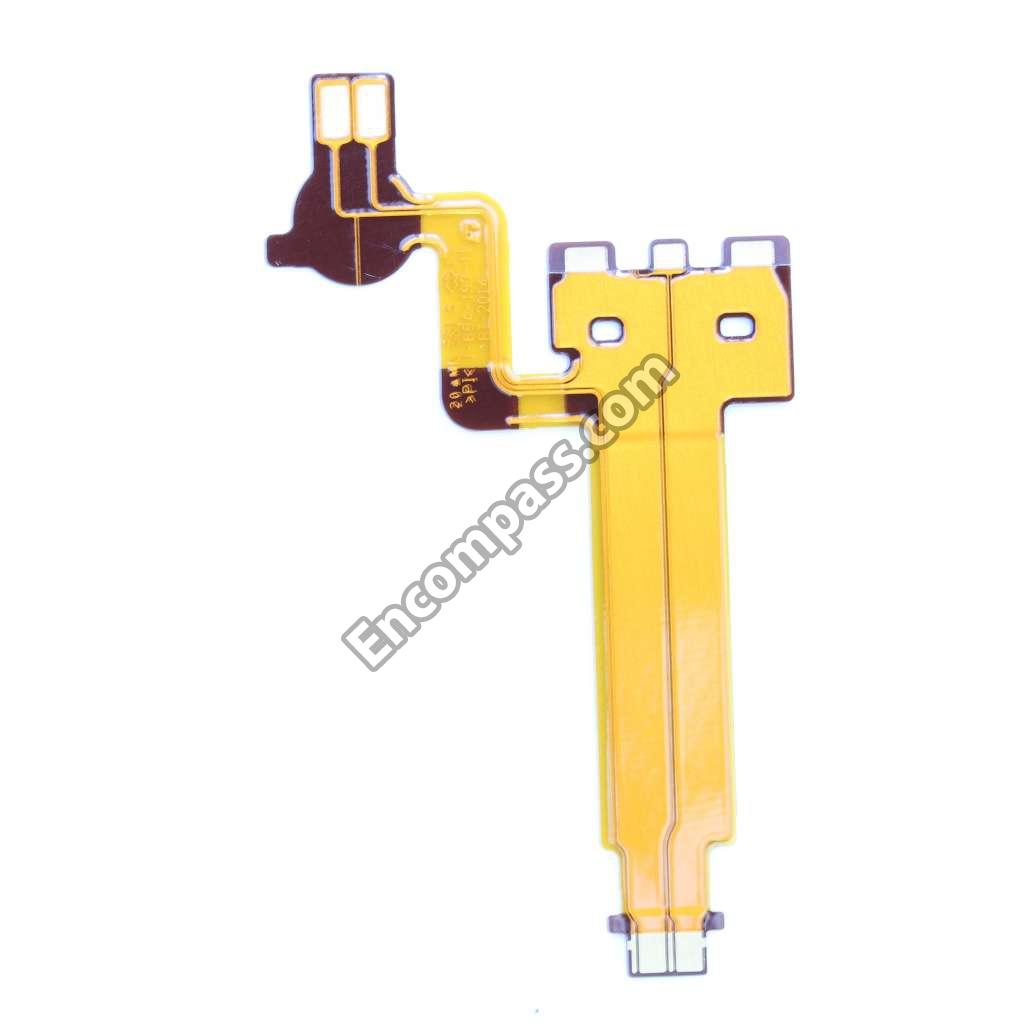

1-894-197-11 1-894-197-11 BT-2014 FLEXIBLE PWB

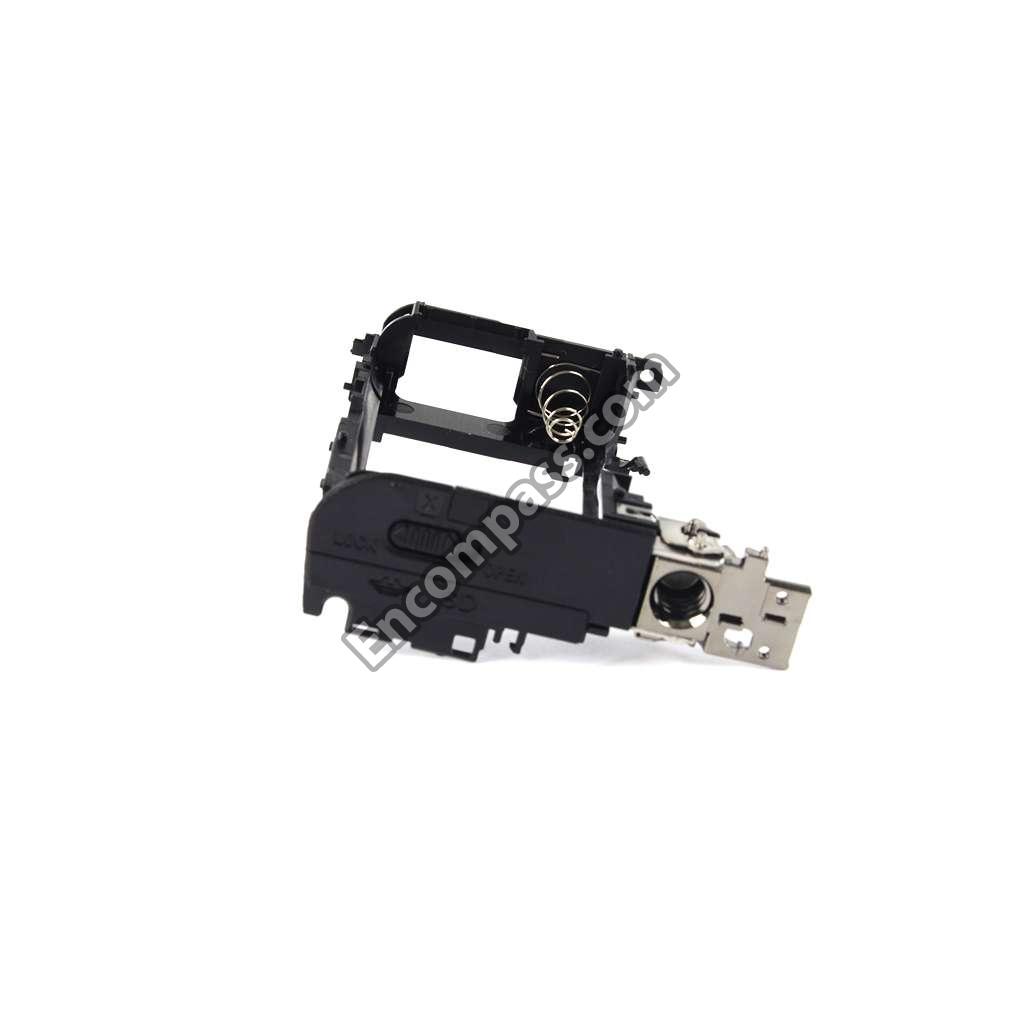

X-2591-658-2 X-2591-658-2 BTH ASSY
X-2591-659-3 X-2591-659-3 CABINET (REAR) ASSY
1-846-615-12 1-846-615-12 CABLE CONNECTION (USB)
A-2081-835-A A-2081-835-A COMPLETE PC BOARD (SERVICE)

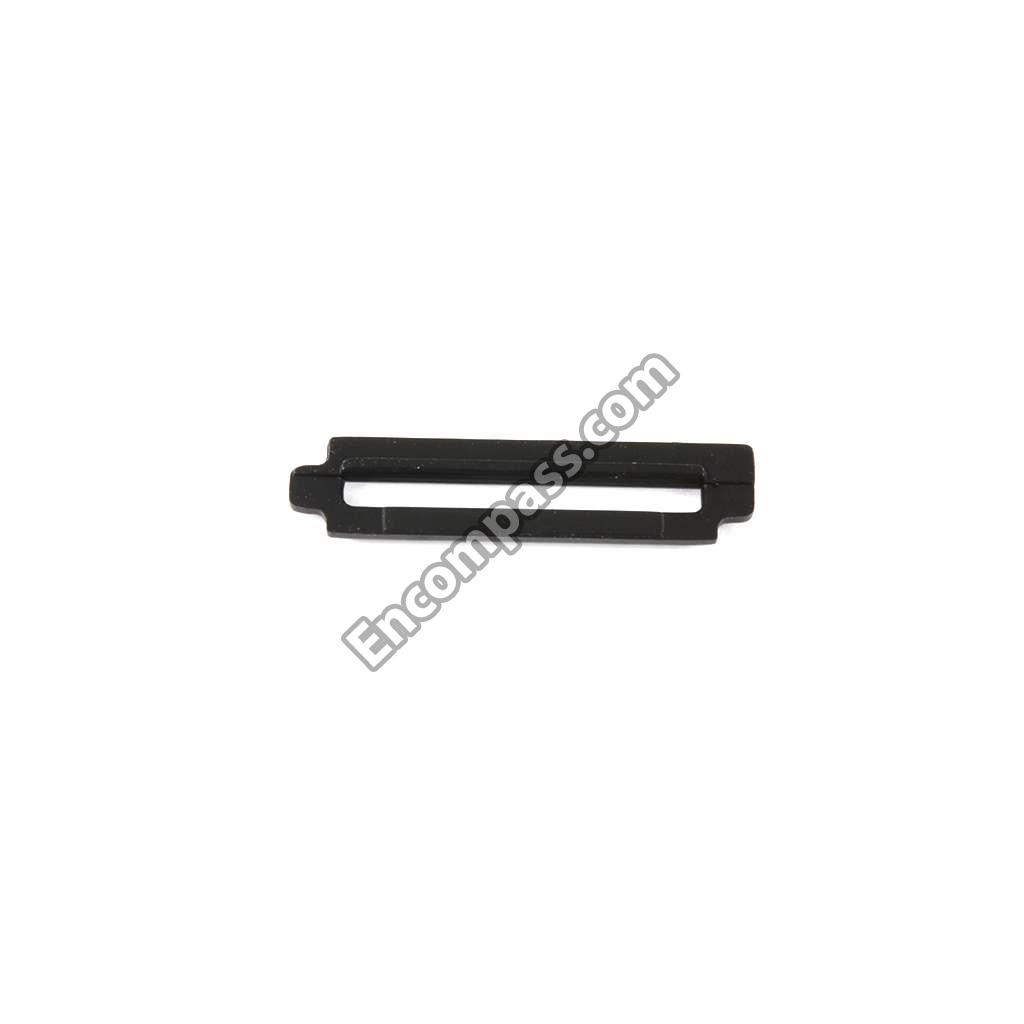

4-479-004-01 4-479-004-01 COVER, LC FLEXIBLE
4-573-000-01 4-573-000-01 COVER, SENSOR
4-566-612-02 4-566-612-02 COVER, ST ALUMINUM
4-573-022-01 4-573-022-01 CUSHION (LOWER REAR), LENS
4-573-020-01 4-573-020-01 CUSHION (UPPER REAR), LENS
A-2076-380-A A-2076-380-A EV-1012 MOUNT

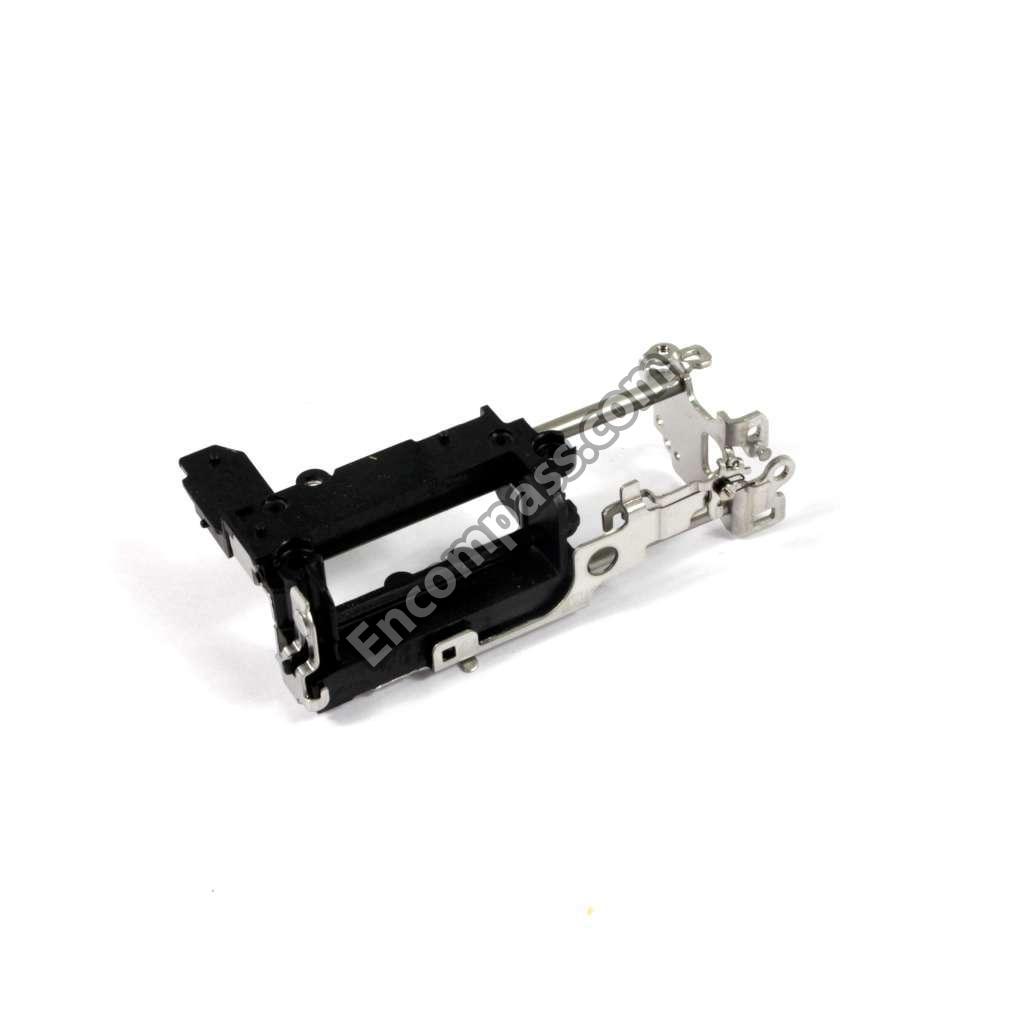

X-2591-634-2 X-2591-634-2 EVF LAUNCHER ASSY
1-894-335-11 1-894-335-11 FP-2305 FLEXIBLE PWB
1-894-345-11 1-894-345-11 FP-2306 FLEXIBLE PWB

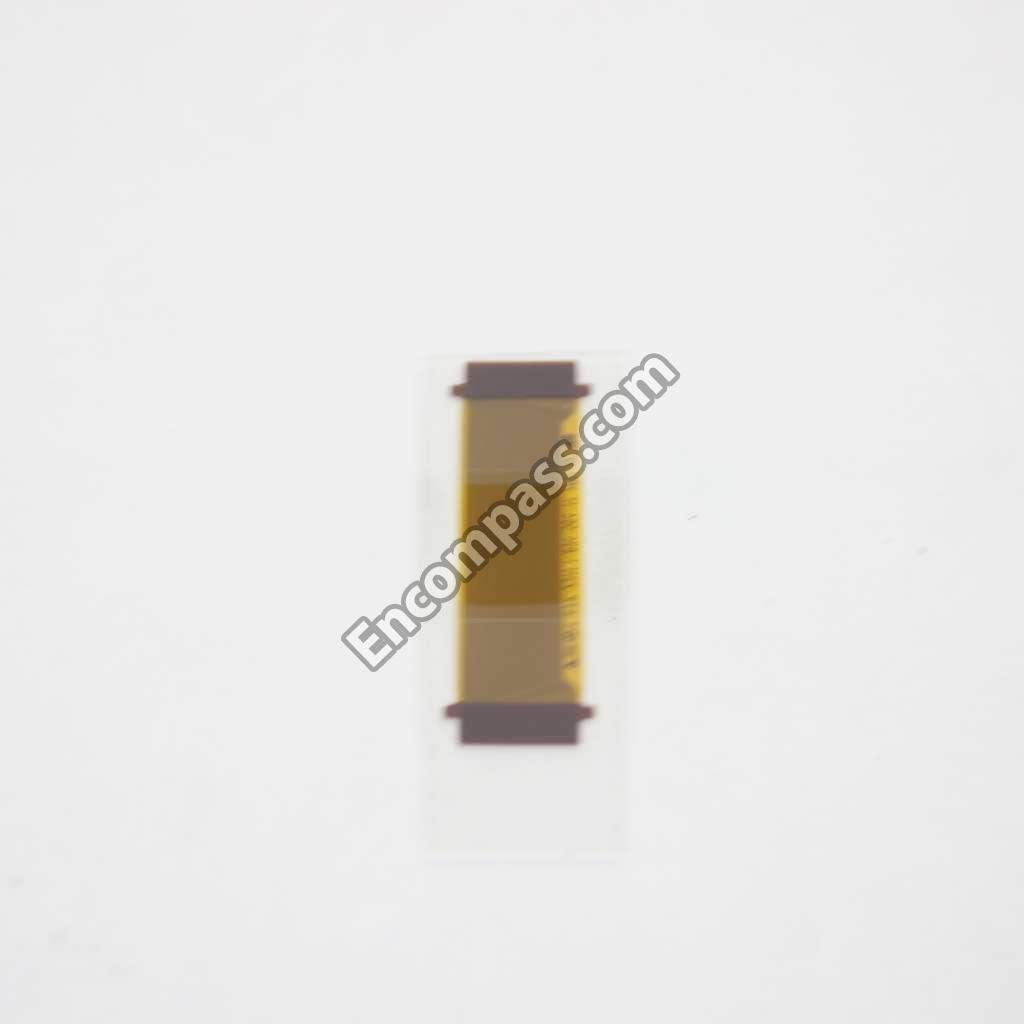

1-894-564-11 1-894-564-11 FP-2311 FLEXIBLE PWB

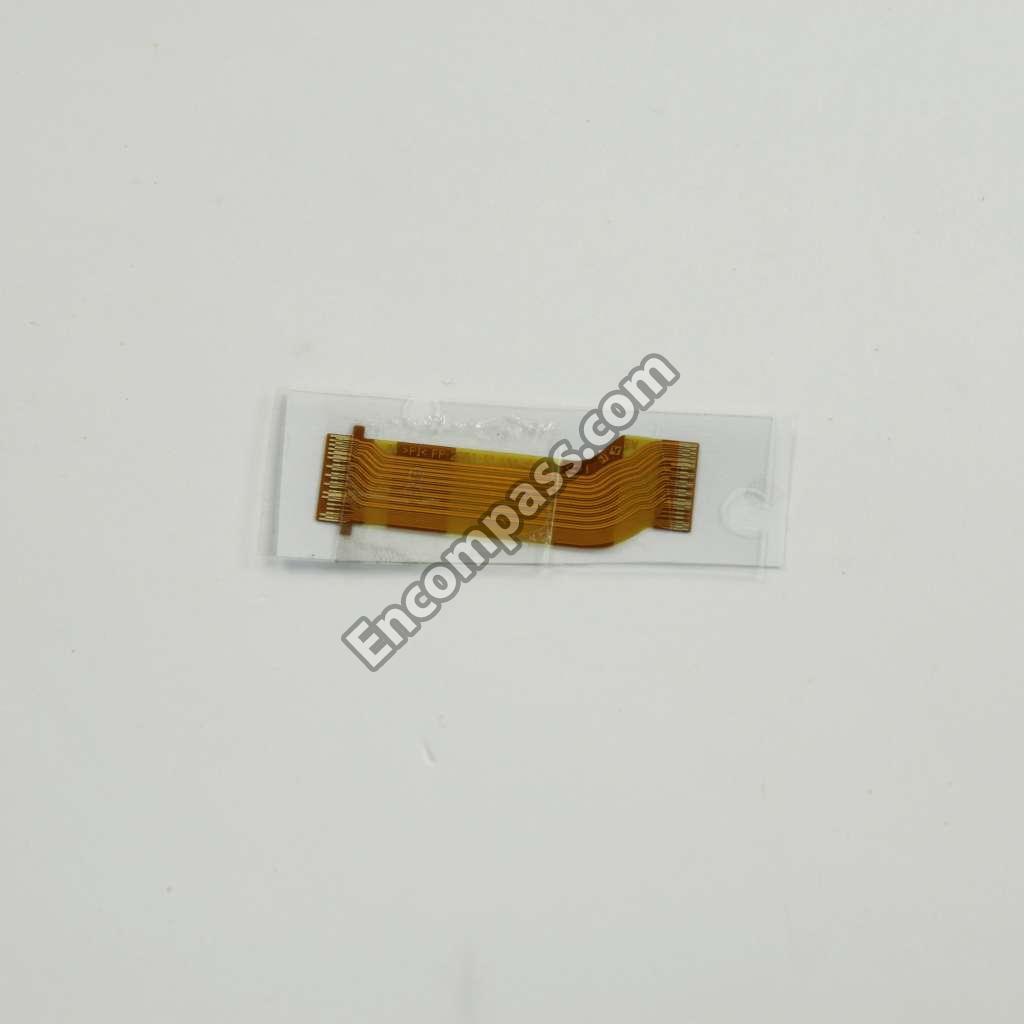

1-980-065-11 1-980-065-11 FP-2351 FLEXIBLE PWB
X-2591-661-2 X-2591-661-2 FRAME ASSY (609), MAIN
1-523-369-11 1-523-369-11 FUSE (1005/1.0 A)
4-573-006-01 4-573-006-01 HEAT SINK, BT
A-2124-412-C A-2124-412-C HINGE (LCD) ASSEMBLY (SERVICE
4-572-633-01 4-572-633-01 HOLDER, MAIN CON

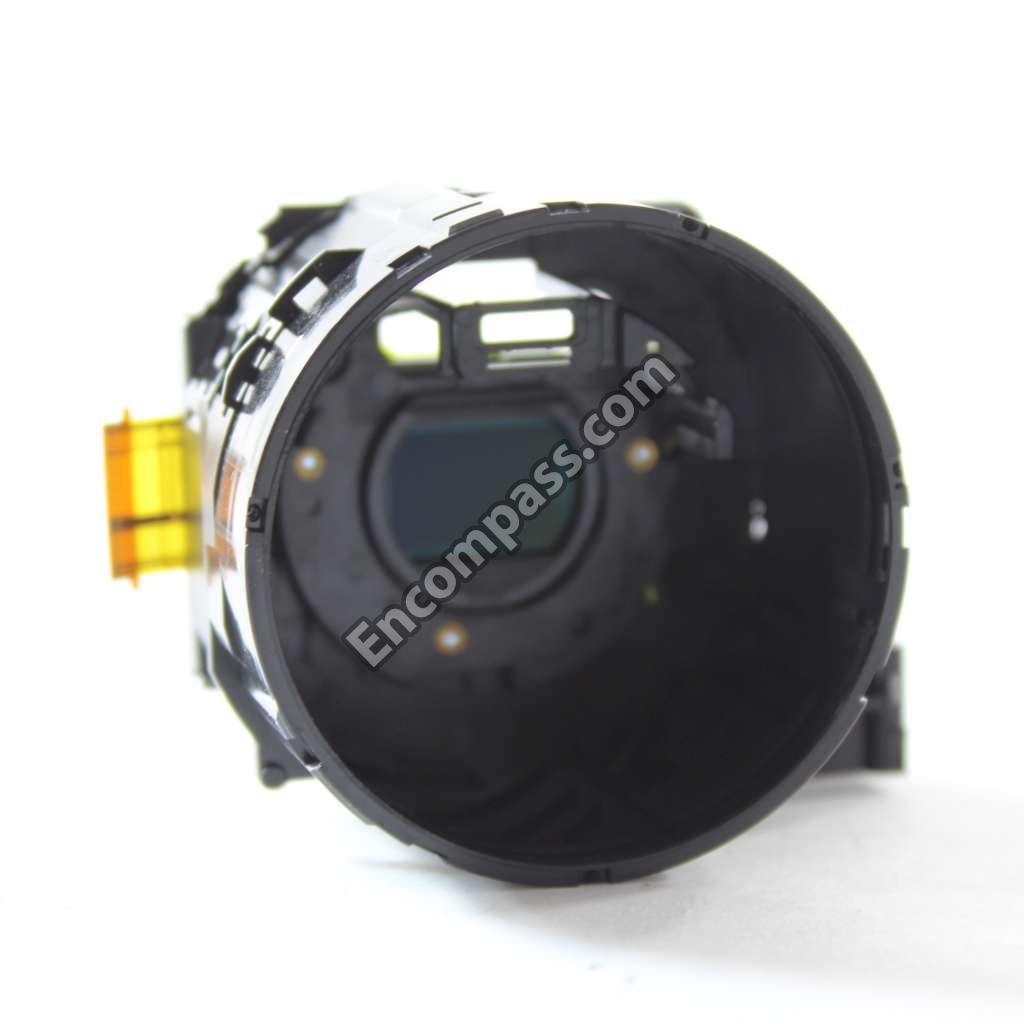

A-2128-272-A A-2128-272-A INDIVIDUAL (1710E),BLOCK ASSEM

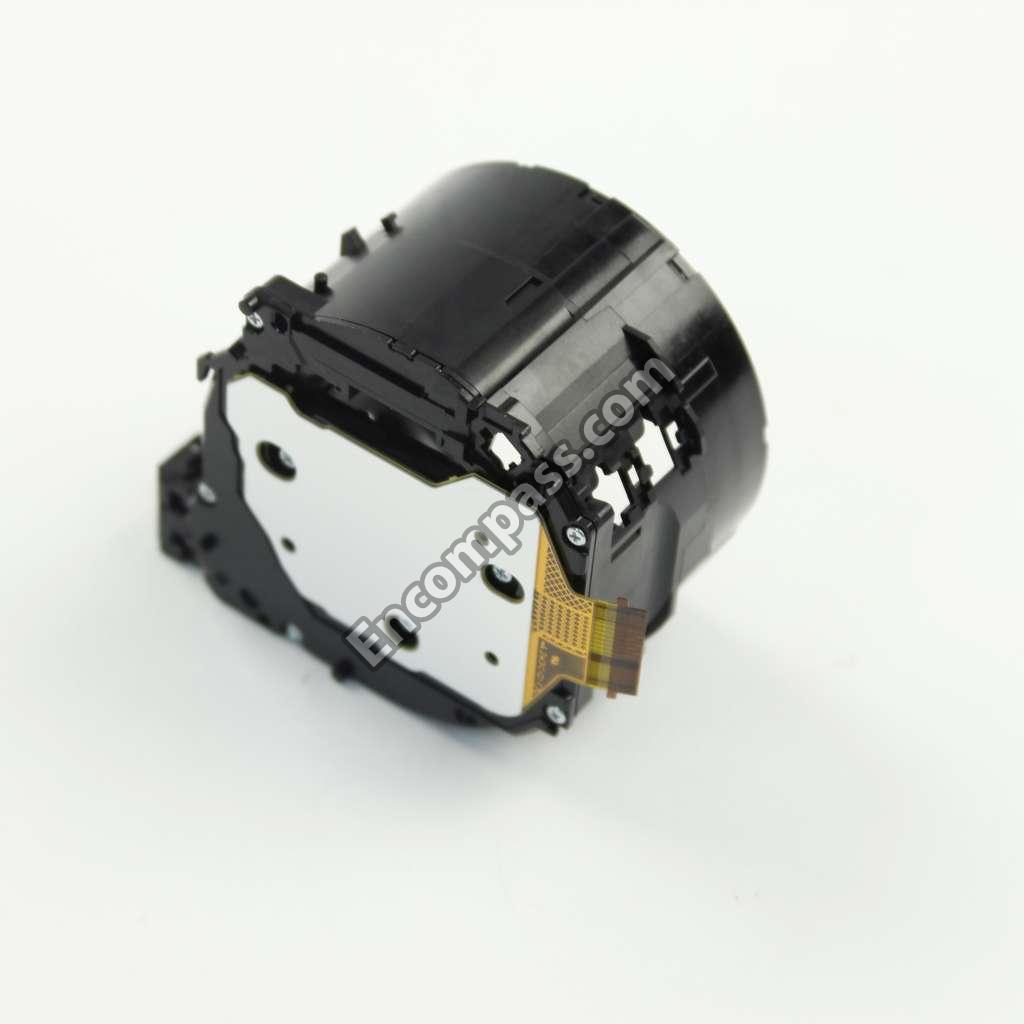

A-2081-758-A A-2081-758-A INDIVIDUAL, FILTER BLOCK ASSY
X-2591-656-1 X-2591-656-1 INNER ASSEMBLY (609) (UPPER)
X-2591-656-2 X-2591-656-2 INNER ASSY (609), (UPPER)
4-572-649-01 4-572-649-01 INSULATING SHEET (MAIN CON)
4-572-650-01 4-572-650-01 INSULATING SHEET (ST BOTTOM)
4-573-348-01 4-573-348-01 INSULATING SHEET (ST3) (609)
4-572-651-01 4-572-651-01 INSULATING SHEET (VF)
A-2009-287-A A-2009-287-A LF-2091 MOUNT FPCC
4-573-004-02 4-573-004-02 LID, HDMI
4-573-003-01 4-573-003-01 LID, USB
4-574-160-01 4-574-160-01 MANUAL, INSTRUCTION
A-2125-457-A A-2125-457-A MOUNTED C.BOARD MS-1032 COMPL

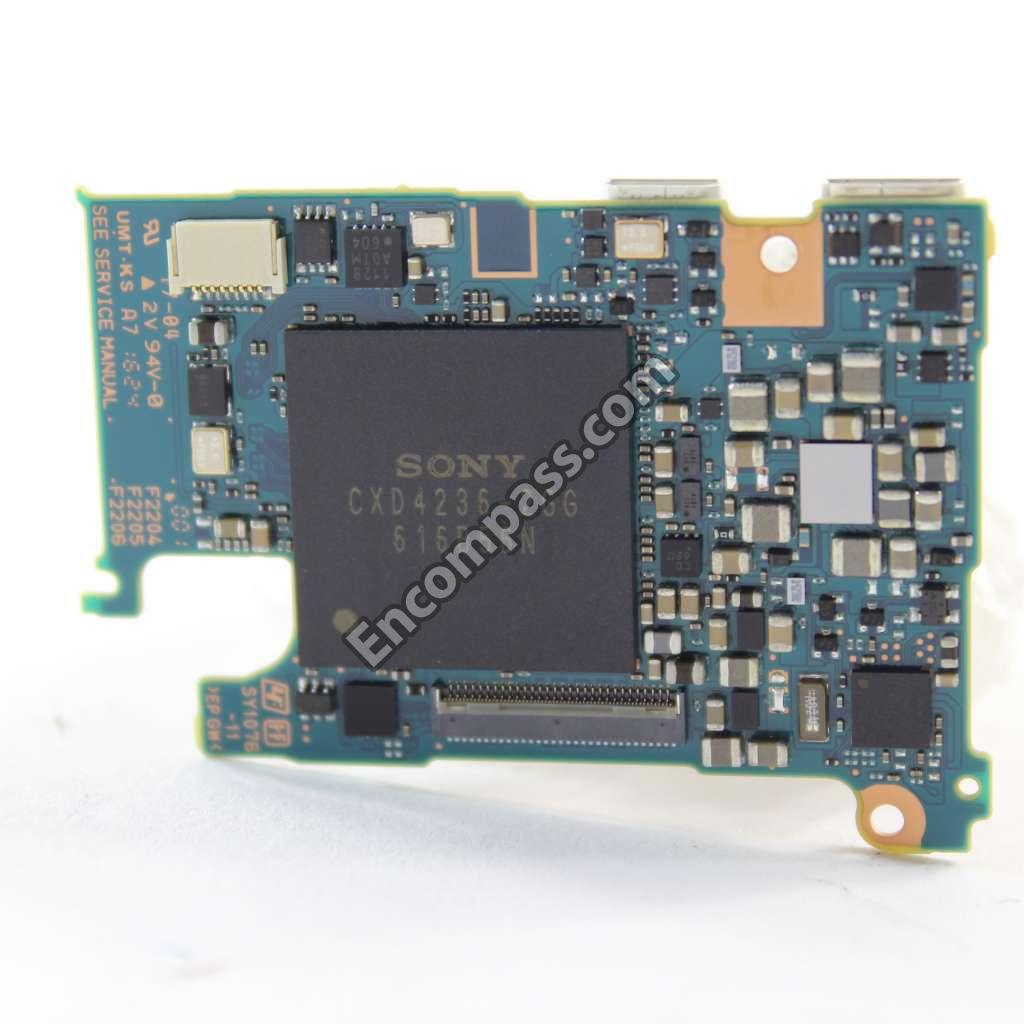

A-2125-456-A A-2125-456-A MOUNTED C.BOARD SY-1076 COMPL
A-2045-281-A A-2045-281-A MOUNTED C.BOARD, RL-1027
A-2045-283-A A-2045-283-A MOUNTED C.BOARD, RL-1028
A-2081-788-A A-2081-788-A MOUNTED PC BOARD (SERVICE)
4-573-002-01 4-573-002-01 PLATE, HDMI
4-537-070-02 4-537-070-02 RETAINER, ADHESIVE SHEET (FL)
4-294-347-01 4-294-347-01 RETAINER, FG

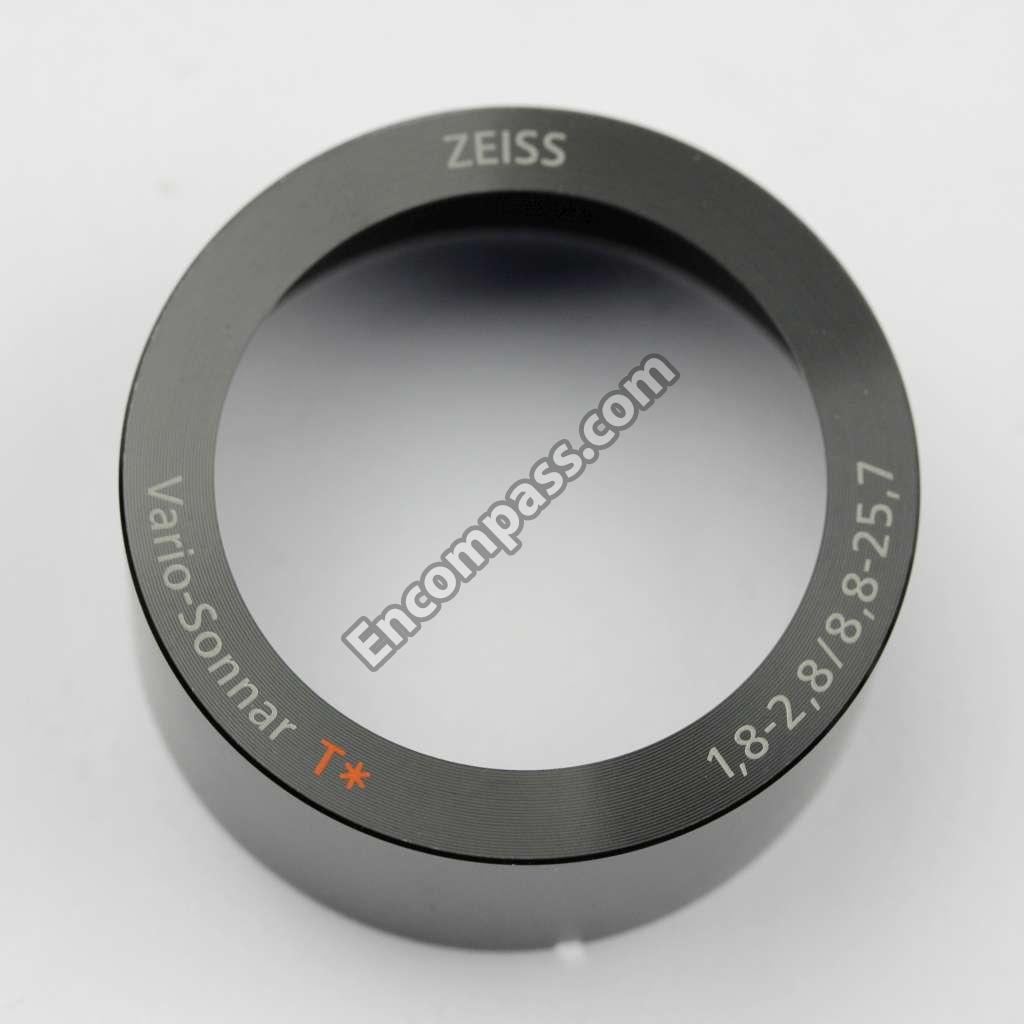

A-2080-831-A A-2080-831-A RING (A), ORNAMENTAL
A-2078-251-A A-2078-251-A RING BLOCK ASSY, LENS
4-478-874-11 4-478-874-11 RING, MANUAL
4-573-007-01 4-573-007-01 RING, SY RADIATION

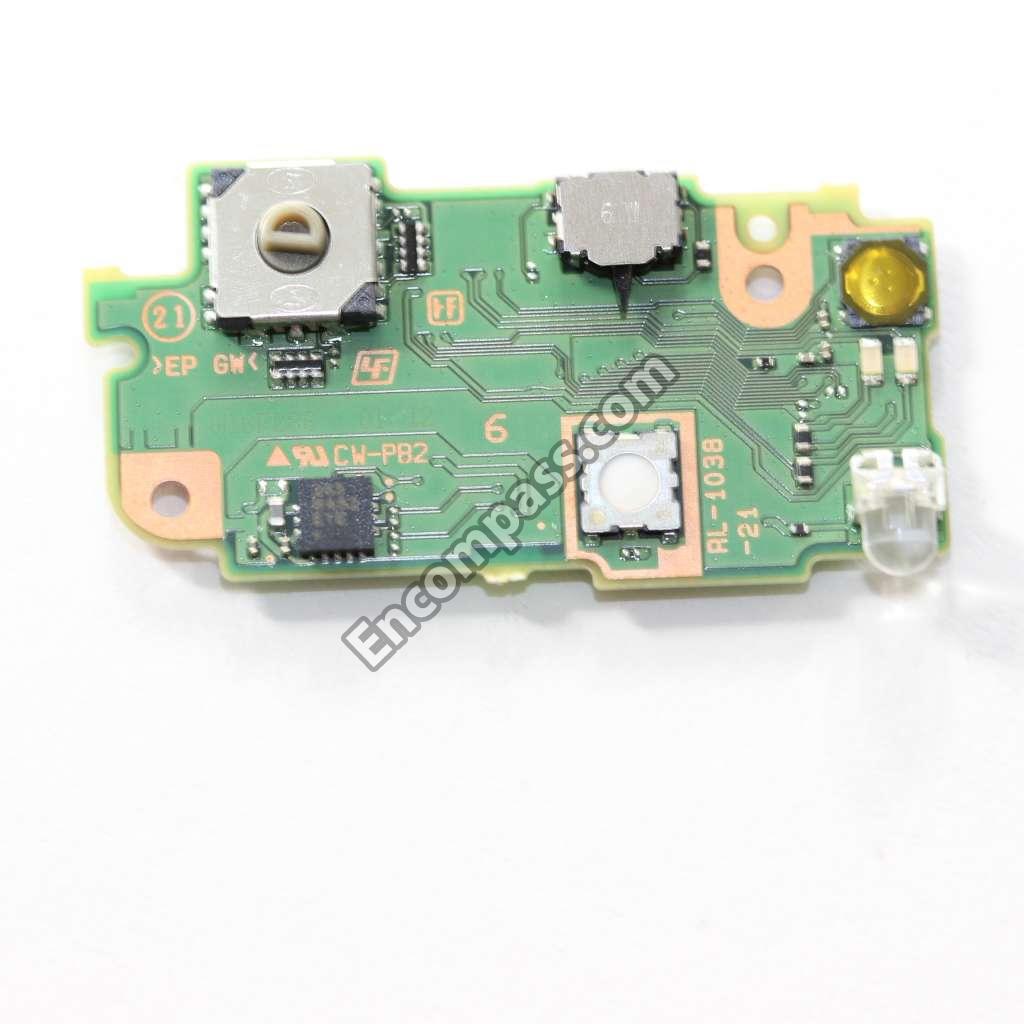

A-2125-191-A A-2125-191-A RL-1038 MOUNT
A-5024-007-A A-5024-007-A S-FRAME BLOCK ASSY,1 GROUP (UC)
A-5024-006-A A-5024-006-A S-LUBRICATING BLOCK ASSY,TUBE (UC)
4-698-422-02 4-698-422-02 SCREEN PROTECT GLASS SHEET (UC)
A-2076-384-A A-2076-384-A SE-1010MOUNT
A-2081-514-A A-2081-514-A SERVICE, CABINET (FRONT) ASSY
A-2057-540-A A-2057-540-A SERVICE, LENS DEVICE LSV-1710A
A-2059-645-A A-2059-645-A SERVICE, RING RETAINER ASSEMBL

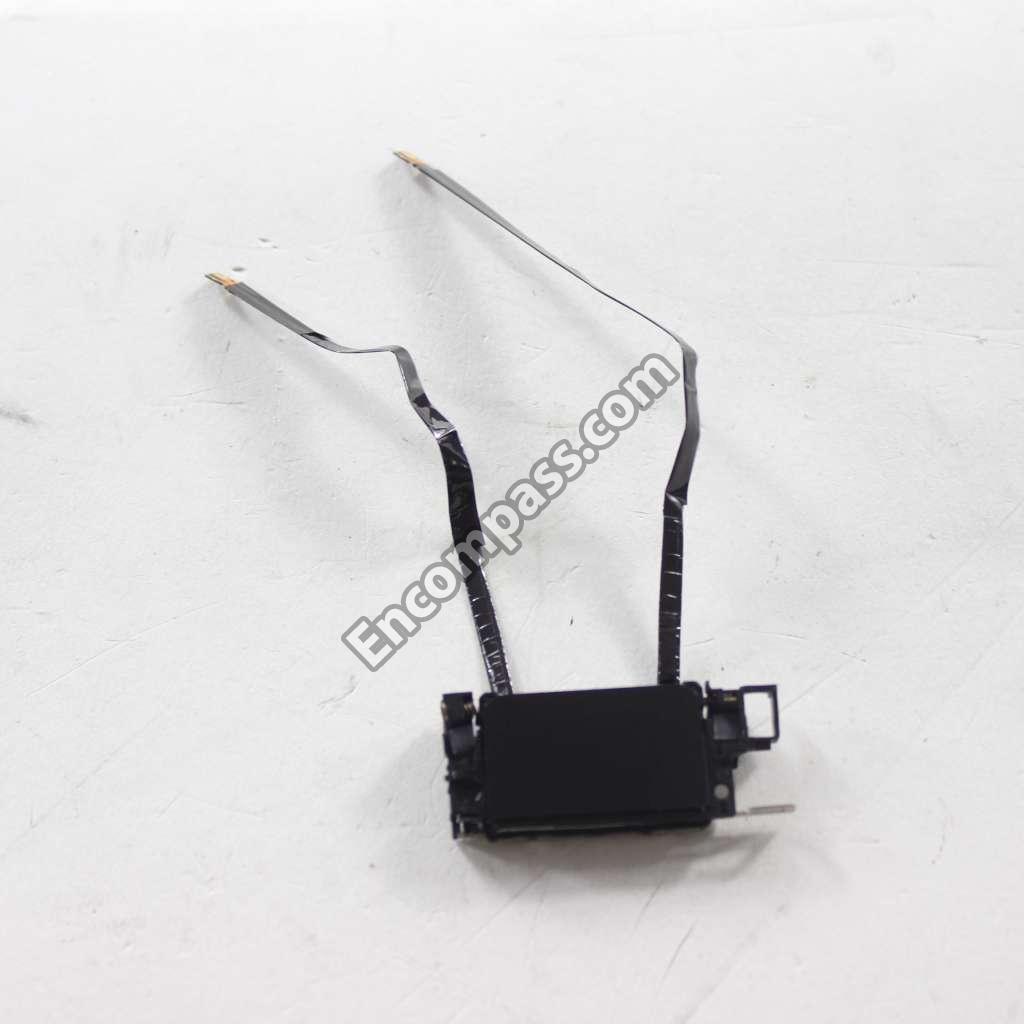

A-2059-643-E A-2059-643-E SERVICE, ST BLOCK ASSEMBLY
A-2081-517-A A-2081-517-A SERVICE, SY HEAT SINK ASSY
A-2059-642-E A-2059-642-E SERVICE,HINGE (LCD) BLOCK ASSE
4-573-015-01 4-573-015-01 SHEET (BE LOWER), RADIATION
4-573-014-01 4-573-014-01 SHEET (BE), RADIATION
4-573-016-01 4-573-016-01 SHEET (DD), RADIATION
4-573-018-01 4-573-018-01 SHEET (LC), FLEXIBLE GUARD
4-573-013-01 4-573-013-01 SHEET (MU), RADIATION
X-2591-934-1 X-2591-934-1 SHEET ASSY, BETR RADIATION
4-573-011-01 4-573-011-01 SHEET, BT RADIATION
4-574-553-01 4-574-553-01 SHEET, CU (ST)
4-528-659-11 4-528-659-11 SHEET, FRAME
4-545-341-02 4-545-341-02 SPACER, EYE SENSOR
A-2128-233-B A-2128-233-B ST-1032 MOUNT
4-574-820-01 4-574-820-01 STRAP (R (609)), SHEET
4-573-001-01 4-573-001-01 STRAP (R)
4-433-905-12 4-433-905-12 STRAP ADAPTER
4-470-899-11 4-470-899-11 STRAP HAND

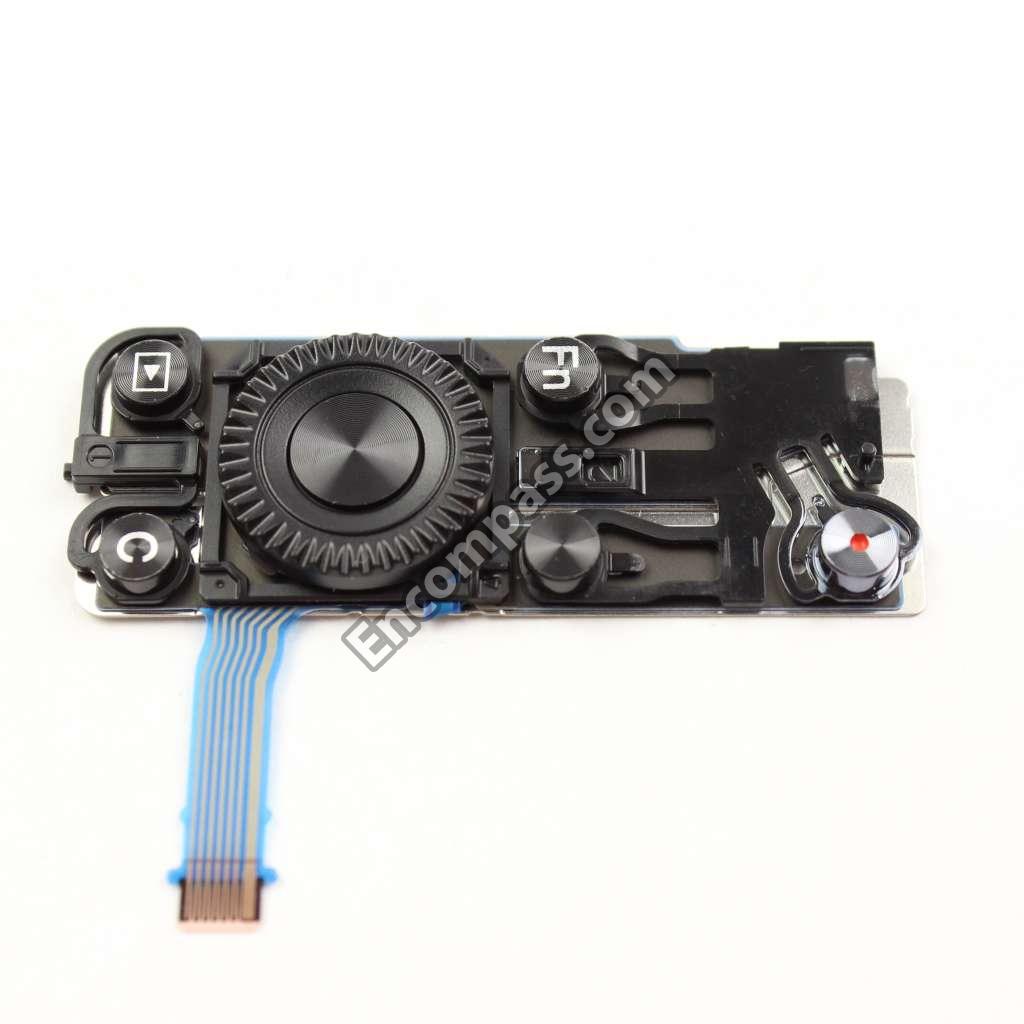

1-490-435-21 1-490-435-21 SWITCH BLOCK, CONTROL(SW60600)
A-5012-264-A A-5012-264-A TUBE BLOCK ASSY, STRAIGHT (UC)
A-2032-907-A A-2032-907-A TUBE BLOCK ASSY, STRAIGHT (UC)
A-2081-513-B A-2081-513-B VF BLOCK ASSY (SERVICE)
A-2059-547-B A-2059-547-B VF SUB ASSY (SERVICE) (UC)
