Model Image
Manufacturer

Sony

Model Number

DSCTX300V

Description

Waterproof Cyber-shot Dsc-tx300v Digital Camera

Interactive Exploded View

Parts List

Part Number Description
1-754-806-11 1-754-806-11 ANTENNA
1-754-803-11 1-754-803-11 ANTENNA COUPLER
X-2583-338-1 X-2583-338-1 BTH ASSY
4-412-689-01 4-412-689-01 CABINET (FRONT)
A-1866-129-A A-1866-129-A CABINET (FRONT) ASSY (SERVICE)
X-2583-335-1 X-2583-335-1 CABINET REAR ASSY, INNER (B)
J-6082-771-A J-6082-771-A CABINET REMOVER
1-839-825-11 1-839-825-11 CABLE, CONNECTOR WITH COAXIAL
1-839-619-11 1-839-619-11 CABLE, CONNECTOR WITH COAXIAL
1-118-157-91 1-118-157-91 CAPACITOR, CERAMIC 0.012MF 2012
1-118-156-91 1-118-156-91 CAPACITOR, CERAMIC 0.047MF 2012
1-118-159-11 1-118-159-11 CAPACITOR, CERAMIC 0.22MF 3216
1-118-158-11 1-118-158-11 CAPACITOR, CERAMIC 0.68MF 3216
1-481-977-11 1-481-977-11 CHOKE COIL 2.2UH(ML 2520)
1-843-250-41 1-843-250-41 CONNECTOR, BOARD TO BOARD
1-843-214-11 1-843-214-11 CONNECTOR, BOARD TO BOARD
1-843-251-31 1-843-251-31 CONNECTOR, BOARD TO BOARD 80P
1-843-144-11 1-843-144-11 CONNECTOR, CARD MSMICRO/SDMICR
1-843-210-11 1-843-210-11 CONNECTOR, COAXIAL (JSC TYPE)
1-822-004-61 1-822-004-61 CONNECTOR, FPC (ZIF) 17P
A-1858-745-A A-1858-745-A CRADLE (UC-TH)-J1
A-1859-327-A A-1859-327-A CRADLE(UC-TH)-KR
A-1859-343-A A-1859-343-A CRADLE(UC-TH)-TW
A-1869-481-A A-1869-481-A CRADLE(UC-TH)-U
4-412-713-01 4-412-713-01 CUSHION (CD), B TO B
4-420-552-01 4-420-552-01 CUSHION (MN), MICROPHONE
4-423-726-01 4-423-726-01 CUSHION (YJ), TP FLEXIBLE
4-412-701-01 4-412-701-01 CUSHION, AF
4-412-696-01 4-412-696-01 CUSHION, COIL
4-412-707-01 4-412-707-01 CUSHION, MICROPHONE
4-412-702-01 4-412-702-01 CUSHION, ST
4-412-708-01 4-412-708-01 CUSHION, SY
8-753-383-52 8-753-383-52 CXN5100-AA00-1
6-503-725-01 6-503-725-01 DI RSX201VA-30TR
A-1847-208-A A-1847-208-A DISPLAY MODULE(ME3-WCSUS)
1-814-588-11 1-814-588-11 FILTER, SAW
8-753-398-84 8-753-398-84 IC CXD5242GG-2-T4
6-718-411-01 6-718-411-01 IC MM3534A28RRE
6-715-777-01 6-715-777-01 IC NJM12903RB1(TE2)
6-718-153-01 6-718-153-01 IC NJW4812SE3(TE2)
6-718-364-01 6-718-364-01 IC R1191L030D-TR
6-718-363-01 6-718-363-01 IC R3116K161A-TR
6-718-414-01 6-718-414-01 IC RP173K421B-TR
6-718-369-01 6-718-369-01 IC TPS22902BYFPR
6-718-182-01 6-718-182-01 IC TPS62170DSG
6-718-628-01 6-718-628-01 IC W25X40BLUXIG-R01
1-481-978-11 1-481-978-11 INDUCTOR 2.2UH
4-417-539-01 4-417-539-01 INSULATING SHEET, MOTOR
4-420-556-01 4-420-556-01 INSULATING SHEET, RL
4-412-718-01 4-412-718-01 INSULATING SHEET, SY
X-2584-379-2 X-2584-379-2 LEVER ASSY (B) (SERVICE), ZOOM
1-858-302-91 1-858-302-91 LOUDSPEAKER (0.8CM)
4-300-570-01 4-300-570-01 MANUAL, INSTRUCTION
A-1866-079-A A-1866-079-A MOUNTED C.BOARD, (S)SY-301
A-1858-666-A A-1858-666-A MOUNTED C.BOARD, (S)SY-302
A-1853-584-A A-1853-584-A MOUNTED C.BOARD, CD-829
A-1858-631-A A-1858-631-A MOUNTED C.BOARD, GA-003
A-1858-632-A A-1858-632-A MOUNTED C.BOARD, RL-118
X-2583-339-1 X-2583-339-1 ORNAMENTAL ASSY, CABI REAR B
1-814-587-11 1-814-587-11 OSCILLATOR, CRYSTAL
4-412-661-01 4-412-661-01 PACKING, BT LID
4-412-692-01 4-412-692-01 PACKING, CABINET
4-412-694-01 4-412-694-01 PLATE (L), RL-FPC
4-412-695-01 4-412-695-01 PLATE (M), RL-FPC

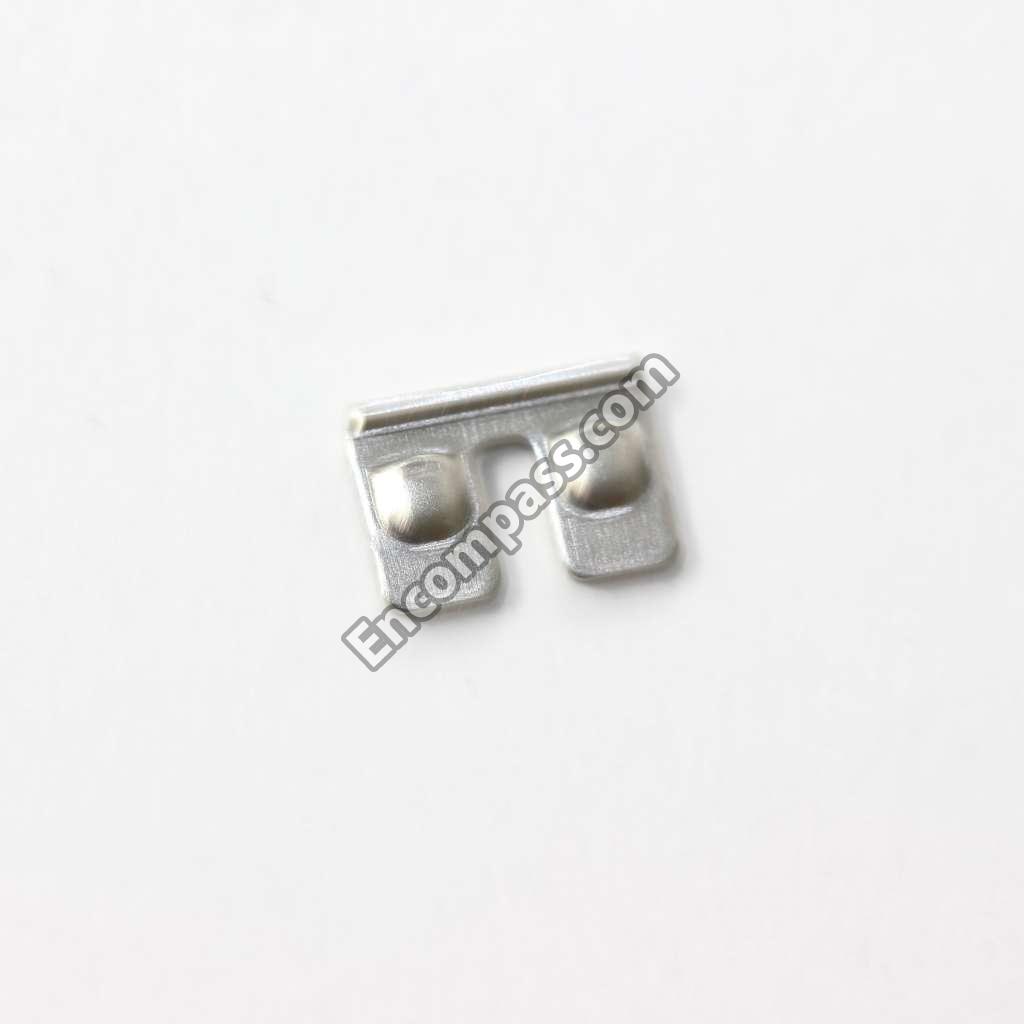

4-412-697-01 4-412-697-01 PLATE, BOLT
4-412-699-01 4-412-699-01 PLATE, HDMI
4-412-700-01 4-412-700-01 PLATE, SY
4-412-698-01 4-412-698-01 PLATE, USB
1-257-323-11 1-257-323-11 RESISTOR, METALFILMCHIP120(2550
4-412-704-01 4-412-704-01 RUBBER (INNER), MICROPHONE

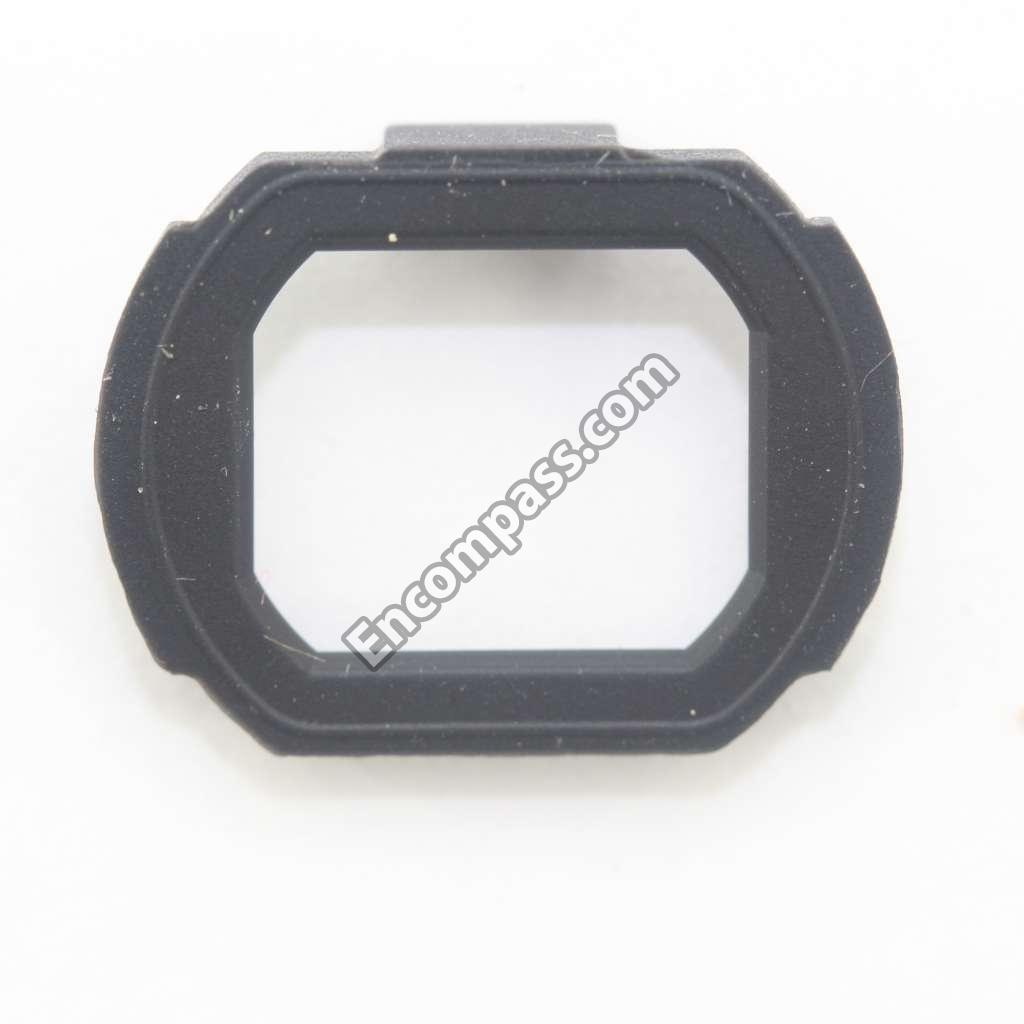

4-412-703-01 4-412-703-01 RUBBER, LENS
4-179-034-51 4-179-034-51 SCREW(RIGHT)TRU-STAR BLACK
1-490-076-11 1-490-076-11 SECONDARY COIL UNIT
4-420-554-01 4-420-554-01 SHEET (WM), ELECTRIC HEAT
9-913-200-72 9-913-200-72 SHEET KIT, MICROPHONE
4-431-508-01 4-431-508-01 SHEET, AF LED PROTECTION
4-412-719-01 4-412-719-01 SHEET, COIL ADHESIVE
4-427-295-01 4-427-295-01 SHEET, LIGHT INTERCEPTION
4-412-721-01 4-412-721-01 SHEET, MAIN FRAME
4-412-710-01 4-412-710-01 SHEET, MICROPHONE
4-412-712-01 4-412-712-01 SHEET, OLED FLEXIBLE FIXED
4-412-715-01 4-412-715-01 SHEET, OPTICAL SENSOR
4-424-115-02 4-424-115-02 SHEET, PANEL
4-412-716-01 4-412-716-01 SHEET, SP ADHESIVE
4-412-709-01 4-412-709-01 SHEET, TP ADHESIVE
1-780-959-11 1-780-959-11 SHIELD CASE(GPS)
4-421-473-01 4-421-473-01 SPACER, LENS
4-412-693-01 4-412-693-01 SPACER, SY MOLD
4-300-150-11 4-300-150-11 TAPPING (1.4)
4-275-757-01 4-275-757-01 TAPPING (1.4)
4-415-967-01 4-415-967-01 TAPPING (1.7)
1-780-955-11 1-780-955-11 TERMINAL
1-780-964-11 1-780-964-11 TERMINAL BOARD, BATTERY
6-553-000-01 6-553-000-01 TR RTR025N05TL
1-490-020-11 1-490-020-11 WLAN MODULE
