Model Image
Manufacturer

Sony

Model Number

DSCW200

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
8-753-275-76 8-753-275-76 ACX358AKM-3
3-113-170-01 3-113-170-01 BRACKET, STRAP
A-1231-950-A A-1231-950-A CABINET (FRONT) BLOCK ASSY
A-1231-949-A A-1231-949-A CABINET (REAR) BLOCK ASSY
3-113-166-01 3-113-166-01 CABINET TOP
3-113-161-01 3-113-161-01 CABINET, SIDE
1-834-178-11 1-834-178-11 CABLE, FLEXIBLE FLAT (FFC-105)
1-834-179-11 1-834-179-11 CABLE, FLEXIBLE FLAT (FFC-106)
A-1234-356-A A-1234-356-A CCD BLOCK ASSY
3-113-173-01 3-113-173-01 CLAW, BT LOCK
3-113-164-01 3-113-164-01 CUSHION, LENS
3-208-398-02 3-208-398-02 CYBER-SHOTAPPLICATION SOFTWARE
1-480-014-11 1-480-014-11 FLASH UNIT
X-2176-573-1 X-2176-573-1 FRAME ASSY
3-113-171-01 3-113-171-01 FRAME, BT
1-479-865-11 1-479-865-11 GEAR BLOCK, ZOOM (1210)
X-2178-853-1 X-2178-853-1 GEAR, NARUTO (S)
3-208-400-02 3-208-400-02 HANDBOOK(PDF)
3-113-175-01 3-113-175-01 HOLDER, BT
8-753-279-06 8-753-279-06 IC CXD4806GA-T4
6-710-919-01 6-710-919-01 IC ICS620AN-29LFT
8-753-272-28 8-753-272-28 ICX612CQZ-13
X-2176-572-1 X-2176-572-1 LID ASSY BT
1-826-614-31 1-826-614-31 LOUDSPEAKER (1.0CM)

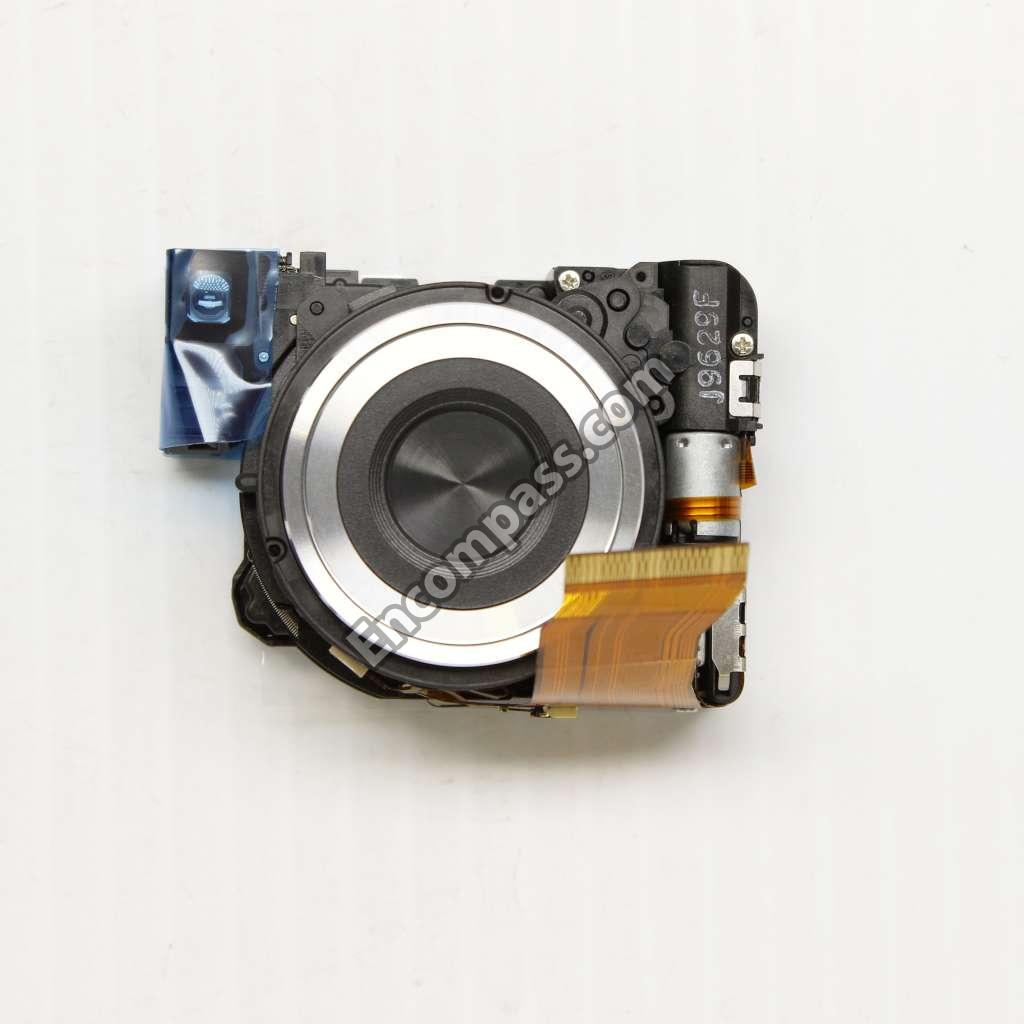

A-1258-806-A A-1258-806-A LSV-1210A (SERVICE) LENS ASSEMBLY
3-208-405-82 3-208-405-82 MANUAL, INSTRUCTION
3-208-405-53 3-208-405-53 MANUAL, INSTRUCTION
3-208-405-12 3-208-405-12 MANUAL, INSTRUCTION
3-208-405-02 3-208-405-02 MANUAL, INSTRUCTION
A-1251-749-A A-1251-749-A MOUNTED C.BOARD MC-183
A-1251-752-A A-1251-752-A MOUNTED C.BOARD RL-076
A-1251-750-A A-1251-750-A MOUNTED C.BOARD ST-167
A-1251-753-A A-1251-753-A MOUNTED C.BOARD ST-168
A-1251-751-A A-1251-751-A MOUNTED C.BOARD SW-501
A-1283-757-A A-1283-757-A MOUNTED C.BOARD SY-178 SERVICE
1-829-866-91 1-829-866-91 MULTI CABLE USB AND AV
3-113-179-01 3-113-179-01 PLATE, BT HINGE
1-813-904-21 1-813-904-21 QUARTZ CRYSTAL OSCILLATOR
1-246-319-81 1-246-319-81 RESISTOR CHIP 3.9
3-113-160-01 3-113-160-01 RETAINER, SP
2-693-643-01 2-693-643-01 RING (A), ORNAMENTAL
A-1231-948-A A-1231-948-A RL BLOCK ASSY
3-211-007-01 3-211-007-01 SHEET (L), CD
3-113-165-01 3-113-165-01 SHEET LCD WINDOW ADHESIVE
3-113-167-01 3-113-167-01 SHEET, BL INSULATING
3-217-541-01 3-217-541-01 SPACER, MC
3-113-178-01 3-113-178-01 SPRING, BT DISCHARGE
2-693-674-01 2-693-674-01 SPRING, FG LEAF
2-886-738-01 2-886-738-01 TAPE, BARRIER
A-1284-662-A A-1284-662-A TERMINAL, SERVICE(BT)
J-6082-577-B J-6082-577-B TRIPOD ADAPTOR
3-113-158-01 3-113-158-01 WINDOW LCD
4-470-899-01 4-470-899-01 WRIST STRAP (SILVER)
