Sony

Model Number

DSCWX10

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
1-489-282-43 1-489-282-43 AC ADAPTOR(AC-UB10)
A-1825-029-A A-1825-029-A ASM FILTER BLOCKASSY (SERVICE)
X-2580-860-1 X-2580-860-1 BARRIER ASSY (BE008)
X-2580-861-1 X-2580-861-1 BARRIER ASSY (BE0081)
X-2580-862-1 X-2580-862-1 BARRIER ASSY (BE0082)
A-1812-161-B A-1812-161-B BTH BLOCK ASSY
X-2580-957-2 X-2580-957-2 BUTTON (790 BLACK) ASSY, POWER
X-2580-958-2 X-2580-958-2 BUTTON (790 GOLD) ASSY, POWER
X-2580-959-2 X-2580-959-2 BUTTON (790 PURPLE) ASSY, POWER
X-2580-643-1 X-2580-643-1 CABINET (FRONT) (790 B) ASSY
X-2580-644-1 X-2580-644-1 CABINET (FRONT) (790 G) ASSY
X-2580-645-1 X-2580-645-1 CABINET (FRONT) (790 V) ASSY
X-2580-647-2 X-2580-647-2 CABINET (REAR) (790 G) ASSY
X-2580-648-2 X-2580-648-2 CABINET (REAR) (790 V) ASSY
X-2580-954-2 X-2580-954-2 CABINET REAR 790 BLACK N ASSY
X-2580-955-2 X-2580-955-2 CABINET REAR 790 GOLD N ASSY
X-2580-956-2 X-2580-956-2 CABINET REAR 790 PURPLE N ASSY
X-2580-646-2 X-2580-646-2 CABINET(REAR) (790 B) ASSY
4-273-226-01 4-273-226-01 CAPACITOR (A) (790), SHEET

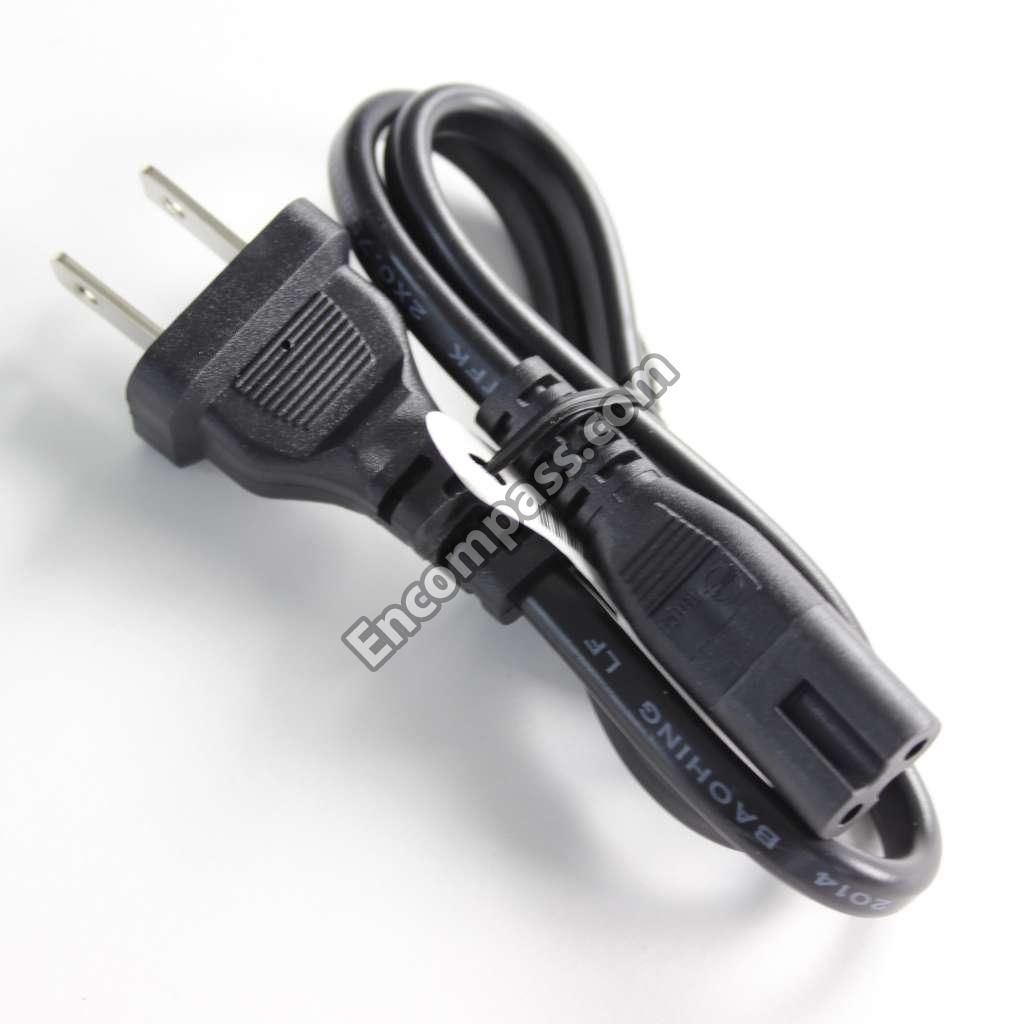

1-846-096-11 1-846-096-11 CORD SET, POWER-SUPPLY
4-273-215-21 4-273-215-21 COVER (790), DC
4-273-215-11 4-273-215-11 COVER (790), DC
4-273-215-01 4-273-215-01 COVER (790), DC
4-273-151-21 4-273-151-21 COVER (790), TERMINAL
4-273-151-11 4-273-151-11 COVER (790), TERMINAL
4-273-151-01 4-273-151-01 COVER (790), TERMINAL
4-275-048-01 4-275-048-01 CUSHION (BL) (790)
4-273-228-01 4-273-228-01 CUSHION, LENS
4-274-644-01 4-274-644-01 CYBER-SHOTAPPLICATIONSOFTWAR
6-502-887-01 6-502-887-01 DI SCM-J14DTT96
6-502-878-01 6-502-878-01 DI SML-D13M8WT86RP
X-2580-704-1 X-2580-704-1 FRAME (790) ASSY, MAIN
4-273-122-01 4-273-122-01 GASKET
4-275-455-01 4-275-455-01 GEAR (BE008), NARUTO
1-489-651-11 1-489-651-11 GEAR BLOCK, ZOOM MOTOR (BE008)
4-273-175-01 4-273-175-01 HOLDER (790), MICROPHONE
4-273-116-01 4-273-116-01 HOLDER, LENS RING
4-273-176-01 4-273-176-01 HOOD (790), MICROPHONE
4-273-173-01 4-273-173-01 INNER CABINET (UPPER) (790)
4-273-148-01 4-273-148-01 INSULATING SHEET (790), ZOOM
4-275-047-01 4-275-047-01 INSULATING SHEET (MIC) (790)
4-283-514-01 4-283-514-01 INSULATING SHEET, MF
4-273-218-01 4-273-218-01 KNOB (790), BT LID LOCK
4-273-217-21 4-273-217-21 LID (790), BT
4-273-217-11 4-273-217-11 LID (790), BT
4-273-217-01 4-273-217-01 LID (790), BT
4-273-220-01 4-273-220-01 LID (790), SHAFT (BT)
4-273-221-01 4-273-221-01 LID (790), SPRING (BT)
A-1825-040-A A-1825-040-A MAIN FPC (BE008)
4-270-089-12 4-270-089-12 MANUAL, INSTRUCTION
4-270-088-12 4-270-088-12 MANUAL, INSTRUCTION
A-1811-942-A A-1811-942-A MOUNTED C.BOARD, ST-247(SVC)
A-1811-703-A A-1811-703-A MOUNTED C.BOARD, SY-27(SVC)
1-856-141-22 1-856-141-22 OPTICAL UNIT (BE0081)
1-856-141-32 1-856-141-32 OPTICAL UNIT (BE0082)
4-273-219-01 4-273-219-01 PLATE (790), BT HINGE
4-273-150-01 4-273-150-01 PLATE (790), BUTTON GROUND
4-273-174-01 4-273-174-01 PLATE (790), MICROPHONE
4-273-209-01 4-273-209-01 PLATE (790), MULTI
4-273-212-01 4-273-212-01 PLATE (790), STRAP
4-282-059-01 4-282-059-01 PLATE (790), SW
4-273-149-01 4-273-149-01 PLATE (790), ZOOM BASE
4-273-210-01 4-273-210-01 PLATE (H) (790)
4-273-211-01 4-273-211-01 PLATE (J) (790)
4-275-456-01 4-275-456-01 PLATE SPRING (BE008), FG
1-837-428-13 1-837-428-13 POWER-SUPPLY CORD SET
1-884-041-11 1-884-041-11 PWB, BT-069 FLEXIBLE
4-275-457-01 4-275-457-01 RING A (BE008), ORNAMENTAL
4-275-458-01 4-275-458-01 RING A (BE0081), ORNAMENTAL
4-275-459-01 4-275-459-01 RING A (BE0082), ORNAMENTAL
4-273-117-21 4-273-117-21 RING, LENS
4-273-117-11 4-273-117-11 RING, LENS
4-273-117-01 4-273-117-01 RING, LENS
4-276-125-01 4-276-125-01 SCREW 0+P2 M1.4 NEWTRU-STAR
4-273-213-01 4-273-213-01 SCREW, TRIPOD
4-273-177-01 4-273-177-01 SHEET (790), MICROPHONE
4-273-214-01 4-273-214-01 SHEET (790), RADIATION
4-278-353-01 4-278-353-01 SHEET (A), MF RADIATION
4-273-119-01 4-273-119-01 SHEET (AF WINDOW) (790)
4-278-354-01 4-278-354-01 SHEET (B), MF RADIATION
4-273-121-01 4-273-121-01 SHEET (LENS RING HOLDER) (790)
4-273-120-01 4-273-120-01 SHEET (LENS RING) (790)
4-273-780-01 4-273-780-01 SHEET (RL) (790), ADHESIVE
4-273-227-01 4-273-227-01 SHEET (ST) (790)
4-273-229-01 4-273-229-01 SHEET (SY)
4-278-356-01 4-278-356-01 SHEET, CD ELECTROSTATIC
4-282-823-01 4-282-823-01 SHEET, IC ELECTROSTATIC
4-278-355-01 4-278-355-01 SHEET, IC RADIATION
4-273-222-01 4-273-222-01 SHEET, LCD PROTECTION
4-283-513-01 4-283-513-01 SHEET, SP ELECTROSTATIC
4-273-225-01 4-273-225-01 SHEET, SW ELECTROSTATIC
1-487-897-21 1-487-897-21 SILICON OSCILLATOR (72MHZ)
4-273-216-01 4-273-216-01 STRAP (790), INSULATING SHEET
A-1811-700-A A-1811-700-A SW-572 MOUNT
1-489-382-11 1-489-382-11 SWITCH BLOCK, CONTROL(SW61790)
4-273-224-01 4-273-224-01 TAPE (790), LCD
4-275-461-01 4-275-461-01 TAPE, CONTACT
4-275-460-01 4-275-460-01 TUBE (BE008), CAM
X-2580-863-1 X-2580-863-1 TUBE A ASSY (BE008)
X-2580-864-1 X-2580-864-1 TUBE A ASSY (BE0081)
X-2580-865-1 X-2580-865-1 TUBE A ASSY (BE0082)
X-2580-866-1 X-2580-866-1 TUBE ASSY (BE008), ROTARY
X-2580-867-1 X-2580-867-1 TUBE ASSY (BE0081), ROTARY
X-2580-868-1 X-2580-868-1 TUBE ASSY (BE0082), ROTARY
4-273-118-01 4-273-118-01 WINDOW (790), AF
4-273-223-01 4-273-223-01 WINDOW (790), LCD
