Model Image
Manufacturer

Sony

Model Number

DSLRA330L

Description

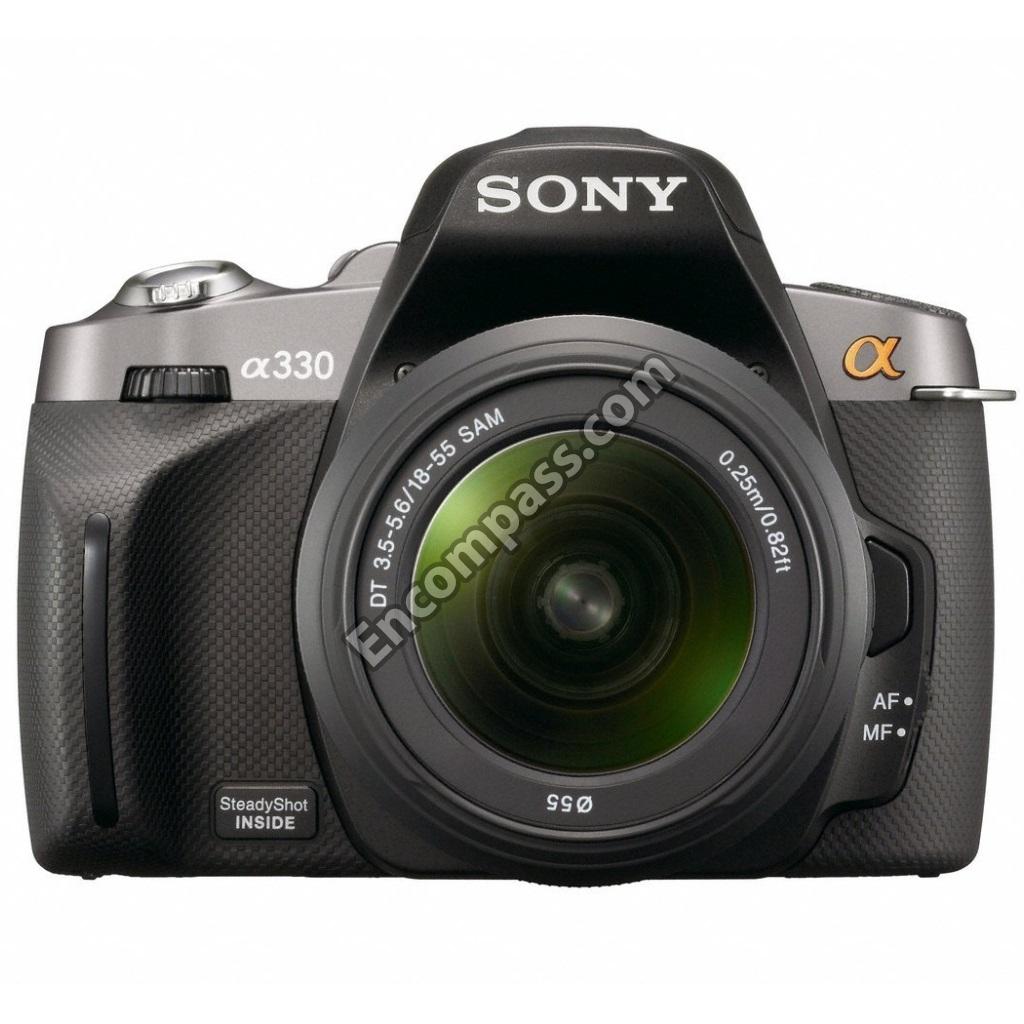

Alpha A330 Digital Slr With 18-55mm Lens

Interactive Exploded View

Parts List

Part Number Description
4-141-108-02 4-141-108-02 AF COUPLER
4-141-103-01 4-141-103-01 AF COUPLER TENSION SP
A-1709-449-A A-1709-449-A AF DRIVING UNIT
A-1709-450-A A-1709-450-A AP APERTURE UNIT
4-141-393-03 4-141-393-03 AP IRIS RING
A-1727-497-A A-1727-497-A BLOCK (JB), BARREL
4-152-555-21 4-152-555-21 BOTTOM LABEL SERVICE (KOREA)
4-152-555-11 4-152-555-11 BOTTOM LABEL SERVICE (KOREA)
4-152-555-01 4-152-555-01 BOTTOM LABEL SERVICE (KOREA)
1-457-802-21 1-457-802-21 COIL, CHOKE 15UH 5.0X5.0
9-910-999-TF 9-910-999-TF CONNECTOR, CARD
X-2349-068-1 X-2349-068-1 CV FRONT COVER ASSY(852T)
X-2349-073-1 X-2349-073-1 CV GRIP COVER ASSY (852T)
4-143-884-21 4-143-884-21 CV GRIP SOKKAN COVER (B)
X-2349-061-1 X-2349-061-1 CV SHOULDER COVER G ASSY(852T)
6-502-797-01 6-502-797-01 DI 015AZ18-X(L3SONY, F
6-502-775-01 6-502-775-01 DI CMS15(T2RSONY, Q)
6-503-314-01 6-503-314-01 DI DA37103E0L
4-141-104-01 4-141-104-01 EM A MOUNT LUG PLATE (LOWER)
4-141-102-02 4-141-102-02 EM A MOUNT LUG PLATE (UL)
4-141-101-02 4-141-101-02 EM A MOUNT LUG PLATE (UR)
1-576-958-31 1-576-958-31 FUSE, MICRO (1608 TYPE)
6-713-982-01 6-713-982-01 IC BD8303MUV-E2
6-714-058-01 6-714-058-01 IC BU7050GUW-E2
6-713-981-01 6-713-981-01 IC LV8400V-TLM-E
6-714-059-01 6-714-059-01 IC UPD168165K9-9E5-E1-AT
4-143-883-21 4-143-883-21 LOGO EMBLEM (A)
4-147-786-81 4-147-786-81 MANUAL, INSTRUCTION
4-131-260-13 4-131-260-13 MANUAL, INSTRUCTION
4-131-260-03 4-131-260-03 MANUAL, INSTRUCTION
4-141-105-01 4-141-105-01 MB COUPLER JOINT LEVER
4-141-106-01 4-141-106-01 MB COUPLER LEVER
4-141-091-03 4-141-091-03 MB LENS LOCK BUTTON
4-141-092-01 4-141-092-01 MB LENS LOCK PIN
4-141-090-01 4-141-090-01 MB LENS LOCK SP
A-1709-451-A A-1709-451-A MB LENS LOCK UNIT
4-141-080-01 4-141-080-01 MB MAIN MIRROR
4-144-439-01 4-144-439-01 MB MAIN MIRROR CUSHION
X-2348-731-1 X-2348-731-1 MB MIRROR CHARGE LEVER ASSY
4-141-109-01 4-141-109-01 MB MOUNT SPACER
1-481-566-11 1-481-566-11 RESISTOR CHIP 2.2NH (1005)
3-279-657-11 3-279-657-11 RETAINER, MAIN MIRROR
3-271-395-11 3-271-395-11 SCREW (M1.7), LEVER ADJUSTMENT
2-695-434-31 2-695-434-31 SCREW (T1.7), HEAD PAN TAPPING
2-695-575-11 2-695-575-11 SCREW (T2), +P1 PAN TAPPNG
3-268-954-11 3-268-954-11 SCREW, AF BASE PLATE STOPPER
1-487-295-11 1-487-295-11 SENSOR, APPROACH
2-689-289-11 2-689-289-11 SHAFT, COUPLER LEVER
3-279-649-11 3-279-649-11 SHEET, BL DUST PROTECT
1-822-402-11 1-822-402-11 SHOE CONNECTOR
A-1717-486-A A-1717-486-A SHOULDER COVER L BLOCK ASSY
4-143-911-21 4-143-911-21 ST CASE U
4-145-436-01 4-145-436-01 STRAP
A-1717-476-A A-1717-476-A STROBO BASE BLOCK ASSY
1-487-107-41 1-487-107-41 SWITCH BLOCK, CONTROL(TK85200)
6-552-529-01 6-552-529-01 TR DMC964010R
6-552-535-01 6-552-535-01 TR DMG964030R
6-552-239-01 6-552-239-01 TR QS8K2TR
6-551-624-01 6-551-624-01 TRANSISTOR RN2102MFV(TL3SONY)
X-2349-331-1 X-2349-331-1 TUBE ASSY, REAR HOLDING_BROWN
4-141-111-31 4-141-111-31 VB SPACER (L)
4-141-110-31 4-141-110-31 VB SPACER (R)
