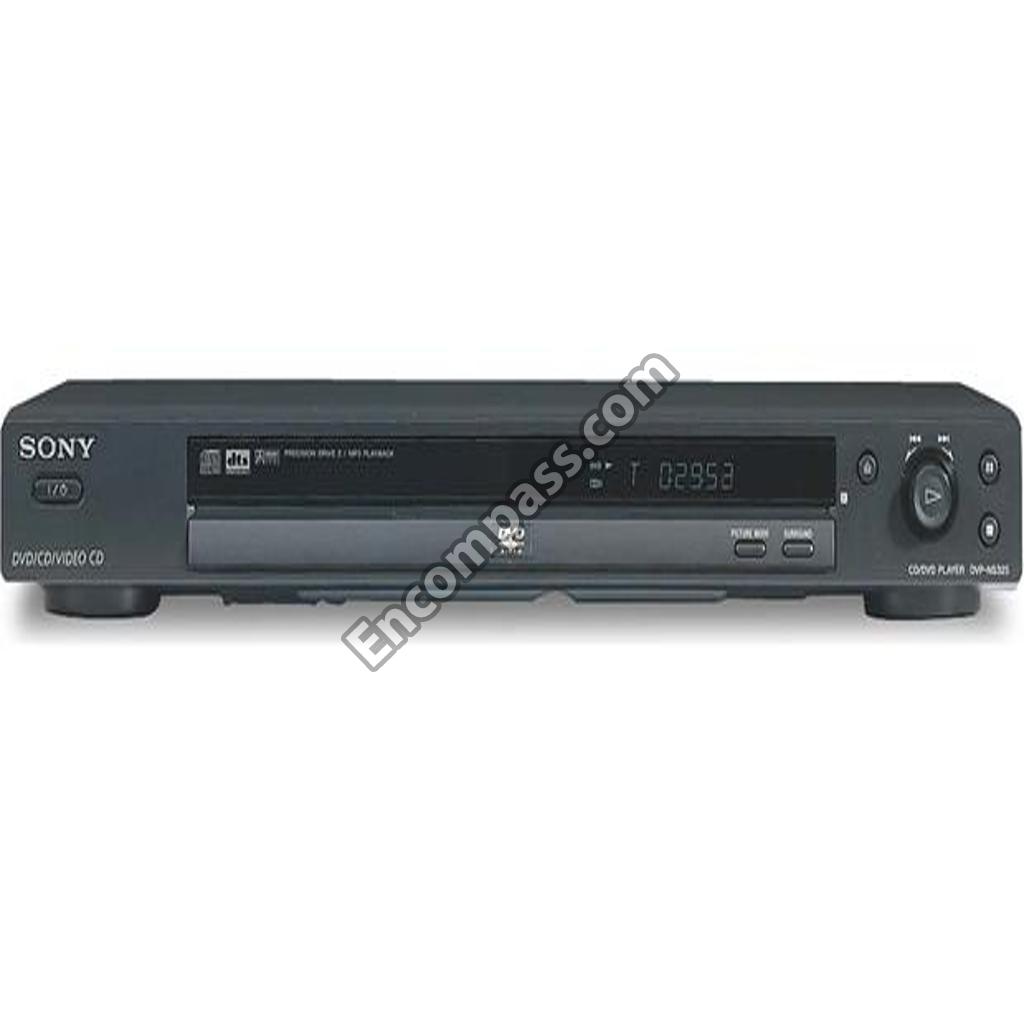

Model Image
Manufacturer

Sony

Model Number

DVPNS325

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
3-080-478-01 3-080-478-01 BELT
1-828-145-21 1-828-145-21 CABLE, STEREO A/V
3-080-912-31 3-080-912-31 CASE, UPPER
1-815-382-11 1-815-382-11 CONNECTOR, FPC/FFC 7P
1-400-382-21 1-400-382-21 EMI FERRITE (SMD) (
X-3953-149-1 X-3953-149-1 FRONT PANEL ASSY
6-703-843-01 6-703-843-01 IC GLT4161L16P-50TCT
6-703-842-01 6-703-842-01 IC GLT5160L16P-7TCT
6-703-744-01 6-703-744-01 IC GP1UE26SXKOF
6-703-845-01 6-703-845-01 IC IC42S16100-7TG (T&R)
8-759-666-12 8-759-666-12 IC MM1385DNLE
6-803-468-01 6-803-468-01 IC MR27V3202F-166TPZ04B
6-803-223-01 6-803-223-01 IC MX23L3213TC-90G-DPX170
6-704-607-01 6-704-607-01 IC101 CAT24WC16J-TE13
3-080-534-01 3-080-534-01 INSULATOR SCREW
1-126-947-11 1-126-947-11 LOC# C110
A-6061-710-A A-6061-710-A MB-108 MCB
1-763-967-11 1-763-967-11 MOTOR, DC
A-6061-420-A A-6061-420-A MOUNTED C.BOARD MB-108BM(
A-6061-358-A A-6061-358-A MOUNTED C.BOARD SW-384BM(
A-6061-360-A A-6061-360-A MOUNTED.C.BOARD AF-98BM(U
