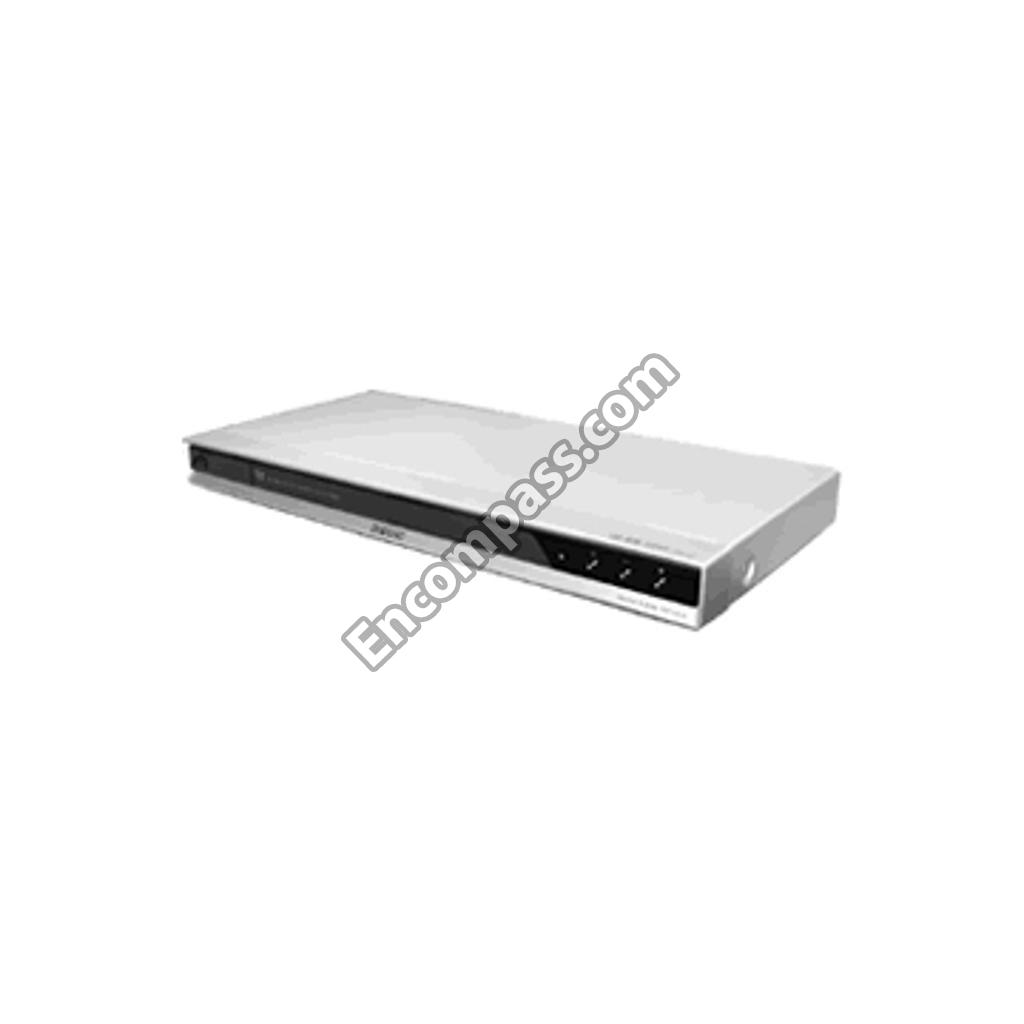

Model Image
Manufacturer

Sony

Model Number

DVPNS47P

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
3-077-331-21 3-077-331-21 +BV3 (3-CR)
3-077-331-11 3-077-331-11 +BV3 (3-CR)
3-088-371-01 3-088-371-01 BELT
3-071-119-91 3-071-119-91 COVER, BATTERY
2-896-458-01 2-896-458-01 COVER, TRAY
8-820-321-05 8-820-321-05 DEVICE,OPTICAL KHM-313CAA
1-834-876-11 1-834-876-11 FLEXIBLE FLAT CABLE (FIM-019)
1-830-279-21 1-830-279-21 FLEXIBLE FLAT CABLE (FMO-008)
1-834-877-11 1-834-877-11 FLEXIBLE FLAT CABLE (FMO-013)
1-834-875-11 1-834-875-11 FLEXIBLE FLAT CABLE (FMS-015)
3-088-372-01 3-088-372-01 INSULATOR
3-087-599-01 3-087-599-01 INSULATOR SCREW - USE ALSO FOR
A-6071-671-E A-6071-671-E LOADING ASSY(M)
X-2159-937-1 X-2159-937-1 PANEL ASSY, FRONT (BLACK)
X-2188-444-1 X-2188-444-1 PANEL ASSY, FRONT (BLACK) FOR
1-468-972-11 1-468-972-11 POWER SUPPLY BLOCK
1-468-972-41 1-468-972-41 POWER SUPPLY BLOCK - BLACK MOD
1-828-451-11 1-828-451-11 POWER-SUPPLY CORD
1-479-179-13 1-479-179-13 REMOTE COMMANDER (RMT-D175A)
4-674-137-11 4-674-137-11 SCREW (PTP2X5)
3-070-883-71 3-070-883-71 SCREW, TAPPING
3-070-883-41 3-070-883-41 SCREW, TAPPING
A-1224-253-A A-1224-253-A SERVICE ASSY, CASE UPPER
A-1541-425-A A-1541-425-A SERVICE ASSY, CASE UPPER (BLAC
