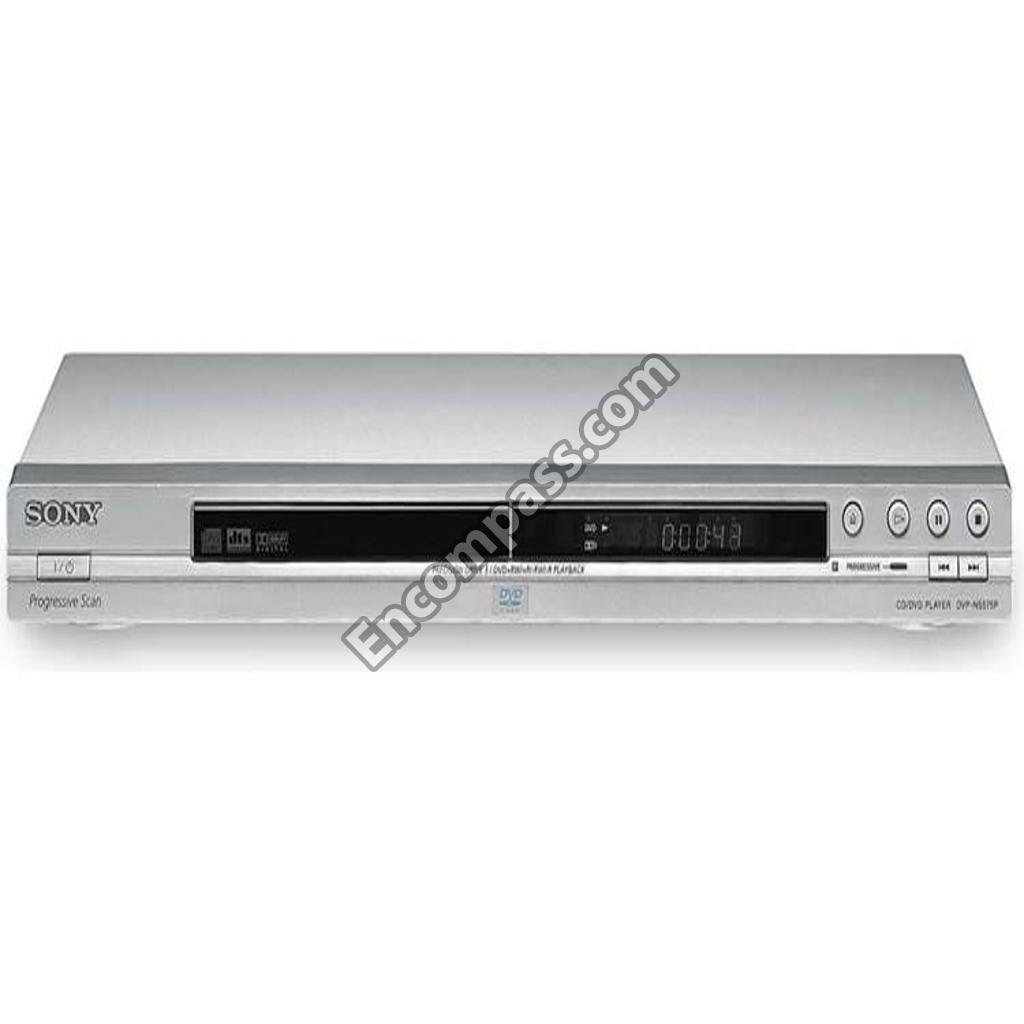

Model Image
Manufacturer

Sony

Model Number

DVPNS575P

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
3-077-331-11 3-077-331-11 +BV3 (3-CR)
3-088-371-01 3-088-371-01 BELT
3-088-344-43 3-088-344-43 CASE,UPPER
3-088-344-41 3-088-344-41 CASE,UPPER
3-088-344-31 3-088-344-31 CASE,UPPER
3-088-344-11 3-088-344-11 CASE,UPPER
3-088-330-21 3-088-330-21 COVER,TRAY
6-705-515-01 6-705-515-01 IC AK4385VT-E2
6-705-866-01 6-705-866-01 IC BR24L16FJ-WE2
6-705-738-01 6-705-738-01 IC RPM7240-H13
6-704-114-01 6-704-114-01 IC S-80828CNUA-B8NT2G
6-600-009-01 6-600-009-01 IC TOTX179
6-704-524-01 6-704-524-01 IC101 FAN8036L (30 PINS)- ON
3-088-372-01 3-088-372-01 INSULATOR
3-087-599-01 3-087-599-01 INSULATOR SCREW
8-820-321-05 8-820-321-05 KHM-310AAA/C2RP- PICKUP & SPI
A-6071-671-E A-6071-671-E LOADING ASSY(JC)
A-1062-848-A A-1062-848-A MV-044(ME2) COMPL
A-6071-780-A A-6071-780-A MV-044(U2) COMPL US MODELS
X-3954-524-2 X-3954-524-2 PANEL ASSY, FRONT
X-3954-522-3 X-3954-522-3 PANEL ASSY, FRONT
X-3954-141-1 X-3954-141-1 PANEL ASSY, FRONT
X-3954-060-1 X-3954-060-1 PANEL ASSY, FRONT
X-3954-047-1 X-3954-047-1 PANEL ASSY,FRONT
1-828-454-11 1-828-454-11 POWER-SUPPLY CORD
1-828-451-11 1-828-451-11 POWER-SUPPLY CORD
1-828-450-11 1-828-450-11 POWER-SUPPLY CORD
1-813-219-11 1-813-219-11 QUARTZ CRYSTAL UNIT
4-674-137-11 4-674-137-11 SCREW (PTP2X5)
3-070-883-41 3-070-883-41 SCREW, TAPPING
3-070-883-31 3-070-883-31 SCREW, TAPPING
1-813-218-21 1-813-218-21 VIBRATOR, CRYSTAL (DAISYI
