Model Image
Manufacturer

Sony

Model Number

DVPS300

Description

Cd/dvd Player

Interactive Exploded View

Parts List

Part Number Description
1-500-544-11 1-500-544-11 BEAD, FERRITE
9-880-435-01 9-880-435-01 D109; D1N60
8-719-064-12 8-719-064-12 DIODE S1NB60-4062
J-2501-305-A J-2501-305-A DVD TEST DISC HLX-504
J-2501-306-A J-2501-306-A DVD TEST DISC HLX-505
8-759-594-28 8-759-594-28 IC MSM27C802CZ-P08GS-K
8-759-569-20 8-759-569-20 IC MSM538022E-28GS-KDR1
8-759-564-38 8-759-564-38 IC203 (IMPROVEMENT SERV. B
8-759-420-19 8-759-420-19 IC301; AN1431T
8-759-653-66 8-759-653-66 IC803 (IMPROVEMENT SERV. B
1-414-936-21 1-414-936-21 L101
1-698-942-21 1-698-942-21 MOTOR, DC
A-6065-078-A A-6065-078-A MOUNTED C.BOARD,FG-43(A)
A-6065-074-A A-6065-074-A MOUNTED C.BOARD,FR-133
A-6065-075-A A-6065-075-A MOUNTED C.BOARD,HP-96(A)
A-6065-077-A A-6065-077-A MOUNTED C.BOARD,TK-47(A)
8-759-582-42 8-759-582-42 MSM538022E-42GS-KDR1 VERSIO2.4
8-749-010-64 8-749-010-64 PC101; OPTIC COUPLER; TLP721
8-729-424-08 8-729-424-08 Q201, Q351
8-729-421-19 8-729-421-19 Q352
9-921-680-11 9-921-680-11 SERVICE MANUAL
3-988-016-01 3-988-016-01 STICK, CURSOR

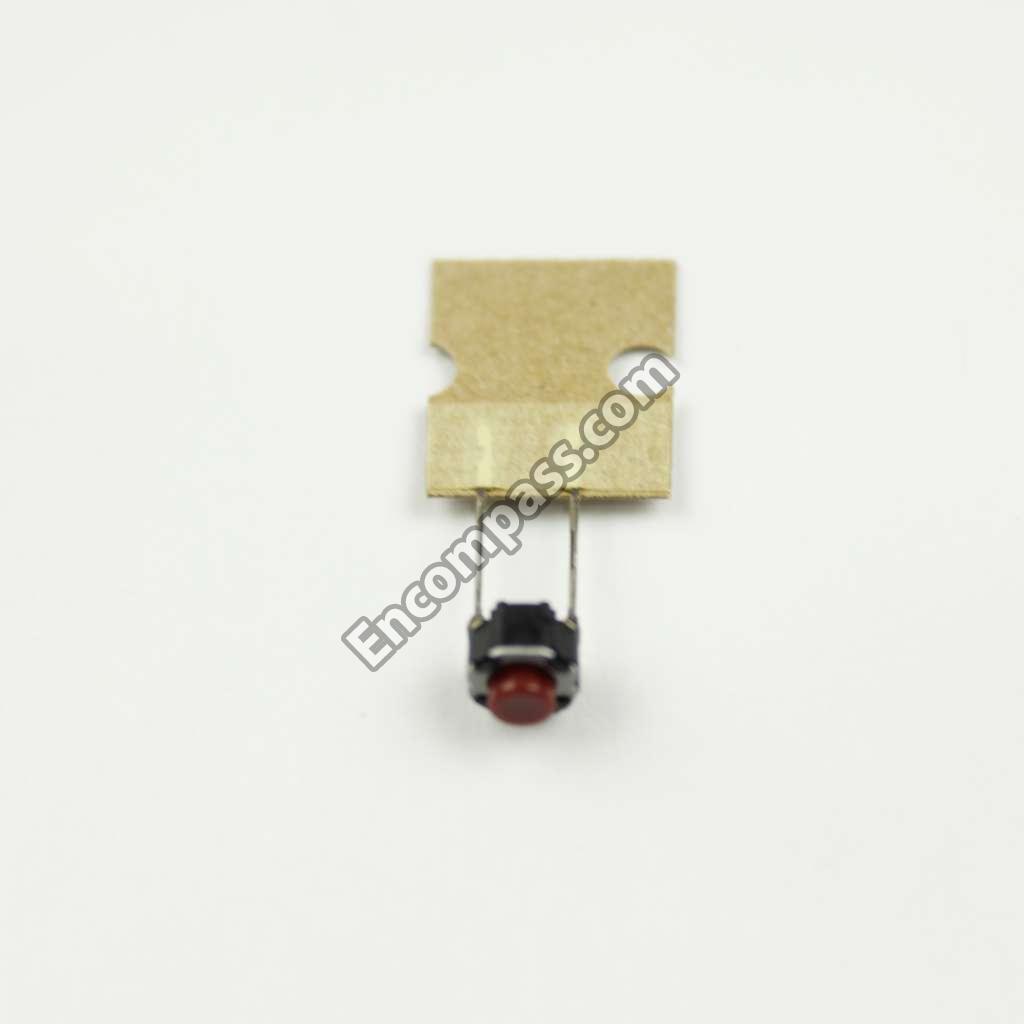

1-771-349-21 1-771-349-21 SWITCH, KEYBOARD
3-957-067-01 3-957-067-01 TEETH ON THE OPTICAL PICKUP
1-767-359-11 1-767-359-11 VIBRATOR, CERAMIC
1-767-861-21 1-767-861-21 VIBRATOR, CRYSTAL
1-767-860-21 1-767-860-21 VIBRATOR, CRYSTAL
