Sony

Model Number

DXC327K

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
3-166-329-01 3-166-329-01 BRACKET, PC BOARD
3-168-373-01 3-168-373-01 COVER, SIDE
3-166-295-01 3-166-295-01 DOOR, SLIDE

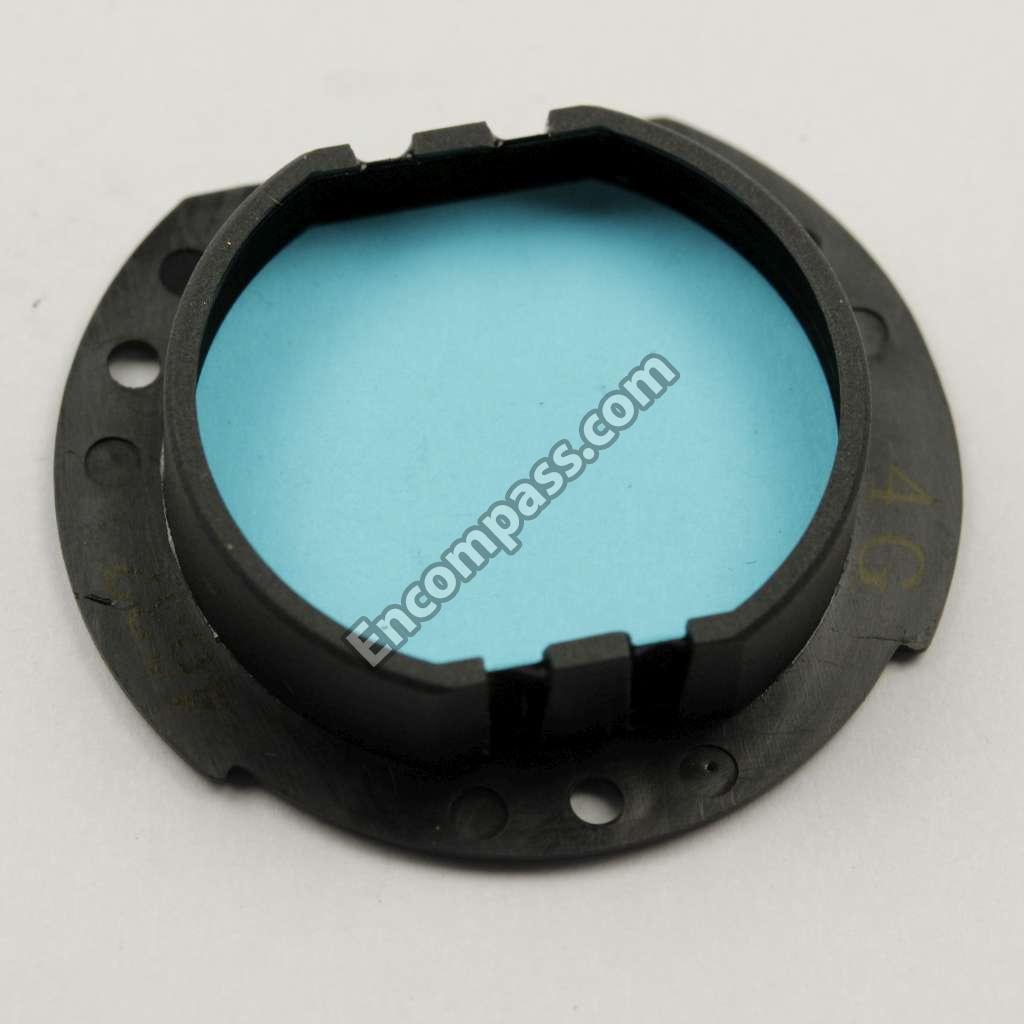

1-547-463-22 1-547-463-22 FILTER UNIT, OPTICAL
3-166-294-01 3-166-294-01 FRAME, SLIDE DOOR
1-946-627-11 1-946-627-11 HARNESS (RM)
1-946-627-12 1-946-627-12 HARNESS (RM)
1-569-205-11 1-569-205-11 HOUSING, CONNECTOR 12P
1-569-198-11 1-569-198-11 HOUSING, CONNECTOR 5P
1-569-202-11 1-569-202-11 HOUSING, CONNECTOR 9P
3-752-391-11 3-752-391-11 I/M DXC327K(U/C/A)
8-759-150-17 8-759-150-17 IC CXD8154M
8-759-243-06 8-759-243-06 IC TC74AC04F
8-759-233-18 8-759-233-18 IC TC74HC374AF
3-167-449-01 3-167-449-01 INSULATOR (1)
3-167-445-04 3-167-445-04 KNOB, SWITCH
A-7515-226-B A-7515-226-B MCB, VA-105R
A-7515-231-B A-7515-231-B MOUNTED C. BOARD, CA-15
A-7520-519-A A-7520-519-A MOUNTED C. BOARD, CN-498
A-7515-271-A A-7515-271-A MOUNTED C. BOARD, ES-2 (N
A-7515-229-B A-7515-229-B MOUNTED C. BOARD, IE-29
A-7515-228-B A-7515-228-B MOUNTED C. BOARD, VA-105B
3-167-450-01 3-167-450-01 PAD, SIDE
3-168-689-01 3-168-689-01 PLATE (2), SHIELD, AT
3-166-319-01 3-166-319-01 PLATE (A), BOTTOM
3-166-292-01 3-166-292-01 PLATE, CONNECTOR
3-167-448-01 3-167-448-01 PLATE, GROUND
3-166-296-02 3-166-296-02 PLATE, SWITCH
1-246-251-11 1-246-251-11 RESISTOR,CHIP 160 1/10W
1-572-328-31 1-572-328-31 SWITCH,CHIP CS-4-12YA
1-569-191-11 1-569-191-11 TERMINAL, SOLDERLESS
8-729-144-56 8-729-144-56 TRANSISTOR 2SC3617
