Model Image
Manufacturer

Sony

Model Number

FH11W

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

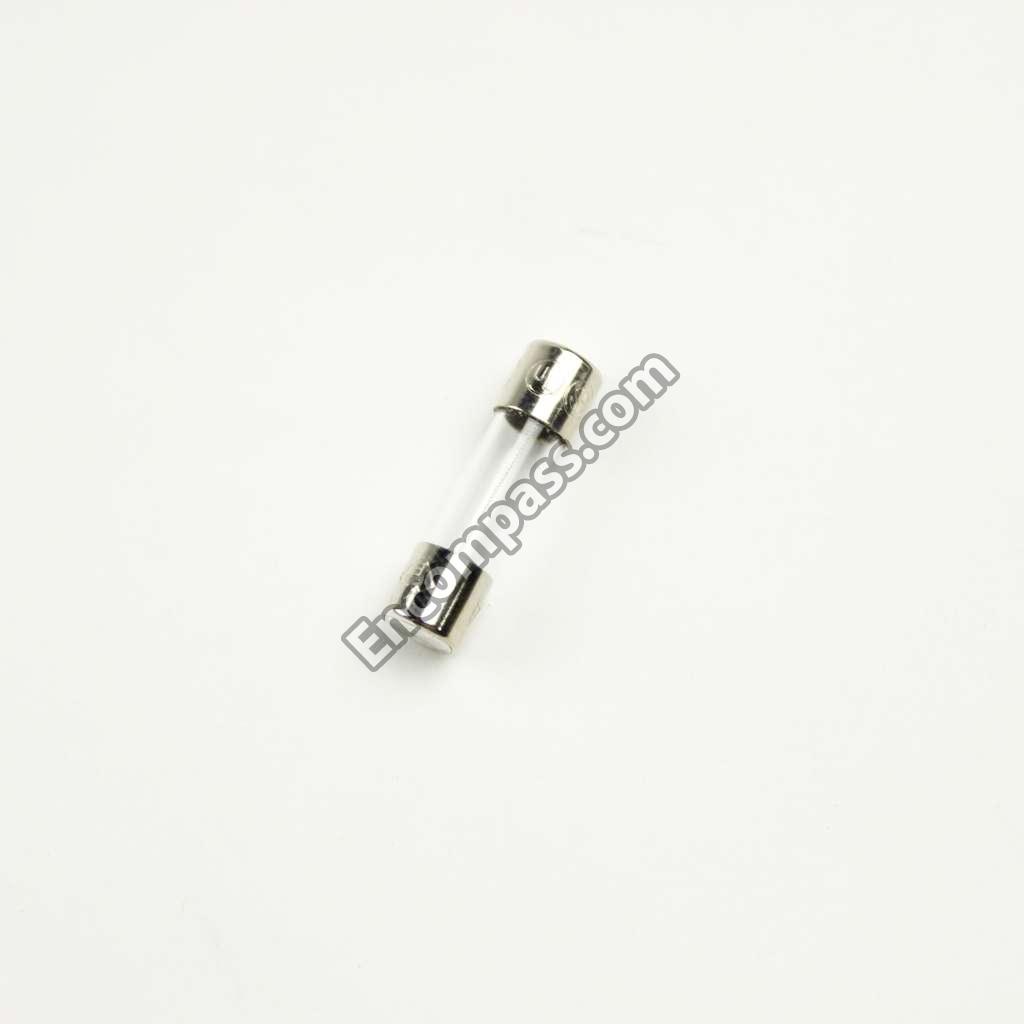

1-532-742-11 1-532-742-11 1.6A 125V ,FUSE
1-230-496-11 1-230-496-11 10K CARBON ADJ, RESISTOR
1-241-786-11 1-241-786-11 22K CARBON ADJ, RESISTOR
1-162-301-31 1-162-301-31 50V 1500PF CERAMIC, CAPAC
4-910-073-11 4-910-073-11 BRACKET
3-325-524-01 3-325-524-01 BRACKET (A), SE
X-3325-504-1 X-3325-504-1 BRACKET (R) ASSY, HOLDER
X-3325-505-1 X-3325-505-1 BRACKET, COUNTER
4-910-065-01 4-910-065-01 BRACKET, JACK
4-910-064-01 4-910-064-01 BRACKET,PCB
4-910-086-11 4-910-086-11 BUTON (PRESET), SQUARE (S
4-910-093-01 4-910-093-01 BUTTON (BAND), SQUARE (SI
4-910-093-11 4-910-093-11 BUTTON (BANDK),SQUARE (BL
4-910-086-01 4-910-086-01 BUTTON (PRESET), SQUARE
4-910-086-21 4-910-086-21 BUTTON (PRESET),SQUARE(SI
3-325-503-51 3-325-503-51 BUTTON (SILVER), FF,REW
3-325-503-61 3-325-503-61 BUTTON (SILVER), PASE
3-325-503-71 3-325-503-71 BUTTON (SILVER),REC MUTE
4-910-094-11 4-910-094-11 BUTTON (UP/DOWN),SQUARE(B
4-910-094-01 4-910-094-01 BUTTON (UP/DOWN),SQUARE(S
4-910-086-51 4-910-086-51 BUTTON(PRESET),SQUARE(BLA
4-910-086-61 4-910-086-61 BUTTON(PRESET),SQUARE(BLA
4-910-086-71 4-910-086-71 BUTTON(PRESET),SQUARE(BLA
4-910-086-81 4-910-086-81 BUTTON(PRESET),SQUARE(BLA
4-910-086-91 4-910-086-91 BUTTON(PRESET),SQUARE(BLA
4-910-086-41 4-910-086-41 BUTTON(PRESET),SQUARE(SIL
4-910-086-31 4-910-086-31 BUTTON(PRESET),SQURE(SILV
3-325-539-01 3-325-539-01 BUTTON, AMS
3-325-544-01 3-325-544-01 BUTTON, DUBBING (SILVER)
3-325-503-21 3-325-503-21 BUTTON, PAUSE (BLACK)
3-325-503-11 3-325-503-11 BUTTON, REC
3-325-503-31 3-325-503-31 BUTTON, REC MUTE (BLACK)
4-910-089-11 4-910-089-11 BUTTON, SQUARE (BLACK)
4-910-087-01 4-910-087-01 BUTTON, SQUARE (SILVER)
4-910-089-01 4-910-089-01 BUTTON, SQUARE (SILVER)
3-325-538-01 3-325-538-01 BUTTON, STOP (SILVER)
3-325-503-01 3-325-503-01 BUTTON,FF,REW (BLACK)
4-910-087-11 4-910-087-11 BUTTON,SQUARE (BLACK)
4-910-331-21 4-910-331-21 CARTON,FH-11W
3-325-564-01 3-325-564-01 CASE (SILVER)
4-910-078-21 4-910-078-21 CASE (SILVER)
3-325-563-01 3-325-563-01 CHASSIS
4-902-941-21 4-902-941-21 CHASSIS
1-422-214-11 1-422-214-11 COIL, AIR-CORE
1-557-896-11 1-557-896-11 CORD,W/CONN.(5P)
4-910-063-01 4-910-063-01 COVER, VS
4-910-324-01 4-910-324-01 CUSHION
4-910-353-01 4-910-353-01 CUSHION (UPPER)
8-719-903-43 8-719-903-43 DIODE PR3432S
4-910-077-01 4-910-077-01 HEAT, SINK
4-910-074-11 4-910-074-11 HOUSE, CONTROL (BLACK)
4-910-074-01 4-910-074-01 HOUSE, CONTROL (SILVER)
4-910-068-01 4-910-068-01 JOINT
3-325-560-01 3-325-560-01 JOINT, CHASSIS
3-325-531-01 3-325-531-01 JOINT, EJECT
4-910-075-01 4-910-075-01 KNOB, CONTROL (SILVER)
4-910-056-01 4-910-056-01 KNOB, POWER (SILVER)
4-910-057-01 4-910-057-01 KNOB, SQUARE (SILVER)
3-323-415-31 3-323-415-31 KNOB, TIMMER SWITCH (BLAC
3-323-415-21 3-323-415-21 KNOB, TIMMER SWITCH (SILV
4-909-977-21 4-909-977-21 KNOB,GRAPHIC EQUALIZER (B
4-910-082-01 4-910-082-01 LABEL, ANTENNA
3-325-551-01 3-325-551-01 LABEL, MODEL NUMBER (E)
4-910-024-01 4-910-024-01 LABEL, MODEL NUMBER (E)
4-910-006-01 4-910-006-01 LABEL, MODEL NUMBER (U/C)
4-910-341-01 4-910-341-01 LABEL,MODEL NUMBER (USA)
3-325-525-01 3-325-525-01 LEVER, SE
X-3325-507-1 X-3325-507-1 LID (B) ASSY, CASSETTE (B
X-3325-506-1 X-3325-506-1 LID (B) ASSY, CASSETTE (S
A-2056-284-A A-2056-284-A MCB,AUDIO
A-4351-440-A A-4351-440-A MCB,TUNER
3-325-566-01 3-325-566-01 MOLD, CASSETTE RETAINER
4-910-339-01 4-910-339-01 PACKING (LARGE),WOOFER
X-4910-011-1 X-4910-011-1 PANEL (L) ASSY, FRONT (SI
X-4910-012-1 X-4910-012-1 PANEL (R) ASSY, FRONT (SI
4-910-355-01 4-910-355-01 PARTITION
1-560-077-00 1-560-077-00 PIN, CONNECTOR (U TYPE)
3-325-550-01 3-325-550-01 PLATE (A), SHIELD
3-325-559-01 3-325-559-01 PLATE, BOTTOM
4-909-975-01 4-909-975-01 PLATE, INDICATOR (SILVER)
4-910-079-01 4-910-079-01 PLATE, JACK
4-910-098-11 4-910-098-11 PLATE, JACK
3-325-534-01 3-325-534-01 PLATE, ORNAMENTAL
3-325-534-11 3-325-534-11 PLATE, ORNAMENTAL
4-910-090-01 4-910-090-01 PLATE, SHIELD
4-910-359-01 4-910-359-01 PLATE, SHIELD
1-564-510-31 1-564-510-31 PLUG, CONNECTOR 7P
1-615-442-11 1-615-442-11 PRINTED CIRCUIT BOARD, FU
1-615-448-11 1-615-448-11 PRINTED CIRCUIT BOARD, FU
1-615-445-11 1-615-445-11 PRINTED CIRCUIT BOARD, MI
1-615-443-11 1-615-443-11 PRINTED CIRCUIT BOARD, PH
1-615-440-11 1-615-440-11 PRINTED CIRCUIT BOARD, PO
1-615-446-11 1-615-446-11 PRINTED CIRCUIT BOARD,HEA
1-615-444-11 1-615-444-11 PRINTED CIRCUIT BOARD,SPE
3-325-574-01 3-325-574-01 REINFORCEMENT
4-910-062-01 4-910-062-01 SHAFT, SLIDE
3-325-570-01 3-325-570-01 SHEET, GROUND
3-325-565-01 3-325-565-01 SHEET, INSTRUCTION, REMOT
4-872-911-00 4-872-911-00 SHEET, PROTECTION
3-325-572-01 3-325-572-01 SPRING
3-325-523-01 3-325-523-01 SPRING (STEEL)
1-570-204-11 1-570-204-11 SWITCH, KEYBOARD
4-910-081-01 4-910-081-01 TERMINAL BOARD, ROD ANTEN
1-448-257-11 1-448-257-11 TRANSFORMER, POWER
