Model Image
Manufacturer

Sony

Model Number

FITTING

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
3-969-297-01 3-969-297-01 ADAPTOR (CH), CCD FITTING
3-972-413-01 3-972-413-01 BOARD, BL PC
1-801-480-11 1-801-480-11 C1801485113845GGF
1-115-171-11 1-115-171-11 CAPACITOR, (SMD) 3.3MF/16
1-113-520-11 1-113-520-11 CAPACITOR,CHIP CERAMIC 10
X-3946-882-1 X-3946-882-1 CASE (2) ASSY, MICROPHONE
1-778-590-21 1-778-590-21 CONNECTOR, BOARD TO BOARD
1-778-596-21 1-778-596-21 CONNECTOR, BOARD TO BOARD
1-778-597-21 1-778-597-21 CONNECTOR, BOARD TO BOARD
1-784-939-11 1-784-939-11 CONNECTOR, BOARD TO BOARD
1-778-518-11 1-778-518-11 CONNECTOR, EXTERNAL
1-778-793-21 1-778-793-21 CONNECTOR, FFC/FPC (ZIF)
1-691-380-21 1-691-380-21 CONNECTOR, FFC/FPC 16P
1-766-359-21 1-766-359-21 CONNECTOR, FFC/FPC 29P
1-766-335-21 1-766-335-21 CONNECTOR, FFC/FPC 5P
3-972-360-01 3-972-360-01 COVER, DV TERMINAL
3-972-412-01 3-972-412-01 CUSHION (3), LCD (C
3-973-586-01 3-973-586-01 CUSHION (LOWER)
3-973-585-01 3-973-585-01 CUSHION (UPPER)
3-973-947-01 3-973-947-01 CUSHION, MICROPHONE (
1-411-951-21 1-411-951-21 DELAY I
6-500-994-01 6-500-994-01 ELEMENT, HALL HW-105C-FT-
1-547-923-21 1-547-923-21 FILTER BLOCK, OPTICAL
1-233-733-21 1-233-733-21 FILTER, BAND PASS (5.5MHZ
1-233-734-21 1-233-734-21 FILTER, LOW PASS (22MHZ)
1-533-760-21 1-533-760-21 FUSE 1.4A
3-972-605-01 3-972-605-01 GUIDE, LCD LOCK
3-748-773-04 3-748-773-04 HARD, S
3-974-404-01 3-974-404-01 HOLDER, CAP
3-858-174-31 3-858-174-31 I/M DCR-PC7 UC2
3-858-174-71 3-858-174-71 I/M DCR-PC7 UC2
8-752-074-59 8-752-074-59 IC CXA2023R
8-752-076-97 8-752-076-97 IC CXA2023R (T4)
8-759-385-94 8-759-385-94 IC CXA8053Q-TE-L
8-752-389-59 8-752-389-59 IC CXD2426R
8-759-445-60 8-759-445-60 IC HD6433837TB24X
8-759-430-57 8-759-430-57 IC M62367GP-75ED
8-759-433-16 8-759-433-16 IC MB4195PFV-G-BND-ER
8-759-426-25 8-759-426-25 IC MB88346LPFV-G-BND-ER
8-759-427-87 8-759-427-87 IC MC74HC4052DTR2
8-749-013-13 8-749-013-13 IC RS-70-TU
6-707-676-01 6-707-676-01 IC S-8423YFS-T2
8-759-459-72 8-759-459-72 IC S579117PZ-TEB
8-759-434-46 8-759-434-46 IC TA8486F(EL)
8-759-426-24 8-759-426-24 IC TC7ST08FU(TE85R)
1-801-481-11 1-801-481-11 IC TGA-A2008HF
1-801-482-11 1-801-482-11 IC TGA-D2049HF
1-801-473-11 1-801-473-11 IC TGA-D2707HF
1-801-475-11 1-801-475-11 IC TGA-D3101HA
1-801-476-11 1-801-476-11 IC TGA-D3105HA
1-801-477-11 1-801-477-11 IC TGA-D3106HA
1-801-478-11 1-801-478-11 IC TGA-D3107HA
1-801-479-11 1-801-479-11 IC TGA-D3111HA
1-801-485-11 1-801-485-11 IC TGA-JBT9P49-AS
1-801-486-11 1-801-486-11 IC TGA-MSM6602A-3BV
1-801-491-13 1-801-491-13 IC TGA-P912032-4800CM
1-801-493-14 1-801-493-14 IC TGA-P912032-4800MS
1-801-492-12 1-801-492-12 IC TGA-P912032-4800SP
1-801-484-11 1-801-484-11 IC TGA-UPD82014UB-501-J
8-759-488-73 8-759-488-73 IC TGA-ZA4024GFZ
1-801-483-11 1-801-483-11 IC TGAD
8-759-432-00 8-759-432-00 IC TSB11LV01PT-TEB
1-469-522-11 1-469-522-11 INDUCTOR 1.0UH

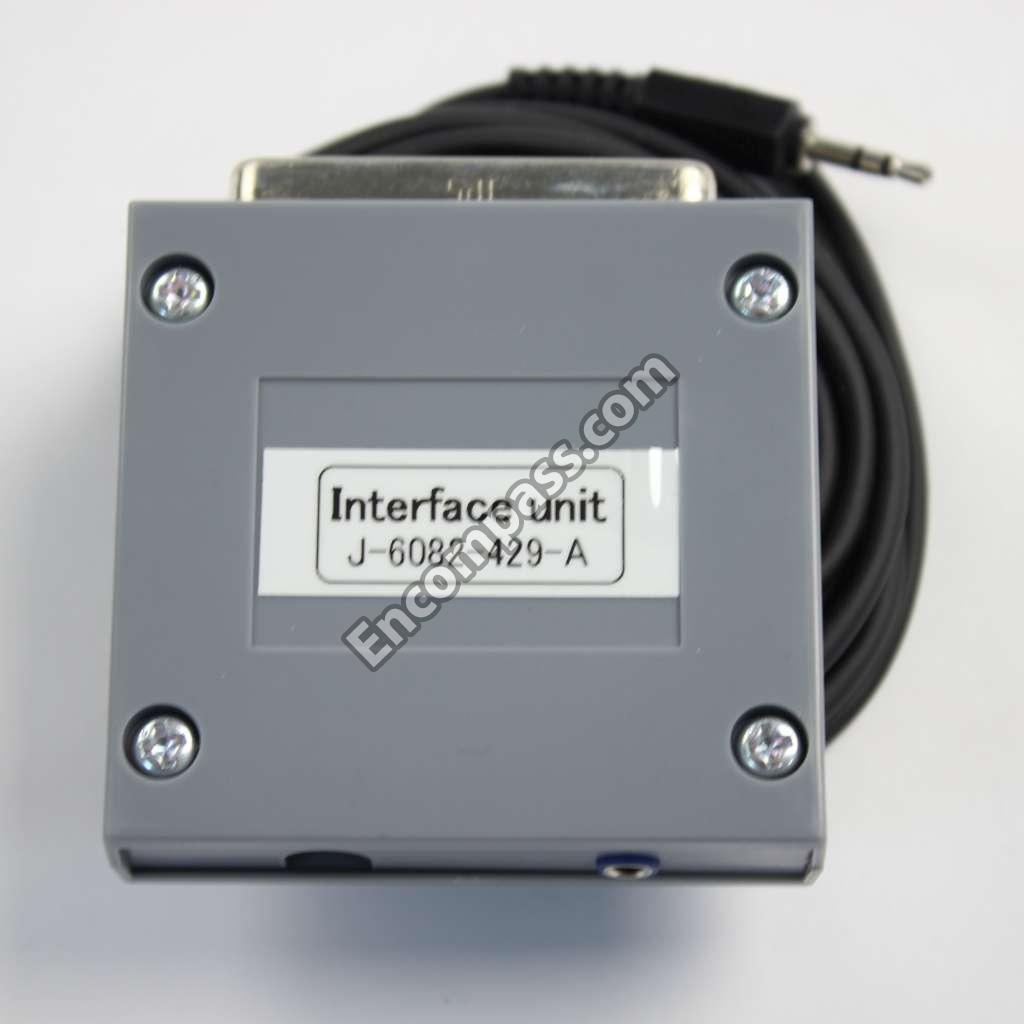

J-6082-429-A J-6082-429-A LANC I/F
3-972-406-04 3-972-406-04 LCD CASE (INNER)
8-719-059-47 8-719-059-47 LED PG1111R-TR
1-533-761-21 1-533-761-21 LINK, IC (SMD)
1-542-300-11 1-542-300-11 MICROPHONE UNIT
A-7066-864-A A-7066-864-A MOUNTED C. BOARD MR-36
1-778-509-21 1-778-509-21 PIN, CONNECTOR 11P
1-778-506-21 1-778-506-21 PIN, CONNECTOR 2P
1-778-507-21 1-778-507-21 PIN, CONNECTOR 4P
1-778-508-21 1-778-508-21 PIN, CONNECTOR 6P
3-972-372-01 3-972-372-01 PLATE (INNER), ORNAMENTAL
3-974-810-01 3-974-810-01 PLATE,S
