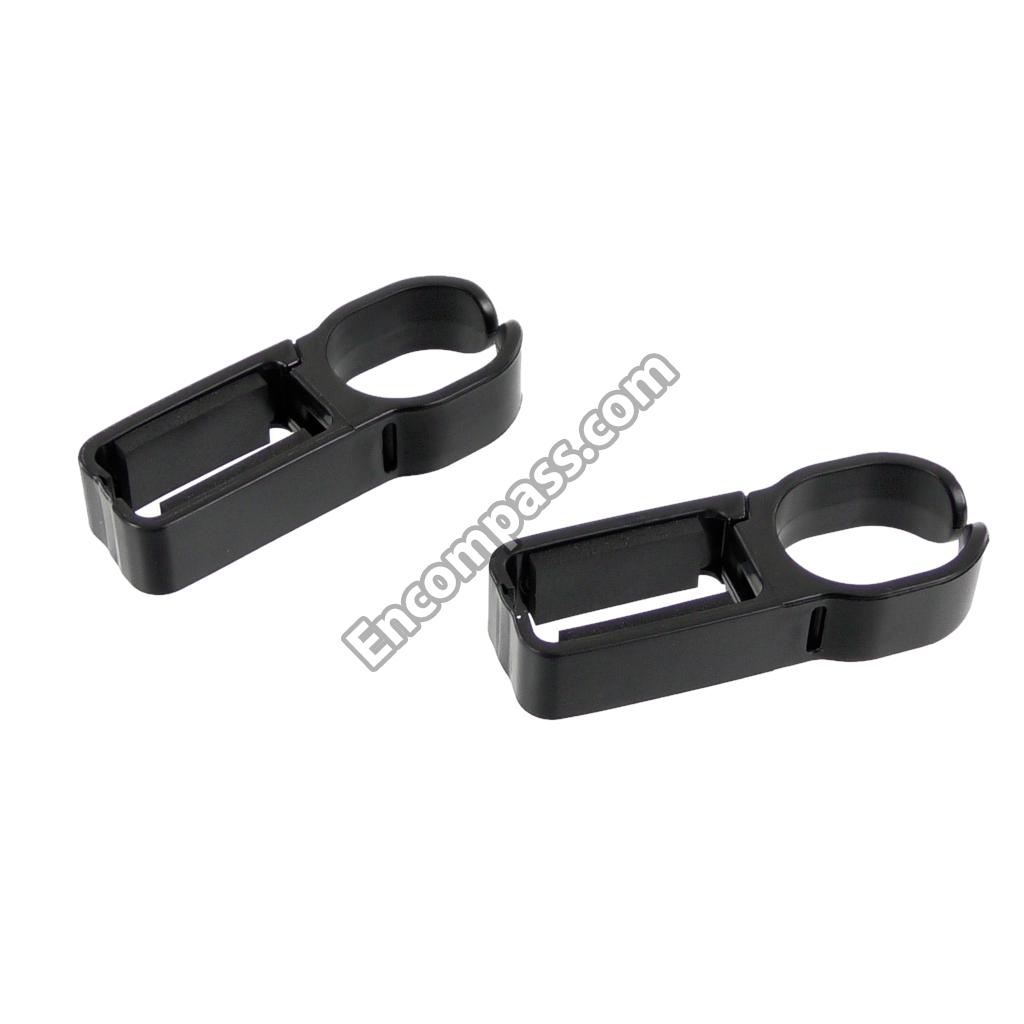

Model Image
Manufacturer

Sony

Model Number

FW50BZ30J

Description

50-inch Led, 4k Hdr, Professional Display

Interactive Exploded View

Parts List

Part Number Description
A-5031-263-A A-5031-263-A (MAIN CBA) COMPL_SVC_BM5A_APHB_WW (UCF)

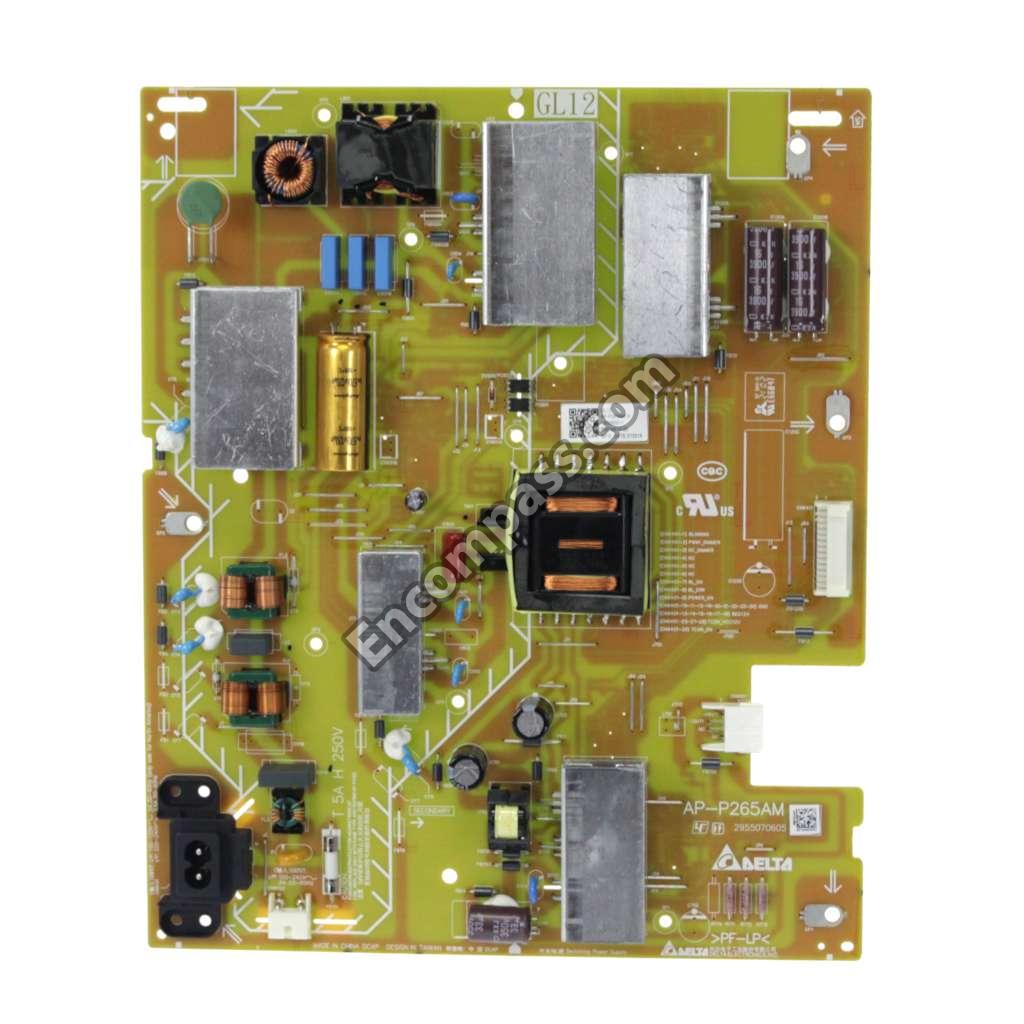

1-009-800-11 1-009-800-11 (POWER CBA) GL12-STATIC CONVERTER (TV) (UCF)
5-022-201-12 5-022-201-12 BAG, CL ASSY (SM LYX) (UCF)
5-022-432-21 5-022-432-21 BEZEL ASSY (ML PHN) (UCF)
5-022-432-22 5-022-432-22 BEZEL ASSY (ML PHN) (UCF) (PANEL PART)
5-022-432-12 5-022-432-12 BEZEL ASSY (ML PHN) (UCF) (PANEL PART)
5-021-551-61 5-021-551-61 BRACKET SIDE (BNN) A (UCF)
5-015-416-62 5-015-416-62 BRACKET SIDE (BNN) A (UCF)
5-009-258-21 5-009-258-21 BRACKET, WIFI(BNN) (UCF)
5-009-258-11 5-009-258-11 BRACKET, WIFI(BNN) (UCF)
1-005-621-12 1-005-621-12 C7L AC POWER CODE SETS (EU) (UCF)

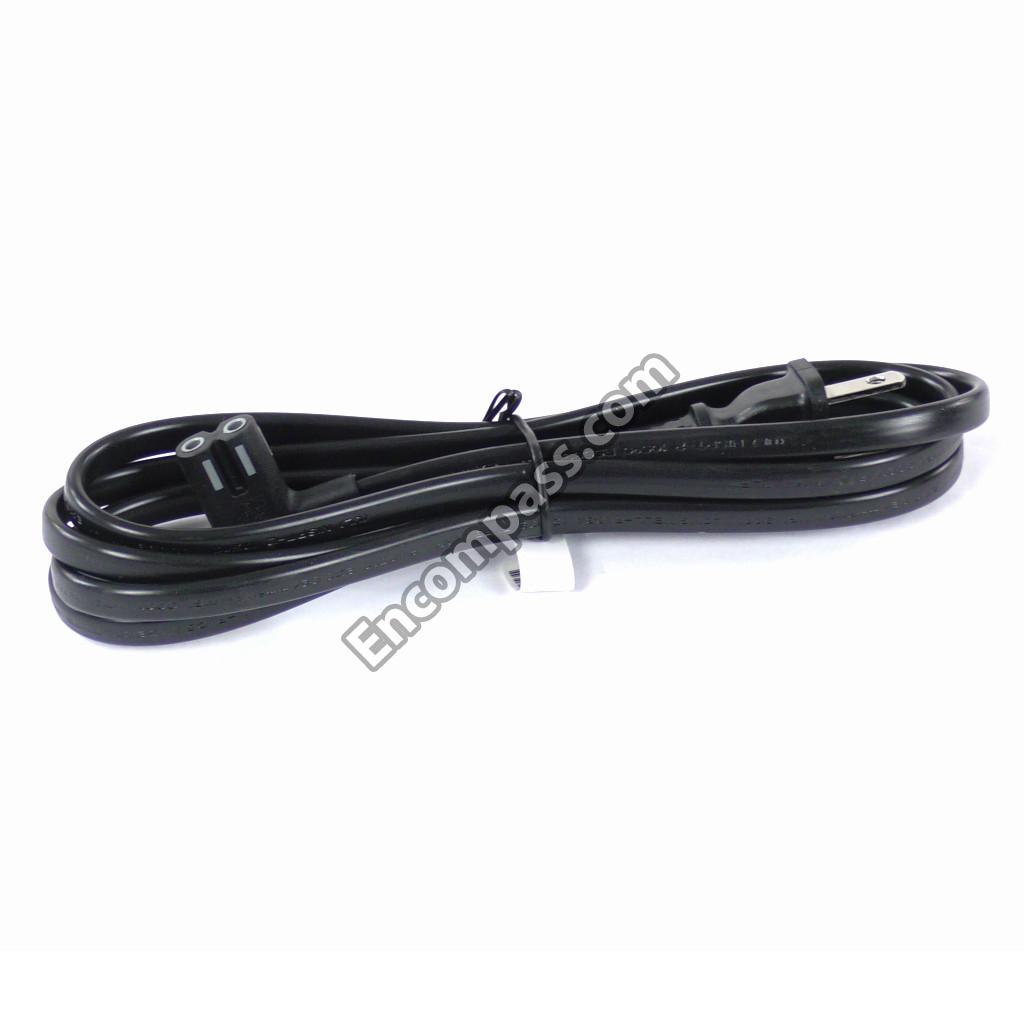

1-005-642-11 1-005-642-11 C7L AC POWER CODE SETS (US) (UCF)
1-005-634-11 1-005-634-11 C7L AC POWER CORD SETS (EU) (UCF)
1-011-001-11 1-011-001-11 CONNECTOR ASSY 30P (UCF)
1-010-989-12 1-010-989-12 CONNECTOR ASSY 4P (SP) (UCF)
5-025-951-11 5-025-951-11 COVER, BTM(SM PHN) A (UCF)
5-023-069-23 5-023-069-23 COVER, TOP(COM) (UCF)
5-023-172-01 5-023-172-01 DIFFUSER PLATE (PHN M) (UCF) (PANEL PART)
1-011-002-11 1-011-002-11 FLEXIBLE FLAT CABLE 20P (UCF)
1-011-003-11 1-011-003-11 FLEXIBLE FLAT CABLE 20P (UCF)
1-011-004-11 1-011-004-11 FLEXIBLE FLAT CABLE 25P (UCF)
1-011-005-11 1-011-005-11 FLEXIBLE FLAT CABLE 25P (UCF)
1-011-007-11 1-011-007-11 FLEXIBLE FLAT CABLE 51P (UCF)
1-011-010-11 1-011-010-11 FLEXIBLE FLAT CABLE 60P (UCF)
1-011-009-11 1-011-009-11 FLEXIBLE FLAT CABLE 60P (UCF) (PANEL PART)
5-023-171-01 5-023-171-01 FORMING REF. SHEET (PHN M) (UCF) (PANEL PART)
4-744-177-01 4-744-177-01 GASKET SB (3L BGO) (UCF) (PANEL PART)
A-5028-234-A A-5028-234-A HT2_WW_CT_PR MOUNT (UCF)
A-5028-235-A A-5028-235-A HT2_WW_EV_PR MOUNT (UCF)
5-026-086-01 5-026-086-01 LABEL, SIDE TERMINAL(PHN) (UCF)
1-011-263-11 1-011-263-11 LIQUID CRYSTAL ELEMENT(A500QVN (UCF)
5-023-173-01 5-023-173-01 MICROLENS ON PRISM (PHN M) (UCF) (PANEL PART)
5-022-440-21 5-022-440-21 MID CHASSIS BT ASSY (ML PHN) (UCF) (PANEL PART)
5-022-440-11 5-022-440-11 MID CHASSIS BT ASSY (ML PHN) (UCF) (PANEL PART)
5-022-444-21 5-022-444-21 MID CHASSIS SIDE ASSY (ML PHN) (UCF) (PANEL PART)
5-022-444-11 5-022-444-11 MID CHASSIS SIDE ASSY (ML PHN) (UCF) (PANEL PART)
5-022-436-21 5-022-436-21 MID CHASSIS TP ASSY (ML PHN) (UCF) (PANEL PART)
5-022-436-11 5-022-436-11 MID CHASSIS TP ASSY (ML PHN) (UCF) (PANEL PART)
1-011-264-11 1-011-264-11 MOUNTED PWB E-T-CON (50) (UCF)
1-010-132-11 1-010-132-11 MOUNTED PWB LS BAR (PHN M) (UCF)
A-5027-806-A A-5027-806-A P-MOD (YSBM050CNU11) (UCF)
5-032-679-01 5-032-679-01 POLARIZER F/CF (66.T4U69.118) (UCF) (PANEL PART)
5-032-680-01 5-032-680-01 POLARIZER R/TFT (66.C4U73.111) (UCF) (PANEL PART)

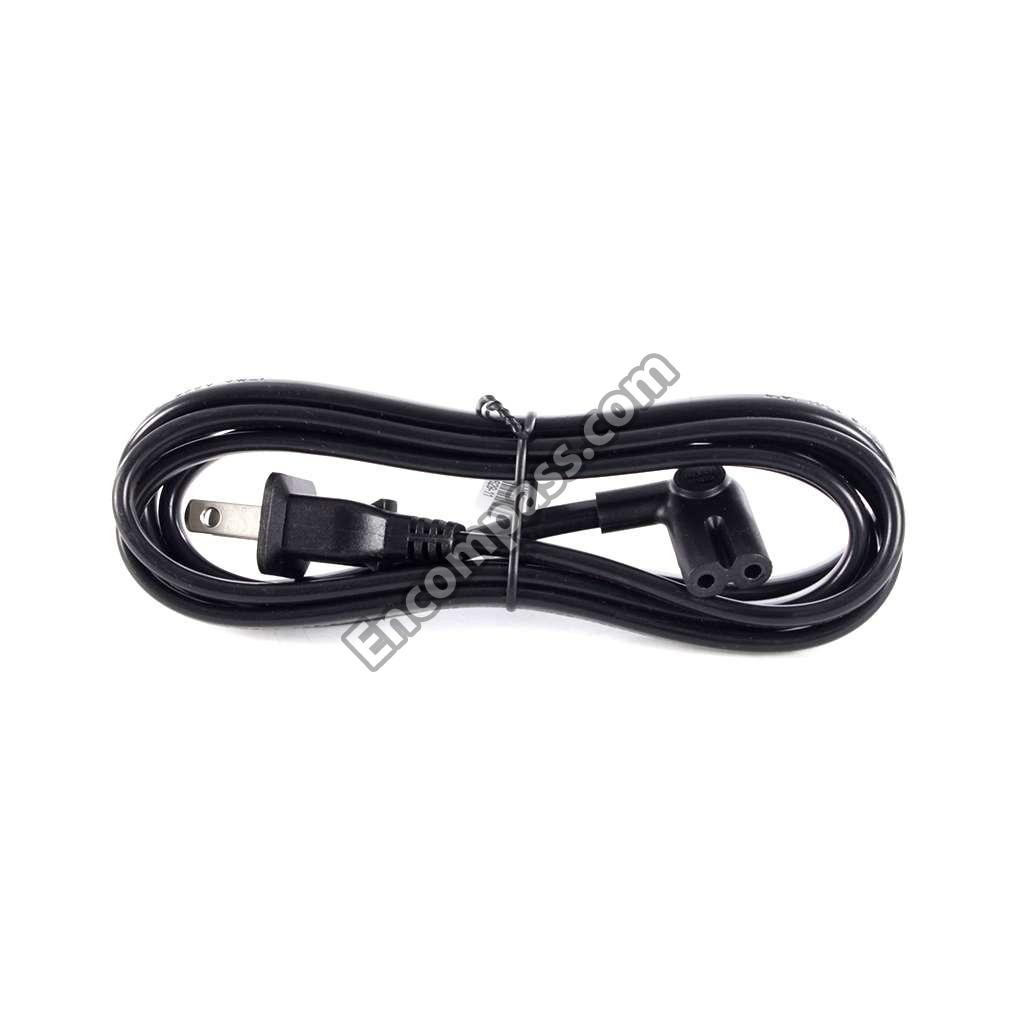

1-005-629-11 1-005-629-11 POWER-SUPPLY CORD SET (UCF)
7-600-040-44 7-600-040-44 RADIATOR ADHESIVE (SV380C) (UCF)
5-027-083-22 5-027-083-22 REAR,COVER,ASSY(ML PHN) (UCF)
5-027-091-12 5-027-091-12 REFERENCE GUIDE (UCF)
1-493-483-11 1-493-483-11 REMOTE COMMANDER (RMT-TB400U) (UCF)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UCF) (PANEL PART)
2-580-592-01 2-580-592-01 SCREW, +PSW M3X8 (UCF)
4-595-704-01 4-595-704-01 SCREW, +PSW M5X14 (UCF)
5-030-309-11 5-030-309-11 SETUP GUIDE (UCF)
5-023-072-01 5-023-072-01 SHEET, INSULATION (ML PHN) A (UCF)
5-023-072-11 5-023-072-11 SHEET, INSULATION (ML PHN) A (UCF)
4-457-451-11 4-457-451-11 SHEET, THERMAL(BAF) (UCF)
1-012-843-11 1-012-843-11 SOURCE DRIVER IC MT BOARD (46.S0966.373) (UCF) (PANEL PART)
1-009-790-31 1-009-790-31 SP-BOX ASSY,FY21 W30 ONE BOX (UCF)
1-009-790-51 1-009-790-51 SP-BOX ASSY,FY21 W30 ONE BOX (UCF)

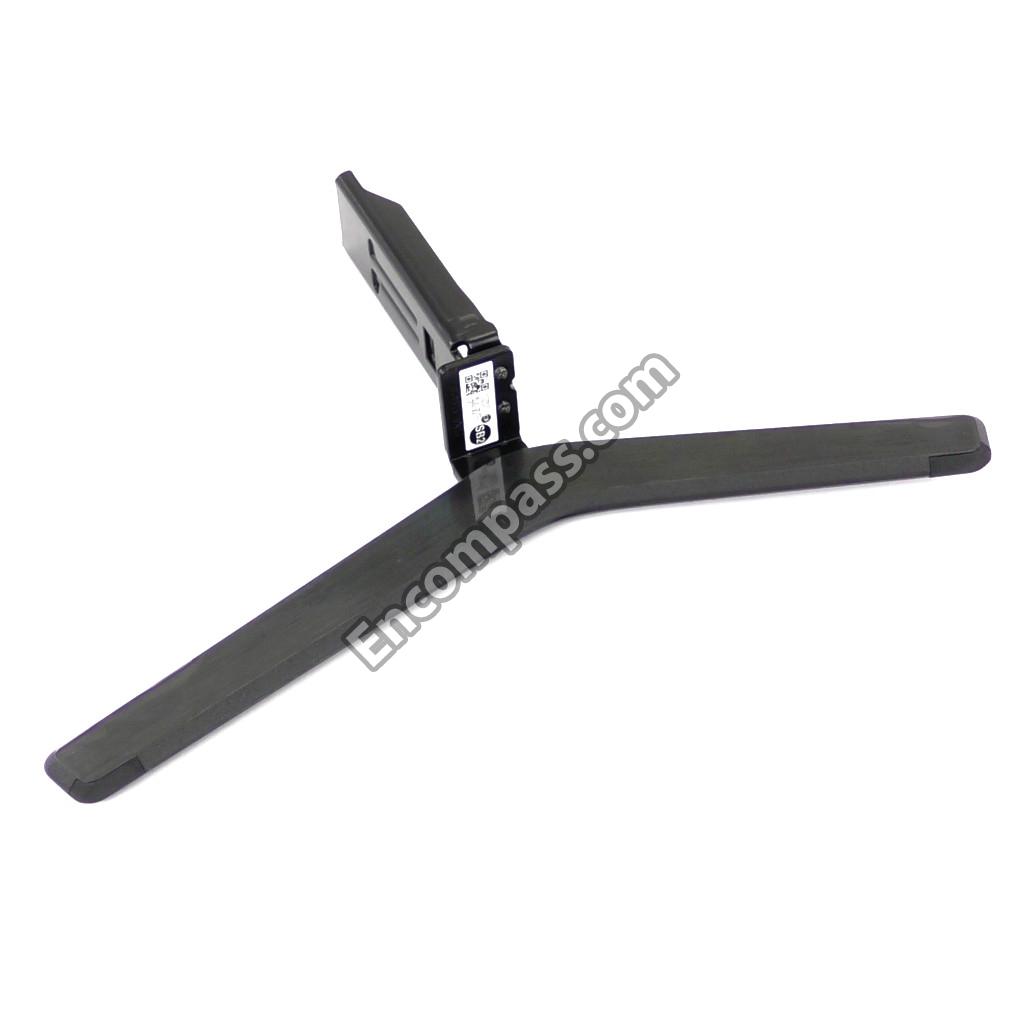

5-022-892-21 5-022-892-21 STAND, L (ML LYX) A (UCF)
5-022-893-21 5-022-893-21 STAND, R (ML LYX) A (UCF)
5-027-414-01 5-027-414-01 VESA SPACER S A (COM) (UCF)

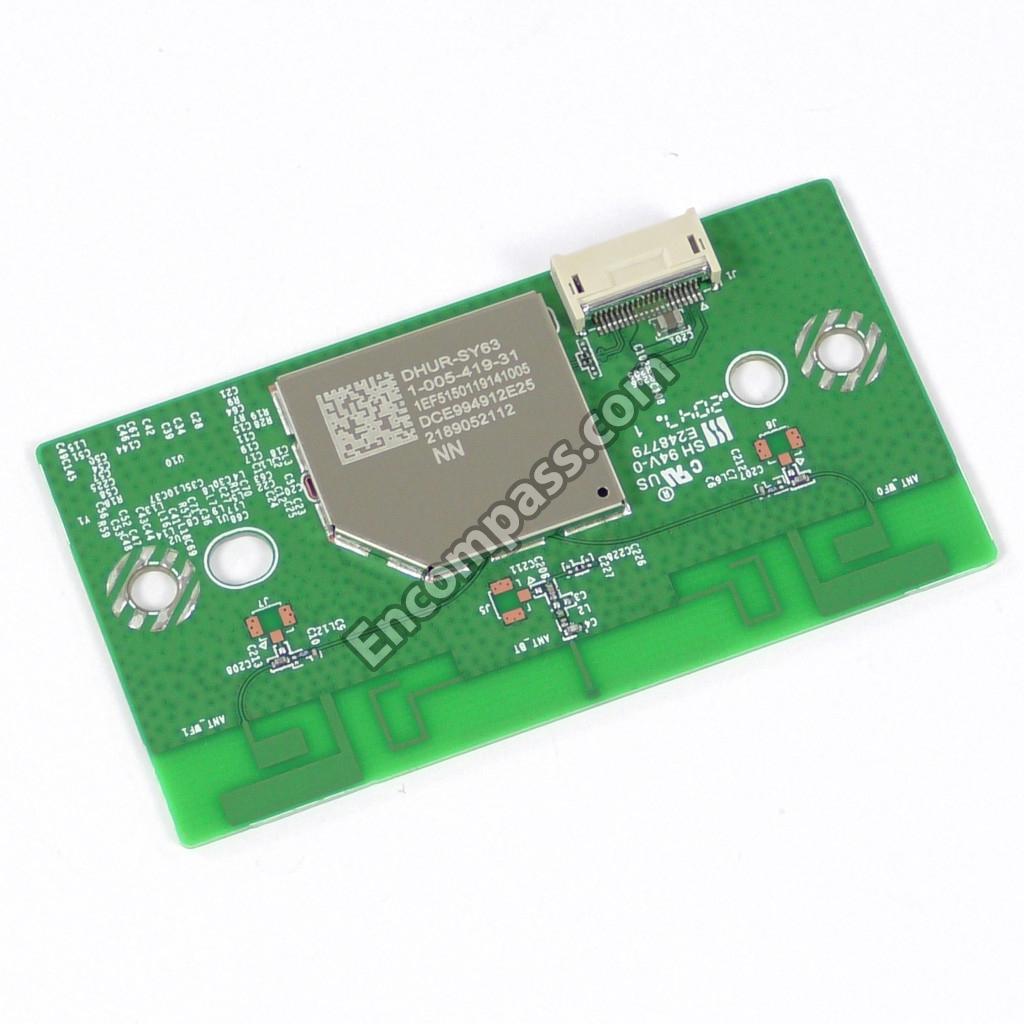

1-005-419-31 1-005-419-31 WLAN/BT MODULE (11AC) (UCF)
